ONE Cartridge Tank Filters, EF-835-1, EF-835-2 Installation Manual

™

ONE

Cartridge Tank Filters

TABLE OF CONTENTS

Preinstallation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Bypass Installation for EF-835-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Bypass Installation for EF-835-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Installation Instructions for EF-835-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7

Installation Instructions for EF-835-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8

Cartridge Replacement Instructions for EF-835-1 . . . . . . . . . . . . . . . . . . . . 9

Cartridge Replacement Instructions for EF-835-2 . . . . . . . . . . . . . . . . . 10-11

Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Replacement Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Installation Fitting Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-14

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Your ONE™ cartridge tank filters are precision built, high quality products. These units will deliver filtered water
for many years to come, when installed and operated properly. Please study this manual carefully and understand
the cautions and notes before installing. This manual should be kept for future reference. If you have any questions
regarding your water filter, contact your local dealer, or the manufacturer at the following:

Phone: [phone] • Fax: [phone]

1900 Prospect Court • Appleton, WI 54914

PREINSTALLATION INSTRUCTIONS:

The manufacturer has preassembled the cartridge filter tank. The actual cartridge filter is shipped
separately and will need to be installed into the tank to complete assembly.

The dealer should read this complete guide to familiarize the installer with assembly, installation and
operation of the cartridge filter system.

The site selection for the ONE™ Filtration System may vary depending on the purpose it will serve.
This versatile filter may be used as pre- or post-filtration in a water treatment system. Depending on the
application, this system can also be utilized as a single tank system.

Regardless of application, provisions should be made so that the system is located close to a drain.
An optional bottom drain is available for these cartridge filter systems to allow rinsing of the cartridge.
When replacing the cartridge, water may spill from the housing; therefore, precautions should be taken
to prevent any damage due to water while rinsing or replacing the cartridge.

For the owner, please read operating and cartridge replacement change out instructions.

BYPASS INSTALLATION FOR EF-835-1:

The bypass valve is typically used to isolate the filter from the plumbing system’s water pressure in order
to perform repairs or maintenance. The 1" full flow bypass valve incorporates four positions, including a
diagnostic position that allows a service technician to have pressure to test a system while still providing
untreated water to the building. Be sure to install bypass valve onto the head assembly before beginning
plumbing. Or, make provisions in the plumbing system for a bypass. The bypass body and rotors are
glass-filled Noryl
to help prevent valve seizing after long periods of non-use. Internal O-rings can easily
be replaced if service is required.

The bypass consists of two interchangeable plug valves that are operated independently by red arrow
shaped handles. The handles identify the direction of flow. The plug valves enable the bypass valve to
operate in four positions.

1. NORMAL OPERATION POSITION: The inlet and outlet handles point in the direction of flow,
indicated by the engraved arrows on the control valve (Fig. 1, page 4).

2. BYPASS POSITION: The inlet and outlet handles point to the center of the bypass. The system is
isolated from the water pressure in the plumbing system. Untreated water is supplied to the building
(Fig. 2, page 4).

®

and the nuts and caps are glass-filled polypropylene. All seals are self-lubricating EPDM

3. DIAGNOSTIC POSITION: The inlet handle points toward the control valve and the outlet handle
points to the center of bypass valve. Untreated supply water is allowed to flow to the system and to
the building, while not allowing water to exit from the system to the building (Fig. 3, page 4).

3

4. SHUT OFF POSITION: The inlet handle points to the center of the bypass valve and the outlet

handle points away from the control valve. The water is shut off to the building. The water treatment
system will depressurize upon opening a tap in the building. If water is available on the outlet side of
the filter, it is an indication of water bypassing the system (Fig. 4) (i.e. a plumbing cross-connection
somewhere in the building).

NORMAL OPERATION POSITION

Figure 1

DIAGNOSTIC POSITION

BYPASS POSITION

Figure 2

SHUT OFF POSITION

Figure 3

Figure 4

4

BYPASS INSTALLATION FOR EF-835-2:

Provisions should be made to install three bypass valves around the EF-835-2 cartridge filter tank. Because
of the pipe size, this will need to be created on the job site. Any piping materials may be used; however,
be sure to observe local plumbing codes. These bypass valves should allow for water to be turned off to the
filter tank for future cartridge replacement, and allow for system bypassing should other service be required.

NOTE: Drain should be considered in plumbing of
system as per diagram. Opening drain valve will allow
for flushing of cartridge. Closing inlet and outlet valve
and opening drain will relieve pressure on filter tank for
cartridge replacement.

5

INSTALLATION INSTRUCTIONS FOR EF-835-1:

GENERAL INSTALLATION & SERVICE WARNINGS

The control valve, fittings and/or bypass are designed to accommodate minor plumbing misalignments.
There is a small amount of “give” to properly connect the piping, but the filter is not designed to support the
weight of the plumbing.

Do not use Vaseline, oils, other hydrocarbon lubricants or spray silicone anywhere. A silicone lubricant may
be used on black O-rings, but is not necessary. Avoid any type of lubricants, including silicone, on red or

clear lip seals.

®

Do not use pipe dope or other sealants on threads. Teflon
NPT inlet and outlet, the brine line connection at the control valve, and on the threads for the drain line
connection. Teflon® tape is not used on the nut connections or caps because O-ring seals are used.
The nuts and caps are designed to be unscrewed or tightened by hand or with the special plastic Service
Wrench, #CV3193-02. If necessary, pliers can be used to unscrew the nut or cap. Do not use a pipe
wrench to tighten nuts or caps. Do not place screwdriver in slots on caps and/or tap with a hammer.

SITE REQUIREMENTS

• water pressure – 25-100 psi

• water temperature – 33-100°F (0.5-37.7°C)

• the tank should be on a firm level surface

tape must be used on the threads of the 1"

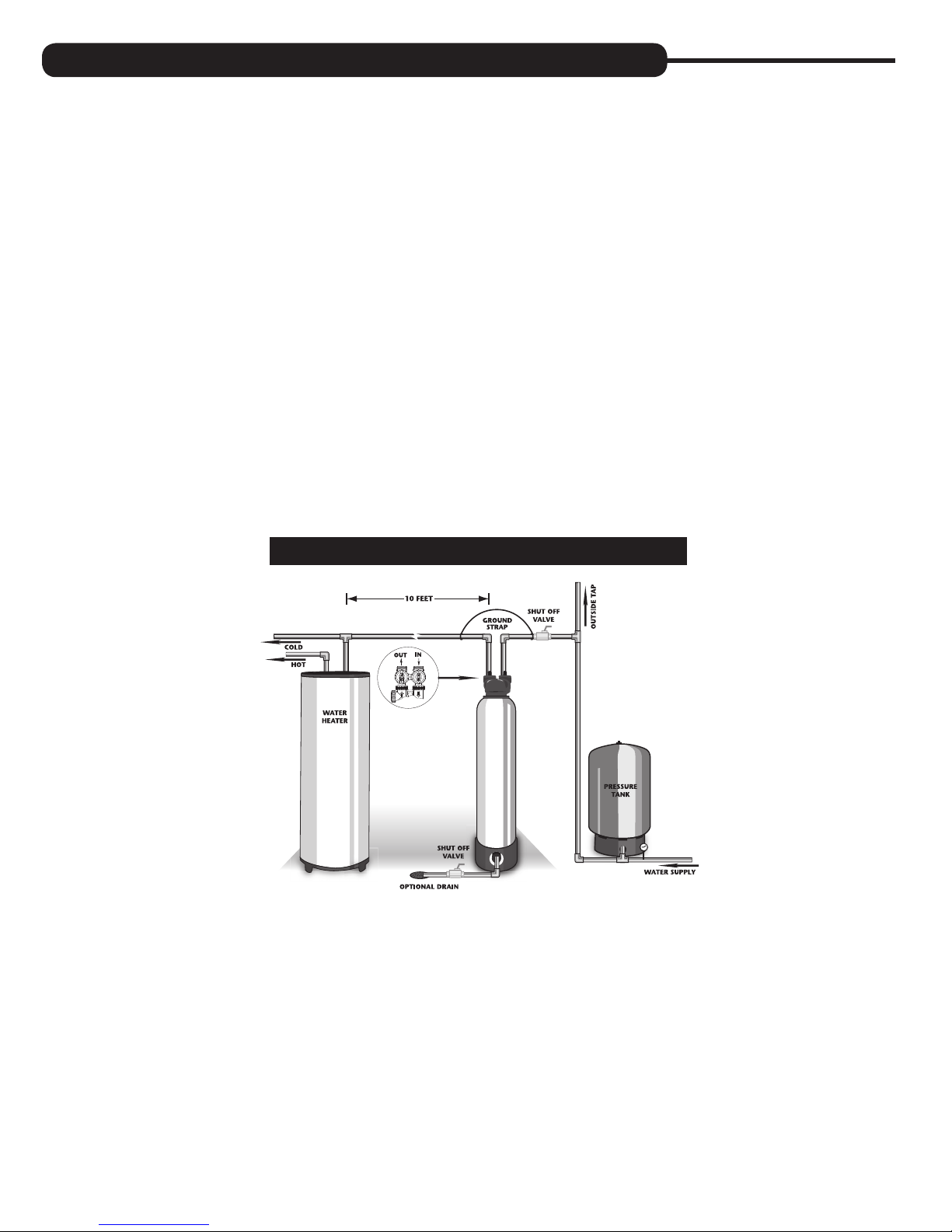

TYPICAL INSTALLATION

1. This unit is equipped with a 1.25" CPVC connection at the bottom of the tank. This connection is for an
optional drain. It may be desirable to rinse the cartridge filter periodically. If this is installed, location of the
tank to the actual drain should be as close as possible.

2. Do not install any water filter with less than 10 feet of piping between its outlet and the inlet
of a water heater.

3. Do not locate unit where it or its connections (including the drain) will ever be subjected to room
temperatures under 33°F.

4. Do not subject the tank to any vacuum, as this may cause an “implosion” and could result in leaking. If
there is a possibility a vacuum could occur, please make provision for a vacuum breaker in the installation.

6

5. INLET/OUTLET PLUMBING: Be sure to install bypass valve onto main control valve before

beginning plumbing. Make provisions to bypass any outside hydrant at this time. Install an inlet
shutoff valve and plumb to the unit’s bypass valve inlet located at the right rear as you face the
unit. There are a variety of installation fittings available. They are listed under Installation Fitting
Assemblies, pages 13-14. When assembling the installation fitting package (inlet and outlet), connect
the fitting to the plumbing system first and then attach the nut, split ring and O-ring. Heat from
soldering or solvent cements may damage the nut, split ring or O-ring. Solder joints should be cool
and solvent cements should be set before installing the nut, split ring and O-ring. Avoid getting solder
flux, primer, and solvent cement on any part of the O-ring, split rings, bypass valve or control valve. If
the building’s electrical system is grounded to the plumbing, install a copper grounding strap from the
inlet to the outlet pipe. Plumbing must be done in accordance with all applicable local codes.

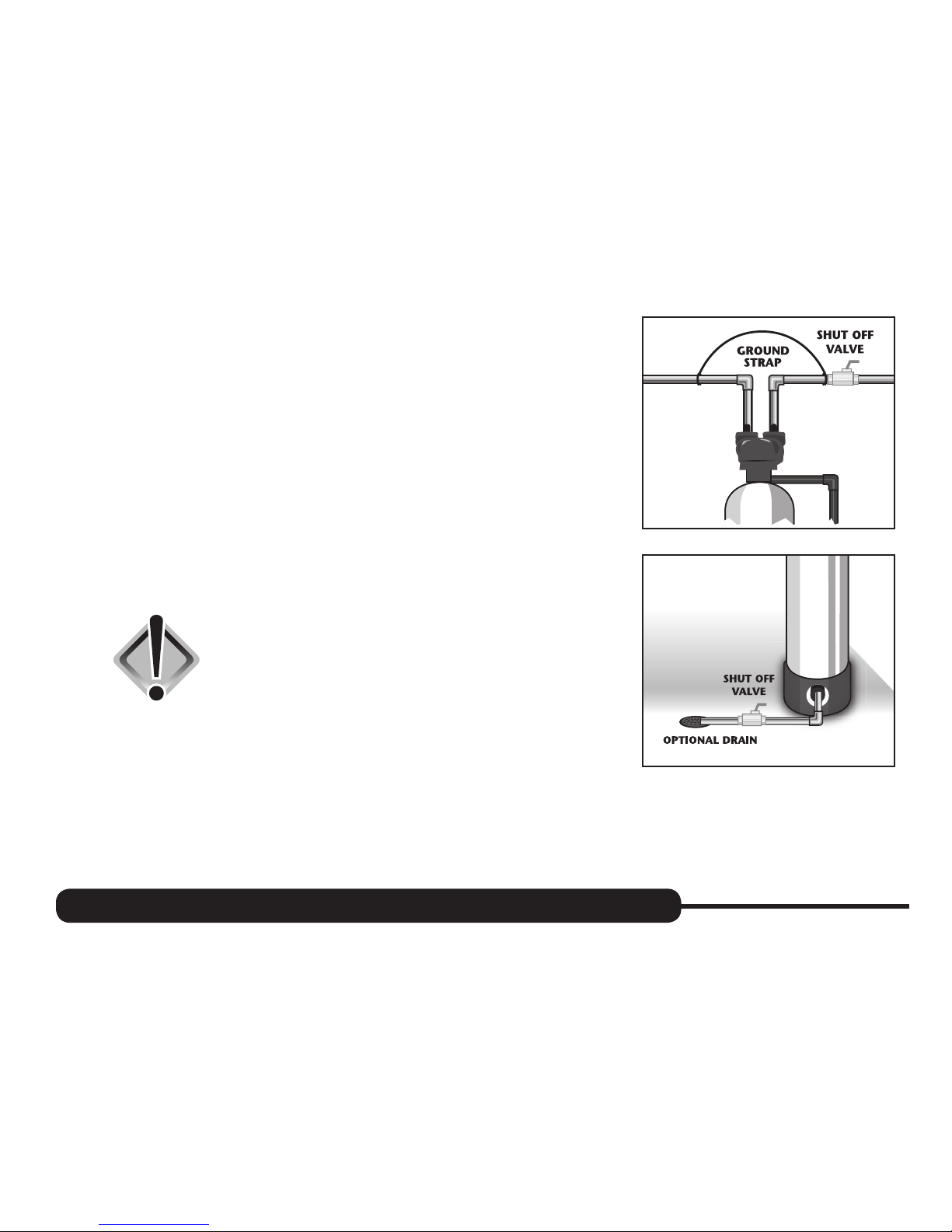

6. INSTALLING GROUND: To maintain an electrical ground

in metal plumbing of a home’s cold water piping (such as
a copper plumbing system), install a ground clamp or
jumper wiring.

NOTE: If replacing an existing filter, also replace the ground

clamps/wire.

7. DRAIN LINE: First, be sure that the drain can handle the rinse

rate of the system. At the bottom of the tank is a 1.25" CPVC
socket to accommodate a drain. The manufacturer does not
provide the fittings for this. The purpose of the drain
is to manually (or automatically, if desired) rinse the filter
tank and cartridge of any debris. This can prolong the life
of the cartridge.

CAUTION: If a drain is not used or

the installation makes this
unavailable, the 1.25" hole must
be plugged or water will flow
from this outlet.

INSTALLATION INSTRUCTIONS FOR EF-835-2:

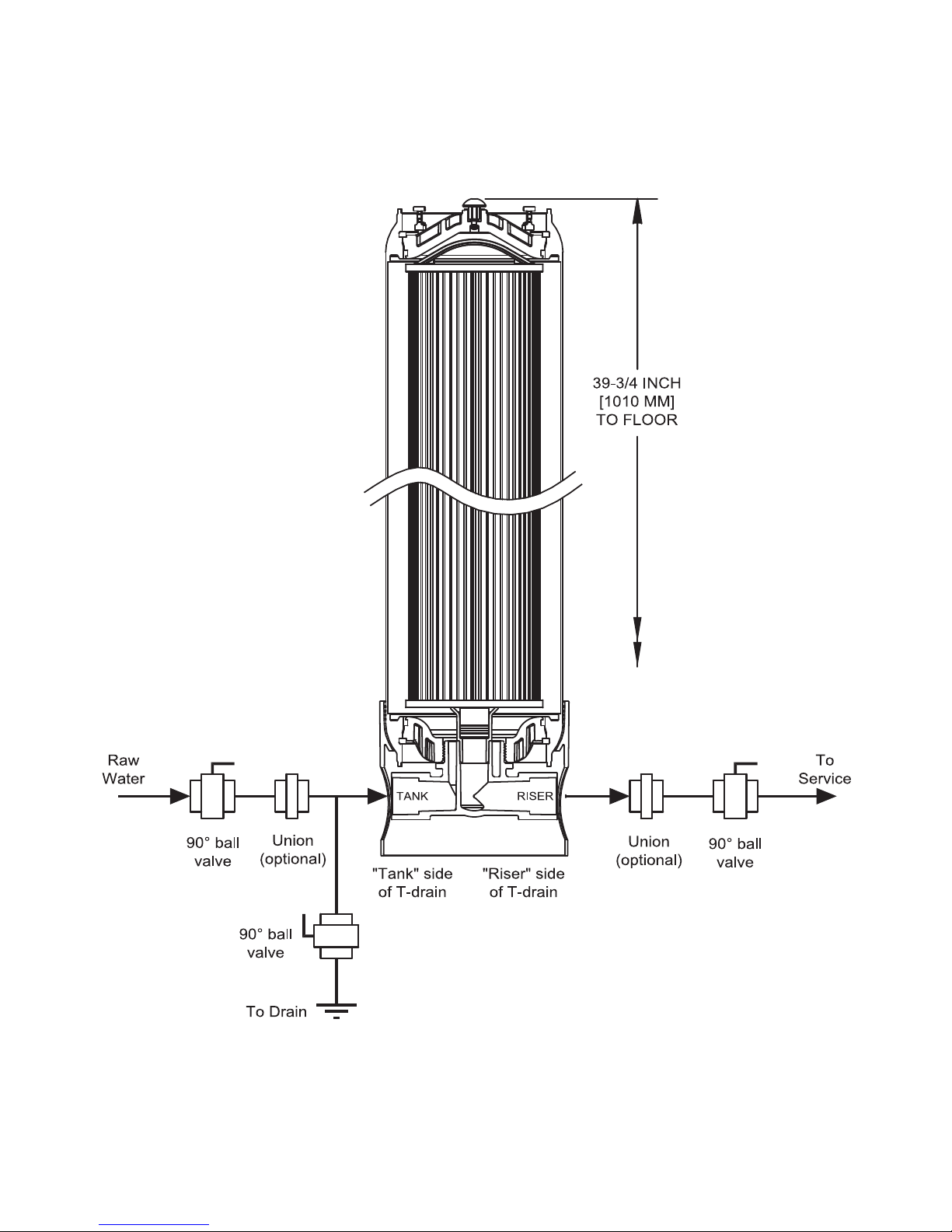

For installation of the EF-835-2, please plumb according to the diagram on the following page.

If the cartridge tank is rinsed periodically (see bypass instructions on page 5), it is important
to locate the cartridge tank as close to the drain as possible. This rinsing can prolong the life of the
cartridge. The drain port can also be used to relieve pressure and drain water from the tank during
cartridge filter replacement.

Be sure to observe local and applicable plumbing codes.

7

8

CARTRIDGE REPLACEMENT INSTRUCTIONS FOR EF-835-1:

1. Turn off water supply to vessel using bypass inlet and outlet lines. See page 4 for bypass diagrams.

2. Release pressure on system by opening bottom drain for a moment, then close. If bottom drain is not
installed, turn off water to inlet side of filter and open an outlet line to the filter.

3. Disconnect bypass from valve assembly using the nuts at the inlet and outlet head assembly. Be careful
not to disconnect the nuts at the plumbing lines as these are under pressure.

NOTE: This unit is equipped with an adapter, attached to the underside of the head assembly,

which accepts the O-rings of the cartridge. If the adapter is not in place, check in bottom of filter tank
assembly as shipping may have dislodged this. Reattach to underside of valve housing, if necessary.

This should only be required upon initial install.

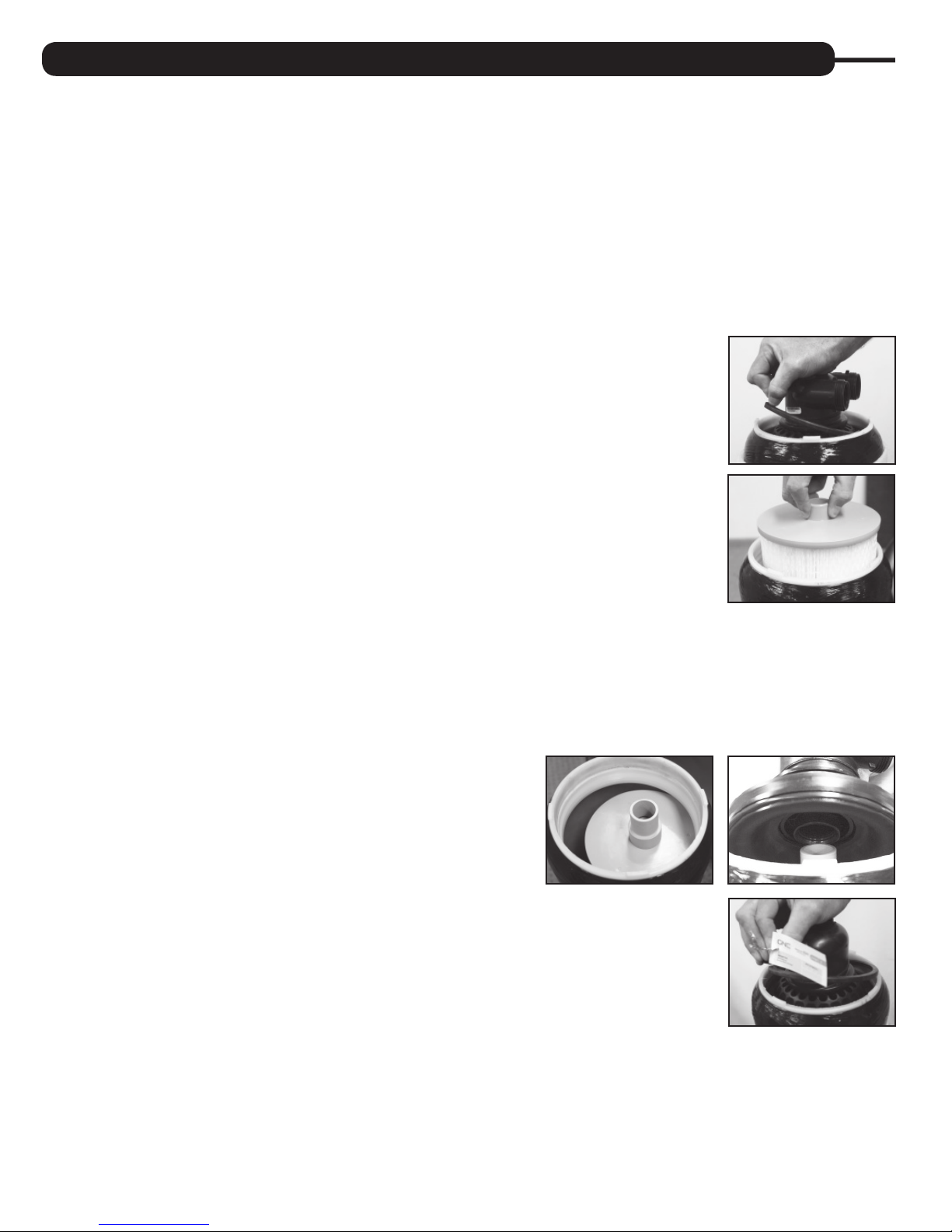

4. Remove retaining ring which holds top cap in place (see photo to right).
Push down on top cap equally to unseat the ring. To remove, pull on retaining
ring handle by pulling inward and then upward. This will release ring from
grooved seal.

5. Remove top cap by pulling upward on head assembly.

6. Carefully remove old cartridge from system (see photo to right).
The cartridge will contain water and will splash or drip. Place used
cartridge into a 5 gallon bucket to protect area from water damage.

7. Remove new cartridge filter from box and remove plastic covering.
Locate product description tag and keep for future use.

8. Lubricate O-ring on adaptor to ensure proper sealing. Do not use pipe dope, Vaseline, oils
or other unacceptable lubricants on O-rings. Food grade silicone lubricant is recommended.

9. Place cartridge into filter housing with adaptor “stub” at the top of the tank.

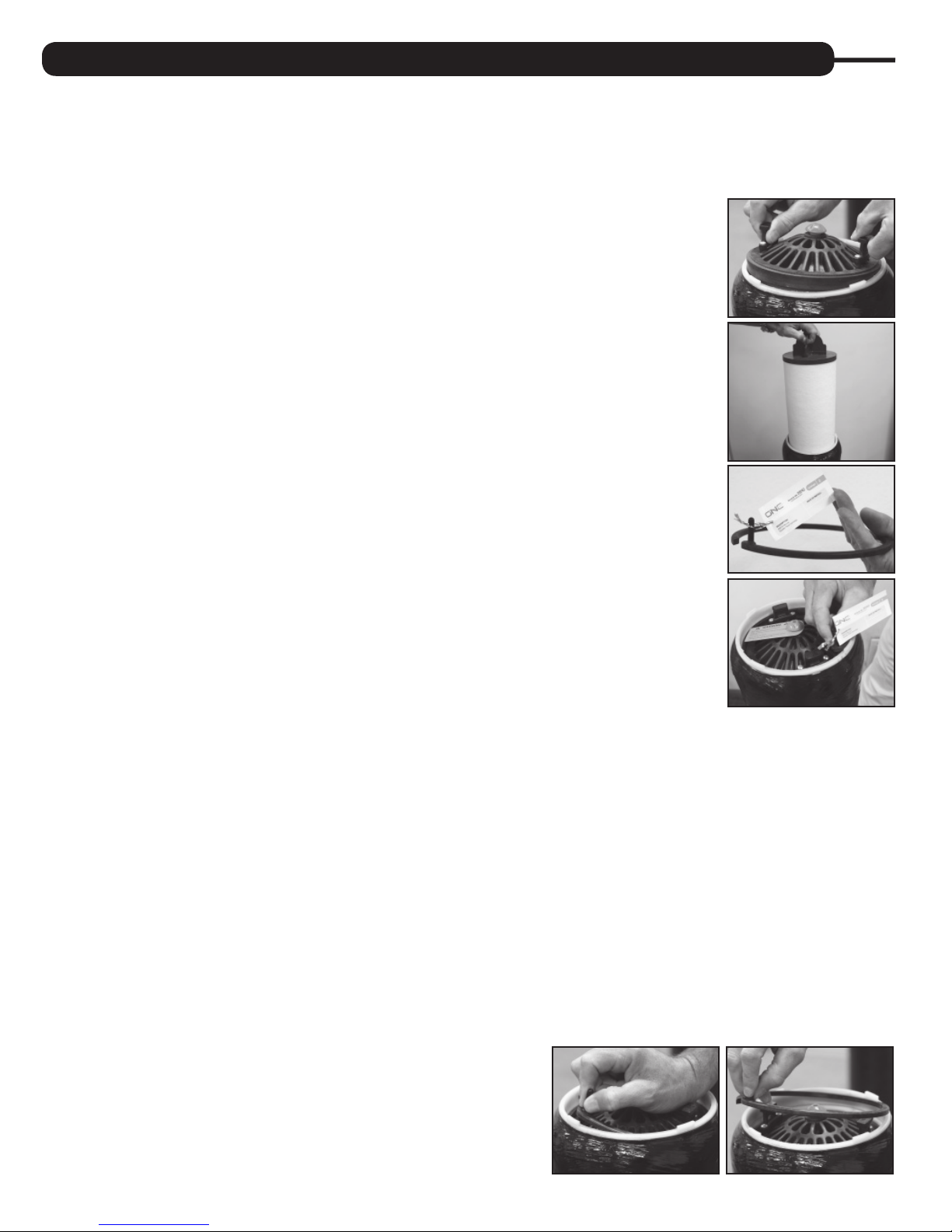

10. Place top adaptor piece onto cartridge “stub”

(see photo to right). Carefully replace top cap
assembly making sure that the adaptor slips into the
top cap assembly. Push down on cap assembly. This
will make room for replacement of ring assembly
(see photo to right).

11. Attach product description tag to retaining ring for future reference (see

photo to right). Insert retaining ring into ring groove, starting at the end
opposite of the handle. Gently push retaining ring into groove until the entire
ring is in place and both ends meet in the groove section. To ensure proper
engagement, hold retaining ring by handle and slightly rotate around the
inner diameter of the cartridge tank.

12. Reconnect cartridge tank to bypass valve by securing nuts.

13. Open a treated water line and turn bypass valve to the service position (Fig. 1, page 4) and allow

water to fill tank slowly. Once water is flowing to treated water faucet, observe tank for any leaks.

14. Shut treated water line off to check for leaks and ensure system integrity.

9

CARTRIDGE REPLACEMENT INSTRUCTIONS FOR EF-835-2:

INSTALLATION OF NEW CARTRIDGE

1. Remove cap from cartridge tank (see Removal of Cartridge, steps 1-3) and then push top cap

down equally with both hands to unseat retaining ring. Remove ring from groove by carefully grasping
handle and pulling inward then upward. Ring will slide completely out of groove.

2. Remove top of cap from system by lifting up on top handles

(see photo to right).

3. Remove plastic covering surrounding filter cartridge and discard.

4. Lubricate O-rings on cartridge to ensure proper sealing. Do not use pipe dope,
Vaseline, oils or other unacceptable lubricants on O-rings. Food grade silicone
lubricant is recommended.

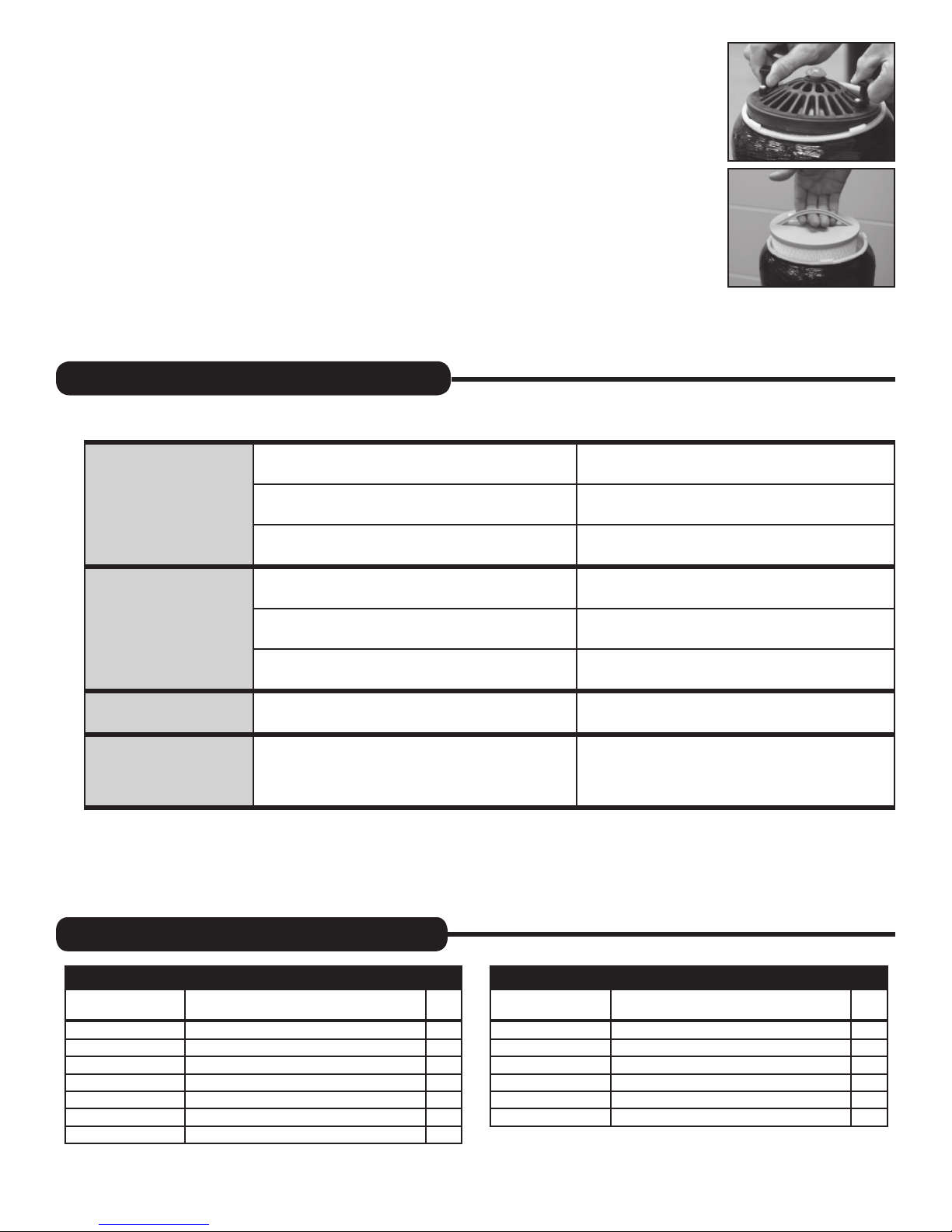

5. Insert cartridge into bottom center of tank, assuring proper seal and alignment
by pushing down gently until fully seated (see photo to right).

6. Attach product description tag to retaining ring handle for future reference
(see photo to right).

NOTE: This tag is found on the new cartridge handle.

7. Replace top cap of tank using top handles.

8. Push top cap down to make room for placement of retaining ring in
ring groove.

9. Insert retaining ring into ring groove, starting at the end opposite of the
handle. Using only hands, gently push retaining ring into groove until entire
ring is in place and both ends meet in groove section (see photo to right).

10. To ensure proper engagement, hold retaining ring by handle and slightly rotate around inner diameter

of vessel.

11. Slowly turn water supply on to system by first opening inlet valve and pressing red depressurization

valve to completely vent tank of trapped air; when water leaks out of depressurization valve, stop
pushing and open outlet valve.

12. Check system for leaks and ensure system integrity.

REMOVAL OF OLD CARTRIDGE

1. Turn off water supply to system by shutting off inlet and outlet valves.

2. Properly depressurize system by pushing red depressurization button on top cap of system. Keep button
pushed until all air or water pressure is completely released.

3. Push top cap down equally with both hands to unseat
retaining ring. Remove ring from groove by carefully
grasping handles and pulling inward then upward.
Ring will slide completely out of groove (see photos
to right).

10

4. Remove top cap of system by lifting up on top handles (see photo to right).

5. Remove replacement cartridge carefully from bag. Retain bag for disposal of
used cartridge.

6. Remove used cartridge from system by grasping handle and pulling upward while
holding the tank down (see photo to right). Place in bag and dispose of in
accordance with local, state and federal laws and regulations.

7. If necessary, open drain and flush system further with a bucket of water
to remove final sediment and particles. Once flushed, close drain line.

TROUBLESHOOTING GUIDE:

PROBLEM CAUSE CORRECTION

A. Cartridge fouled out A. Replace cartridge

Lack of pressure

from system

Cartridge life too short

Plugged drain A. Not flushed often enough A. Flush more frequently

Water leak at

depressurization button
(EF-835-2 only)

B. Exceeded flow rate of cartridge B. Substitute cartridge for higher flowing unit

C. Inlet to tank is plugged C. Clean inlet of debris

A. Too small micron rating A. Choose different size or use multiple tanks

B. Very heavy loading B. Check raw water for particles

C. Excessive water flow through cartridge C. Check gallons consumed

A. O-ring leak A. Replace depressurization button

REPLACEMENT CARTRIDGES:

EF-835-1 REPLACEMENT CARTRIDGES

Part No. Description Qty.

CT-1005 10 x 5 Micron Double Pleated 1
CT-2010 20 x 10 Micron Double Pleated 1
CT-5020 50 x 20 Micron Double Pleated 1

CT-2005-SWMB 20 x 5 Micron String Wound/Meltblown 1

CT-5020-SWMB 50 x 20 Micron String Wound/Meltblown 1

CT-03-CB 3 Micron Carbon Block 1
CT-20-CB 20 Micron Carbon Block 1

EF-835-2 REPLACEMENT CARTRIDGES

Part No. Description Qty.

CT-P1A 1 Micron Absolute Pleated Polypropylene 1
CT-P05 5 Micron Pleated Polypropylene 1
CT-P20 20 Micron Pleated Polypropylene 1
CT-ACP Pleated Activated Carbon Polypropylene 1
CT-D05 5 Micron Meltblown Polypropylene 1
CT-D20 20 Micron Meltblown Polypropylene 1

11

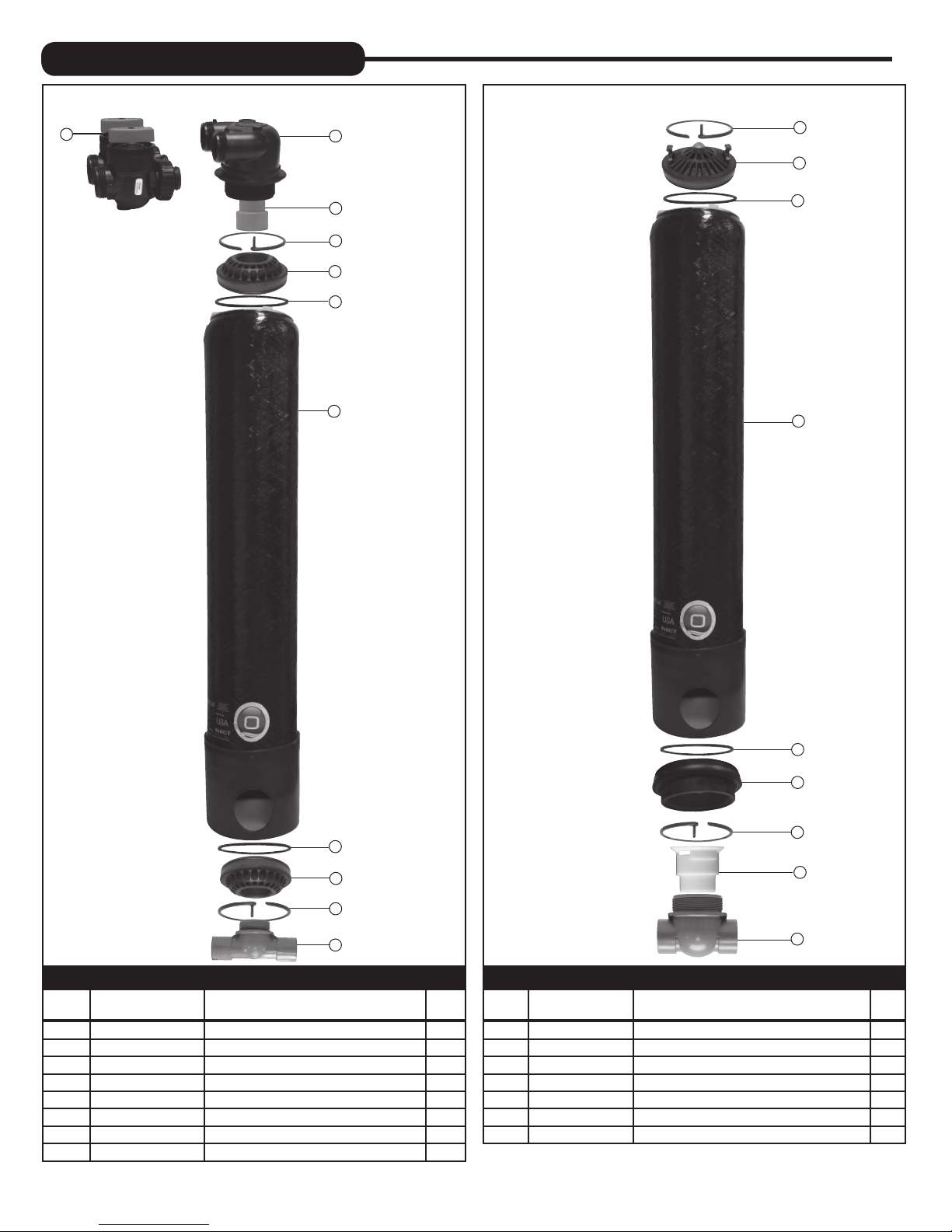

REPLACEMENT PARTS:

EF-835-1

1

2

3

4

5

6

7

EF-835-2

1

2

3

4

EF-835-1 REPLACEMENT PARTS

Item

No.

1 CV3006 WS1 bypass valve assembly 1
2 CD1400-03 1190 in/out head 1.32mm 1
3 CT-WRADAPTER Adapter for EF filter tank 1
4 CT-RETAINGRING Retaining ring for top and bottom 2
5 CT-2.5LID Filter plug for 2.5" drain 2
6 R-ORING LID O-ring replacement for all lids/caps 2
7 Z008840XBK00 8" x 40" vessel shell w/base 1
8 CT-2.5ADAPTER Adapter tee for 2.5” opening 1

Part No. Description Qty.

3

5

6

5

4

8

1

6

7

EF-835-2 REPLACEMENT PARTS

Item

No.

1 CT-RETAINGRING Retaining ring for top and bottom 2
2 CT-1/4NPTLID Top cap with pressure release 1
3 R-ORING LID O-ring replacement for all lids/caps 2
4 Z008840XBK00 8" x 40" vessel shell w/base 1
5 CT-4.5LID Threaded top and bottom commercial cap 1
6 CT-4.5ADAPTER Filter adapter 1
7 CT-4.5DRAIN Filter tee for commercial filter 1

Part No. Description Qty.

12

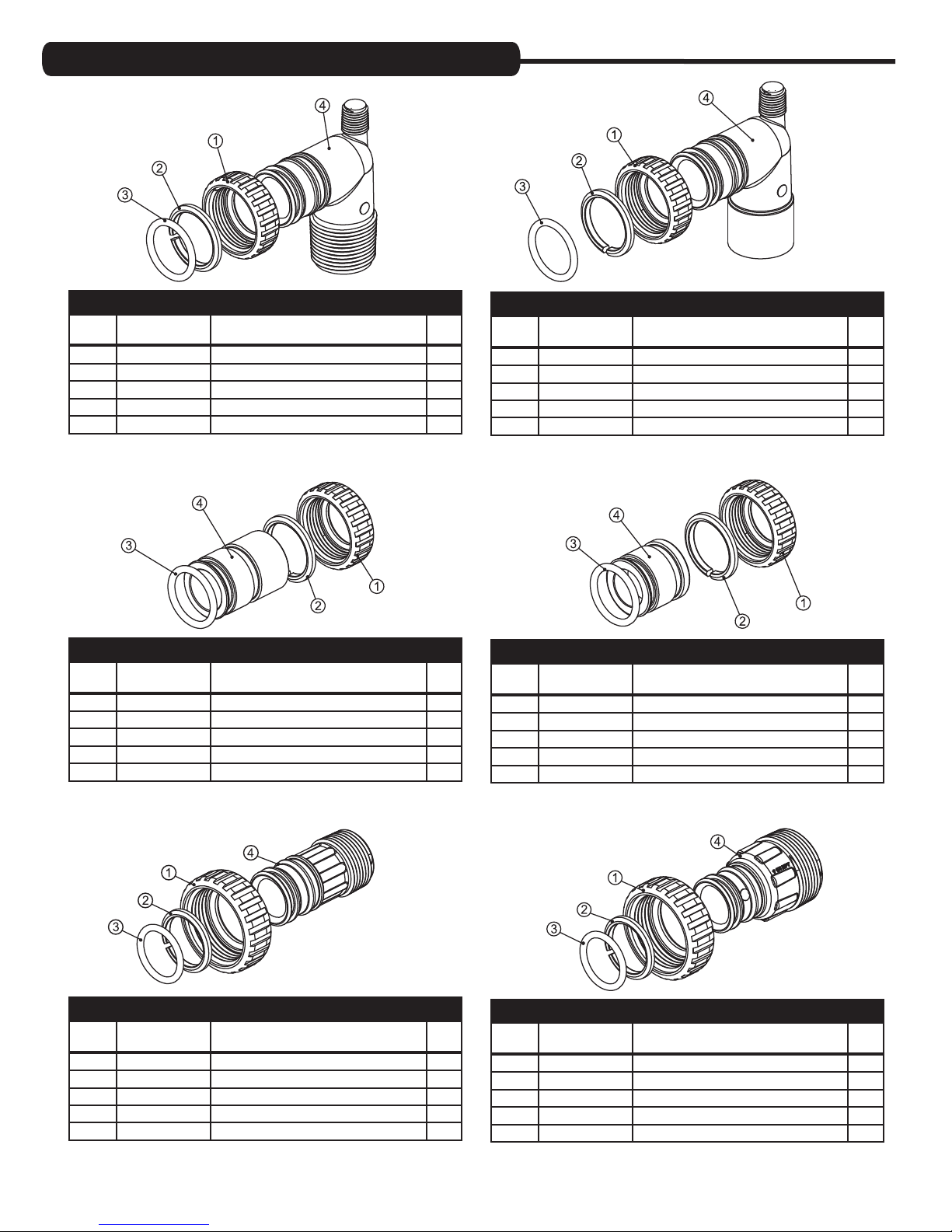

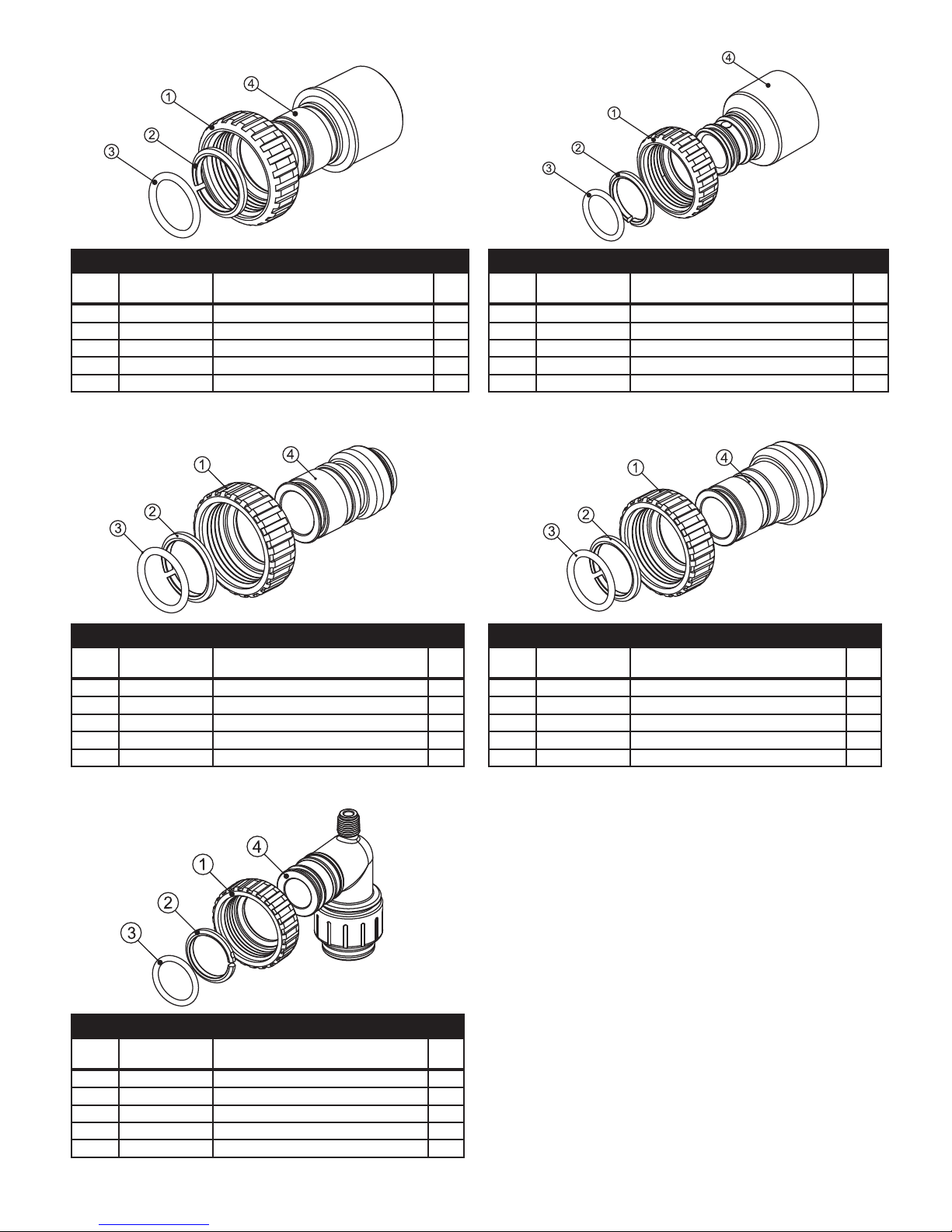

INSTALLATION FITTING ASSEMBLIES:

1" PVC MALE NPT ELBOW

Item

No.

1 CV3151 Nut, 1" quick connect 2
2 CV3150 Split ring 2
3 CV3105 O-ring 215 2
4 CV3149 Fitting 2

Part No. Description Qty.

CV3007 1" PVC male NPT elbow assembly 2

1" BRASS SWEAT

Item

No.

1 CV3151 Nut, 1" quick connect 2
2 CV3150 Split ring 2
3 CV3105 O-ring 215 2
4 CV3188 Fitting 2

Part No. Description Qty.

CV3007-02 1" brass sweat assembly 2

3/4" & 1" PVC SOLVENT ELBOW

Item

No.

1 CV3151 Nut, 1" quick connect 2
2 CV3150 Split ring 2
3 CV3105 O-ring 215 2
4 CV3189 Fitting 2

Part No. Description Qty.

CV3007-01 3/4" & 1" PVC solvent elbow assembly 2

3/4" BRASS SWEAT

Item

No.

1 CV3151 Nut, 1" quick connect 2

2

3 CV3105 O-ring 215 2
4 CV3188-01 Fitting 2

Part No. Description Qty.

CV3007-03 3/4" brass sweat assembly 2

CV3150 Split ring 2

1" PLASTIC MALE NPT

Item

No.

1 CV3151 Nut, 1" quick connect 2
2 CV3150 Split ring 2
3 CV3105 O-ring 215 2
4 CV3164 Fitting 2

Part No. Description Qty.

CV3007-04 1" plastic male NPT assembly 2

13

1-1/4" PLASTIC MALE

Item

No.

1 CV3151 Nut, 1" quick connect 2

2

3 CV3105 O-ring 215 2
4 CV3317 Fitting 2

Part No. Description Qty.

CV3007-05 1-1/4" plastic male assembly 2

CV3150 Split ring 2

1-1/4" & 1-1/2" BRASS SWEAT

Item

No.

1 CV3151 Nut, 1" quick connect 2

2

3 CV3105 O-ring 215 2
4 CV3375 Fitting 2

Part No. Description Qty.

CV3007-09 1-1/4" & 1-1/2" brass sweat assembly 2

CV3150 Split ring 2

1-1/4" & 1-1/2" PVC SOLVENT

Item

No.

1 CV3151 Nut, 1" quick connect 2
2 CV3150 Split ring 2
3 CV3105 O-ring 215 2
4 CV3352 Fitting 2

Part No. Description Qty.

CV3007-07 1-1/4" & 1-1/2" PVC solvent assembly 2

3/4" BRASS SHARK BITE

Item

No.

1 CV3151 Nut, 1" quick connect 2

2

3 CV3105 O-ring 215 2
4 CV3628 Fitting 2

Part No. Description Qty.

CV3007-12 3/4" brass Shark Bite assembly 2

CV3150 Split ring 2

3/4" JOHN GUEST ELBOW

Item

No.

1 CV3151 Nut, 1" quick connect 2

2

3 CV3105 O-ring 215 2
4 CV3790 Fitting 2

Part No. Description Qty.

CV3007-15 3/4" John Guest elbow assembly 2

CV3150 Split ring 2

1" BRASS SHARK BITE

Item

No.

1 CV3151 Nut, 1" quick connect 2
2 CV3150 Split ring 2
3 CV3105 O-ring 215 2
4 CV3629 Fitting 2

Part No. Description Qty.

CV3007-13 1" brass Shark Bite assembly 2

14

Water-Right, Inc. & Enpress LLC

ONE Filtration Simpli ed™

Limited Warranty

1. WATER-RIGHT and ENPRESS LLC warrants its line of ENPRESS ONE Filtration Simpli ed™ (ONE) products, (including
Cartridge Tank™ and Filter solutions), to be free of defects in material and workmanship for a period of one year from the
date of purchase.

2. This warranty does not cover any equipment purchased for use in applications in which the product is not suited. It is the
responsibility of the buyer to determine if a product is suitable for a particular application.

3. Our obligations under this warranty are limited to the repair or replacement (at ENPRESS’s sole discretion) of the failed
parts of the water treatment unit manufactured by ENPRESS, and we assume no liability whatsoever for direct, indirect,
incidental, consequential, special, general or other damages.

4. We assume no liability for the determination of the proper equipment necessary to meet your requirements, and we do
not authorize others to assume such obligations for us.

5. We assume no liability and extend no warranties, expressed or implied, for the use of this product with a non­potable water source or a water source which does not meet the conditions for use described in the owner’s guide or
performance data sheet for the product.

6. The warranty provided herein applies, only when used within the product speci cations and service life, from the date
of installation, beyond which ENPRESS LLC is absolved of any and all liability for any use of the product. There are no
other warranties, either of merchantability or  tness, either expressed or implied.

7. This warranty gives you speci c legal rights and you may also have other rights which vary from state to state.

8. This warranty is not in effect until installer performs (product speci c) ENPRESS LLC Product Protocol, when required,
for testing, record-keeping and certi cation of the ONE product prior to installation.

9. THIS WARRANTY EXCLUDES THE FOLLOWING:

a. Damage caused by improper installation, operation or care.

b. Damage caused by chemical attack, environment, accident,  re,  ood, freezing, Act of God, misuse,

misapplication, neglect, oxidizing agents (such as chlorine, ozone, chloramines and other related components),
alteration, installation or operation contrary to the printed instructions, or by the use of accessories or components
which do not meet ENPRESS’s speci cations, including the use of a replacement element not manufactured
or supplied by ENPRESS LLC. Refer to the speci cations section in the Installation and Operating manual for
approved application parameters.

c. Modi cation or alteration by other than ENPRESS LLC employees.

d. Rubber type parts and normal wear items i.e. “O” rings, etc…

e. Any costs of labor or expenses expended in the removal and/or installation of unit, or any surrounding device.

f. Altering or removing the ENPRESS LLC information label.

g. Use of non ENPRESS LLC approved cartridges,  lters, or replacement parts with the appropriate systems or vessels.

h. Non-use of supported piping for plumbing connections to In/Out connections.

10. Service under this warranty is to be provided by the distributor/installer who sold the unit to the user. If the

distributor is unable to provide warranty service, contact:

Water-Right/WaterCare
1900 Prospect Court • Appleton, WI 54914
Toll Free: 800-777-1426 • Fax: [phone]

A Returned Goods Authorization (RGA) number must be received from the above office and placed on all shipments to
and correspondence with ENPRESS LLC. Please be prepared with the following information:

1. Model number and serial number.

2. Date of installation.

3. Name of installer

4. Nature of problem.

5. Your address and contact information.

15

© 2012 Water-Right, Inc. All rights reserved.
LIT-ONE MANUAL ROPU 8/12 100

Manufactured for:
1900 Prospect Court • Appleton, WI 54914
Phone: [phone] • Fax: [phone]
