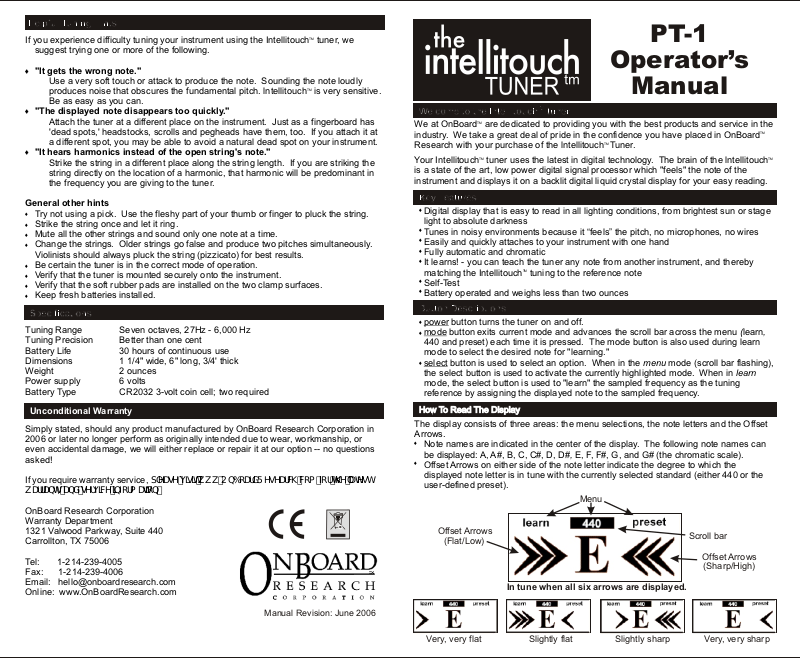

OnBoard PT-1 Operator’s Manual

Helpful Tuning HintsHelpful Tuning Hints

If you experience difficulty tuning your instrument using the Intellitouch tuner, we

suggest trying one or more of the following.

8 "It gets the wrong note."

Use a very soft touch or attack to produce the note. Sounding the note loudly
produces noise that obscures the fundamental pitch. lntellitouch is very sensitive.
Be as easy as you can.

8 "The displayed note disappears too quickly."

Attach the tuner at a different place on the instrument. Just as a fingerboard has
'dead spots,' headstocks, scrolls and pegheads have them, too. If you attach it at
a different spot, you may be able to avoid a natural dead spot on your instrument.

8 "It hears harmonics instead of the open string's note."

Strike the string in a different place along the string length. If you are striking the
string directly on the location of a harmonic, that harmonic will be predominant in
the frequency you are giving to the tuner.

General other hints

6

Try not using a pick. Use the fleshy part of your thumb or finger to pluck the string.

6

Strike the string once and let it ring.

6

Mute all the other strings and sound only one note at a time.

6

Change the strings. Older strings go false and produce two pitches simultaneously.
Violinists should always pluck the string (pizzicato) for best results.

6

Be certain the tuner is in the correct mode of operation.

6

Verify that the tuner is mounted securely onto the instrument.

6

Verify that the soft rubber pads are installed on the two clamp surfaces.

6

Keep fresh batteries installed.

TM

TM

Specifications Specifications

Tuning Range Seven octaves, 27Hz - 6,000 Hz
Tuning Precision Better than one cent
Battery Life 30 hours of continuous use
Dimensions 1 1/4" wide, 6" long, 3/4' thick
Weight 2 ounces
Power supply 6 volts
Battery Type CR2032 3-volt coin cell; two required

Unconditional Lifetime WarrantyUnconditional Lifetime Warranty

Unconditional Warranty

Simply stated, should any product manufactured by OnBoard Research Corporation in
2006 or later no longer perform as originally intended due to wear, workmanship, or
even accidental damage, we will either replace or repair it at our option -- no questions
asked!

If you require warranty service, SOHDVHYLVLWZZZ2Q%RDUG5HVHDUFKFRPIRUWKHODWHVW

ZDUUDQW\DQGVHUYLFHLQIRUPDWLRQ

OnBoard Research Corporation
Warranty Department
1321 Valwood Parkway, Suite 440
Carrollton, TX 75006

Tel: [phone]
Fax: [phone]
Email: [e-mail]
Online: www.OnBoardResearch.com

Manual Revision: June 2006

PT-1

Operator’s

Manual

We at OnBoard are dedicated to providing you with the best products and service in the
industry. We take a great deal of pride in the confidence you have placed in OnBoard
Research with your purchase of the lntellitouch Tuner.

Your Intellitouch tuner uses the latest in digital technology. The brain of the lntellitouch
is a state of the art, low power digital signal processor which "feels" the note of the
instrument and displays it on a backlit digital liquid crystal display for your easy reading.

6

Digital display that is easy to read in all lighting conditions, from brightest sun or stage
light to absolute darkness

6

Tunes in noisy environments because it “feels” the pitch, no microphones, no wires

6

Easily and quickly attaches to your instrument with one hand

6

Fully automatic and chromatic

6

It learns! - you can teach the tuner any note from another instrument, and thereby
matching the Intellitouch tuning to the reference note

6

Self-Test

6

Battery operated and weighs less than two ounces

power6 button turns the tuner on and off.

6

mode ( ,
440 and preset) each time it is pressed. The mode button is also used during learn
mode to select the desired note for "learning."

6

select menu
the select button is used to activate the currently highlighted mode. When in learn
mode, the select button is used to "learn" the sampled frequency as the tuning
reference by assigning the displayed note to the sampled frequency.

How To Read The DisplayHow To Read The Display

The display consists of three areas: the menu selections, the note letters and the Offset
Arrows.

6

Note names are indicated in the center of the display. The following note names can
be displayed: A, A#, B, C, C#, D, D#, E, F, F#, G, and G# (the chromatic scale).

6

Offset Arrows on either side of the note letter indicate the degree to which the
displayed note letter is in tune with the currently selected standard (either 440 or the
user-defined preset).

Offset Arrows

TM

TM

TM TM

TM

button exits current mode and advances the scroll bar across the menu learn

button is used to select an option. When in the mode (scroll bar flashing),

Menu

(Flat/Low)

Scroll bar

Offset Arrows

(Sharp/High)

In tune when all six arrows are displayed.

TM

Very, very flat Very, very sharp

Slightly flat

Slightly sharp

6

Offset Arrows are also displayed during learn mode. The two outer arrows indicate the
tuner is ready to "listen" for the new reference note. The two middle arrows indicate
the tuner has identified the note and is ready to store it in its memory.

6

Menu selections are highlighted with the scroll bar behind the menu item. Normal
operation is with the scroll bar highlighting 440 mode and the scroll bar not flashing.
Pressing the mode button advances the scroll bar to the right and starts it flashing to
indicate the tuner is in the menu mode of operation. The currently highlighted mode is
selected by pressing the select button at which time the scroll bar stops flashing.

TM TM

OnBoard designed the lntellitouch tuner with a fundamental self-test diagnostic in order
to help assure trouble free service for years to come. Self-Test determines whether all
the notes, arrows and scroll bars will be properly displayed during use.

The tuner must be off in order to enter the Self-Test program. With the tuner off, press
the power button immediately followed by the select button. You will always see all of the
elements of the display are turned on (B#, six arrows and three scroll bars) when the
tuner is first turned on. The select button must be pressed before the display returns to a
normal operation, which is about 2 seconds after the tuner first turns on.

The tuner enters Self-Test with the display showing the note letter A and the Offset
Arrows sequencing from left to right, which means from flat to sharp. The tuner will
increment upward through the chromatic scale and repeat the test every 62 seconds.
Note: the tuner does not automatically turn off during Self-Test operation. You must
press the power button to terminate Self-Test and power the tuner off.

If your tuner fails to run the Self-Test diagnostic property, refer to the warranty information
contained at the end of this manual for return instructions. Self-Test may not diagnose
every problem which may occur in the tuner.

In order to conserve battery life, the tuner will power off in two minutes if it detects no
incoming notes or button presses. If the tuner is left attached to an instrument that is
being constantly played, it will detect notes and will not automatically power off. We
recommend you use the power button to turn the tuner off.

THE MODES

Press the mode button to change between modes of operation (learn, 440 and preset.
The scroll bar will begin flashing behind one of the mode names. Advance the scroll bar
by pressing the mode button until the scroll bar is flashing behind the mode you desire
and press the select button. The scroll bar will stop flashing to indicate the mode is
selected.

In 440 mode, the Intellitouch will tune the instrument to the internationally recognized A­440 tuning standard.

When the user produces a note on an instrument to which the tuner is attached, the note
is 'felt" by the tuner and the note is displayed with Offset Arrows which indicate whether
the instrument's note is sharp or flat as compared to the same note in an A-440 scale.

Intellitouch can use any note produced within a seven octave range (27 cycles through
6,000 cycles) for learning. Simply clip, attach or lay the tuner onto the instrument to
which you want to tune, sound a note and let the Intellitouch "learn" the note you want to
use as your tuning reference.

TM

TM

TM

Follow these four easy steps:

1. Enter learn mode. The display will show the letter A and the two outermost arrows.

2. Select the note you wish to use to teach the tuner (default is A). From this point, each

time you press the mode button, the displayed note will increment upwards through the
chromatic scale. If you pass the note you want, go around again. Whatever note is
showing in the center of the display when you press the select button will be assigned
to the pitch being played.

3. Sound the note you want to assign to the displayed letter. The Intellitouch will display
four arrows when it is ready to "learn" pitch it is detecting.

4. Press the select button to teach the tuner pitch being played. At the moment you
press the select button, the tuner will "learn" the pitch being played, assign it to the
displayed note and store it in the preset mode. It will automatically change to preset
mode to indicate it has learned and stored the new reference in memory.

The new reference will remain stored in preset mode until you teach the tuner a different
reference or replace the batteries.

To exit learn mode without learning, turn the tuner off. When you turn it back on again, it
will be in 440 mode.

Helpful Hint: After the tuner indicates it "feels' the note and is ready for you to press the
select button, count 3 seconds before you press the select button. By doing this, you will
allow the string to settle down to its fundamental frequency. This is necessary because
when you strike a string, it stretches. As it settles down, the string will actually become
more flat due to the relaxing of the string. Remember- count to 5 before you tell
lntellitouch to learn the note by pressing the select button.

Preset mode is where the "learned" reference is stored. To use the "learned' reference,
use the mode and select buttons to select preset mode. Preset mode is indicated as
active when the scroll bar is highlighting preset on the mode menu.

The lntellitouch uses two CR2032 coin size lithium batteries. Be certain the batteries
you buy are lithium. These batteries are commonly found where button or coin cell
batteries are sold.

1.Carefully insert a small, flat tool into one of the two slots at the top of the battery door

2.Rotate the tuner until the batteries fall out.

3.Place new batteries into the tuner as is indicated on the outside of the battery door.

Follow the "Finish Care and Maintenance" guidelines provided by your instrument's
manufacturer. Some instrument lacquers are delicate and soft. We recommend not
leaving the tuner continuously attached to an instrument for more than 4 hours.

TM

TM

and gently bend the tool until that side of the battery door comes partially dislodged..
Do the same with the slot on the other side of the battery door and the top part of the
battery door will pop loose from the tuner body. Lift the battery door away from the
tuner.

IMPORTANT

One battery g oes in MINUS si de up,

the other bat tery goes in PL US side up.

HERE IS A HANDY TIP:

Look on the outside of the battery door

for a diagram of how to orient the batteries.

Battery Door Slots

TM
