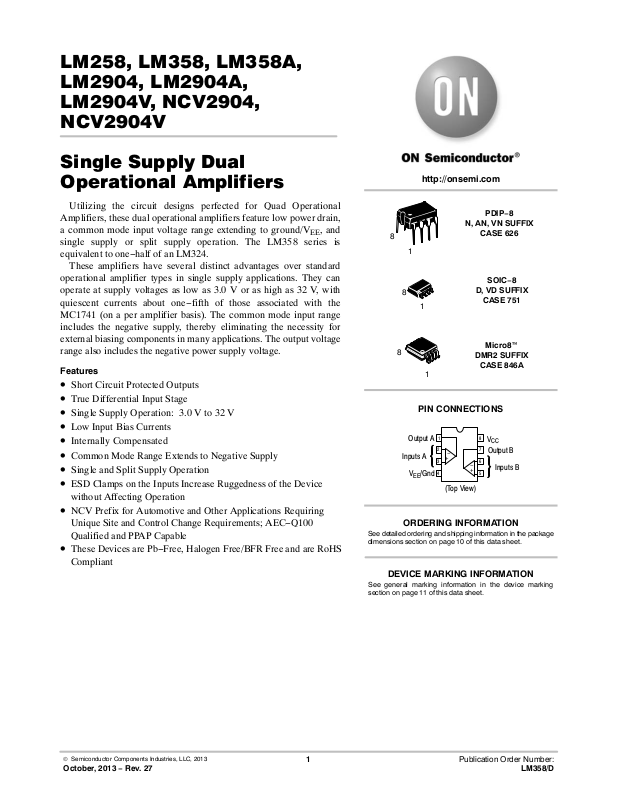

LM258, LM358, LM358A,
LM2904, LM2904A,
LM2904V, NCV2904,
NCV2904V
Single Supply Dual
Operational Amplifiers
http://onsemi.com
Utilizing the circuit designs perfected for Quad Operational
Amplifiers, these dual operational amplifiers feature low power drain,
a common mode input voltage range extending to ground/V
EE
, and
single supply or split supply operation. The LM358 series is
equivalent to one−half of an LM324.
These amplifiers have several distinct advantages over standard
operational amplifier types in single supply applications. They can
operate at supply voltages as low as 3.0 V or as high as 32 V, with
quiescent currents about one−fifth of those associated with the
MC1741 (on a per amplifier basis). The common mode input range
includes the negative supply, thereby eliminating the necessity for
external biasing components in many applications. The output voltage
range also includes the negative power supply voltage.
Features
• Short Circuit Protected Outputs
• True Differential Input Stage
• Single Supply Operation: 3.0 V to 32 V
• Low Input Bias Currents
• Internally Compensated
• Common Mode Range Extends to Negative Supply
• Single and Split Supply Operation
• ESD Clamps on the Inputs Increase Ruggedness of the Device
without Affecting Operation
• NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
PDIP−8
N, AN, VN SUFFIX
8
1
8
1
8
1
PIN CONNECTIONS
1
Output A
2
Inputs A
VEE/Gnd
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 10 of this data sheet.
DEVICE MARKING INFORMATION
See general marking information in the device marking
section on page 11 of this data sheet.
−
+
3
4
(Top View)
CASE 626
SOIC−8
D, VD SUFFIX
CASE 751
Micro8]
DMR2 SUFFIX
CASE 846A
8
V
CC
7
Output B
6
−
Inputs B
+
5
© Semiconductor Components Industries, LLC, 2013
October, 2013 − Rev. 27
1 Publication Order Number:
LM358/D
LM258, LM358, LM358A, LM2904, LM2904A, LM2904V, NCV2904, NCV2904V
3.0 V to V
CC(max)
Single Supply Split Supplies
Q19
1
2
Q16
V
CC
VEE/Gnd
Q15
Figure 1.
Q14
40 k
Q13
V
CC
1.5 V to V
1
CC(max)
2
1.5 V to V
V
EE
EE(max)
Bias Circuitry
Common to Both
Output
Amplifiers
Q22
V
CC
Inputs
Q2
Q18
Q17
Q3 Q4
5.0 pF
Q20
Q21
Q12
25
Q11
Q9
Q7
Q6
Q5
Q8
Q26
Figure 2. Representative Schematic Diagram
(One−Half of Circuit Shown)
Q10
Q1
Q24
Q23
Q25
2.4 k
2.0 k
VEE/Gnd
http://onsemi.com
2
LM258, LM358, LM358A, LM2904, LM2904A, LM2904V, NCV2904, NCV2904V
MAXIMUM RATINGS (T
Power Supply Voltages
Single Supply
Split Supplies
Input Differential Voltage Range (Note 1) V
Input Common Mode Voltage Range (Note 2) V
Output Short Circuit Duration t
Junction Temperature T
Thermal Resistance, Junction−to−Air (Note 3) Case 846A
Storage Temperature Range T
ESD Protection at any Pin
Human Body Model
Machine Model
Operating Ambient Temperature Range
= +25°C, unless otherwise noted.)
A
Rating
LM2904/LM2904A
LM2904V, NCV2904 (Note 4)
NCV2904V (Note 4)
Case 751
Case 626
LM258
LM358, LM358A
Symbol Value Unit
Vdc
V
CC
VCC, V
IDR
ICR
SC
R
EE
J
JA
32
±16
±32 Vdc
−0.3 to 32 Vdc
Continuous
150 °C
238
°C/W
212
161
stg
V
esd
−65 to +150 °C
2000
200
T
A
−25 to +85
0 to +70
−40 to +105
−40 to +125
−40 to +150
V
°C
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the
Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect
device reliability.
1. Split Power Supplies.
2. For supply voltages less than 32 V the absolute maximum input voltage is equal to the supply voltage.
3. All R
4. NCV2904 and NCV2904V are qualified for automotive use.
measurements made on evaluation board with 1 oz. copper traces of minimum pad size. All device outputs were active.
JA
http://onsemi.com
3
LM258, LM358, LM358A, LM2904, LM2904A, LM2904V, NCV2904, NCV2904V
ELECTRICAL CHARACTERISTICS (V
= 5.0 V, VEE = GND, TA = 25°C, unless otherwise noted.)
CC
LM258 LM358 LM358A
Characteristic
Input Offset Voltage
= 5.0 V to 30 V, VIC = 0 V to VCC −1.7 V,
V
CC
] 1.4 V, RS = 0
V
O
Symbol
V
Min Typ Max Min Typ Max Min Typ Max
IO
Unit
mV
TA = 25°C − 2.0 5.0 − 2.0 7.0 − 2.0 3.0
TA = T
TA = T
Average Temperature Coefficient of Input Offset
(Note 5) − − 7.0 − − 9.0 − − 5.0
high
(Note 5) − − 7.0 − − 9.0 − − 5.0
low
VIO/T
− 7.0 − − 7.0 − − 7.0 −
V/°C
Voltage
TA = T
Input Offset Current I
TA = T
Input Bias Current I
TA = T
Average Temperature Coefficient of Input Offset
high
high
high
to T
(Note 5)
low
to T
(Note 5) − − 100 − − 150 − − 75
low
to T
(Note 5) − −50 −300 − −50 −500 − −50 −200
low
IO
IB
IIO/T
− 3.0 30 − 5.0 50 − 5.0 30 nA
− −45 −150 − −45 −250 − −45 −100
− 10 − − 10 − − 10 − pA/°C
Current
TA = T
Input Common Mode Voltage Range (Note 6),
V
CC
VCC = 30 V, TA = T
Differential Input Voltage Range V
Large Signal Open Loop Voltage Gain A
RL = 2.0 k, VCC = 15 V, For Large VO Swing,
TA = T
high
= 30 V
high
to T
(Note 5)
low
high
to T
low
V
ICR
IDR
VOL
0 − 28.3 0 − 28.3 0 − 28.5 V
0 − 28 0 − 28 0 − 28
− − V
CC
− − V
CC
50 100 − 25 100 − 25 100 −
to T
(Note 5) 25 − − 15 − − 15 − −
low
− − V
CC
V
V/mV
Channel Separation CS − −120 − − −120 − − −120 − dB
1.0 kHz ≤ f ≤ 20 kHz, Input Referenced
Common Mode Rejection
CMR 70 85 − 65 70 − 65 70 − dB
RS ≤ 10 k
Power Supply Rejection PSR 65 100 − 65 100 − 65 100 − dB
Output Voltage−High Limit
= T
to T
T
A
high
(Note 5)
low
VCC = 5.0 V, RL = 2.0 k, TA = 25°C
VCC = 30 V, RL = 2.0 k
VCC = 30 V, RL = 10 k
Output Voltage−Low Limit V
V
OH
V
3.3 3.5 − 3.3 3.5 − 3.3 3.5 −
26 − − 26 − − 26 − −
27 28 − 27 28 − 27 28 −
OL
− 5.0 20 − 5.0 20 − 5.0 20 mV
VCC = 5.0 V, RL = 10 k,
high
to T
(Note 5)
low
O+
mA
TA = T
Output Source Current I
VID = +1.0 V, VCC = 15 V 20 40 − 20 40 − 20 40 −
high
to T
(LM358A Only) 10 − −
low
O−
TA = T
Output Sink Current I
VID = −1.0 V, VCC = 15 V 10 20 − 10 20 − 10 20 − mA
high
high
to T
(LM358A Only) 5.0 − − mA
low
− 40 60 − 40 60 − 40 60 mA
to T
(Note 5)
low
SC
I
CC
A
mA
TA = T
VID = −1.0 V, VO = 200 mV 12 50 − 12 50 − 12 50 −
Output Short Circuit to Ground (Note 7) I
Power Supply Current (Total Device)
= T
T
A
VCC = 30 V, VO = 0 V, RL = ∞ − 1.5 3.0 − 1.5 3.0 − 1.5 2.0
VCC = 5 V, VO = 0 V, RL = ∞ − 0.7 1.2 − 0.7 1.2 − 0.7 1.2
5. LM258: T
LM2904/LM2904A: T
NCV2904 and NCV2904V are qualified for automotive use. NCV2904V: T
6. The input common mode voltage or either input signal voltage should not be allowed to go negative by more than 0.3 V. The upper end of
the common mode voltage range is V
7. Short circuits from the output to V
simultaneous shorts on all amplifiers.
= −25°C, T
low
= +85°C LM358, LM358A: T
high
= −40°C, T
low
= +105°C LM2904V & NCV2904: T
high
− 1.7 V.
CC
can cause excessive heating and eventual destruction. Destructive dissipation can result from
CC
low
= −40°C, T
low
= 0°C, T
= −40°C, T
low
high
= +70°C
high
= +150°C
= +125°C
high
http://onsemi.com
4
LM258, LM358, LM358A, LM2904, LM2904A, LM2904V, NCV2904, NCV2904V
ELECTRICAL CHARACTERISTICS (V
= 5.0 V, VEE = Gnd, TA = 25°C, unless otherwise noted.)
CC
LM2904V, NCV2904
NCV2904V
Unit
mV
Characteristic
Input Offset Voltage
= 5.0 V to 30 V, VIC = 0 V to VCC −1.7 V,
V
CC
] 1.4 V, RS = 0
V
O
Symbol
V
IO
LM2904 LM2904A
Min Typ Max Min Typ Max Min Typ Max
TA = 25°C − 2.0 7.0 − 2.0 7.0 − − 7.0
TA = T
TA = T
Average Temperature Coefficient of Input Offset
(Note 8) − − 10 − − 10 − − 13
high
(Note 8) − − 10 − − 10 − − 10
low
VIO/T
− 7.0 − − 7.0 − − 7.0 −
V/°C
Voltage
TA = T
Input Offset Current I
TA = T
Input Bias Current I
TA = T
Average Temperature Coefficient of Input Offset
high
high
high
to T
(Note 8)
low
to T
(Note 8) − 45 200 − 45 200 − 45 200
low
to T
(Note 8) − −50 −500 − −50 −250 − −50 −500
low
IO
IB
IIO/T
− 5.0 50 − 5.0 50 − 5.0 50 nA
− −45 −250 − −45 −100 − −45 −250
− 10 − − 10 − − 10 − pA/°C
Current
TA = T
Input Common Mode Voltage Range (Note 9),
V
VCC = 30 V, TA = T
Differential Input Voltage Range V
Large Signal Open Loop Voltage Gain A
RL = 2.0 k, VCC = 15 V, For Large VO Swing,
TA = T
CC
high
= 30 V
high
to T
(Note 8)
low
high
to T
low
V
ICR
IDR
VOL
0 − 28.3 0 − 28.3 0 − 28.3 V
0 − 28 0 − 28 0 − 28
− − V
CC
− − V
CC
25 100 − 25 100 − 25 100 −
to T
(Note 8) 15 − − 15 − − 15 − −
low
− − V
CC
V
V/mV
Channel Separation CS − −120 − − −120 − − −120 − dB
1.0 kHz ≤ f ≤ 20 kHz, Input Referenced
Common Mode Rejection
CMR 50 70 − 50 70 − 50 70 − dB
RS ≤ 10 k
Power Supply Rejection PSR 50 100 − 50 100 − 50 100 − dB
Output Voltage−High Limit
= T
to T
T
A
high
(Note 8)
low
VCC = 5.0 V, RL = 2.0 k, TA = 25°C
VCC = 30 V, RL = 2.0 k
VCC = 30 V, RL = 10 k
Output Voltage−Low Limit V
V
OH
V
3.3 3.5 − 3.3 3.5 − 3.3 3.5 −
26 − − 26 − − 26 − −
27 28 − 27 28 − 27 28 −
OL
− 5.0 20 − 5.0 20 − 5.0 20 mV
VCC = 5.0 V, RL = 10 k,
= T
to T
T
A
high
Output Source Current I
(Note 8)
low
O+
20 40 − 20 40 − 20 40 − mA
VID = +1.0 V, VCC = 15 V
Output Sink Current I
O−
VID = −1.0 V, VCC = 15 V 10 20 − 10 20 − 10 20 − mA
VID = −1.0 V, VO = 200 mV − − − − − − − − −
Output Short Circuit to Ground (Note 10) I
Power Supply Current (Total Device)
= T
to T
T
A
high
(Note 8)
low
SC
I
CC
− 40 60 − 40 60 − 40 60 mA
A
mA
VCC = 30 V, VO = 0 V, RL = ∞ − 1.5 3.0 − 1.5 3.0 − 1.5 3.0
VCC = 5 V, VO = 0 V, RL = ∞ − 0.7 1.2 − 0.7 1.2 − 0.7 1.2
8. LM258: T
LM2904/LM2904A: T
NCV2904 and NCV2904V are qualified for automotive use. NCV2904V: T
9. The input common mode voltage or either input signal voltage should not be allowed to go negative by more than 0.3 V. The upper end of
the common mode voltage range is V
10.Short circuits from the output to V
simultaneous shorts on all amplifiers.
= −25°C, T
low
= +85°C LM358, LM358A: T
high
= −40°C, T
low
= +105°C LM2904V & NCV2904: T
high
− 1.7 V.
CC
can cause excessive heating and eventual destruction. Destructive dissipation can result from
CC
low
= −40°C, T
low
= 0°C, T
= −40°C, T
low
high
= +70°C
high
= +150°C
= +125°C
high
http://onsemi.com
5
