Omron CPM1A, CQM1, SRM1, SYSMAC CQM1, SYSMAC CPM1 Programming Manual

...

Download

PROGRAMMING

MANUAL

Programmable Controllers

SYSMAC CQM1/CPM1/CPM1A/SRM1

Cat. No. W228-E1-08

CQM1/CPM1/CPM1A/SRM1 Programmable Controllers

Programming Manual

Revised December 2005

Notice:

OMRON products are manufactured for use accordin g to proper procedures by a qualified operator and only for the purposes described in this manual.

The following conventions are used to ind icate and classify pr ecautions in this manual . Always heed the information provided with them . Failure to heed precautions can result in in jur y to people or damage to property.

!DANGER Indicates an immine ntly hazardous situation whi ch, if not avoided, will result in death or

serious inj ury.

!WARNING Indicates a potentially hazardous situatio n which, if not avoided, could resu lt in death or

serious inj ury.

!Caution Indicates a potentially hazardous situat ion which, if not avoided, may result in mino r or

moderate injury, or property damage.

OMRON Product References

All OMRON products are capitalized in this manual. The word “Unit” is also capitalized when it refers to an OMRON product, regardless of whether or not it appears in the proper name of the product.

The abbreviation “Ch,” which appears in some displays and on some OMRON produ cts, often means “word” and is abbreviated “Wd” in documentation in this sense.

The abbreviation “PC” means Programmable Controller and is not used as an abbreviation for anything else.

Visual Aids

The following headings appear in the left co lumn of the manual to help you locate different types of information.

Note Indicates information of pa rticular interest for efficient and convenient opera-

tion of the product.

1,2,3... 1. Indicates lists of one sort or another, such as procedures, checklists, etc.

 OMRON, 1993

All rights reserved. No part of this publicatio n may b e repro d uced, sto red in a retrieval system, or transmitted, in any form, or by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior written permission of OMRON.

No patent liability is assumed with respect to the use of the information contained herein. Moreover, because OMRON is constantly striving to improve its high-quality products, the information contained in this manual is subject to change without notice. Every precaution has been taken in the preparation of this manual. Nevertheless, OMRON assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.

vii

TABLE OF CONTENTS

PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii

1 Intended Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiv

2 General Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiv

3 Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiv

4 Operating Environment Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv

5 Application Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvi

6 Conformance to EC Directives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

SECTION 1

PC Setup and Other Features . . . . . . . . . . . . . . . . . . . . . 1

1-1 PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1-2 Basic PC Operation and I/O Processes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

1-3 Pulse Output Function (CQM1 Only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

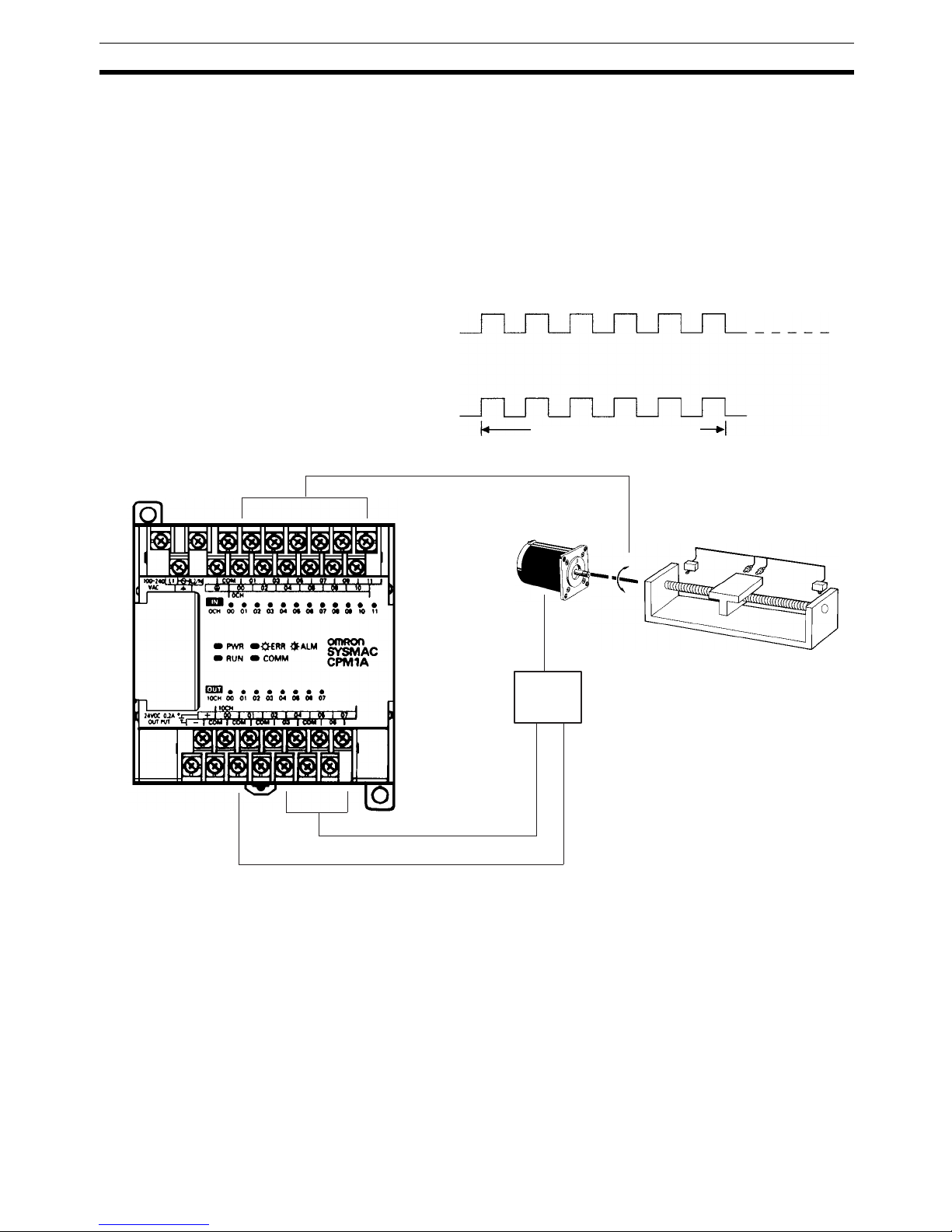

1-4 Pulse Output Function (CPM1A Only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

1-5 CQM1 Interrupt Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

1-6 CPM1/CPM1A Interrupt Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

1-7 SRM1 Interrupt Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

1-8 CompoBus/S Distributed I/O Functions (SRM1 Only) . . . . . . . . . . . . . . . . . . . . . 88

1-9 Communications Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

1-10 Calculating with Signed Binary Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

SECTION 2

Special Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

2-1 Expansion Instructions (CQM1/SRM1 Only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

2-2 Advanced I/O Instructions (CQM1 Only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

2-3 Macro Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

2-4 Differential Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

2-5 Analog Settings (CQM1-CPU42-EV1/CPM1/CPM1A Only) . . . . . . . . . . . . . . . . 132

2-6 Quick-response Inputs (CPM1/CPM1A Only). . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

SECTION 3

Memory Areas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

3-1 CQM1 Memory Area Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

3-2 CPM1/CPM1A Memory Area Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

3-3 SRM1 Memory Area Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

3-4 SRM1 Flash Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

3-5 Using Memory Cassettes (CQM1 Only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

3-6 Operation without a Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 52

SECTION 4

Ladder-diagram Programming. . . . . . . . . . . . . . . . . . . . 155

4-1 Basic Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

4-2 Instruction Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

4-3 Basic Ladder Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

4-4 Controlling Bit Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

4-5 Work Bits (Internal Relays) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

4-6 Programming Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

4-7 Program Execution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

viii

TABLE OF CONTENTS

SECTION 5

Instruction Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

5-1 Notation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188

5-2 Instruction Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188

5-3 Data Areas, Definer Values, and Flags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188

5-4 Differentiated Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

5-5 Coding Right-hand Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

5-6 Instruction Tables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194

5-7 Ladder Diagram Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200

5-8 Bit Control Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201

5-9 NO OPERATION – NOP(00) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205

5-10 END – END(01) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205

5-11 INTERLOCK and INTERLOCK CLEAR – IL(02) and ILC(03). . . . . . . . . . . . . 205

5-12 JUMP and JUMP END – JMP(04) and JME(05) . . . . . . . . . . . . . . . . . . . . . . . . . 207

5-13 User Error Instructions:

FAILURE ALARM AND RESET – FAL(06) and

SEVERE FAILURE ALARM – FALS(07). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209

5-14 Step Instructions:

STEP DEFINE and STEP START–STEP(08)/SNXT(09) . . . . . . . . . . . . . . . . . . 210

5-15 Timer and Counter Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212

5-16 Shift Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229

5-17 Data Movement Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237

5-18 Comparison Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248

5-19 Conversion Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258

5-20 BCD Calculation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285

5-21 Binary Calculation Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296

5-22 Special Math Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307

5-23 Logic Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 316

5-24 Increment/Decrement Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 319

5-25 Subroutine Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 321

5-26 Special Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 323

5-27 Communications Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349

5-28 Advanced I/O Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354

SECTION 6

Host Link Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . 359

6-1 Communications Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360

6-2 Command and Response Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 362

6-3 Host Link Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 366

SECTION 7

PC Operations and Processing Time. . . . . . . . . . . . . . . . 391

7-1 CQM1 Cycle Time and I/O Response Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 392

7-2 CPM1/CPM1A Cycle Time and I/O Response Time . . . . . . . . . . . . . . . . . . . . . . 410

7-3 SRM1 Cycle Time and I/O Response Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 422

TABLE OF CONTENTS

SECTION 8

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 433

8-1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 434

8-2 Programming Console Operation Errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 434

8-3 Programming Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 435

8-4 User-defined Errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 436

8-5 Operating Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 437

8-6 Error Log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 441

8-7 Host Link Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 442

8-8 Troubleshooting Flowcharts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 444

Appendices

A Programming Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 451

B Error and Arithmetic Flag Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 457

C Memory Areas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 461

D Using the Clock Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 479

E I/O Assignment Sheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 481

F Program Coding Sheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 483

G List of FAL Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 487

H Extended ASCII . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 489

I CPM1/CPM1A and CQM1 Memory Area Comparison . . . . . . . . . . . . . . . . . . . . 491

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 493

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 509

Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 517

About this Manual:

This manual describes pr ogramming of the CQM1, CPM1, CPM1A, and SRM1 Programmable Controllers, including memo r y s tr ucture, memory contents, lad der- diagram in str uctio ns, etc., an d inclu des the sections described below. Refer to the CQM1 Operation Manual, CPM1 Operation Manual, CPM1A Operation Manual, a nd SRM1 Master C ontrol Units Operation Manual for hardware informa- tion and Programming Co nsole operating procedure s. Refer to the SSS Operation Manual: C-series PCs for SSS operating procedures.

Note The SRM1 is a specialized p rogrammable controll er and is normally called a CompoBus/S

Master Control Unit. The SRM1, however, is programmed in the sa me way as the other Programmable Controllers and it is treated and referred to as a PC in this manual.

Please read this manual carefully and be sure you understand the information provided before attempting to program and operate the CQM1, CPM1, CPM1A or SRM1.

Section 1 explains the PC Setup and related PC functions, including interrupt processing and communications. The PC Setup can be used to control the operating parameters of the PC.

Section 2 provides an introduction to new PC features, including the new instructions available through expansion instructions and a new monitoring feature call differential monitoring.

Section 3 describ es the structure of the PC’s memory areas, and explains how to use them. It also describes Memory Cassette ope rations use d to transfer data between the CQ M1 and a Me mory Cassette.

Section 4 explai ns the ba si c s tep s an d conc ep ts involved in writing a basic ladder diag r a m pr ogram. It introduces the instr uc tions that are used to build the basic st ru cture of the ladder d iagram and control its execution.

Section 5 individually des cribes the ladder-di agram programming instruct ions that can be used with the PC.

Section 6 explains the me thod s and pr oced ur es for using h ost link commands, whi ch can b e used for host link communications via the PC ports.

Section 7 explains the internal processing of the PCs, and the time required for processing and execution. Refer to this section to gain an understanding of the precise timing of PC operation.

Section 8 describes how to diagnose and correct the hardware and software errors that can occur during PC operation.

The following appendices are also provided: A Programming Instructions, B Error and Arithmetic

Flag Operation, C Memory Areas, D Using the Clock Function, E I/O Assignment Sheet, F Program Coding Sheet, G List of FAL Numbers, H Extended ASCII, an d I CPM1A and CPM1 Memory Area Comparison.

!WARNING Failure to read and understand the informati on provided i n this ma nual may result in p er-

sonal injury or death, damage to th e product, or product failure. Please r ea d ea ch section in its entirety and be sure you understand the information provided in the section and related sections before attempting any of the procedures or operations given.

xiii

PRECAUTIONS

This section provides general precautions for using the Programmable Controller (PC) and related devices.

The information contained in this section is important for the safe and reliable application of the Programmable Controller. You must read this section and understand the information contained before attempting to set up or operate a PC system.

1 Intended Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiv

2 General Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiv

3 Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiv

4 Operating Environment Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv

5 Application Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvi

6 Conformance to EC Directives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

xiv

Intended Audience 1

1 Intended Audience

This manual is intended for the following personnel, who must also have knowledge of electrical systems (an electrical engineer or the equivalent).

• Personnel in charge of installing FA systems.

• Personnel in charge of designing FA systems.

• Personnel in charge of managing FA systems and facilities.

2 General Precautions

The user must operate t he product according to t he performance specifications described in the operation manuals.

Before using the product under conditions which are not described in the manual or applying the produ ct to nuclear control s ystems, railroad systems, aviation systems, vehicles, combustion systems, me dical equipmen t, amusement machines, safety equipment, and oth er systems, machines, and equi pment that may have a serious influence on lives and property if used improperly, consult your OMRON representative.

Make sure that the ratings and performan ce charact er is ti cs of the pr od uc t are sufficient for the systems, machi nes, and equipment, and be sure to provide the systems, machines, and equipment with double safety mechanisms.

This manual provides informat ion for programming and operat ing the Un it. B e sure to read this manual before attempting to use the Unit and keep this manual close at hand for reference during operation.

!WARNING It is extremely impor tant th at a PC and all PC Units be u sed for the spe cified

purpose and under the specified conditions, especially in applications that can directly or indirectly affect human life. You must consult with your OMRON representative before applying a PC Sy stem to the above-mentioned a pplic ations.

3 Safety Precautions

!WARNING Do not attempt to take any Unit apart while the power is being supplied. Doing

so may result in electric shock.

!WARNING Do not touch any of the termi na ls w hil e the power is being sup pl ied . Doing s o

may result in electric shock.

!WARNING Do not attempt to disassemble, repair, or modify any Units. Any attempt to do

so may result in malfunction, fire, or electric shock.

!Caution Tighten the screws on the ter minal block of the AC Power Supply Unit to the

torque specified in th e manual. Loose screws may result in burning or malfunction.

!Caution Execute online edit only after confirming that no adverse effects will be

caused by extending the cycle time. Other wise, the input signals may not be readable.

Operating Environment Precautions 4

!Caution Confirm safety at the destination node before transferring a program to

another node or changing t he I/O m emo ry area. Doing eit her of these without confirming safety may result in injury.

!Caution When connecting the PC t o a personal compute r or other peri pheral device,

either ground the 0-V side of the PC o r do not gro und the PC a t all . Alth ough some grounding method s shor t the 24-V side, as shown in th e following diagram, never do so with the PC.

4 Operating Environment Precautions

!Caution Do not operate the control system in the following locations:

• Locations subject to direct sunlight.

• Locations subject to temperatures or humidity outside the range specified in the specifications.

• Locations subject to condensation as the result of severe changes in temperature.

• Locations subject to corrosive or flammable gases.

• Locations subject to dust (especially iron dust) or salts.

• Locations subject to exposure to water, oil, or chemicals.

• Locations subject to shock or vibration.

!Caution Take appropriate and sufficient counter measures when installing systems in

the following locations:

• Locations subject to static electricity or other forms of noise.

• Locations subject to strong electromagnetic fields.

• Locations subject to possible exposure to radioactivity.

• Locations close to power supplies.

!Caution The operating environment of the PC System ca n have a large effect on the

longevity and reliability of the sy stem. Improper operating environme nts can lead to malfunction, failure, and other unforeseeable problems with the PC System. Be sure that the op erating environment is within the sp ecified cond itions at installation and remai ns within the specifi ed conditions dur ing the life of the system.

24 V

0 V 0 V

0 V

PC Peripheral device

Non-isolated DC power supply

INCORRECT Grounding: Shorting the 24-V side of the Power Supply

xvi

Application Precautions 5

5 Application Precautions

Observe the following precautions when using the PC System.

!WARNING Always heed these precautions. Failure to abide by the following precautions

could lead to serious or possibly fatal injury.

• Always ground the system to 100 Ω or less when installing the Units. Not connecting to a ground of 100 Ω or less may result in electric shock.

• Always turn OFF the power supply to the PC before attempting any of the following. Not turning OFF the power supply may result in mal function or electric shock.

• Mounting or dismounting Power Supply Units, I/O Units, CPU Units, Memory Cassettes, or any other Units.

• Assembling the Units.

• Setting DIP switches or rotary switches.

• Connecting or wiring the cables.

• Connecting or disconnecting the connectors.

!Caution Failure to abide by the following precautions could lead to faulty operation of

the PC or the system, or could damage the PC or PC Units. Always heed these precautions.

• Fail-safe measures must be taken by the customer to ensure safety in the event of incorrect, missing, or abnorm al signals caused by broken signal lines, momentary power interruptions, or other causes.

• Interlock circuits, limit circuits, and similar safety measures in external circuits (i.e., not in the Programmable Controller) must b e provided by the customer.

• Always use the power supply voltage sp ecified in the manual. An incorrect voltage may result in malfunction or burning.

• Take appropriate me asures to ensure that the specified power with th e rated voltage and frequency i s supplied. Be particula rly careful in places where the power supply is unstable. An incorrect power supply may result in malfunction.

• Install external breakers and take other safety measures against short-circuiting in exter nal wiring. Insufficient safety measur es against short-circuiting may result in burning.

• Do not apply voltages to the Input Units in excess of the rated input voltage. Excess voltages may result in burning.

• Do not apply voltages or connect lo ads to the Output Units in exces s of the maximum swi tching capacity. Excess voltage or loads may r esult in burning.

• Disconnect the functional ground terminal when performing withstand voltage tests. Not disconnecting the functional ground terminal may result in burning.

• Install and wire the Unit properly as specified in the manual. Improper installation of the Unit may result in malfunction.

• Be sure that all the mounting screws , ter min al scre ws, and cable connector screws are tightened to the torque specified in the r elevant manuals. Incorrect tightening torque may result in malfunction.

xvii

Application Precautions 5

• Leave the label attached to the Unit when wiring. Removing the label may result in malfunction.

• Remove the label after the completion of wiring to ensure proper heat dissipation. Leaving the label attached may result in malfunction.

• Use crimp terminals for wiring. Do not connect bare stranded wires directly to terminals. Connection of bare stranded wires may result in burning.

• Double-check all the wiring before turning ON the power supply. Incorrect wiring may result in burning.

• Mount the Unit only after checking the terminal block completely.

• Be sure that the terminal bloc ks, Memory Units, expansion cables, and other items with locking devices are properly locked into place. Improper locking may result in malfunction.

• Check the user program for proper execution before actually running it on the Unit. Not checking the program may result in an unexpected operation.

• Confirm that no adverse effect will occur in the system before attemptin g any of the following. Not doing so may result in an unexpected operation.

• Changing the operating mode of the PC.

• Force-setting/force-resetting any bit in memory.

• Changing the present value of any word or any set value in memory.

• Resume operation only after trans ferring to the new CPU Un it the contents of the DM and HR Areas required for resuming operation. Not doing so may result in an unexpected operation.

• Do not place objects on top of the cables. Doing so may break the cables.

• Before touching the Unit, be sure to fir s t to uch a grounded metallic obj ec t in order to discharge any static built-up. Not doing so may result in malfunction or damage.

• Do not touch the Expansion I/O Unit Connectin g Cable while the power is being supplied in order to prevent any malfunction due to static electricity.

• When replacing parts, be sure to confirm th at the rating of a new part is correct. Not doing so may result in malfunction or burning.

!Caution Always clear memory before beginning to program the CPM1, CPM1A or

SRM1. Although me mory is clear ed before the CPU Unit is shippe d (except for bits with specific functi ons), AR 1314, which tur ns ON when the inter nal capacitor cannot back up memory, may ha ve turned ON during shipment.

!Caution If the CPM1 or CPM1A will be turned OFF for periods exceeding the data

backup period of the internal capacitor, design the system so that it will not be influenced if data in the DM, HR, and CNT area s is cleared when power is turned OFF.

!Caution Either switch the CPM1 or CPM1 A to RUN or MONITOR mode, or turn OFF

and ON power to the CPM1 or CPM1A after chang ing from a Programming Device any data that is backed up in flas h memory. Thi s data includes the user program, read-only DM area (DM 6144 to DM 6599), and the PC Setup (DM 6600 to DM 6655).

xviii

Application Precautions 5

• The user program and memory area data in the CPM 1 or CPM1A are backed up either by an inter nal capa citor or in f lash memory as shown i n

the following table.

Note

1. The IR, TR, LR, and ti mer ar eas are not normally backed up when power is turned OFF and all contents will be cleared the next time power is turned ON. (The PC Setup s et ting in DM 660 1 c an be us ed t o ba ck up thi s data. Refer to details on the PC Setup later in this manual for details.)

2. The bits in the AR and SR areas have special functions and are set according to these functions when power is turned ON.

• The capacitor backup time depends on the ambient temperature, as shown in the following graph. The backup time, however, assumes that the capacitor is fu lly charged, which requires t hat power be supplied to the CPU Unit continuously for at least 15 minutes.

If the power remains OFF for a period exceeding the data backup period, AR 1314 will turn ON to indicate that the capacitor can no longer back up data and the data backed up by the capacitor will be cleared. AR 13 14 will rem ain ON unless it i s tu rned OFF using I/O monitor ope rati ons, us ing m emo ry clear operations, or from the user program.

If desired, the PC Setu p setting in DM 6604 can be set to cr eate a fatal error and thus stop the system when AR 1314 goes ON.

• The data stored in flash memory will not be lost even if power remains OFF for a period exceeding the data backup period, because the data stored in flash memor y will be read to the CPU Unit when the CPM1 or CPM1A is turned ON.

• If the power is turned OFF without changing the mode from PROGRAM mode to RUN or MONITOR mode after having made changes in the data that is backed up in flash memory, the changes wi ll no t be written to flas h memory. If the power is then left OFF for more than 20 days (at 25

°C), the

Backup method Data

Internal capacitor Read/write DM area (DM 0000 to DM 0999, DM 1022, and

DM 1023) Error log area (DM 1000 to DM 1021) HR area (HR 00 to HR 19) Counter area (CNT 000 to CNT 127)

Flash memory User program

Read-only DM area (DM 6144 to DM 6599) PC Setup (DM 6600 to DM 6655)

25 40 80

Backup time (days)

Ambient temperature (°C)

xix

Conformance to EC Directives 6

changes (i.e., the contents of the RAM) will be erased and the data values will become undefined.

!Caution Be sure that the SRM1 syste m is not influe nced by any undefined data if the

data in the DM, HR, or CNT area is c leare d wh en t he S RM1 ha s b een turned OFF for a period exceeding the data backup period of the internal lithium battery. If the AR 1414 flag is ON, the dat a will be held unles s it is turne d OFF using the I/O Monito r ope ration, in structions, etc. The s yst em can be stopped by designating DM 6604 in the PC Setup so that a memory error occurs when the power interruption hold area is not held (with AR 1314 ON)

• A lithium battery in the C PU Unit is used to back up the counter values and the contents of the DM area, and HR ar ea. The deterioration of the lithium batter y capacity depends o n the ambient temperature. T he standard service life is 12 years at an ambient temperature of 40°C when operating 8 hours a day.

If the power remains off for a per iod exceeding the data backup per iod, the contents of the Data Memory (DM), Hold Relay (HR), and Counter (CNT) Areas in the CPU Un it may be cleared and the A R 1314 flag (which t urns ON when the power interruption hold area is not held) may turn ON.

If the contents of th e CP U Un it’s program area are lo st, the pr ogram sto re d in flash memory will be r ead to th e CPU Unit’s program area when the SRM 1 is started up because the contents in the read-only area (DM 6144 through DM 6599) and PC Setup (DM 6600 through DM 6655) will be written to flash memory.

• However, if the power is turned OFF without changing the mod e even if changes are made in the read-only DM area (DM 6144 through DM

6599), or PC Setup (DM 6600 through DM 6655) using a peripheral device, the contents of changes will not be written to flash memory. Although the data in thes e areas is backed up by the lithium battery, contents of changes will disappear if the service life of the lithium battery expires. In this case, programs in the fl ash memor y will be automa tically read into the user program memory.

The changes can be saved by switching the SRM1 to RUN or MONITOR mode or turning OFF and restarting the SRM1 soon after the changes are made.

6 Conformance to EC Directives

The CQM1 PCs comp ly with EC Directives. To ensure tha t the machine or device i n w h ich a C QM1 P C i s us ed c omp li es w i th EC D i re ct ives, the PC must be installed as follows:

1,2,3... 1. The PC must be installed within a control panel.

2. Reinforced insulation or double insulation must be used for the DC power supplies used for the communications and I/O power supplies.

3. PCs complying with EC Directives also conform to the Common Emission Standard (EN50081-2). When a PC is built into a machine, however, noise can be generated by switching devices us in g r el ay outputs and ca us e th e overall machine to fail to meet the Stan dard. If this occurs, surge kil lers must be connected or other measures taken external to the PC.

The following methods represent typical met hods for reduc ing noise, and may not be sufficient in all cases. Required countermeasures will vary de-

Conformance to EC Directives 6

pending on the devices connected to the con trol pa nel , wiring, the configuration of the system, and other conditions.

Determining if Countermeasures Are Required

Refer to EN50081-2 for more details. Countermeasur es are not required if the f requency of load switching for the

whole system including the PC is less than 5 times per minute. Countermeasures are required if the frequency of load switching for the whole

system including the PC is more than 5 times per minute.

Countermeasure Examples

When switching an inductive load, co nne ct a n su r ge pr ot ec tor, diodes, etc., in parallel with the load or contact as shown below.

When switching a load with a high inr ush current, such as an incandes cent lamp, suppress the inrush current as shown below.

Circuit Current Characteristic Required element

AC DC

Yes Yes If the load is a relay or solenoid, there

is a time lag between the moment the circuit is opened and the moment the load is reset.

If the supply voltage is 24 or 48 V, insert the surge protector in parallel with the load. If the supply voltage is 100 to 200 V, insert the surge protector between the contacts.

The capaci tance of the capacitor must be 1 to 0.5 µF per contact current of 1 A and resistance of the resistor must be 0.5 to 1 Ω per c ontact v olt age of 1V. These values, however, vary with the load and the characteristics of the relay. Decide these values from tes ting, and take into consideration that the capacitance suppresses spark discharge when the contacts are separated and the resistance limits the current that flows into the load when the circuit is closed again.

The dielectric strength of the capacitor must be 200 to 300 V. If the circuit is an AC circuit, use a capacitor with no polarity.

No Yes The diode connected in parallel with

the load changes energy accumulated by the coil into a current, which then flows into the coil so that the current will be converted into Joule heat by the resistance of the inductive load.

This time lag, b etw een the moment the circuit is opened and the moment the load is reset, caused by this method is longer than that caused by the CR method.

The reversed dielectric strength value of the diode must be at least 10 times as large as the circuit voltage value. The forward current of the diode must be the same as or larger than the load current.

The reversed dielectric strength value of the diode may be two to three times larger than the supply voltage if the surge protector is applied to electronic circuits with low circuit voltages.

Yes Yes The varistor method prevents the impo-

sition of high voltage between the contacts by using the constant voltage characteristic of the varistor. There is time lag between the moment the circuit is opened an d the moment the load is reset.

If the supply voltage is 24 or 48 V, insert the varistor in parallel with the load. If the supply v o ltage is 100 to 2 00 V, insert the varistor between the contacts.

---

CR method

Power supply

Inductive

load

Diode method

Power supply

Inductive

load

Varistor method

Power supply

Inductive

load

xxi

Conformance to EC Directives 6

OUT

COM

OUT

COM

Countermeasure 1

Providing a dark current of approx. one-third of the rated value throu

h an incandescent lamp

Countermeasure 2

Providing a limiting resisto

xxii

Conformance to EC Directives 6

SECTION 1

PC Setup and Other Features

This section explains the PC Setup and other CQM1 /CPM1/CPM1A/SRM1 featur es, including interrupt processing and communications. The PC Setup can be used to control the operating parameters of the CQM1/CPM1/CPM1A/SRM1. To change the PC Setup, refer to the CQM1 Operation Manual, CPM1 Operation Manual, CPM1A Operation Manual or

SRM1 Master Control Units Operation Manual for Programming Console procedu res. Refer to the SSS O peration M anual: C-series PCs for SSS procedures.

If you are not familiar with OMRON PCs or ladder diagram program, you can read 1-5 PC Setup as an overview of the operating parameters available for the CQM1/CPM1/CPM1A/SRM1, but may then want to read SECTION 3 M emory Areas, SECTION 4 Ladder-diagram Programming, and related instructions in Section SECTION 5 Instruction Set before completing this section.

1-1 PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1-1-1 Changing the PC Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1-1-2 CQM1 PC Setup Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1-1-3 CPM1/CPM1A PC Setup Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1-1-4 SRM1 PC Setup Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

1-2 Basic PC Operation and I/O Processes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

1-2-1 Startup Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

1-2-2 Hold Bit Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

1-2-3 Program Memory Write-protection (CPM1/CPM1A Only). . . . . . . 17

1-2-4 RS-232C Port Servicing Time (CQM1/SRM1 Only). . . . . . . . . . . . 18

1-2-5 Peripheral Port Servicing Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

1-2-6 Cycle Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

1-2-7 Input Time Constants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

1-2-8 High-speed Timers (CQM1 Only) . . . . . . . . . . . . . . . . . . . . . . . . . . 20

1-2-9 DSW(87) Input Digits & Output Refresh Method (CQM1 On l y) . . 21

1-2-10 Error Log Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

1-3 Pulse Output Function (CQM1 Only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

1-3-1 Types of Pulse Outputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

1-3-2 Standard Pulse Output from an Output Point. . . . . . . . . . . . . . . . . . 23

1-3-3 Standard Pulse Output from Ports 1 and 2 . . . . . . . . . . . . . . . . . . . . 25

1-3-4 Variable-duty-ratio Pulse Output from Ports 1 and 2 . . . . . . . . . . . . 32

1-3-5 Determining the Status of Ports 1 and 2. . . . . . . . . . . . . . . . . . . . . . 34

1-4 Pulse Output Function (CPM1A Only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

1-4-1 Programming Example in Continuous Mode. . . . . . . . . . . . . . . . . . 36

1-4-2 Programming Example in Independent Mode . . . . . . . . . . . . . . . . . 36

1-4-3 Using Pulse Output Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

1-4-4 Changing the Frequency. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

1-4-5 Stopping Pulse Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

1-5 CQM1 Interrupt Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

1-5-1 Types of Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

1-5-2 Input Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

1-5-3 Masking All Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

1-5-4 Interval Timer Interrupts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

1-5-5 High-speed Counter 0 Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

1-5-6 High-speed Counter 0 Overflows/Underflows . . . . . . . . . . . . . . . . . 53

1-5-7 High-spee d Counter 1 and 2 Interrupts (CQM1-CPU43-EV1) . . . . 55

1-5-8 Absolute High-speed Counter Interrupts (CQM1-CPU44-EV1). . . 62

1-6 CPM1/CPM1A Interrupt Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

1-6-1 Types of Interrupts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

1-6-2 Input Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

1-6-3 Masking All Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

1-6-4 Interval Timer Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

1-6-5 High-speed Counter Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

1-7 SRM1 Interrupt Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

1-7-1 Types of Interrupts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

1-7-2 Interval Timer Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

1-8 CompoBus/S Distributed I/O Functions (SRM1 Only). . . . . . . . . . . . . . . . . . 88

1-9 Communications Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

1-9-1 CQM1 PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

1-9-2 Wiring Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

1-9-3 CQM1 Host Link Communications . . . . . . . . . . . . . . . . . . . . . . . . . 93

1-9-4 CPM1/CPM1A Host Link Communications. . . . . . . . . . . . . . . . . . . 95

1-9-5 SRM1 Host Link Communications. . . . . . . . . . . . . . . . . . . . . . . . . . 97

1-9-6 RS-232C Communications (CQM1/SRM1 Only) . . . . . . . . . . . . . . 100

1-9-7 CQM1 One-to-one Link Communications . . . . . . . . . . . . . . . . . . . . 102

1-9-8 CPM1/CPM1A One-to-one Link Communications . . . . . . . . . . . . . 104

1-9-9 CPM1/CPM1A NT Link Communications. . . . . . . . . . . . . . . . . . . . 1 05

1-9-10 SRM1 One-to-one Link Communications . . . . . . . . . . . . . . . . . . . . 106

1-9-11 SRM1 NT Link Communications. . . . . . . . . . . . . . . . . . . . . . . . . . . 108

1-9-12 SRM1 No Protocol Communications . . . . . . . . . . . . . . . . . . . . . . . . 109

1-9-13 Tr ansmission Data Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

1-9-14 Tr ansmission Flags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

1-9-15 No Protocol Communications Program Example. . . . . . . . . . . . . . . 112

1-10 Calculating with Signed Binary Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

1-10-1 Definition of Signed Binary Data . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

1-10-2 Arithmetic Flags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

1-10-3 Inputting Signed Binary Data Using Decimal Values. . . . . . . . . . . . 115

1-10-4 Using Signed-binary Expansion Instructions (CQM1 Only) . . . . . . 115

1-10-5 Application Example Using Signed Binary Data . . . . . . . . . . . . . . . 116

PC Setup Section 1-1

1-1 PC Setup

The PC Setup compr ises various operating parameters that contro l CQM1/ CPM1/CPM1A/SRM1 operation. In order to make the maximum use of CQM1/CPM1/CPM1A/SRM1 functionality when using interrupt processing and communications fu nctions, the PC Setup may be customized accor ding to operating conditions.

At the time of shipping, the defaults are set for general operating conditions, so that the CQM1/CPM1/CPM1A/SRM1 can be used without having to change the settings. You are, however, advised to check the default values before operation.

Default Values The default values for the PC Setup are 0000 for all words. The default values

can be reset at any time by turning ON SR 25210.

!Caution When data memory (DM) is cleared from a Programming Device, the PC

Setup settings will also be cleared to all zeros.

1-1-1 Changing the PC Setup

PC Setup settings are accessed at various times depending on the setting, as described below.

• DM 6600 to DM 6614: Accessed only when PC’s power supply is turned on.

• DM 6615 to DM 6644: Accessed only when program execution begins.

• DM 6645 to DM 6655: Accessed regularly when the power is on.

Since changes in the PC Setup become effective only at the times given above, the CQM1/CPM1/CPM1A/SRM1 will have to be restarted to make changes in DM 6600 to DM 6614 effective, and program execution will have to be restarted to make changes in DM 6615 to DM 6644 effective.

When DM 6602 bits 00 to 03 are set to protect the program memory , DM 6602 cannot be changed using the PC Setup operation of the Support Software. To change DM 6602, use the I/O Monitor or DM Edit operation.

Making Changes from a Peripheral Device

The PC Setup can be read, but not wr itten into, from the user program. Writing can be done only by using a Programming Device.

Although the PC Se tup is stored in DM 6600 to DM 665 5, settings can be made and changed only from a Programming Device (e.g., SSS, or Programming Console). DM 6600 to DM 6644 can be set or changed only while in PROGRAM mode. DM 6645 to DM 6655 can be set or changed while in either PROGRAM mode or MONITOR mode.

The following settings can be made in PROGRAM mode from the SSS us ing menu operations. All other se ttin gs must b e ma de u sing th e hexadeci ma l s etting operation.

• Startup Mode (DM 6600)

• I/O Hold Bit Status and Forced Status Hold Bit Status (DM 6601)

• Cycle Monitor Time (DM 6618)

• Cycle Time (DM 6619)

• RS-232C Port Settings (DM 6645 to DM 6649)

Note The RS-232C Port Setti ngs (DM 6645 to DM 6649) are no t used in CPM1/

CPM1A PCs because these PCs aren’t equipped with an RS-232C port.

PC Setup Section 1-1

Errors in the PC Setup If an incorrect PC Setup settin g is acc essed, a non-fatal error (er ror code 9B)

will be generated, the c orresponding error flag (AR 2400 to AR 2402 in th e CQM1, AR 1300 to AR 1302 in the CPM1/ CPM1A/SRM1) wil l be turned ON , and the default setting will be used instead of the incorrect setting.

1-1-2 CQM1 PC Setup Settings

The PC Setup is broadly divided into four categories: 1) Settings rela ted to basic CQM1 operation and I/O proces ses, 2) Settin gs related to pulse o utput functions, 3) Settings re lated to in terr upts, and 4) Set tings related t o communications. This section wi ll explain the settings according to these classifications.

The following table shows the setting in order in the DM area. For details, refer to the page numbers shown.

Word(s) Bit(s) Function Page

Startu p Processing (DM 6600 to DM 6614)

The following settings are effective after transfer to the PC only after the PC is restarted. DM 6600 00 to 07 Startup mode (effective when bits 08 to 15 are set to 02).

00: PROGRAM; 01: MONITOR 02: RUN

08 to 15 Startup mode designation

00: Programming Console switch 01: Continue operating mode last used before power was turned off 02: Setting in 00 to 07

DM 6601 00 to 07 Not used.

08 to 11 IOM Hold Bit (SR 25212) Status

0: Reset; 1: Maintain

12 to 15 Forced Status Hold Bit (SR 25211) Status

0: Reset; 1: Maintain

DM 6602 to DM 6610

00 to 15 Not used.

DM 6611 00 to 15 CQM1-CPU43-EV1: Mode setting for ports 1 and 2

0000: High-speed counter mode; 0001: Pulse output mode CQM1-CPU44-EV1: Origin compensation setting for port 1 (4-digit BCD)

25, 63

DM 6612 00 to 15 CQM1-CPU44-EV1: Origin compensation setting for port 2 (4-digit BCD) 63

Pulse Output and Cycle Time Settings (DM 6615 to DM 6619)

The following settings are effective after transfer to the PC the next time operation is started. DM 6615 00 to 07 Word for pulse output.

00: IR 100; 01: IR101; 02: IR 102... 15: IR 115

08 to 15 Not used.

DM 6616 00 to 07 Servicing time for RS-232C port (effective when bits 08 to 15 are set to 01)

00 to 99 (BCD): Percentage of cycle time used to service RS-232C port.

08 to 15 RS-232C port servicing setting enable

00: 5% of the cycle time 01: Use time in 00 to 07.

DM 6617 00 to 07 Servicing time for peripheral port (effective when bits 08 to 15 are set to 01)

00 to 99 (BCD): Percentage of cycle time used to service peripheral.

08 to 15 Peripheral port servicing setting enable

00: 5% of the cycle time 01: Use time in 00 to 07.

DM 6618 00 to 07 Cycle monitor time (effective when bits 08 to 15 are set to 01, 02, or 03)

00 to 99 (BCD): Setting (see 08 to 15)

08 to 15 Cycle monitor enable (Setting in 00 to 07 x unit; 99 s max.)

00: 120 ms (setting in bits 00 to 07 disabled) 01: Setting unit: 10 ms 02: Setting unit: 100 ms 03: Setting unit: 1 s

PC Setup Section 1-1

DM 6619 00 to 15 Cycle time

0000: Variable (no minimum) 0001 to 9999 (BCD): Minimum time in ms

Interrupt Processing (DM 6620 to DM 6639)

The following settings are effective after transfer to the PC the next time operation is started. DM 6620 00 to 03 Input constant for IR 00000 to IR 00007

0: 8 ms; 1: 1 ms; 2: 2 ms; 3: 4 ms; 4: 8 ms; 5: 16 ms; 6: 32 ms; 7: 64 ms; 8: 128 ms

04 to 07 Input constant for IR 00008 to IR 00015 (Setting same as bits 00 to 03) 08 to 15 Input constant for IR 001

00: 8 ms; 01: 1 ms; 02: 2 ms ; 03 : 4 m s; 04: 8 ms; 05: 16 ms; 06: 32 ms; 07: 64 ms; 08: 128 ms

DM 6621 00 to 07 Input constant for IR 002 (Setting same as for IR 001.)

08 to 15 Input constant for IR 003 (Setting same as for IR 001.)

DM 6622 00 to 07 Input constant for IR 004 (Setting same as for IR 001.)

08 to 15 Input constant for IR 005 (Setting same as for IR 001.)

DM 6623 00 to 07 Input constant for IR 006 (Setting same as for IR 001.)

08 to 15 Input constant for IR 007 (Setting same as for IR 001.)

DM 6624 00 to 07 Input constant for IR 008 (Setting same as for IR 001.)

08 to 15 Input constant for IR 009 (Setting same as for IR 001.)

DM 6625 00 to 07 Input constant for IR 010 (Setting same as for IR 001.)

08 to 15 Input constant for IR 011 (Setting same as for IR 001.)

DM 6626 00 to 07 Input constant for IR 012 (Setting same as for IR 001.)

08 to 15 Input constant for IR 013 (Setting same as for IR 001.)

DM 6627 00 to 07 Input constant for IR 014 (Setting same as for IR 001.)

08 to 15 Input constant for IR 015 (Setting same as for IR 001.)

DM 6628 00 to 03 Interrupt enable for IR 00000 (0: Normal input; 1: Interrupt input) 40

04 to 07 Interrupt enable for IR 00001 (0: Normal input; 1: Interrupt input) 08 to 11 Interrupt enable for IR 00002 (0: Normal input; 1: Interrupt input) 12 to 15 Interrupt enable for IR 00003 (0: Normal input; 1: Interrupt input)

DM 6629 00 to 07 Number of high-speed timers for interrupt refreshing

00 to 15 (BCD; e.g., set 15 for 00 to 14)

08 to 15 High-speed timer interrupt refresh enable

00: 16 timers (setting in bits 00 to 07 disabled) 01: Use setting in 00 to 07

DM 6630 00 to 07 First input refresh word for I/O interrupt 0: 00 to 11 (BCD) 40

08 to 15 Number of input refresh words for I/O interrupt 0: 00 to 12 (BCD)

DM 6631 00 to 07 First input refresh word for I/O interrupt 1: 00 to 11 (BCD)

08 to 15 Number of input refresh words for I/O interrupt 1: 00 to 12 (BCD)

DM 6632 00 to 07 First input refresh word for I/O interrupt 2: 00 to 11 (BCD)

08 to 15 Number of input refresh words for I/O interrupt 2: 00 to 12 (BCD)

DM 6633 00 to 07 First input refresh word for I/O interrupt 3: 00 to 11 (BCD)

08 to 15 Number of input refresh words for I/O interrupt 3: 00 to 12 (BCD)

DM 6634 00 to 07 First input refresh word for high-speed counter 1: 00 to 11 (BCD) 40

08 to 15 Number of input refresh words for high-speed counter 1: 00 to 12 (BCD)

DM 6635 00 to 07 First input refresh word for high-speed counter 1: 00 to 11 (BCD) 40

08 to 15 Number of input refresh words for high-speed counter 1: 00 to 12 (BCD)

Word(s) Bit(s) Function Page

PC Setup Section 1-1

DM 6636 00 to 07 First input refresh word for interval timer 0: 00 to 07 (BCD) 45, 50

08 to 15 Number of input refresh words for interval timer 0: 00 to 08 (BCD)

DM 6637 00 to 07 First input refresh word for interval timer 1: 00 to 07 (BCD)

08 to 15 Number of input refresh words for interval timer 1: 00 to 08 (BCD)

DM 6638 00 to 07 First input refresh word for interval timer 2 (also used for high-speed counter 0): 00 to

07 (BCD)

08 to 15 Number of input refresh words for interval timer 2: 00 to 08 (BCD)

(also used for high-speed counter 0)

DM 6639 00 to 07 Output refresh method

00: Cyclic; 01: Direct

21, 393

08 to 15 Number of digits for DIGITAL SWITCH (DSW(87)) instruction

00: 4 digits; 01: 8 digits

21, 124

High-speed Counter Settings (DM 6640 to DM 6644)

The following settings are effective after transfer to the PC the next time operation is started. DM 6640,

DM 6641

00 to 15 Not used.

DM 6642 00 to 03 High-speed counter 0 mode

0: Up/down counter mode; 4: Incrementing counter mode

04 to 07 High-speed counter 0 reset mode

0: Z phase and software reset; 1: Software reset only

08 to 15 High-speed counter 0 enable

00: Don’t use high-speed counter; 01: Use high-speed counter with settings in 00 to 07

DM 6643 00 to 03 CQM1-CPU43-EV1: Port 1 input setting

0: Differential phase input; 1: Pulse/Direction input; 2: Up/Down input CQM1-CPU44-EV1: Port 1 input setting

0: 8-bit input; 1: 10-bit input; 2: 12-bit input

55, 62

04 to 07 CQM1-CPU43-EV1: Por t 1 reset setting

0: Z phase and software reset; 1: Software reset only CQM1-CPU44-EV1: Not used. Set to 0.

08 to 11 CQM1-CPU43-EV1: Por t 1 counting mode setting

0: Linear mode; 1: Ring mode CQM1-CPU44-EV1: Port 1 mode setting

0: BCD mode; 1: 360° mode

56, 62

12 to 15 CQM1-CPU43-EV1: Por t 1 pulse type setting

0: Standard pulse output (0.5 duty ratio); 1: Variable-duty-ratio pulse output CQM1-CPU44-EV1: Not used. Set to 0.

25, 32

DM 6644 00 to 15 Port 2 settings (Identical to the port 1 settings in DM 6643.)

Word(s) Bit(s) Function Page

PC Setup Section 1-1

Word(s) Bit(s) Function Page

RS-232C Port Settings

The following settings are effective after transfer to the PC. DM 6645 00 to 07 Port settings

00: Standard (1 start bit, 7-bit data, even parity, 2 stop bits, 9,600 bps) 01: Settings in DM 6646

08 to 11 Link words for 1:1 link (Effective when bits 12 to 15 are set to 3.)

0: LR 00 to LR 63; 1: LR 00 to LR 31; 2: LR 00 to LR 15

12 to 15 Communications mode

0: Host link; 1: RS-232C (no protocol); 2: 1:1 data link slave; 3: 1:1 data link master; 4: NT Link (1:1) (NT Link setting is only applicable to the CQM1-CPU4@-EV1 CPU Units.)

DM 6646 00 to 07 Baud rate

00: 1.2K, 01: 2.4K, 02: 4.8K, 03: 9.6K, 04: 19.2K

08 to 15 Frame format

Start Length Stop Parity 00: 1 bit 7 bits 1 bit Even 01: 1 bit 7 bits 1 bit Odd 02: 1 bit 7 bits 1 bit None 03: 1 bit 7 bits 2 bit Even 04: 1 bit 7 bits 2 bit Odd 05: 1 bit 7 bits 2 bit None 06: 1 bit 8 bits 1 bit Even 07: 1 bit 8 bits 1 bit Odd 08: 1 bit 8 bits 1 bit None 09: 1 bit 8 bits 2 bit Even 10: 1 bit 8 bits 2 bit Odd 11: 1 bit 8 bits 2 bit None

DM 6647 00 to 15 Transmission delay (Host Link)

0000 to 9999 (BCD): Set in units of 10 ms, e.g., setting of 0001 equals 10 ms

DM 6648 00 to 07 Node number (Host link, effective when bits 12 to 15 of DM 6645 are set to 0.)

00 to 31 (BCD)

08 to 11 Start code enable (RS-232C, effective when bits 12 to 15 of DM 6645 are set to 1.)

0: Disable; 1: Set

12 to 15 End code enable (RS-232C, effective when bits 12 to 15 of DM 6645 are set to 1.)

0: Disable (number of bytes received) 1: Set (specified end code) 2: CR, LF

DM 6649 00 to 07 Start code (RS-232C)

00 to FF (binary)

08 to 15 When bits 12 to 15 of DM 6648 are set to 0:

Number of bytes received 00: Default setting (256 bytes) 01 to FF: 1 to 255 bytes

When bits 12 to 15 of DM 6648 are set to 1: End code (RS-232C) 00 to FF (binary)

PC Setup Section 1-1

Word(s) Bit(s) Function Page

Peripheral Port Settings

The following settings are effective after transfer to the PC. These settings are effective when a CQM1-CIF01 Connecting Cable is used.

They are not effective when a CQM1-CIF11 Connecting Cable or Programming Console is used. DM 6650 00 to 07 Port settings

00: Standard (1 start bit, 7-bit data, even parity, 2 stop bits, 9,600 bps) 01: Settings in DM 6651

08 to 11 Not used. 12 to 15 Communications mode

0: Host link; 1: RS-232C

DM 6651 00 to 07 Baud rate

00: 1.2K, 01: 2.4K, 02: 4.8K, 03: 9.6K, 04: 19.2K

08 to 15 Frame format

DM 6652 00 to 15 Transmission delay (Host Link)

0000 to 9999: In ms.

DM 6653 00 to 07 Node number (Host link, effective when bits 12 to 15 of DM 6650 are set to 0.)

00 to 31 (BCD)

08 to 11 Start code enable (RS-232C, effective when bits 12 to 15 of DM 6650 are set to 1.)

0: Disable; 1: Set

12 to 15 End code enable (RS-232C, effective when bits 12 to 15 of DM 6650 are set to 1.)

0: Disable (number of bytes received) 1: Set (specified end code) 2: CR, LF

DM 6654 00 to 07 Start code (RS-232C, effective when bits 08 to 11 of DM 6653 are set to 1.)

00 to FF (binary)

08 to 15 When bits 12 to 15 of DM 6653 are set to 0:

Number of bytes received 00: Default setting (256 bytes) 01 to FF: 1 to 255 bytes

When bits 12 to 15 of DM 6653 are set to 1: End code (RS-232C) 00 to FF (binary)

Error Log Settings (DM 6655)

The following settings are effective after transfer to the PC. DM 6655 00 to 03 Style

0: Shift after 10 records have been stored 1: Store only first 10 records (no shifting) 2 to F: Do not store records

04 to 07 Not used. 08 to 11 Cycle time monitor enable

0: Detect long cycles as non-fatal err ors 1: Do not detect long cycles

12 to 15 Low battery error enable

0: Detect low battery voltage as non-fatal error 1: Do not detect low batter voltage

PC Setup Section 1-1

1-1-3 CPM1/CPM1A PC Setup Settings

The PC Setup is broadly divided into four categories: 1) Settings rela ted to basic PC operation and I/O processes, 2) Settings related to the cycle time, 3) Settings related to inter r upt s, and 4) S ettings re la ted to c ommun icati ons. This section will explain the settings according to these classifications.

The following table shows the settings for CPM1/CPM1A PCs in o rder. Refer to the page number in the last column for more details on that setting.

Word(s) Bit(s) Function Page

Startu p Processing (DM 6600 to DM 6614)

The following settings are effective after transfer to the PC only after the PC is restarted. DM 6600 00 to 07 Startup mode (effective when bits 08 to 15 are set to 02).

00: PROGRAM; 01: MONITOR 02: RUN

08 to 15 Startup mode designation

00: Programming Console switch 01: Continue operating mode last used before power was turned off. (See note 1.) 02: Setting in 00 to 07

DM 6601 00 to 07 Not used. 17

08 to 11 IOM Hold Bit (SR 25212) Status at Startup

0: Reset; 1: Maintain (See note 3.)

12 to 15 Forced Status Hold Bit (SR 25211) Status at Startup

0: Reset; 1: Maintain (See note 3.)

DM 6602 00 to 03 Program memory write-protection

0: Program memory unprotected 1: Program memory write-protected (except DM 6602 itself)

04 to 07 Programming Console display language

0: English; 1: Japanese

08 to 15 Not used. DM 6603 00 to 15 Not used. DM 6604 00 to 07 00: If data could not be saved with the built-in capacitor (AR 1314 ON), a memory error will not

be generated.

01: If data could not be saved with the built-in capacitor (AR 1314 ON), a memory error will be

generated.

08 to 15 Not used. DM 6605 to

DM 6614

00 to 15 Not used.

Cycle Time Settings (DM 6615 to DM 6619)

The following settings are effective after transfer to the PC the next time operation is started. DM 6615,

DM 6616

00 to 15 Not used.

DM 6617 00 to 07 Servicing time for peripheral port (effective when bits 08 to 15 are set to 01)

00 to 99 (BCD): Percentage of cycle time used to service peripheral.

08 to 15 Peripheral port servicing setting enable

00: 5% of the cycle time 01: Use time in 00 to 07.

DM 6618 00 to 07 Cycle monitor time (effective when bits 08 to 15 are set to 01, 02, or 03)

00 to 99 (BCD): Setting (see 08 to 15)

08 to 15 Cycle monitor enable (Setting in 00 to 07 x unit; 99 s max.)

00: 120 ms (setting in bits 00 to 07 disabled) 01: Setting unit: 10 ms 02: Setting unit: 100 ms 03: Setting unit: 1 s

DM 6619 00 to 15 Cycle time

0000: Variable (no minimum) 0001 to 9999 (BCD): Minimum time in ms

PC Setup Section 1-1

Interrupt Processing (DM 6620 to DM 6639)

The following settings are effective after transfer to the PC the next time operation is started. DM 6620 00 to 03 Input constant for IR 00000 to IR 00002

0: 8 ms; 1: 1 ms; 2: 2 ms; 3: 4 ms; 4: 8 ms; 5: 16 ms; 6: 32 ms; 7: 64 ms; 8: 128 ms

04 to 07 Input constant for IR 00003 and IR 00004 (Setting same as bits 00 to 03) 08 to 11 Input constant for IR 00005 and IR 00006 (Setting same as bits 00 to 03) 12 to 15 Input constant for IR 00007 and IR 00011 (Setting same as bits 00 to 03)

DM 6621 00 to 07 Input constant for IR 001

00: 8 ms; 01: 1 ms; 02: 2 ms; 03: 4 ms; 04: 8 ms; 05: 16 ms ; 06: 32 ms; 07: 64 ms ; 08: 128 ms

08 to 15 Input constant for IR 002 (Setting same as for IR 001.)

DM 6622 00 to 07 Input constant for IR 003 (Setting same as for IR 001.)

08 to 15 Input constant for IR 004 (Setting same as for IR 001.)

DM 6623 00 to 07 Input constant for IR 005 (Setting same as for IR 001.)

08 to 15 Input constant for IR 006 (Setting same as for IR 001.)

DM 6624 00 to 07 Input constant for IR 007 (Setting same as for IR 001.)

08 to 15 Input constant for IR 008 (Setting same as for IR 001.)

DM 6625 00 to 07 Input constant for IR 009 (Setting same as for IR 001.)

08 to 15 Not used.

DM 6626 to DM 6627

00 to 15 Not used.

DM6628 00 to 03 Interrupt enable for IR 00003 (0: Normal input; 1: Interrupt input; 2: Quick-response) 40

04 to 07 Interrupt enable for IR 00004 (0: Normal input; 1: Interrupt input; 2: Quick-response) 08 to 11 Interrupt enable for IR 00005 (0: Normal input; 1: Interrupt input; 2: Quick-response) 12 to 15 Interrupt enable for IR 00006 (0: Normal input; 1: Interrupt input; 2: Quick-response)

DM 6629 to DM 6641

00 to 15 Not used. 40

High-speed Counter Settings (DM 6640 to DM 6644)

The following settings are effective after transfer to the PC the next time operation is started. DM 6640 to

DM 6641

00 to 15 Not used.

DM 6642 00 to 03 High-speed counter mode

0: Up/down counter mode; 4: Incrementing counter mode

04 to 07 High-speed counter reset mode

0: Z phase and software reset; 1: Software reset only

08 to 15 High-speed counter enable

00: Don’t use high-speed counter; 01: Use high-speed counter with settings in 00 to 07

DM 6643, DM 6644

00 to 15 Not used.

Word(s) Bit(s) Function Page

PC Setup Section 1-1

Note 1. When the startup mode is set to continue the operating mode last used be-

fore the power was turned off, that operatin g mo de wil l be r et ain ed by the built-in capacitor. If the power remains off for longer than the backup time of the capacitor, the data may be lost. (For details on the holding time, refer to the CPM1A or CPM1 Operation Manual.)

Word(s) Bit(s) Function Page

Peripheral Port Settings

The following settings are effective after transfer to the PC. DM 6645 to

DM 6649

00 to 15 Not used. 90

DM 6650 00 to 07 Port settings

00: Standard (1 start bit, 7-bit data, even parity, 2 stop bits, 9,600 bps) 01: Settings in DM 6651

(Other settings will cause a non-fatal error and AR 1302 will turn ON.)

08 to 11 Link area for one-to-one PC link via peripheral port:

0: LR 00 to LR 15

12 to 15 Communications mode

0: Host link; 2: One-to-one PC link (slave); 3: One-to-one PC link (master); 4: NT Link (Other settings will cause a non-fatal error and AR 1302 will turn ON.)

DM 6651 00 to 07 Baud rate

00: 1.2K, 01: 2.4K, 02: 4.8K, 03: 9.6K, 04 : 19.2K, 0 5 to 07 : Cannot b e used (see note 2) (Other settings will cause a non-fatal error and AR 1302 will turn ON.)

08 to 15 Frame format

(Other settings will cause a non-fatal error and AR 1302 will turn ON.)

DM 6652 00 to 15 Transmission delay (Host Link) (See note 4.)

0000 to 9999: In ms. (Other settings will cause a non-fatal error and AR 1302 will turn ON.)

DM 6653 00 to 07 Node number (Host link)

00 to 31 (BCD) (Other settings will cause a non-fatal error and AR 1302 will turn ON.)

08 to 15 Not used.

DM 6654 00 to 15 Not used.

Error Log Settings (DM 6655)

The following settings are effective after transfer to the PC. DM 6655 00 to 03 Style

0: Shift after 7 records have been stored 1: Store only first 7 records (no shifting) 2 to F: Do not store records

04 to 07 Not used. 08 to 11 Cycle time monitor enable

0: Detect long cycles as non-fatal err ors 1: Do not detect long cycles

12 to 15 Not used.

PC Setup Section 1-1

2. Do not set to “05” to “07.” If set to this value , the CPM1/CPM1A will not operate properly and the RUN PC Setup Error Flag (AR 1302 O N) will not turn ON.

3. Retention of IOM Hold Bit (SR 25212) Status If the “IOM Hold Bit Status at Startup” (D M 6601, bits 08 to 11) is set to “Maintain” with the IOM Hold Bit (SR 25212) turned ON, operation can be started w ith the I/O m emor y (I/O, IR, LR) status j ust as it was before the power was turned OFF. ( The input area is ref reshed at star tup, however, so it is overwritten by the most recently updated input status.)

Retention of Forced Status Hold Bit (SR 25211) Status

If the “Forced Status Hold Bit Status at Startup” (DM 6601, bits 12 to 15) is set to “Maintain” with the Forced Status Hold Bit (SR 2521 1) turned O N, operation can be star ted with the forced set/reset status ju st as it was before the power was turned OFF. (When starting up in RUN Mode, however, the forced set/reset status is cleared.)

Even if the “IOM Hold Bit Status at Startup” or “Forced Status Hold Bit Status at Startup” is set to “Maintain,” the IOM Hold Bit (SR 25212) or Forced Status Hold Bit (SR 25211) status may be cleared if the power remains OFF for longer than the b ackup time of the built-i n capacitor. (For details on the holding t ime, refer to the CPM1A or CPM1 Operation Manual.) At this time the I/O memory will also be cleared, so set up the system so that clearing the I/O memory will not cause problems.

4. The transmission delay is the delay between the previous transmission and the next transmission.

5. If an out-of-range value is set, the following communications conditions will result. In that case, reset the value so that it is within the permissible range.

Communications mode: Host Link Communications format: Standard settings

(1 start bit, 7-bit data; even parity, 2 stop bits,

9,600 bps) Transmission delay: No Node number: 00

Host computer

Programmable Controller

Command

Response

Command

Response

Transmission delay time

PC Setup Section 1-1

1-1-4 SRM1 PC Setup Settings

The PC Setup is broadly divided into three categor ies: 1) Settings rel ated to basic PC operation and I/O pr ocesses, 2) Settings related to the cycle time, and 3) Settings related to co mmunications. This section will explain the settings according to these classifications.

The following table shows the settings for SRM1 PCs in order. Refer to the page number in the last column for more details on that setting.

Word(s) Bit(s) Function Page

Startu p Processing (DM 6600 to DM 6614)

The following settings are effective after transfer to the PC only after the PC is restarted. DM 6600 00 to 07 Startup mode (effective when bits 08 to 15 are set to 02).

00: PROGRAM; 01: MONITOR 02: RUN

08 to 15 Startup mode designation

00: Programming Console switch 01: Continue operating mode last used before power was turned off 02: Setting in 00 to 07

DM 6601 00 to 07 Not used. 17

08 to 11 IOM Hold Bit (SR 25212) Status

0: Reset; 1: Maintain (See caution on page page 17.)

12 to 15 Forced Status Hold Bit (SR 25211) Status

0: Reset; 1: Maintain

DM 6602 00 to 03 Program memory write-protection

0: Program memory unprotected 1: Program memory write-protected (except DM 6602 itself)

04 to 07 Programming Console display language

0: English; 1: Japanese

08 to 11 Expansion Instructions

0: Default settings; 1: User settings

12 to 15 Not used.

DM 6603 00 to 03 Maximum number of CompoBus/S devices

0: Max. no. 32 1: Max. no. 16

04 to 15 Not used.

DM 6604 00 to 07 00: If data could not be sa ved for a po w e r i nterrupti on (AR 1314 ON), a memory error will not be

generated. 01: If data could not be saved for a power interruption (AR 1314 ON), a memory error will be generated.

08 to 15 Not used.

DM 6605 to DM 6614

00 to 15 Not used.

Cycle Time Settings (DM 6615 to DM 6619)

The following settings are effective after transfer to the PC the next time operation is started. DM 6615 00 to 15 Not used. DM 6616 00 to 07 Servicing time for RS-232C port (effective when bits 08 to 15 are set)

00 to 99 (BCD): Percentage for cycle time used to service peripheral.

08 to 15 RS-232C port servicing enable

00: 5% of the cycle time 01: Use time in 00 to 07.

DM 6617 00 to 07 Servicing time for peripheral port (effective when bits 08 to 15 are set to 01)

00 to 99 (BCD): Percentage of cycle time used to service peripheral.

08 to 15 Peripheral port servicing setting enable

00: 5% of the cycle time 01: Use time in 00 to 07.

PC Setup Section 1-1

DM 6618 00 to 07 Cycle monitor time (effective when bits 08 to 15 are set to 01, 02, or 03)

00 to 99 (BCD): Setting (see 08 to 15)

08 to 15 Cycle monitor enable (Setting in 00 to 07 x unit; 99 s max.)

00: 120 ms (setting in bits 00 to 07 disabled) 01: Setting unit: 10 ms 02: Setting unit: 100 ms 03: Setting unit: 1 s

DM 6619 00 to 15 Cycle time

0000: Variable (no minimum) 0001 to 9999 (BCD): Minimum time in ms

DM 6620 to DM 6644

00 to 15 Not used.

RS-232C Port Settings

The following settings are effective after transfer to the PC. DM 6645 00 to 03 Port settings

0: Standard (1 start bit, 7-bit data, even parity, 2 stop bits, 9,600 bps) 1: Settings in DM 6646

04 to 07 CTS control settings

0: Disable; 1: Set

08 to 11 Link words for 1:1 link

0: LR 00 to LR 15; Other: Not effective

12 to 15 Communications mode

0: Host link; 1: RS-232C (no protocol); 2: 1:1 data link slave; 3: 1:1 data link master; 4: NT Link

DM 6646 00 to 07 Baud rate

00: 1.2K, 01: 2.4K, 02: 4.8K, 03: 9.6K, 04: 19.2K

08 to 15 Frame format

DM 6647 00 to 15 Transmission delay (Host Link)

0000 to 9999 (BCD): Set in units of 10 ms, e.g., setting of 0001 equals 10 ms

DM 6648 00 to 07 Node number (Host link, effective when bits 12 to 15 of DM 6645 ar e set to 0.)

00 to 31 (BCD)

08 to 11 Start code enable (RS-232C, effective when bits 12 to 15 of DM 6645 are set to 1.)

0: Disable; 1: Set

12 to 15 End code enable (RS-232C, effective when bits 12 to 15 of DM 6645 are set to 1.)

0: Disable (number of bytes received) 1: Set (specified end code) 2: CR, LF

DM 6649 00 to 07 Start code (RS-232C)

00 to FF (binary)

08 to 15 When bits 12 to 15 of DM 6648 are set to 0:

Number of bytes received 00: Default setting (256 bytes) 01 to FF: 1 to 255 bytes

When bits 12 to 15 of DM 6648 are set to 1: End code (RS-232C) 00 to FF (binary)

Word(s) Bit(s) Function Page

PC Setup Section 1-1

Peripheral Port Settings

The following settings are effective after transfer to the PC. DM 6650 00 to 03 Port settings

00: Standard (1 start bit, 7-bit data, even parity, 2 stop bits, 9,600 bps) 01: Settings in DM 6651

(Other settings will cause a non-fatal error and AR 1302 will turn ON.)

04 to 07 Not used. 08 to 11 Not used. 12 to 15 Communications mode

0: Host link; 1: No protocol (Other settings will cause a non-fatal error and and AR 1302 will turn ON.)

DM 6651 00 to 07 Baud rate

00: 1.2K, 01: 2.4K, 02: 4.8K, 03: 9.6K, 04: 19.2K

08 to 15 Frame format

(Other settings will cause a non-fatal error and AR 1302 will turn ON.)

DM 6652 00 to 15 Transmission delay (Host Link)

0000 to 9999 (BCD): Set in units of 10 ms. (Other settings will cause a non-fatal error and AR 1302 will turn ON.)

DM 6653 00 to 07 Node number (Host link)

00 to 31 (BCD) (Other settings will cause a non-fatal error and AR 1302 will turn ON.)

08 to 11 Start code enable (RS-232C, effective when bits 12 to 15 of DM6650 are set to 1.)

0: Disable 1: Set

12 to 15 End code enable (RS-232C, effective when bits 12 to 15 of DM6650 are set to 1.)

0: Disable (number of bytes received) 1: Set (specified end code) 2: CR, LF

DM 6654 00 to 07 Start code (effective when bits 08 to 11 of DM6650 are set to 1.)

00: 256 bytes 01 to FF: 1 to 255 bytes

08 to 15 End code

When bits 12 to 15 of DM6653 are set to 0: 00: 256 bytes 01 to FF: 1 to 255 bytes

When bits 12 to 15 of DM6653 are set to 1: Setting: 00 to FF (binary)

Word(s) Bit(s) Function Page

Basic PC Operation and I/O Processes Section 1-2

Note If an out-of-range value is set, the following co mmunications con ditions will

result. In that case, reset the value so that it is within the permissible range.

Communications mode: Host Link Communications format: Standard settings

(1 start bit, 7-bit data; even parity, 2 stop bits,

9,600 bps) Transmission delay: No Node number: 00

1-2 Basic PC Operation and I/O Processes

This section explains the PC Setup settings related to basic operation and I/O processes.

1-2-1 Startup Mode

The operation mode the PC will start in when power is turned on can be set as shown below.

Word(s) Bit(s) Function Page

Error Log Settings (DM 6655)

The following settings are effective after transfer to the PC. DM 6655 00 to 03 Style

0: Shift after 7 records have been stored 1: Store only first 7 records

Errors will not be stored if other values are set.

04 to 07 Not used. 08 to 11 Cycle time monitor enable

0: Detect long cycles as non-fatal err ors 1: Do not detect long cycles

12 to 15 Not used.

Bit

DM6600

Startup Mode Designation

00: Programming Console Mode Selector (If not connected: RUN mode) 01: Operating mode last used before power was turned off 02: Mode set in bits 00 to 07

Startup Mode (Bits 08 to 15: Valid when bits 00 to 07 are set to 02)

00: PROGRAM mode 01: MONITOR mode 02: RUN mode

Default: Programming Console Mode Selector or RUN mode when Programming Console is not connected.

Basic PC Operation and I/O Processes Section 1-2

1-2-2 Hold Bit Status

Make the settings shown below to determine whether, when the power supply is turned on, the Forced Status Hold Bit (SR 25211) and/or IOM Hold Bit (SR 25212) will retai n the status that was in effect when the power was last turned off, or whether the previous status will be cleared.

The Forced Status Hold Bit (SR 25211) de ter mines whether or not the forced set/reset status is r etained when chang ing from PROGRAM mode to MONITOR mode.

The IOM Hold Bit (SR 25212) dete rmin es whether or not the status of IR bits and LR bits is retained when PC operation is started and stopped.

!Caution Do not use the I/O Hold Bit Status and Forced Status Hold Bit Status Bits

(DM 6601) when the power to the PC is going to be turned off longer than the memory backup time of the in ternal capacitor. If the memory backup time is exceeded, memory status will b e unstable even if the I/O H old B it S tatus and Forced Status Hold Bit Status Bi ts are used. Unpr edic table results may occur if operation is attempted with unstable memory status.

Note 1. The memory backup time of the internal capacitor varies with the ambient

temperature, but is 20 days at 25

°C. Refer to hardware specifications for

more details.

2. The memory backup time assumes that the internal capacitor is fully charged before power is turned off. Fulling charging the capacitor requires that power is supplied to the CPU Unit for at least 15 minutes.

1-2-3 Program Memory Write-protection (CPM1/CPM1A Only)

In CPM1/CPM1A PCs the program m emory can be p rotected by setting bits 00 to 03 of DM 6602 to 0. Bits 04 to 07 determine whether Programming Console messages are displayed in English or Japanese.

Note DM 6602 itself can still be changed after the program memory has been write-

protected by setting bits 04 to 07 of DM 6602 to 1.

15 0

0 0

Bit

DM6601

SR 25211 setting

0: Clear status 1: Retain status

Always 00

SR 25212 setting

0: Clear status 1: Retain status

Default: Clear both.

15 0

0 0

Bit

DM6602

Programming Console messages

0: English 1: Japanese

Program memory

0: Not write-protected 1: Write-protected

Default: English displays, not write-protected

Always 00

Basic PC Operation and I/O Processes Section 1-2

1-2-4 RS-232C Port Servicing Time (CQM1/SRM1 Only)

The following settings are used to determi ne the perc entage of the cy cle time devoted to servicing the RS-232C port.

Example: If DM 6616 is set to 0110, the RS-232C por t will be serviced for 10% of the cycle time.

The servicing time will be 0.34 ms minimum. The entire servicing time will not be used unless processing requests exist.

1-2-5 Peripheral Port Servicing Time

The following settings are used to determi ne the perc entage of the cy cle time devoted to servicing the peripheral port.

Example: If DM 6617 is set to 0115, the periphe ral port will be serviced for 15% of the cycle time.

The servicing time will be 0.34 ms minimum. The entire servicing time will not be used unless processing requests exist.

1-2-6 C ycle Time

Make the settings shown below to standardi ze the cyc le time and t o elim inat e variations in I/O response time by setting a minimum cycle time.

If the actual cycle time is shor ter tha n the minimum cycle tim e, execution will wait until the minimum time has expired. If the actual cycle time is longer than

15 0

Bit

Servicing time setting enable

00: Disabled (5% used) 01: Enabled (setting in bits 00 to 07 used)

Servicing time (%, valid with bits 08 to 15 are 01) 00 to 99 (BCD, two digits)

Default: 5% of c

cle time

DM6616

15 0

Bit

Servicing time setting enable

00: Disabled (5% used) 01: Enabled (setting in bits 00 to 07 used)

Servicing time (%, valid with bits 08 to 15 are 01) 00 to 99 (BCD, two digits)

Default: 5% of c

cle time

DM6617

15 0

Bit

DM6619

Cycle time (4 digits BCD)

0000:Cycle time variable 0001 to 9999: Minimum cycle time (Unit: 1 ms)

Default: Cycle time variable

Basic PC Operation and I/O Processes Section 1-2

the minimum cycle time, then operation will proceed according to the actual cycle time. AR 2405 will turn ON if the minimum cycle time is exceeded.

1-2-7 Input Time Constants

Make the settings shown below to set the time from when the actua l inputs from the DC Input Unit are tur ned ON or OFF until the correspondi ng input bits are updated (i.e., until th eir ON/O FF status is changed ). Make these settings when you want to adjust the time until inputs stabilize.

Increasing the inpu t time const ant ca n redu ce the effects from ch atter ing and external noise.

The SRM1 does not have this setting.

CQM1 PCs DM 6620 contains the input time constants for both IR 000 and IR 001.

Input Time Constants for IR 000 and IR 001

Input Time Constants for IR 002 to IR 015

The nine possible set tings for the input time const ant are shown below. Set only the rightmost digit for IR 000.

0: 8 ms 1: 1 ms 2: 2 ms 3: 4 ms 4: 8 ms 5: 16 ms 6: 32 ms 7: 64 ms 8: 128 ms

Input from an input device such as a limit switch

Input bit status

Input time constant

DM 6620

Bit

Time constant for IR 001 (2 digits BCD; see below.) Time constant for IR 00008 to IR 00015 (1 digit BCD; see below.) Time constant for IR 00000 to IR 00007 (1 digit BCD; see below.)

Default: 0000 (8 ms for each

)

15 0

Bit

DM 6621: IR 002 and IR 003 DM 6622: IR 004 and IR 005 DM 6623: IR 006 and IR 007 DM 6624: IR 008 and IR 009 DM 6625: IR 010 and IR 011 DM 6626: IR 012 and IR 013 DM 6627: IR 014 and IR 015

Time constant for IR 003, IR 005, IR 007, IR 009, IR 011, IR 013, and IR 015 Time constant for IR 002, IR 004, IR 006, IR 008, IR 010, IR 012, and IR 014

Default: 0000 (8 ms for each)

DM 6621 to DM 6627

Basic PC Operation and I/O Processes Section 1-2

CPM1/CPM1A PCs Set the input time constants for CPM1/CPM1A inputs from a Peripheral

Device.

Input Time Constants for IR 000

Input Time Constants for IR 001 to IR 009

The nine possible set tings for the input time const ant are shown below. Set only the rightmost digit for IR 000.

0: 8 ms 1: 1 ms 2: 2 ms 3: 4 ms 4: 8 ms 5: 16 ms 6: 32 ms 7: 64 ms 8: 128 ms

The CPM1/CPM1A’s I/O response time is the input time constant (1 ms to 128 ms; default is 8 ms) + the cycle time.

Refer to 7-2 CPM1/CPM1A Cycle Time and I/O Response Time for more details.

1-2-8 High-speed Timers (CQM1 Only)

Make the settings shown below t o set the number of high-speed timers created with TIMH(15) that will use interrupt processing.

The setting indicates the number of timers that will use interrupt processing beginning with TIM 000. For example, if “0108” is specified, then eigh t timers, TIM 000 to TIM 007 will use interrupt processing.

Note High-speed timers will not be accurate without interrupt processing unless the

cycle time is 10 ms or less.

Bit

Time constant for IR 00007 to IR 00011 (1 digit BCD; see below.) Time constant for IR 00005 to IR 00006 (1 digit BCD; see below.) Time constant for IR 00003 to IR 00004 (1 digit BCD; see below.) Time constant for IR 00000 to IR 00002 (1 digit BCD; see below.)

Default: 0000 (8 ms for each

)

DM 6620

15 0

Bit

DM 6621: IR 001 and IR 002 DM 6622: IR 003 and IR 004 DM 6623: IR 005 and IR 006 DM 6624: IR 007 and IR 008 DM 6625: IR 009

Time constant for IR 002, IR 004, IR 006, and IR 008 Time constant for IR 001, IR 003, IR 005, IR 007, and IR 009

Default: 0000 (8 ms for each)

DM 6621 to DM 6625

15 0

DM6629

Bit

High-speed timer interrupt setting enable

00: Setting disabled (Interrupt processing for all high-speed timers, TIM 000 to TIM 015) 01: Enabled (Use setting in bits 00 to 07.)

Number of high-speed timer for interrupts (valid when bits 08 to 15 are 01)

00 to 15 (2 digits BCD) Default: Interrupt processin

for all high-speed timers,TIM 000 to TIM 015.

Basic PC Operation and I/O Processes Section 1-2

Interrupt response time for other interrupts will be improved if interrup t processing is set to 0 0 when high-speed timer pr ocessing is not required. This includes any time the cycle time is less than 10 ms.

Note If the SPED(64) i nstruction is used an d pulses are output at a frequency of

500 Hz or greater, then set the number of high-speed timers with interrupt processing to four or less. Refer to information on the SPED(64) instruction for details.

1-2-9 DSW(87) Input Digits & Output Refresh Method (CQM1 Only)

Make the settings shown below to set the number of input di git s the DSW (87) instruction, and to set the output refresh method.

Refer to SECTION 2 Special Features for details on the DSW (87) instr uction and to SECTION 7 PC Operations and Processing Time for details on I/O refresh methods.

1-2-10 Error Log Settings

Make the settings shown below for detecting errors and storing the error log.

Cycle Monitor Time (DM 6618)

The cycle monitor time is used for checking for extremely long cy c le time s, as can happen when the program goes into an infinite loop. If the cycle time exceeds the cycle monitor setting, a fatal error (FALS 9F) will be generated.

Note 1. The unit used for the maximum and current cycle times recorded in the AR

area (AR 26 and AR 27 in the CQM1, AR 14 and AR 15 in t he CPM1/ CPM1A/SRM1) depend on the unit set for the cycle monitor time in DM 6618, as shown below.

Bits 08 to 15 set to 01: 0.1 ms Bits 08 to 15 set to 02: 1 ms Bits 08 to 15 set to 03: 10 ms

Number of input digits for the DSW(87)

00: 4 digits 01: 8 digits

15 0

DM 6639

Bit

Output refresh method

00: Cyclic 01: Direct

Default: The number of input digits for the DSW(87) instruction is set to "4" and the output refresh method is cyclic.

15 0

DM6618

Bit

Cycle Monitor Time Enable and Unit

00: Setting disabled (time fixed at 120 ms) 01: Setting in 00 to 07 enabled; unit:10 ms 02: Setting in 00 to 07 enabled; unit:100 ms 03: Setting in 00 to 07 enabled; unit:1 s

Cycle monitor time setting (When bits 08 to 15 are not 00)

00 to 99 (2 digits BCD; unit set in bits 08 to 15.)

Pulse Output Function (CQM1 Only) Section 1-3

2. If the cycle time is 1 s or longer, the cycle time read from Programming Devices will be 999.9 m s. The co rrect m aximum and c urrent cycl e time s will be recorded in the AR area.

Example

If 0230 is set in DM 6618, an FALS 9F error will not occur un til the cyc le tim e exceeds 3 s. If the actual cycle time is 2 .59 s, the cur rent cycl e time st ored i n the AR area will be 2590 (ms), but the cycle tim e read from a Programming Device will be 999.9 ms.

A “cycle time over” error (non-fatal) will be generated when the cycle time exceeds 100 ms unless detection of long cy cle ti mes is di sable using the setting in DM 6655.

Error Detection and Error Log Operation (DM 6655)

Make the settings shown be low to deter mi ne whether o r not a non-fatal error is to be generated when the cycle time exceeds 100 ms or when the voltag e of the built-in battery drops (CQM1 only), and to set the method for storin g records in the error log when errors occur.

Battery errors and cycle time overrun errors are non-fatal errors. For details on the error log, refer to SECTION 8 Troubleshooting.

Note The low battery error is applicable to CQM1 only. This digit isn’t used in

CPM1/CPM1A/SRM1 PCs.

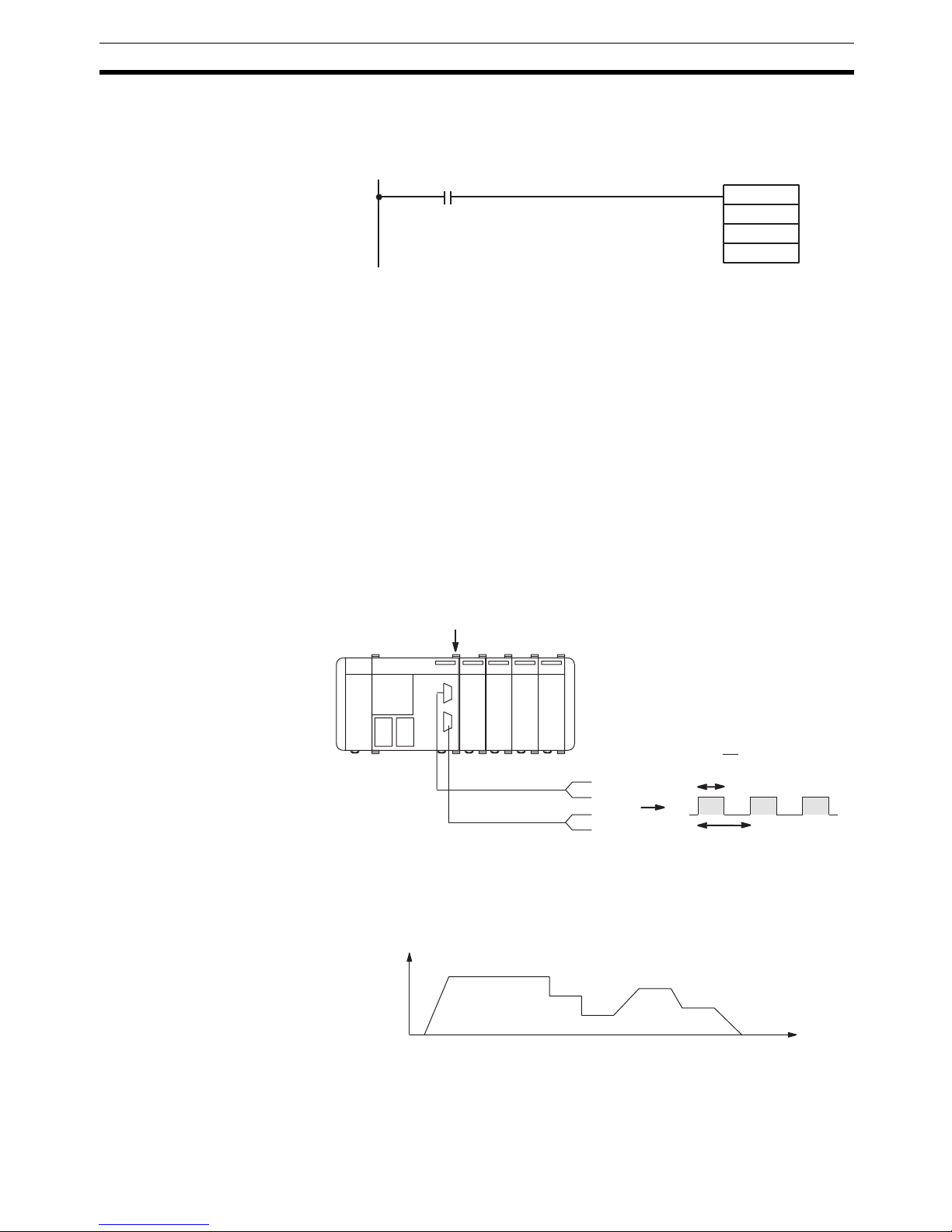

1-3 Pulse Output Function (CQM1 Only)

This section explains the settings and methods for using the CQM1 pulse output function. Refer to the CQM1 Operation Ma nual for details on hardware connections to output points and ports.

1-3-1 Types of Pulse Outputs

All of the CQM1 PCs can output standa rd pulses from an out put bit and the CQM1-CPU43-EV1 can also output standard or variable-duty-ratio pulses from por ts 1 and 2. Standard puls e outputs have a duty ra tio (t

/T) of 50%. The duty ratio for variable-duty-ratio pulse outputs can be set from 1% to 99% in 1% increments.

Note With the CQM1-CPU43-EV1, the pulse outputs described below can be out-

put from three por ts simultaneo usly. Further more, two por ts can be used for counter inputs independent of the pulse output.

Low battery voltage detection

0: Detect 1: Don't detect

15 0

DM6655

Bit

Always 0

Cycle time over detection

0: Detect 1: Don't detect

Error log storage method

0: Error records for 10 (CQM1) or 7 (SRM1/CPM1/CPM1A) most recent errors always stored (older errors deleted). 1: Only first 10 (CQM1) or 7 (SRM1/CPM1/CPM1A) error records stored (no errors stored beyond that point). 2 to F: Error records not stored.

Default: Low battery voltage and cycle time over errors detected, and error records stored for the 10 most recent errors.

Pulse Output Function (CQM1 Only) Section 1-3

Standard Pulse Output from an Output Point

Standard pulses (duty ratio = 5 0%) can be o utput f rom an outp ut poi nt wi th a frequency from 20 Hz to 1 kHz. The I/O word is specified in the PC Setup and the bit is specified in the pulse output instruction itself.

Refer to page 23 for more details.

Standard Pulse Output from Ports 1 and 2

With the CQM1-CPU 43-EV1, standa rd pulses (duty ratio = 50%) c an be output from port 1 and/ or 2 w ith a f re que ncy from 1 0 Hz to 5 0 k Hz ( 20 kH z max. to a stepping motor). The pulse output can be either clockwise (CW) or counter-clockwise (CCW) and frequency changes can be made smoothly.

PLS2(––) and mode 0 of ACC(––) cannot be used when the PC Setup (DM 6611) is set to high-s pee d co unter mode. CTBL(63) canno t be u se d wit h ports 1 and 2 when the PC Setup (DM 6611) is set to pulse output mode.

Refer to page 25 for more details.

V ariable-duty-ratio Pulse Output from Ports 1 and 2

With the CQM1-CPU43-EV1, variable-duty-ratio pulses (duty ratio = 0% to 99%) can be output from port 1 and/or 2 with frequencies of 91.6 Hz, 1.5 kHz, or 5.9 kHz. Only one direction can be output and the pulse output will continue until stopped with INI(61).

Refer to page 32 for more details.

1-3-2 Standard Pulse Output from an Output Point

Standard pulses c an be output from a specified output bit using SPED(64). Pulses can be output from just one bit at a time. The following diagram shows the pulses being output from the output point of the Transistor Output Unit mounted on a CQM1 PC. The duty ratio o f the pulse output is 50% and th e frequency can be set from 20 Hz to 1 kHz.

Note 1. A Transistor Output Unit must be used for this application.

2. Pulses cannot be output when interval timer 0 is operating.

3. When a pulse o utput high er than 500 Hz is be ing o utput, set the number of high-speed timers with interr upt proces sing to 4 by sett ing DM 662 9 to

0104.

When outputting p ulses from an output p oint, the fr equency can be changed in steps by executing SPED(64) again with different fr equen cies, as s hown in the following diagram.

There are two ways to stop the pulse output:

1,2,3... 1. After executing SPED(64), the pulse ou tput wil l s to p i f INI(61 ) is executed

with C=003 or SPED(64) is executed again with the frequency set to 0.

Transistor Output Unit

= 50% (0.5)

Frequency

Time

Pulse Output Function (CQM1 Only) Section 1-3

2. The total number of pulses that will be output can be set with PULS(65) before execution of SPED(64). In this case, SPED(64 ) must be executed in independent mode. The pulse outp ut stops automatica lly when the number of pulses set by PULS(65) have been output.

Note Refer to the sections on SPE D(64) and PULS(65) for more de tails on these

instructions.

PC Setup Settin gs Before executing SPED(64) to output pulses from an Output Un it, set th e PC

to PROGRAM mode and make the following settings in the PC Setup. In DM 6615, specify the output word that will be used for SPED(64) pulse out-

put to Output Units. (The bit is specified in the first operand in SPED(64).) The content of DM 6615 (0000 to 0011) specifies output words IR 100 to

IR 111. For example, if DM 6615 is set to 0002, pulses will be output to IR 102.

In the CQM1-CPU11/21-E CPUs, set dire ct output refre shing in DM 6639, as shown below. (In CQM1-CPU4@-EV1 CPU Units the output refresh method can be set to either direct or cyclic.)

Continuous Pulse Output Pulses will be gin to be output at the specifie d output bit when SPED(64) is

executed. Set the output bit from 00 to 15 ( D=000 to 150) an d the frequen cy from 20 Hz to 1000 Hz (F=0002 to 0100). S et the mode to continuous mode (M=001).

The pulse output can be s topped by executing INI(61) with C=003 or executing SPED(64) again with the frequency set to 0. The frequency can be changed by executing SPED(64) again with a different frequency setting.

Setting the Number of Pulses

The total number of pulses that will be output can be set with PULS(65) before executing SPED(64) in independent mode. The pulse output will stop au tomatically when the number of pulses set by PULS(65) have been output.

15 0

0 0

Bit

DM6615

Output word (rightmost 2 digits, BCD): 00 to 11

Default: Pulse out

ut to IR 100.

Always 00

15 0

DM 6639

0 1

Bit

Output refresh method

01: Direct Default: The default output refresh method is cyclic.

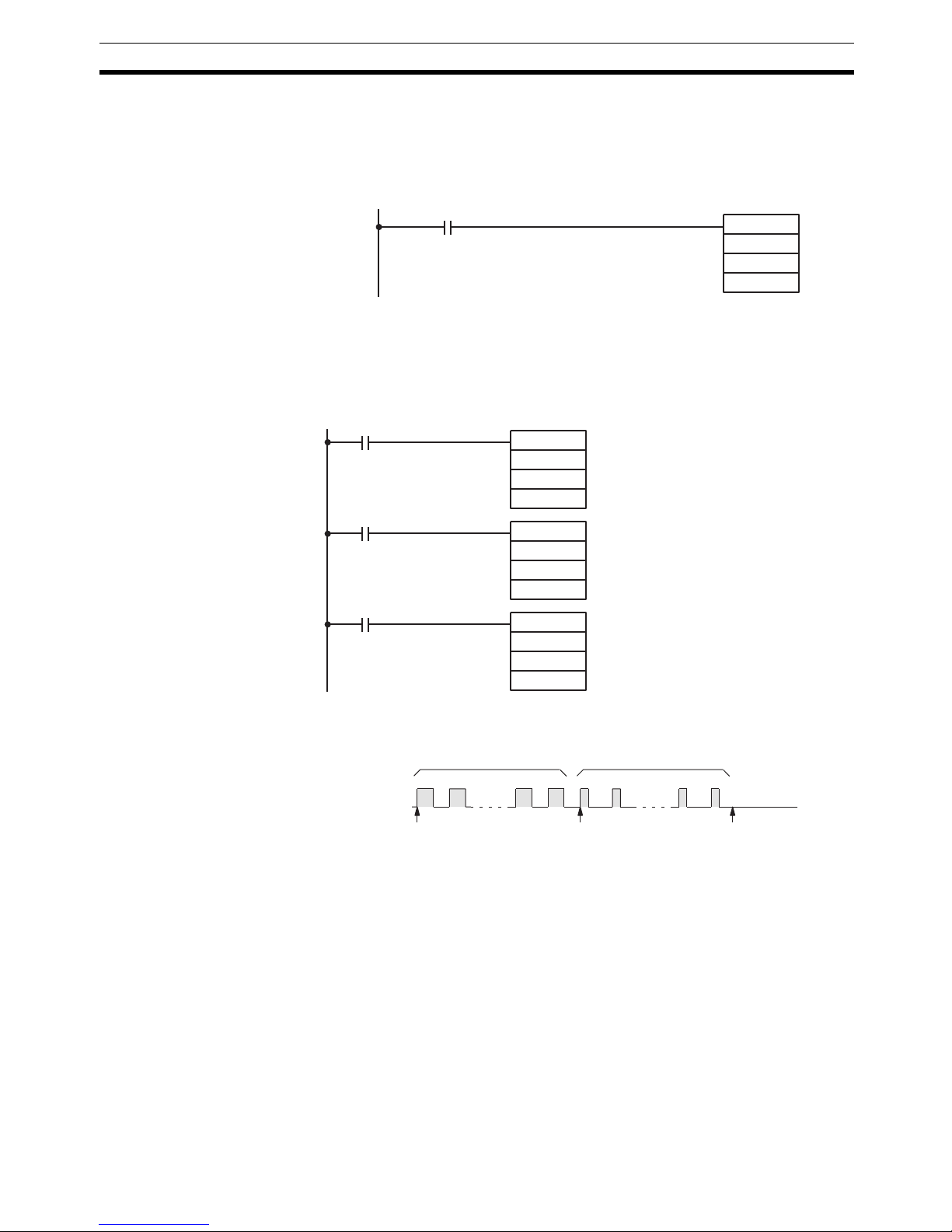

@SPED(64)

Execution condition

@PULS(65)

000

Execution condition

Pulse Output Function (CQM1 Only) Section 1-3

PULS(65) sets the 8-digit number of pulses P1+1, P1. These pulses ca n be set from 00000001 to 167772 15. The number of pulses set wi th PULS(65) is accessed when SPED (64) is executed in independent mode. (The number o f pulses cannot be changed for pulses that are being output.)

When SPED(64) is executed, pulses wi ll begin to be output at the s pecified output bit (D=000 to 150: bi t 00 to 15) at the sp ecified frequency (F=0002 to 0100: 20 Hz to 1000 Hz). Set the mode to independe nt mode (M=001) to output the number of pulses se t with PULS(65 ). The frequenc y can be cha nged by ex ecuting SPED(64) again with a different frequency setting.

Changing the Frequency T he frequency of the pulse output can be changed by executing SPED(64)

again with a different frequency setting. Use the same output bit (P) and mode (M) settings that were us ed to start the pul se output . The new frequenc y can be frequency 20 Hz to 1000 Hz (F=0002 to 0100).

1-3-3 Standard Pulse Output from Ports 1 and 2

With the CQM1-CPU43-EV1, s tand ar d pul se s can be output from por ts 1 and 2 using SPED(64), P LS2(––), or ACC(––). The pulse frequency c an be set from 10 Hz to 50 kHz (20 kHz max. to a stepping motor). The pulse output can be either clockwise (CW) or counter-clockwise (CCW) and frequency changes can be made smoothly.

Note Only the CQM1-CPU43-EV1 CPU Unit can output pulses from ports 1 and 2.

When outputting pulse s from a por t, the freq uency can be cha nged smooth ly or in steps with SPED(64), PLS2(––) , and ACC(––), as shown in the following diagram.

There are two ways to stop the pulse output:

1,2,3... 1. After executing SPED(64), the pulse ou tput wil l s to p i f INI(61 ) is executed

with C=003 or SPED(64) is executed again with the frequency set to 0.

@SPED(64)

Execution condition

CPU Unit

CCW

Port 1

CCW

Port 2

= 50% (0.5)

Frequency

Time

Pulse Output Function (CQM1 Only) Section 1-3

The following table shows the types of frequency ch anges that can be made with combinations of PULS(65), SPED(64), INI(61), PLS2(––), and ACC(––).

PC Setup Settin gs Before outputting pulses from port 1 or 2, switch the P C to PROGRAM mode

and make the following settings in the PC Setup. In DM 6611, specify the mode setting for ports 1 and 2.

Frequency change Instruction Operand settings Page

Start pulse output at the specified frequency. Outputs continuously or until the specified

number of pulses have been output. (Execute PULS(65) and then SPED(64).)

PULS(65) CW/CCW

(Number of pulses)

SPED(64) Port

Mode

Frequency Stop pulse output with an instruction. (Execute SPED(64) or INI(61).)

SPED(64) Port

Frequency= 0

INI(61) Control word=0 Outputs a specified number of pulses. Accelerates pulse output to the target fre-

quency at the specified rate. Decelerates at the same rate.

PLS2(––) Port

CW/CCW Acceleration rate Target frequency Number of pulses

Outputs a specified number of pulses. Accelerates pul se ou tput to target frequency

1 at the specified rate. Decelerates to target frequency 2 at another rate.

(Execute PULS(65) and then ACC(––).)

PULS(65) CW/CCW

Number of pulses Deceleration point

ACC(––)

(Mode 0)

Port Acceleration rate Target frequency 1 Deceleration rate Target frequency 2

Accelerates pulse output from the current frequency to the target frequency at the specified rate.

Pulse output will continue. (Execute PULS(65) and then ACC(––).)

PULS(65) CW/CCW 30

ACC(––)

(Mode 1)

Port Acceleration rate Target frequency

Decelerates pulse output from the current frequency to the target frequency at the specified rate.

Pulse output will stop when the specified number of pulses have been output.

(Execute PULS(65) and then ACC(––).)

PULS(65) CW/CCW

Number of pulses

ACC(––)

(Mode 2)

Port Deceleration rate Target frequency

Decelerates pulse output from the current frequency to the target frequency at the specified rate.

Pulse output will continue. (Execute PULS(65) and then ACC(––).)

PULS(65) CW/CCW 31

ACC(––)

(Mode 3)

Port Deceleration rate Target frequency

15 0

DM 6611

Bit

Port 1 and 2 Mode Setting

0000: High-speed counter mode 0001: Pulse output mode

Default: The default mode settin

is high-speed counter mode.

Pulse Output Function (CQM1 Only) Section 1-3

Some instructions cannot be used depending on the mode setting in DM

6611.

The setting in DM 6611 is read only when the CQM1 is star ted . If this settin g is changed, be sure to turn the PC off and then on again to make the new setting effective.

Specify standard pulse outputs in DM 6643 (port 1) and/or DM 6644 (port 2).

Variable-duty-ratio pulses cannot be outp ut from a por t if it has been set for standard pulse output in DM 6643 or DM 6644.

Example 1: Starting Pulse Output with PULS(65) and SPED(64)

The following example shows PULS(65) and SPED(64) used to control a pulse output from port 1. The number of pulses specified in PULS(65) (10,000) are output as the frequ ency is changed by executions of SPED(64) with different frequency settings.

Before executing the pro gram make sure that DM 6611 is set to 0001 (puls e output mode) and DM 6643 is set to 0000 (standard pulse setting for port 1).

DM 6611 setting Affected instructions

High-speed counter mode (0000) PLS2(––) and mode 0 of ACC (––) cannot be

used.

Pulse output mode (0001) CTBL(63) cannot be used with ports 1 and 2.

15 0

DM 6643

Bit

Port 1 pulse type setting

0: Standard pulse output Default: Standard pulse output

15 0

DM 6644

Bit

Port 2 pulse type setting

0: Standard pulse output Default: Standard pulse output

@PULS(65)

000

001

05000

DM 0000

@SPED(64)

000

001

#0100

00000

@SPED(64)

000

001

#0150

00001

@SPED(64)

000

001

#0100

00002

@SPED(64)

000

001

#0050

When 05000 goes ON, PULS(65) sets port 1 for 10,000 CW pulses.

Starts pulse output from port 1 at 1 kHz in independent mode.

When 00000 goes ON, the frequency from port 1 is changed to 1.5 kHz.

When 00001 goes ON, the frequency from port 1 is changed to 1 kHz.

When 00002 goes ON, the frequency from port 1 is changed to 500 Hz.

Pulse Output Function (CQM1 Only) Section 1-3

The following diagram shows the frequency of pulse ou tputs from port 1 as the program is executed.

!Caution Be sure that the pulse fr equency is withi n the motor’s self-star ting frequen cy

range when starting and stopping the motor.

Note Speed control timing wil l be very accurate when fr equency changes are per-

formed as input interrupt processes.

Example 2: Stopping Pulse Output with SPED(64)

The following example shows PULS(65) and SPED(64) used to control a pulse output from port 1. The frequency is changed by executions of SPED(64) with different frequency settings and finally stopped with a frequency setting of 0.

Frequency

Time

1.5 kHz

1.0 kHz

0.5 kHz

05000 goes ON

00000 goes ON

00001 goes ON

00002 goes ON

10,000 pulses

@PULS(65)

004

001

05000

000

@SPED(64)

001

#0100

00005

@SPED(64)

001

#0150

00006

@SPED(64)

001

#0100

00007

@SPED(64)

001

#0000

When 05000 goes ON, PULS(65) sets port 1 for CW pulse output. There is no number of pulses setting.

Starts pulse output from port 1 at 1 kHz in continuous mode.

When 00005 goes ON, the frequency from port 1 is changed to 1.5 kHz.

When 00006 goes ON, the frequency from port 1 is changed to 1 kHz.

When 00007 goes ON, the pulse output from port 1 is stopped with a frequency setting of 0 Hz.

Pulse Output Function (CQM1 Only) Section 1-3

The following diagram shows the frequency of pulse ou tputs from port 1 as the program is executed.

!Caution Be sure that the pulse fr equency is withi n the motor’s self-star ting frequen cy

range when starting and stopping the motor.

Example 3: PLS2(– –) The following example shows PLS2(– –) used to output 100,000 CW pulses

from port 1. The frequency is accelerated to 1 0 k Hz at app roximately 50 0 Hz / 4 ms and decelerated at the same rate.

Five seconds after the CW pulses have been output, another PLS2(––) instruction outputs 100,000 CCW pulses with the same settings.

The following diagram shows the frequency of pulse ou tputs from port 1 as the program is executed.

Frequency

Time

1.5 kHz

1.0 kHz

05000 goes ON

00005 goes ON

00006 goes ON

00007 goes ON

@PLS2(––)

000

001

05000

DM 0000

TIM 000

#0050

When 05000 goes ON, PLS2(––) star ts CW pulse output from port 1.

Acceleration rate: Approx. 500 Hz/4 ms Target frequency: 10 kHz Number of pulses: 100,000

A 5 s timer is started when AR 0514 (the Pulse Output Com

pleted flag) is ON.

SET 05000

00000

05000 is turned ON when 00000 is ON.

AR 0514

@PLS2(––)

001

TIM 000

DM 0000

When TIM 000 times out, PLS2(––) star ts CCW pulse output from port 1.

Acceleration rate: Approx. 500 Hz/4 ms Target frequency: 10 kHz Number of pulses: 100,000

RSET 05000 05000 is turned OFF when TIM 000 times out.

DM 0000 0050 DM 0001 1000

DM 0002 0000 DM 0003 0010

Frequency

Time

10 kHz

05000

oes ON

AR 0514

oes ON

CW pulse output CCW pulse output

After 5 s

About 500 Hz/4 ms

Pulse Output Function (CQM1 Only) Section 1-3

Example 4 :ACC(––) Mode 0

The following example shows mode 0 of ACC(––) used to output 10,000 CW pulses from por t 1. The fr equency is ac celerated to 10 k Hz at approximately 1 kHz/4 ms and decelerated to 1 kHz at approximately 250 Hz/4 ms. Deceleration begins after 9,100 pulses have been output.

The following diagram shows the frequency of pulse ou tputs from port 1 as the program is executed.

Example 5: ACC(––) Mode 1

The following example shows mode 1 of ACC(––) used increase the frequency of a pulse output from port 1. The frequency is accelerated from 1 kHz to 20 kHz at approximately 500 Hz/4 ms.

@PULS(65)

002

001

00000

DM 0000

@ACC(––)

000

001

DM 0004

When 00000 goes ON, PULS(65) sets port 1 for CW pulse output. The total number of pulses is set to 10,000 and the deceleration point is set to 9,100 pulses.

Starts CW pulse output from port 1. Acceleration rate: Approx. 1000 Hz/4 ms

Frequency after acceleration: 10 kHz Deceleration rate: Approx. 250 Hz/4 ms Frequency after deceleration: 1 kHz

DM 0000 0000 DM 0001 0001 DM 0002 9100 DM 0003 0000

DM 0004 0100 DM 0005 1000 DM 0006 0025 DM 0007 0050

Frequency

Time

10 kHz

00000

oes ON

1 kHz

9,100 pulses

10,000 pulses

About 1 kHz/4 ms

About 250 Hz/4 ms

@PULS(65)

005

002

00000

000

@SPED(64)

001

002

#0100

When 00000 goes ON, PULS(65) sets port 2 for CCW pulse output. The number of pulses is not set.

Starts 1 kHz pulse output from port 2 in continuous mode.

DM 0000 0050 DM 0001 2000

@ACC(––)

001

002

DM 0000

When 00001 goes ON, ACC(––) begins acceler ating the port 2 pulse output at about 500 Hz/4 ms until it reaches the target frequency of 20 kHz.

Pulse Output Function (CQM1 Only) Section 1-3

The following diagram shows the frequency of pulse ou tputs from port 2 as the program is executed.

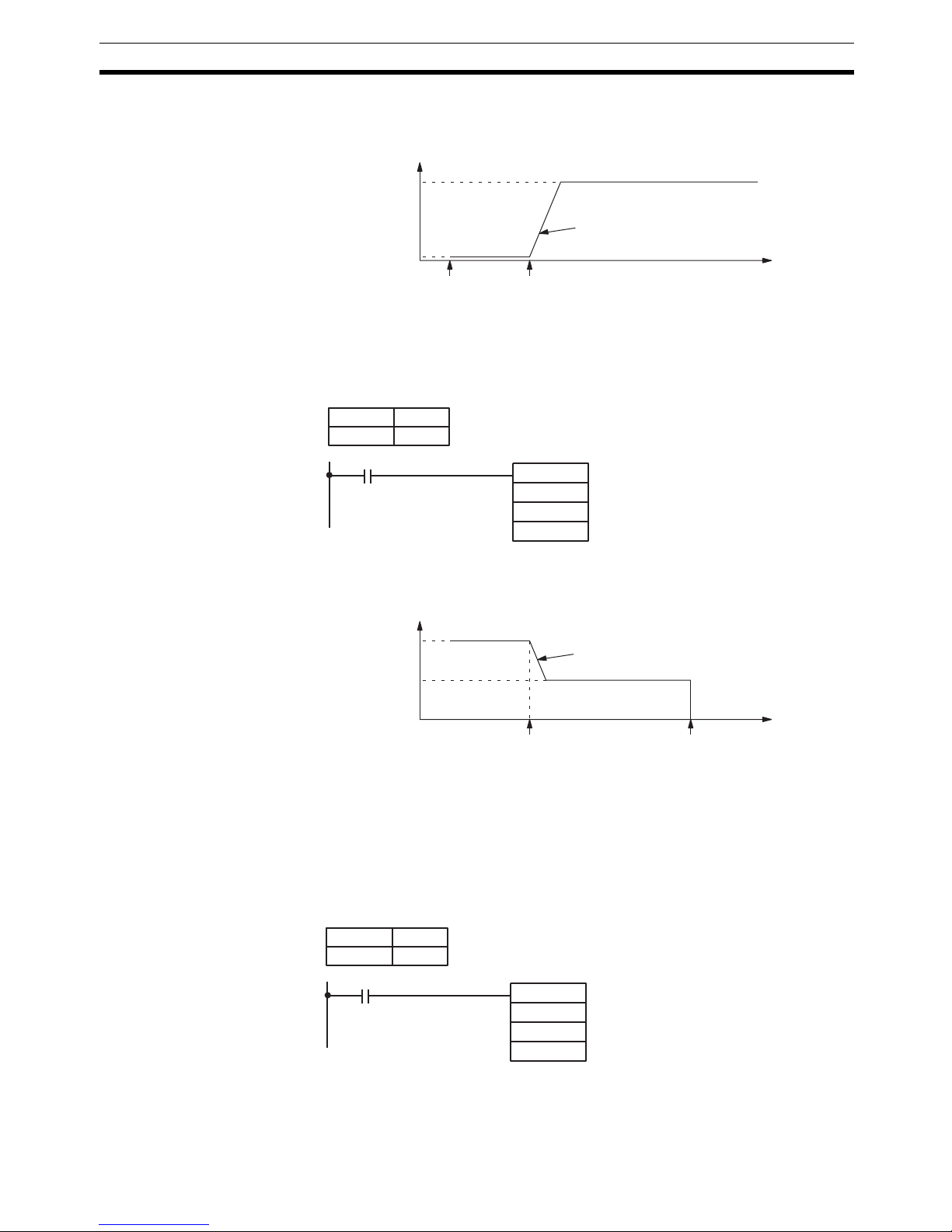

Example 6: ACC(––) Mode 2

The following example shows mode 2 of ACC(––) used decrease the frequency of a pulse outp ut from port 1. The 2-kHz pulse ou tput is already in progress in independent mo de and stops automatically when the number of pulses is reached.

The following diagram shows the frequency of pulse ou tputs from port 1 as the program is executed.

Note The pulse output can be stopped by executing ACC(––) mode 2 with a target

frequency of 0, but the pulse o utput ca nnot be s topped at the c orrect number of pulses, so this method should not be used except for emergency stops.

Example 7: ACC(––) Mode 3

The following example shows mode 3 of ACC(––) used decrease the frequency of a pulse ou tput from port 1. The 20-kHz pulse output is already in progress in continuous mode.

Frequency

Time

20 kHz

00001 goes ON

1 kHz

About 500 Hz/4 ms

00000 goes ON

DM 0000 0050 DM 0001 0001

@ACC(––)

002

001

DM 0000

When 00000 goes ON, ACC(––) begins deceler ating the port 1 pulse output at about 500 Hz/4 ms until it reaches the target frequency of 10 Hz.

00000

Frequency

Time

2 kHz

Specified number of pulses output

1 kHz

About 500 Hz/4 ms

00000 goes ON

DM 0000 0100 DM 0001 0500

@ACC(––)

003

001

DM 0000

When 00000 goes ON, ACC(––) begins deceler ating the port 1 pulse output at about 1 kHz/4 ms until it reaches the target frequency of 5 kHz.

00000

Pulse Output Function (CQM1 Only) Section 1-3

The following diagram shows the frequency of pulse ou tputs from port 1 as the program is executed.

1-3-4 Variable-d uty-ratio Pulse O u t p u t from Ports 1 and 2

With the CQM1-CPU43-EV1, variable-duty-ratio pulses can be output from ports 1 and /or 2 using PWM (––). The puls e frequency ca n be set to 91.6 Hz ,

1.5 kHz, or 5.9 kHz. This function can be used for various kinds of control outputs, such as light intensity output or speed control output to an inverter.

Note Only the CQM1-CPU43-EV1 CPU Unit can output pulses from ports 1 and 2.

PC Setup Settin gs Before outputting variable-duty-ratio pulses from port 1 or 2, switch th e PC t o

PROGRAM mode and make the following settings in the PC Setup. Specify variable-duty-ratio pulse out puts in D M 664 3 (port 1) and/o r DM 664 4

(port 2).

Standard pulses can not be output from a por t if it has be en set for standard variable-duty-ratio pulse output in DM 6643 or DM 6644.

Starting the Pulse Output Pulses will begin to be o utput from the specifi ed por t when PWM(––) is exe-

cuted. Specify port 1 or 2 (P=001 to 002). Set the frequency to 5.9 kHz,

1.5 kHz, or 91.6 Hz (F= 000, 001, or 002) . Set the du ty ratio from 1% to 9 9% (D=0001 to 0099, BCD).

Frequency

Time

20 kHz

5 kHz

About 1 kHz/4 ms

00000 goes ON

CPU Unit

Port 1 Port 2

Frequency = 91.6 Hz,

1.5 kHz,

5.9 kHz

= 1% to 99%

15 0

DM 6643

Bit

Port 1 pulse type setting

1: Variable-duty-ratio pulse output Default: Standard pulse output

15 0

DM 6644

Bit

Port 2 pulse type setting

1: Variable-duty-ratio pulse output Default: Standard pulse output

@PWM(––)

Execution condition

Pulse Output Function (CQM1 Only) Section 1-3

The pulse output will continue with the specified frequency and duty ratio until PWM(––) is executed again with different set tings or INI(61) is executed to stop pulse outputs from the specified port.

Stopping the Pulse Output The pulse output from a port can be stopped by executing INI(61) with C=003.

Specify port 1 or 2 (P=001 to 002).

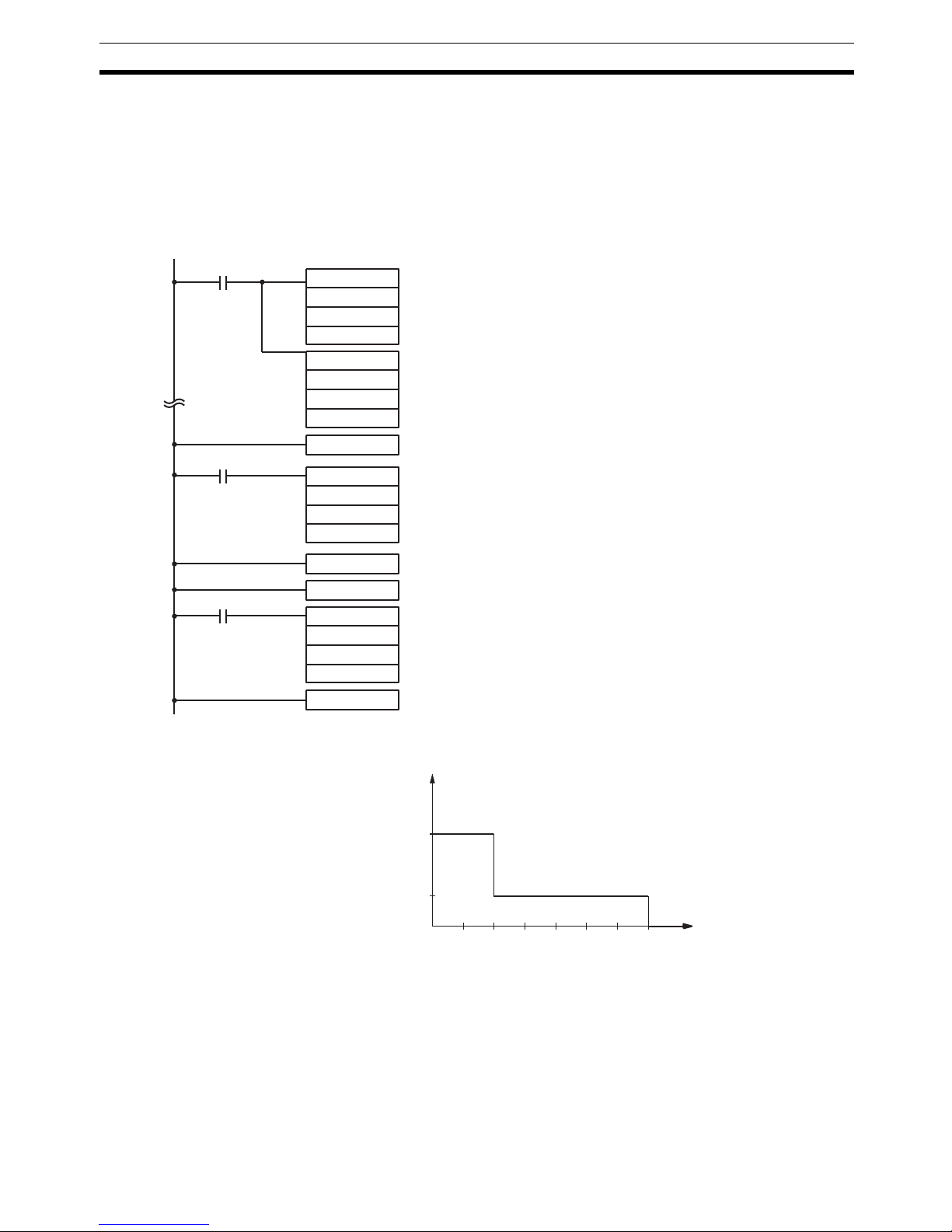

Example: Using PWM(––) The following example shows PWM(––) used to star t a 1.5 k Hz pulse output

from port 1 an d change the duty ratio from 50% to 25%.T he pulse output is then stopped with INI(61).

Before executing the program make sure that DM 6643 is set to 1000 (variable-duty-ratio pulse setting for port 1).

The following diagram shows the duty ratio of the pu lse o utput fr om po r t 1 as the program is executed.

@INI(61)

003

Execution condition

000

00000

@PWM(––)

001

#0050

00001

@PWM(––)

001

#0025

00002

@INI(61)

003

001

000

When 00000 goes ON, a 1.5 kHz signal is output from port 1 with a duty ratio of 50%.

When 00001 goes ON, the duty ratio is changed to 25%.

When 00002 goes ON, INI(61) stops the pulse output from port 1.

50% duty ratio pulses 25% duty ratio pulses

00001 goes ON

00000 goes ON

00002 goes ON

Pulse Output Function (CQM1 Only) Section 1-3

1-3-5 Determining the Status of Ports 1 and 2

The status of pulse outputs (for standard or variable-duty-ratio pulses) of ports 1 and 2 can be determined either by reading the status of the relevant flags in the SR and AR areas or by executing PRV(62).

Reading Flag Status The status o f pulse outputs can be de termined by reading the c onte nts of the

words and flags shown in the following table.

Executing PRV(62) The status of pulse outputs can be determined by executing PRV(62). Specify

port 1 or 2 (P=00 1 to 002) and the destina tion word D. The port status information will be w ritten t o bits 0 4 to 07 of D and bits 00 to 03 and 08 to 1 5 will be set to 0.

When PRV(62) is used to read the por t’s status, the most recent in formation will be read, so the PC’s cycle time will not be a factor.

Bits 04 through 07 of D contain the specified port’s status information.

Word(s) Bit(s) Function Description

SR 236 and SR 237

00 to 15 Port 1 PV Indicates the 8-digit present value of the number of pulses

output from por t 1. SR 237 contains the higher four digits.

SR 238 and SR 239

00 to 15 Port 2 PV Indicates the 8-digit present value of the number of pulses

output from por t 2. SR 239 contains the higher four digits.

AR 04 08 to 15 Pulse output status Indicates pulse output status.

00: nor m al 01 or 02: Hardware error 03: PC Setup error 04: Operation stopped during pulse output

AR 05 12 Port 1 Deceleration flag Indicates deceleration.

(0: Not specified; 1: Specified.)

13 Port 1 Number of Pulses flag Indicates whether the number of pulses are set.

(0: Not specified; 1: Specified.)

14 Port 1 Pulse Output Completed

flag

Indicates whether pulse output has been completed. (0: Not completed; 1: Completed.)

15 Port 1 Pulse Output Status flag Indicates whether pulses are being output.

(0: No output; 1: Output in progress.)

AR 06 12 Port 2 Deceleration flag Indicates deceleration.

(0: Not specified; 1: Specified.)

13 Port 2 Number of Pulses flag Indicates whether the number of pulses are set.

(0: Not specified; 1: Specified.)

14 Port 2 Pulse Output Completed

flag

Indicates whether pulse output has been completed. (0: Not completed; 1: Completed.)

15 Port 2 Pulse Output Status flag Indicates whether pulses are being output.

(0: No output; 1: Output in progress.)

Bit Function Description

04 Deceleration flag Indicates deceleration.

(0: Not decelerating; 1: Decelerating)

05 Number of Pulses

flag

Indicates whether the total number of pulses have been specified. (0: Not specified; 1: Specified.)

06 Pulse Output Com-

pleted flag

Indicates whether pulse output has been completed. (0: Not completed; 1: Completed.)

07 Pulse Output Status

flag

Indicates whether pulses are being output. (0: No output; 1: Output in progress.)

@PRV(62)

001

Execution condition

Pulse Output Function (CPM1A Only) Section 1-4

1-4 Pulse Output Function (CPM1A Only)

The CPM1A PCs with transis to r outputs have a pulse output function capable of outputting a pulse of 20 Hz to 2 kHz (single-phase). Either IR 01000 or IR 01001 can be selected for pulse outp ut, a nd the pulse output can be set to either the continuous mode, under which the output can be stopped by an instruction , o r th e ind epe nde nt mod e, und er wh ic h the o utpu t i s s top ped a fter a preset number of pulses (1 to 16,777,215).

Refer to the CPM1A Operation Manual for details on hardware connections to output points and ports.

Note 1. The CPM1A uses a single-pha se pulse o utput. The cont rol signal for the

direction of rotation (C W/C C W) for the m oto r driver must be written i n th e program.

2. Be sure to use a CPU Unit with transistor outputs.

Continuous mode

Single mode

Pulses are output at the specified frequency until stopped.

Pulse output is stopped automatically when the specified number of pulses has been output.

Specified number off pulses

Stepping motor

Control input

Motor controller

CW/CCW control output

Pulse output (single-phase output) IR 01000 or IR 01001

Stepping motor

Pulse Output Function (CPM1A Only) Section 1-4

1-4-1 Programming Example in Continuous Mode

In this example program, pulse output begins from IR 01000 when input IR 00004 turns ON, and is stopped when input IR 00005 turns ON.

SPED(64) can be us ed to stop pulse output. W hen using SPED(64) for that purpose, specify #0000 (constant or word contents) as the pulse frequency.

1-4-2 Programming Example in Independent Mode

In this example program, pulse output begins from IR 01000 when input IR 00004 turns O N, and is s topped a fter th e speci fied numbe r of p ulses have been output. The pulse amount is set in DM 0100 and DM 0101.

1-4-3 Using Pulse Output Instructions

Setting the Number of Pulses

Before beginning pulse output usin g the indep endent mo de use PUL S(65) as shown below to set the number of pulses to be output. This setting is not required for the continuous mode.

In N, set the beginning word address of the words where the number of pulses is set. Store the numbe r of pulses in words N and N+ 1, in eight digits BCD, with the leftmost four digits in N+1 and the rightmost four digits in N.

Make the setting within a range of 00000001 to 16777215 (BCD).

@SPED(64)

001

000

#0100

00005 (pulse output stop condition)

@INI(61)

003

000

Begins pulse output.

Stops pulse output.

00004 (pulse output condition)

Output from 01000 Continuous mode

Pulse frequency: 1 kHz

@PULS(65)

000

D0100

@SPED(64)

000

#0100

Sets the number of pulses.

Begins pulse output.

Pulse number setting

00004 (pulse output condition)

Single mode Pulse frequency: 1 kHz

@PULS(65)

000

Pulse Output Function (CPM1A Only) Section 1-4

Beginning Pulse output With SPED(64), set the bit lo cation for pulse outputs (IR 01000 or I R 01001),

the output mode (independ ent, continuous), and the pu ls e frequency to begin the pulse output.

P (3 digits BCD) 000: Outputs to IR 01000

010: Outputs to IR 01001

M (3 digits BCD) 000: Independent mode

001 Continuous mode

F (4 digits BCD) For the beginnin g pulse output frequency, spec ify a

constant or word contents. Th e specified value and set frequency are as follows:

Specified value: 0002 to 0200 Set frequency: 20 to 2,000 Hz

Note 1. Pulses can be output from only one bit at a time.

2. When pulse output is begun in independent mode, the number of pulses is read when SPED(64) is executed. PULS(65) cannot be used to change the number of pulses while pulses are being output.

1-4-4 Chang ing the Frequency

To change the frequency during puls e output, change the frequency setting with SPED(64). At t hat tim e, set t he o perands ot her th an t he f re que ncy t o the same settings as at the beginning of pulse output.

P (3 digits BCD) Same as at beginning of pulse output. M (3 digits BCD) Same as at beginning of pulse output. F (4 digits BCD) For the changed pulse output frequency, specify a

constant or word contents. Th e specified value and set frequency are as follows:

Specified value: 0002 to 0200 Set frequency: 20 to 2,000 Hz

1-4-5 Stopping Pulse Output

When pulses are output in the i ndependent mode, the pulse out put will automatically stop afte r the number of pulses spec ified with PULS(65) ha s been output. When pulses are output in the continuous mode, either of the following two methods can be used to stop the pulse output.

1. Use SPED(64) to set the frequency to 0.

2. Use INI(61) to stop the pulse output.

Using SPED(64) The f irst method is to use SPED(6 4) to stop the pulse output by settin g the

frequency to 0. For details, refer to 1-4-4 Changing the Frequency.

Using INI(61) The second method is to use INI(61) to stop the pulse output, as follows:

@SPED(64)

@INI(61)

003

000

CQM1 Interrupt Functions Section 1-5

1-5 CQM1 Interrupt Functions

This section explains the settin gs and methods for usin g the CQM1 interrup t functions.

1-5-1 Types of Interrupts

The CQM1 has three types of interrupt processing, as outlined below.

Input interrupts:

Interrupt proces sing is executed when an inp ut from a n exter nal sou rce tur ns ON one of CPU bits 00000 to 00003.

Interval timer interrupts:

Interrupt processing is executed by an interval timer with a precision of

0.1 ms.

High-speed counter interrupts:

Interrupt processing is executed according to the present value (PV) of a builtin high-speed counter. All CQM1 CPU Units are equipped with high-speed counter 0, which counts pulse inputs to one of CPU bits 00004 to 00006. Tw ophase pulses up to 2.5 kHz can be counted.

The CQM1-CPU43/44-EV1 CPU Units can also count inputs to ports 1 and 2:

CQM1-CPU 43-EV1: High-speed counters 1 and 2 count high-speed pulse inputs to ports 1 and 2. Two-phase pulses up to 25 kHz can be counted.

CQM1-CPU44-EV1: High -speed counters 1 and 2 count absolu te rotary encoder codes input to ports 1 and 2.

Interrupt Processing When an interrupt is generated, the specified interr upt processing routine is

executed. Interrupts have the following priority ranking. (Input interr upt 0 has the highest priority and high-speed counter interrupt 0 has the lowest.)

1,2,3... 1. Input interrupt 0 > Input interrupt 1 > Input interrupt 2 > Input interrupt 3

2. High-speed counter interrupt 1 > High-speed counter interrupt 2

3. Interval timer interrupt 0 > Interval timer interrupt 1 > Interval timer interrupt 2 (Interval timer interrupt 2 is high-speed counter interrupt 0.)

When an interr upt with a higher pr iority is received during inte rrupt processing, the current processes will be stopped and the newly received interrupt will be processed instead. After that routine has been completely executed, then processing of the previous interrupt will be resumed.

When an interrupt with a lower or equal pri ority is received during interrupt processing, then the newly received interrupt will be processed as soon as the routine currently being processed has been completely executed.

Just as with ordinar y subroutines, interrupt processi ng routines are defined using SBN(92) and RET(93) at the end of the main program.

When interrupt proces sing routines are executed, a specified range of input bits can be refreshed.

When an interrupt processing routine is defined, a “no SBS error” will be generated during the program c heck but execution will proceed nor mally. If this error occurs, check all nor mal sub routines to be s ure that SBS( 91) has been programmed before proceeding.

Pulse Output Instructions and Interrupts

With the CQM1-CPU43/44-E V1 CPU Units, the following instructions cannot be executed in an interrupt subroutine when an ins tru ction t hat control s pulse I/O or high-speed counters is being executed in the main program: (25503 turns ON)

CQM1 Interrupt Functions Section 1-5

INI(61), PRV(62), CTBL(63), SPED(64), PULS (65), PWM(––), PLS2(––) and ACC(––)

The following methods can be used to circumvent this limitation:

Method 1 All interrupt processing can be masked while the instruction is being exe-

cuted.

Method 2 Execute the instruction again in the main program.

This is the program section from the main program:

This is the program section from the interrupt subroutine:

@INT(89)

000

100

000

@PLS2(––)

000

001

DM 0010

@INT(89)

000

200

000

@PRV(62)

002

001

DM 0000

@CTBL(63)

000

001

DM 0000

RSET LR 0000

SBN(92) 000

@CTBL(63)

000

001

DM 0000

25313

0000

CQM1 Interrupt Functions Section 1-5

1-5-2 Input Interrupts

The CPU Unit’s inputs allocated IR 00000 to IR 000 03 can be us ed for interrupts from extern al sources. Input interrupts 0 through 3 c orrespond respe ctively to these bits and a re al ways used to ca ll the su br out ine s number ed 00 0 through 003 respectively. When input interrupts are not used, subroutine numbers 000 to 003 can be used for ordinary subroutines.

Processing There are two modes for processing input interrupts. The first is the Input

Interrupt Mode, in which the interrupt is car r i ed ou t in re sp ons e to an exter nal input. The second is the Counter Mode, in which signals from an external source are counted at high speed, and an interrupt is carried out once for every certain number of signals.

In the Input Interrupt Mode, signals with a length of 100

µs or more can b e

detected. In the Counter Mode, signals up to 1 kHz can be counted.

PC Setup Parameters Before executing the program, make the following setting s in the P C Setup in

PROGRAM mode.

Interrupt Input Settings (DM 6628)

If these settings are not made, interrupts cannot be used in the program.

Input Refresh Word Settings (DM 6630 to DM 6633)

Make these settings when it is necessary to refresh inputs.

Example: If DM 6630 is set to 0100, IR 000 will be refreshed when a signal is received for interrupt 0.

Note If input refreshing is not used, input signal status within the interr upt routine

will not be reliable. This includes even the status of the interrupt input bit that activated the interrupt. For example, IR 00000 would not be ON in interr upt routine for input interrupt 0 unless it was refreshed (in this case, the Always ON Flag, SR 25313 could be used in place of IR 00000).

Input interrupt 3 setting Input interrupt 2 setting Input interrupt 1 setting Input interrupt 0 setting

0: Normal input 1: Interrupt input

Default: All normal inputs.

15 0

DM6628

Bit

Number of words (2 digits BCD) 00 to 08 Beginning word (2 digits BCD) 00 to 07

Default: No input refresh

15 0

DM6630 to DM 6633

Bit

DM 6630: Interrupt 0 DM 6631: Interrupt 1 DM 6632: Interrupt 2 DM 6633: Interrupt 3

CQM1 Interrupt Functions Section 1-5

Input Interrupt Mode Use the following instructions to program input interrupts using the Input Inter-

rupt Mode.

Masking of Interrupts

With the INT(89) instruction, set or clear input interrupt masks as required.

At the beginning of operation, all of the input interrupts are masked.

Clearing Masked Interrupts

If the bit corresponding to an input interrupt turns ON while masked, that input interrupt will be saved in memory and will be executed as soon as the mask is cleared. In order for that input inter rupt no t to be executed when the mas k is cleared, the interrupt must be cleared from memory.

Only one interrupt signal will be saved in memory for each interrupt number. With the INT(89) instruction, clear the input interrupt from memory.

Reading Mask Status

With the INT(89) instruction, read the input interrupt mask status.

Counter Mode Use the following steps to program input interrupts using th e Input Interrupt

Mode.

Note The SR words used in the Counter Mode (SR 244 to SR 251) all contain

binary (hexadecimal) data (not BCD).

1,2,3... 1. Write the set values for counter operation to SR words correspond to inter-

rupts 0 to 3. The set values are written between 0000 and FFFF (0 to 65,535). A value of 0000 will disable the count operation until a new value is set and step 2, below, is repeated.

Note These SR bits are cleared at the beginning of operation, and must be

written from the program.

That maximum input signal that can be counted is 1 kHz.

If the Counter Mode is not used, these SR bits can be used as work bits.

(@)INT(89)

000 000

Make the settings with the D bits 0 to 3, which correspond to input interrupts 0 to 3.

0: Mask cleared. (Input interrupt permitted.) 1: Mask set. (Input interrupt not permitted.)

(@)INT(89)

001 000

If D bits 0 to 3, which correspond to input interrupts 0 to 3, are set to "1," then the input interrupts will be cleared from memory.

0: Input interrupt retained. 1: Input interrupt cleared.

(@)INT(89)

002 000

The status of the rightmost digit of the data stored in word D (bits 0 to 3) show the mask status.

0: Mask cleared. (Input interrupt permitted.) 1: Mask set. (Input interrupt not permitted.)

Interrupt Word

Input interrupt 0 SR 244 Input interrupt 1 SR 245 Input interrupt 2 SR 246 Input interrupt 3 SR 247

CQM1 Interrupt Functions Section 1-5

2. With the INT(89) instr uction, refr esh the Coun ter Mode set value and enable interrupts.

The input interrupt for which the set value is refreshed will be enabled in Counter Mode. When the counter reaches the set value, an interrupt will occur, the counter will be reset, and counti ng/interru pts will continue until th e counter is stopped.

Note 1. If the INT(89) instruction is use d during counti ng, the present value (PV)

will return to the set value (SV). You must, therefore, use the differentiated form of the instruction or an interrupt may never occur.

2. The set value will be set when the INT(89) instruction is executed. If interrupts are already in op eration, the n the set value will no t be chang ed just by changing the content of SR 244 to SR 247, i.e., if the contents is changed, the set value must be refreshed by executing the INT(89) instruction again.

Interrupts can be masked using the same process as for the Input Interrupt Mode, but is masked are cleared using the same process, the Coun ter Mode will not be maintained and the Input Interrupt Mode will be used instead. Interrupt signals received for masked interrupts can also be cleared using the same process as for the Input Interrupt Mode.

Counter PV in Counter Mode

When input interrupts are used in Counter Mode, the counter PV will be stored in the SR word corresponding to input interrupts 0 to 3. Values are 0000 to FFFE (0 to 65,534) and will equal the counter PV minus one.

Example: The present value for an interrupt whose set value is 000A will be recorded as 0009 immediately after INT(89) is executed.

Note Even if input interrupts are not used in Counter Mode, these SR bits cannot be

used as work bits.

(@)INT(89)

003 000

If D bits 0 to 3, which correspond to input interrupts 0 to 3, are set to "0," then the set value will be refreshed and interrupts will be permitted.

0: Counter mode set value refreshed and mask cleared. 1: Nothing happens. (Set to 1 the bits for all interrupts that are not being changed.)

Interrupt Word

Input interrupt 0 SR 248 Input interrupt 1 SR 249 Input interrupt 2 SR 250 Input interrupt 3 SR 251

CQM1 Interrupt Functions Section 1-5

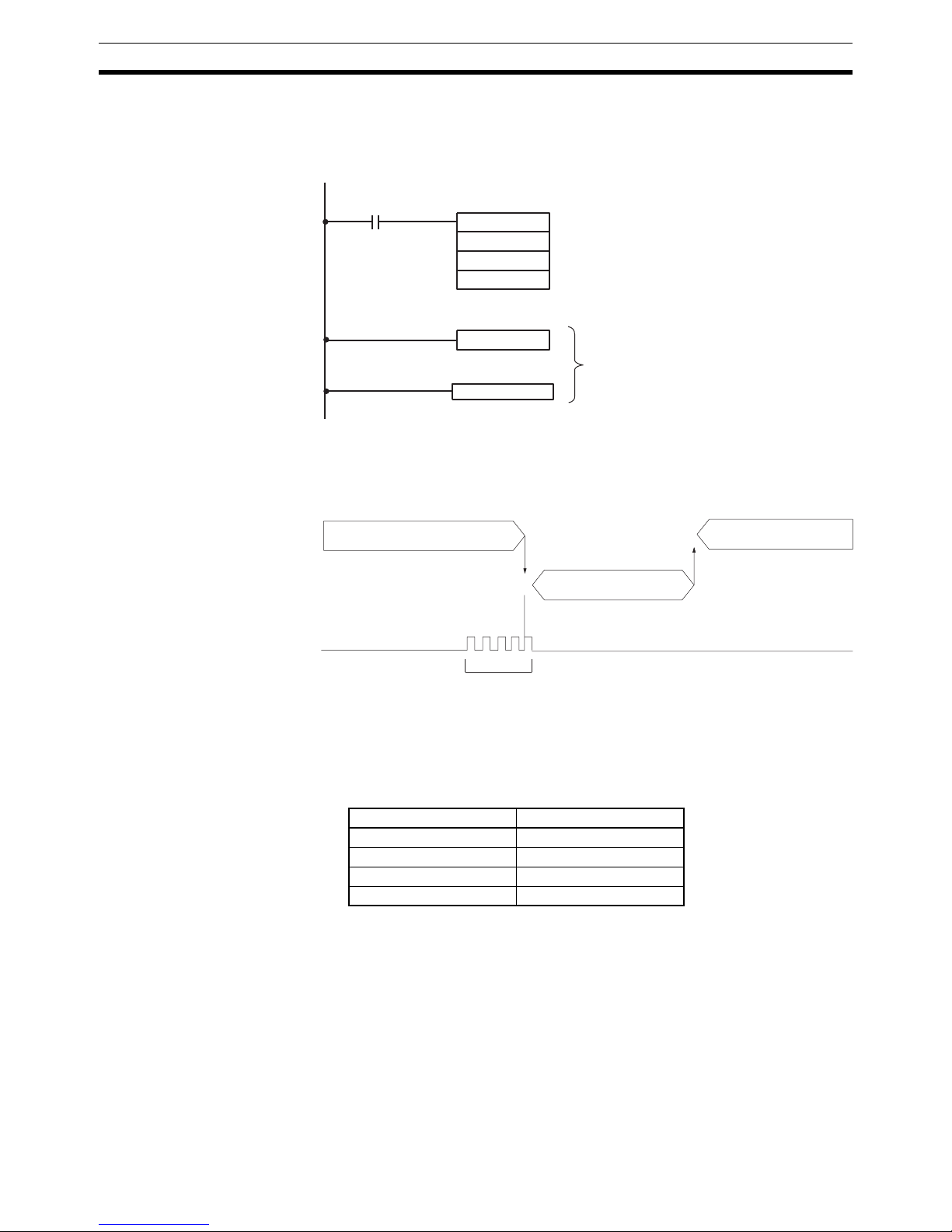

Application Example In this example, input interrupt 0 is used in Input Interrupt Mode and input

interrupt 1 is used in Counter Mod e. Before executing the program, check to be sure the PC Setup.

PC Setup: DM 6628: 0 011 (IR 0 0000 and IR 00001 us ed for input in terrupt s) The default settings are used for all other PC Setup parameters. (Input s are not refreshed at the time of interrupt processing.)

SBN(92) 000

00100

MOV(21)

#000A

245

25315 (ON for 1 scan)

(@)INT(89)

000 000

#000E

(@)INT(89)

003 000

#000D

(@)INT(89)

000 000

#000F

00100

25313 (Always ON)

ADB(50)

245

#000A

245

INT(89)

003 000

#000D

RET(93)

SBN(92) 001

RET(93)

BCD (24)

249

D0000

INC(38)

D0000

Sets 10 as the counter mode SV for input interrupt 1.

When IR 00100 turns ON: Masked interrupts for input interrupts 0 and 1 are cleared.

Interrupts are enabled in input interrupt mode for interrupt 0.

Interrupts are enabled in counter mode for interrupt 1. (SV: 10 )

When IR 00100 turns OFF, input interrupts 0 and 1 are masked and interrupts are prohibited.

When the Input interrupt is executed for interrupt 0, subroutine 000 is called and the counter mode is refreshed with the SV for input interrupt 1 with 10 added (SV = 20)

When the count is reached for the input interrupt 1 counter, subroutine 001 is called and the interrupt processing routine is executed.

The contents of SR 249 (PV – 1) are converted to BCD and stored in DM 0000.

The content to DM 0000 is incremented to the PC.

(@)INT(89)

001 000

#0003

CQM1 Interrupt Functions Section 1-5

When the program is executed, operation wil l be as shown in the following diagram.

Note 1. The counter will continue operating even while the interrupt routine is being

executed.

2. The input interrupt will remained masked.

1-5-3 Masking All Interrupts

All interrupts, including input interrupts, interval timer interrupts, and highspeed counter interrupts, can be masked and unmasked as a group by means of the INT(89) instruction. The mask is in addition to any masks on the individual types of interrupts. Furthermore, clearing the masks for all interrupts does not clear the ma sks on t he indivi dual types of i nterr u pts, but restor es them t o the masked conditions that existed before INT(89) was executed to mask them as a group.

Do not use INT(89) to mask interrupts unless it is necessary to temporarily mask all interrupts and always use INT(89) instructions in pairs to do so, using the first INT(89) instruction to mask and the second one to unmask interrupts.

INT(89) cannot be used to mas k and unmask all interr upts from within interrupt routines.

Masking Interrupts Use the INT(89) instruction to disable all interrupts.

If an interrupt is g enerated while interr upts are masked, interr upt processing will not be executed but the interrupt will be recorded for the input, inter val timer, and high-speed counter in terrupts. The interr upts will th en be ser viced as soon as interrupts are unmasked.

Unmasking Interrupts Use the INT(89) instruction to unmask interrupts as follows:

00000

00001

00100

Subroutine 000

Subroutine 001

(see note 1) (see note 1)

(see note 2)

10 counts 10 counts 20 counts

(@)INT(89)

100 000 000

(@)INT(89)

200 000 000

CQM1 Interrupt Functions Section 1-5

1-5-4 Interval Timer Interrupts

High-speed, high-prec ision timer interru pt processing can be executed using interval timers. The CQ M1 provid es th ree interval time rs, numbered fr om 0 t o

Note 1. Interval timer 0 cannot be used when puls es are being output to Output

Units by means of the SPED(64) instruction.

2. Interval timer 2 cannot be used at the same time as the high-speed counter.

Processing There are two modes for interval timer operation, the One-shot Mode, in

which only one interr upt will be executed when time expires, and the Scheduled Interrupt Mode in which the interrupt is repeated at a fixed interval.

PC Setup When using interval timer interrupts, make the following settings in the PC

Setup in PROGRAM mode before executing the program.

Input Refresh Word Settings (DM 6636 to DM 6638)

Make these settings when it is necessary to refresh inputs.

High-speed Counter Settings (DM 6642)

When using interval timer 2, check before beginn ing operation to be su re that the high-speed counter (PC Setup: DM 6642) is set to the default setting (0000: High-speed counter not used).

Operation Use the following instruction to activate and control the interval timer.

Starting Up in One-Shot Mode

Use the STIM(69) instruction to start the interval timer in the one-shot mode.

: Decrementing counter set value (4 digits BCD): 0000 to 9999

+ 1: Decrementing time i nter val (4 digits BCD; uni t: 0.1 ms ): 0005 to 032 0

(0.5 ms to 32 ms) Each time that the interval specified in word C

+ 1 elapses, the decrementing counter will decrement the present value by one. When the PV reaches 0, the designated subroutine will be called just once and the timer will stop.

The time from when the ST IM (6 9) instruction is executed until time elapses is calculated as follows: (Contents of word C

) x (Contents of word C2 + 1) x 0.1 ms = (0.5 to

319,968 ms) If a constant is set for C

, then the set value of the decrementing counter will take that value and the decreme nting t ime in terval will be 10 (1 ms) . (The set value is expressed in ms.)

15 0

DM6636 to DM 6638

Bit

Number of words (2 digits BCD) 00 to 12 Beginning word no. (2 digits BCD) 00 to 11

Default: No input refresh

DM 6636: Timer 0 DM 6637: Timer 1 DM 6638: Timer 2

(@)STIM(69)

C1: Interval timer no.

Interval timer 0: 000 Interval timer 1: 001 Interval timer 2: 002

: Timer set value (first word address)

: Subroutine no. (4 digits BCD): 0000 to 0255

CQM1 Interrupt Functions Section 1-5

Starting Up in Scheduled Interrupt Mode

Use the STIM(69) in str ucti on to start the inte r val timer in the s chedu led i nterrupt mode.

: Decrementing counter set value (4 digits BCD): 0000 to 9999

+ 1: Decrementing time i nter val (4 digits BCD; uni t: 0.1 ms ): 0005 to 032 0

(0.5 ms to 32 ms) The meanings of the settin gs are the same as for the one-shot mode, but in

the scheduled interr upt mode the timer PV will be r eset to the set value and decrementing will begin again after the subroutine has been called. In the scheduled interrupt mode, interrupts will continue to be repeated at fixed intervals until the operation is stopped.

Note CQM1-CPU11-E/CPU21-E support subroutine numbers 0000 to 0127 only.

Reading the Timer’s Elapsed Time

Use the STIM(69) instruction to read the timer’s elapsed time.

: Number of times the decrementing counter has ben decremented (4 digits BCD) C

+ 1: Decrementing counter time interval (4 digits BCD; unit: 0.1 ms) C

: Elapsed time from previous decrement (4 digits BCD; unit: 0.1 ms) The time from when the interval timer is started until the execution of this

instruction is calculated as follows: {(Contents of word C2) x (Con tents of word C2 + 1) + (Conten ts of wor d C3)}

x 0.1 ms If the specified interval timer is stopped, then “0000” will be stored.

Stopping Timers

Use the STIM(69) instruction to stop the interval timer.

The specified interval timer will stop.

(@)STIM(69)

C1: Interval timer no. + 3

Interval timer 0: 003 Interval timer 1: 004 Interval timer 2: 005

: Timer set value (leading word no.)

: Subroutine no. (4 digits BCD): 0000 to 0255

(@)STIM(69)

C1: Interval timer no. + 6

Interval timer 0: 006 Interval timer 1: 007 Interval timer 2: 008

: Leading word of parameter 1

: Parameter 2

(@)STIM(69)

000 000

C1: Interval timer no. + 10

Interval timer 0: 010 Interval timer 1: 011 Interval timer 2: 012

CQM1 Interrupt Functions Section 1-5

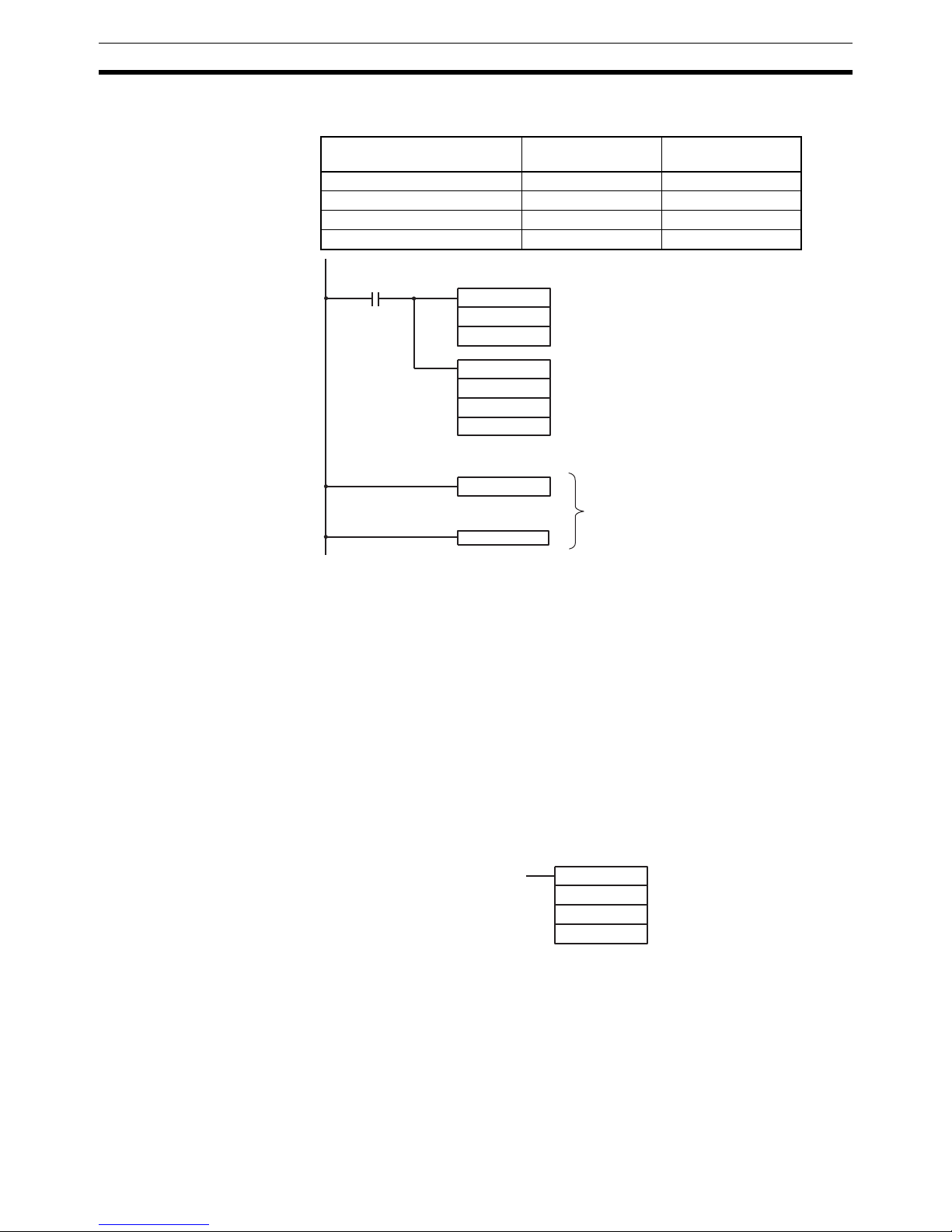

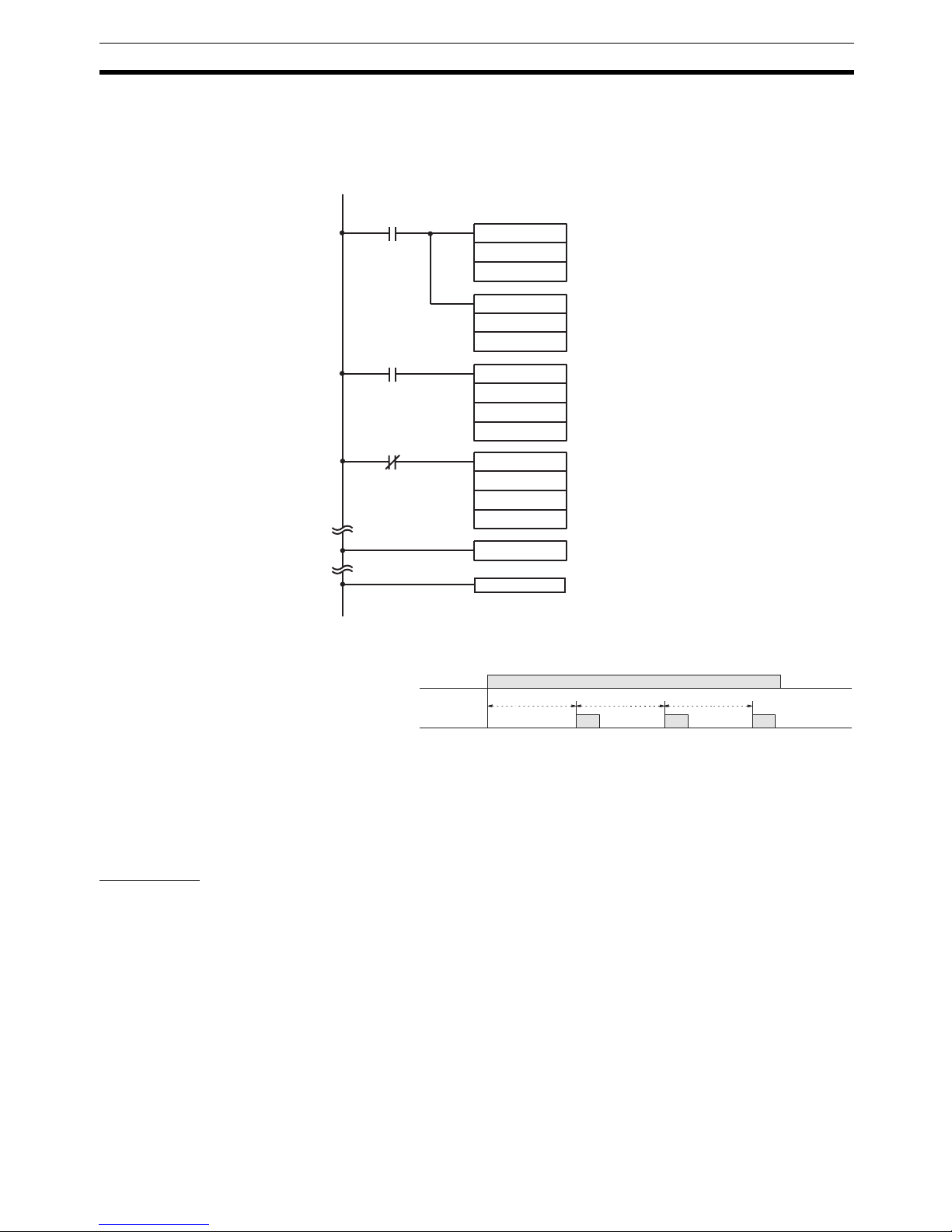

Application Example In this example, an interrupt is executed every 2.4 ms (0.6 ms x 4) by means

of interval timer 1. Assum e th e default setti ng s for all of the PC Setup. (Inputs are not refreshed for interrupt processing.)

When the program is executed, subroutine 023 will be executed every 2.4 ms while IR 00100 is ON.

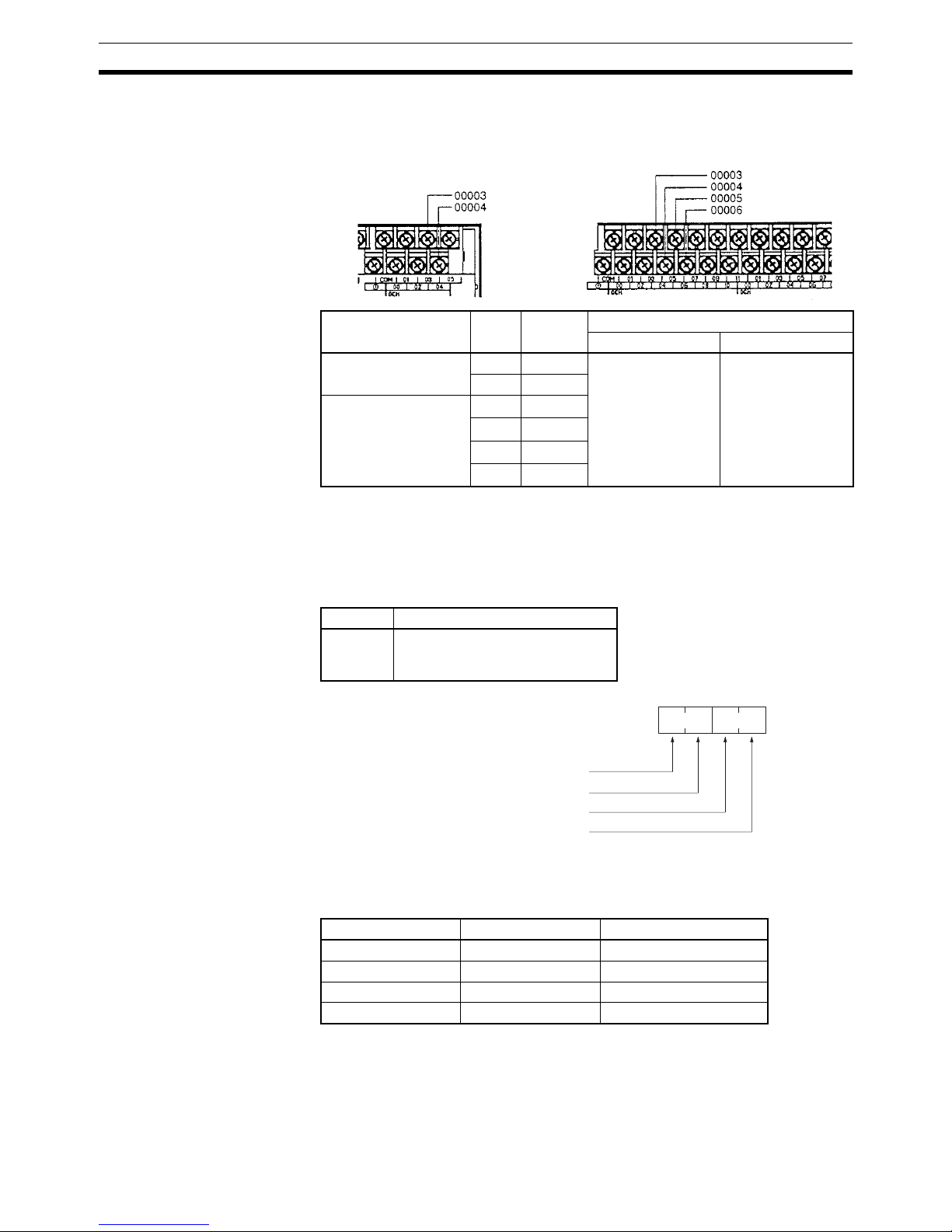

1-5-5 High-speed Counter 0 Interrupts

Pulse signals from a pul se encoder to CPU bits 00004 thr ough 00 006 can be counted at high speed, and interrupt processing can be executed according to the count.

Processing

Input Signal Types and Count Modes

Two types of signals can be input from a pulse encoder. The count mode used for high-speed counter 0 will depend on the signal type.

Up/Down Mode: A phase-difference 4X two-phase signal (A-phase and B-

phase) and a Z-phase signal are used for inputs. The count is incremen ted or decr ement ed accor ding to differences in the 2-phase signals.

MOV(21)

#0004

DM 0010

MOV(21)

#0006

DM 0011

SBN(92) 023

@STIM(69)

004

DM 0010

#0023

@STIM(69)

011 000 000

00100

Every 2.4 ms the count is reached for interval timer 1, and subroutine 023 is called.

Interval timer set values:

Sets 4 for the decrementing counter

set value.

Sets 0.6 ms for the decrementing time inter-

val.

Interval timer 1 starts when IR 00100 turns ON.

Interval timer 1 stops when IR 00100 turns

OFF.

25315 First Cycle Flag

ON for 1 cycle

RET(93)

IR 00100

Subroutine 023

2.4 ms 2.4 ms 2.4 ms

CQM1 Interrupt Functions Section 1-5

Incrementing mode:One single-phase puls e signal and a count reset signal

are used for inputs. The count is i ncremented accordin g to the single-phase signal.

Note One of the methods in the following sect ion should always be used to reset

the counter when res tarting it. The coun ter will be automatically reset when program execution is started or stopped.

The following signal transitions are han dl ed as forward (increm enti ng) pu lses : A-phase leading ed ge t o B-p has e lea din g e dge to A - pha se trai ling edge to Bphase trailing edge. Th e following signal tran sitions are handled as reverse (decrementing) pulse s: B-phase leading edge to A- phase leading edg e to Bphase trailing edge to A-phase trailing edge.

The count range is from –32,7 67 to 32 ,767 for Up/Down Mode, and f rom 0 t o 65,535 for Incrementing Mode. Pulse signa ls can be cou nte d at up to 2.5 kHz in Up/Down Mode, and up to 5.0 kHz in Incrementing Mode.

The Up/Down Mode always uses a 4X phase- difference inpu t. T he numbe r of counts for each encoder revolution would be 4 times the resolution of the counter. Select the encoder based on the countable ranges.

Reset Methods

Either of the two methods descr ibed below may be selected for resetting the PV of the count (i.e., setting it to 0).

Z-phase signal + software reset:The PV is reset when the Z-phase signal

(reset input) turns ON after the High-speed Counter 0 Reset Bit (SR 25200) is turned ON.

Software reset: The PV is reset when the High-speed Counter 0 Reset Bit

(SR 25200) is turned ON.

Note The High-speed Counter 0 Reset Bit (SR 25200) is refreshed once every

cycle, so in order for it to be read reliably it must be ON for at least one cycle.

1234567876543210–1–2

1 2 3 4

A-phase

B-phase

Up/Down Mode

Count

Incremented Decremented

Count

Pulse input

Incrementing Mode

Incremented only

SR25200

Z-phase (reset input)

Z-phase signal + software reset

1 or more cycles

Reset by interrupt.

Within 1 cycle

Reset by cycle. Not reset. Reset by cycle.

Within 1 cycle

1 or more cycles

Software reset

SR25200

CQM1 Interrupt Functions Section 1-5

The “Z” in “Z-phase” is an abbreviation for “Zero.” It is a si gna l tha t shows tha t the encoder has completed one cycle.

High-speed Counter Interrupt Count

For high-speed counter 0 i nterrupts, a comparison table is used instead of a “count up.” The count check can be c arried out by either of the two methods described below. In the comparison table, comparison conditions (for comparing to the PV) and interrupt routine combinations are saved.

Target value: A maximum of 16 compar ison conditions (ta rget val-

ues and count direction s) and interrupt r outine combinations are saved in the comparison table. When the counter PV and the count direction match the comparison conditions, then the specified interrupt routine is executed.

Range comparison: Eight compari son co nditions ( upper a nd lower limit s)

and interrupt rout ine combinations are saved in the comparison table. When the PV is greater than or equal to the lower limit and less than or equal to the upper limit, then the specified interrupt routine is executed.

Target Value Comparisons The current count is compared to the target values in the order that target val-

ues are set in the comparison table and interrupts are generated as the count equals each target value. Once the count ha s equal ed all of the tar get values in the table, the target value is set to the first target value in the table, which is again compared to the current counted until the two values are equal.

Range Comparisons The current count is compared in cyclic fashion to all of the ranges at the

same time and interrupt s are generated based on the results of the compa risons.

Note When performing target value comparisons, do not repeatedly use the INI

instruction to change the curren t value of the count and star t th e compar ison operation. The interrupt ope ration may not work correctly if the compar ison operation is started immediately after changing the current value from the program. (The comparison operation wil l automatically return to the first target value once an interr upt has been gen erated for the last target value. Repetitious operation is thus possible merely by changing the current value.)

Target value 1 Target value 2 Target value 3 Target value 4 Target value 5

Comparison T able

Count

Initial value

Target value

Interrupts

12 3 4 5

Rage setting 1 Rage setting 2 Rage setting 3 Rage setting 4

Comparison T able

Count

CQM1 Interrupt Functions Section 1-5

Wiring Depending on the count mode, the input signals from the pulse encoder to the

CPU Unit’s input terminal are as shown below.

If only the software reset is to be used, term in al 6 can be used as an ordin ary input. When in Incrementing Mode, terminal 5 can be used as an ordinar y input.

PC Setup When using high-speed counter 0 interrupts, make the settings in PROGRAM

mode shown below before executing the program.

Input Refresh Wor d Settings (DM 6638)

Make these settings when it is ne cessar y to refr esh inputs. Th e setting is th e same as that for interval timer 2.

High-speed Counter 0 Settings (DM 6642)

If these settings ar e not made, high-speed counter 0 cannot be used in the program.

Changes in the setting in DM 6642 are effective only when power is turned on or PC program execution is started.

Programming Use the following steps to program high-speed counter 0.

High-speed counter 0 begins the counting operation when the proper PC Setup settings are made, but comparisons will not be ma de with th e comparison table and interrupts will not be generated unless the CTBL(63) instruction is executed.

High-speed counter 0 is reset to “0” when power is turned ON and when operation begins.

The present value of high-speed counter 0 is maintained in SR 230 and SR 231.

Terminal no. Up/Down Mode Incrementing Mode

4 Encoder A-phase Pulse count input 5 Encoder B-phase --6 Encoder Z-phase Reset input

15 0

DM6638

Bit

Number of words (2 digits BCD) 00 to 12 Beginning word no. (2 digits BCD) 00 to 11

Default: No input refresh

High-speed counter 0 used.

15 0

DM6642

Bit

0 1

Reset method

0: Z-phase and software reset 1: Software reset

Count mode

0: Up/Down Mode 4: Incrementing Mode

Default: High-speed counter 0 not used.

CQM1 Interrupt Functions Section 1-5

Controlling High-speed Counter 0 Interrupts

1,2,3... 1. Use the CTBL(63) instr uction to save the compari son table in the CQM1

and begin comparisons.

If C is set to 000, then comparisons will be made by the target matching method; if 001, t hen th ey will be m ade by th e range c om parison method. T h e comparison table w ill be saved, and, when the save operation is c omplete, then comparisons will begin. While comparisons are being executed, highspeed interrupts will be executed according to the comparison table. For details on the co ntents of the compar ison tables that are saved, refer to the explanation of the CTBL(63) instruction in SECTION 5 Instruction Set.

Note The comparison results are normally stored in AR 1100 through AR 1107

while the range comparison is being executed. If C is set to 002, then comparisons will be made by the target matching

method; if 003, then they will be mad e by the range com parison m ethod. For either of these settings, the comparis on table will be saved, but comparis ons will not begin, and the INI(61) instructio n must be used to begin comp ar is on s.

2. To stop comparisons, execute the INI(61) instruction as shown below.

To star t comparis ons again, set the second operand to “000 ” (execute comparison), and execute the INI(61) instruction.

Once a table has been saved, it will be retained in the CQM1 during operation (i.e., during program execution) as long as no other table is saved.

Reading the PV

There are two ways to read the PV. Th e fi rst is to rea d it f rom S R 230 and S R 231, and the second to use the PRV(62) instruction.

Reading SR 230 and SR 231

The PV of high- speed counter 0 is s tored in SR 230 and SR 231 as shown below. The leftmost bit will be F for negative values.

Note These words are refreshed only once every cycle, so there may be a differ-

ence from the actual PV. When high-speed co unter 0 is no t being used, t he bits in these words can b e

used as work bits.

(@)CTBL(63)

P C

C: (3 digits BCD) 000: Target table set and comparison begun 001: Range table set and comparison begun 002: Target table set only 003: Range table set only

TB: Beginning word of comparison table

(@)INI(61)

000 001 000

Leftmost 4 digits Rightmost 4 digits Up/Down Mode Incrementing Mode

SR 231 SR 230 F0032767 to 00032767

(–32767)

00000000 to 00065535

CQM1 Interrupt Functions Section 1-5

Using the PRV(62) Instruction

Read the PV of high-speed counter 0 by using the PRV(62) instruction.

The PV of high-speed counter 0 is stored as shown below. The leftmost bit will be F for negative values.

The PV is read when the PRV(62) instruction is actually executed.

Changing the PV

There are two ways to change the PV of high-speed counter 0. The first way is to reset it by using the reset method s. (In this case the PV is rese t to 0.) The second way is to use the INI(61) instruction.

The method using the INI(61) instruction is explained here. For an explanation of the reset method, refer to the beginning of this des cription of high-speed counter 0.

Change the timer PV by using the INI(61) instruction as shown below.

To specify a negative number, set F in the leftmost digit.

Operation Example This example shows a program for using high-speed count er 0 in the Incre-

menting Mode, making comparisons by means of the target matching method, and changing the frequency of puls e outputs according to the counter’s PV. Before executing the program, set the PC Setup as follows:

DM 6642: 0114 (High-sp eed counter 0 used with software reset and Incrementing Mode). For all o ther PC Setup, use the default settings. (I nputs are not refreshed at the time of interrupt proces sing, and pulse outpu ts are executed for IR 100.)

(@)PRV(62)

000 000

P1: Leading word of PV

Leftmost 4 digits Rightmost 4 digits Up/Down Mode Incrementing Mode

P1+1 P1 F0032767 to 00032767

(–32767)

00000000 to 00065535

Leftmost 4 digits Rightmost 4 digits Up/Down Mode Incrementing Mode

D+1 D F0032767 to 00032767 00000000 to 00065535

(@)INI(61)

000 002

D: Leading word for storing PV change data

CQM1 Interrupt Functions Section 1-5

In addition, the following data is stored for the comparison table: DM 0000 0002 Number of comparison conditions: 2

DM 0001 1000 Target value 1: 1000 DM 0002 0000 DM 0003 0101 Comparison 1 interrupt processing routine no.: 101 DM 0004 2000 Target value 1: 2000 DM 0005 0000 DM 0006 0102 Comparison 2 interrupt processing routine no.: 102

When the program is executed, operation will be as follows:

1-5-6 High-speed Counter 0 Overflows/Underflows

If the allowable counting range for high-speed counter 0 is exceeded, and underflow or overflow status will occur and the counter’s PV will remain at 0FFF FFFF for over flows and FFFF FFFF for underflows until the overflow/ underflow status is cleared by resetting the counter. The allowable counting ranges are as follows:

Up/Down Mode: F003 2767 to 0003 2767 Incrementing Mode: 0000 0000 to 0006 5535

25315 (ON for 1 scan)

SBN(92) 101

SPED(64)

020 001

#0020

SPED(64)

020 001

#0000

25313 (Always ON)

SBN(92) 102

25313 (Always ON)

CTBL(63)

000 000

DM 0000

SPED(64)

020 001

#0050

Saves the comparison table in target matching format, and begins comparing.

Begins continuous pulse output to IR10002 at 500 Hz.

When the high-speed counter value reaches 1000, subroutine 101 is called and the frequency of the pulse output is changed to 200 Hz.

When the high-speed counter value reaches 2000, subroutine 102 is called and the pulse output is stopped by setting the frequency to 0.

RET(93)

02 7

200

500

Pulse frequency (Hz)

Time elapsed (s)

CQM1 Interrupt Functions Section 1-5

Note 1. The values given above are theoretical and assume a reasonably short cy-

cle time. The values will actually be those that existed one cycle before the overflow/underflow existed.

2. The 6th and 7th digits of high-speed c ounter 0’s PV are nor mally 00, but

can be used as “Overflow/Underflow Flags” by detecting values beyond the allowable counting ranges.

High-speed count er 0 can be reset a s describe d in the previous section or it can be reset automatically by restarting program execution. High-speed counter 0 and related o perations will not func tion norm ally until the overflow/ underflow status is cleared. Operations dur ing overflow/underflow status will be as follows.

• Comparison table operation will stop.

• The comparison table will not be cleared.

• Interrupt routines for the high-speed counter will not be executed.

• CTBL(63) can be used only to register the comparison table. If an attempt is made to start compari son table operation, operation will not start and the comparison table will not be registered.

• INI(61) cannot be used to start or sto p comparison table operation or t o change the present value.

• PRV(62) will read out only 0FFF FFFF or FFFF FFFF as the present value.

Recovery Use the following procedure to recover from overflow/underflow status.

With Comparison Table Registered

1,2,3... 1. Reset the counter.

2. Set the PV with PRV(62) if necessary.

3. Set the comparison table with CTBL(63) if necessary

4. Start comparison table operation with INI(61).

Without Comparison Table Registered

1,2,3... 1. Reset the counter.

2. Set the PV with PRV(62) if necessary.

3. Set the comparison table and start operation with CTBL(63) and INI(61).

Note The range comparison results in AR 11 will remain after recover y. The inter-

rupt routine for a in terrupt condition meet immediately after recovery will no t be executed if the interrupt condition was already met before the overflow/ underflow status occurred. If interrupt routine execution is necessary, clear AR 11 before proceeding.

Reset Operation When high-speed counter 0 is reset, the PV will be set to 0, counting will

begin from 0, and the comparison table, execution status, and execution results will be maintained.

Startup Counter Status When high-speed coun ter 0 is started, th e counter mode in the PC Se tup will

be read and used, the PV will be se t to 0, overflow/underflow statu s will be cleared, the comparison table registration and execution status will be cleared, and range execution results will be cleared. (Range execution results are always cleared when operation is begun or when th e compar ison table is registered.)

Stopped Counter Status When hig h-speed counter 0 is stopped, the PV wil l be maintained, the com-

parison table registration and execution status will be clear ed , and ran ge execution results will be maintained.

CQM1 Interrupt Functions Section 1-5

1-5-7 High-speed Counter 1 and 2 Interrupts (CQM1-CPU43-EV1)

Pulse signals from a pulse encoder to ports 1 and 2 of the CQM1-CPU43-EV1 can be counted at high speed, and interrupt processing can be executed according to the count.

The 2 ports can be ope rated se parately. The counter for port 1 is called highspeed counter 1 and the counter for port 2 is called high- speed counte r 2. This section descr ibes how to use high-speed count ers 1 and 2. Refer to the CQM1 Operation Manual for hardware information such as equipment and wiring specifications.

Note 1. High-speed counters 1 and 2 can be used with the CQM1-CPU43-E/-EV1

only.

2. Some instructions cannot be used when the PC Setup (DM 6611) is set to high-speed counter mode.

Processing Input Signals and Count Modes

Three types of signal s can be in put to por ts 1 an d 2. The cou nt modes use d for high-speed counters 1 and 2 are set in DM 6643 and DM 664 4 respectively.

1,2,3... 1. Differential Phase Mode (Counting Rate = 25 kHz):

A phase-difference 4X two-phase si gnal (A -pha se and B-pha se ) and a Zphase signal are used for inputs. The count is incremented or decremented according to di fferences in the 2-p hase s ignal s. This m ode is ide ntical to high-speed counter 0’s up/down mode.

2. Pulse/Direction Mode (Counting Rate = 50 kHz): The A-phase is the direction signal and the B-phase is the count pulse. The counter increments when the A-phase signal is OFF and decrements when it is ON.

3. Up/Down Mode (Counting Rate = 50 kHz): The A-phase is the decrementing signal and the B-phase is the incrementing signal. The co unter decrements when an A-ph ase pulse is detected and increments when a B-phase pulse is detected.

Counting Modes

The counting modes (ring mode or linear mode) for high-speed counters 1 and 2 are specified in DM 6643 and DM 6644 respectively.

1,2,3... 1. Ring Mode:

In ring mode, the maximum count value +1 is set in CTBL(63). The counter will go from the maximum count value to 0 when incrementing, and from 0

DM 6611 setting Affected instructions

High-speed counter mode (0000)

PLS2(––) and mode 0 of ACC(––) cannot be used.

Pulse output mode (0001) CTBL(63) cannot be used with ports 1 and 2.

12345678765432

A-phase

B-phase

Differential Phase Mode

Count

Incremented Decremented

A-phase (Direction)

B-phase (Pulse)

Pulse/Direction Mode

Count

Incremented Decremented

A-phase (Down)

B-phase (Up)

Up/Down Mode

Count

3 2 1 12

Incremented Decremented

3 2 1

CQM1 Interrupt Functions Section 1-5

to the maximum count value when decrementin g. There are no negative values.

The number of points on the r ing (maximum count value +1) can be set from 1 to 65,000.

2. Linear Mode: The counting range in linear mode is –8,388,607 to 8,388,607. If the allowable counting range for high-spe ed cou nter 1 or 2 is exceeded, a n u nder flow or overflow status will occur and the counter’s PV will remain at 0838 8607 for overflows and F838 8607 for underflows, counting or c omparison will be stopp ed, and AR 050 9 (port 1) or AR 0609 (port 2) will be turned ON.

Note 1. One of the methods in the following section should always be used to reset

the counter when restarting it. The counter will be automatically reset when program execution is started or stopped.

2. The following signal transitions are handled as forward (incrementing) pulses: A-phase leading edge to B-phase leading edge to A-phase trailing edge to B-phase trailing edge. The following signal transitions are handled as reverse (decrementing) pulses: B-phase leading edge to A-phase leading edge to B-phase trailing edge to A-phase trailing edge.

Reset Methods

Either the Z-phase signal + so ftware reset or software reset may be sele cted for resetting the PV of the count (i.e., setting it to 0). These resets operate the same as they do for high-speed counter 0. Refer to page 48 for details.

Note 1. The reset bits for high-speed counters 1 and 2 (SR 25201 and SR 25202)

are refreshed once every cycle. Make sure that a reset bit is ON for at least one full cycle so it can be read reliably.

2. The comparison table, execution status, and range comparison results will be retained through a res et. ( A co mpa rison will be cont inue d afte r a rese t is performed.)

High-speed Counter Interrupt Count

The comparison ta bles used for high-speed count ers 1 an d 2 are ju st like the one used for high-speed counter 0. Refer to page 49 for details.

PC Setup Wh en using high-speed counter 1 and/or 2 interrupts, make the settings in

PROGRAM mode shown below before executing the program.

Port 1 and 2 Mode Setting (DM 6611)

Specify high-speed counter mode for ports 1 and 2. If high-speed counter mode is not specified, CTBL(63) cannot be used to make count comparisons.

Ring Mode

Max. count value

Decrement Increment

Linear Mode

0–8.388,607 8.388,607

Underflow Overflow

CQM1 Interrupt Functions Section 1-5

This setting is read when the PC is turned ON. I f it is changed, the PC must be turned off and then on again before executing the program.

Note If DM 6611 is se t to puls e output m ode, another compar ison instru ction such

as BCMP(68) can be used to com pare the PV of high-speed c ounters 1 and

Input Refresh Word Sett ings (DM 6634 and DM 6635)

DM 6634 contains the input refres h word settings for high-speed counter 1, and DM 6635 contains the setti ng s for high-spe ed counter 2. Make these settings when it is necessary to refresh inputs.

High-speed Counter 1 and 2 Settings (DM 6643 and DM 6644)

DM 6643 contains the settings for high-speed coun ter 1, and DM 6644 contains the settings for high-speed counter 2. These settings determine the operating parameters for these high-speed counters.

Programming Use the following steps to program high-speed counters 1 and 2.

High-speed counters 1 and 2 begin counting whe n the proper P C Setup settings are made, but compar isons will not be made with the comp arison table and interrupts will no t be generated unless the CTBL(63) instruc tion is executed.

High-speed counters 1 and 2 are reset to “0” when power is turne d ON, whe n operation begins, and when operation stops.

The present value of high-speed counter 1 is maintained in SR 232 and SR 233 and the pr esent value of high-speed counte r 2 is maintained in SR 234 and SR 235.

15 0

DM 6611

0000

Bit

Port 1 and 2 Mode Setting

0000: High-speed counter mode Default: The default mode setting is high-speed counter mode.

15 0

DM 6634/DM 6635

Bit

Number of words (2 digits BCD) 00 to 12 Beginning word no. (2 digits BCD) 00 to 11

Default: No in

ut refresh

Counting mode

0: Linear mode 1: Ring mode

15 0

DM6643/DM 6644

Bit

–

Reset method

0: Z-phase and software reset 1: Software reset

Count mode

0: Differential Phase Mode 1: Pulse/Direction Mode 2: Up/Down Mode

Defaults: Linear Mode, Z-phase and software reset, Differential Phase Mode

CQM1 Interrupt Functions Section 1-5

Controlling High-speed Counter 1 and 2 Interrupts

1,2,3... 1. Use the CTBL(63) instr uction to save the compari son table in the CQM1

and begin comparisons.

If C is set to 000 , then comp arisons will be made by the target ma tching method; if 001, then th ey will be made by the range compar ison me thod. The comparison table will be saved, and, when the save operation is complete, then comparisons will begin. While comparisons are being executed, high-speed interr u pts wi ll be executed according to the compar is on ta ble. For details on the contents of the compar ison tables that are saved, refer to the explanation of the CTBL(63) ins truction in SECTION 5 Instruction Set.

Note The comparison results are normally stored in AR 1100 through

AR 1107 while the range comparison is being executed.

If C is set to 002 , then comp arisons will be made by the target ma tching method; if 003, then th ey will be made by the range compar ison me thod. For either of these settings, the compar ison ta ble will be saved, but comparisons will not beg in, and the INI( 61) instr uctio n must be used to b egin comparisons.

2. To stop comparisons, execute the INI(61) instruction as shown below. Specify port 1 or 2 in P (P=001 or 002).

To start comparisons again, set the second operand to “000” (execute comparison), and execute the INI(61) instruction.

Once a table has been saved, it will be retained in the CQM1 during operation (i.e., during program execution) as long as no other table is saved.

Reading the PV

There are two ways to read the PV. Th e fi rst is to rea d it f rom S R 232 and S R 233 (port 1) or SR 234 and SR 235 (port 2), and the second is to use PRV(62).

Reading SR 232 and SR 233 or SR 234 and SR 235

The PV of high-speed coun ter 1 is sto red in SR 232 and S R 233, and the PV of high-speed count er 2 is st ored in SR 234 and SR 235 as shown below. In linear mo de, the leftmost digit will be F for negative values.

(@)CTBL(63)

P C

P: Port 001: Port 1 002: Port 2

C: (3 digits BCD) 000: Target table set and comparison begun 001: Range table set and comparison begun 002: Target table set only 003: Range table set only

TB: Beginning word of comparison table

(@)INI(61)

P 001 000

Leftmost 4 digits Rightmost 4 digits Linear Mode Ring Mode

SR 233 SR 232 F8388607 to 08388607

(–8,388,607 to 8,388,607)

00000000 to 00064999Port 1:

SR 235 SR 234Port 2:

CQM1 Interrupt Functions Section 1-5

Note These words are refreshed only once every cycle, so there may be a differ-

ence from the actual PV.

Using the PRV(62) Instruction

Read the PV of high-speed counter 0 by using the PRV(62) instruction. Specify high-speed counter 1 or 2 in P (P=001 or 002).

The PV of the specified high- speed counter is sto red as shown below. In linear mode, the leftmost bit will be F for negative values.

The PV is read when the PRV(62) instruction is actually executed.

Changing the PV

There are two ways to change the PV of high-speed count ers 1 and 2. The first way is to reset it by using the r es et met hod s. (In thi s ca se the PV is reset to 0.) The second way is to use the INI(61) instruction.

The method using the INI(61) instruction is explained here. For an explanation of the reset method, refer to the beginning of this des cription of high-speed counters 1 and 2.

Change the timer PV by using the INI(61) instruction as shown below.

To specify a negative number in linear mode, set F in the leftmost digit.

Note Do not use INI(61) to repeate dly c hange t he PV and s tart compar is on for tar-

get value compar ison while puls es are bein g input. If the comparison operation is star ted immedi ately after forcing the PV to ch ange, the interr upts may not work properly. The target value will return to the first target value following completion of the inte rrupt for it, enabling repeati ng operation by only cha nging the PV.

High-speed Counter Status

The status of high -spe ed counters 1 and 2 c an be de termined eithe r by reading the status of the relevant flags in the AR area or executing PRV(62).

(@)PRV(62)

000

P: Port (001: port 1; 002: port 2) P1: Leading word of PV

Leftmost 4 digits Rightmost 4 digits Linear Mode Ring Mode

D+1 D F8388607 to 08388607

(–8,388,607 to 8,388,607)

00000000 to 00064999

(@)INI(61)

002

P: Port (001: port 1; 002: port 2) D: Leading word for storing PV change dat

Leftmost 4 digits Rightmost 4 digits Linear Mode Ring Mode

D+1 D F8388607 to 08388607

(–8,388,607 to 8,388,607)

00000000 to 00064999

CQM1 Interrupt Functions Section 1-5

The following table shows the relevant AR area flags and their functions.

The status of high-speed counters 1 and 2 can also be determined by executing PRV(62). Specify high-speed counter 1 or 2 (P=001 to 002) and the destination word D. The status information will be wr itten to bits 00 and 01 of D. Bits 02 to 15 will be set to 0.

Bits 00 and 01 of D contain the specified high-speed counter’s status.

Operation Example This example shows a program that outputs standard pulses from port 1 while

counting those pulses with high-speed counter 1. The high-speed counter operates in Up/Down Mode, with t he pulse output ’s CW pulses incrementing the counter (B-phase inp ut) and the CCW pulses decrementing the counter (A-phase input). Before executing the program, set the PC Se tup as follows and restart the PC.

DM 6611: 0000 (High-speed counter mode). DM 6643: 0002 (Port 1: Standard pulse output, linear counting mode, Z-phase

signal with software reset, and Up/Down Mode). Other PC Setup setting s u se the de fault settings. ( Inputs are not r efre shed a t

the time of interrupt processing.)

Word Bit(s) Function

AR 04 08 to 15Indicates high-speed counter status.

00: Normal 01 or 02: Hardware error 03: PC Setup error

AR 05 00 to 07High-speed Counter 1 Comparison Result flag for ranges 1 to 8.

(0: Not in range; 1: In range)

08 High-speed Counter 1 Comparison flag

(0: Stopped; 1: Comparing)

09 High-speed Counter 1 Overflow/Underflow flag

(0: Normal; 1: Underflow or overflow occurred)

AR 06 00 to 07High-speed Counter 2 Comparison Result flag for ranges 1 to 8.

(0: Not in range; 1: In range)

08 High-speed Counter 2 Comparison flag

(0: Stopped; 1: Comparing)

09 High-speed Counter 2 Overflow/Underflow flag

(0: Normal; 1: Underflow or overflow occurred)

Bit Function

00 Comparison flag (0: Stopped; 1: Comparing) 01 Overflow/Underflow flag (0: Normal; 1: Underflow or overflow occurred)

@PRV(62)

001

Execution condition

CQM1 Interrupt Functions Section 1-5

In addition, the following data is stored for the comparison table: DM 0000 0003 Number of comparison conditions: 3

DM 0001 2500 Target value 1: 2,500 DM 0002 0000 DM 0003 0100 Comparison 1 interrupt processing routine no.: 100 DM 0004 7500 Target value 2: 7,500 DM 0005 0000 DM 0006 0101 Comparison 2 interrupt processing routine no.: 101 DM 0007 0000 Target value 2: 10,000 DM 0008 0001 DM 0009 0102 Comparison 3 interrupt processing routine no.: 102

00000

SBN(92) 100

@ACC

001 003

DM 0012

SPED(64)

001 001

#0000

25313 (Always ON)

SBN(92) 102

25313 (Always ON)

@CTBL(63)

001 000

DM 0000

@PULS(65)

001 004 000

Specifies port 1, saves the comparison table in target matching format, and begins comparing.

Sets CW pulses for port 1. (Number of pulses not set.)

Pulse output from port 1 is stopped by setting the frequency to 0.

@SPED(64)

001 001

#0001

Begins continuous pulse output from port 1 at 10 Hz.

@ACC

001 001

DM 0010

ACC(––) mode 1 accelerates the frequency to 25 kHz at about 500 Hz/4 ms.

DM 0010: 0050 DM 0011: 2500

25313 (Always ON)

10000

SBN(92) 101

10000 turns ON.

ACC(––) mode 3 decelerates the frequency to 500 Hz at about 500 Hz/4 ms.

DM 0012: 0050 DM 0013: 0050

RET(93)

CQM1 Interrupt Functions Section 1-5

1-5-8 Absolute High-speed Counter Interrupts (CQM1-CPU44-EV1)

Binary-c ode signals from an absolut e rotary encoder can be input to por ts 1 and 2 of the CQ M1-CPU44-EV1 and counted at 4 kH z. Interrupt p rocessing can be executed according to the count.

The 2 ports can be operated separately. The counter for port 1 is called absolute high-speed co unter 1 and the c ounter for port 2 is called absol ute highspeed counter 2. This section describes how to use absolute high-speed counters 1 and 2. Refer to the CQM1 Operation Manual for hardware information such as equipment and wiring specifications.

Processing Input Signals and Count Modes

There are two count modes that can be used for absolute high-speed counters 1 and 2. The count mode and the resolution settings are specified in the PC Setup (DM 6643 and DM 6644).

1,2,3... 1. BCD Mode:

The absolute rot ar y e ncoder ’s binary code is first c onver ted to nor m al binary data and then converted to BCD.

2. 360

° Mode:

The absolute rotary encoder’s binary code is converted to an angular value (0

° to 359°) according to the resolution setting. (CTBL(63) settings are

made in 5

° units.)

The following table shows the possible counter P Vs in BCD mode and 360

mode for each resolution setting.

Absolute High-speed Counter Interrupt Count

The counter’s PV can be compared to up to 16 target values or 8 ranges. Refer to 5-15-6 REGISTER COMPARISON TABLE – CTBL(63) for a descrip- tion of the compari son tables used with absolute hig h-speed counters 1 and

PC Setup Wh en usi ng abso lute hi gh-spee d counte r 1 and/o r 2 inte rr upts, make the set-

tings in PROGRAM mode shown below before executing the program.

Input Refresh Word Sett ings (DM 6634 and DM 6635)

DM 6634 contains the input refresh word settings for absolute high-speed counter 1, and DM 6635 contains the settings for absolute high-speed counter

2. Make these settings when it is necessary to refresh inputs.

Resolution Possible PVs

BCD mode 360° mode

8-bit 0 to 255 PV output: 0° to 359° (1° units)

Comparison table settings: 0° to 355° (5° units)

10-bit 0 to 1023 12-bit 0 to 4095

15 0

DM 6634/DM 6635

Bit

Number of words (2 digits BCD) 00 to 12 Beginning word no. (2 digits BCD) 00 to 11

Default: No input refresh

CQM1 Interrupt Functions Section 1-5

Absolute High-speed Counter Settings (DM 6643 and DM 6644)

DM 6643 contains the settings for absolute high-spe ed counter 1, and DM 6644 contains the setti ngs for absolute high-speed counter 2. These words determine the count modes and resolution settings.

Origin Compensation It is possible to compensate for an offset between an absolute rotary

encoder’s origin and the actual or igin. This adjustment can be made separately for ports 1 and 2.

Follow the procedure below to s et origin compensat ion. After origin c ompensation has been s et, the data fro m the encoder will be adjus ted before being output as the PV.

1,2,3... 1. Set the absolute rotary encoder to the desired origin location.

2. Make sure that pin 1 of the CPU Unit’s DIP switch is OFF (enabling Peripheral Devices to overwrite DM 6614 through DM 6655) and switch the PC to PROGRAM mode.

3. Set the resolution setting in DM 6643 or DM 6644.

4. Make sure that a fatal error or FALS 9C error have not occurred.

5. Read the high-speed counte r’s PV from IR 232 and IR 233 (por t 1) or IR 234 and IR 235 (port 2) to determine the PV before origin compensation.

6. Turn ON the Port 1 Origin Compensation flag (SR 25201) or Port 2 Origin Compensation flag (SR 25202) from a Peripheral Device.

The compensation value will b e written to DM 6611 (p ort 1) or DM 661 2 (port 2) and the Origin Compensation flag will be turned OFF automatically. T he compensation value will be recorded in BCD between 00 00 and 4095 whether the counter is set to BCD mode or 360

° mode.

7. Read the high-speed counter’s PV to deter mine th e PV after orig in compensation. The PV should be 0000 after origin compensation.

The compensation value will be valid until it is changed again by the procedure above.

Programming Use the following steps to program absolute high-speed counters 1 and 2.

Absolute high-spee d counters 1 and 2 begin counting when the proper PC Setup settings are made, but comparisons will not be ma de with th e comparison table and interrupts will not be generated unless the CTBL(63) instruction is executed.

The present value of absolute high-spe ed counter 1 is maintained in IR 232 and IR 233 and the present value o f absolute high-speed counter 2 is maintained in IR 234 and IR 235.

15 0

DM6643/DM 6644

Bit

Count mode:

00: BCD mode 01: 360˚ mode

Resolution setting:

00: 8-bit 01: 10-bit 02: 12-bit

Defaults: BCD mode, 8-bit resolution

CQM1 Interrupt Functions Section 1-5

Controlling Absolute High-speed Counter Interrupts

1,2,3... 1. Use the CTBL(63) instr uction to save the compari son table in the CQM1

and begin comparisons.

P specifies the po rt. Set P=001 to specify absolute hig h- sp eed co unte r 1 , or P=002 to specify absolute high-speed counter 2.

If C is set to 000 , then comp arisons will be made by the target ma tching method; if 001, then th ey will be made by the range compar ison me thod. The comparison table will be saved, and, when the save operation is complete, then comparisons will begin. While comparisons are being executed, high-speed interr u pts wi ll be executed according to the compar is on ta ble. Refer to 5-15-6 REGISTER COMPARISON TABLE – CTBL(63) for details on the structure of the compari s on tables.

Note The comparison results are normally stored in AR 0500 through

AR 0507 (por t 1) and AR 0600 throug h AR 0607 (por t 2) while the range comparison is being executed.

2. To stop comparisons, execute the INI(61) instruction as shown below. Specify port 1 or 2 in P (P=001 or 002).

To start comparisons again, set the second operand to “000” (execute comparison), and execute the INI(61) instruction.

Once a table has been saved, it will be retained in the CQM1 during operation (i.e., during program execution) as long as no other table is saved.

Reading the PV

There are two ways to read the PV. The first is to read it from IR 232 and IR 233 (port 1) or IR 234 and IR 235 (port 2), and the second is to use PRV(62).

Reading IR 232 and IR 233 or IR 234 and IR 235

The PV of absolute high-spe ed coun ter 1 is stor ed in IR 2 32 and IR 23 3, and the PV of absolute high- speed counter 2 is stored in IR 234 and IR 235 as shown below.

(@)CTBL(63)

P C

P: Port specifier (001: Port 1; 002: Port 2) C: (3 digits BCD)

000: Target table set and comparison begun 001: Range table set and comparison begun 002: Target table set only 003: Range table set only

TB: Beginning word of comparison table

(@)INI(61)

P 001 000

Leftmost 4 digits Rightmost 4 digits BCD Mode 360˚ Mode

IR 233 IR 232

0000 0000 to 0000 4095 0000 0000 to 0000 0359

Port 1:

IR 235 IR 234Port 2:

CQM1 Interrupt Functions Section 1-5

Note These words are refreshed only once every cycle, so there may be a differ-

ence from the actual PV.

Using the PRV(62) Instruction

Read the PV of an absolute high-speed counter by using the PRV(62) instruction. Specify absolute high-speed counter 1 or 2 in P (P=001 or 002).

The PV of the specified absolute high-speed counter is stored as shown below.

The PV is read when the PRV(62) instruction is actually executed.

Reading Absolute High-speed Counter Status

The status of absolute high-spe ed c ount er s 1 and 2 can be determined either by reading the status of the relevant flags in the AR area or executing PRV(62).

The following table shows the relevant AR area flags and their functions.

The comparison flag status of absolute high-speed counters 1 and 2 can also be determined by executing PRV(62). Specify absolute high-speed cou nter 1 or 2 (P=001 to 002) and the destination word D. The flag status (0: Stopped; 1: Comparing) will be written to bit 00 of D. Bits 01 to 15 will be set to 0.

Operation Example This example shows a program that receives an input signal from an absolute

rotary encoder at port 1 and uses this input to control outputs IR 10000 through IR 10003. Absolute high-speed counter 1 is set for 8-bit resolution and 360

° Mode, and range comparisons are used. Before executing the pro-

gram, set DM 6643 to 0100 (Port 1: 360

° Mode, 8-bit resolution).

Other PC Setup setting s u se the de fault settings. ( Inputs are not r efre shed a t the time of interrupt processing.)

In addition, the following data is stored for the comparison table:

(@)PRV(62)

000

P: Port (001: port 1; 002: port 2) P1: Leading word of PV

Leftmost 4 digits Rightmost 4 digits

D+1 D

BCD Mode 360˚ Mode

0000 0000 to 0000 4095 0000 0000 to 0000 0359

Word Bit(s) Function

AR 04 08 to 15Indicates absolute high-s pee d cou nter status.

00: nor m al 01 or 02: Hardware error 03: PC Setup error

AR 05 00 to 07Counter 1 Comparison Result flags for ranges 1 to 8.

(0: Not in range; 1: In range)

08 Counter 1 Comparison flag (0: Stopped; 1: Comparing)

AR 06 00 to 07Counter 2 Comparison Result flags for ranges 1 to 8.

(0: Not in range; 1: In range)

08 Counter 2 Comparison flag (0: Stopped; 1: Comparing)

@PRV(62)

001

Execution condition

CQM1 Interrupt Functions Section 1-5

DM 0000 0000 Lower limit #1 (0°) DM 0001 0085 Upper limit #1 (85°) DM 0002 0100 Subroutine number 100 DM 0003 0090 Lower limit #2 (90°) DM 0004 0175 Upper limit #2 (175°) DM 0005 0101 Subroutine number 101 DM 0006 0180 Lower limit #3 (180° ) DM 0007 0265 Upper limit #3 (265°) DM 0008 0102 Subroutine number 102 DM 0009 0270 Lower limit #4 (270°) DM 0010 0355 Upper limit #4 (355°) DM 0011 0103 Subroutine number 103 DM 0012 0000 Lower limit #1 (0°) DM 0013 0000 Upper limit #1 (0°) DM 0014 FFFF No subroutine number DM 0015 0000 Lower limit #1 (0°) DM 0016 0000 Upper limit #1 (0°) DM 0017 FFFF No subroutine number DM 0018 0000 Lower limit #1 (0°) DM 0019 0000 Upper limit #1 (0°) DM 0020 FFFF No subroutine number DM 0021 0000 Lower limit #1 (0°) DM 0022 0000 Upper limit #1 (0°) DM 0023 FFFF No subroutine number

First range setting (0° to 85°)

Second range setting (90° to 175°)

Third range setting (180° to 265°)

Fourth range setting (270° to 355°)

Fifth range setting (Not used.)

Sixth range setting (Not used.)

Seventh range setting (Not used.)

Eighth range setting (Not used.)

00000

SBN(92) 100

@CTBL(63)

001 001

DM 0000

Specifies port 1, saves the comparison table in range matching format, and begins comparing.

SBN(92) 101

Turns ON 10000. Turns other bits in IR 100 OFF.

MOV(21)

#0001

100

25313 (Always ON)

SBN(92) 102

Turns ON 10001. Turns other bits in IR 100 OFF.

MOV(21)

#0002

100

25313 (Always ON)

SBN(92) 103

Turns ON 10002. Turns other bits in IR 100 OFF.

MOV(21)

#0004

100

25313 (Always ON)

Turns ON 10003. Turns other bits in IR 100 OFF.

MOV(21)

#0008

100

25313 (Always ON)

RET(93)

CPM1/CPM1A Interrupt Functions Section 1-6

The following diagram shows the relationship between absolu te high-speed counter 1’s PV and Range Compar ison Result flags AR 050 0 to AR 0507 as the above program is executed.

1-6 CPM1/CPM1A Interrupt Functions

This section explains the settings and method s for using the CPM1/CPM1A interrupt functions.

1-6-1 Types of Interrupts

The CPM1/CPM1A has three types of interrupt processing, as outlined below.

Input Interrupts

CPM1/CPM1A PCs have two or four interrupt inputs. Interru pt processing is executed when one of these inputs is turned ON from an external source.

Interval Timer Interrupts

Interrupt processing is executed by an interval timer with a precision of 0.1 ms.

High-speed Counter Interrupts

The high-speed counter counts pulse inputs to one of CPU bits 00000 to

00002. Interrupt processing is executed when the count reaches the set value of a built-in high-speed counter.

Interrupt Priority When an interrupt is generated, the specified interr upt processing routine is

executed. Interrupts have the following priority ranking.

Input interrupts > Interval interrupts = High-speed counter interrupts When an interr upt with a higher pr iority is received during inte rrupt processing, the current processes will be stopped and the newly received interrupt will be processed instead. After that routine has been completely executed, then processing of the previous interrupt will be resumed. When an interrupt with a lower or equal pri ority is received during interrupt processing, then the newly received interrupt will be processed as soon as the routine currently being processed has been completely executed. When two interrupts with equal priority are received at the same time, they are executed in the following order:

Input interrupt 0 > Input interrupt 1 > Input interrupt 2 > Input interrupt 3

Interval interrupts > High-speed counter interrupts

Interrupt Program Precautions

Observe the following precautions when using interrupt programs:

1,2,3... 1. A new interrupt can be define d within an int errupt pr ogram. Fur ther mor e,

an interrupt can be cleared from within an interrupt program.

2. Another interrupt program cannot be written within an interrupt program.

3. A subroutine program cannot be written within an interrupt program. Do not

write a SUBROUTINE DEFINE instr uction, SBN(92), within an interrupt

program.

PV=0 85 90 175 180 265 270

AR 0500

AR 0501

AR 0502

AR 0503

355 360

AR 0504 to AR 0507

CPM1/CPM1A Interrupt Functions Section 1-6

4. An interrupt program cannot be written within a subroutine program. Do not write an interr upt program between a S UBROUTINE DEFINE ins truction (SBN(92)) and a RETURN instruction (RET(93)).

Inputs used as interrupts cannot be used as regular inputs.

High-speed Counter Instructions and Interrupts

The following instructions canno t be executed in an interrupt subroutine when an instruction that controls high-speed counters is being executed in the main program:

INI(61), PRV(62), or CTBL(63)

The following methods can be used to circumvent this limitation:

Method 1

All interrupt processing can be masked while the instruction is being executed.

Method 2

Execute the instruction again in the main program.

1,2,3... 1. This is the program section from the main program:

@INT(89)

000

100

000

INI(61)

000

@INT(89)

000

200

000

@PRV(62)

002

000

DM 0000

CTBL(63)

000

DM 0000

RSET LR 0000

LR 0000

CPM1/CPM1A Interrupt Functions Section 1-6

2. This is the program section from the interrupt subroutine:

Note 1. Define interrupt routines at the end of the main program with SBN(92) and

RET(93) instructions, just like regular subroutines.

2. When defining an interrupt routine, a “SBS UNDEFD” error will occur during the program check operation, but the program will be executed normally.

1-6-2 Input Interrupts

The 10-pt CPU Units (CPM1-10CDR-@ and CPM1A-10CDR-@) have two interrupt inputs (00003 and 00004).

The 20-, 30-, and 40-pt CPU Units (CPM1-20CDR-@, CPM1A-20CDR-@, CPM1-30CDR-@(-V1), CPM1A-30CDR-@

and CPM1 A-40CDR-@) have four

interrupt inputs (00003 to 00006). There are two modes for input interr upts: input interrupt mode and coun ter

mode.

CPM1 PCs

SBN(92) 000

@CTBL(63)

000

DM 0000

25313

0000

10-pt CPU Units (CPM1-10CDR-@)

20- and 30-pt CPU Units (CPM1-20CDR-@and CPM1-30CDR-@(-V1))

00003

00004

00005

00006

00003

00004

24VDC

CPM1/CPM1A Interrupt Functions Section 1-6

CPM1A PCs

Note If input interrupts are not used, use inputs 00003 to 00006 as regular inputs.

Input Interrupt Settings Inputs 00003 to 00006 must be set as interr upt inpu ts in DM 6628 if they are

to be used for input interrupts in the CPM1/CPM1A. Set the corresponding digit to 1 if the input is to be used as an interrupt input (input interrupt or counter mode); set it to 0 if it is to be used as a regular input.

Interrupt Subroutines Interrupts from inp uts 00003 to 00006 are allocate d interrupt numbers 00 t o

03 and call subroutines 000 to 003. If the input interrupts ar en’t being used, subroutines 000 to 003 can be used in regular subroutines.

Input Refreshing If input refreshing is not used, input signal status within the interr upt routine

will not be reliable. Depending on th e input time constant, the input signals might not go ON even if input refres hing is used. Th is includes the s tatus of the interrupt input bit that activated the interrupt.

CPU Unit Input Interrupt

number

Response time

Interrupt mode Counter mode

CPM1-10CDR-@ CPM1A-10CD@-@

00003 00 0.3 ms max.

(Time until the interrupt program is executed.)

1 kHz

00004 01

CPM1-20CDR-@ CPM1A-20CD@-@

CPM1-30CDR-@(-V1) CPM1A-30CD@-@

CPM1A-40CD@-@

00003 00 00004 01 00003 02 00004 03

10-pt CPU Units (CPM1A-10CDR-@)

20-, 30-, and 40-pt CPU Units (CPM1A-20CDR-@, CPM1A-30CDR-@, and CPM1A-40CDR-@)

Word Setting

DM 6628 0: Regular input (default setting)

1: Interrupt input 2: Quick-response input

15 0

DM 6628

Bit

Setting for input 00006: Set to 1 Setting for input 00005: Set to 1 Setting for input 00004: Set to 1 Setting for input 00003: Set to 1

Input number Interrupt number Subroutine number

00003 0 000 00004 1 001 00005 2 002 00006 3 003

CPM1/CPM1A Interrupt Functions Section 1-6

For example, IR 00000 would not be ON in interrupt routine for input interr up t 0 unless it was refreshed. In thi s case, use the Always ON Flag, SR 25313 i n the interrupt routine instead of IR 00000.

Input Interrupt Mode When an input interr upt signal is received, the main program is inte rrupted

and the interrupt p rogram is executed immediately, regardless of the point in the cycle in which the i nter r up t i s rec eived. The s ig nal must b e O N for 200

µs

or more to be detected.

Use the following instructions to program input interrupts using the Input Interrupt Mode.

Masking/Unmasking of Interrupts

With the INT(89) instruction, set or clear input interrupt masks as required.

All of the input inte rrupts are masked when PC operation is started. If inpu t interrupt mode is being used, be sure to enable the inputs by executing INT(89) as shown above.

Clearing Masked Interrupts

Only one interrupt signal will be saved in memory for each interrupt number. With the INT(89) instruction, clear the input interrupt from memory.

Reading Mask Status

With the INT(89) instruction, read the input interrupt mask status.

Main program

Interrupt program

Input interrupt

Main program

(@)INT(89)

000 000

Make the settings with word D bits 0 to 3, which correspond to input interrupts 0 to 3.

0: Mask cleared. (Input interrupt enabled.) 1: Mask set. (Input interrupt disabled.)

(@)INT(89)

001 000

If D bits 0 to 3, which correspond to input interrupts 0 to 3, are set to "1," then the input interrupts will be cleared from memory.

0: Input interrupt retained. 1: Input interrupt cleared.

(@)INT(89)

002 000

The status of the rightmost digit of the data stored in word D (bits 0 to 3) show the mask status.

0: Mask cleared. (Input interrupt enabled.) 1: Mask set. (Input interrupt disabled.)

CPM1/CPM1A Interrupt Functions Section 1-6

Program Example

When input 00003 (interr upt no. 0) goes ON, operation moves immediat ely to the interrupt program with subroutine number 000. Inputs for DM 6 628 have been set to 0001.

Counter Mode External signal inputs are counted at high speed and an interrupt is generated

when the count reach es the set value. When an interrupt is generated, the main program is interrupted and the interrupt program is executed. Signals up to 1 kHz can be counted.

Use the following steps to program input interrupts using the Counter Mode.

1,2,3... 1. Write the set values for counter operation to the SR words shown in the fol-

lowing table. The set values are written between 0000 and FFFF (0 to 65,535). A value of 0000 will disable the count operation until a new value is set and step 2, below, is repeated.

The SR words used in the Counter Mode (SR 240 to SR 243) contain hexadecimal data, not BCD. If the Counter Mode is not us ed, t hes e words ca n be used as work bits.

Note These SR words are cleared at the beginning of operation, and must

be written from the program.

RET(93)

SBN(92) 000

25315 First Cycle Flag

ON for 1 cycle

Interrupt program

@INT(89)

000 000

#000E

Mask/unmask input interrupts.

Unmasks 00003 (interrupt input 0), masks others.

Set value

Main program

Interrupt program

Main program

Input interrupt

Interrupt Word

Input interrupt 0 SR 240 Input interrupt 1 SR 241 Input interrupt 2 SR 242 Input interrupt 3 SR 243

CPM1/CPM1A Interrupt Functions Section 1-6

2. With the INT(89) instr uction, refr esh the Coun ter Mode set value and enable interrupts.

Be sure to set the corresponding bit to 1 if an input interrupt isn’t being controlled.

Note 1. If the INT( 89) instructi on is used during counting, the present value (PV)

will return to the set value (SV). You must, therefore, use the differentiated form of the instruction or an interrupt may never occur.

2. The set value will be set when the INT(89) instruction is executed. If interrupts are already in op eration, the n the set value will no t be chang ed just by changing the content of SR 240 to SR 243, i.e., if the contents are changed, the set value must be refreshed by executing the INT(89) instruction again.

Interrupts can be m asked using the same process use d with the Input Interrupt Mode, but if the ma sked interrupts are cleared us ing the same p rocess, the interrupts will operate in Input Interrupt Mode, not Counter Mode.

Interrupt signa ls rec eived for masked in terrupts can also be cl ear ed us in g th e same process as for the Input Interrupt Mode.

Counter PV in Counter Mode

Example: The present value for an interrupt whose set value is 000A will be recorded as 0009 immediately after INT(89) is executed.

Note Even if input interrupts are not used in Counter Mode, these SR bits cannot be

used as work bits.

Program Example

When input 00003 (interrupt no. 0) goes ON 10 times, operation moves immediately to the interrupt program with subroutine number 000. The following

(@)INT(89)

003 000

If D bits 0 to 3, which correspond to input interrupts 0 to 3, are set to "0," then the set value will be refreshed and interrupts will be permitted.

0: Counter mode set value refreshed and mask cleared. 1: Not refreshed.

Interrupt Word

Input interrupt 0 SR 244 Input interrupt 1 SR 245 Input interrupt 2 SR 246 Input interrupt 3 SR 247

CPM1/CPM1A Interrupt Functions Section 1-6

table shows where the counters` set values and present values –1 are stored. Inputs for DM 6628 have been set to 0001.

1-6-3 Masking All Interrupts

Masking Interrupts Use the INT(89) instruction to disable all interrupts.

Interrupt Word containing SVWord containing

PV–1

Input 00003 (input interrupt 0) SR 240 SR 244 Input 00004 (input interrupt 1) SR 241 SR 245 Input 00005 (input interrupt 2) SR 242 SR 246 Input 00006 (input interrupt 3) SR 243 SR 247

RET(93)

MOV(21)

#000A

240

SBN(92) 000

25315 First Cycle Flag

ON for 1 cycle

Interrupt program

Sets the SV to 10. (0000 to FFFF) Word containing the SV (SR 240)

@INT(89)

003 000

#000E

Refresh counter SVs.

Refreshes the SV of 00003 (interrupt input 0) only.

(@)INT(89)

100 000 000

CPM1/CPM1A Interrupt Functions Section 1-6

Unmasking Interrupts Use the INT(89) instruction to unmask interrupts as follows:

1-6-4 Interval Timer Interrupts

The CPM1/CPM1A is equipped with one interval timer. When the interval timer times out, the main pr ogram is interrupted an d the interrupt pr ogram is executed immediately, regardless of the point in the cycle. There are two modes for interval timer operation, the One-shot Mode, in which only one interr upt will be executed when time expires, and the Scheduled Interrupt Mode in which the interrupt is repeated at a fixed interval.

The interval timer’s set value can be set anywhere from 0 .5 to 319968 m s, in units of 0.1 ms.

Operation Use the following instruction to activate and control the interval timer.

Starting Up in One-Shot Mode

Use the STIM(69) instruction to start the interval timer in the one-shot mode.

1,2,3... 1. When C

is entered as a word address:

: Decrementing counter set value (4 digits BCD): 0000 to 9999

+ 1: Decrementin g time inter val (4 digits BCD; unit : 0.1 ms): 0005 t o 0320 (0.5 ms to 32 ms) Each time that the in terval specified in word C

+ 1 elapses, the decre-

menting counter will decreme nt the present value by one. When the PV reaches 0, the designated subroutine will be called just once and the timer will stop. The time from when the STIM(69) instruction is executed until time elapses is calculated as foll ows: (Content of C

) × (Content of C2 + 1) × 0.1 ms = (0.5 to 319,968 ms)

2. When C

is entered as a constant:

The set value of the decrementing counter will equal the specified constant (in ms) and the decrementing time interval will be 10 (1 ms).

Starting Up in Scheduled Interrupt Mode

Use the STIM(69) in str ucti on to start the inte r val timer in the s chedu led i nterrupt mode.

1,2,3... 1. When C

is entered as a word address:

: Decrementing counter set value (4 digits BCD): 0000 to 9999 C

+ 1: Decrementin g time inter val (4 digits BCD; unit : 0.1 ms): 0005 t o 0320 (0.5 ms to 32 ms) The meanings of the s etti ngs a re th e s am e a s for the one -sho t m ode, but

in the scheduled interrupt mode the timer PV will be reset to the set value

(@)INT(89)

200 000 000

(@)STIM(69)

C1: Interval timer, one-shot mode (000) C

: Timer set value (first word address)

: Subroutine no. (4 digits BCD): 0000 to 0049

(@)STIM(69)

C1: Interval timer, scheduled interrupt mode (003) C

: Timer set value (leading word no.)

: Subroutine no. (4 digits BCD): 0000 to 0049

CPM1/CPM1A Interrupt Functions Section 1-6

and decrementing will begin again after the subroutine has been called. In the scheduled interr upt mode, interrupts will continue to be r epeated at fixed intervals until the operation is stopped.

2. When C

is entered as a constant:

The settings are the same as for the one-shot mode, but interrupts will continue to be repeated at fixed intervals until the operation is stopped.

Reading the Timer’s Elapsed Time

Use the STIM(69) instruction to read the timer’s elapsed time.

: Number of times the decrementing counter has ben decremented (4 digits BCD) C

+ 1: Decrementing counter time interval (4 digits BCD; unit: 0.1 ms) C

: Elapsed time from previous decrement (4 digits BCD; unit: 0.1 ms) The time from when the interval timer is started until the execution of this

instruction is calculated as follows: {(Content of C2)

× (Content of C2+1) + (Content of C3)} × 0.1 ms

If the specified interval timer is stopped, then “0000” will be stored.

Stopping the Timer

Use the STIM(69) i nstructio n to stop th e inter val timer. The inter val timer will be stopped.

(@)STIM(69)

C1: Read elapsed time (006) C

: Leading word of parameter 1

: Parameter 2

(@)STIM(69)

000 000

C1: Stop interval timer (010)

CPM1/CPM1A Interrupt Functions Section 1-6

Application Example (One-shot Mode)

In this example, an interrupt is generated 2.4 ms (0.6 ms × 4) after input 00005 goes ON; the interrupt executes interrupt subroutine number 23.

Application Example (Scheduled Interrupt Mode)

In this example, an interrupt is generated every 4.0 ms (1.0 ms

× 4) after inp ut

00005 goes ON; the interrupts execute interrupt subroutine number 23.

1-6-5 High-speed Counter Interrupts

CPM1/CPM1A PCs have a high-speed counter function tha t can be used in incrementing mod e or up/down mode. The high-sp eed counter can be combined with input inte rr u pts to perform target value co ntrol or zone com parison control that isn’t affected by the PC’s cycle time.

High-speed counter signals can be input to CPU bits 00000 through 00002.

RET(93)

MOV(21)

#0004

DM 0010

MOV(21)

#0006

DM 0011

SBN(92) 023

@STIM(69)

000

DM 0010

#0023

00005

Interrupt program

Sets the decrementing counter's set value to 4. (BCD: 0000 to 9999)

Sets the decrementing time interval to 0.6 ms. (BCD: 0005 to 0320)

Starts the interval timer in one-shot mode. Specifies the first word containing the set value. Specifies the subroutine number (23).

25315 First Cycle Flag

ON for 1 cycle

RET(93)

MOV(21)

#0004

DM 0010

MOV(21)

#0010

DM 0011

SBN(92) 023

@STIM(69)

003

DM 0010

#0023

00005

25315 First Cycle Flag

ON for 1 cycle

Interrupt program

Sets the decrementing counter's set value to 4.

(BCD: 0000 to 9999)

Sets the decrementing time interval to 1.0 ms. (BCD: 0005 to 0320)

Starts the interval timer in scheduled interrupt mode. Specifies the first word containing the set value. Specifies the subroutine number (23).

CPM1/CPM1A Interrupt Functions Section 1-6

CPM1 PCs

CPM1A PCs

Note In incrementing mode, input 0 0001 ca n be use d as a regu lar i nput. Wh en the

reset method is used for the software reset, input 00002 can be used as a regular input. Also, even when used for the Z-phase signal and software reset, the input status is reflected inn 00002 of the I/O memory.

High-speed Counter Settings

The following settings must be made in DM 6642 when using the CPM1/ CPM1A’s high-speed counter function.

00000

00001

24VDC

00002

Mode Input functions Input method Count

frequency

Count

range

Control methods

Up/Down 00000: A-phase input

00001: B-phase input 00002: Z-phase input

Phase-difference, 4× inputs

2.5 kHz max. –32767 to 32767

Target value control: Up to 16 target values and interrupt subroutine numbers can be regi stered.

Zone comparison control: Up to 8 sets of upper limit values, lower limit va lues, and interrupt subroutine numbers can be regi stered.

Incrementing 00000: Count input

00001: See note. 00002: Reset input

Individual inputs 5.0 kHz max. 0

to 65535

DM 6642

Bits

Function Settings

Incrementing Up/Down Not used

00 to 03 Sets the counter mode:

0: Up/down 4: Incrementing

4 0 0 or 4

04 to 07 Sets the reset method:

0: Z-phase + software reset 1: Software reset

0 or 1 0 or 1 0 or 1

08 to 15 Sets the counter:

00: Counter not being used. 01: Counter being used.

01 01 00

CPM1/CPM1A Interrupt Functions Section 1-6

Count Range The CPM1/CPM1A’s high-speed counter us es linear ope ration and th e count

(present value) is stored in SR 248 and SR 249. (Th e upper four digits are stored in SR 249 and the lower four digits are stored in SR 248.)

An overflow will occur if the cou nt exceeds the uppe r limit in the count range and an underflow will occur if the count goes below the lower limit in the count range.

Processing Two types of signals can be input from a pulse encoder. The count mode used

for the high-speed counter will depe nd on the signal type. The count mode and reset mode are set in DM 6642; these settings become effective when the power is turned on or PC operation is started.

Up/Down Mo d e :

A phase-difference 4

× two-phase signal (A-phase and B-phase ) and a Z-

phase signal are used for inputs. The count is incremented or decremented according to differences in the 2-phase signals.

Incrementing Mode:

One single-phase pulse signal and a count reset signal are used for inputs. The count is incremented according to the single-phase signal.

Note One of the reset methods described below should always be used to reset the

counter when restar ting it. The counter wil l be automatically r eset when program execution is started or stopped.

The Up/Down Mode always uses a 4

× phase-difference input. The numbe r of

counts for each encoder revolution would be 4 times the resolution of the counter. Select the encoder based on the countable ranges.

Mode Count range

Up/Down F003 2767 to 0003 2767 (–32,767 to 32,767)

The leftmost digit in SR 248 indicates the sign. F is negative, 0 is positive.

Incrementing 0000 0000 to 0006 5535 (0 to 65,535)

Error Incrementing Up/Down Present

value

Overflow Occurs when the count is

incremented from 65,535.

Occurs when the count is incremented from 32,767.

0FFF FFFF

Underflow --- Occurs when the count is

decremented from –32,767.

FFFF FFFF

1234567876543210–1–2

1 2 3 4

A-phase

B-phase

Up/Down Mode

Count

Incremented Decremented

Count

Pulse input

Incrementing Mode

Incremented only
