Wrist Blood Pressure Monitor
Model R3 Intellisense
• Instruction Manual
• Mode d’emploi
• Gebrauchsanweisung
• Manuale di istruzioni
• Manual de instrucciones
• Gebruiksaanwijzing
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
•
IM-HEM-6021-E-01-06/05
EN
FR
DE
IT
ES
NL
RU
Contents
Introduction ..................................................... 3
Important Safety Information ......................... 4
1. Overview ..................................................... 5
2. Preparation ................................................. 7
2.1 Installing/Replacing the Batteries ............ 7
2.2 Setting the Date and Time ...................... 9
3. Using the Unit ........................................... 11
3.1 Applying the Wrist Cuff .......................... 11
3.2 Correct Posture ..................................... 13
3.3 Taking a Reading .................................. 14

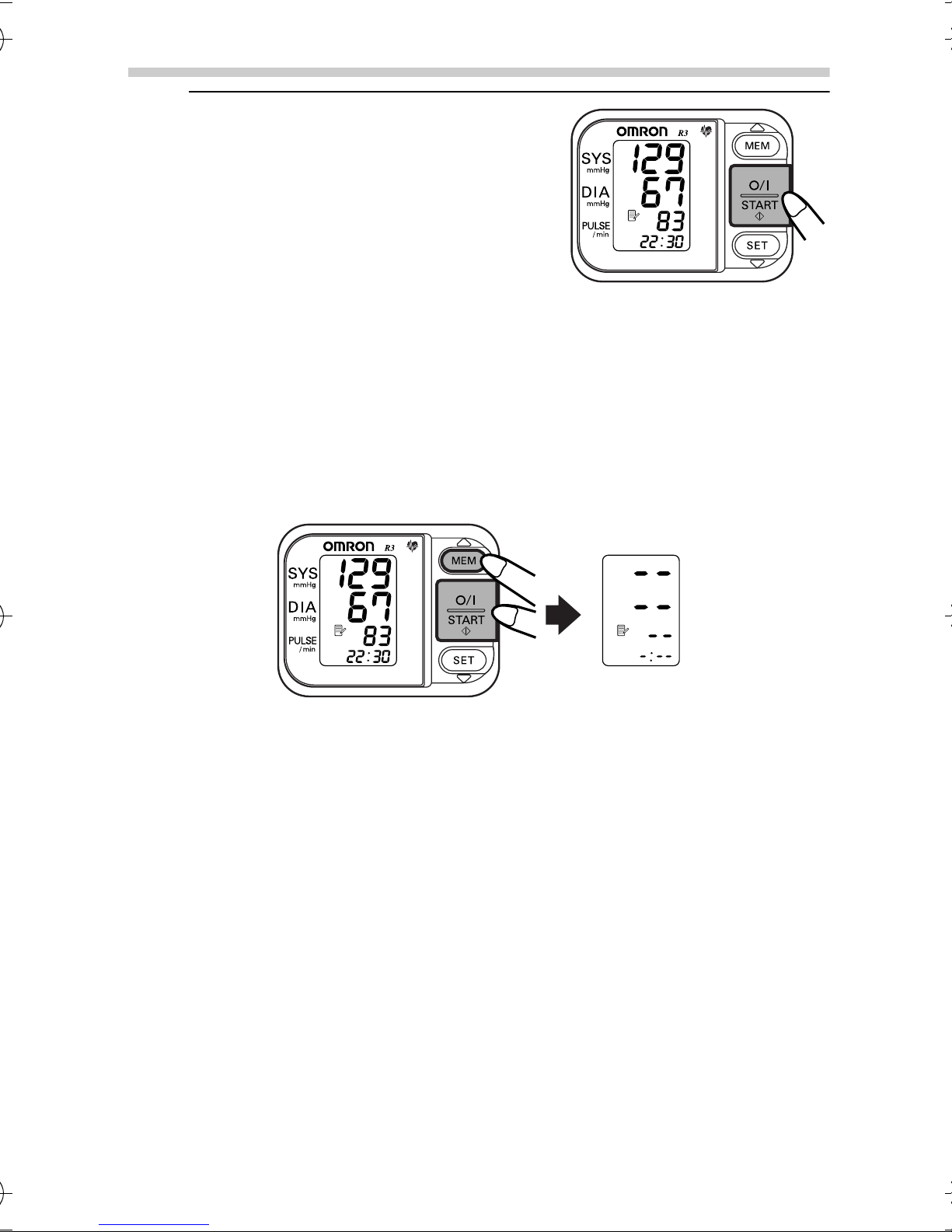

3.4 Using the Memory Function .................. 16
4. Quick Reference Guide ............................ 19
5. Handling Errors and Problems ............... 20
5.1 Error Messages ..................................... 20
5.2 Troubleshooting .................................... 21
6. Maintenance and Storage ........................ 23
7. Technical Data .......................................... 25
8. Some Useful Information about Blood
Pressure .................................................... 27
2
Introduction
Thank you for purchasing the OMRON R3 Intellisense Wrist
Blood Pressure Monitor.
This remarkable, compact and easy to use instrument is ideal for
people who frequently monitor their own blood pressure. The
small, pre-formed wrist cuff is very convenient and easy to apply.
With a push of a button the OMRON Wrist Blood Pressure
Monitor measures your blood pressure and pulse and displays
the reading on a clear digital panel. Perfect for quick, easy
readings at home, at work, and while travelling. It also stores up
to 42 sets of measurements in memory and displays an average
reading based on the three most recent measurements taken
within 10 minutes of the last reading. (If there are only two
readings in memory for that period, the average will be based on
two readings. If there is one reading in memory for that period,
the average will be based on one reading.)
The OMRON Wrist Blood Pressure Monitor uses the
oscillometric method of blood pressure measurement. This
means the unit detects the pulse wave vibrations in the artery of
your wrist and converts the oscillations into a digital reading.
Clinical research has proven a direct relationship between blood
pressure in the wrist and blood pressure in the arm. Changes in
wrist blood pressure reflect changes in arm blood pressure
because the arteries in the wrist and the arm are connected.
Frequently measuring the blood pressure in your wrist will
provide you and your doctor with an accurate indication of
changes in your true blood pressure.
Please read this instruction manual thoroughly before
using the unit. For specific information about your own
blood pressure, CONSULT YOUR DOCTOR.
ENEN
3
Important Safety Information
Consult your doctor during pregnancy, arrhythmia and
arteriosclerosis.
You should never change the dosage of medication prescribed
by your doctor.
People with poor peripheral circulation may find that results for
measurements taken at the wrist vary from those taken on the
upper arm.
Use the OMRON R3 Intellisense only for yourself.
Caution:
• Self-diagnosis of measured results and treatment are
dangerous. Please follow the instructions of your doctor.
• Do not leave the unit unattended with infants or persons who
cannot express their consent.
• Do not use the unit for any purpose other than measuring
blood pressure.
• Do not use a cellular phone, or other devices that emit
electromagnetic fields, near the unit. This may result in
incorrect operation of the unit.
• Do not operate unit in a moving vehicle (car, airplane).
• Do not disassemble the unit or wrist cuff.
• Battery liquid may leak and damage the main unit. Please
observe the following points.
- Do not insert the batteries with their polarities incorrectly aligned.
- When you are not going to use the unit for a long period of time
(approximately three months or more), take out the batteries.
- Replace old batteries with new ones immediately.
- Do not use batteries of a different type together.
- Do not use new and used batteries together.
• Do not take measurements when the cuff is not wrapped
around your wrist.
• Do not expose the unit to strong shocks or vibrations. Do not
drop the unit.
Save these instructions for future reference.
4
1. Overview
Main Unit
A
B
C
D
E
F
A. Display
B. Battery compartment
cover
C. Wrist cuff
D. MEM (Memory) button
E. O/I START button
F. SET button
ENEN
5
1.Overview
Display
G
H
I
J
K
G. Systolic blood pressure
H. Diastolic blood pressure
I. Average value symbol
(Displayed when viewing
value for the last three
measurements.)
J. Memory value symbol
(Displayed when viewing
values stored in memory)
K. Battery low symbol
Package contents
L
M
N
O
L. Heartbeat symbol
(Flashes during
measurement)
M. Pulse
N. Deflation symbol
O. Date/Time
P
P. Two “AAA” alkaline (LR03)
batteries
• Blood pressure pass
• Blood Pressure Monitor unit
6
Q
Q. Storage case
• Instruction manual
• Guarantee card
2. Preparation
2.1 Installing/Replacing the Batteries
1. Remove the battery compartment cover by pulling it off in
the direction of the arrow.
1) Grasp both ends of the
battery cover.
2) Pull the cover off the
main unit.
1
2
1
2. Insert two identical 1.5V “AAA” alkaline (LR03) batteries in
the battery compartment.
ENEN
Make sure their polarity (+/-) is aligned with the polarity
(+/-) as indicated in the battery compartment.
7
2.Preparation
3. Put the battery cover back in place.
Note: Be sure to set the date and time after installing or
replacing the batteries. Refer to “2.2 Setting the
Date and Time”.
The measurement values continue to be stored in
memory even after the batteries are replaced.
Battery Life & Replacement
If the battery low symbol ( ) appears on the display,
replace both batteries at the same time.
- When the battery low symbol ( ) starts to blink, you will
still be able to use the unit for a short while. You should
replace the batteries with new ones ahead of time.
- When the symbol ( ) remains lit, the batteries were
exhausted. You should replace the batteries with new
ones at once.
• Turn the unit off before replacing the batteries.
• Remove the batteries if the unit will not be used for three
months or more.
• If the batteries are removed, the Date/Time setting will
need to be reset. See “2.2 Setting the Date and Time” for
details.
• Dispose of batteries according to applicable local
regulations.
• Two new identical 1.5V “AAA” alkaline batteries will last
for approximately 300 measurements, when used to take
two measurements a day.
• Since the supplied batteries are for monitoring use only,
they may have a shorter life and not last for 300
measurements.
8
2.Preparation
2.2 Setting the Date and Time
Your blood pressure monitor automatically stores up to 42
measurement values in its memory and calculates an average
value based on the three most recent measurements taken
within 10 minutes of the last reading. (If there are only two
readings in memory for that period, the average will be based on
two readings. If there is one reading in memory for that period,
the average will be based on one reading.) To make use of the
memory and average value function:
• Set the unit to the correct date and time before taking a
measurement for the first time.
• If the batteries have been removed, the date and time setting
will need to be reset.
• When the batteries are installed and the unit is turned on for
the first time, the year digits (2005) will flash on the display.
• The range for the year setting is 2005 to 2030. If the year
reaches 2030, it will return to 2005.
1. To set or reset the date and time, press the SET button
until the setting you want to adjust appears on the display.
2. Press the MEM button to
advance the digits one at a
time.
Note: If you hold down the
MEM button, the digits
will advance rapidly.
2
3
3. Press the SET button to confirm the setting when the
desired number appears on the display.
The year setting is set and the month digits will flash.
EN
9
2.Preparation
4. Repeat steps 2 and 3 to set the month and day.
5. Repeat steps 2 and 3 to set the hour and minutes for the
time.
After all settings are completed the display may still be
flashing. To confirm settings and shut off the unit press O/I
START button.
Note:
The unit will automatically turn itself off after you press the
SET button to confirm the minute setting when the
batteries are installed for the first time.
10
3. Using the Unit
3.1 Applying the Wrist Cuff
You can take a measurement on either your left or right wrist.
Notes:
• To ensure correct measurement, apply the wrist cuff so that it
fits comfortably around your wrist.
• Roll up your sleeve so that the unit covers bare skin.
• Do not apply over clothing.

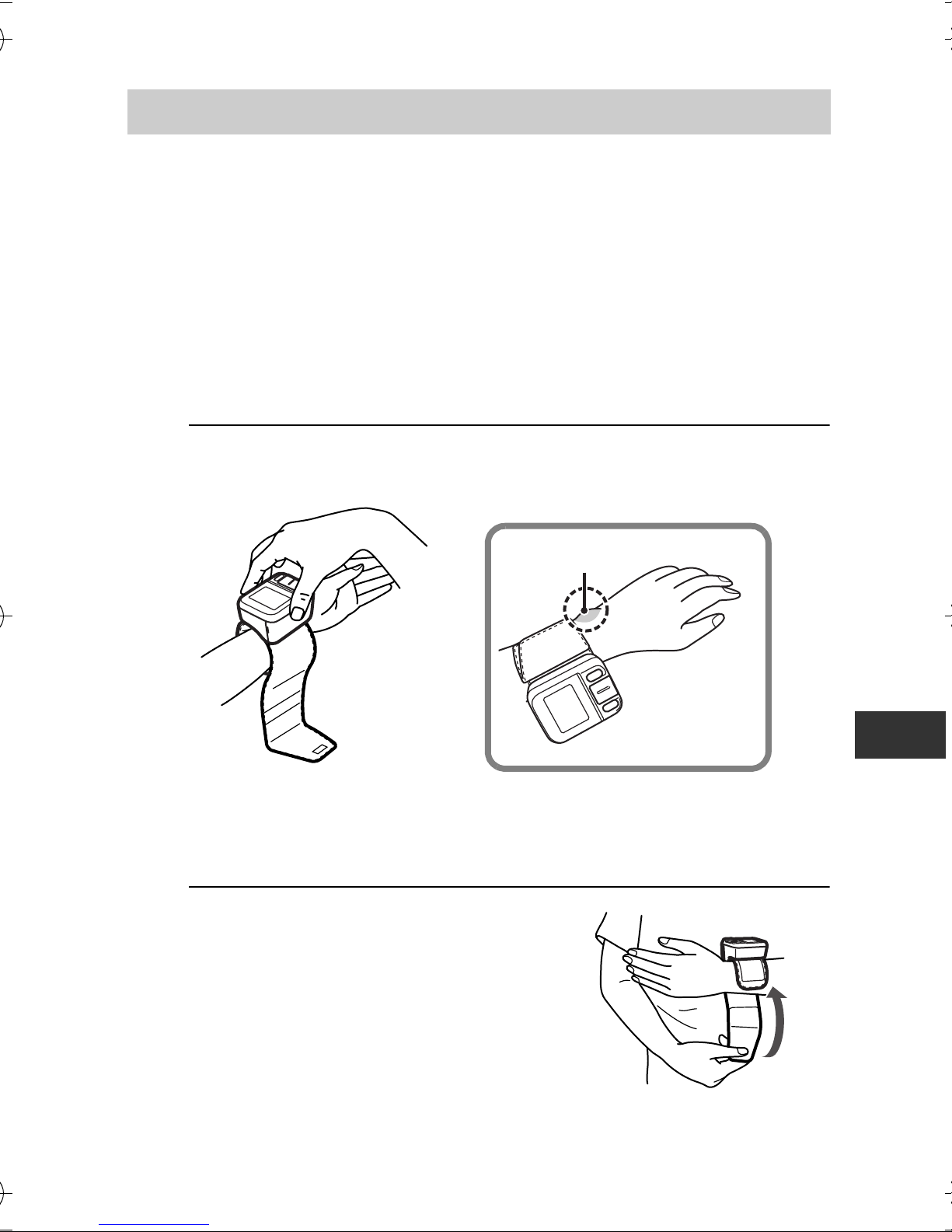

1. Place the wrist cuff over your left wrist with your left thumb
facing upward.
ulna
Note: Make sure that the wrist cuff does not cover the
protruding part of the wrist bone (ulna) on the
outside of the wrist.
2. Hold the bottom part of the wrist
cuff and wrap it around the wrist
while pulling so that it fits
comfortably.
ENEN
11
3.Using the Unit
Note: Unless the wrist cuff is wrapped securely around the
wrist, it may not be possible to take correct
measurements.
Smooth the cuff with your fingers
to ensure that it fits snugly around
the wrist.
Notes:
• If the fastener is not wrapped
securely around your wrist, the
cuff may slip during
measurement.
• If you have a slender wrist, the
cuff may feel slightly loose.
However, this will not affect
measurement results and you
should not force the cuff to fit.
• The remaining part of the wrist
cuff can be conveniently folded
back out of the way.
• If the remaining part of the cuff
is difficult to fold back,
measurement results will not be
effected.
Taking a reading on the right wrist
Measurements can also be made
on the right wrist.
Fit the unit on the right wrist as
shown.
12
3.Using the Unit
3.2 Correct Posture
Correct posture during measurement helps you get accurate
results.
You should also try to measure your blood pressure at the same
time each day.
Notes:
• Do not take measurement after bathing, drinking alcohol,
or exercising.
• Do not move or talk during measurement.
Sit comfortably with
your back straight,
hold your arm across
your chest and relax.
Position your arm so that
the unit is at the same
level as your heart
(height of a nipple).
Do not use your other
hand to support the
wrist cuff. This can
result in inaccurate
measurement results.
EN
Relax your wrist and hand.
Do not bend
your wrist back.
Do not clench
your fist.
Do not bend your
wrist forward.
13
3.Using the Unit
3.3 Taking a Reading
1. Press the O/I START button to
start measurement.
The wrist cuff will start to inflate
automatically after the power is
turned on.
2. After the unit has detected your
blood pressure and pulse rate,
the cuff automatically deflates and your blood pressure
and pulse rate are displayed.
Notes:
• Sit still and do not talk or move until the measurement is
completed.
• Keep the unit at heart height until the measurement is
completed.
• To stop measurement, press the O/I START button at any
time during measurement.
14
3. Check the measurement
result.
The unit automatically
stores blood pressure
and pulse rate into its
memory. Refer to “3.4
Using the Memory
Function”.
The time and date of the measurement are displayed
alternately.
Recent research suggests that the following values can be
used as a guide to high blood pressure for measurements
taken at home.
Systolic Blood Pressure Above 135 mmHg
3.Using the Unit
Diastolic Blood Pressure Above 85 mmHg
Note: This criteria is for home blood pressure
measurement.
For professional office blood pressure measurement
criteria, please refer to “Classification of Blood
Pressure by the World Heath Organization” (refer to
“8. Some Useful Information about Blood
Pressure”).
4. Undo the fastener and remove the unit.
5. Press the O/I START button to turn off the unit.
If you forget to turn off the unit, it will shut itself off
automatically after two minutes.
EN
15
3.Using the Unit
3.4 Using the Memory Function
This unit has a memory capable of storing 42 sets of readings.
Every time you complete the measurement, the unit
automatically stores blood pressure and pulse rate.
If there are three readings within 10 minutes of the last reading,
the average of the three readings is displayed. (If there are only
two readings in memory for that period, the average will be
based on two readings. If there is one reading in memory for that
period, the average will be based on one reading.)
Note: When 42 sets of readings are stored in memory, the
oldest set will be deleted to store a new set.
To View the Average Value
Press the MEM button.
If there are no measurements results
stored in memory, the screen to the
right is displayed.
Systolic blood pressure
Diastolic blood pressure
Pulse
16
3.Using the Unit
To View Previous Readings Stored in Memory
1. Press the MEM button, while the average reading is
displayed, to view readings stored in memory from the
most recent to the oldest.
Systolic blood pressure
Diastolic blood pressure
Pulse
Press the MEM button repeatedly to cycle through the
readings.
Note: The date and time of stored readings will be
alternately displayed.
2. Press the SET button, while the average reading is
displayed, to view readings stored in memory from the
oldest to the most recent.
Systolic blood pressure
Diastolic blood pressure
Pulse
Press the SET button repeatedly to cycle through the
readings.
EN
17
3.Using the Unit
3. Press the O/I START button to
turn the unit off.
Note: If you forget to turn the unit
off, it will automatically shut
itself off after two minutes.
To Delete All Values in Memory
You cannot delete the stored readings partially, all the reading in
the unit will be deleted.
To delete stored readings, first press the MEM button. Then
while holding it down, press the O/I START button
simultaneously for about 2-3 seconds. All readings will then be
deleted.
Notes:
• After the reading have been deleted, the screen to the right of
the illustration above appears and Memory display flashes.
Release the buttons to return to the memory display.
• If the date and time are reset to a time before the most recent
measurement, the average value will be based on any
measurements taken after the date and time were reset.
However, you can still view the readings stored in memory.
18
4. Quick Reference Guide
Use this as a quick reference guide only. If you are using this
device for the first time, please read carefully Chapter 3 of this
Instruction Manual.
Avoid eating, drinking, smoking, or exercising for at least 30
minutes before taking a measurement. You should also try to
measure your blood pressure at the same time each day. It is
recommended that you check your blood pressure at least twice
a day, in the morning before breakfast and in the evening before
going to bed.
Measurement should be taken in a quiet place and you should
be in a relaxed, seated position.
1. Align the wrist cuff with the level
of your heart and gently support
your left arm with your right hand.
Do not place your right hand on
the cuff itself.
2. Press the O/I START button.
Remain quiet, sit still and do not
talk during the measurement.
Notes:
• Always wait at least 2-3 minutes before taking another
blood pressure measurement.
You may require more rest time between readings
depending on your individual physiological
characteristics.
• Only use the R3 Intellisense to measure your own blood
pressure since the results of measurements are stored in
memory.
• Always wrap the wrist cuff around your wrist before
starting to take a measurement.
• Always measure your blood pressure on the same wrist.
ENEN
19
5. Handling Errors and Problems
5.1 Error Messages
Error Symbol Cause Correction
Cuff over
inflated.
Movement
during
measurement.
Repeat measurement.
Remain still and do not move
during measurement. (Refer
to section 3.3.)
Blinks or appears
continuously
The wrist cuff is
not fastened
securely.
An E mark with
a code/number
indicates the
device has a
hardware
failure.
The battery
power is low.
Carefully read and repeat the
steps listed under section 3.1.
Consult your OMRON
retail outlet or distributor.
Replace the batteries with
two new “AAA”
alkaline
(LR03) batteries.
20
5.2 Troubleshooting
Symptom Cause Correction
5.Handling Errors and Problems
The reading is extremely
low (or high).
Are you holding
the wrist cuff at
heart level?
Is the cuff
wrapped snugly
around the wrist?
Are your arms and
shoulders tense?
Movement or
talking during
measurement.
Measure while in
the correct
posture. (Refer to
section 3.2.)
Wrap the cuff
correctly. (Refer to
section 3.1.)
Relax and try
taking the
measurement
again. (Refer to
section 3.3.)
Remain still and
do not talk during
measurement.
(Refer to section
3.3.)
Wrist cuff pressure does
not rise.
Wrist cuff deflates too
soon.
Air is leaking from
the wrist cuff.
The wrist cuff is
loose.
Consult your
OMRON retail
outlet or
distributor.
Apply the cuff
correctly so that it
is securely
wrapped around
the wrist. (Refer to
section 3.1.)
EN
21
5.Handling Errors and Problems
Symptom Cause Correction
The blood pressure is different each time. The
reading is extremely low (or high).
Blood pressure
readings
constantly vary
with time of
measurement and
nervous condition.
Take deep breaths
to relax before
taking a
measurement.
The unit loses power
during measurement.
Nothing happens when
you press the buttons.
Other problems.
The batteries are
empty.
The batteries are
empty.
The batteries have
been inserted
incorrectly.
• Press the O/I START button and
repeat measurement.
• If the problem continues, try replacing
the batteries with new ones.
If this still does not solve the problem,
contact your OMRON retail outlet or
distributor.
Replace the
batteries with new
ones.
Replace the
batteries with new
ones.
Insert the batteries
with the correct
(+/-) polarity.
22
6. Maintenance and Storage
To protect your unit from damage, please avoid the following:
• Subjecting your unit to extreme temperatures, humidity, or
direct sunlight.
• Washing the cuff or exposing the cuff or unit to water.
• Disassembling the unit.
• Subjecting the unit to strong shocks or vibrations. Dropping the
Unit.
• Cleaning the unit with volatile liquids. THE UNIT SHOULD BE
CLEANED WITH A SOFT, DRY CLOTH.
Use a soft, moistened cloth and soap to clean the cuff.
Keep the unit in its storage case when not in use.
Fold the cuff into the storage case.
Do not store the unit in the following situations:
• If the unit is wet.
• Locations exposed to extreme temperatures, humidity, direct
sunlight, dust or corrosive vapours.
• Locations exposed to vibrations, shocks or where it will be at
an angle.
• Locations exposed to chemicals or corrosive vapours.
23
ENEN
6.Maintenance and Storage
Calibration and Service
• The accuracy of this blood pressure monitor has been carefully
tested and is designed for a long service life.
• It is generally recommended to have the unit inspected every
two years to ensure correct functioning and accuracy. Please
consult your authorised OMRON dealer or the OMRON
Customer Service at the address given on the packaging or
attached literature.
• If the wrist cuff needs to be replaced have this done by an
authorised expert. Consult your authorised OMRON dealer or
the OMRON Customer Service.
• Do not carry out any repairs by yourself. If a defect occurs or
you have doubts about the correct functioning of the device,
consult your authorised OMRON dealer or the OMRON
Customer Service.
24
7. Technical Data
Product Description Wrist Blood Pressure Monitor
Model OMRON R3 Intellisense (HEM-6021-E)
Display LCD Digital Display
Measurement Oscillometric method
Measurement Range
Memory 42 Measurements with date and time
Accuracy
Inflation Automatic inflation by pump
Deflation Automatic rapid deflation
Pressure Detection Capacitive pressure sensor
Power Source Two 1.5V “AAA” alkaline (LR03) batteries
Battery Life
Operating Temperature/
Humidity
Storage Temperature/
Humidity
Weight of Main Unit Approximately 120 g (not including batteries)
Pressure: 0 to 299 mmHg
Pulse: 40 to 180 beats/min
Pressure: Within ±3 mmHg
Pulse rate: Within ±5% of reading
Approximately 300 measurements when
using alkaline batteries at a room
temperature of 23°C
10°C to 40°C, 30 to 85% RH
-20°C to 60°C, 10 to 95% RH
ENEN
Outer Dimensions
Measurable
circumference of wrist
Package Content
Note: Subject to technical modification without prior notice.
72 mm (w) x 56 mm (h) x 44 mm (d) (not
including the wrist cuff)
Approximately 13.5 to 21.5 cm
Storage case, two “AAA” alkaline (LR03)
batteries, instruction manual, guarantee
card, blood pressure pass
25
7.Technical Data

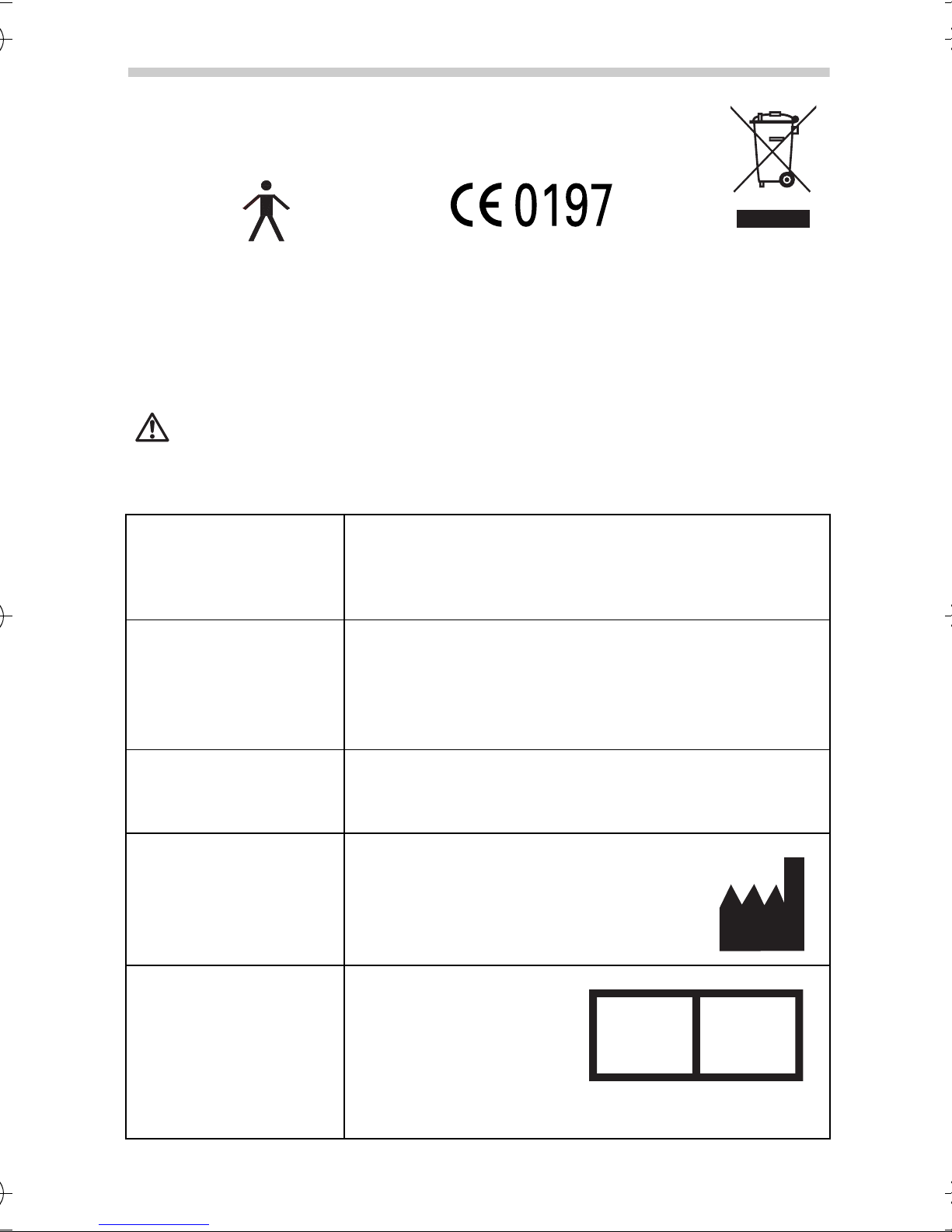

• Disposal of this product and used batteries should
be carried out in accordance with the national
regulations for the disposal of electronic products
= Type B
.
This device fulfils the previsions of EC directive 93/42/EEC
(Medical Device Directive). This blood pressure monitor is
designed according to the European Standard EN1060, Noninvasive sphygmomanometers Part 1: General Requirements and
Part 3: Supplementary requirements for electromechanical blood
pressure measuring systems.
Caution: Please read the instruction manual
carefully before using the device.
Subsidiary
Subsidiary
Subsidiary
Manufacturer
OMRON HEALTHCARE UK LTD.
Opal Drive
Fox Milne, Milton Keynes MK 15 0DG, United
Kingdom
OMRON Medizintechnik
Handelsgesellschaft m.b.H.
Windeckstraße 81a D-68163 Mannheim,
Germany
www.omron-medizintechnik.de
OMRON SANTÉ FRANCE
14, rue de Lisbonne, F-93561 Rosny-sous-Bois
Cedex, France
OMRON HEALTHCARE CO.,
LTD.
24, Yamanouchi Yamanoshitacho, Ukyo-ku, Kyoto, 615-0084
Japan
EU-representative
26
OMRON
HEALTHCARE
EUROPE B.V.
Kruisweg 577
2132NA Hoofddorp
The Netherlands
www.omron-healthcare.com
EC REP
8. Some Useful Information about
Blood Pressure
What is Blood Pressure?
Blood pressure is a measure of the force of blood flowing
against the walls of the arteries. Arterial blood pressure is
constantly changing during the course of the heart’s cycle.
The highest pressure in the cycle is called the Systolic Blood
Pressure; the lowest is the Diastolic Blood Pressure.
Both pressure readings, the Systolic and Diastolic, are
necessary to enable a doctor to evaluate the status of a patient’s
blood pressure.
Why is it a Good Thing to measure Blood
Pressure at Home?
Having your blood pressure measured by a doctor can cause
anxiety which is itself a cause of high blood pressure. As a
variety of conditions affect blood pressure, a single
measurement may not be sufficient for an accurate diagnosis.
Many factors such as physical activity, anxiety, or the time of
day, can influence your blood pressure. Thus it is best to try and
measure your blood pressure at the same time each day, to get
an accurate indication of any changes in blood pressure. Blood
pressure is typically low in the morning and increases from
afternoon to evening. It is lower in the summer and higher in the
winter.
Blood pressure is measured in millimetres of mercury (mmHg)
and measurements are written with the systolic pressure before
the diastolic e.g. A blood pressure written as 135/85, is referred
to as 135 over 85 mmHg.
ENEN
27
8.Some Useful Information about Blood Pressure
200
150
mmHg
100
50
61218 24
Example: fluctuation within a day (male, 35 years old)
Upper curve: systolic blood pressure
Lower curve: diastolic blood pressure
Time of day
Classification of Blood Pressure by the World
Heath Organization
The World Health Organization (WHO) and the International
Society of Hypertension (ISH) developed the Blood Pressure
Classification shown in this figure.
Systolic blood pressure
(mmHg)
Severe hypertension
180
160
140
Normal systolic value
130
120
Optimal blood
pressure
(target value)
Moderate hypertension
Mild hypertension
Normal blood
pressure
80
85 90 100 110
Diastolic
blood
pressure
(mmHg)
This classification is based on the blood pressure values
measured on people in a sitting position in outpatient
departments of hospitals.
* There is no universally accepted definition of hypotension.
However, those having the systolic pressure below 100 mmHg
are assumed as hypotensive.
28
Loading...
