Page 1

Uninterruptible Power Supply (UPS)

BU50SW/BU75SW/BU100SW/BU150SW

Instruction Manual

ブザー停止/テスト

バッテリ

電源出力

増設

バッテリ

バイパス

交換

運転

BU150SW

• This manual provides important safety-related information. Thoroughly read and understand this manual before installing and using the product.

• Keep this manual in a convenient location so that you can refer to it whenever necessary.

Page 2

Introduction

Features of this product

Thank you for purchasing Omron's Uninterruptible Power Supply (UPS).

The UPS protects computers and other devices from power failures, voltage variations,

●

instantaneous voltage drops, and surge voltage such as that caused by lightning (a phenomenon in which extraordinary high voltage occurs instantaneously). Under normal conditions, it converts the commercial power to a direct current once, recon-

●

verts it to a stable AC sine wave, and outputs it.

When a commercial power failure is detected, the unit switches to battery supply to

provide continuous sine wave output. This is especially suitable for use where power supply conditions are poor (for example, when there are large variations in voltage). The output capacity is 500VA/350W for BU50SW, 750VA/500W for BU75SW, 1000VA/700W

●

for BU100SW and 1500VA/1050W for BU150SW.

Notes on the use of the Backup Power Supply

This product is designed and manufactured for use for OA equipment such as personal

●

computers.

Do not use it when very high reliability and safety are required as listed below.

• Medical equipment that may cause death directly

• Applications that may cause injury (applications that directly affect the operation and control of planes, ships, railroads, elevators, and so on)

• Applications that are always subjected to vibration such as cars and ships

• Applications in which a failure of this product may cause signiﬁ cant damage or effect to the society and public (important computer systems, main communication equipment, public transportation systems, and so on)

• Equipment with the same level of importance

For equipment that greatly affects the safety of people and maintaining public functions,

●

special considerations related to operation, maintenance, and management must be taken such as duplicating the system and emergency power generation facilities. Observe the contents of this manual such as the use conditions and environments.

●

When you want to use this product for an important system that requires very high re-

●

liability, contact us; _______________________ Do not modify/alter this product.

●

Disclaimers

We are not liable for any damage or secondary damage resulting from the use of our product, including malfunction and failure of equipment, connected devices, or software.

Make sure to read the safety precautions before using the unit.

●

In the event you transfer or sell this unit to a third party, please include all of the

●

documentation that came with this unit. This is to ensure that the unit is used in line with the conditions described in the included documentation.

• This manual contains important safety-related information. Please read and understand the contents of the manual before beginning operation.

If you discover any omissions or errors in the manual, please contact the shop of

purchase.

Windows is the registered trademark of Microsoft Corporation in the United States and/or other

●

countries. The names of other companies and products mentioned herein are the trademarks or

●

registered trademarks of their respective owners. Note on user registration Please ﬁ ll out the required items on the included user registration

●

card and send it to our customer support center.

Page 3

IMPORTANT SAFETY INSTRUCTION

1. SAVE THESE INSTRUCTIONS.

This manual contains important instructions for BU50SW/BU75SW/ BU100SW/BU150SW that should be followed when using the UPS and batteries.

2. SYMBOL

This symbol indicates earth ground.

This symbol indicates turning on UPS.

This symbol indicates turning off UPS.

3. INTERNAL BATTERY

Internal battery voltage is 24V DC for BU50SW/BU75SW/BU100SW, 36V

DC for BU150SW.

4. TEMPERATURE RATING

The maximum ambient temperature of the UPS is 40°C.

5. ENVIRONMENT

The unit is intended for installation in a temperature controlled, indoor area free of conductive contaminants.

Page 4

Procedure from installation to operation

BU50SW / BU75SW / BU100SW / BU150SW

Read “Safety precautions”

Page iii

Remove the product from the package and check the contents

Page 1

Perform installation and

connection Page 5

Are you

using UPS monitoring

software or contact

signal?

Yes

Check the operation and displays Pages 13

Charge the battery

Page 15

Start

Installation/connection

Read “Using the UPS monitoring software and contact signal” Page 39

Preparation for operation

Measure the backup time

Page 15

Charge the battery again

Page 15

* Preparation for operation is complete.

Operate Page 16

Perform maintenance

and inspection Page 31

Replace the battery

Page 32

Replace the fan

Page 37

Deteriorated

battery?

Yes Yes

Fan stopped?

Maintenance/

inspection

Page 5

Table of Contents

■

Introduction

IMPORTANT SAFETY INSTRUCTION

Safety precautions ............................................................................................................................................. iii

1. Preparation .....................................................................................................................................................1

1-1 Unpacking the product ........................................................................................................................1

1-2 Checking the contents .........................................................................................................................2

1-3 Name of each part ...............................................................................................................................2

1-4 Explanation of symbols used on unit ...................................................................................................4

2. Installation and connection ............................................................................................................................5

2-1 Precautions and notes on installation and connection ........................................................................5

2-2 Installation and connection ..................................................................................................................9

2-3 Connecting the equipment ................................................................................................................10

2-4 Checking the operation ..................................................................................................................... 13

2-5 Charging the battery ..........................................................................................................................15

2-6 Measuring the initial value of backup time ........................................................................................15

2-7 Recharging the battery ......................................................................................................................15

3. Operation ......................................................................................................................................................16

3-1 Precautions and notes for operation .................................................................................................16

3-2 Start and stop procedures and basic operation................................................................................18

3-3 Interpreting beeps and displays........................................................................................................20

4. UPS functions ...............................................................................................................................................23

4-1 Suspending a beep ...........................................................................................................................23

4-2 Testing the UPS (self-diagnostic test) ................................................................................................ 23

4-3 Description of the auto battery test function ......................................................................................24

4-4 Changing the setting of the functions ................................................................................................24

5. Measuring the backup time ........................................................................................................................29

5-1 How to measure backup time ............................................................................................................29

5-2 Estimated backup time ......................................................................................................................29

6. Maintenance and Inspection ......................................................................................................................31

6- 1 Checking the battery ......................................................................................................................... 32

6-2 Replacing the battery ........................................................................................................................ 32

6-3 Replacing the fan ..............................................................................................................................37

6-4 Cleaning ............................................................................................................................................38

7. Using the UPS monitoring software and contact signal ...............................................................................39

7-1 When using the included UPS monitoring software to perform auto shutdown ................................40

7-2 When performing auto-save functions using the UPS service

in Windows Server 2003/XP/2000 + UPS service driver ...................................................................41

7-3 When performing auto-save functions using the standard UPS service

in Windows Server 2003/XP/2000/NT ................................................................................................42

7-4 Contact signal ....................................................................................................................................47

8.Using an SNMP/Web card ............................................................................................................................53

8-1 Adding an SNMP/Web card .............................................................................................................. 53

8-2 SNMP/Web card outline .....................................................................................................................54

9. Extending the backup time ..........................................................................................................................55

9-1 Connecting an additional battery unit (BU100SW/BU150SW only) ...................................................55

10. Troubleshooting ..........................................................................................................................................56

References .......................................................................................................................................................57

A. Speciﬁ cations ........................................................................................................................................57

B. Dimensions ............................................................................................................................................58

C. Circuit block diagram ............................................................................................................................ 59

D. Related products ...................................................................................................................................60

E. List of UPS monitoring software functions .............................................................................................60

■

Page 6

BU50SW / BU75SW / BU100SW / BU150SW

Safety precautions

The safety symbols and their meaning used in this manual are as follows:

●

Warning

Caution

: Indicates prohibition. For example, indicates that disassembly is prohibited.

: Indicates obligation. For example,

Note that events categorized as a caution required matter also may cause more serious results under certain conditions.

Misuse may cause death or serious injury.

Misuse may cause injury or property damage.

* Property damage means damage to houses/household effects, livestock, and pets.

Important information for safe operation is described. Be sure to read it before installation and start of use.

indicates that grounding is necessary.

Warning

Do not use this unit when very high reliability and safety are required as listed below. This unit is designed and manufactured for use with OA equipment such as personal computers.

Medical equipment or system that may cause death directly.

●

Applications that directly affect the safety of people (For example, the operation and control

●

of cars and elevators).

Applications in which a failure of the unit may cause signiﬁ cant damage to the society and

●

public (For example, essential computer systems and main communication equipment.)

Applications with the same level of importance.

●

Caution

(for installation and connection)

Carry the unit considering its weight and balance, and place it on a stable and robust base.

Dropping or toppling the unit may cause injury.

●

The weight of this unit is approximately: 13 kg (BU50SW/BU75SW)

●

15.5 kg (BU100SW)

16.5 kg (BU150SW)

If you drop the unit, stop using it and have it inspected and repaired.

●

For repair, contact us; ____

Keep plastic package bags out of reach of children.

Children may suffocate if they place their heads into plastic bags.

●

Make sure to connect the unit’s AC input plug to a commercial power source with rated input voltage (100 to 120V AC) and 50/60Hz frequency.

Connecting to a wall outlet (commercial power) with a different voltage or frequency may

●

result in a ﬁ re .

The unit may ﬁ re.

●

Do not connect devices such as dryers, which have a half-wave rectiﬁ er that allows only half-cycle AC power to ﬂ ow through.

Overcurrent may damage the UPS.

●

Do not connect devices having a half-wave rectiﬁ er that allows only halfcycle AC power to ﬂ ow through, such as dryers or some solenoid valves.

Overcurrent may damage the UPS.

●

iii

Page 7

Safety precautions

Caution

(for installation and connection)

Connect the unit to a wall outlet with the proper current capacity, as follows: 8A or more (BU50SW), 10A or more (BU75SW), 12A or more (BU100SW), or 16A or more (BU150SW).

Otherwise, the power cord may be heated.

●

When equipment with the maximum output capacity is connected, a maximum current of

●

8A (BU50SW), 10A (BU75SW), 12A (BU100SW), or 16A (BU150SW) ﬂ ows.

Provide secure grounding.

For a 3P wall outlet, directly connect the AC input plug of the unit to it. A failure or leak that

●

occurs when the unit is not properly grounded may result in electric shock.

When you use a 3P-2P conversion plug for AC input plug, be sure to perform grounding

●

before connecting the AC input plug into a wall outlet (commercial power).

Do not disconnect the grounding before disconnecting the AC input plug from a wall outlet

(commercial power).

Do not disassemble, repair, or modify the unit.

Doing so may cause an electric shock or a ﬁ re.

●

Do not install the unit in other than speciﬁ ed orientations.

Dropping or toppling the unit may cause injury.

●

If you install the unit in an orientation other than speciﬁ ed, the unit cannot be protected from

●

a battery ﬂ uid leakage.

Do not use the unit where the maximum temperature exceeds 40°C.

The battery becomes weak rapidly, which may cause a ﬁ re.

●

Doing so may cause a failure or malfunction of the unit.

●

Do not exceed the ranges speciﬁ ed for environmental conditions during use/storage. Do not install or store the unit in the places listed below.

Do not store in places where the humidity is lower than 10% or higher than 90%.

●

Do not use in places where the humidity is lower than 25% or higher than 85%.

●

Do not install/store the unit in closed places such as cabinets with no clearance, places

●

where there is ﬂ ammable or corrosive gas, places with large amounts of dust, places exposed to direct sunlight, places exposed to shock or vibration, or outdoors.

Installation or storing the unit in such a place may cause a ﬁ re.

●

Do not connect equipment that exceeds the output capacity of the unit. You can use a plug strip to connect additional devices, but do not connect devices that exceed the current capacity of the plug strip.

The current protection of the unit may operate, which may stop the output.

●

The wiring of the plug strip heats up, which may cause a ﬁ re.

●

Do not pinch or sharply bend the cable. Do not fold or knot the cable.

Doing so may cause the cable to be damaged or heated, which may cause an electric shock or a

●

ﬁ r e .

If the cable is damaged, stop using the unit and have the cable repaired.

●

For repair, contact us; ____

All of the included accessories are designed to be used exclusively with the unit. Do not use the accessories with other devices.

Doing so may compromise the safety of devices.

●

Page 8

BU50SW / BU75SW / BU100SW / BU150SW

Caution

This UPS utilizes voltages that may be hazardous. Do not attempt to disassemble the unit

●

The unit contains no user serviceable parts. Only factory service personnel may perform repairs.

Connection to any other type of receptacle other than a two-pole, three-wire grounded re-

●

ceptacle may result in shock hazard as well as violate local electical codes.

Do not allow liquids or any foreign object to enter the UPS. DO not place beverages or any

●

other liquid-containing vessels on or near the unit.

This unit intended for installation in a controlled environment (temperature controlled, indoor

●

area free of conductive contaminants).Avoid installing the UPS in locations where there is standing or running water,or excessive humidity.

Do not attach a power strip or surge suppressor to the UPS.

●

Do not attach non-computer-related items,such as medical equipment,life-support

●

equipment,microwave ovens,or vacuum cleaners to UPS.

With the installation of the equipment it should be prevented, that the sum of the leakage

●

current of the UPS and the connected consumer does not exceed 3.5mA.

(for installation and connection)

Do not block the air vents on the side and rear of the unit.

Doing so will cause the internal temperature to rise, which may cause the unit to fail and the

●

battery to deteriorate.

Leave at least 5 cm of space between the vent and the wall.

●

Do not connect a standalone transformer such as a voltage transformer or isolating transformer to the output side.

Overcurrent may damage the UPS.

●

There is no problem in connecting a transformer to the input side.

●

Do not connect devices that cannot be used with commercial power supply.

When the unit’s power switch is turned ON and an error occurs with the connected device,

●

bypass operation is performed and commercial power supply is supplied as is to the connected devices.

When a 15A plug (NEMA5-15P) is used with BU150SW, the maximum capacity connectable to output is approximately 1100VA/950W.

Doing so will cause the internal temperature to rise, which may cause the unit to fail and the

●

battery to deteriorate.

When the “15A input exceeded” display appears ( or is displayed on the status indi-

●

cator), replace the input plug with a 20A input plug.

When replacing the input plug for the BU150SW, perform connection as speciﬁ ed, making sure to properly match the plug terminals with the appropriate wire colors.

Refer to “Using a 20A plug” on page 11.

●

Failure to do so may result in electric shock or ground fault.

●

For PLUGGABLE EQUIPMENT, the socket-outlet shall be installer near the equipment and shall be easily accessible.

Page 9

Safety precautions

Caution

(for use)

Do not allow the unit to come in contact with water.

Doing so may cause an electric shock or a ﬁ re.

●

If the unit becomes wet, immediately stop using it, disconnect the AC input plug from the

●

wall outlet, and have the unit inspected and repaired. For repair, contact us:____________

When the battery is dead, replace it immediately or stop using the unit.

●

Continuing the use of it may cause a ﬁ re.

Ambient temperature

20°C

30°C

Expected life

4 to 5 years

2 to 2.5 years

* The values in the table are the expected life under standard

use conditions and are not guaranteed.

Wipe the AC input plug clean of dirt with a dry cloth occasionally.

Accumulated dust may cause a ﬁ re.

●

Do not use the unit in a closed place and do not cover the unit.

Doing so may cause abnormal heating or a ﬁ re.

●

If you notice abnormal sound or smell, smoke, or leakage from the inside, immediately turn off the power switch and disconnect the AC input plug from a wall outlet (commercial power).

Using the unit under such conditions may cause a ﬁ re.

●

If you notice such a condition, stop using the unit and contact us at _____ for inspection and re-

●

pairs.

Use the unit under the conditions in which you can immediately disconnect the AC input

●

plug from a wall outlet (commercial power) in the case of an abnormal event.

If ﬂ uid leaks from the unit, do not touch the ﬂ uid.

Doing so may cause blindness or burns.

●

If the ﬂ uid contacts your eyes or skin, wash it out with lots of clean water and consult your

●

doctor.

Do not place objects heavier than 25kg on the unit, and do not drop heavy objects onto the unit.

Doing so may cause distortion/damage to the case or a failure of the internal circuit, which

●

may cause a ﬁ re.

Page 10

BU50SW / BU75SW / BU100SW / BU150SW

Caution

(for maintenance)

When maintaining the connected equipment, turn OFF the power switch and disconnect the AC input plug.

Even if you disconnect the AC input plug while the UPS is operating, the power output of

●

this unit does not stop and power is supplied from the outlet during a power failure.

Do not disassemble, repair, or modify the unit.

Doing so may cause an electric shock or a ﬁ re.

●

If ﬂ uid leaks from the unit, do not touch the ﬂ uid.

Doing so may cause blindness or burns.

●

If the ﬂ uid contacts your eyes or skin, wash it out with lots of clean water and consult your doctor.

●

Do not throw the unit into ﬁ re.

The lead battery in the unit may explode, or leak dilute sulfuric acid.

●

Do not insert metal objects into the power supply output receptacles of the UPS.

Doing so may result in electric shock.

●

Do not insert metal objects into the battery connectors.

Doing so may result in electric shock.

●

Caution

(for battery replacement)

Perform replacement on a stable and ﬂ at place.

Handle the battery carefully so that you do not drop it.

●

Not doing so could cause injury or burns due to liquid (acid) leakage.

●

Use a speciﬁ ed battery for replacement.

Not doing so may cause a ﬁ re.

●

Product model: BP70XS (Replacement battery pack for BU50SW/BU75SW)

●

BP100XS (Replacement battery pack for BU100SW) BP150XS (Replacement battery pack for BU150SW)

Do not replace the battery in a place where there is ﬂ ammable gas.

Spark may occur when connecting the battery, which may cause an explosion or ﬁ re.

●

If ﬂ uid (dilute sulfuric acid) leaks from the battery, do not touch the ﬂ uid.

Doing so may cause blindness or burns.

●

If it contacts your eyes or skin, wash it out with lots of clean water and consult your doctor.

●

Do not disassemble or modify the battery.

Doing so could cause dilute sulfuric acid leak, which could cause blindness and burns.

●

Do not drop the battery and do not expose it to strong impact.

Dilute sulfuric acid may leak.

●

Do not short the battery with metal objects.

Doing so could cause an electric shock, ﬁ re or burn.

●

Some electrical energy still remains inside the spent battery.

●

vii

Page 11

Safety precautions

Caution

(for battery replacement)

Do not put the battery into ﬁ re and do not break it.

The battery may explode or leak dilute sulfuric acid.

●

Do not use a new battery and an old battery at the same time.

Dilute sulfuric acid may leak.

●

A battery can present a risk of electrical shock and high short circuit current.The following

●

precautions should be observed when working on batteries:

1) Remove watches, rings, or other metal objects from the hands.

2) Use tools with insulated handles.

3) Wear rubber gloves and boots.

4) Do not lay tools or metal parts on top of batteries.

5) Disconnect charging source prior to connecting or disconnecting batteries terminals.

Servicing of batteries should be performed or supervised by personnel knowledgeable of

●

batteries and the required precautions. Keep unauthorized personnel away from batteries.

viii

Page 12

BU50SW / BU75SW / BU100SW / BU150SW

Notes

When moving the unit from a cold place to a warm place, leave it for several hours before using it.

If the unit is promptly turned ON after being moved to a warmer place, condensation may form inside the

●

unit and cause it to fail.

Charge the battery for at least 8 hours soon after purchasing the unit.

If you do not use the unit for a long time after the purchase, the battery may deteriorate and the battery

●

may become unusable.

To charge a battery, connect the AC input plug of the unit to a wall outlet (commercial power).

●

When storing the unit, charge the battery for at least 8 hours and turn OFF the power switch. Recharge the battery for at least 8 hours every 6 months when the storage tempareture is 25

or less, or every 2 months when the storage temperture is 40

Even if the unit is not used, the battery gradually discharges, and if it is left for a long time, it goes into an

●

over discharge state.

The backup time may become shorter or the battery may become unusable.

We recommend keeping the temperature 25°C or less when storing the unit for long periods of time.

●

Turn OFF the unit’s power switch when storing it.

●

Before storing an additional battery, charge it for at least 24 hours.

●

Do not short the output lines of the unit to each other, and do not short the output lines to the ground.

The unit may fail.

●

Do not connect the AC input plug of the unit to its Power Supply Output Receptacle during the Battery Mode.

The unit may fail.

●

Do not connect a page printer (such as a laser printer) to the unit.

The unit repeatedly and frequently switches between Commercial Power Mode and Battery Mode, which

●

may shorten the life of the battery.

The page printer has a large peak current, so an excess of the connection capacity or a power failure due

●

to instantaneous voltage drop may be detected.

Check system operation beforehand if the unit is used in combination with a device whose power supply frequency fluctuates widely, such as a personal electric generator.

The unit automatically recognizes the input power frequency when input power is supplied.If the unit

●

is connected when the input power frequency is not stable at the rated level, the unit may misidentify the power supply frequency and may fail to operate normally. (If the unit is in operation, changing from commercial power supply to another power supply source, such as generating equipment, will cause no problem.)

Do not install or store the unit in a place exposed to direct sunlight.

The rise of temperature may cause the built-in battery to deteriorate rapidly and become unusable.

●

Do not perform a withstand voltage test.

The input circuit has a built-in surge absorption device. A withstand voltage test may break it.

●

When performing an insulation resistance test, use the 250V DC range.

●

or less.

Page 13

Safety precautions

Notes

Before stopping the commercial power to the unit, turn OFF the power switch of the unit.

The unit enters Battery Mode when commercial power is stopped. If you frequently use the unit in Battery

●

Mode, the battery life may be signiﬁ cantly shortened.

Check the operation beforehand if the unit is used in any mode other than “Output 100V mode”.

In Battery Mode, the maximum voltage (peak voltage) of output (rectangular wave) may be lower than

●

the maximum voltage in Commercial Power Mode. For this reason, some connected devices may fail to operate normally.

If this unit is used with an inductive device such as a coil or motor, check the operation beforehand.

With some types of devices, the effect of inrush current may cause this unit to stop operating properly.

●

Take measures for handling unforeseen accidents, such as data backup and system redundancy.

The output may stop when there is a circuit failure in the UPS.

●

This unit uses lead acid batteries,

Which are a valuable recyclable resource. Please recycle.

●

Explanation

Usual operation

You may either leave the power switch of the unit ON (operation status) or turn it OFF each time when

●

stopping the connected system. Choose whichever operation method is more convenient. We recommend turning OFF the power switch when you do not use connected devices for a long time.

The battery can be charged once the AC input plug of the unit is connected to a wall outlet (commercial

●

power).

Quitting Battery Mode

If a power failure lasts for an extended period of time, the battery discharges and power output from the

●

unit stops. Shut down your computer after performing appropriate procedures (for example, saving data) while the unit is still supplying power.

Rebooting

If the battery discharges completely during a power failure, the unit stops. After recovery from the power

●

failure, the unit automatically restarts and supplies power. If you do not want to restart the connected devices, turn OFF the power switch of either the unit or the connected devices.

See also

Scheduled operation using the UPS monitoring software

When performing scheduled operation in which the UPS is stopped and a device such as a breaker is

●

used to stop the UPS at the same time that commercial power stops, specify a period of no more than 3 months for the start of the next operation.

If you specify a period longer than 3 months, the internal timer is reset and the scheduled operation does

not start. Note that this period reduces to approximately half when the battery is dead. If a period of 3 months is exceeded, you start operation by supplying commercial power and pressing the start switch. However, if the battery is dead, you may not be able to start operation.

In this case, replace the battery according to the instructions in “6-2 Replacing the battery” on page 32.

Setting switch 2 can be used to select whether or not auto restart is performed.

Page 25

Page 14

BU50SW / BU75SW / BU100SW / BU150SW

1-1

Unpacking the product

Preparation

Caution

The weight of the product is 13 kg (BU50SW/BU75SW) / 15.5 kg (BU100SW) /16.5 kg (BU150SW).

Unpack/transport this product considering this weight.

Dropping may cause injury.

●

Open the package box and take out the UPS and accessories.

1-2

Checking the contents

Check whether all the package contents are included and there is no damage found on their appearance. If you should notice defects or anything wrong, contact us; ____

(1) Accessories related to the main unit

BU50SW BU75SW BU100SW BU150SW

Instruction manual (Japanese and English versions)

Warranty 1 1 1 1

User registration card 1 1 1 1

Label (How to determine operating status) 1 1 1 1

AC input for 20A (NEMA L5-20P) - - - 1

3P-2P conversion plug *1 1 1 1 1

Connector for remote ON/OFF 1 1 1 1

Omron contact info label 1 1 1 1

(2) UPS monitoring software

BU50SW BU75SW BU100SW BU150SW

Quick Install Guide 1 1 1 1

CD-ROM 1 1 1 1

Connection cable (RS-232C) 1 1 1 1

[BU150SW ONLY]

Instruction

manual

Warranty

*1 Do not use 3P-2P conversion plug when the unit is used in compliance with UL standard or CE marking.

User

registration

card

AC input for 20A

(NEMA L5-20P)

Label (How to determine

operating status) *1

3P-2P conversion

plug

1 1 1 1

OMRON

contact info

label

Connector for remote ON/OFF

CD-ROM

Quick Install

Guide

Connection cable

(Approx. 2.2 m)

Page 15

1. Preparation

F E

1-3

Name of each par

This section describes the name of each part of the UPS. For information on the function of each part, refer to "2. Installation and connection" on page 5 and "3. Operation" on page 16 that provides the details.

Front view

BU150SW

電源出力

バイパス

[ Enlarged view of the display panel ]

<Displaypanel>

ブザー停止/テスト

バッテリ

増設

バッテリ

交換

運転

A. Status indicator digital display B. Power switch C. Beep stop/test switch D. Battery addition lamp (BU100SW and BU150SW only) E. Battery replacement lamp F. Power supply output lamp G. Bypass operation lamp (The input power supply is output as is.) H. Setting switch cover I. Connection capacity/battery level meter

Side view

Air inlet

Rear sideFront side

Page 16

Rear view

BU50SW / BU75SW / BU100SW / BU150SW

RS232C

INPUT AC100V-120V 50/60Hz 8A

AC入力過電流保護 10A

RS232C

INPUT AC100V-120V 50/60Hz 12A

AC入力過電流保護 15A

信号カード増設

接地

信号カード増設

接地

B H

冷却ファン

OUTPUTAC100-120V50/60Hz1ø

出力電力最大500VA/350W

冷却ファン

OUTPUTAC100-120V50/60Hz1ø

出力電力最大1kVA/700W

バッテリ増設コネクタ DC36V/20A

A. RS232C connector B. Contact signal card C. Power supply output receptacles (Backup is performed during power failure.) D. Grounding terminal

E. AC input overcurrent protection F. AC input cable G. Cooling fan (air vent) H. Remote ON/OFF connector I. Contact signal connector

A. RS232C connector B. Contact signal card C. Additional battery connector D. Power supply output receptacles (Backup is performed during power failure.) E. Grounding terminal F. AC input overcurrent protection G. AC input cable H. Cooling fan (air vent) I. Remote ON/OFF connector J. Contact signal connector

RS232C

信号カード増設

バッテリ増設コネクタ DC36V/40A

冷却ファン

バッテリ増設信号コネクタ

接地

AC入力過電流保護 20A

INPUT AC100V-120V入力 50/60Hz16A

OUTPUTAC100-120V50/60Hz1ø

出力電力最大1.5kVA/1500W

A. RS232C connector B. Contact signal card

C. AC input overcurrent protection D. AC input cable

E. Power supply output receptacles (Backup is performed during power failure.) F. Grounding terminal G. Additional battery signal connector

H. Additional battery connector I. Cooling fan (air vent) J. Remote ON/OFF connector K. Contact signal connector

Page 17

1. Preparation

1-4

Explanation of symbols used on unit

Symbol Description

Start the UPS.

Stop the UPS.

Suspend a beep.

UPS output power enabled, supplied by operating on line mode, battery mode.

Bypass output “ON”.

Additional battery unit connected to the UPS. (For BU100SW,BU150SW only.)

Batteries at end of useful life, necessary to replace the batteries.

Page 18

BU50SW / BU75SW / BU100SW / BU150SW

2-1

Carry the unit considering its weight and balance, and place it on a stable and robust base.

Dropping or toppling the unit may cause injury.

●

The weight of this unit is approximately: 13 kg (BU50SW/BU75SW)

●

15.5 kg (BU100SW)

16.5 kg (BU150SW)

If you drop the unit, stop using it and have it inspected and repaired.

●

For repair, contact us; ____

Keep plastic package bags out of reach of children.

Children may suffocate if they place their heads into plastic bags.

●

Make sure to connect the unit’s AC input plug to a commercial power source with rated input voltage (100 to 120V AC) and 50/60Hz frequency.

Connecting to a wall outlet (commercial power) with a different voltage or frequency may

●

result in a ﬁ re.

The unit may fail.

●

Do not connect devices such as dryers, which have a half-wave rectiﬁ er that allows only half-cycle AC power to ﬂ ow through.

Overcurrent may damage the UPS.

●

Connect the unit to a wall outlet with the proper current capacity, as follows: 8A or more (BU50SW), 10A or more (BU75SW), 12A or more (BU100SW), or 16A or more (BU150SW).

Otherwise, the power cord may be heated.

●

When equipment with the maximum output capacity is connected, a maximum current of 8A

●

(BU50SW), 10A (BU75SW), 12A (BU100SW), or 16A (BU150SW) ﬂ ows.

Provide secure grounding.

For a 3P wall outlet, directly connect the AC input plug of the unit to it. A failure or leak that

●

occurs when the unit is not properly grounded may result in electric shock.

When you use a 3P-2P conversion plug for AC input plug, be sure to perform grounding be-

●

fore connecting the AC input plug into a wall outlet (commercial power).

Do not disconnect the grounding before disconnecting the AC input plug from a wall outlet

(commercial power).

Do not disassemble, repair, or modify the unit.

Doing so may cause an electric shock or a ﬁ re.

●

Do not install the unit in other than speciﬁ ed orientations.

Dropping or toppling the unit may cause injury.

●

If you install the unit in an orientation other than speciﬁ ed, the unit cannot be protected from

●

a battery ﬂ uid leakage.

Do not use the unit where the maximum temperature exceeds 40°C.

The battery becomes weak rapidly, which may cause a ﬁ re.

●

Doing so may cause a failure or malfunction of the unit.

●

Installation and connection

Precautions and notes on installation and connection

Caution

(for installation and connection)

Page 19

2. Installation and Connection

Caution

(for installation and connection)

Do not exceed the ranges speciﬁ ed for environmental conditions during use/storage. Do not install or store the unit in the places listed below.

Do not store in places where the humidity is lower than 10% or higher than 90%.

●

Do not use in places where the humidity is lower than 25% or higher than 85%.

●

Do not install/store the unit in closed places such as cabinets with no clearance, places

●

where there is ﬂ ammable or corrosive gas, places with large amounts of dust, places exposed to direct sunlight, places exposed to shock or vibration, or outdoors.

Installation or storing the unit in such a place may cause a ﬁ re.

●

The current protection of the unit may operate, which may stop the output.

●

The wiring of the plug strip heats up, which may cause a ﬁ re.

●

Do not pinch or sharply bend the cable. Do not fold or knot the cable.

Doing so may cause the cable to be damaged or heated, which may cause an electric shock or a

●

ﬁ r e .

If the cable is damaged, stop using the unit and have the cable repaired.

●

For repair, contact us; ____

All of the included accessories are designed to be used exclusively with the unit. Do not use the accessories with other devices.

Doing so may compromise the safety of devices.

●

This UPS utilizes voltages that may be hazardous. Do not attempt to disassemble the unit

●

The unit contains no user serviceable parts.Only factory service personnel may perform repairs.

Connection to any other type of receptacle other than a two-pole,three-wire grounded re-

●

ceptacle may result in shock hazard as well as violate local electical codes.

Do not allow liquids or any foreign object to enter the UPS. DO not place beverages or any

●

other liquid-containing vessels on or near the unit.

This unit intended for installation in a controlled environment (temperature controlled, indoor

●

area free of conductive contaminants).Avoid installing the UPS in locations where there is standing or running water,or excessive humidity.

Do not attach a power strip or surge suppressor to the UPS.

●

Do not attach non-computer-related items,such as medical equipment, life-support

●

equipment,microwave ovens,or vacuum cleaners to UPS.

With the installation of the equipment it should be prevented, that the sum of the leakage

●

current of the UPS and the connected consumer does not exceed 3.5mA.

Do not block the air vents on the side and rear of the unit.

Doing so will cause the internal temperature to rise, which may cause the unit to fail and the

●

battery to deteriorate.

Leave at least 5 cm of space between the vent and the wall.

●

Page 20

BU50SW / BU75SW / BU100SW / BU150SW

Caution

Do not connect a standalone transformer such as a voltage transformer or isolating transformer to the output side.

Overcurrent may damage the UPS.

●

There is no problem in connecting a transformer to the input side.

●

Do not connect devices that cannot be used with commercial power supply.

When the unit’s power switch is turned ON and an error occurs with the connected device,

●

bypass operation is performed and commercial power supply is supplied as is to the connected devices.

When a 15A plug (NEMA5-15P) is used with BU150SW, the maximum capacity connectable to output is approximately 1100VA/950W.

Doing so will cause the internal temperature to rise, which may cause the unit to fail and the

●

battery to deteriorate.

When the “15A input exceeded” display appears ( or is displayed on the status indi-

●

cator), replace the input plug with a 20A input plug.

When replacing the input plug for the BU150SW, perform connection as speciﬁ ed, making sure to properly match the plug terminals with the appropriate wire colors.

Refer to “Using a 20A plug” on page 11.

●

Failure to do so may result in electric shock or ground fault.

●

For PLUGGABLE EQUIPMENT, the socket-outlet shall be installer near the equipment and shall be easily accessible.

(for installation and connection)

Notes

When moving the unit from a cold place to a warm place, leave it for several hours before using it.

If the unit is promptly turned ON after being moved to a warmer place, condensation may form inside the

●

unit and cause it to fail.

Charge the battery for at least 8 hours soon after purchasing the unit. Recharge the battery for at least 8 hours every 6 months when the storage tempareture is 25°C or less, or every 2 months when the storage temperture is 40°C or less.

If you do not use the unit for a long time after the purchase, the battery may deteriorate and the battery

●

may become unusable.

To charge a battery, connect the AC input plug of the unit to a wall outlet (commercial power).

●

When storing the unit, charge the battery for at least 8 hours and turn OFF the power switch.

Even if the unit is not used, the battery gradually discharges, and if it is left for a long time, it goes into an

●

over discharge state.

The backup time may become shorter or the battery may become unusable.

We recommend keeping the temperature 25°C or less when storing the unit for long periods of time.

●

Before storing an additional battery, charge it for at least 24 hours.

●

Do not short the output lines of the unit to each other, and do not short the output lines to the ground.

The unit may fail.

●

Page 21

2. Installation and Connection

Notes

Do not connect the AC input plug of the unit to its Power Supply Output Receptacle during the Battery Mode.

The unit may fail.

●

Do not connect a page printer (such as a laser printer) to the unit.

The unit repeatedly and frequently switches between Commercial Power Mode and Battery Mode, which

●

may shorten the life of the battery.

The page printer has a large peak current, so an excess of the connection capacity or a power failure

●

due to instantaneous voltage drop may be detected.

Check system operation beforehand if the unit is used in combination with a device whose power supply frequency fluctuates widely, such as a personal electric generator.

The unit automatically recognizes the input power frequency when input power is supplied.If the unit is

●

connected when the input power frequency is not stable at the rated level, the unit may misidentify the power supply frequency and may fail to operate normally. (If the unit is in operation, changing from commercial power supply to another power supply source, such as generating equipment, will cause no problem.)

Do not install or store the unit in a place exposed to direct sunlight.

The rise of temperature may cause the built-in battery to deteriorate rapidly and become unusable.

●

Do not perform a withstand voltage test.

The input circuit has a built-in surge absorption device. A withstand voltage test may break it.

●

When performing an insulation resistance test, use the 250VDC range.

●

Before stopping the commercial power to the unit, turn OFF the power switch of the unit.

The unit enters Battery Mode when commercial power is stopped. If you frequently use the unit in Battery

●

Mode, the battery life may be signiﬁ cantly shortened.

Check the operation beforehand if the unit is used in any mode other than “Output 100V mode”.

In Battery Mode, the maximum voltage (peak voltage) of output (rectangular wave) may be lower than the

●

maximum voltage in Commercial Power Mode. For this reason, some connected devices may fail to operate normally.

If this unit is used with an inductive device such as a coil or motor, check the operation beforehand.

With some types of devices, the effect of inrush current may cause this unit to stop operating properly.

●

Page 22

2-2

Installation and connection

BU50SW / BU75SW / BU100SW / BU150SW

This section describes how to install the UPS. Do not use this unit in any position other than the “correct positions” indicated in the illustration below.

Note

Before installing this device, make a record of the serial number of this device. The serial number is required when contacting us about the device. The serial number is written in the label on the unit.

CorrectPositions

Be careful not to get your fingers caught when arranging the unit.

(Air vents are facing upward)

ブザー停止/テスト

電源出力

バイパス

バッテリ

増設

バッテリ

交換

運転

ブザー停止/テスト

交換

増設

バッテリ

運転

電源出力

バイパス

BU150SW

IncorrectPositions

BU150SW

The feet can also be anchored to the ﬂ oor with screws if you use BUP100S mounting brackets (sold

※

separately). Refer to the BUP100S instruction manual for more details.

Page 23

2. Installation and Connection

2-3

Connecting the equipment

(1) Disconnect the AC Input Plugs of all devices you want to back

up such as your PC and modems from a wall outlet (commercial power).

(2) Connect devices you want to back up to the Power Supply

Output Receptacles of the UPS.

• If you need more output receptacles than those of the UPS, purchase a plug strip and use it for extra output receptacles.

信号カード

バッテリ増設コネクタ DC36V/40A

バッテリ増設信号コネクタ

バッテリ増設コネクタ DC36V/40A

バッテリ増設信号コネクタ

増設

RS232C

AC入力過電流保護 20A

INPUT AC100V-120V入力 50/60Hz16A

冷却ファン

接地

OUTPUTAC100-120V50/60Hz1ø

出力電力最大1.5kVA/1500W

Modem or other peripheral

信号カード増設

RS232C

AC入力過電流保護 20A

INPUT AC100V-120V入力 50/60Hz16A

冷却ファン

接地

OUTPUTAC100-120V50/60Hz1ø

出力電力最大1.5kVA/1500W

External HDD

< Example of connection 1 >

< Example of connection 2 >

Wall outlet

(commercial power)

Modem or other

peripheral

• When using a 2-pin input plug with a grounding wire, connect the grounding wire to earth in building.

• When you want to use an AC adaptor, connect it to a Power Supply Output Receptacle of the UPS with space enough for the connection.

Connect it directly.

Plug of connected device

Connect the plug directly.

Plug of connected device

Conect the grouning wire to earth in building.

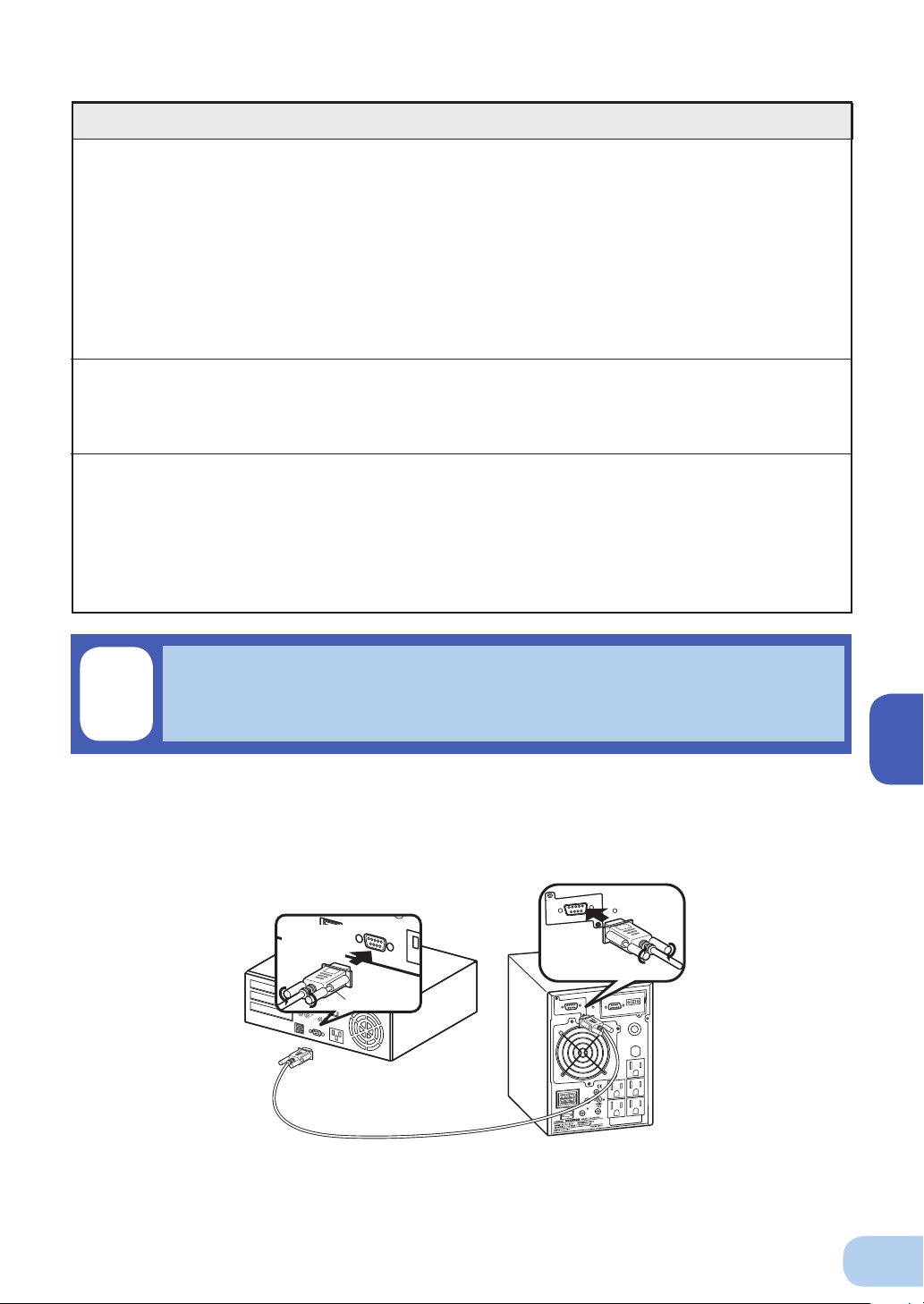

(3) If you use the included UPS monitoring software or the standard UPS service of Windows NT or Windows

XP/2000 or if you use Contact Signal, connect the connecting cable between the UPS and your PC.

See also

"7. Using the UPS monitoring software and Contact Signal" on page 39

* If you do not use the UPS monitoring software and Contact Signal, this step is not required.

Page 24

BU50SW / BU75SW / BU100SW / BU150SW

(4) When the installation and connection is complete, connect the AC Input Plug of the UPS to

a wall outlet (commercial power).

The BU150SW comes equipped with a 15A input plug (NEMA 5-15) at shipment.

●

If this plug is used, make sure the capacity of the connected devices stays below the maxi-

mum capacities shown in the table below. When the “15A input exceeded” display appears ( or is displayed on the status indi-

●

cator), do not continue using the unit with the 15A input plug. Replace the input plug with the included 20A plug.

Caution

When a 15A plug (NEMA5-15P) is used with BU150SW, the maximum capacity connectable to output is approximately 1100VA/950W.

When the power consumption exceeds this capacity, the input voltage becomes larger than

●

15A, which may lead to overheating or ﬁ re. When the “15A input exceeded” display appears, replace the input plug with the 20A input

●

plug.

When the AC input is connected directly from a power switchboard, make sure that the wir-

●

ing work is performed by a qualiﬁ ed electrical engineer (with Type II certiﬁ cation or higher). To use with up to 1500VA/1050W, a wiring capacity of 20A or more is required.

(Recommended cable: nominal cross-section of 3.5mm

(AWG12) or more.)

Input plug Maximum output capacity 15A plug Up to 1100VA/950W 20A plug Up to 1500VA/1050W

●

Using a 15A plug

•

It is possible to use a wall outlet (commercial power) with a basic 15A (NEMA 5-15) plug.

•

It is possible to connect to a 2-pin outlet using the included 3P-2P adapter.

●

Using a 20A plug

The maximum usable capacity is the rated output capacity of the BU150SW.

If the input current exceeds 15A, replace the plug with the 20A plug that was included

●

with the unit. Changing the AC input cable

(1) Disconnect the 15A plug. (2) Connect the NEMA L5-20 plug as shown in the diagram on the right.

The maximum output capacity that can be connected is determined

Turn OFF setting switch 8 when using a 15A plug, and turn it ON when using

Malfunction occurs when the maximum output capacity is exceeded.

“Selecting fucctions with the DIP switch” Page 24

In this case, make sure the grounding is connected separately.

L: Black

•

Provide a wall outlet (commercial power) suitable for the shape of the 20A plug (NEMA

L5-20).

•

Replace the AC input plug of the BU150SW with the included NEMA L5-20 plug.

L: Black

Make sure that the wire colors match those in the diagram before

tightening the screw.

according to the settings of the setting switches. (See the table above.)

a 20A plug.

See also

* If you convert to the included 20A plug, change the Setting switch.

N: White

FG: Green

N: White

FG: Green

L: Black

FG: Green

N: White

Page 25

2. Installation and Connection

RS232C

MJ[h @@@

pt@

OUTPUT AC100-120V 50/60Hz 1ø

o˝d˝ ¯

500VA / 350W

n

INPUT AC100V-120V 50/60Hz 8A

˝

d‹

10A

2P receptacle

3P receptacle

Connect to the receptacle’s grounding terminal

Grounding terminal

In some cases, the AC plug may have no ground. Use the grounding terminal as required.

信号カード増設

RS232C

AC入力過電流保護 20A

INPUT AC100V-120V入力 50/60Hz16A

2Preceptacle

Connecttothereceptacles groundingterminal

3Preceptacle

接地

冷却ファン

OUTPUTAC100-120V50/60Hz1ø

出力電力最大1.5kVA/1500W

バッテリ増設コネクタ DC36V/40A

バッテリ増設信号コネクタ

GroundingTerminal

Insomecases, theACplugmayhavenoground. Usethegroundingterminalasrequired.

The UPS has been charged prior to shipment. However, the backup time becomes shorter when

●

using it for the ﬁ rst time due to spontaneous discharge. We recommend charging the UPS before using it. When the AC input plug is connected to a wall outlet (commercial power), the battery automati-

cally starts charging, taking up to 8 hours to complete (24 hours when an additional battery unit

is connected).

You can perform "2-4 Checking the operation" on page 13 also before charging the battery.

●

Page 26

2-4

Checking the operation

BU50SW / BU75SW / BU100SW / BU150SW

After you ﬁ nish connecting devices to the unit, make sure the backup function operates properly. Check that the Battery Mode is performed normally according to the following procedure. (This operation check simulates a power failure by disconnecting the AC input plug from a wall outlet.)

(1) Turn ON the unit's power switch.

The beeper sounds and the current settings are displayed on the LED.

After 5 secounds, the self-diagnostic test is performed in Battery Mode for approximately

10 seconds.

When the self-diagnostic test ﬁ nishes successfully, switching to AC output from commer-

cial power is performed and the the display below is shown.

(If the battery voltage is low, the self-diagnostic test is not performed and the operation

starts immediately, using output from commercial power.)

(2) Bring all the connected devices into operation.

Status indicator Description

Power switch “ON”

Operating normally

(Including devices connected to the AC outlet of your PC.)

Operate the devices in a way in which abrupt power stop

does not damage the connected devices, data, etc.

(3) Under this condition, check the the unit's LED display and beep sound.

Are they in the same status as shown below?

Status indicator

Beep

Power supply output receptacles

Outputs power (connected devices are powered)

None

ON OFF

電源出力

バイパス

運転

ON,OFF,orblinking dependingonstatus

ブザー停止/テスト

バッテリ

増設

バッテリ

交換

If the same as the one shown above:

If not the same as the one shown above:

Take necessary measures and then proceed to (4).

(4) Disconnect the AC input plug of this unit from a wall outlet (commercial power).

The UPS enters Battery Mode.

The operation is normal. Proceed to (4).

The operation is abnormal. One of the cases described in "4.

Display and beeps when there is an equipment failure" of "3-3 Interpreting a beep and displays" on page 20 must apply.

Page 27

2. Installation and Connection

(5) In Battery Mode, check the unit's LED display and beep sound.

Does the status indicator appear as one of those shown below?

Status indicator Description

Beep

Intermittent

4-second

intervals

Intermittent

1-second

intervals

None

Output

OFF

Charging

OFF

Discharging

OFF

Discharging

OFF

Discharging

Backup is operating due to power failure or AC input error.

Output will stop if Battery Mode continues.

(Same as above.)

Battery level is low, so output will stop soon.

Battery is dead, so output stopped. (This is displayed only

for a few seconds.)

( indicates blinking)

If not the same as one of those shown above:

Operation is abnormal. Check the status of lamps and beep and

➜

turn OFF the Power Switch.

• If the display is one of those shown in “4. Displays and beeps when there is an equipment failure” in “3-3 Interpreting beeps and displays” on page 20, take the necessary measures and then go back to (1) on page 13.

• If no Battery Mode is performed and the UPS and the devices connected to the UPS stop, this may be attributed to an insufﬁ cient battery charge.

After connecting the AC input plug to a wall outlet (commercial

power) and waiting at least 8 hours for the battery to charge (24 hours when an additional battery unit is connected), go back to (4) on page 13.

• If the problem persists after checking the 2 points above, contact us; ____

See also

Setting switch 1 can be used to turn the beeper ON/OFF. ➛ Page 24

(6) Connect the AC input plug to a wall outlet (commercial power) again. The status indicator returns to its normal state and the beeping sound stops. (The status is as shown below.)

Status indicator Description

Power switch “ON”

Operating normally

Checking the operation is now complete.

Installation and connection is now complete.

Page 28

2-5

Charging the battery

BU50SW / BU75SW / BU100SW / BU150SW

When you connect the AC input plug of this unit to a wall outlet (commercial power), the battery charging automatically starts regardless of whether the power switch is ON or OFF, and it is fully charged within 8 hours.

This unit has been charged prior to shipment. However, the backup time becomes shorter when using it

●

for the ﬁ rst time due to spontaneous discharge. We recommend charging this unit before using it.

If you do not perform the initial backup time measurement described below in “2-6 Measuring the initial

●

value of backup time”, proceed to “3. Operation”. → Page 16

2-6

Measuring the initial value of backup time

When you measure the backup time initial value of the unit in your environment, this value can be used

●

as a guide when checking the battery and deciding the UPS monitoring software setting values.

"5. Measuring the backup time" → Page 29

See also

2-7

Recharging the battery

The battery is discharged completely when the backup time is measured, so you need to recharge it before using the UPS.

You can use connected devices while recharging the battery, but the backup time when a power failure

●

occurs is shorter until the battery is fully charged.

(If a power failure occurs immediately after the start of charging, backup stops immediately.)

See also

Charge the battery as described in "2-5 Charging the battery."

Preparation for starting operation is now complete.

Page 29

3. Operation

Operation

3-1

Precautions and notes for operation

Caution

Doing so may cause an electric shock or a ﬁ re.

●

If the unit becomes wet, stop using it and have it inspected and/or repaired.

●

For repair, contact us:____________

When the battery is dead, replace it immediately or stop using the unit.

●

Continuing the use of it may cause a ﬁ re.

Ambient temperature

20°C

30°C

Wipe the AC input plug clean of dirt with a dry cloth occasionally.

Accumulated dust may cause a ﬁ re.

●

Do not use the unit in a closed place and do not cover the unit.

Doing so may cause abnormal heating or a ﬁ re.

●

Expected life

4 to 5 years

2 to 2.5 years

* The values in the table are the expected life under standard

use conditions and are not guaranteed.

(for use)

If you notice abnormal sound or smell, smoke, or leakage from the inside, immediately turn OFF the power switch and disconnect the AC input plug from a wall outlet (commercial power).

Using the unit under such conditions may cause a ﬁ re.

●

If you notice such a condition, stop using the unit and contact us at _____ for inspection and re-

●

pairs.

Use the unit under the conditions in which you can immediately disconnect the AC input

●

plug from a wall outlet (commercial power) in the case of an abnormal event.

If ﬂ uid leaks from the unit, do not touch the ﬂ uid.

Doing so may cause blindness or burns.

●

If the ﬂ uid contacts your eyes or skin, wash it out with lots of clean water and consult your doctor.

●

Do not place objects heavier than 25kg on the unit, and do not drop heavy objects onto the unit.

Doing so may cause distortion/damage to the case or a failure of the internal circuit, which

●

may cause a ﬁ re.

Page 30

BU50SW / BU75SW / BU100SW / BU150SW

Notes

Before stopping the commercial power to the unit, turn OFF the power switch of the unit.

The unit enters Battery Mode when commercial power is stopped. If you frequently use the unit in Battery

●

Mode, the battery life may be signiﬁ cantly shortened.

The output may stop when there is a circuit failure in the UPS.

Take measures for handling unforeseen accidents, such as data backup and system redundancy.

●

Explanation

Usual operation

You may either leave the power switch of the unit ON (operation status) or turn it OFF each time when

●

stopping the connected system. Choose whichever operation method is more convenient. We recommend turning OFF the power switch when you do not use connected devices for a long time.

The battery can be charged once the AC input plug of the unit is connected to a wall outlet (commercial

●

power).

Quitting Battery Mode

If a power failure lasts for an extended period of time, the battery discharges and power output from the

●

unit stops. Shut down your computer after performing appropriate procedures (for example, saving data) while the unit is still supplying power.

Rebooting

If the battery discharges completely during a power failure, the unit stops. After recovery from the power

●

failure, the unit automatically restarts and supplies power. If you do not want to restart the connected devices, turn OFF the power switch of either the unit or the connected devices.

See also

Scheduled operation using the UPS monitoring software

When performing scheduled operation in which the UPS is stopped and a device such as a breaker is

●

used to stop the UPS at the same time that commercial power stops, specify a period of no more than 3 months for the start of the next operation.

If you specify a period longer than 3 months, the internal timer is reset and the scheduled operation does

Setting switch 2 can be used to select whether or not auto restart is performed. → Page 25

Page 31

3. Operation

3-2

Start and stop procedures and basic operation

When the power switch is OFF and the AC input plug is connected to a

●

commercial power supply :

• The status indicator displays " ".

• Power output is stopped.

• The battery automatically starts recharging.

Start procedure

●

Operation

Turn on the power switch of the UPS.

• Output begins in Bypass Mode about 10 seconds after the switch is activated. (Status indicator “ “). However, “ ” is displayed at cold start, and output begins in Battery Mode.

• The beeper sounds and the current setting is displayed on the status indicator. Cold start ON/OFF setting ➛ Output voltage setting.(See item 6 on page 33.)

• The status indicator displays “

”, and the self-diagnostic test is performed in Battery Mode for about 10 seconds. (If the battery voltage is low, the self-diagnostic test is not performed. It is automatically executed after the battery is charged.) *1 When the self-diagnostic test finishes successfully, switching to AC output from commercial

power is performed and normal operation starts.

*2 Self-diagnostic test is not performed at cold start.

• When the self-diagnosis test ﬁ nishes normally, the unit switches to AC output from commercial power and enters normal operation through inverter mode. .

Status indicator

Beep

Power supply output receptacles

Outputs power (connected devices are powered)

None

See also

Cold start ON/OFF setting ➛ See page 13.

• During operation, the battery is charged automatically.

AC input

7 seg.

Power supply SW

Power supply output lamp

Bypass operation lamp

Operating mode

Output

OFF

Commercial Power

Battery

Bypass

Inverter

Commercial Power

Battery

<Note> D-1 : The most recently displayed error code (refer to item 4 on page 21) (If no errors have occurred, " " is displayed.)

D-1

1 sec.

Startup

preparation

about

10 sec.

Bypass

mode

about

2 to 3 sec.

Self-diagnostic

test

about

10 sec.

Commercial

operation

Page 32

BU50SW / BU75SW / BU100SW / BU150SW

Status

indicator

Battery

replacement

Beep Output Charging Description

None ONOFF

There is AC input Power switch “OFF”

Operation after a power failure

●

• If a power failure or abnormal input power supply occurs, the UPS automatically switches to Battery Mode, continuing power output from the Power Supply Output Receptacles supplied from the battery.

• The status is displayed and the beeper sounds intermittently to alert the user.

See also

Setting switch 1 can be used to turn the beeper ON/OFF. ➛ Page 24

( indicates blinking)

Status

indicator

Operation during recovery from a power failure

●

• If a power failure or abnormal power input is resolved while the UPS supplies power, it returns to the

• If a power failure or abnormal power input is resolved after the battery is discharged completely and

Stop procedure

●

Operation

Battery

replacement

commercial power output status automatically. Charging the consumed battery starts.

power output is stopped, the UPS restarts automatically and resumes power output. The expended battery begins to charge.

See also

Turn ON the power switch of the UPS.

Beep Output Charging Description Solution

Intermittent

4-second

intervals

Intermittent

1-second

intervals

None

Setting switch 2 can be used to select whether or not auto restart is performed. → Page 25

OFF

Discharging

In Battery Mode due to power failure or AC

OFF

power error.

(Same as above.)

OFF

Battery level is low, so output will stop soon.

Battery is dead, so output stopped.

OFF

(This is displayed only for a few seconds.)

Perform shutdown operations for the connected devices and stop them.

(Same as above.)

Charge the battery.

• The power output from the UPS stops.

• Even if you turn off the power switch, if AC is supplied from commercial power, the battery is automatically charged.

Page 33

3. Operation

1. Displays and beeps in normal operation

(1) When power switch is OFF

No.

Status

indicator

Power supply

output

lamp

Beep Charging Description Solution

None

OFF

No AC input.

_ _

Operation stopped.

None

There is AC input.

Power switch is OFF.

Power switch is ON.

Operating normally.

Bypass

operation

lamp

Battery

replacement

lamp

( indicates blinking)

( indicates the display is ON)

( indicates the display is OFF)

None

_ _

2. Displays and beeps while testing

None

OFF

Discharging

Self-diagnostic test in progress.

OFF

Auto battery test in progress.

_ _

Connection capacity/battery level meter

●

In normal operation, the power consumption of devices connected to the capacity/battery level

meter is displayed as a percentage. BU50SW: Displayed in 3 levels, with 500VA/350W as 100%. BU75SW: Displayed in 3 levels, with 750VA/500W as 100%. BU100SW: Displayed in 3 levels, with 1000VA/700W as 100%. BU150SW: Displayed in 3 levels, with 1500VA/1050W as 100%

When the power consumption of connected devices is 30% or less, the level meter turns OFF.

In Battery Mode, the battery level is displayed as a percentage.

Connection capacity

during normal operation

90% ON 90% or more 60% or more 60% ON 60% or more 30 to 60%

Connection capacity

30% ON 30% or more 0 to 30% All OFF 30% or less —

Battery level

3-3

Interpreting beeps and displays

Battery capacity dur-

ing Battery Mode

Page 34

BU50SW / BU75SW / BU100SW / BU150SW

3. Displays and beeps during power failure or AC input error

lamp

Bypass

operation

lamp

Battery

replacement

lamp

Intermittent

○○ ○

Beep Charging Description Solution

In Battery Mode due to power failure or AC input error.

4-second

intervals

1-second

intervals

None

OFF

Discharging

OFF

Discharging

OFF

Discharging

(ON)

Output will stop if Battery Mode continues.

(Same as above.) Battery level is low, so output will soon stop.

Battery is dead, so output stopped. (This is displayed only for a few seconds.)

AC input voltage or frequency is too high. (over) Power switch is OFF.

AC input voltage or frequency is too low. (under) Power switch is ON.

No.

indicator

8 None

output

Power supply

Status

4. Displays and beeps when there is an equipment failure

No.

Status

indicator

Power supply

output

——

(Note 3)

Bypass

operation

lamp

●○ ○

○○○

○

●

——

(Note 3)

●●○

○

●

Battery

replacement

lamp

○

Intermittent

0.5-second

Continuous

Beep Charging Description Solution

There are too many connected devices and the rated capacity is exceeded. If this state continues for as long as or longer than the times described below, commercial power con-tinues to be supplied through bypass operation (Note 1).

When connection capacity is at

intervals

discharging

・

100% or higher: Bypass operation begins after 10 seconds

・

When connection capacity isat 120% or higher: Output stops after 1 minute (Go to No.12)

・

When connection capacity is at 140% or higher: Output stops after 10 seconds (Go to No.12)

Output stopped due to exceeded

connection capacity.

Output stopped due to output

short-circuit.

Moved to bypass operation due

to problem with the external

cooling fan (Note 1).

Failure occurred. When the beep stop switch is pressed, the

——

details of the error are displayed (Nos. 16 to 23).

Moved to bypass operation due to output voltage error (over)

——

(Note 1).

( indicates the display is OFF) ( indicates the display is ON) ( indicates blinking)

Perform shutdown operations for the connected devices and stop them.

(Same as above.)

Charge the battery.

Use within the input voltage/ frequency range described in the speciﬁcations.

(Same as above.)

( indicates the display is OFF) ( indicates the display is ON) ( indicates blinking)

Reduce the number of connected devices until the display appears as in status No. 3.

Turn OFF the power switches of all devices connected to the unit, reduce the number of connected

devices, and turn the power

back ON again.

switch

Check that the AC input of connected devices is not short-circuited.

Replace the external cooling fan if it does not function properly.

See also

“Replaceing the fan” Page 37

The fan can be replaced via the rear panel without stopping Use replacement fan sold separately. (Note 2)

Turn OFF this unit and all connected devices. Then, turn the power switch back ON for this unit only. If the display does not change, there is a problem with this unit. Contact the shop of purchase or our Elefctronic Systems & Equipments customer support center at: _____

Displays the details of the error that occurred only while pressing the beep stop switch while in state No. 15.

this unit.

Page 35

3. Operation

5. Display and beep for battery replacement

●○

The battery test detected a weak battery (warning only, output continues).



Replace the battery. You can replace the weak battery



with a separately purchased replacement battery as needed.

Intermittent

2-second

intervals

6. UPS operation mode setting display

——

ColdstartONsetting. Thisunitcanstartevenwhen thereisnoACinput.

Output100Vmode. Outputvoltageis100V (eﬀectivevalue).

Output110Vmode. Outputvoltageis110V (eﬀectivevalue).

Output115Vmode. Outputvoltageis115V (eﬀectivevalue).

Output120Vmode. Outputvoltageis120V (eﬀectivevalue).

ColdstartOFFsetting. Thisunitcanstartuponly whenthereisACinput.

No.

Status

indicator

Powersupply

output

lamp

Beep Charging Description Solution

Bypass

operation

lamp

Battery

replacement

lamp

( indicates the display is OFF)

4. Displays and beeps when there is an equipment failure (Continued)

No.

indicator

output

——

(Note3)——(Note3)

Power supply

Status

Note 1: In bypass operation, commercial power is output directl y.Outputstopswhenapowerfailure(ACinputOFF) occurs in bypass operation. Note 2: Fan replacement performed by the user does not comply w ithULstandards. Note 3: The displays and operations vary according to the stat us.

Bypass

operation

lamp

●● ○

●○ ○

○○○

●● ○

Battery

replacement

lamp

○

Continuous

Beep Charging Description Solution

Moved to bypass operation due

——

to output voltage error (under)

(Note1).

Moved to Battery Mode due to

——

battery charge voltage error (over). Output will stop when the battery is dead.

Output stopped because the output of the battery charge

——

voltage short-circuited.

Moved to bypass operation due

——

to problem with the internal temperature (Note 1).

Moved to bypass operation due

——

to bypass bus voltage error

(Note1).

Moved to bypass operation due

——

to problem with the internal

coolingfan

(1) Output stopped due to

——

system error. (2) Other error occurred.

(BU150SW only) (Note 1).

( indicates the display is ON) ( indicates blinking)

Displays the details of the error that occurred only while pressing the beep stop switch while in state No. 15.

(Same as above.)

Page 36

BU50SW / BU75SW / BU100SW / BU150SW

UPS functions

4-1

Suspending a beep

When the beep is sounding, you can suspend it by pressing and holding the beep stop/test switch for 0.5 seconds or longer.

電源出力

バイパス

運転

4-2

Testing the UPS (

This test performs a failure diagnosis on the unit and performs a simple test to check for battery deterioration.

Use the procedure below to check whether a circuit failure has occurred inside the unit and whether battery replacement is required.

ブザー停止/テスト

バッテリ

増設

バッテリ

交換

Self-diagnosis test

)

If the battery is not fully charged, the self-diagnostic test is not executed immediately.

After charging is complete, it is automatically executed.

(1) Connect your computer and other devices to the UPS and then turn ON the power switch of the UPS.

(2) The Battery Mode starts for testing purpose automatically (Status indicator “ ” ). (No beep sounds.)

After about 10 seconds, when the test is complete the normal operation automatically starts.

(3) If the status indicator/battery replacement lamp blinks and the beeper sounds:

See also

Follow the directions for the solutions described in “4. Displays and beeps when there is an equipment

failure” and “5. Display and beep for battery replacement”.

"3-3 Interpreting beeps and displays" ➛ Page 20

* This test can also be run from the included UPS monitoring software. For more details, refer to the online help for the UPS monitoring software.

This test can also be performed manually.

Press and hold the Beep Stop/Test Switch of the UPS for 10 second or longer.

When the beeper begins to sound intermittently, release the Switch.

電源出力

バイパス

運転

バッテリ

増設

バッテリ

交換

ブザー停止/テスト

Page 37

4. UPS functions

4-3

Description of the auto battery test function

This test performs a failure diagnosis on the unit and checks for battery deterioration (it tends to detect battery deterioration earlier than the self-diagnostic test does). This test is performed automatically. (You do not have to perform any special operations.)

The test is performed once every 4 weeks after the AC input is connected to commercial power and power distribution begins. The test is not performed if the power switch is OFF or if the battery is not fully charged.

The test is not performed if the power switch is OFF or if the battery is not fully charged.

(1) When the auto battery test starts, the Battery Mode automatically starts (Status indicator “ ” ). (No

beep sounds.) After the auto battery test is complete, the normal operation automatically starts.

(2) If the status indicator/battery replacement lamp blinks and the beeper sounds:

See also

Follow the directions for the solutions described in “4. Displays and beeps when there is an equipment

failure” and “5. Display and beep for battery replacement”.

The setting switch on the Front of the UPS allows you to select the "disable the auto battery test" setting.

"4-4 Changing the setting of the functions" ➛ Page 24 See “Setting for whether or not to perform battery test.”

4-4

"3-3 Interpreting beeps and displays" ➛ Page 20

Changing the setting of the functions

1. Selecting functions with the setting switch

After changing the setting switch, follow the procedure described below.

After changing the setting switch, turn OFF the UPS power switch, disconnect the AC input plug, wait until the status indicator is completely OFF, and then reinsert the AC input plug and turn the power switch ON.

The setting switch changes do not become valid until the AC input plug is reinserted.

●

• Use a ﬁ ne-pointed tool such as a small screwdriver to maneuver the switch’s lever.

567

3 4

ON DIP

1 2

ブザー停止/テスト

バッテリ

電源出力

増設

バッテリ

バイパス

交換

運転

Beeper ON/OFF setting (setting switch 1 ) … Factory setting: OFF

●

ON DIP

1 2 5 6 7 83 4

OFF: The beeper sounds when an alarm is necessary.

ON: The beeper does not sound for backup operation or battery replacement. The beeper sounds for

other errors (connection capacity exceeded, operation error, etc.).

Page 38

BU50SW / BU75SW / BU100SW / BU150SW

0 second

60 seconds

120 seconds

Setting switch 5 Setting switch 6

OFF OFF

ON OFF

OFF ON

ON ON

Does not stop power output

Power output stop

delay time

Auto restart setting (setting switch 2 ) … Factory setting: OFF

●

ON DIP

1 2 53 4 86 7

OFF: Automatically restarts when power is restored.

After a power failure occurs and the UPS is shut down using the shutdown software or contact

signal, the UPS automatically starts up and begins to output when the commercial power is restored.

ON: Does not automatically restart when power is restored.

After the unit is shut down with the UPS monitoring software or contact signal, it does not start up

when commercial power is restored. Startup is performed manually by turning the power switch OFF and back ON again.

Auto battery test ON/OFF setting (setting switch 3 ) … Factory setting: OFF

●

ON DIP

1 2 53 4 86 7

OFF: The battery test is automatically executed once every 4 weeks.

ON: The auto battery test is disabled.

Use this setting to disable Battery Mode for for the regularly performed auto battery test.

Power output stop delay time setting (setting switches 5 and 6 ) … Factory

●

setting: OFF and OFF

ON DIP

1 2 53 4 86 7

Page 39

4. UPS functions

1 2 53 4 86 7

ON DIP

AC input

BS signal

UPS output

This timing is 10 ms or 10 sec. Timing corresponds to the settings for switch 7 .

OFF

Shutdown delay timing This delay corresponds to the settings for switch 5 and switch 6 .

The UPS delays the shutdown timing. If the user sets “switch 5: ON, switch 6: ON”, the UPS does not stop the output, even if the backup power

supply stop signal (BS) is valid.

<Note>

The remote ON/OFF signal is not related to this setting.

When the remote ON/OFF signal is “High”, the UPS stops the output immediately.

UPS stop signal setting (BS) (setting switch 7 ) … Factory setting: OFF

●

ON DIP

1 2 53 4 86 7

OFF: The BS signal is always valid (raceivable). The unit’s “power output” can be stopped by inputting a “ON” backup power supply stop signal (BS) that continues for 10 seconds or more.. ON: The BS signal is valid (raceivable) only when in Battery Mode.(The signal is not received when in Commercial Power Mode.) The unit’s “power output” can be stopped by inputting a “ON” backup power supply stop signal (BS)

that continues for 0.01(10ms) seconds or more. Use this setting in commercial operation when you do not want to stop operations when a backup power supply stop signal (BS) is received .

15A/20A plug setting (setting switch 8 ) …Factory setting: OFF (BU150SW only)

●

OFF: Set to OFF when using a 15A AC input plug. The UPS can connect to as much as the “rated out-

put capacity (1100VA/950W)” for a 15A plug.

ON: Set to ON when using a 20A AC input plug. The UPS can connect to as much as the “rated out-

put capacity (1500VA/1050W)” for a 20A plug.

* Valid only when using contact signal interface.

Page 40

BU50SW / BU75SW / BU100SW / BU150SW

Cold start ON/OFF setting Output voltage setting

2. UPS operation mode settings

The settings available for this operation are shown below.

• Cold start ON/OFF setting When ON, it is possible to start up the unit even when there is no AC input plug.

(It is not possible, however, to start up the unit by the remote signals.)

Normal operation occurs when AC input is ON. The output frequency is the same as the frequency

the last time there was AC input.

• Output voltage setting (100V/110V/115V/120V) Four types of output voltage can be set.

Output is performed at the set voltage, with no relation to the input voltage.

The UPS operation mode can be set if the power switch is turned ON while the beep stop/test

switch is pressed.

Note: While in setting mode, output from the output receptacles are OFF, even if the power switch is ON.

ブザー停止/テスト

バッテリ

電源出力

増設

バッテリ

バイパス

交換

運転

How to make settings:

There are 2 items to select.

1) Cold start ON/OFF setting 2) Output voltage setting

(1) When the beep stop/test switch is pressed (for less than 3 seconds), the next item is displayed.

(2) Setting mode starts if the beeper stop switch is held (for more than 3 seconds).

(3) When the power switch is turned OFF, setting mode quits and it returns to normal status (Status

No.2).

Page 41

4. UPS functions

Col d sta rt ON: The unit can sta rt up even when there is no AC input

Output 100V mode

Output 110V mode

Output 115V mode

Output 120V mode

Col d sta rt OFF: The unit can sta rt up onl y when there is AC input

Normal status There is AC input (when athe status indicator is ON)

Power switch “OFF” (Status No. 2)

(A)(B)

(D)

(C)

(D)

OFF

100V

110V

115V

120V

Col d sta rt

ON/OFF setting

Output voltage setting

Setting mode

(A) Turn ON the power switch while the beep stop/test switch is pressed. (B) Turn OFF the power switch. (C) Press and hold the beep stop/test switch (for more than 3 seconds). (D) Press the beep stop/test switch (for less than 3 seconds).

Page 42

BU50SW / BU75SW / BU100SW / BU150SW

5-1

How to measure backup time

(1) When the AC input plug is connected to a wall outlet (commercial power), the battery automatically

starts charging, taking up to 8 hours to complete (24 hours when an additional battery unit is connected).

(2) Turn ON all devices connected to the power output to be “backed up during a power failure”. (This includes devices connected to the AC outlet of your computer.)

Operate the connected devices in a way that allows the power supply to be stopped at any time.

For Windows Server 2003/Vista/XP/Me/2000/Windows NT/Linux:

●

Perform measurement while the hard drive is stopped.

For Windows 98/95:

●

Choose "Shut Down" in Windows and follow the procedure below to shut down your OS.

Choose "Restart in MS-DOS mode" to exit from OS and display the MS-DOS mode screen.

(3) Disconnect the AC Input Plug of the UPS and measure the backup time.

Measure the time until the unit automatically stops and all displays disappear with the plug disconnect-

ed.

Measuring the backup time

* The backup time you measure for the ﬁ rst time after purchase is the "initial value of the backup time."

5-2

Estimated backup time

The backup time varies depending on the capacity of connected devices. After calculating the total capacity of connected devices, refer to the graph of the backup time to obtain an estimation of the initial value of the backup time. (This is also applied to checking the battery.) (1) Convert the total capacity (power consumption) of the connected devices to watts (W). For the indication of connected devices, check your computer and the rear of the display. The indicator can show values in three different ways: volt-amperes (VA), amperes (A), and watts (W).

Example 1) 100 VAC, 50/60Hz, 145 W

Example 2) 100 VAC, 50/60Hz, 1.8 A

Example 3) 100 VAC, 50/60Hz, 150 VA

For devices that use the VA or A indication, convert the capacity into W. Multiply the value indicated on

devices by the value in the right table for conversion.

(When the power factor is unknown, enter “1”. The power factor usually ranges between 0.6 and 1.)

(2) Add the values converted into W to obtain the total capacity of the connected devices.

(3) Calculate the initial value of the backup time for the total capacity of the connected devices from the

graph below.

Graph of backup time (graph of initial values for products that have not been used)

●

The smaller the capacity of connected devices becomes, the longer the backup time becomes.

●

Indication Value

A × power factor × 100 = W

power factor = W

Page 43

5. Measuring the backup time

120

110

100

Backuptime

(Minutes)

Backuptime

(20°C,initialvalue)

BU100SW+ BUM100S

0 100 200 300 400 500 600 700 800 900 1000 1100

BU50SW

（350W）

 Model 20W 50W 100W 200W 300W 400W 500W 700W 1000W 1400W

 BU50SW 120 75 40 20 12  BU75SW 120 75 40 20 12 7 5  BU100SW 180 120 60 35 20 15 10 5

BU100SW+



BUM100S  BU150SW 210 150 70 37 23 17 12 8 4.2 

BU150SW+

BUM150S 

* These backup times are for reference only. Times may vary according to battery life and external

environmental conditions (temperature, etc.).

720 420 240 120 80 60 50 30

740 440 260 140 90 65 51 35 21

BU50SW

BU75SW

Powerconsumption

ofconnecteddevices(W)

(350W)

BU100SW



- - - -



BU150SW+ BUM150S

BU150SW

Timeunit:Minutes

- - -

- -

(1050W)

(1050W)

Page 44

BU50SW / BU75SW / BU100SW / BU150SW

When maintaining the connected equipment, turn OFF the power switch and disconnect the AC input plug.

Even if you disconnect the AC input plug while the UPS is operating, the power output of this

●

unit does not stop and power is supplied from the outlet during a power failure.

Do not disassemble, repair, or modify the unit.

Doing so may cause an electric shock or a ﬁ re.

●

If ﬂ uid leaks from the unit, do not touch the ﬂ uid.

Doing so may cause blindness or burns.

●

If the ﬂ uid contacts your eyes or skin, wash it out with lots of clean water and consult your doctor.

●

Do not throw the unit into ﬁ re.

The lead battery in the unit may explode, or leak dilute sulfuric acid.

●

Do not insert metal objects into the power supply output receptacles of the UPS.

Doing so may result in electric shock.

●

Do not insert metal objects into the battery connectors.

Doing so may result in electric shock.

●

Measuring and Inspection

Caution

(for maintenance)

6-1

Checking the battery

The sealed lead battery used in the unit has a limited life. (The life varies depending on your storage/use environment and backup frequency.) The nearer the end of the life is, the more rapidly deterioration proceeds.

1. Life of battery (estimated replacement timing)

Ambient temperature

20°C

30°C

2. Methods for checking the battery

There are 3 methods for checking the battery.

• Perform a self-diagnostic test. (See page 24.)

• Use the auto battery test function. (See page 24.)

• Measure the backup time. (See page 29.)

By measuring the backup time, the battery life can be determined more accurately.

See also

If the measured value is equal to the "initial value of the backup time" or less than half the value ob-

tained from the graph of "Estimated backup time" on page 29, replace the battery.

• When you compare the "initial value of the backup time" you measured and the current backup

Measure the backup time according to "5-1 How to measure backup time"

Page 29

➛

time, make the capacity of devices connected to the UPS same as when you measured the initial value to make judgment accurately.

Life of battery

4 to 5 years

2 to 2.5 years

Replacement estimation

4 to 5 years after staring use

2 years after staring use

Page 45

6. Measuring and Inspection

3. Guidelines for how often to check the battery (measure the backup time)

Ambient temperature

20°C

30°C

* The battery deteriorates even if it is stored. The higher the temperature is, the shorter the

life becomes.

6-2

Replacing the battery

The battery can be replaced either while the unit is stopped (power supply output stopped) or while it is in operation (outputting power supply).

Caution

When the unit is used in compliance with UL standards or CE marking, do not replace the battery while in operation (while power is being output). Replacing the battery while in operation does not comply with UL standards or CE marking. Make sure to stop the operation of the unit before replacing the battery.

* When replacing the battery, stop the connected devices, turn OFF the power switch of the UPS, and

disconnect the AC input plug from the wall.

* If an input power supply error such as a power failure occurs when replacing the battery while in opera-

tion, backup cannot be performed and output stops.

* Do not replace the battery during backup operation. Output will stop.

Check once every 6 months

For the ﬁ rst 3 years after purchase

For the ﬁ rst 1.5 years after purchase

When 3 or more years have passed since purchase

When 1.5 or more years have passed since purchase

Check once a month

Caution

(for battery replacement)

Perform replacement on a stable and ﬂ at place.

Handle the battery carefully so that you do not drop it.

●

Not doing so could cause injury or burns due to liquid (acid) leakage.

●

Use a speciﬁ ed battery for replacement.

Not doing so may cause a ﬁ re.

●

Product model: BP70XS (Replacement battery pack for BU50SW/BU75SW)

●

BP100XS (Replacement battery pack for BU100SW) BP150XS (Replacement battery pack for BU150SW)

Do not replace the battery in a place where there is ﬂ ammable gas.

Spark may occur when connecting the battery, which may cause an explosion or ﬁ re.

●

If ﬂ uid (dilute sulfuric acid) leaks from the battery, do not touch the ﬂ uid.

Doing so may cause blindness or burns.

●

If it contacts your eyes or skin, wash it out with lots of clean water and consult your doctor.

●

Do not disassemble or modify the battery.

Doing so could cause dilute sulfuric acid leak, which could cause blindness and burns.

●

Do not drop the battery and do not expose it to strong impact.

Dilute sulfuric acid may leak.

●

Do not short the battery with metal objects.

Doing so could cause an electric shock, ﬁ re or burn.

●

Some electrical energy still remains inside the spent battery.

●

Page 46

BU50SW / BU75SW / BU100SW / BU150SW

Caution

(for battery replacement)

Do not put the battery into ﬁ re and do not break it.

The battery may explode or leak dilute sulfuric acid.

●

Do not use a new battery and an old battery at the same time.

Dilute sulfuric acid may leak.

●

A battery can present a risk of electrical shock and high short circuit current.The following

●

precautions should be observed when working on batteries:

1) Remove watches, rings, or other metal objects from the hands.

2) Use tools with insulated handles.

3) Wear rubber gloves and boots.

4) Do not lay tools or metal parts on top of batteries.

5) Disconnect charging source prior to connecting or disconnecting batteries terminals.

Servicing of batteries should be performed or supervised by personnel knowledgeable of

●

batteries and the required precautions. Keep unauthorized personnel away from batteries.

Notes

Battery recycling

The unit uses lead acid batteries, which are a valuable recyclable resource. Please recycle. For information on recycling, please contact our Electronic Systems & Equipments repair center.

Procedure for recycling the battery

■

Use a screwdriver to loosen (turn clockwise) the 2 screws at the top of the front panel of the unit, until

they turn freely. (The screws cannot be removed from the front panel.)

Pull the front panel towards you to remove it.

Loosen the

2 screws.

Remove the battery connector from the plate cover ➀ and disconnect the connector.

Battery connector

➀

Plate cover

90%

50%

30%

電源出力

バッテリ

ブザー停止/テスト

増設

バイパス

バッテリ

運転

交換

90%

50%

30%

電源出力

バッテリ

ブザー停止/テスト

増設

バイパス

バッテリ

運転

交換

➁

➀

90%

50%

30%

電源出力

バッテリ

ブザー停止/テスト

増設

バイパス

バッテリ

運転

交換

Disconnect by holding here.

➁

Page 47

6. Measuring and Inspection

Turn the 2 screws that ﬁ x the plate cover counterclockwise to remove them.

Pull the plate cover towards you ➁ and lift it up to remove it.

➂

➀

Remove the 2 screws.

90%

50%

30%

電源出力

バッテリ

ブザー停止/テスト

増設

バイパス

バッテリ

運転

交換

90%

50%

30%

電源出

バ

力

ッテリ

ブザー停止/テスト

増設

バイパス

バッテリ

運転

交換

Hold the pullout label at the bottom of the battery pack and remove the battery pack.

Do not hold the connector or cable of the battery pack.

Use the red tape on the top of the battery pack, which is 10 cm from the inner edge of the battery, to

gauge how much further you need to pull the battery to remove it. Hold the battery securely with both hands so as not to drop it.

Battery connector

Battery pack

Pullout label

(Pull this to remove.)

90%

50%

30%

電源出力

バッテリ

ブザー停止/テスト

増設

バイパス

バッテリ

運転

交換

Page 48

BU50SW / BU75SW / BU100SW / BU150SW

Insert a new battery into the UPS as far as it will go.

Replacement battery pack

●

➀

For BU50SW/BU75SW: Model BP70XS For BU100SW: Model BP100XS For BU150SW: Model BP150XS Attach the plate cover.

Insert the lug at the bottom of the cover into the hole in the main body

and push it towards the main body.

➁

➂

Use a screwdriver to securely tighten (clockwise) the 2 screws you removed.

Do not pinch the cable with the plate cover.

90%

50%

30%

電源出力

バッテリ

ブザー停止/テスト

増設

バイパス

バッテリ

運転

交換

90%

50%

30%

電源出力

バッテリ

ブザー停止/テスト

増設

バイパス

バッテリ

運転

交換

➃

Tighten the 2 screws.

90%

50%

30%

電源出力

バッテリ

ブザー停止/テスト

増設

バイパス

バッテリ

運転

交換

Insert the connector until it is locked.

Secure the connector to the plate cover.

➀

➁

You may hear a “pop” sound when you connect the battery if it is replaced after the unit’s operation is stopped, but this sound is not abnormal.

Secure the connector by the 3 supports on the plate cover.

If you cannot secure the connector to the plate cover, the connector is not inserted completely.

Insert the connector again.

Page 49

6. Measuring and Inspection

Attach the front panel.

Insert the lug at the bottom of the front panel into the hole in the main body ➀ and push it towards the

main body.

Use a screwdriver to securely tighten (clockwise) the 2 screws at the top of the front panel.

➁

➂

90%

50%

30%

電源出力

バッテリ

ブザー停止/テスト

増設

バイパス

バッテリ

運転

交換

90%

50

30%

電源出力

バッテリ

ブザー停止/テスト

増設

バイパス

バッテリ

運転

交換

Battery replacement is now complete.

Press the beep stop/test switch for 0.5 sec. to perform a self-diagnostic test. Normal operation resumes after the 10-second test. If the beeper is sounding, it will stop the ﬁ rst time the switch is pressed. Press the switch again to start the test. If the battery replacement display and beeper were activated before replacing the battery, the display and beeper stop after the test is complete, and normal operation resumes.

Connect the AC input plug to a wall outlet (commercial power) and turn ON the power switch of the UPS. When operation starts, the self-diagnostic test is automatically performed. Normal operation resumes after the 10-second test.

Write the usage start date on the label on the front. Also, by using the included UPS monitoring software, possible to keep a record of usage start date by the software.

Page 50

6-3

Replacing the fan

BU50SW / BU75SW / BU100SW / BU150SW

The fan in the unit has an expected lifespan of approximately 5 years. Replace it when the Error Lamp is lit and the fan is stopped.

Caution

When this product is used in compliance with UL standards or CE marking, do not replace the fan.

Fan replacement does not comply with UL standards or CE marking.

●

The fan can be replaced while the unit is in operation (power supply is being output) or while the unit is stopped (power supply output is stopped). Choose whichever replacement method is more convenient.

* If the fan stops or is removed while the unit is in operation, the “EF” lamp blinks, the beep sounds con-

tinuously, and output is supplied through bypass operation.

In this state, if an input power supply error occurs due to a power failure or other reason, the unit stops

without entering Battery Mode. * Do not replace the fan while in Battery Mode. The unit will stop.

In addition to the fan on the back of the BU150SW, there is an internal fan. When ‘ ’ blinks on the status indicator, the internal fan needs to be replaced.

For details on replacing the internal fan, contact the Electronic Systems & Equipment repair center.

Precautions when replacing the fan

■

Warning

Do not insert your hand or metal objects into the fan recess.

Doing so may cause electric shock or short-circuit.

•

Do not put your ﬁ ngers into the fan.

The fan spins when the AC input plug is connected to a wall outlet (commercial power).

•

Doing so may result in injury.

•

Fan replacement procedure

■

Use a screwdriver to loosen (turn counter-clockwise) and remove the 3 cooling fan screws on the back

of the unit.

Pull the cooling fan toward you to remove it.

➀

➁

Loosen the 3 screws.

Fan

Fan recess

Page 51

6. Measuring and Inspection

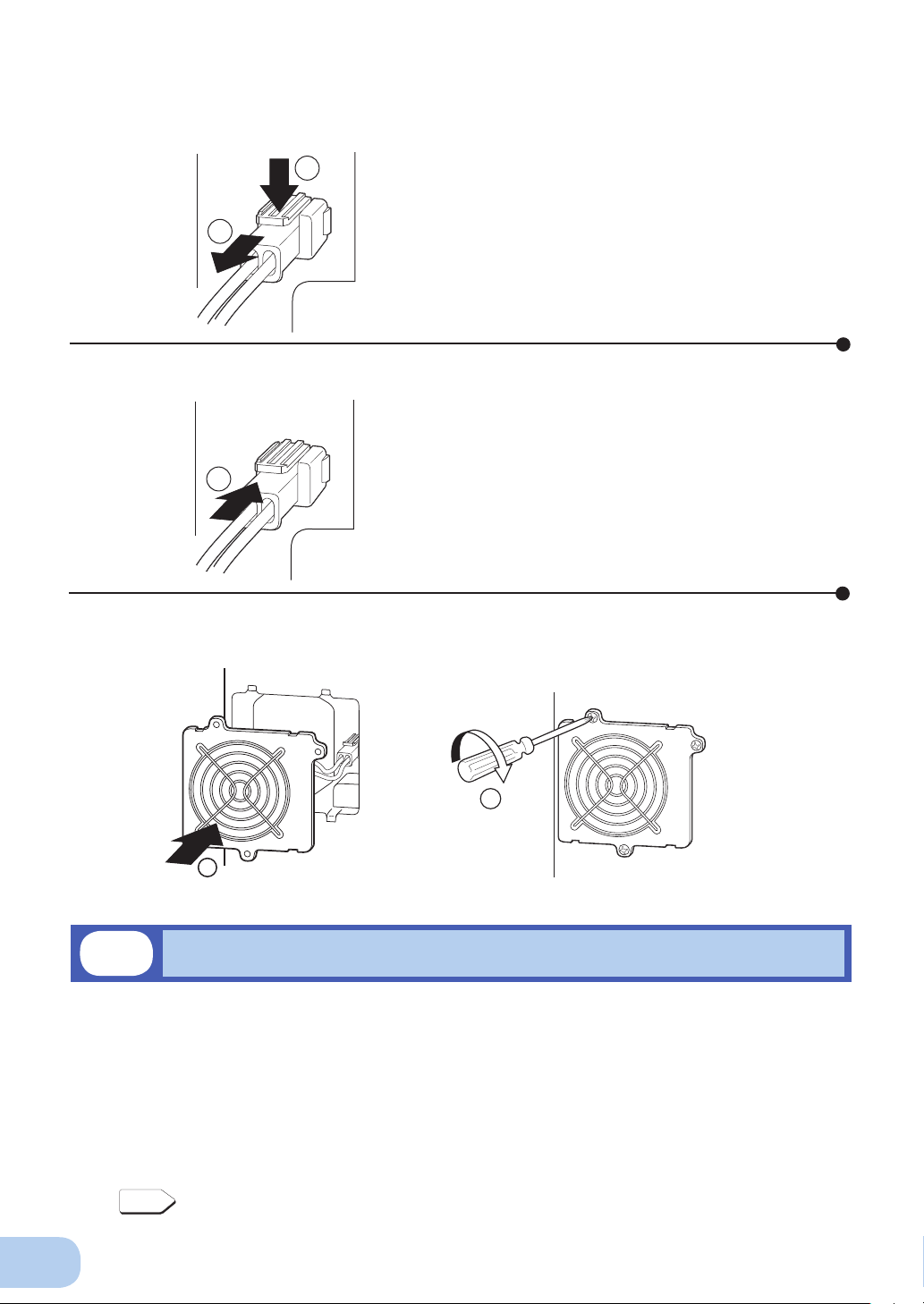

While pressing down on the tip of the fan connector ➀, pull it toward you to disconnect it.

The beep stops, and the error lamp turns OFF.

Insert the new fan connector until it clicks into place.

The beep stops, and the "EF" status display lamp turns OFF.

Insert the fan into the unit’s fan recess.

Use a screwdriver to securely tighten (turn clockwise) the 3 removed screws. When doing so, make sure the cable does not become pinned under the fan cover.

➀

➂

Replacement fan

●

BU50SW/BU75SW : Model BUF75S BU100SW/BU150SW : Model BUF100S

➁

Fan replacement is complete.

6-4

Cleaning

1. Cleaning the UPS

Moisten a soft cloth with water or detergent, squeeze it tightly, and wipe the product lightly.

Do not use chemicals such as thinner and benzene. (They cause deformation or discoloration.)

2. Removing dust from the AC input plug of the UPS

Stop all the connected devices and the UPS and disconnect the AC input plug from a wall outlet (commercial power).

Then, remove dust with a dry cloth and make the connection again.

(For information on the connection procedure:)

See also

"2-3 Connecting the equipment" ➛ Page 10

Page 52

BU50SW / BU75SW / BU100SW / BU150SW

Using the UPS monitoring software

and contact signal

* If you do not use the UPS monitoring software and contact signal, this step is

not required.

UPS monitoring software

■

All models include “PowerAct Pro” for Windows/Linux, and “UPS Service Driver” for Windows in the CD as UPS monitoring software. Choose a suitable program depending on your usage purpose. Refer to the attached “Quick Installation Guide.”

See also

BU50SW/ BU75SW/ BU100SW/ BU150SW

Note 1: The most recent version can be downloaded from our homepage (http://www.omron.co.jp/ese/). Note 2: Files cannot be automatically saved. Note 3: To automatically stop the UPS, it may be necessary to change the PC’s BIOS settings. Change the PC’s BIOS settings so that the PC’s power supply is not cut after OS shutdown is performed. Note 4: The UPS automatically stops once the battery is depleted. Note 5: Compatible only with Macintosh computers equipped with PowerPC CPU.

For details about each software function, refer to "Reference E. List of UPS monitoring software functions" on page 60.

Model OS Communication method UPS monitoring software

Windows Vista Serial (RS232C) PowerAct Pro (Note 1) – Windows server2003

x64 Edition Windows XP/2000 x64 Edition

Windows server2003 Windows XP/2000

Windows NT 4.0 Contact signal

Windows Me/98 Serial (RS232C) PowerAct Pro (Note 1) – Linux (Note:4) Serial (RS232C) PowerAct Pro (Note 1) –

Mac OS X (10.3, 10.4) Mac OS X Server (10.3, 10.4)

Serial (RS232C) PowerAct Pro (Note 1) –

UPS service (OS standard) + UPS

service driver (included software) Contact signal LAN Shutdown software for SNMP/web

Serial (RS232C) PowerAct Pro (Note 1) –

Contact signal LAN Shutdown software for SNMP/web

LAN Shutdown software for SNMP/web

(Note 2) (Note 4)

(Note 2) (Note 3)

UPS service (OS standard) BUC26

card

UPS service (OS standard) + UPS

service driver (included software)

UPS service (OS standard) BUC26

card

UPS service (OS standard) BUC26

card

card (Note 5)

Required options (sold separately)

–

SC20G

–

SC20G

Reference

⇒

See 7-1

⇒

See 7-1

⇒

See 7-2

⇒

See 7-3

⇒

See 8-1

⇒

See 7-1

⇒

See 7-2

⇒

See 7-3

⇒

See 8-1

⇒

See 7-3

⇒

See 8-1

⇒

See 7-1

⇒

See 7-1

⇒

See 8-1

⇒

See 8-1

Caution

When this product is used in compliance with CE marking, please use under 3m connection cable.

Page 53

7. Using the UPS monitoring software and contact signal

When using the included UPS monitoring

7-1

software to perform auto shutdown

"PowerAct Pro" UPS monitoring software

The included "PowerAct Pro" UPS monitoring software allows you to automatically save ﬁ les and perform shutdown processing of your PC when a power failure occurs. Also, you can perform desired operation by setting the automatic start/stop of the UPS based on the schedule setting. * The time between the occurrence of a power failure and the shutdown of your PC must be within the

backup time measured in "5-1 How to measure backup time" on page 29.

For more information, refer to the Instruction Manual and online help of the UPS monitoring software.

1. Connect the UPS to a computer.

Cable: Included connection cable (RS-232C)

信号カード増設

Connector

AC入力過電流保護 20A

INPUT AC100V-120V入力 50/60Hz16A

Connect to RS-232C terminal

Connector

RS232C

Connect to RS-232C connector on UPS

RS232C

Connect to RS-232C port on PC

Included connection cable

When connecting 2 or more computers to the UPS.

∗

バッテリ増設コネクタ DC36V/40A

接地

バッテリ増設信号コネクタ

BU150SW

冷却ファン

0V50/60Hz1ø

OUTPUTAC100-12

/1500W

出力電力最大1.5kVA

Power cable

PC server 3

Power cable

䝚䜺䞀ೳḾ㻒䝊䜽䝌

䝔䝇䝊䝮

㞹″ฝງ

䚭ቌシ

㻐

䝔䝇䝊䝮

䝔䜨䝕䜽

䚭ஹᥦ

㐘㌷

PC server 2

LAN connection

Network

Power cable

PC server 1

Remote connection

The Included connection cable (RS-232C)

UPS (Image shows BU150SW.)

2. Install the included UPS monitoring software on the computer.

Software to install: PowerAct Pro How to install: Refer to the separate “UPS monitoring software installation guide”.

Switching hub

Page 54

BU50SW / BU75SW / BU100SW / BU150SW

Explanation

Scheduled operation using the UPS monitoring software

When performing scheduled operation in which the UPS is stopped and a device such as a breaker is

●

used to stop the UPS at the same time that commercial power stops, specify a period of no more than 3 months for the start of the next operation.

If you specify a period longer than 3 months, the internal timer is reset and the scheduled operation

does not start. Note that this period reduces to approximately half when the battery is dead. If a period of 3 months is exceeded, you start operation by supplying commercial power and pressing

the Start Switch. However, if the battery is dead, you may not be able to start operation. In this case,

replace the battery according to "6-2 Replacing the battery" on page 32.

Start of operation in scheduled operation using the UPS monitoring software

To manually start up this unit after it has been stopped by a scheduled operation, turn OFF the power

●

switch and turn it back ON again. To stop the unit when it is in operation, turn OFF the power switch.

Auto restart after OS closing processing using the UPS monitoring software

When a power failure occurs, certain PCs (*1) automatically restart immediately after the OS is shut

●

down by auto shutdown. In this case, the UPS stops during or after the restart of the PC, which may damage ﬁ les and the hard

disk. You can avoid this phenomenon by disabling POWER MANAGEMENT in the BIOS settings of the

PC. *1) Certain PC: It is known that this phenomenon occurs for MICRON's Millennia Mme.

When performing auto-save functions using the

7-2

UPS service in Windows Server 2003/XP/2000 + UPS service driver

When using the included "UPS service driver", the OS standard UPS service in Windows Server 2003/ XP/2000 can be used. When there is a power failure, ﬁ les can automatically be saved and the computer can be shut down.

1. Connect the UPS to a computer.

Cable: Included connection cable (RS-232C)

信号カード増設

Connector

Connect to RS-232C terminal

Connector

RS232C

Connect to RS-232C connector on UPS

信号カード

増設

RS232C

AC入力過電流保護 20A

INPUT AC100V-120V入力 50/60Hz16A

Connect to RS-232C port on PC

Included connection cable

バッテリ増設コネクタ DC36V/40A

接地

バッテリ増設信号コネクタ

BU150SW

冷却ファン

0V50/60Hz1

OUTPUTAC100-12

/1500W

出力電力最大1.5kVA

2. Install the included "UPS service driver" on the computer.

Software to install: UPS service driver How to install: Refer to the separate "UPS monitoring software installation guide".

Page 55

7. Using the UPS monitoring software and contact signal

When performing auto-save functions using

7-3

the standard UPS service in Windows Server 2003/XP/2000/NT

When using in combination with the BUC26 cable (sold separately), the OS standard UPS service in Windows Server 2003/XP/2000/NT can be used. When there is a power failure, the computer can be shut down.

1. Connect the UPS to a computer.

Cable: Connection cable (BUC26), sold separately

Connector

Connect to RS-232C terminal

Connector

Connect to RS-232C port on PC

Connection cable (BUC26)

Connect to contact signal connector on UPS

信号カード増設

RS232C

冷却ファン

バッテリ増設コネクタ DC36V/40A

接地

バッテリ増設信号コネクタ

OUTPUTAC100-12

出力電力最大1.5kVA/1500W

BU150SW

AC入力過電流保護 20A

INPUT AC100V-120V入力 50/60Hz16A

0V50/60Hz1

2. Perform UPS service setup.

You need to make Windows settings in order to perform auto shutdown. There is no need to install software.

Start up the computer after connecting it with the UPS. Perform "Log on to Windows" as the Administrator. After logging on, follow the instructions below to set up the UPS service.

Start up the computer after connecting it with the UPS. Perform "Log on to Windows" as the Administrator. After logging on, follow the instructions below to set up the UPS service.

Page 56

BU50SW / BU75SW / BU100SW / BU150SW

How to set up UPS service (shut down Windows when low battery level is detected)

●

1) Double-click the "Power supply options" icon in "Control Panels".

2) Click the "UPS" tab in the "Power supply options" window. Click the "Select (S)" button.

Click

3) Click the button on the right of the "Select manufacturer (S)" window, and select "General" from the list.

Click on "Custom" in the "Select model (M)" window. Click the button on the right of the "Port (P)" window, and select from the list the port that the UPS is

connected to. (In the example screen below, the UPS is connected to COM1.)

Click the "Next (N)" button.

Click

Click

Click

4) In the "UPS signal polarity" box, click on the boxes to the right of "Power supply failure/battery drive (P)" and "Low battery (L)" signals to insert check marks.

Set the polarity for each signal to "Negative". Click the "End" button.

Check

Click

Page 57

7. Using the UPS monitoring software and contact signal

5) Click the "OK" button in the "Power supply options" window.

Setup is complete.

Click

When a power failure occurs, Windows shutdown starts once the Low battery level signal is detected.

If the power is restored before the Low battery level signal is detected, Windows shutdown does not

start and the normal monitoring state is restored.

Stopping the UPS

Recycling and Discarding the Battery

In the Windows Vista/Windows Server 2003/XP/2000 UPS service, there is no function to stop the UPS. After

Windows is shut down, manually turn OFF the unit's power switch.

How to set up UPS service (set the time to shut down Windows)

●

1) After performing the setup described in the previous section, click the "Conﬁ gure (C)" button in the

"Power supply options" window.

Click

Page 58

BU50SW / BU75SW / BU100SW / BU150SW

2) In the "Warning" box, place a check mark in the box to the left of "Time from when battery drive starts

until warning is issued (M)" by clicking on it.

In the window to the right, set the amount of time to wait before starting Windows shutdown after a

power failure occurs. (Setting range: 2 to 720 minutes)

Click the "OK" button.

Check

Click

3) Click the "OK" button in the "Power supply options" window.

Setup is complete.

Set

Click

When a power failure occurs, Windows shutdown starts once the set time is exceeded or the low bat-

tery voltage signal is detected.

If the power is restored before the set time is exceeded, Windows shutdown does not start and the

normal monitoring state is restored.

Page 59

7. Using the UPS monitoring software and contact signal

How to set up UPS service

●

1) Double-click the "UPS" icon in "Control Panels".

2) Insert a check mark in the checkbox to the right of "Port where UPS is installed (U)..." by clicking on it.

In the setting ﬁ eld, select the number of the serial port (COM1 to 4) the unit is connected to.

3) To shut down Windows when a low battery is detected, click on the checkboxes to the left of "Power failure signal (P)" , "Low battery level signal (L)" and "Remote uninterruptible power source shutdown signal (R)" to insert check marks.

Check

Set

Check

Set

Set each signal interface voltage setting as shown below.

- Power failure signal (P) ... Negative

- Low battery signal (L) ... Negative

- Remote uninterruptible power source shutdown ... Positive

4) To set the time to shut down Windows, click on the checkboxes to the left of “Power failure signal (P)” and “Remote uninterruptible power source shutdown signal (R)” to insert check marks.

Check

Set

Set each signal interface voltage setting as shown below.

- Power failure signal (P) ... Negative

- Remote uninterruptible power source shutdown ... Positive

Set the attributes for the uninterruptible power source and the time for each UPS service item.

Page 60

BU50SW / BU75SW / BU100SW / BU150SW

Note

Please note that in the case of incorrect interface voltage signal settings, Windows NT will not receive the signal from the UPS and the UPS will not stop when there is a power failure.

Failure to put check marks in the boxes will lead to the same result.

5) After the settings are made, double-click the "Service" icon in "Control Panels".

6) Select the UPS service and click the "Start" button.

Click

By starting the alerter service, messenger service, and event log service in advance, the UPS service

sends warning messages to the user and records a history of events such as power failures when they occur.

When a power failure occurs, Windows shutdown is performed once the Low battery level signal is

detected. If the power is restored before the Low battery level signal is detected, Windows shutdown is not performed and the normal monitoring state is restored.

7-4

Contact signal

Contact Signal

You can develop your unique system based on the following speciﬁ cations to automate the process at a power failure. You can perform power-failure processing by allowing the system to detect the backup signal and also perform system shutdown processing by allowing the system to detect the battery low signal. Also, by inputting the backup stop signal from the system, you can stop the UPS with a sufﬁ cient battery level to prepare for the next occurrence of a power failure.

1. Signal output

The UPS has 4 kinds of output signals. The output circuit consists of an open collector circuit using a

photo coupler (a kind of electronic switch).

Backup Signal output: BU

●

BU stays ON during a power failure.

Battery Low Signal output: BL

●

Goes ON when the battery becomes weak during

the Battery Mode.

Trouble Signal output: TR

●

Goes ON when an internal failure of the UPS occurs.

Battery Replacement Signal output (WB)

●

Goes ON when the battery needs to be replaced

due to deterioration.

BU-COM ON when a power failure occurs

BL-COM ON when the battery is low

TR-COM ON when a power failure occurs

WB-COM

ON when battery deterioration is detected

Page 61

7. Using the UPS monitoring software and contact signal

2. Input of the UPS Stop Signal (BS)

Stops the output of the UPS after the time period

speciﬁ ed by the “power output stop delay time setting” (setting switches 5 and 6 ) has elapsed.

(1) When the "UPS Stop Signal setting" (setting switch 7 ) is set to OFF:

You can stop the output of the UPS by inputting the voltage signal (HIGH) that lasts at least 10 sec-

onds from the outside.

(2) When the "UPS Stop Signal setting" (setting switch 7 ) is set to ON:

You can stop power output by inputting the voltage signal (HIGH) that lasts at least 0.01 second (10

ms) from the outside that is accepted only during backup.

See also

"4-4 Changing the setting of the functions" ➛ Page 24

BS-COM UPS stops

3. Remote ON/OFF Signal

Remote ON/OFF signals can be used to start and stop

the UPS, by using either an externally connected contact or the ON/OFF status of the open collector circuit. To use this function, turn on the Power Switch of the UPS.

Connection terminals are at contact signal connec-

tor pins 6-7 and the remote ON/OFF connector. Use whichever one best suits the application.

4. Items that can be set using the contact signal card

External contact Operate

Open Start

Close Stop

Jumper setting:

（9 digits）

DIP switches

（3 digits）

Setting the switches

■

After changing the setting switch, follow the procedure described below.

The setting switch changes do not become valid until the AC input plug is reinserted.

●

By using the switches of contact signal card, set the item below.

Page 62

Output delay time setting for backup signal output (BU)

●

Continues during a power failure, and turns ON (OFF). By setting the contact signal card’s setting switch

as shown in the table on the right, the length of time from when the power failure occurs until the power failure signal is output can be delayed between 0 and 3 minutes.

The power failure signal is not output if the power

supply error is resolved within the set delay time.

BU/BL signal reverse output setting

●

BU and BL signals are output in reverse.

1 2 3

BU50SW / BU75SW / BU100SW / BU150SW

BL-COM ON when the battery is low

1 2 3

Setting

switch 1

OFF OFF

ON OFF

OFF ON

ON ON

Setting switch 3 Backup signal output (BU)

OFF

ON Reverse output

Setting

switch 2

Normal output (factory setting)

Delay time setting

0 second (factory setting) Signal output after 30 seconds Signal output after 60 seconds Signal output after 180 seconds

AC input

BU signal ((setting switch 3: OFF (normal output))

BU signal ((setting switch 3: ON (reverse output))

Jumper settings

■

By making jumper settings, the contact signal card SC05 and SC06 connector pin assignments can be changed. Turn over the contact signal card, and change the contact sugnal card’s JP2 to JP9 jumper settings (8

settings) to “SC05/06”.

* Use the [SC05/06/07] side for JP10. * Factory settings JP2 to JP9: SC07 side JP10: SC05/06/07 side

SC05/06

ON

OFF

ON

OFF

ON

OFF

Backup signal output (BU) delay time setting (setting switches 1, 2)

SC05/06

Jumper settings (8 digits)

SC07

Page 63

7. Using the UPS monitoring software and contact signal

How to insert/remove the contact signal card

(1) Turn OFF the power switch, remove the top and bottom screws (2 screws) of the contact signal connec-

tor on the back of the unit, and carefully remove the contact signal card.

(2) After changing the settings, carefully reinsert the contact signal card and securely tighten the 2 screws.

5. Contact Signal Connector (female DSUB9P)



* Factory settings

        9

Pin assignment

5 4 3 2 1

9 8 7 6

Front view Screw size: inch screw #4-40 UNC



Pin numberFor jumper setting “SC07” For jumper setting “SC05/06”

Battery LOW signal output (BL)



Trouble signal output (TR)

Backup stop signal input (BS)Backup reverse signal output (BU)

COMMON (COM)

Remote ON/OFF input (–)

Remote ON/OFF input (+)

Backup signal output (BU)

Battery replacement signal output (WB)Remote ON/OFF input (+)

6. Remote ON/OFF connector

 1 2

Pin assignment



Front view Screw size: Inch screw #4-40 UNC



Pin number



Signal name

Remote ON/OFF (+)

Remote ON/OFF (-)



Backup signal output (BU)



Battery Low Signal output (BL)

Backup stop signal input (BS)



Remote ON/OFF input (–)

Trouble Signal output (TR)



COMMON (COM)

Connector

Connecttheincluded remoteON/OFFconnector

Page 64

7. Contact Signal ratings

BU50SW / BU75SW / BU100SW / BU150SW

Signal output (BL, TR, BU, WB, BU)

●

Photo coupler ratings Input voltage HIGH(ON) 5 to 12 VDC

Appliable voltage: 35 VDC or less LOW(OFF) 0.7 VDC or less

Maximum current: 20 mA

Remote ON/OFF

●

Voltage between terminals: 5 VDC

Current when closed: max.10 mA

UPS Stop Signal input (BS)

●

8. Contact Signal circuit inside the UPS

2.4V 560Ω

COM

10kΩ

Remote ON/OFF (+)

Remote ON/OFF (-)

9. Example of the use of the Contact Signal circuit

Example of BU signal output circuit and

●

the connected circuit

COM

UPS side

Connecting cable (twisted or shielded)

Remote ON/OFF circuit

●

Example of remote ON/OFF

12V1K

System side

remote ON/OFF (

remote ON/OFF

UPS side

TLP627

To port on PC

( - )

Example of BS signal input circuit and the

●

connected circuit

COM

UPS side

Connecting cable (twisted or shielded)

12V

1.2K

Ｃ2458



System side

TLP521

From port on PC

GND

+ )

Page 65

7. Using the UPS monitoring software and contact signal

10. Precautions and notes for the use of the Contact Signal

Notes

When connecting a device such as a relay that generates counter electromotive force to the signal

●

output circuit, connect diodes that prevent counter electromotive force to both ends of the relay.

Explanation

When power is restored after the unit stopped automatically during a power failure, the unit

●

automatically restarts and supplies power. If you do not want to start the connected devices, turn OFF their switches or set the auto restart setting (setting switch 2) to ON. (See page 24.)

11.

Xserve RAID connection procedure

Apple’s Xserve RAID can be controlled by changing the unit’s contact signal card settings. * Cable: Connection cable (BUC28), sold separately

1. UPS connection procedure

(1) Turn OFF the unit’s power switch and remove the contact signal card from the rear of the unit.

See also

(2) Change the contact signal card’s JP2 to JP9 jumper settings (8 settings) to “SC05/06.” (3) Change the JP10 jumper setting to “SC05XSR.” (4) Insert the contact signal card into the UPS. (5) Connect the BUC28 cable connector (female end) to the Xserve RAID serial port and turn the connector

ﬁ xing screw clockwise to tighten it. Connect the other end (male end) of the same cable to the contact signal card and turn the connector ﬁ xing screw clockwise to tighten it.

“How to insert/remove the contact signal card”

XserveRAID

信号カード増設

RS232C

接地

冷却ファン

OUTPUTAC100-120V50/60Hz1ø

出力電力最大1.5kVA/1500W

バッテリ増設コネクタ DC36V/40A

バッテリ増設信号コネクタ

BU150SW

Xserve

(6) Turn ON the power switches for the Xserve RAID and the UPS.

AC入力過電流保護 20A

INPUT AC100V-120V入力 50/60Hz16A

BUC28 cable

Contact signal card

Page 66

BU50SW / BU75SW / BU100SW / BU150SW

8-1

An SNMP/Web card can be loaded into the card slot on the back of the unit. Remove the contact signal card that the unit came equipped with, and plug the SNMP/Web card in its place. Store the removed contact signal card in a safe place.

SNMP/Web card (model number: SC20G), sold separately

•

(1) Remove the 2 screws, and carefully pull out the contact signal card.

Using an SNMP/Web card

Adding an SNMP/Web card

(2) Carefully insert the SNMP/Web card (model number: SC20G), and securely tighten the 2 screws. * Replace with BU50SW/BU75SW/BU100SW/BU150SW brackets.

Page 67

8. Using an SNMP/Web card

8-2

SNMP/Web card outline

Description (features)

■

Direct connection between UPS and network

•

Inserting an SNMP/Web card (SC20G) into the UPS enables a LAN connection, allowing the UPS to be

controlled via computers with no serial port.

Remote UPS management

•

Using a commercially available SNMP manager or web browser, you can control the UPS via a

computer connected to the network.

Possible to make function settings for the UPS and SNMP/Web card via a computer on the network

•

UPS and SNMP/Web card (SC20G) parameter settings can be made via any SNMP management station or internet browser. (Functions that act as an SNMP agent can make settings via Telnet and serial connection.)

Enhanced security functions

•

For HTTP and SNMP connections, access can be controlled for each IP.

Coordinated shutdown

•

Multiple UPS can coordinate with each other to perform shutdown.

Log function

•

* The UPS power status, battery status, etc. can be stored in the built-in ﬂ ash memory. * Compatible with SYSLOG.

Auto shutdown function

•

Shutdown is automatically performed when there is a power supply error or when a shutdown has

been scheduled. Scheduled operations (auto startup and auto shutdown) can be performed over the network.

Equipped with UPS standard MIB (RFC1628) and proprietary MIB (swc mib)

•

Using JAVA applet to monitor the power supply status

•

The power supply status can be visually checked on a graph display.

Speciﬁ cations

■

LAN port 10/100 Mbit Network protocol SNMP, HTTP, APR, RARP, TFTP, ICMP Other communication route Serial connection: asynchronous method (setting only) Number of controllable computers 32 max. (including slave UPS when coordinated shutdown is enabled)

Support MIB

Other Equipped with real-time lock

Shutdown software-compatible OS

For more details, refer to the instruction manual included with the SNMP/Web card. The most recent ﬁ rmware can be downloaded from our homepage(http://www.omron.co.jp/ese/).

UPSMIB (RFC1628) OMRON MIB

Windows NT 4.0, Windows 2000, Windows XP, Windows Server 2003 Red Hat Linux 7.2/7.3/8.0 Red Hat Enterprise Linux AS/ES/WS (Red Hat Linux Advanced Server 2.1) Max OS X v10.3*/Server 10.3 (*1) Max OS X v10.4*/Server 10.4 (*1) Compatible only with Macintosh computers equipped with PowerPC CPU.

Page 68

BU50SW / BU75SW / BU100SW / BU150SW

Extending the backup time

Connecting an additional battery unit

(BU100SW/

9-1

BU150SW only)

You can extend the backup time by connecting an additional optional battery unit to the UPS.

You can connect only one additional battery unit.

The explanation below is for connecting a BUM100S (for adding to BU100SW). Use these instructions when adding a BUM150S to a BU150SW. Some of the speciﬁ cations are different.

When an additional battery unit is connected, the charging time is 24 hours.

For the BUM100S, the included battery connection cable is provided with cable clamps attached. Connect the battery connection cable according to the instructions below. Cable clamps are not provided with the BUM150S.

(1) Loosen the screws and remove the battery connector covers on the rear side of the unit and battery unit.

Use the removed screws to attach the cable clamps.

(2) Connect the battery connection cable to the battery connectors on the rear side of the unit and the bat-

tery unit. To simplify the operation, do not yet tighten the screws that hold the battery connection cable on the cable clamp.

(3) Use screws to attach the cable clamps to the rear side of the unit and the battery unit (2 screws each).

(4) Tighten the screws that hold the battery connection cable on the cable clamps.

(5) Turn ON the overcurrent protection switch on the back of the battery unit.

(6) Connect the AC input plug of the unit to a wall outlet. The additional battery lamp on the unit's operation

panel turns ON.

UPS Additional battery unit BU100SW BUM100S BU150SW BUM150S

BU100SW BUM100S

信号カード増設

RS232C

INPUT AC100V-120V 50/60Hz 12A

AC入力過電流保護 15A

See also

バッテリ増設コネクタ DC36V/20A

冷却ファン

接地

OUTPUTAC100-120V50/60Hz1ø

出力電力最大1kVA/700W

Battery connection cable

See also For information on backup time, see the backup time table in ”5-2 Estimated backup time”. ➛ Page 29

Excess electromagnetic protection switch

ON OFF

Cable clampCable clamp

Additional battery connector

BU150SWBUM150S

信号カード増設

RS232C

バッテリ増設コネクタ DC36V/40A

バッテリ増設信号コネクタ

signal connector

接地

冷却ファン

OUTPUTAC100-120V50/60Hz1ø

AC入力過電流保護 20A

INPUT AC100V-120V入力 50/60Hz16A

出力電力最大1.5kVA/1500W

Battery connection cableAdditional battery

Excess electromagnetic protection switch

ON OFF

Page 69

10. Troubleshooting

1010

Troubleshooting

Perform the checks shown below if the unit is operating abnormally. If the unit continues to operate abnormally, please contact our Electronic System & Eqiuipment customer support center at _____.

Problem

UPS does not operate. The LED display does not light up, even though the AC input plug is connected to a wall outlet (commercial power) and the power switch is ON.

Backup is not possible. The computer stops when a power failure occurs.

Backup is performed too frequently. Frequent switching is performed although a power failure does not occur. You hear the sound of switching.

1. Check that the AC Input Plug is connected to the commercial power securely.

2. The AC Input Overcurrent Protection is working. (If the black button has popped up, there are probably too many connected de-

vices or there is a short in the connected devices.) Disconnect all of the connected devices, push in the the black AC input overcurrent protection button and turn ON the Power Switch of the UPS again. If the status indicator does not display normally, there is a problem with the UPS. (See "Interpreting beeps and displays" on page 20.)

Is charging insufﬁ cient? Perform the test after charging the battery for at least 8 hours. (You can charge the battery by connecting the AC input plug of the UPS to a wall outlet (commercial power).)

Variations (decrease) in the input power occur frequently. Or, noise is included that signiﬁ cantly distorts the voltage waveform of the input power.

Change the wall outlet (commercial power) to which you connect the UPS. Try con-

●

necting to a wall outlet (commercial power) away from equipment that consumes large power. This problem may occur also when you connect many devices to a plug strip or ex-

●

tension cord connected to the UPS if it is a long or thin cable.

Check and remedy

The display is abnormal.

The display is unstable.

●

White lines occur.

●

Noise increases.

●

The battery replacement lamp blinks and the beeper sounds at 2-second intervals.

The status indicator shows “ ”, and the beeper sounds at

0.5-second intervals.

The status indicator blinks “ ”, and the beeper sounds con-

tinuously.

The probable cause is noise that occurs inside the UPS.

Ground all devices connected to the UPS. Connect them to a wall outlet (commercial

●

power) for 3-pin plugs or connect their Grounding Terminal to the Grounding Terminal of a wall outlet. This problem may occur when power cords are long or placed closely or when the

●

UPS and devices to be backed up are placed closely. Rearrange them. If the UPS or devices connected to the UPS are contained in a metal rack, attempt to

●

ground the rack itself.

The auto battery test or self-diagnostic test determined that the battery is dead. Battery Mode cannot be performed, so the battery pack needs to be replaced.

There are too many connected devices. Reduce the number of connected devices until “

” is displayed on the status indicator.

Output stopped due to exceeded connection capacity. Turn OFF all power to the unit and connected devices, and reduce the number of connected devices. Then, turn the power to the unit and connected devices back ON and check whether " " is displayed on the status indicator.

Page 70

Reference

BU50SW / BU75SW / BU100SW / BU150SW

A. Speciﬁ cations

BU50SW BU75SW BU100SW BU150SW

Method Operation method

Input Input voltage range

Input frequency 50/60Hz p 4Hz

Maximum current 8A 10A 12A 16A

Phase Single-phase, two-wire

Input plug shape 3P (NEMA 5-15P)

Input protection Reset-type overcurrent protection device

Output (shared maximum)

Peak voltage value 100V mode: 141V AC p6% 110V mode: 156V AC p6%

Peak voltage value 100V mode: 141V AC +6/-6% 110V mode: 156V AC+6/-9%

Output frequency 50/60Hzp1Hz

Phase Single-phase, two-wire

(

Batttery Mode)

Battery Type Compact sealed lead batter y

life expectancy

(V/Ah) (x Quantity) Charging time 8 hours 8 hours *4

Environment Operating ambient

Dimensions

Weight of unit

Internal power consumption (max.)

Noise regulation

(compliance standard)

Safety standard compliance

/RoHS directive compliance

Noise 50 dB max.

(WxDxHmm)

Connectable devices

Nominal Input voltage 100/110/115/120 VAC

Input protection capacity

Output capacity

Output voltage *2

(In Commercial Power Mode)

(In Battery Mode)

Output waveform

In Commercial Power Mode/

Waveform distortion rate (Rectified load, at rated output)

Output receptacle

Number of output receptacles

Power failure switching time

Commercial direct shipment (switching time)

Backup time *3

Sealed lead battery

Battery capacity

temperature

Operating ambient humidity

145 x 395 x 224 *5 145 x 480 x 224 *5

PC, display, and peripherals

10A 10A 15A 20A

500VA/350W 750VA/500W 1000VA/700W 1500VA/1050W

115V mode: 163V AC +6/-13% 120V mode: 170V AC +6/-17%

100V mode: 6% max. 110V mode: 9% max.

115V mode: 13% max. 120V mode: 17% max.

NEMA 5-15R

Backup: 6 Backup: 5

Uninterrupted

Minimum 8 minutes Minimum 5 minutes Minimum 5 minutes Minimum 4 minutes

115V mode: 163V AC ｱ6% 120V mode: 170V AC ｱ6%

4 to 5 years (long operating life) *At ambient temperature of 20｡C

12V DC/ 7.2 Ah (x 2) 12V DC/ 7.2 Ah (x 3) 12V DC/ 9 Ah (x 3)

0 to 40｡C (during operation)/ -15 to 50｡C (during storage)

25 to 85%RH (during use)/10 to 90%RH (during storage)

Approx. 13 kg Approx. 13 kg Approx. 15.5 kg Approx. 16.5 kg

45W (65W max.)

*1: Make sure that both the VA value and the W value of the load capacity connected to the UPS are within the

range speciﬁ ed here.

*2: Check the operation beforehand if the unit is used in any mode other than “100V AC mode”. In some cases,

the maximum voltage of output in Battery Mode may be lower than the maximum voltage in usual operation

(commercial power supply). *3: The backup times shown here are for when rated load is connected, at 20°C, and for initial characteristics. *4: When an additional battery unit is connected, the charging time is 24 hours. *5: The height includes the 13-mm height of the rubber feet.

Full-time inverter supply method

75p4 to 144p4V AC (with 90% or less connection load) 85p4 to 144p4V AC (with 90% or less connection load)

3P (NEMA 5-15P/L5-20P)

100V mode 100V AC 110V mode 110V AC 115V mode 115V AC 120V mode 120V AC

Sine wave / Shine wave

4 msec. max.

VCCI Class A

UL1778 / CE / RoHS compliance

p3% p3% p3% p3%

50W (70W max.) 55W (80W max.)

Page 71

Reference

B. Dimensions

● BU50SW/BU75SW /BU100SW

Power cable (approx. 1.8 m)

(unit : mm / Tolerance : ±1mm)

● BU150SW

Power cable (approx. 1.8 m)

䝚䜺䞀ೳḾ㻒䝊䜽䝌

䝔䝇䝊䝮

㞹″ฝງ

䚭ቌシ

㻐

䝔䝇䝊䝮

䝔䜨䝕䜽

䚭ஹᥦ

㐘㌷

(unit : mm / Tolerance : ±1mm)

Page 72

C. Circuit block diagram

BU50SW / BU75SW / BU100SW / BU150SW

Commercial

power bypass

output

100V AC input

Power supply relay

Input overcurrent protection

Noise

filter

Charging

circuit

Rectifier

(high power

factor

converter)

Step-up

converter

D. Related products

Description Model

Replacement battery pack for BU50SW/BU75SW BP70XS

Replacement battery pack for BU100SW BP100XS

Replacement battery pack for BU150SW BP150XS

Additional battery unit for BU100SW BUM100S

Additional battery unit for BU150SW BUM150S

Replacement fan for BU50SW/BU75SW BUF75S

Replacement fan for BU100SW/BU150SW BUF100S

SNMP/Web card BUF100S SC20G

Connection cable for Windows UPS service BUC26

Apple Xserve RAID connection cable BUC28

Mounting bracket BUP100S

* When using this product as a CE marking compliant product, use

a connection cable that is 3m or less.

Inverter

(sine

wave)

Battery

Filter

Control

circuit

Power supply output: 100V AC

Output

switching

Power supply switch

At startup/capacity exceeded/error During Line mode During Battery mode

Page 73

Reference

E. List of UPS monitoring software functions

Software title

Function

Required separately available option BUC26 SC20G Windows Vista Windows Server 2003 x64 Edition Windows XP x64 Edition Windows Server 2003 Windows XP/2000 Windows NT4.0

Compatible OS

Windows Me/98 Linux Mac OSX v10.4/Server v10.4 Mac OSX v10.3/Server v10.3 Auto shutdown UPS monitoring (operating status) UPS monitoring (data) Pop-up notiﬁ cation End when OS is inactive (*3) Auto ﬁ le save (*3) Schedule operation UPS setting change External command execution Event log save Data log save

Software function

Coordinated shutdown Output receptacle control Redundant power supply support Remote UPS management Mail send SNMP management Telnet connection SYSLOG support

*1) UPS stops automatically only when the battery is depleted. (Battery Mode continues until this happens.) *2) Only battery capacity monitoring can be performed. *3) This function can be used with Windows only. It cannot be used with Linux.

UPS service driver

General applications

(Simple functions, standalone)

Standard OS UPS service

—

●

— — — — —

●

(*2)

▲

●

— —

●

— — — — — — — — — —

▲

—

●

— — — —

(*1)

●

—

●

— — — —

●

— — — — — — — — — —

Network management applications

(Advanced functions,

network support)

PowerAct Pro

●

—

●

— —

●

—

●

— — —

Possible ▲Limited

●

SNMP management applications

(Advanced functions,

network support)

SNMP/Web card



— —

●

— —

●

— —

●

[Explanation of software functions]

1 Auto shutdown The computer can be shut down automatically when a problem occurs with the power supply. 2 UPS monitoring (operating status) The operating status of the UPS can be monitored (in Commercial Power Mode/Battery Mode). 3 UPS monitoring (data) Monitoring can be performed for input voltage value, connection capacity, battery capacity, etc. 4 Pop-up notiﬁ cation When a problem such as a power failure occurs, a pop-up window that shows the details of the problem can be displayed. 5 Shutdown when OS is inactive Shutdown can be performed when the computer is in an inactive state. The operating status is retained at shutdown in inactive

6 Auto ﬁ le save Files such as open Word and Excel documents are automatically saved at shutdown. 7 Schedule operation Schedule settings can be made for UPS stop/start. 8 UPS setting change UPS settings (beep ON/OFF, etc.) can be changed. (Items that can be set vary according to the UPS.) 9 External command execution By executing commands at shutdown, items such as application programs can be launched. 10 Event log save Information of events that occur on the UPS (power supply problems, setting changes, occurrences of failure, etc.) are saved as

11 Data log save Data of input/output voltage value, connection capacity, etc. is periodically saved as a log (the save frequency can be set). 12 Coordinated shutdown When a problem occurs with the power supply, multiple computers connected to the UPS can coordinate to perform auto shut-

13 Output receptacle control The UPS output receptacles can be individually set to ON/OFF. 14 Redundant power supply support Two or more UPS can be connected to computers equipped with redundant power supply. Shutdown is not performed when a

Shutdown is performed only when a power supply problem occurs with both UPS, so the system's operating rate is improved. 15 Remote UPS management UPS can be managed remotely from a computer on the network. 16 Mail send When a problem such as a power failure occurs with the power supply, a mail can be sent to the system administrator describ-

17 SNMP management UPS management information can be sent to the SNMP manager. 18 Telnet connection Settings such as shutdown parameters can be made with the Telnet connection. 19 SYSLOG support UPS management information can be recorded in SYSLOG.

state, so operation details are not lost.

a log.

down.

power supply problem affects only one of the units.

ing the details of the problem.

Page 74

No part or whole of this manual may be reproduced without permission. The contents of this manual are subject to change without notice.

OMRON Corporation

K1L-D-05095G

Omron Powli BU50SW, Powli BU100SW, Powli BU150SW, Powli BU75SW Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
