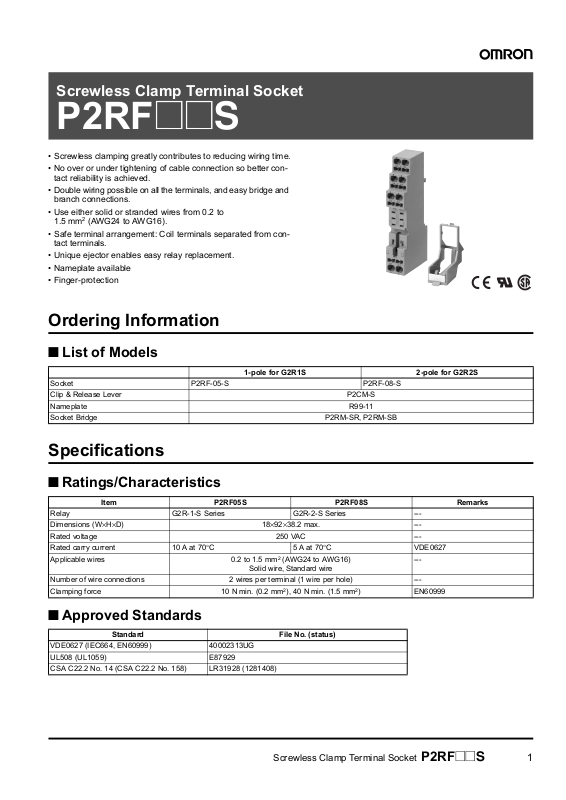

Omron P2RF S DATASHEET

Screwless Clamp Terminal Socket

P2RF@@S

• Screwless clamping greatly contributes to reducing wiring time.

• No over or under tightening of cable connection so better con­tact reliability is achieved.

• Double wiring possible on all the terminals, and easy bridge and
branch connections.

• Use either solid or stranded wires from 0.2 to

• Safe terminal arrangement: Coil terminals separated from con-

• Unique ejector enables easy relay replacement.

• Nameplate available

• Finger-protection

Ordering Information

■ List of Models

2

1.5 mm

tact terminals.

(AWG24 to AWG16).

1-pole for G2R1S 2-pole for G2R2S

Socket P2RF-05-S P2RF-08-S

Clip & Release Lever P2CM-S

Nameplate R99-11

Socket Bridge P2RM-SR, P2RM-SB

Specifications

■ Ratings/Characteristics

Item P2RF05S P2RF08S Remarks

Relay G2R-1-S Series G2R-2-S Series ---

Dimensions (W×H×D) 18×92×38.2 max. ---

Rated voltage 250 VAC ---

Rated carry current 10 A at 70°C 5 A at 70°C VDE0627

Applicable wires

Number of wire connections 2 wires per terminal (1 wire per hole) ---

Clamping force

0.2 to 1.5 mm

10 N min. (0.2 mm

2

Solid wire, Standard wire

(AWG24 to AWG16)

2

), 40 N min. (1.5 mm2)

■ Approved Standards

Standard File No. (status)

VDE0627 (IEC664, EN60999) 40002313UG

UL508 (UL1059) E87929

CSA C22.2 No. 14 (CSA C22.2 No. 158) LR31928 (1281408)

---

EN60999

Screwless Clamp Terminal Socket P2RF@@S 1

Dimensions

P2RF-05-S

Standard model

92.0 max.

38.2 max.

36.5 max.

32.6

27.6

22.6

24.5

35.4

16.8 TYP

6 TYP

P2RF-08-S

Option (with ejector and
label attached)

Standard model

18.0 max.

92.0 max.

28.5

32.6

38.2 max.

36.5 max.

32.6

27.6

22.6

(3.4)

24.5

35.4

(5.3)

16.8 TYP

6 TYP

61.3 TYP

Option (with ejector and
label attached)

(5.3)

Option (with ejector
and label attached)

18.0 max.

28.6

32.6

2 Screwless Clamp Terminal Socket P2RF@@S

60.5 TYP

Option (with ejector
and label attached)
