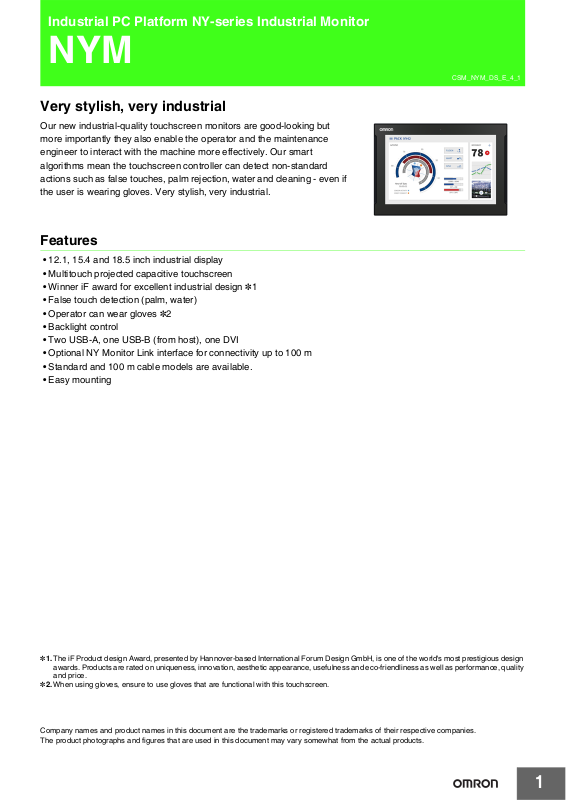

Industrial PC Platform NY-series Industrial Monitor
NYM
Very stylish, very industrial
Our new industrial-quality touchscreen monitors are good-looking but
more importantly they also enable the operator and the maintenance
engineer to interact with the machine more effectively. Our smart
algorithms mean the touchscreen controller can detect non-standard
actions such as false touches, palm rejection, water and cleaning - even if
the user is wearing gloves. Very stylish, very industrial.
Features
• 12.1, 15.4 and 18.5 inch industrial display
• Multitouch projected capacitive touchscreen
• Winner iF award for excellent industrial design *1
• False touch detection (palm, water)
• Operator can wear gloves *2
• Backlight control
• Two USB-A, one USB-B (from host), one DVI
• Optional NY Monitor Link interface for connectivity up to 100 m
• Standard and 100 m cable models are available.
• Easy mounting
CSM_NYM_DS_E_4_1
*1. The iF Product design Award, presented by Hannover-based International Forum Design GmbH, is one of the world's most prestigious design
awards. Products are rated on uniqueness, innovation, aesthetic appearance, usefulness and eco-friendliness as well as performance, quality
and price.
*2. When using gloves, ensure to use gloves that are functional with this touchscreen.
Company names and product names in this document are the trademarks or registered trademarks of their respective companies.
The product photographs and figures that are used in this document may vary somewhat from the actual products.
1
System Configuration
KEYBOARD
DVI-D
USB
USB
MOUSE / TRACKBALL
AUDIO
Industrial Monitor Utility
- User interface to control settings and display details
of connected Industrial Monitors
Industrial Monitor Brightness Utility
- Allows to control brightness of screen backlight
and LEDs of all connected Industrial Monitors
Industrial PC Tray Utility
- Informs you about the current state of the Industrial
Monitor, its related devices and associated software.
NY-series
Industrial Monitor
NY-series
Industrial Box PC
KEYBOARD
100 m
S/FTP Cat. 6A cable
USB
MOUSE / TRACKBALL
AUDIO
Industrial Monitor Industrial Box PC
With a DVI-D interface
NYM
With an NY Monitor Link interface
2
Model Number Structure
NYM @@ W - C1 @ @ @
Series name
NYM: NY- series Industrial Monitor
Display size (diagonal)
12: 12.1 inches
15: 15.4 inches
19: 18.5 inches
Display ratio
W: Wide
* Please consult your OMRON representative for details.
Ordering Information
NY-series Industrial PC Platform
Product name
Industrial Monitor
* 18.5 inch models also available with Nickel Plating front.
An industrial monitor with a touchscreen as the user
interface designed to work in industrial environments
Specifications
Logo
0: OMRON
2: Customized logo *
Built-in options
0: None
6: NY Monitor Link
Material/finish
0: Aluminum, black paint
1: Aluminum, Nickel plating
Frame type
1: Panel mounted
Touchscreen
C: Projected Capacitive Touch type
Interface Display size
12.1 inches NYM12W-C1000
DVI-D
NY Monitor Link
15.4 inches NYM15W-C1000
18.5 inches NYM19W-C1000
12.1 inches NYM12W-C1060
15.4 inches NYM15W-C1060
18.5 inches NYM19W-C1060
NYM
Model
*
*
Optional Hardware
Product Item Specifications Model
Power Supply
USB Type-A to USB Type-B Cables
DVI Cables
Software
Item Descriptions
Industrial Monitor Utility
Industrial Monitor Brightness Utility
Industrial PC Tray Utility
Industrial Monitor API
• Output voltage: 24 VDC
• Push-In Plus terminal blocks
Cable length: 2 m
USB 2.0
Minimum bend radius: 25 mm
Cable length: 5 m
USB 2.0
Minimum bend radius: 25 mm
Cable length: 2 m
Supports DVI-D
Minimum bend radius: 36 mm
Cable length: 5 m
Supports DVI-D
Minimum bend radius: 36 mm
The Industrial Monitor Utility provides a user interface to control settings and display details of connected
Industrial Monitors.
It is pre-installed on the Industrial Box PC and the Industrial Panel PC.
The Industrial Monitor Brightness Utility is a small software utility that allows you to control the brightness
of the screen backlight of all connected Industrial Monitors.
It is pre-installed on the Industrial Box PC and the Industrial Panel PC.
The Industrial PC Tray Utility is a software utility that provides information about the current state of the
Industrial PC, its related devices, and associated software.
It is pre-installed on an Industrial Box PC and the Industrial Panel PC.
The Industrial Monitor API allows programmers to create applications that can control the hardware
features and retrieve information from connected Industrial Monitors.
It is pre-installed on the Industrial Panel PC and Industrial Box PC. Install the Industrial Monitor SDK to
use the Industrial Monitor API on development PCs.
S8VK-S@@@24
FH-VUAB 2M
FH-VUAB 5M
NY000-AC00 2M
NY000-AC00 5M
3
NYM
Specifications
Performance Specifications
Display Specifications
Specifications
1,920 ✕ 1,080 pixels at 60 Hz
(horizontal ✕ vertic al)
Display
panel *1
Touch
Item
Display device TFT LCD
Screen size 12.1 inches 15.4 inches 18.5 inches
Surface treatment Anti glare treatment
Surface hardness Mohs scale: 5 - 6
Resolution 1,280 ✕ 800 pixels at 60 Hz (horizontal ✕ vertical)
Colors 16,770,000 colors
Effective display area 261 ✕ 163 mm (horizontal ✕ vertical) 331 ✕ 207 mm (horizontal ✕ vertical) 409 ✕ 230 mm (horizontal ✕ vertical)
View angles Left: 60°, Right: 60°, Top: 60°, Bottom: 60° Left: 89°, Right: 89°, Top: 89°, Bottom: 89°
Life 50,000 hours min. *2
Brightness adjustment *3 200 levels
Technology Projected capacitive
Touch resolution Touch accuracy 1.5% (4-5 mm)
Multitouch Up to 5 simultaneous touches
Features Water detection *4, hand palm rejection *5, gloves *6
Life 50,000,000 operations min.
EMC Correct touchscreen operation is possible within allowable EMC immunity conditions
12.1 Inch models 15.4 Inch models 18.5 Inch models
*1. There may be some defective pixels in the display. This is not a fault as long as the numbers of defective light and dark pixels fall within the
following standard range: light and dark pixels 10 or less. (There must not be 3 adjacent light/dark pixels.)
*2. This is the estimated time before brightness is reduced by half at room temperature and humidity.
The life expectancy is drastically shortened if used at high temperatures.
*3. If the brightness is set to very dark, it causes flickering or the screen will be too dark to use.
*4. If water is detected the touch functionality will not be available.
*5. If a palm is detected that specific area is neglected.
*6. The touchscreen can be operated when wearing gloves. Confirm the touchscreen can be operated with gloves before actual operation.
Connector Specifications
Item
Power connector 24 VDC
USB2.0
Type-A
USB2.0
Type-B
DVI-D
connector
NY
Monitor
Link
Number of ports 2
Maximum current 500 mA max.
Maximum cable length 5 m
Number of ports 1-
Maximum cable length 5 m -
Video interface Digital only -
Resolution 1,280 x 800 pixels at 60 Hz
Maximum DVI cable length 5 m -
Video interface - Digital only
Resolution - 1,280 x 800 pixels at 60 Hz
Connector type - RJ45
Cable shielding, type and
max. length
USB data throughput - 280 Mbps max.
NYM12W-C100@ NYM15W-C100@ NYM19W-C1@0@ NYM12W-C106@ NYM15W-C106@ NYM19W-C1@6@
- S/FTP, Cat.6A, 100 m
Electrical Specifications
Item
Rated power supply voltage 24 VDC
Allowable power supply voltage range 19.2 to 28.8 VDC
Grounding method Ground to less than 100 Ω
Inrush current At 24 VDC: 5 A / 10 ms max.
Overvoltage category Meets IEC 61010-2-201: Category II
EMC immunity level IEC 61131-2: Zone B
Power
consumption
Maximum power
consumption
Expansions USB 5 W max (2 x 500 mA at 5 V), included above.
NYM12W-C100@ NYM15W-C100@ NYM19W-C1@0@ NYM12W-C106@ NYM15W-C106@ NYM19W-C1@6@
DVI-D interface NY Monitor Link interface
25 W max. 25 W max. 37 W max. 30 W max. 31 W max. 44 W max.

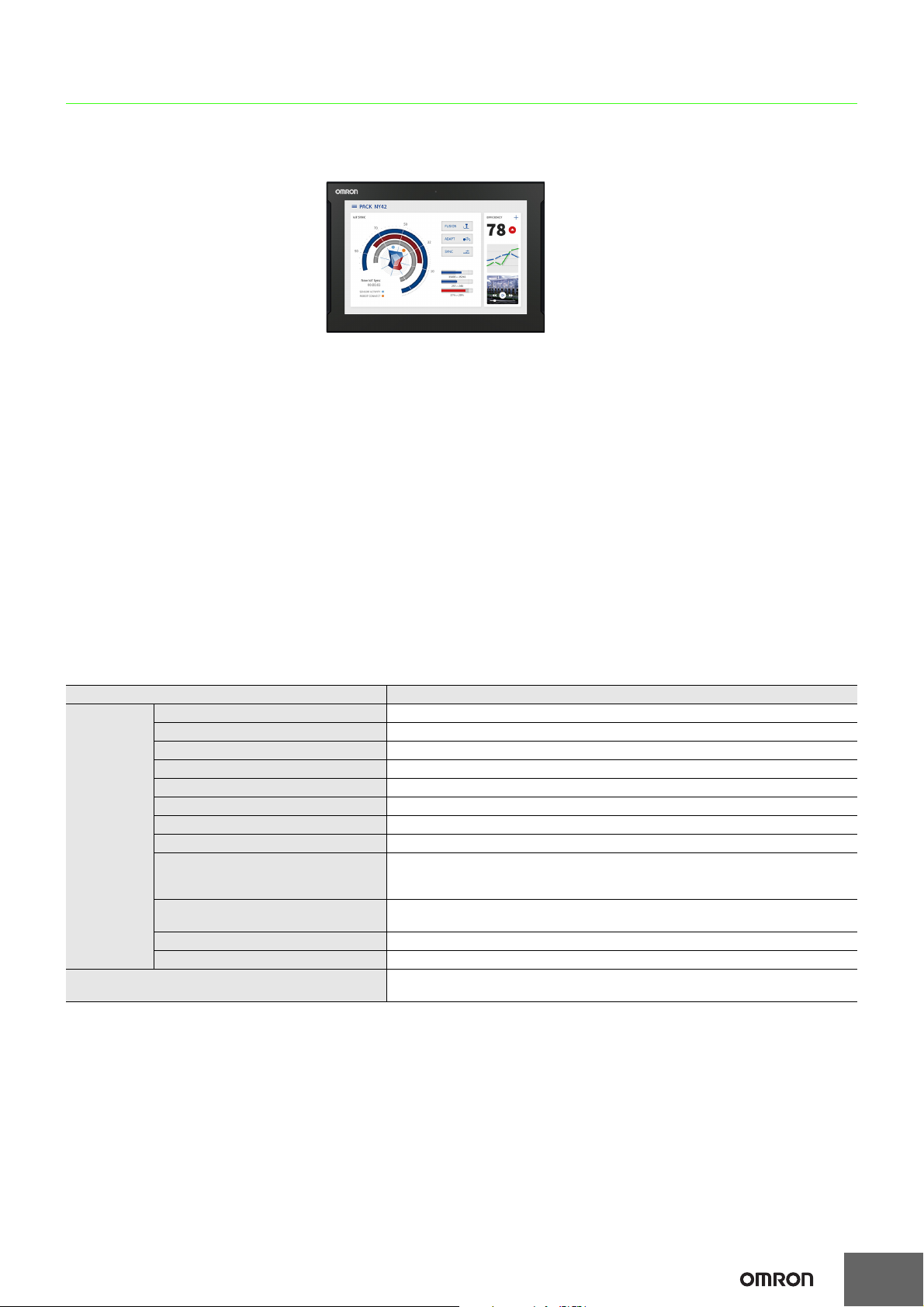

Industrial Monitor
1,920 x 1,080
pixels at 60 Hz
Specifications
-
1,920 x 1,080
pixels at 60 Hz
4
NYM
Display
The high resolution and a high
brightness provide clarity and high
visibility.
Status LED indicator
The Industrial Monitor includes one
LED indicator on the front of the
product.
Backlit Logo indicator
The product logo is provided with a
controllable backlight to increase
visibility.
Unique Customized logo
USB Type-A ports for slave devices
Two USB Type-A ports are available for
connection to external USB devices such as
keyboards, memory sticks, or other
peripheral hardware.
USB Type-B port for host PC
The USB Type-B port supports USB2.0
specifications. This port allows the host PC to
communicate with multiple internal USB
devices within the Industrial Monitor as well
as external devices connected to the two
USB Type-A ports.
DVI-D visual interface
The video interface for the Industrial Monitor
is provided with a DVI-D connector for
connection to the host PC.
Programmable brightness control
Use the host PC to control the Industrial
Monitor's LCD brightness automatically.
Modern Design
Winner of iF design award for
excellent industrial design.
Mechanics
Solid die-cast aluminum front housing
with industrial black coating.
Mounting method
Mounting brackets inside the housing
with spring mechanism for easy built-in.
100 m NY Monitor Link port
Instead of DVI-D and USB-B an NY Monitor
Link is available. NY Monitor Link allows high
speed video and data communication over
100 mtr via standard Ethernet cable.
Multi-touch functionality
Up to 5 simultaneous touches to
increase operator efficiency by
offering a natural user interface.
Components and functions
The Industrial Monitor is intended to be used as a display and touch interface for the Industrial PC Platform variants. The Industrial Monitor allows
the user to interact through touch interactions on the LCD display.
Environmental Specifications
Item Specifications
Ambient operating temperature 0 to 55°C *1
Ambient storage temperature -20 to 70°C *1
Ambient operating humidity 10% to 90% with no condensation *1
Ambient storage humidity 10% to 90% with no condensation *1
Operating atmosphere No corrosive gases
Altitude 2,000 m max.
Operation
environment
Applicable standards *3
*1. See Temperature and Humidity Specifications on page 6 for details.
*2. The Industrial Monitor may not operate properly in locations subjected to oil splashes for extended periods of time.
*3. Refer to the OMRON website (www.ia.omron.com) or contact your OMRON representative for the most recent applicable standards for each
model.
Pollution degree 2 or less: Meets IEC 61010-2-201.
Noise resistance (during operation) Conforms to IEC61000-4-4, 2kV (power lines)
Vibration resistance (during
operation)
Shock resistance (during operation)
Installation method Mount on panel
Degree of protection Front of product: IP65 *2
Conforms to IEC 60068-2-6.
5 to 8.4Hz with 3.5 mm single amplitude and 8.4 to 150 Hz with 9.8 m/s
each in X, Y and Z directions
Conforms to IEC 60068-2-27.
2
147 m/s
EU Directives: EMC Directive 2014/30/EU (EN 61131-2) and RoHS Directive
KC Registration, RCM, cULus, EAC
, 3 times in each X, Y and Z directions
2
for 10 times
5
NYM
0
10
20
30
40
50
60
70
80
90
100
-30 -20 -10 0 10 20 30 40 50 60 70 80
0
10
20
30
40
50
60
70
80
90
100
Humidity [%]
Storage
temperaturehumidity range
Temperature [°C]
Storage
temperature-humidity
range
45° to 90°
0° to 45°
90° to 135°

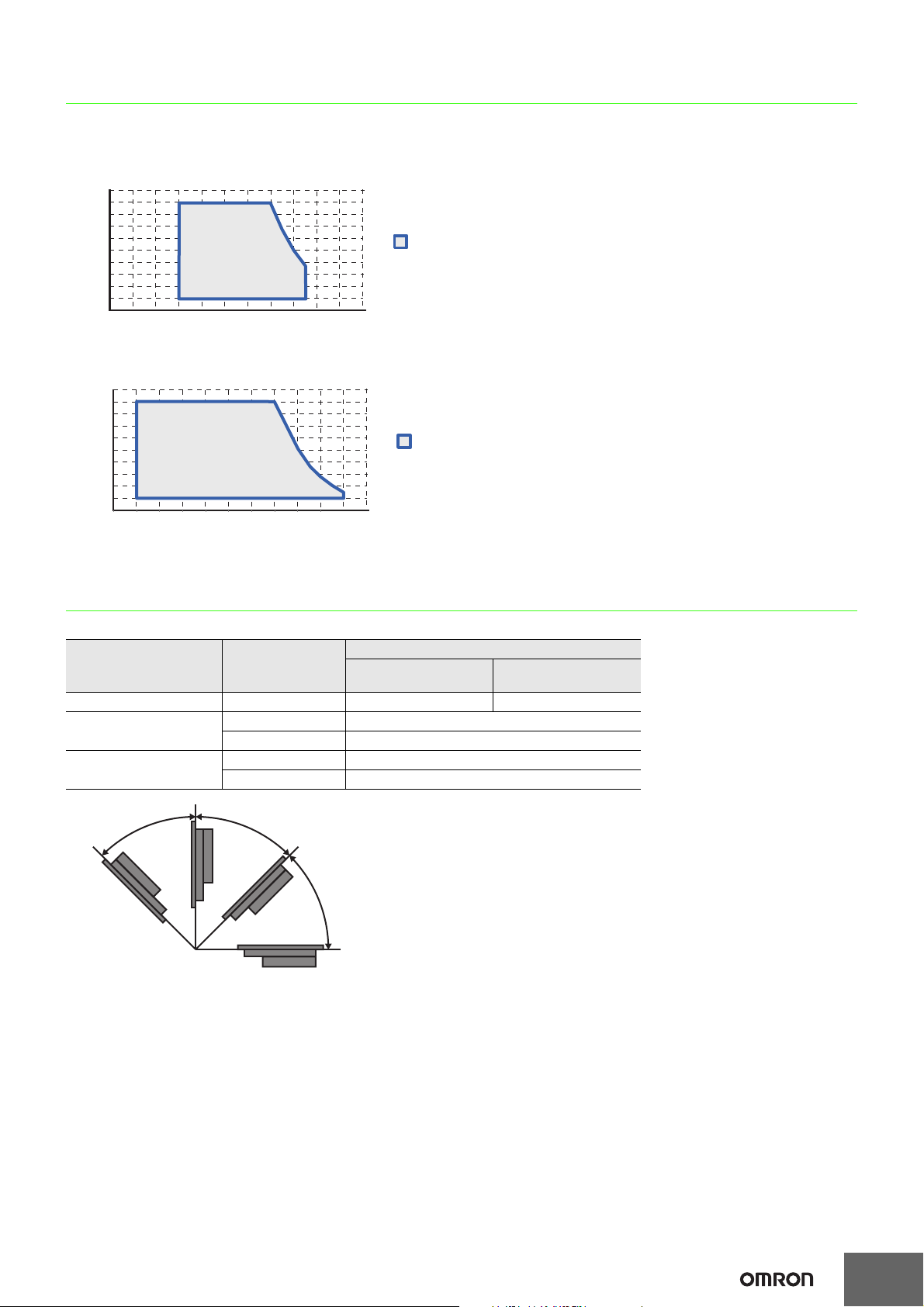

Temperature and Humidity Specifications
The allowed ambient temperature and humidity conditions during operation and storage for the Industrial Monitor are specified in the following
graphs.
• Operate the Industrial Monitor within the following ambient temperature and humidity ranges.
100
90
80
70
60
50
40
30
Humidity [%]
20
10
0
-30 -20 -10 0 10 20 30 40 50 60 70 80
Operating
temperature-humidity
range
Temperature [°C]
• Store the Industrial Monitor within the following ambient temperature and humidity ranges.
100
90
80
70
60
50
40
30
20
10
0
Operating
temperaturehumidity range
Monitor Temperature Specifications
Ambient operating temperature specifications for a Monitor
Configuration
Product Orientation Mounting Angle
With a DVI-D interface
Landscape and Portrait 0° to 45° 0 to 55°C 0 to 50°C
Landscape
Portrait
45° to 90° 0 to 55°C
90° to 135° 0 to 55°C
45° to 90° 0 to 55°C
90° to 135° 0 to 55°C
With an NY Monitor
Link interface
6

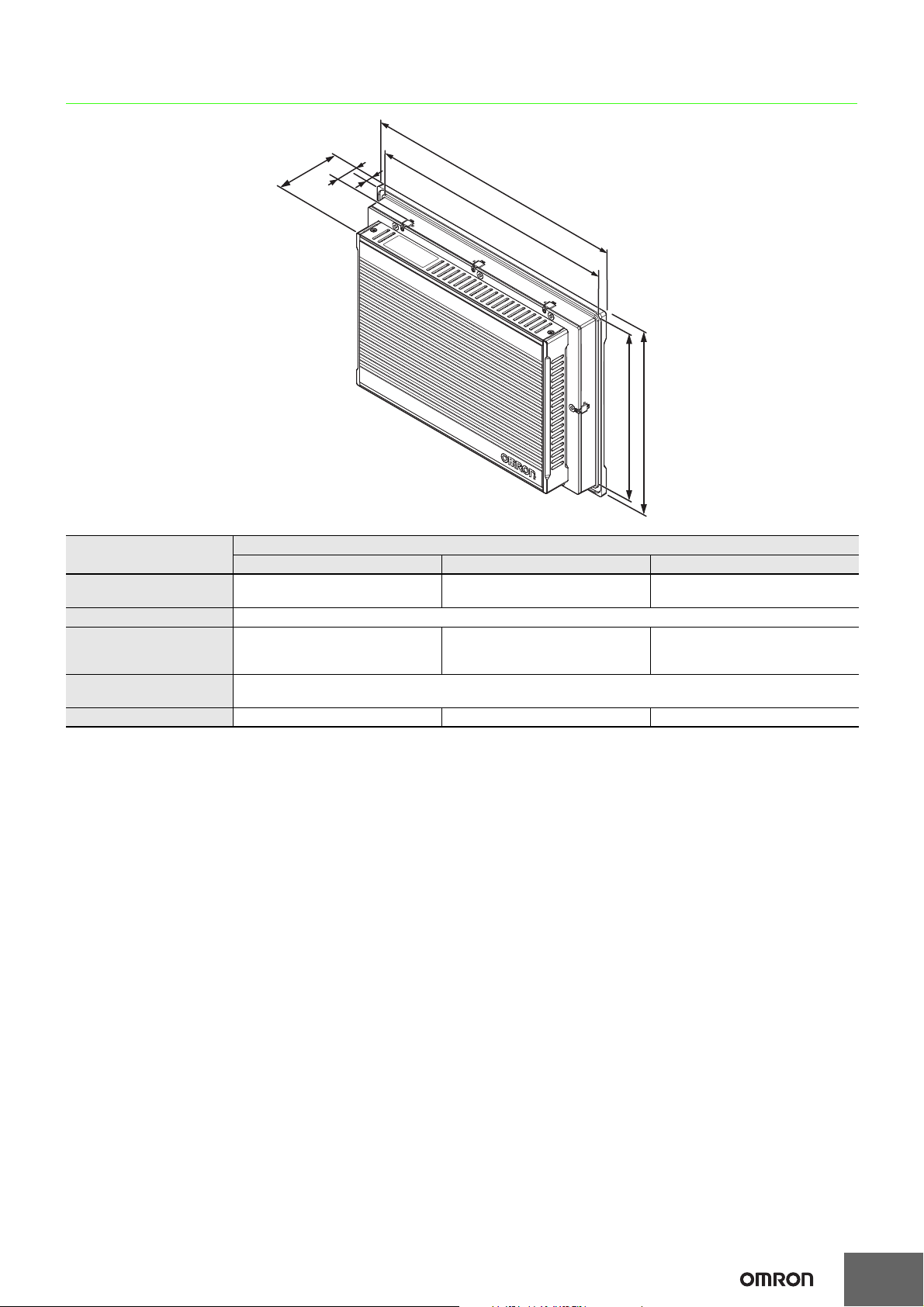

Dimensions
YY1
X
X1
Z
R
Z1
NYM
Item
Panel cutout dimensions
12.1 inch models 15.4 inch models 18.5 inch models
Cutout Width X1 = 314
Cutout Height Y1 = 216
-0 +1
-0 + 1
mm
mm
Cutout Width X1 = 383
Cutout Height Y1 = 259
Specifications
-0 +1
-0 +1
Panel thickness range * Panel thickness range Z1 = 1.6 to 6.0 mm
Dimensions
Monitor thickness
on top of panel
Width X = 332 mm
Height Y = 234 mm
Depth Z = 66 mm
Rim thickness R = 8.0 mm
Width X = 401 mm
Height Y = 277 mm
Depth Z = 66 mm
Weight 3.3 kg 4.3 kg 5.3 kg
* The minimum panel thickness depends on the panel material.
mm
mm
Cutout Width X1 = 463
Cutout Height Y1 = 285
Width X = 481 mm
Height Y = 303 mm
Depth Z = 66 mm
-0 +1
-0 +1
mm
mm
7
Recommended Related Products
NYM
Industrial Box PC
NY-series
The Industrial Box PC is designed to
meet the specific needs of the industrial
environment. Design simplification and
future-proof architecture minimize the
risk of failure.
Industrial Panel PC
NY-series
The Industrial Panel PC intelligently
combines the functionality of the
Industrial Box PC and Industrial
Monitor. No cables are used between the
two components, which ensures optimal
signal distribution and reliable operation
in industrial environments.
Related Manuals
The following manuals are related. Use these manuals for reference.
Manual name Cat. No. Model numbers Application Description
An introduction to the Industrial
Box PC is provided along with the
following information:
•Overview
• Hardware
• Software
• Specifications
• Installation
• Operating Procedures
• Maintenance
An introduction to the Industrial
Monitor is provided along with the
following information:
•Overview
• Hardware
• Software
• Specifications
• Installation
• Operating Procedures
• Maintenance
An introduction to the Industrial
Panel PC is provided along with
the following information:
•Overview
• Hardware
• Software
• Specifications
• Installation
• Operating Procedures
• Maintenance
Industrial Box PC
User’s Manual
Industrial Monitor
User’s Manual
Industrial Panel PC
User’s Manual
W553 NYB@@-@@@@@
W554 NYM@@W-C10@@
W555
NYP@@-
@@@@@-@@@@@@@@
Learning all basic information about
the Industrial Box PC. This includes
introductory information with features,
hardware overview, software
overview, specifications, mounting,
wiring, connecting, operating and
maintaining the Industrial Box PC.
Learning all basic information about
the Industrial Monitor. This includes
introductory information with features,
hardware overview, specifications,
mounting, wiring, connecting,
operating and maintaining the
Industrial Monitor.
Learning all basic information about
the Industrial Panel PC. This includes
introductory information with features,
hardware overview, software
overview, specifications, mounting,
wiring, connecting, operating and
maintaining the Industrial Panel PC.
8

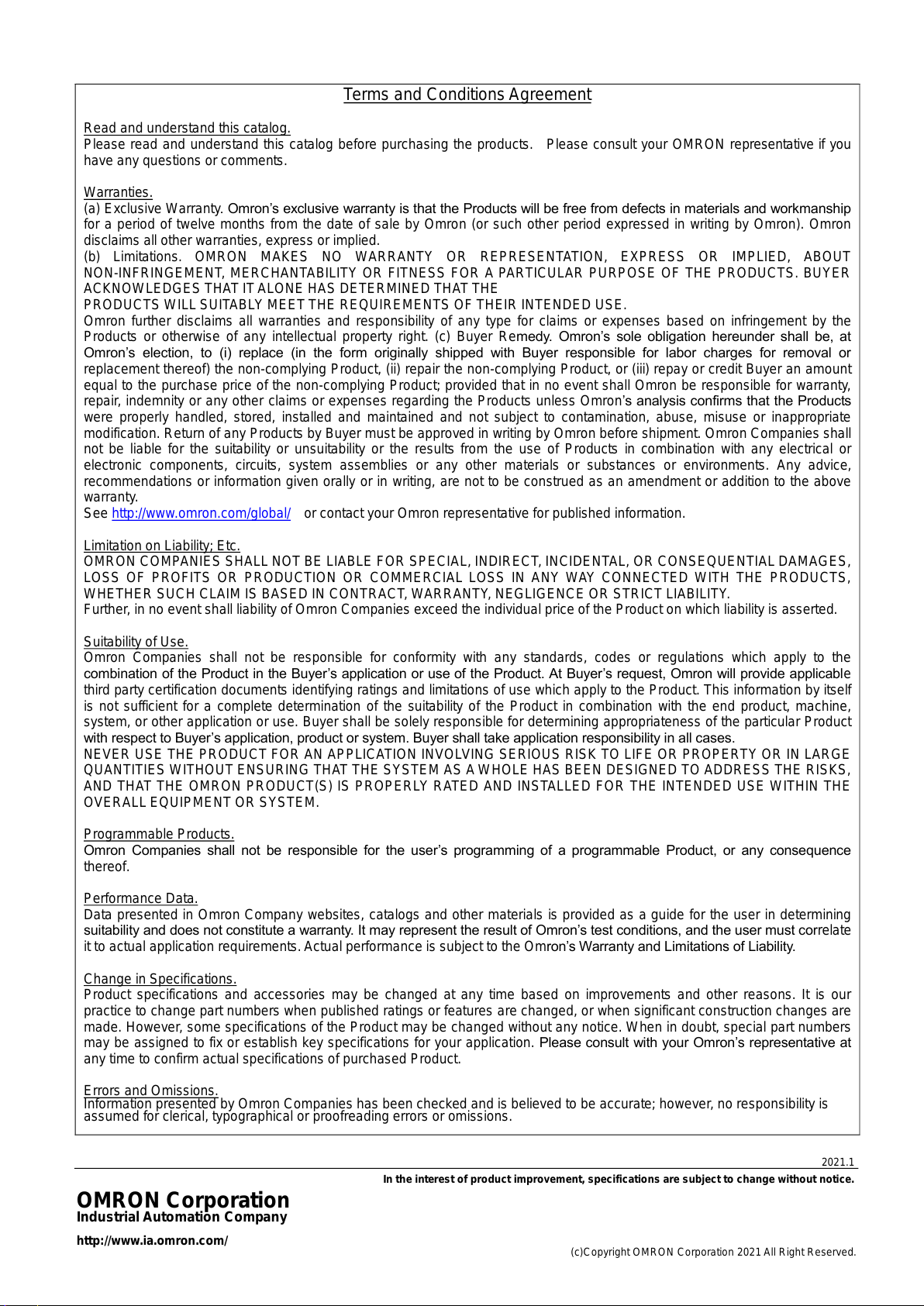

Terms and Conditions Agreement
Read and understand this catalog.
Please read and understand this catalog before purchasing the products. Please consult your OMRON representative if you
have any questions or comments.
Warranties.
(a) Exclusive Warranty. Omron’s exclusive warranty is that the Products will be free from defects in materials and workmanship
for a period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron). Omron
disclaims all other warranties, express or implied.
(b) Limitations. OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, ABOUT
NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OF THE PRODUCTS. BUYER
ACKNOWLEDGES THAT IT ALONE HAS DETERMINED THAT THE
PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR INTENDED USE.
Omron further disclaims all warranties and responsibility of any type for claims or expenses based on infringement by the
Products or otherwise of any intellectual property right. (c) Buyer Remedy. Omron’s sole obligation hereunder shall be, at
Omron’s election, to (i) replace (in the form originally shipped with Buyer responsible for labor charges for removal or
replacement thereof) the non-complying Product, (ii) repair the non-complying Product, or (iii) repay or credit Buyer an amount
equal to the purchase price of the non-complying Product; provided that in no event shall Omron be responsible for warranty,
repair, indemnity or any other claims or expenses regarding the Products unless Omron’s analysis confirms that the Products
were properly handled, stored, installed and maintained and not subject to contamination, abuse, misuse or inappropriate
modification. Return of any Products by Buyer must be approved in writing by Omron before shipment. Omron Companies shall
not be liable for the suitability or unsuitability or the results from the use of Products in combination with any electrical or
electronic components, circuits, system assemblies or any other materials or substances or environments. Any advice,
recommendations or information given orally or in writing, are not to be construed as an amendment or addition to the above
warranty.
See http://www.omron.com/global/ or contact your Omron representative for published information.
Limitation on Liability; Etc.
OMRON COMPANIES SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES,
LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS,
WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, NEGLIGENCE OR STRICT LIABILITY.
Further, in no event shall liability of Omron Companies exceed the individual price of the Product on which liability is asserted.
Suitability of Use.
Omron Companies shall not be responsible for conformity with any standards, codes or regulations which apply to the
combination of the Product in the Buyer’s application or use of the Product. At Buyer’s request, Omron will provide applicable
third party certification documents identifying ratings and limitations of use which apply to the Product. This information by itself
is not sufficient for a complete determination of the suitability of the Product in combination with the end product, machine,
system, or other application or use. Buyer shall be solely responsible for determining appropriateness of the particular Product
with respect to Buyer’s application, product or system. Buyer shall take application responsibility in all cases.
NEVER USE THE PRODUCT FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY OR IN LARGE
QUANTITIES WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS,
AND THAT THE OMRON PRODUCT(S) IS PROPERLY RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE
OVERALL EQUIPMENT OR SYSTEM.
Programmable Products.
Omron Companies shall not be responsible for the user’s programming of a programmable Product, or any consequence
thereof.
Performance Data.
Data presented in Omron Company websites, catalogs and other materials is provided as a guide for the user in determining
suitability and does not constitute a warranty. It may represent the result of Omron’s test conditions, and the user must correlate
it to actual application requirements. Actual performance is subject to the Omron’s Warranty and Limitations of Liability.
Change in Specifications.
Product specifications and accessories may be changed at any time based on improvements and other reasons. It is our
practice to change part numbers when published ratings or features are changed, or when significant construction changes are
made. However, some specifications of the Product may be changed without any notice. When in doubt, special part numbers
may be assigned to fix or establish key specifications for your application. Please consult with your Omron’s representative at
any time to confirm actual specifications of purchased Product.
Errors and Omissions.
Information presented by Omron Companies has been checked and is believed to be accurate; however, no responsibility is
assumed for clerical, typographical or proofreading errors or omissions.
2021.1
OMRON Corporation
Industrial Automation Company
http://www.ia.omron.com/
In the interest of product improvement, specifications are subject to change without notice.
(c)Copyright OMRON Corporation 2021 All Right Reserved.
Loading...
