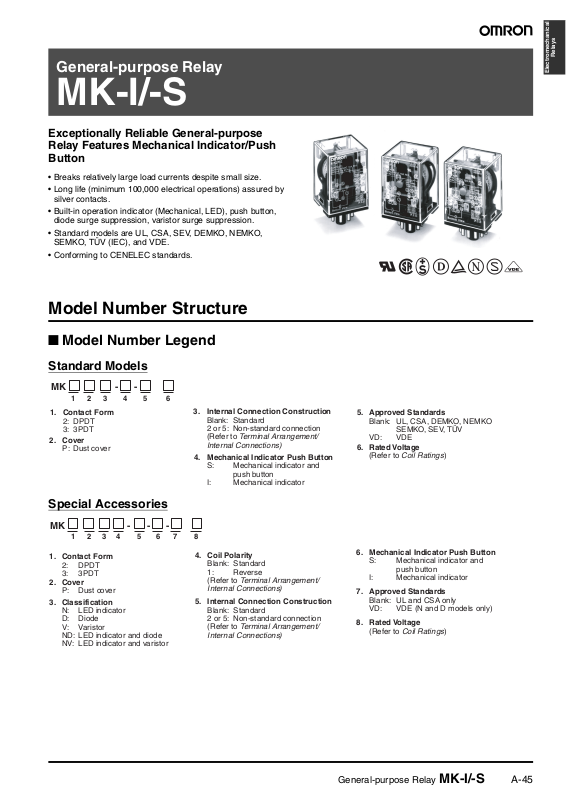

General-purpose Relay
MK-I/-S
Exceptionally Reliable General-purpose
Relay Features Mechanical Indicator/Push
Button
• Breaks relatively large load currents despite small size.
• Long life (minimum 100,000 electrical operations) assured by
silver contacts.
• Built-in operation indicator (Mechanical, LED), push button,
diode surge suppression, varistor surge suppression.
• Standard models are UL, CSA, SEV, DEMKO, NEMKO,
SEMKO, TÜV (IEC), and VDE.
• Conforming to CENELEC standards.
Model Number Structure
Relays
Electromechanical
■ Model Number Legend
Standard Models
MK - -
1 23 4 56
1. Contact Form
2: DPDT
3: 3PDT
2. Cover
P: Dust cover
Special Accessories
MK - - -
1 234 5678
1. Contact Form
2: DPDT
3: 3PDT
2. Cover
P: Dust cover
3. Classification
N: LED indicator
D: Diode
V: Varistor
ND: LED indicator and diode
NV: LED indicator and varistor
3. Internal Connection Construction
Blank: Standard
2 or 5: Non-standard connection
(Refer to Terminal Arrangement/
Internal Connections)
4. Mechanical Indicator Push Button
S: Mechanical indicator and
push button
I: Mechanical indicator
4. Coil Polarity
Blank: Standard
1: Reverse
(Refer to Terminal Arrangement/
Internal Connections)
5. Internal Connection Construction
Blank: Standard
2 or 5: Non-standard connection
(Refer to Terminal Arrangement/
Internal Connections)
5. Approved Standards
Blank: UL, CSA, DEMKO, NEMKO
SEMKO, SEV, TÜV
VD: VDE
6. Rated Voltage
(Refer to Coil Ratings)
6. Mechanical Indicator Push Button
S: Mechanical indicator and
push button
I: Mechanical indicator
7. Approved Standards
Blank: UL and CSA only
VD: VDE (N and D models only)
8. Rated Voltage
(Refer to Coil Ratings)
General-purpose Relay MK-I/-S A-45
Page 2
Ordering Information
■ List of Models
Type Terminal Contact
Standard Plug-in DPDT Standard MK2P-I MK2P-S AC (~), DC (=) UL, CSA, SEV,
LED Indicator
(see note 2)
Diode
(see note 2)
Varistor DPDT Standard MK2PV-I MK2PV-S AC (~)UL, CSA
VDE approved DPDT Standard MK2P-I-VD MK2P-S-VD AC (~), DC (=) UL, CSA, SEV,
LED Indicator
VDE approved
Diode
VDE approved
form
3PDT Standard MK3P-I MK3P-S
DPDT Standard MK2PN@-I MK2PN@-S AC (~), DC (=)UL, CSA
3PDT Standard MK3PN@-I MK3PN@-S
DPDT Standard MK2PD@-I MK2PD@-S DC (=)UL, CSA
3PDT Standard MK3PD@-I MK3PD@-S
3PDT Standard MK3PV-I MK3PV-S
3PDT Standard MK3P-I-VD MK3P-S-VD
DPDT Standard MK2PN-I-VD MK2PN-S-VD AC (~), DC (...) UL, CSA, VDE
3PDT Standard MK3PN-I-VD MK3PN-S-VD
DPDT Standard MK2PD-I-VD MK2PD-S-VD DC (...) UL, CSA, VDE
3PDT Standard MK3PD-I-VD MK3PD-S-VD
Internal
connection
(see note 3)
Non-standard MK2P2-I MK2P2-S
Non-standard MK3P2-I
Non-standard MK2PN@-2-I MK2PN@-2-S
Non-standard MK3PN@-2-I
Non-standard MK2PD@-2-I MK2PD@-2-S
Non-standard MK3PD@-2-I
Non-standard MK2PV-2-I MK2PV-2-S
Non-standard MK3PV-2-I
Non-standard MK2P2-I-VD MK2P2-S-VD
Non-standard MK3P2-I-VD MK3P5-
Non-standard MK2PN-2-I-VD MK2PN-2-S-VD
Non-standard MK3PN-2-I-VD MK3PN-2-S-VD
Non-standard MK2PD-2-I-VD MK2PD-2-S-VD
Non-standard MK3PD-2-I-VD MK3PD-2-S-VD
With mechanical
indicator
MK3P5-I
MK3PN@-5-I
MK3PD@-5-I
MK3PV-5-I
I-VD
MK3PN-5-I-VD MK3PN-5-S-VD
MK3PD-5-I-VD MK3PD-5-S-VD
With mechanical
indicator and
pushbutton
MK3P2-S
MK3P5-S
MK3PN@-2-S
MK3PN@-5-S
MK3PD@-2-S
MK3PD@-5-S
MK3PV-2-S
MK3PV-5-S
MK3P2-S-VD
MK3P5-S-VD
Coil ratings Approved
standards
DEMKO, NEMKO, SEMKO,
TÜV
DEMKO, NEMKO, SEMKO,
TÜV,
VDE
Note: 1. When ordering, add the rated voltage to the model number. Rated voltages are given in the coil ratings table in Specifications.
Example: MK3P5-S 230 VAC
Rated voltage
2. This DC coil comes in two types: standard coil polarity and reversed coil polarity. Refer to

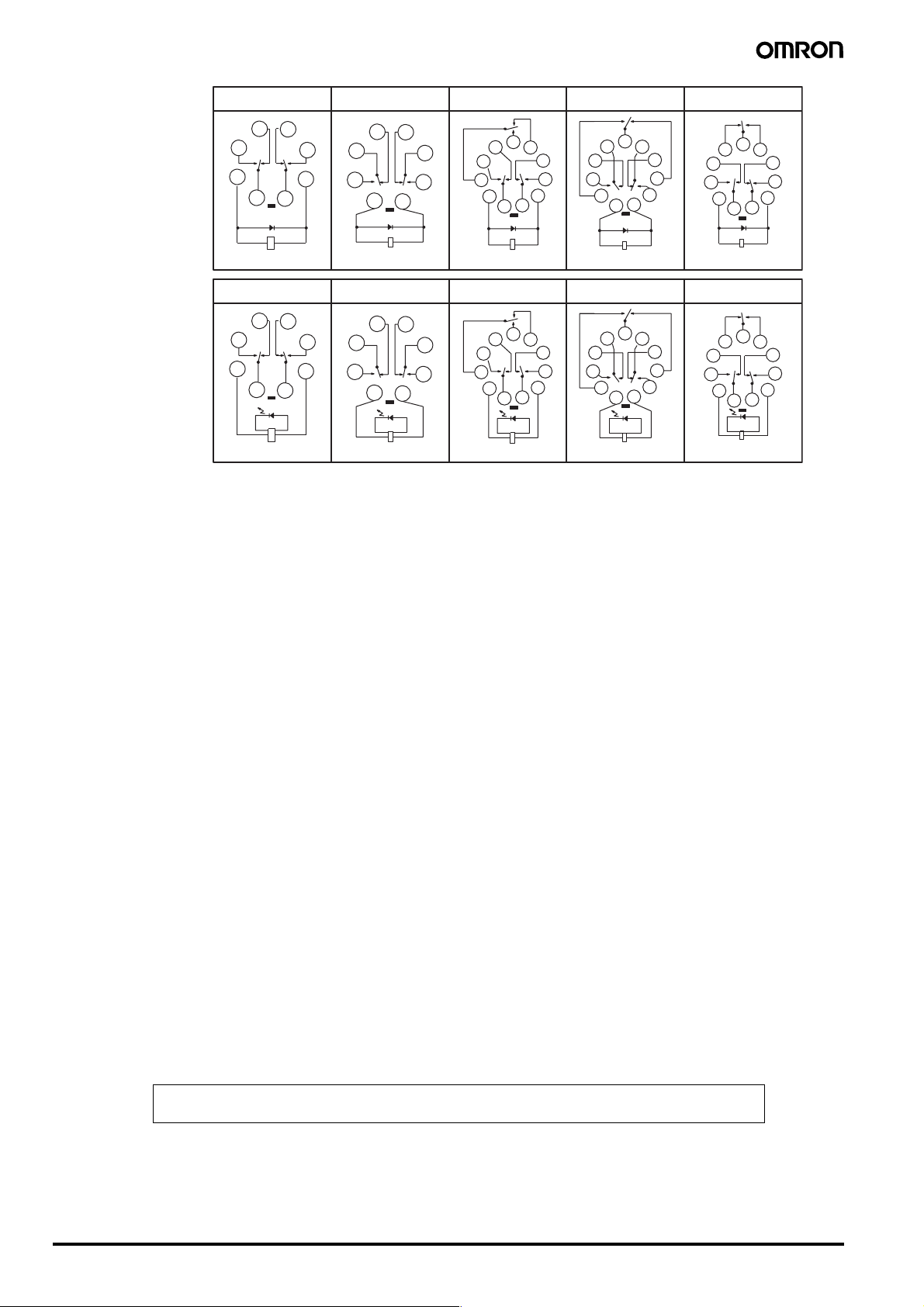

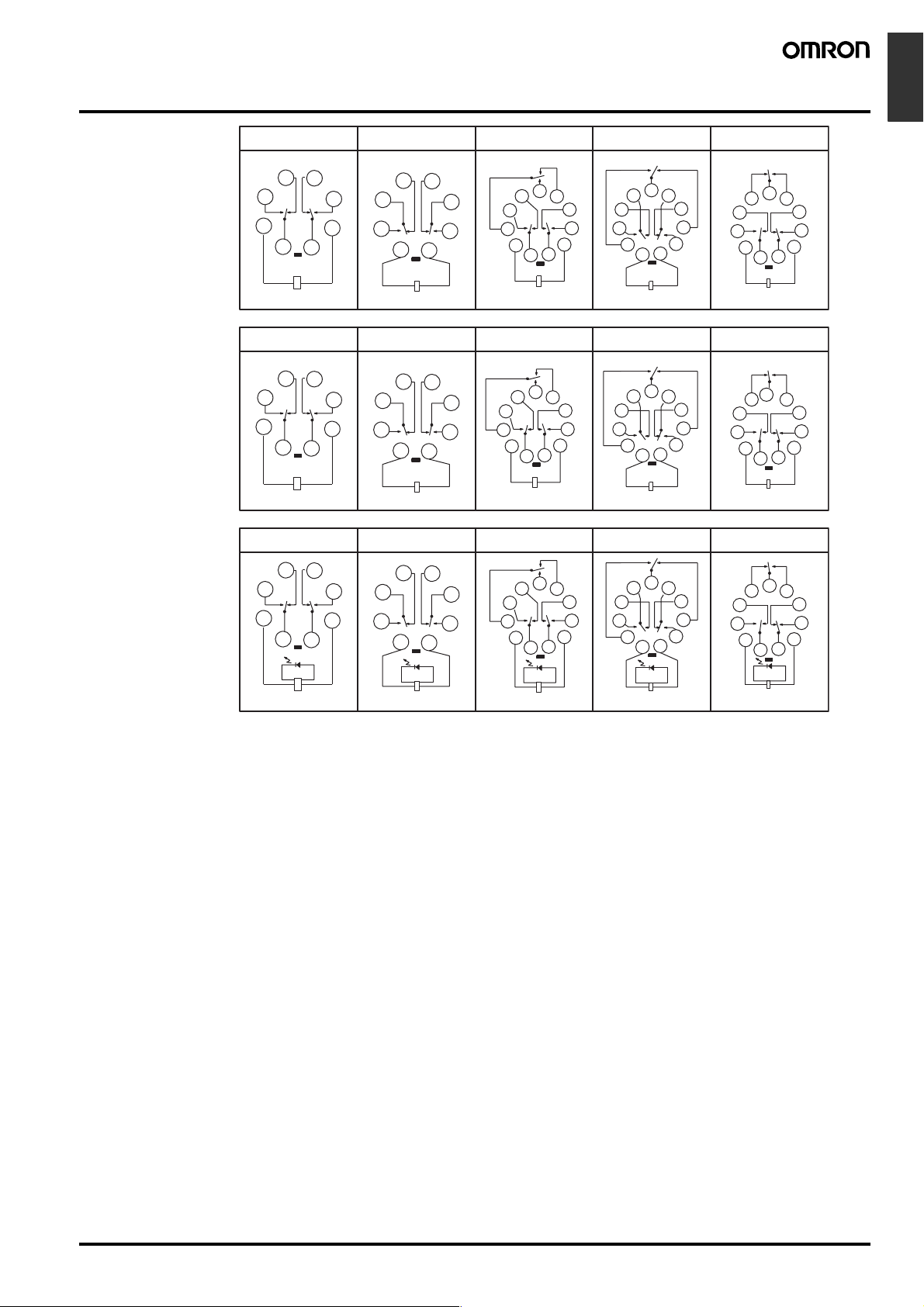

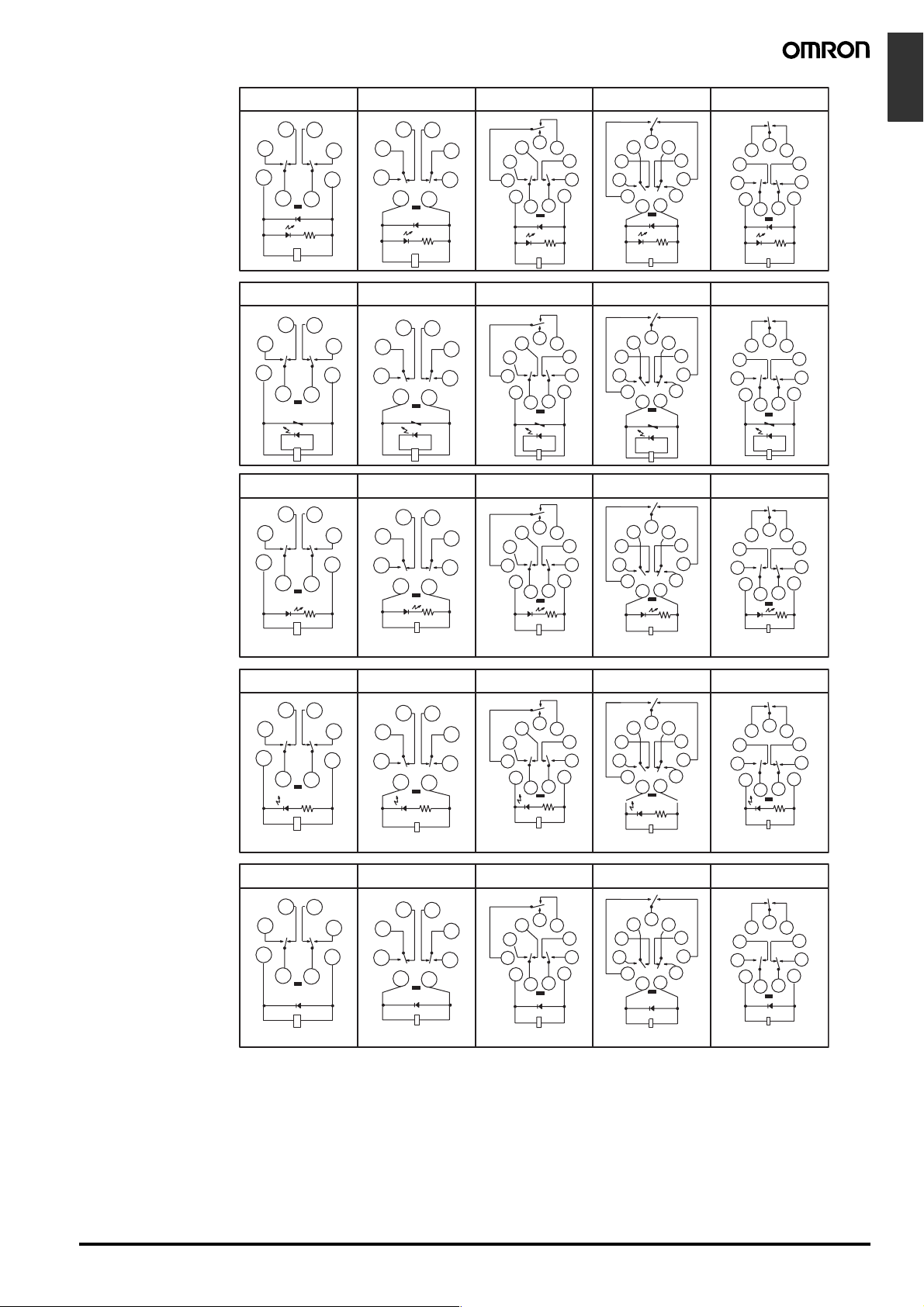

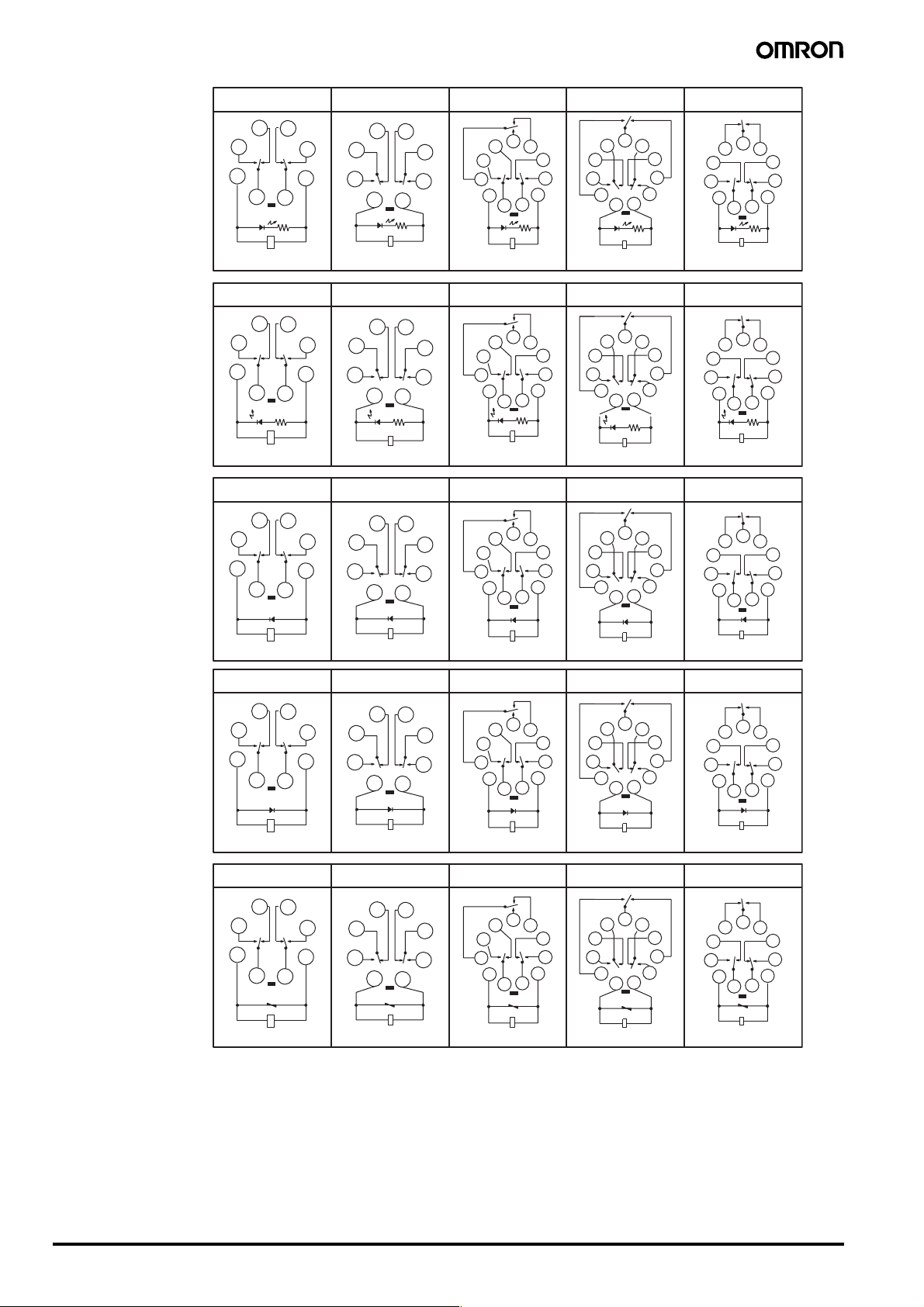

Terminal Arrangement/Internal Connections.
Example: MK2PN1-I 24 VDC
3. Refer to Terminal Arrangement/Internal Connections for non-standard internal connection.
4. The gold plating thickness depends on the request.
Example: MK3P-I AP3 24 VAC
Reverse polarity
Gold plating thickness: 3 µm
■ Accessories (Order Separately)
Item Model
Track-mounted
Socket
Hold-down Clip PFC-A1
A-46 General-purpose Relay MK-I/-S
8-pin type PF083A-E
11-pin type PF113A-E
Page 3
Specifications
■ Coil Ratings
UL, CSA, DEMKO, NEMKO, SEMKO, SEV, TÜV
Relays
Electromechanical
Rated voltage Rated current Coil resistance Must operate
60 Hz 50 Hz
AC
(~)
DC
(=)
6 V 360 mA 404 mA 3.9 Ω 80% max. of rated
12 V 180 mA 202 mA 16.9 Ω
24 V 88.0 mA 98.0 mA 62.0 Ω
50 V 39.0 mA 46.3 mA 330 Ω
100 V 24.8 mA 28.4 mA 1,010 Ω
110 V 21.0 mA 24.7 mA 1,240 Ω
120 V 18.0 mA 20.2 mA 1,520 Ω
200 V 12.1 mA 14.2 mA 4,520 Ω
220 V 11.0 mA 12.9 mA 5,130 Ω
230 V 10.5 mA 12.3 mA 6,170 Ω
240 V 9.2 mA 10.3 mA 6,450 Ω
6 V 255 mA 23.5 Ω 15% min. of rated
12 V 126 mA 95 Ω
24 V 56 mA 430 Ω
48 V 29.5 mA 1,630 Ω
100 V 14.7 mA 6,800 Ω
110 V 15.1 mA 7,300 Ω
voltage
voltage
Must release
voltage
30% min. of rated
voltage
voltage
Max. voltage Power
90% to110% of
rated voltage
consumption
Approx. 2.3 VA (at
60 Hz)
Approx. 2.7 VA
(at 50 Hz)
Approx. 1.5 W
VDE
Rated voltage Rated current Coil resistance Must operate
50 Hz 60 Hz
AC
(~)
DC
(=)
Note: 1. The rated current and coil resistance are measured at a coil temperature of 23°C with tolerances of +15%/−20% for AC rated current and
6 V 380 mA 325 mA 4.4 Ω 80% max. of rated
12 V 175 mA 145 mA 19.0 Ω
24 V 91.0 mA 76.5 mA 70.7 Ω
50 V 42.0 mA 36.0 mA 330 Ω
100 V 24.0 mA 20.5 mA 1,150 Ω
110 V 21.5 mA 18.0 mA 1,400 Ω
120 V 20.0 mA 17.0 mA 1,600 Ω
200 V 11.2 mA 9.4 mA 5,110 Ω
220 V 10.2 mA 8.7 mA 5,800 Ω
230 V 9.6 mA 8.1 mA 6,990 Ω
240 V 9.4 mA 7.9 mA 7,400 Ω
6 V 225 mA 26.7 Ω 15% min. of rated
12 V 116 mA 107 Ω
24 V 56.0 mA 440 Ω
48 V 29.0 mA 1,660 Ω
100 V 13.1 mA 7,660 Ω
110 V 12.5 mA 8,720 Ω
±15% for DC coil resistance.
2. Performance characteristic data are measured at a coil temperature of 23°C.
3. ~ indicates AC and = indicates DC (IEC417 publications).
4. For 200 VDC applications, a 100-VDC Relay is supplied with a fixed 6.8 kΩ, 30 W resistor. Be sure to connect the resistor in series with
the coil.
5. For models with the LED indicator built in, add an LED current of approximately 0 through 5 mA to the rated current.
voltage
voltage
Must release
voltage
30% min. of rated
voltage
voltage
Max. voltage Power
90% to110% of
rated voltage
consumption
Approx. 2.0 VA (at
60 Hz)
Approx. 2.4 VA (at
50 Hz)
Approx. 1.3 W
General-purpose Relay MK-I/-S A-47
Page 4
■ Contact Ratings
Load Resistive load
(cosφ = 1)
Contact mechanism Single
Contact material Ag
Rated load 10 A at 250 VAC
10A at 28 VDC
Rated carry current 10 A
Max. switching voltage 250 VAC, 250 VDC
Max. switching current 10 A
Max. switching power 2,500 VA, 280 W 1,750 VA
Inductive load
(cosφ = 0.4)
7 A at 250 VAC
■ Characteristics
Contact resistance 50 mΩ max.
Operate time AC: 20 ms max. DC: 30 ms max.
Release time 20 ms max.
Max. operating frequency Mechanical:18,000 operations/hr
Insulation resistance 100 MΩ min. (at 500 VDC)
Dielectric strength 2,500 VAC, 50/60 Hz for 1 min between coil and contacts;
Vibration resistance Destruction:10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock resistance
Endurance Mechanical:10,000,000 operations min. (at operating frequency of 18,000 operations/hour)
Error rate (reference value) 10 mA at 1 VDC
Ambient temperature Operating:–10°C to 40°C (with no icing or condensation)
Ambient humidity Operating: 5% to 85%
Weight Approx. 85 g
Note: The data shown are initial values.
Electrical:1,800 operations/hr (under rated load)
1,000 VAC, 50/60 Hz for 1 min between contacts of same polarity, terminals of the same polarity;
2,500 VAC, 50/60 Hz fro 1 min between current-carrying parts, non-current-carrying parts, and terminals of opposite polarity
Malfunction:10 to 55 to 10 Hz, 0.5-mm single amplitude (1.0-mm double amplitude)
2
Destruction:1,000 m/s
Malfunction:100 m/s
Electrical:Refer to Engineering Data.
(approx. 100G)
2
(approx. 10G);
A-48 General-purpose Relay MK-I/-S
Page 5
■ Approved Standards
The following ratings apply to all models.
UL 508 (File No. E41515)/CSA 22.2 No.0/14 (File No. LR35535)
Coil ratings Contact ratings Operations
6 to 110 VDC
6 to 240 VAC
SEV, DEMKO, NEMKO
Coil ratings Contact ratings Operations
6 to 110 V=
6 to 240 V~
SEMKO
Coil ratings Contact ratings Operations
6 to 110 V=
6 to 240 V~
TÜV (VDE 0435 Teil 201/05’90, IEC 255 Teil 1-00/’75, EN 60950/’88
(TÜV File No.: R9051410)
10 A, 28 VDC (resistive)
10 A, 250 VAC (resistive)
7 A, 250 VAC (general use)
10 A, 250 V~ (NO) (cosφ = 1)
5 A, 250 V~ (NC) (cosφ = 1)
10 A, 28 V= (NO)
5 A, 28 V= (NC)
7 A, 250 V~ (cosφ = 0.4)
10 A, 250 V~ (NO) (cosφ = 1)
5 A, 250 V~ (NC) (cosφ = 1)
Relays
Electromechanical
100,000 cycles
100,000 cycles
100,000 cycles
Coil ratings Contact ratings Conditions Operations
6, 12, 24, 48, 100
110 V=
6, 12, 24, 50, 100, 110
115, 120, 200, 220
230, 240 V~
10 A, 250 V~ (cosφ = 1)
10 A, 28 V=
7 A, 250 V~ (cosφ = 0.4)
IEC 255-1-00 Item 3.1.4
Pollution Degree 3,
Overvoltage Category II
Pick up class - class 2
Temperature class - class b
VDE (VDE 0435 Teil 201/05’83, IEC 255 Teil 1-00/’75)
(VDE File No.: NR 5340)
Coil ratings Contact ratings Conditions Operations
6, 12, 24, 48, 100
110 V=
6, 12, 24, 50, 100, 110
115, 120, 200, 220
230, 240 V~
10 A, 250 V~ (cosφ = 1)
10 A, 28 V=
7 A, 250 V~ (cosφ = 0.4)
C/250 - class 1, class C 100,000 cycles
100,000 cycles
General-purpose Relay MK-I/-S A-49
Page 6

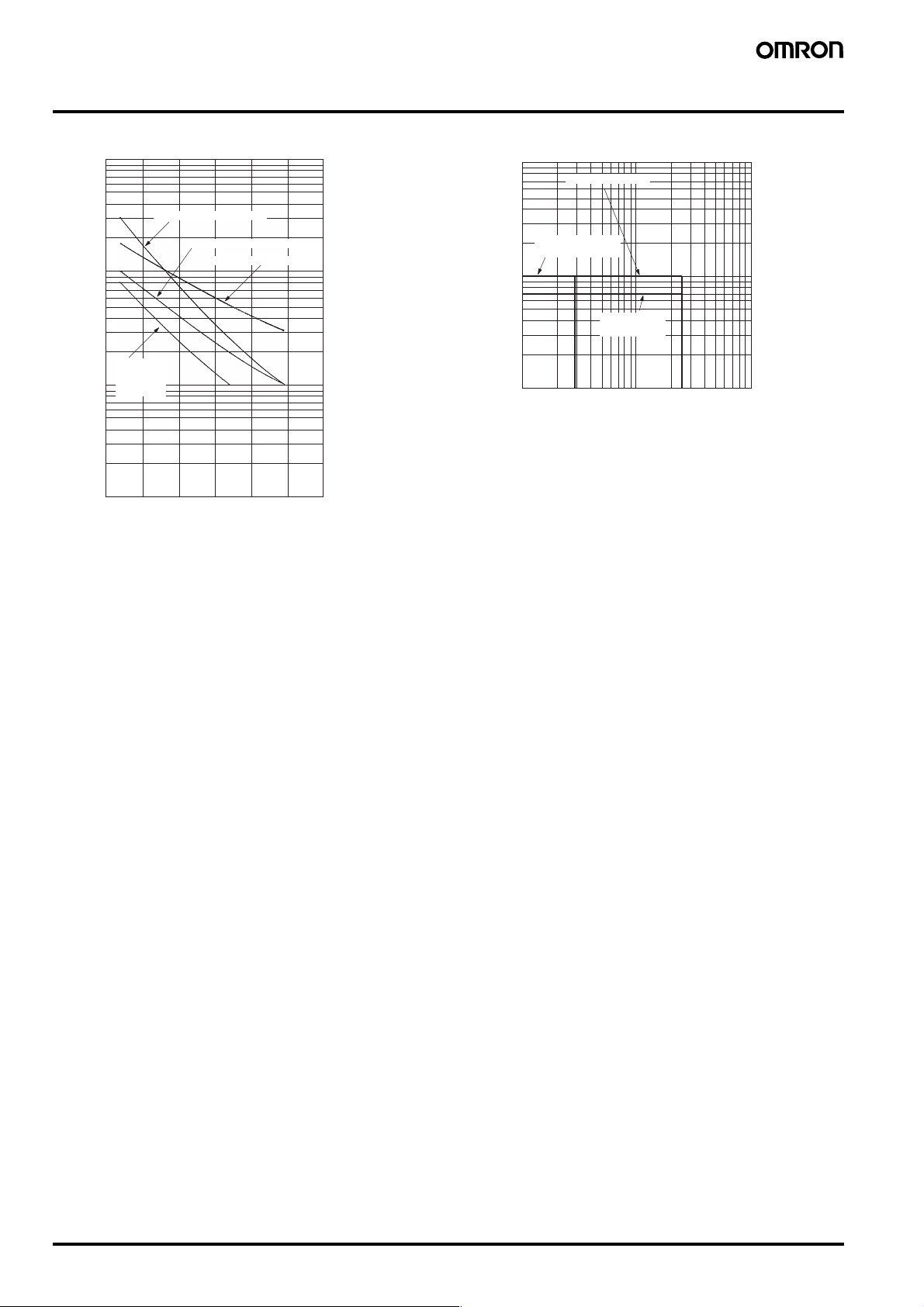

Engineering Data
Electrical Endurance
5,000
3,000
1,000
operations)
500
3
300
100
Endurance (x10
50
30
10
02 4 6 8 1012
28-VDC resistive load
250-VAC resistive load
120-VAC resistive load
250-VAC
inductive
load
Switching current (A)
Maximum Switching Power
100
70
50
30
10
7
5
Switching current (A)
3
1
AC resistive load
DC resistive load
28 VDC max.
10
30 50 70 100 500 700300 1,000
AC inductive
load
Switching voltage (V)
A-50 General-purpose Relay MK-I/-S
Page 7

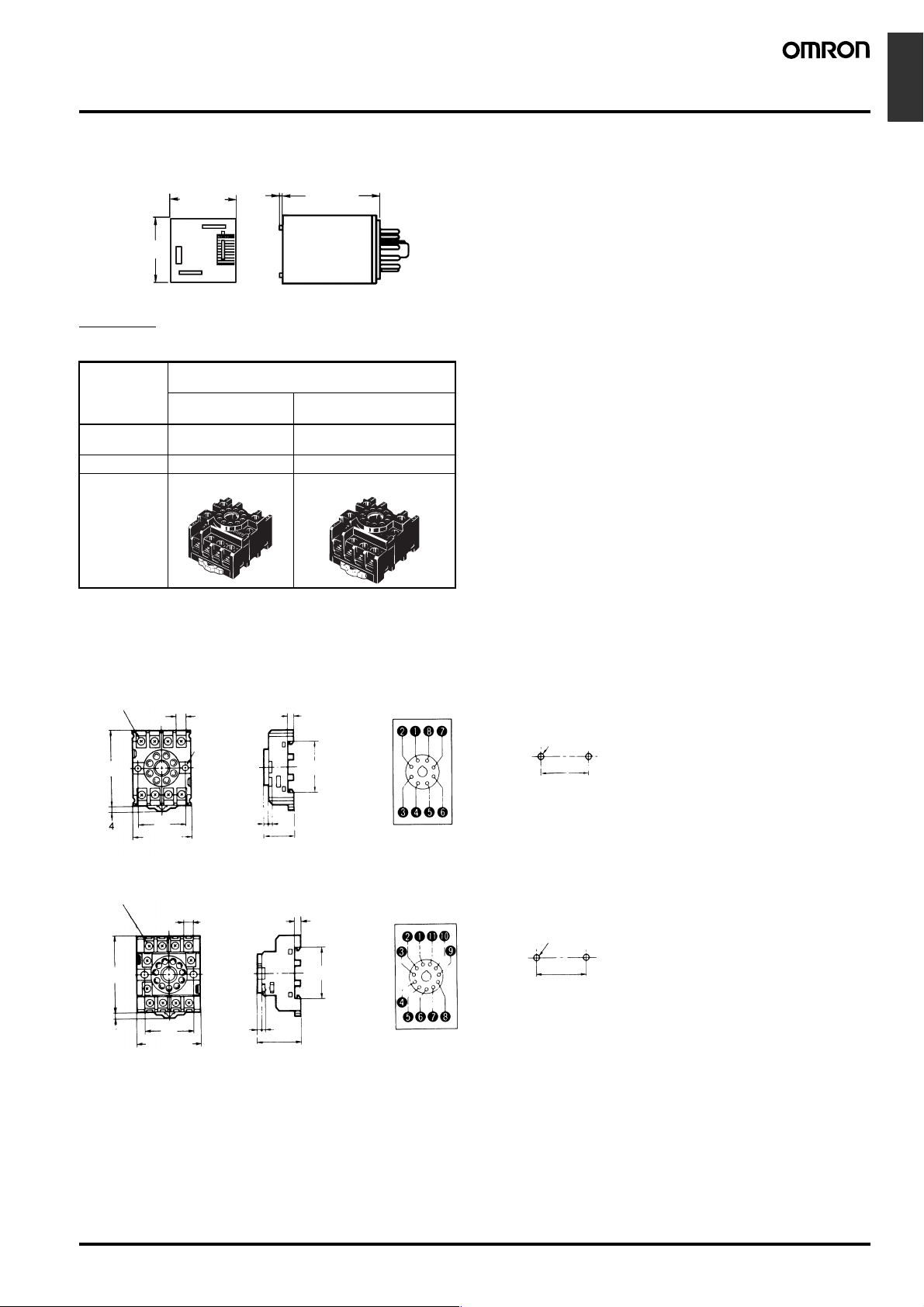

Dimensions
Note: All units are in millimeters unless otherwise indicated.
■ Relays
Relays
Electromechanical
34.5 max.
34.5 max.
0.8
52.5 max.
Sockets
See below for Socket dimensions.
Socket Surface-mounting Socket
Maximum
carry current
10 A 5 A
2 poles PF083A-E PF083A
3 poles PF113A-E PF113A
Note: Use the Surface-mounting Sockets (i.e., finger-protection models) with “-E” at the end of the model number. When using the PF083A and
PF113A, be sure not to exceed the Socket’s maximum carry current of 5 A. Using at a current exceeding 5 A may lead to burning. Round
terminals cannot be used for finger-protection models. Use Y-shaped terminals.
(for track or screw mounting)
Finger-protection
models
---
PF083A-E (Conforming to EN 50022)
Eight, M3.5 x 7 sems
52 max.
41 max.
7
33
3.5
4
35.4
2
21 max.
PF113A-E (Conforming to EN 50022)
Eleven, M3.5 x 7 sems
7
52 max.
4
34
42.8 max.
23.5
31 max.
Terminal Arrangement
4
35.4
Mounting Holes
Two, M4 or two 4.5-dia. holes
33±0.2
Two, M4 or two 4.5-dia. holes
33±0.2
General-purpose Relay MK-I/-S A-51
Page 8

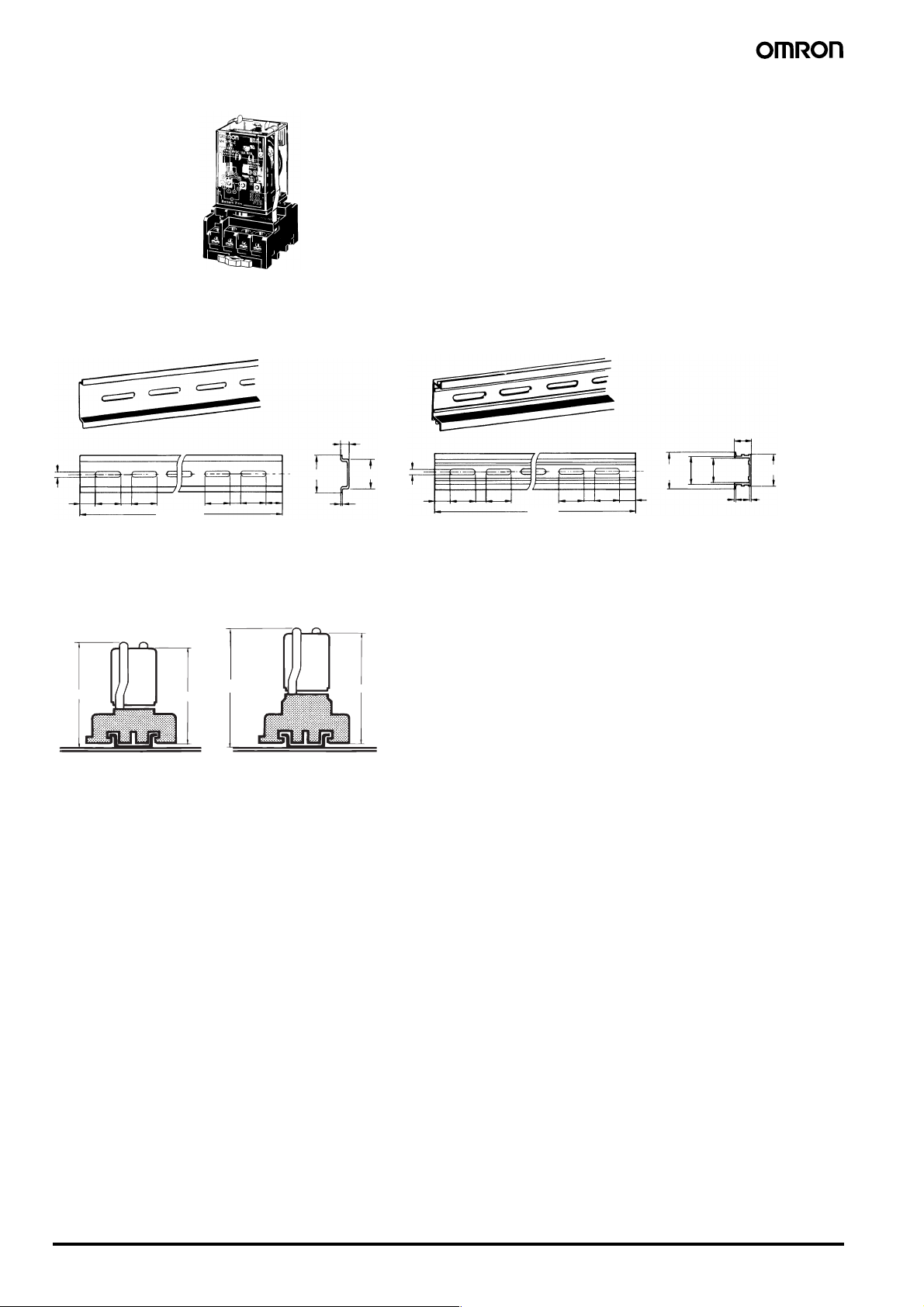

Hold-down Clips
)
)
PFC-A1
Mounting Tracks
PFP-100N, PFP-50N
(Conforming to EN 50022)
*
7.3±0.15
35±0.3
27±0.15
1
4.5
15 25 25 25 25
10
1000 (500)*
* This dimension applies to the PFP-50N Mounting Track. * A total of twelve 25 x 4.5 elliptic holes is provided with six
10
PFP-100N2
(Conforming to EN 50022)
4.5
15 25 25 25 25 15
10
holes cut from each track end at a pitch of 10 mm.
1000±4
10
35±0.3
Mounting Height with Sockets
Surface-mounting Sockets
Three
poles
84.3
PF113A(-E
74.3
87.8
(See
note.)
77.8
(See
note.)
Two
poles
PF083A(-E
Note: PF083A(-E) and PF113A(-E) allow either track or screw mount-
ing.
27
24
1 1.5
16
29.2
A-52 General-purpose Relay MK-I/-S
Page 9
Terminal Arrangement/Internal Connection (Bottom View)
Standard
(AC/DC Coil)
MK2P-I, -S MK2P2-I, -S MK3P-I, -S MK3P2-I, -S MK3P5-I, -S
4
5
3
2
1
6
7
8
4
5
3
2
1
6
7
8
6
5
7
4
3
2
8
9
10
11
1
6
5
7
4
3
2
8
9
10
11
1
6
5
4
3
2
11
1
7
8
9
10
Relays
Electromechanical
VDE-approved Type
(AC/DC Coil)
( ): Dual Numbering
LED Indicator Type
(AC Coil)
MK2P-I-VD, -S-VD MK2P2-I-VD, -S-VD MK3P-I-VD, -S-VD MK3P2-I-VD, -S-VD MK3P5-I-VD, -S-VD
(12)
(14)
(A1)
(22)
4
5
8
(21)
6
7
(24)
(A2)
3
2
1
(11)
(11)
(14)
(12)
(22)
4
5
3
2
1
(A1)
6
7
8
(A2)
(21)
(24)
(14)
(21)
(A1)
(12)
4
3
(22)
6
5
7
(32)
(24)
8
9
(34)
10
2
(11)
(A2)
11
1
(31)
(12)
(14)
4
3
(24)
(11)
5
(21)
2
1
(A1) (A2)
(31)
6
7
(32)
8
9
10
11
(34)
(22)
5
(12)
4
3
(22)
(14) (34)
2
1
(A1)
(11)
6
(21)
11
(31)
(24)
7
(32)
8
9
10
(A2)
MK2PN-I, -S MK2PN-2-I, -S MK3PN-I, -S MK3PN-2-I, -S MK3PN-5-I, -S
4
5
3
2
1
6
7
8
4
5
3
2
1
6
7
8
6
5
7
4
3
2
8
9
10
11
1
6
5
7
4
3
2
8
9
10
11
1
6
5
7
4
3
2
8
9
10
11
1
General-purpose Relay MK-I/-S A-53
Page 10
LED Indicator Type
(DC Coil:
Standard Polarity)
MK2PN-I, -S MK2PN-2-I, -S MK3PN-I, -S MK3PN-2-I, -S MK3PN-5-I, -S
4
5
3
2
1
6
7
8
3
2
5
4
6
7
8
1
6
5
7
4
3
2
8
9
10
11
1
6
5
7
4
3
2
8
9
10
11
1
6
5
4
3
7
2
10
11
1
8
9
LED Indicator Type
(DC Coil:
Reverse Polarity)
Diode Type
(DC Coil:
Standard Polarity)
Diode Type
(DC Coil:
Reverse Polarity)
(+) (−)
(+) (−)
(+)
(+)
(−)
(+) (−)
(−)
MK2PN1-I, -S MK2PN1-2-I, -S MK3PN1-I, -S MK3PN1-2-I, -S MK3PN1-5-I, -S
4
5
3
2
1
6
7
8
(+)(−)
4
3
2
1
(−) (+)
5
6
7
8
6
5
7
4
3
2
(−)
8
9
10
11
1
(+)
6
5
7
4
3
2
(−)
8
9
10
11
1
(+)
6
5
7
4
3
2
(−)
8
9
10
11
1
(+)
MK2PD-I, -S MK2PD-2-I, -S MK3PD-I, -S MK3PD-2-I, -S MK3PD-5-I, -S
4
5
3
2
1
6
7
8
(−)(+)
4
5
3
2
1
(+)
6
7
8
(−)
6
5
7
4
3
2
(+)
8
9
10
11
1
(−)
6
5
7
4
3
2
(+)
8
9
10
11
1
(−)
6
5
7
4
3
2
(+)
8
9
10
11
1
(−)
MK2PD1-I, -S MK2PD1-2-I, -S MK3PD1-I, -S MK3PD1-2-I, -S MK3PD1-5-I, -S
4
5
3
2
1
6
7
8
4
5
3
2
1
6
7
8
6
5
7
4
3
2
8
9
10
11
1
6
5
7
4
3
2
8
9
10
11
1
6
5
7
4
3
2
8
9
10
11
1
Varistor Type
(AC Coil)
(−)
(+)
(−) (+)
(+)
(−)
(−)
(+)
(−) (+)
MK2PV-I, -S MK2PV-2-I, -S MK3PV-I, -S MK3PV-2-I, -S MK3PV-5-I, -S
4
5
3
2
1
6
7
8
4
5
3
2
1
6
7
8
6
5
7
4
3
2
8
9
10
11
1
6
5
7
4
3
2
8
9
10
11
1
6
5
4
3
7
2
10
11
1
8
9
A-54 General-purpose Relay MK-I/-S
Page 11
LED Indicator and
Diode Type
(DC Coil)
MK2PND-I, -S MK2PND-2-I, -S MK3PND-I, -S MK3PND-2-I, -S MK3PND-5-I, -S
4
5
3
2
1
6
7
8
4
5
3
2
1
6
7
8
6
5
7
4
3
2
8
9
10
11
1
6
5
7
4
3
2
8
9
10
11
1
6
5
7
4
3
2
8
9
10
11
1
Relays
Electromechanical
LED Indicator and
Varistor Type
(AC Coil)
VDE Approved Type
LED Indicator Type
(DC Coil:
Standard Polarity)
( ): Dual Numbering
VDE Approved Type
LED Indicator Type
(DC Coil:
Reverse Polarity)
(+) (−)
(+)
(−)
(−)
(+)
(+) (−)
(+) (−)
MK2PNV-I, -S MK2PNV-2-I, -S MK3PNV-I, -S MK3PNV-2-I, -S MK3PNV-5-I, -S
4
5
3
2
1
6
7
8
MK2PN-I-VD, -3-VD MK2PN-2-I-VD, -3-VD MK3PN-I-VD, -S-VD MK3PN-2-I-VD, -S-VD MK3PN-5-I-VD, -S-VD
(12) (22)
4
(14)
(A1)
3
2
5
1
8
(21)
(11)
(+) (−)
6
7
(24)
(A2)
MK2PN1-I-VD, -S-VD MK2PN1-2-I-VD, -S-VD MK3PN1-I-VD, -S-VD MK3PN1-2-I-VD, -S-VD MK3PN1-5-I-VD, -S-VD
1
(11)
(22)
4
5
(24)
6
7
(A2)
8
(21)
(+)(−)
(14)
(A1)
(12)
3
2
3
2
(12)
(11)
3
2
(14)
(+) (−)
(12)
(11)
3
(14)
2
(A1)
(−) (+)
(A1)
4
5
6
7
1
8
(22)
4
5
(21)
6
7
(21)
8
(A2)
5
8
(22)
(A2)
7
(24)
(21)
6
(24)
(21)
1
4
1
(14)
(A1)
(14)
(A1)
(12)
(12)
5
4
3
2
5
4
3
2
(11)
(+) (−)
5
4
3
2
1
(11)
(−) (+)
1
1
6
6
(24)
6
(24)
11
11
11
(31)
(31)
7
8
9
10
(22)
7
(32)
8
9
(34)
10
(A2)
(22)
7
(32)
8
9
(34)
10
(A2)
(12)
(14)
(24)
(12)
(14)
(24)
4
3
(11)
4
3
(A1)
(11)
4
3
(A1)
6
5
7
8
9
10
2
11
1
(31)
6
5
7
(32)
(21)
8
(12)
9
(22)
(14)
10
2
(+)
5
2
(−)
(34)
11
1
(A2)
(−)
(31)
6
7
(32)
(21)
8
(12)
9
(22)
(14)
10
(34)
11
1
(A2)
(+)
3
(22)
3
(A1)
(22)
4
3
(A1)
5
4
2
1
5
(21)
4
2
1
(11)
(+) (−)
5
(21)
2
1
(11)
(−) (+)
6
7
8
9
10
11
(24)
6
7
8
9
10
11
(31)
(24)
6
7
8
10
11
(31)
9
(32)
(34)
(A2)
(32)
(34)
(A2)
VDE Approved Type
Diode Type
(DC Coil:
Standard Polarity)
MK2PD-I-VD, -S-VD MK2PD-2-I-VD, -S-VD MK3PD-I-VD, -S-VD MK3PD-2-I-VD, -S-VD MK3PD-5-I-VD, -S-VDS
(22)
4
5
(21)
6
7
1
8
(A2)
(−)
(24)
(21)
(14)
(A1)
(12)
(22)
6
5
7
(32)
(24)
(11)
8
9
(34)
10
11
1
(A2)
(31)
(−)
4
3
2
(+)
(12)
(14)
(24)
(11)
4
3
(A1)
(31)
6
5
7
(32)
(21)
8
9
10
2
(+)
(34)
11
1
(A2)
(−)
(22)
(12)
(14)
(22)
3
(A1)
5
(21)
4
2
1
(11)
(+) (−)
(24)
6
7
10
11
(31)
(14)
(A1)
(12)
3
2
(+)
1
(11)
(22)
4
5
(24)
6
7
(A2)
8
(21)
(−)
(12)
(11)
3
(14)
2
(A1)
(+)
General-purpose Relay MK-I/-S A-55
(32)
8
9
(34)
(A2)
Page 12
VDE Approved Type
Diode Type
(DC Coil:
Reverse Polarity)
MK2PD1-I-VD, -S-VD MK2PD1-2-I-VD, -S-VD MK3PD1-I-VD, -S-VD MK3PD1-2-I-VD, -S-VD MK3PD1-5-I-VD, -S-VD
(12) (22)
4
(14)
3
2
(A1)
1
(11) (21)
(−)
5
(24)
6
7
(A2)
8
(+)
(12)
(11)
3
2
(14)
(A1)
(−) (+)
(22)
4
5
(21)
6
7
1
8
(A2)
(24)
(21)
(14)
(A1)
(12)
3
(22)
6
5
7
(24)
4
2
(11)
(−)
8
9
10
11
1
(A2)
(31)
(+)
(32)
(34)
(12)
(14)
(24)
(11)
4
3
(A1)
(31)
6
5
7
(32)
(21)
8
9
10
2
(−)
(34)
11
1
(A2)
(+)
(22)
(12)
(14)
(A1)
(22)
4
3
2
5
(11)
(−)
1
6
(21)
11
(31)
(+)
(24)
7
8
10
9
(32)
(34)
(A2)
VDE Approved Type
LED Indicator Type
(AC Coil)
MK2PN-I-VD, -S-VD MK2PN-2-I-VD, -S-VD MK3PN-I-VD, -S-VD MK3PN-2-I-VD, -S-VD MK3PN-5-I-VD, -S-VD
(12) (22)
4
(14)
3
2
(A1)
1
(11) (21)
5
(24)
6
7
(A2)
8
(11)
(14)
2
3
(12)
(A1)
(22)
4
5
(21)
6
7
1
8
(A2)
(24)
(21)
(14)
(A1)
(12)
3
(22)
6
5
7
(32)
(24)
4
2
(11)
8
9
(34)
10
11
1
(A2)
(31)
(12)
(14)
(24)
(11)
4
3
(A1)
(31)
6
5
7
(32)
(21)
8
9
10
2
11
(34)
1
(A2)
(22)
(12)
(14)
(A1)
(22)
4
3
6
5
7
(21)
2
1
11
(31)
(11)
10
(24)
8
9
(32)
(34)
(A2)
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
Cat. No. J011-E1-06
In the interest of product improvement, specifications are subject to change without notice.
A-56 General-purpose Relay MK-I/-S
Loading...
