Omron G7L-1A-T, G7L-2A-B, G7L-1A-B, G7L-2A-T, G7L-1A-TJ Datasheet

1

Power Relay G7L

A High-capacity,
High-dielectric-strength Relay
Compatible with Momentary Voltage
Drops

No contact chattering for momentary voltage drops
up to 50% of rated voltage.

Wide-range AC-activated coil that handles 100 to
120 or 200 to 240 VAC at either 50 or 60 Hz.

Miniature hinge for maximum switching power,
particularly for inductive loads.

Flame-resistance materials (UL94V-0-qualifying)
used for all insulation material.

Quick-connect, screw,andPCBterminals, and DIN
track mounting available.

R

CE

Ordering Information

Mounting type Contact form

Quick-connect

terminals

Screw terminals

PCB
terminals

E-bracket

SPST-NO G7L-1A-T G7L-1A-B --­DPST-NO G7L-2A-T G7L-2A-B ---

E-bracket (with test button)

SPST-NO G7L-1A-TJ G7L-1A-BJ --­DPST-NO G7L-2A-TJ G7L-2A-BJ ---

Upper bracket

SPST-NO G7L-1A-TUB G7L-1A-BUB --­DPST-NO G7L-2A-TUB G7L-2A-BUB ---

Upper bracket

SPST-NO G7L-1A-TUBJ G7L-1A-BUBJ ---

(with test button)

DPST-NO G7L-2A-TUBJ G7L-2A-BUBJ ---

PCB mounting

SPST-NO --- --- G7L-1A-P
DPST-NO --- --- G7L-2A-P

Rated coil voltage

Note:

1. When ordering, add the rated coil voltage to the model number.
Example: G7L-1A-T 12 V AC(~)

G7L

G7L

2

Accessories (Order Separately)

Terminals Contact form Model R99-07

E-brackets

P7LF-D DIN
Track
Mounting
Adapter

P7LF-06
Front-con
necting
Socket

Quick-connect

SPST-NO G7L-1A-T Yes Yes Yes

terminals

G7L-1A-TJ Yes Yes Yes

DPST-NO G7L-2A-T Yes Yes Yes

G7L-2A-TJ Yes Yes Yes

Screw terminals

SPST-NO G7L-1A-B Yes Yes No

G7L-1A-BJ Yes Yes No

DPST-NO G7L-2A-B Yes Yes No

G7L-2A-BJ Yes Yes No

Applicable Relay Name Model

G7L-1A-T/G7L-1A-TJ/G7L-1A-B/G7L-1A-BJ E-bracket R99-07
G7L-2A-T/G7L-2A-TJ/G7L-2A-B/G7L-2A-BJ Adapter P7LF-D
G7L-1A-T/G7L-1A-TJ/G7L-2A-T/G7L-2A-TJ Front-connecting Socket P7LF-06
G7L-1A-B/G7L-1A-BJ/G7L-1A-BUB/G7L-1A-BUBJ

G7L-2A-B/G7L-2A-BJ/G7L-2A-BUB/G7L-2A-BUBJ

Cover P7LF-C

Model Number Legend

G7L - -

1234,5

1. Contact Form

1A: SPST-NO
2A: DPST-NO

2. Terminal Shape

T: Quick-connect terminals
P: PCB terminals
B: Screw terminals

3. Mounting Construction

Blank: E-bracket
UB: Upper bracket

4. Special Functions

Blank: Standard mode
J: With test button

5. Rated Coil Voltage

AC: 12, 24, 50, 100 to 120, 200 to 240
DC: 6, 12, 24, 48, 100

Application Examples

!

Compressors for air conditioners and heater switching
controllers.

!

Switching controllers for power tools or motors.

!

Power controllers for water heaters.

!

Power controllers for dryers.

!

Lamp controls, motor drivers, and power supply switching in
copymachines,facsimilemachines, andotherofficeequipment.

!

Lighting controllers.

!

Power controllers for packers or food processing equipment.

!

Magnetron control in microwaves.

G7L

G7L

3

Specifications

Coil Ratings

Rated voltage Rated

current

Coil resistance Must operate

voltage

Must release

voltage

Max. voltage Power

consumption

(approx.)

AC (~)

12 V 142 mA ---

75% max. of

15% min. of

110% of rated

1.7to2.5VA

(

)

24 V 71 mA ---

rated voltage rated voltage voltage (60 Hz)

50 V 34 mA --­100 to 120 V 17.0 to

20.4 mA

--- 75 V 18 V 132 V

200 to 240 V 8.5 to 10.2 mA --- 150 V 36 V 264 v

DC (=)

6V 317 mA 18.9

"

75% max. of

15% min. of

110% of rated

1.9 W

(

)

12 V 158 mA 75

"

rated voltage rated voltage voltage

24 V 79 mA 303

"

48 V 40 mA 1220

"

100 V 19 mA 5260

"

Note:

1. Theratedcurrentand coilresistancearemeasured atacoil temperatureof23#Cwithtolerancesof+15%/--20%for ACratedcurrent
and$15% for DC coil resistance.

2. Performance characteristic data are measured at a coil temperature of 23#C.

3.~indicates AC and=indicates DC (IEC417 publications).

Contact Ratings

Model

G7L-1A-Tj/G7L-1A-B

j

G7L-2A-Tj/G7L-2A-B

j

G7L-1A-P/G7L-2A-P

Resistive load

(cos%=1)

Inductive load

(cos%=0.4)

Resistive load

(cos%=1)

Inductive load

(cos%=0.4)

Resistive load

(cos%=1)

Inductive load

(cos%=0.4)

Rated load

30 A, 220 VAC

(

~

)

25 A, 220 VAC

(

~

)

25 A, 220 VAC

(

~

) 20 A, 220 VAC

(

~

)

Rated carry
current

30 A 25 A 20 A

Max. switching
voltage

250 VAC

(

~

)

Max. switching
current

30 A 25 A 20 A

Max. switching
power

6,600 VAC

(

~

) 5,500 VAC

(

~

) 5,500 VAC

(

~

) 4,400 VAC

(

~

)

Min. permissible
load*

100 mA, 5 VDC

(

=

)

*Note:

P level:

&

60

=0.1x10-6/operation

G7L

G7L

4

Characteristics

Contact resistance

50 m"max.

Operate time

30 ms max.

Release time

30 ms max.

Max. operating frequency

Mechanical: 1,800 operations/hr
Electrical: 1,800 operations/hr (under rated load)

Insulation resistance

1,000 M"min. (at 500 VDC)

Dielectric strength

4,000 VAC min., 50/60 Hz for 1 min between coil and contacts
2,000 VAC, 50/60 Hz for 1 min between contacts of same polarity
2,000 VAC, 50/60 Hz for 1 min between contacts of different polarity (DPST-NO model)

Impulse withstand voltage

10,000 V between coil and contact (with 1.2 x 50's impulse wave)

Vibration resistance

Destruction: 10 to 55 Hz, 1.5-mm double amplitude
Malfunction: 10 to 55 Hz, 1.5-mm double amplitude

Shock resistance

Destruction: 1,000 m/s

2

Malfunction: 100 m/s

2

Life expectancy

Mechanical:1,000,000 operations min. (at 1,800 operations/hr)
Electrical: 100,000 operations min. (at 1,800 operations/hr under rated load)

Ambient temperature

Operating: --25#Cto60#C (with no icing)

Ambient humidity

Operating: 35% to 85%

Weight

Quick-connect terminal models: approx. 90 g
PCB terminal models: approx. 100 g
Screw terminal models: approx. 120 g

Note:

The values given above are initial values.

G7L

G7L

5

Approved by Standards

UL 508, 1950 Recognitions (File No. E41643)
CSA 22.2 No.14 Listings (File No.LR35535)

Model Contact Form Coil ratings Contact ratings Operations

G7L-1A-T

j

G7L-1A-B

j

SPST-NO 12 to 240 VAC

5to220VDC

30 A, 277 VAC (RES)
25 A, 277 VAC (GEN)
30 A, 120 VAC (GEN)

100 x 10

3

1.5 kW, 120 VAC (T)

1.5 HP, 120 VAC

6x10

3

3 HP, 277 VAC 100 x 10

3

(CSA; 6 x 103)

20 FLA/120 LRA, 120 VAC
17 FLA/102 LRA, 265 VAC

30 x 10

3

TV-10, 120 VAC 25 x 10

3

G7L-2A-T

j

G7L-2A-B

j

DPST-NO

25 A, 277 VAC (RES)
25 A, 277 VAC (GEN)
25 A, 120 VAC (GEN)

100 x 10

3

1.3 kW, 120 VAC (T)
1 HP, 120 VAC

6x10

3

2 HP, 277 VAC 100 x 10

3

(CSA; 6 x 103)

20 FLA/120 LRA, 120 VAC
17 FLA/102 LRA, 265 VAC

30 x 10

3

TV-8, 120 VAC 25 x 10

3

G7L-1A-P SPST-NO

20 A, 277 VAC (RES)
20 A, 277 VAC (GEN)
20 A, 120 VAC (GEN)

100 x 10

3

1.5 kW, 120 VAC (T)

1.5 HP, 120 VAC

6x10

3

3 HP, 277 VAC 100 x 10

3

(CSA; 6 x 103)

20 FLA/120 LRA, 120 VAC
17 FLA/102 LRA, 265 VAC

30 x 10

3

TV-10, 120 VAC 25 x 10

3

G7L-2A-P DPST-NO

20 A, 277 VAC (RES)
20 A, 277 VAC (GEN)
20 A, 120 VAC (GEN)

100 x 10

3

1.3 kW, 120 VAC (T)
1 HP, 120 VAC

6x10

3

2 HP, 277 VAC

100 x 10

3

20

FLA

/

120

LRA

, 120

VAC

17 FLA/102 LRA, 265 VAC

30 x 10

3

TV-8, 120 VAC 25 x 10

3

TÜV: File No. R9051158 (VDE 0435, IEC 255, IEC 950, EN60950)

Model Contact Form Coil ratings Contact ratings Operations

G7L-1A-B

j

SPST-NO

6, 12, 24, 48, 100, 110,
200, 220 VDC
12, 24, 50, 100 to 120,

30 A, 240 VAC (cos%=1.0)
25 A, 240 VAC (cos%=0.4)
30 A, 120 VAC (cos%=0.4)

100 x 10

3

G7L-2A-B

j

DPST-NO

,,,

,

200 to 240 VAC

25 A, 240 VAC (cos%=1.0)
25 A, 240 VAC (cos%=0.4)

G7L-1A-T

j

SPST-NO 25 A, 240 VAC (cos%=1.0)

25 A, 240 VAC (cos%=0.4)

G7L-2A-T

j

DPST-NO 25 A, 240 VAC (cos%=1.0)

25 A, 240 VAC (cos%=0.4)

G7L-1A-P SPST-NO 20 A, 240 VAC (cos%=1.0)

20 A, 240 VAC (cos%=0.4)

G7L-2A-P DPST-NO 20 A, 240 VAC (cos%=1.0)

20 A, 240 VAC (cos%=0.4)

G7L

G7L

6

Engineering Data

G7L-1A-T/G7L-1A-B
Maximum Switching Power

Switching voltage (V)

Switching current (A)

Life Expectancy

Switching current (A)

AC resistiveload

AC inductiveload
(cos%=0.4)

220 VAC resistiveload

220 VAC
inductive load
(cos%=0.4)

Life expectancy (x10 operations)

3

G7L-2A-T/G7L-2A-B
Maximum Switching Power

Switching voltage (V)

Life Expectancy

Switching current (A)

G7L-1A-P/G7L-2A-P
Maximum Switching Power

Switching voltage (V)

Life Expectancy

Switching current (A)

Switching current (A)Switching current (A)

AC resistiveload
AC inductiveload
(cos%=0.4)

AC resistiveload
AC inductiveload
(cos%=0.4)

220 VAC resistiveload

220 VAC resistiveload

220 VAC
inductive load
(cos%=0.4)

220 VAC
inductive load
(cos%=0.4)

Life expectancy (x10 operations)

3

Life expectancy (x10 operations)

3

G7L

G7L

7

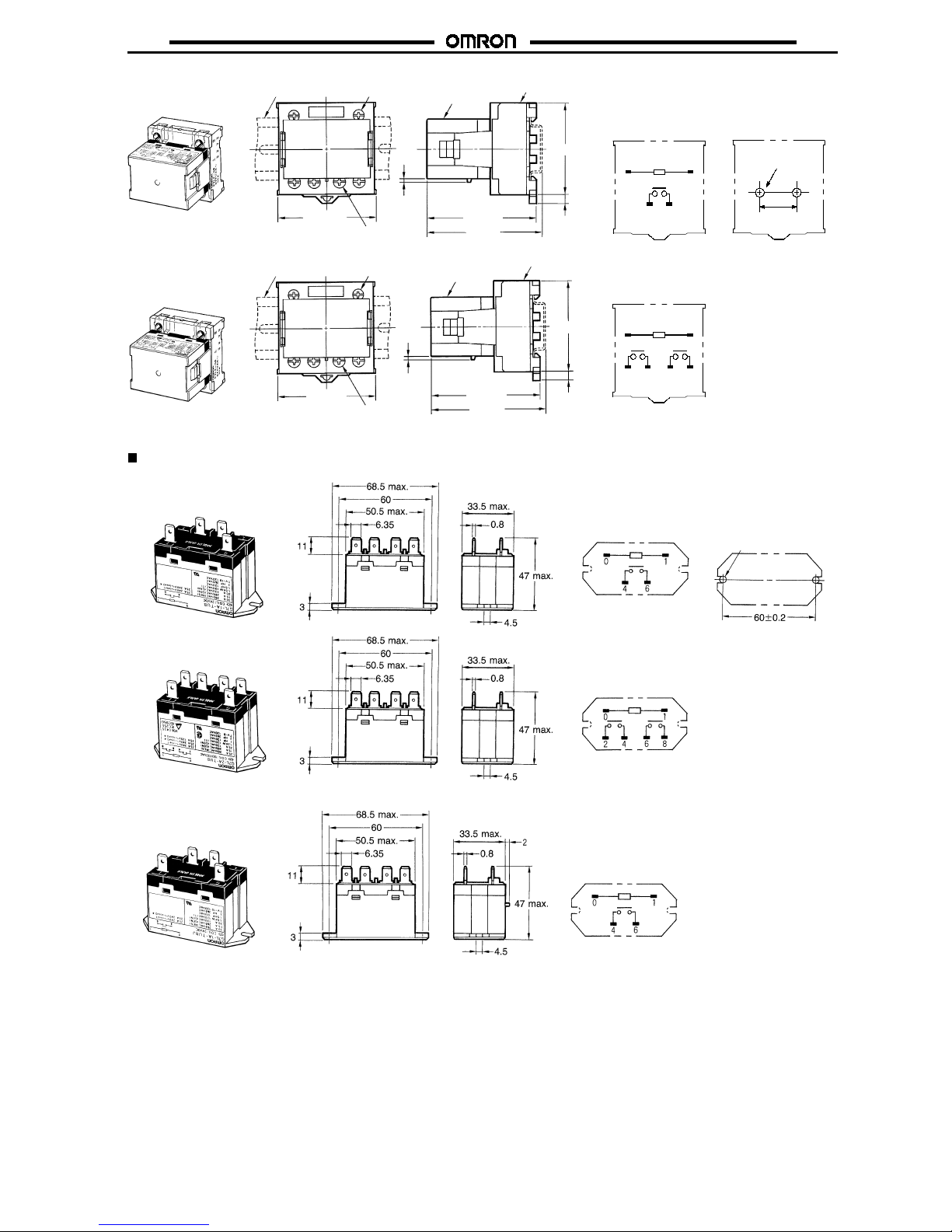

Dimensions

Note:

1. All units are in millimeters unless otherwise indicated.

2. E-brackets are sold separately.

Quick-connect Terminals with E-bracket

G7L-1A-T

G7L-2A-T

Terminal Arrangement/
Internal Connections

(Top View)

Mounting Holes

G7L-1A-TJ
with Test Button

G7L-2A-TJ
with Test Button

Two, 4.5-dia. hole or
M4 tappedholes

Quick-connect Terminals with DIN Track Mounting Adapter

Note:

1. The DIN Track Mounting Adapter and DIN tracks are sold separately.

2. The DIN Track Mounting Adapter can be track-mounted or screw-mounted.

G7L-1A-T

Terminal Arrangement/
Internal Connections

(Top View)

Mounting Holes

01

46

40$0.1

Two, M4 or

4.5-dia. holes

PFP-jN

55.5 max. 63 max.

66.5 max.

51.5 max.

G7L

P7LF-D

5

G7L

G7L

8

G7L-2A-T

Terminal Arrangement/
Internal Connections

(Top View)

Mounting Holes

01

24 68

40$0.1

Two, M4 or

4.5-dia. holes

55.5 max.

63 max.

66.5 max.

51.5 max.

5

PFP-jN

G7L

P7LF-D

01

46

G7L-1A-TJ
with Test Button

G7L-2A-TJ
with Test Button

PFP-jN

55.5 max.

63 max.

66.5 max.

51.5 max.

G7L

P7LF-D

2

5

55.5 max.

63 max.

66.5 max.

51.5 max.

2

5

PFP-jN

G7L

P7LF-D

01

24 68

Quick-connect Terminals with Front-connecting Socket

Note:

1. The Front-connecting Socket and DIN tracks are sold separately.

2. The Front-connecting Socket can be track-mounted or screw-mounted.

G7L-1A-T

Terminal Arrangement/
Internal Connections

(Top View)

Mounting Holes

40$0.1

Two, M4 or

4.5-dia. holes

01

46

G7L-2A-T

01

24 68

65 max.

61.5 max.

51.5 max.

5

G7L

P7LF-06

55.5 max.

65 max.

61.5 max.

51.5 max.

5

Two, M3.5 screws
for coil

Four, M4 screws
for contact

PFP-jN

G7L

P7LF-06

55.5 max.

Two, M3.5 screws
for coil

Four, M4 screws
for contact

PFP-jN

G7L

G7L

9

G7L-1A-TJ
with Test Button

G7L-2A-TJ
with Test Button

Terminal Arrangement/
Internal Connections

(Top View)

Mounting Holes

40$0.1

Two, M4 or

4.5-dia. holes

01

46

01

24 68

55.5 max.
65 max.

61.5 max.

51.5 max.

5

2

Two, M3.5 screws
for coil

Two, M4 screws
for contact

PFP-jN

G7L

P7LF-06

Two, M3.5 screws
for coil

Four, M4 screws
for contact

55.5 max.
65 max.

61.5 max.

51.5 max.

5

2

PFP-jN

G7L

P7LF-06

Quick-connect Terminals with Upper Bracket

G7L-1A-TUB

G7L-2A-TUB

Terminal Arrangement/
Internal Connections

(Top View)

Terminal Arrangement/
Internal Connections

(Top View)

Mounting Holes

Two, 4.5-dia. hole or
M4 tappedholes

G7L-1A-TUBJ
with Test Button

Terminal Arrangement/
Internal Connections

(Top View)

G7L

G7L

10

G7L-2A-TUBJ
with Test Button

Mounting HolesTerminal Arrangement/

Internal Connections

(Top View)

Two, 4.5-dia. hole or
M4 tappedholes

Screw Terminals with E-bracket

Note:

E-brackets are sold separately.

G7L-1A-B

G7L-2A-B

G7L-1A-BJ
with Test Button

G7L-2A-BJ
with Test Button

Terminal Arrangement/
Internal Connections

(Top View)

Mounting Holes

Two, M3.5 screws
for coil

Two, M3.5 screws
for coil

Two, M3.5 screws
for coil

Two, M3.5 screws
for coil

Two, M4 screws
for contact

Four, M4 screws
for contact

Two, M4 screws
for contact

Four, M4 screws
for contact

Two, 4.5-dia. hole
or M4tapped holes

G7L

G7L

11

Screw Terminals with DIN Track Mounting Adapter

Note:

1. The DIN Track Mounting Adapter and DIN tracks are sold separately.

2. The DIN Track Mounting Adapter can be track-mounted or screw-mounted.

G7L-1A-B

G7L-2A-B

Terminal Arrangement/
Internal Connections

(Top View)

Mounting Holes

40$0.1

Two, M4 or

4.5-dia. holes

01

46

01

24 68

55.5 max.
69 max.

65.5 max.

51.5 max.

5

PFP-jN

G7L

P7LF-D

55.5 max.

69 max.

65.5 max.

51.5 max.

5

PFP-jN

G7L

P7LF-D

G7L-1A-BJ
with Test Button

G7L-2A-BJ
with Test Button

01

46

01

24 68

55.5 max.
69 max.

65.5 max.

51.5 max.

5

PFP-jN

G7L

P7LF-D

2

55.5 max.
69 max.

65.5 max.

51.5 max.

5

2

PFP-jN

G7L

P7LF-D

Screw Terminals with Upper Bracket

G7L-1A-BUB

Terminal Arrangement/
Internal Connections

(Top View)

Two, M3.5 screws
for coil

Two, M4 screws
for contact

Mounting Holes

Two, 4.5-dia. hole
or M4tapped holes

G7L

G7L

12

G7L-2A-BUB

G7L-1A-BUBJ
with Test Button

G7L-2A-BUBJ
with Test Button

Mounting Holes

Terminal Arrangement/
Internal Connections

(Top View)

Terminal Arrangement/
Internal Connections

(Top View)

Terminal Arrangement/
Internal Connections

(Top View)

Two, M3.5 screws
for coil

Four, M4 screws
for contact

Two, M3.5 screws
for coil

Two, M3.5 screws
for coil

Two, M4 screws
for contact

Four, M4 screws
for contact

Two, 4.5-dia. hole
or M4tapped holes

PCB Terminals with PCB Mounting

G7L-1A-P

G7L-2A-P

Terminal Arrangement/
Internal Connections

(Top View)

Terminal Arrangement/
Internal Connections

(Top View)

Mounting Holes

(Bottom View)

Mounting Holes

(Bottom View)

G7L

G7L

13

R99-07G5D
E-bracket

P7LF-D Adapter

Mounting Holes

(Bottom View)

P7LF-06
Front-connecting
Socket

P7LF-C Cover

Put the P7LF-C cover onto the terminals in order
to protect the user from electric shock.

40$0.1

Two, M4 or

4.5-dia. holes

40$0.1

Two, M4 or

4.5-dia. holes

26 24 17.8

40

46

30

24

7

50

55

10

19.7

4.4

3

Two, 4.5-dia.
holes

25

Two, M3.5 screws
for coil

40$0.1

55.5 max.

46 max.

51.5 max.

5

35.2 max.

9.2

Four, M4 screws
for contact

8

55.5 max.

51.5 max.

5

14.5

40$0.1

Mounting Holes

(Bottom View)

34.5 max.

50.5 max.

1

6max.

40$0.1

Two, M4 or

4.5-dia. holes

Mounting Holes

(Bottom View)

Internal Coil Circuit

DC Operating Coil AC Operating Coil

G7L

G7L

14

Precautions

Refer to page NO TAG for general precautions.

Handling

!

To preserve performance, do not drop orotherwise subject the
Power Relay to shock.

!

Thecaseis notdesignedto beremovedduring normalhandling
and operation. Doing so may affect performance.

!

Use the Power Relay in a dry environment free from excessive
dust, SO

2,H2

S, or organic gas.

!

Do notallowa voltage greater thanthemaximum allowable coil
voltage to be applied continuously.

!

Do not use the Power Relay outside of specified voltages and
currents.

!

Do not allow the ambient operating temperature to exceed the
specified limit.

Installation

!

Although there are not specific limits on the installation site, it
should be as dry and dust-free as possible.

!

PCB Terminal-equipped Relays weighapproximately100g. Be
sure that the PCB is strong enough to support them. We
recommend dual-side through-hole PCBs to reduce solder
cracking from heat stress.

!

Quick-connectterminalscanbeconnectedtoFastonreceptacle
#250 and positive-lock connectors.

!

Allowsuitableslackonleadswhenwiring, anddo notsubject the
terminals to excessiveforce.

Cleaning PCB Terminals

!

PCB terminals have flux-tight construction which prevents flux
from penetrating into the Relay base housing, e.g., due to
capillaryactionupthe terminalswhenRelay issolderedonto the
PCB. This type of Relay cannot be immersed for cleaning.

Connecting

!

Refer to the following table when connecting a wire with a
crimp-style terminal to the G7L.

Terminals

Screw terminals Front-connecting

Socket

Coil

8

5.8
5

M3.5

8

6.5

5.3

M3.5

Contact

5.5

6.5

9.2

M4

7

5.5

9.2

M4

Rated Current Flow

When using B-series (screw) products, the rated current from the
screw terminals (M4) should be 20 A or less according to jet stan­dard (electrical appliance and material control law of Japan).

Operating Coil

!

As a rule, either a DC battery or a DC power supply with a
maximumof5%ripplemust beused forthe operatingvoltagefor
DC Relays. Before using arectifiedACsupply, confirm that the
rippleisnotgreaterthan 5%.Ripple greaterthanthis canleadto
variations in the operating and reset voltages.

As excessive ripple can generate pulses, the insertion of a
smoothing capacitor is recommended as shown below.

Emax

.: Max. ripple

Emin.

: Min. ripple

E mean

: Mean DC value

Smoothing
capacitor

Relay

Ripple

Emin.Emax. Emean

DC fraction

% of ripple = x 100

Emax.--E

min.

E mean

!

When driving a transistor, check the leakage current and
connect a bleeder resistor if necessary.

DIN Track Mounting Adapter and

Front-connecting Socket

DIN Track Mounting

!

Use a DIN-conforming 50-cm track or 1-m track (both are sold
separately) for mounting a number of G7L Relays.
Cut and shorten the track to an appropriate length it if the
required track length is less than 50 cm.

!

The DIN TrackMounting Adapter andFront-connectingSocket
can bemountedon the G7Lwithjust one handanddismounted
with ease by using a screwdriver.

!

To support the G7Lmountedona DIN Track Mounting Adapter
or Front-connecting Socket, use the PFP-M End Plate. Put the
End Plate onto the DIN Track Mounting Adapter or
Front-connecting Socket so that the surface mark of the End
Plate faces upwards. Then tighten the screw of the End Plate
securely with a screwdriver.

Screw Mounting

!

Screw-mountthe DINTrackMountingAdapterorFront-connect­ing Socket securely after opening screw mounting holes on
them.

!

When cutting or opening holes on the panel after the
Front-connecting Socket is mounted, take proper measures so
that thecuttingchipswill notfallonto theRelay terminals.When
cutting oropening holeson theupper partof thepanel, maskthe
Front-connecting Socket properly with a cover.

ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.

To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.

Cat. No. J055-E1-3A
