Page 1

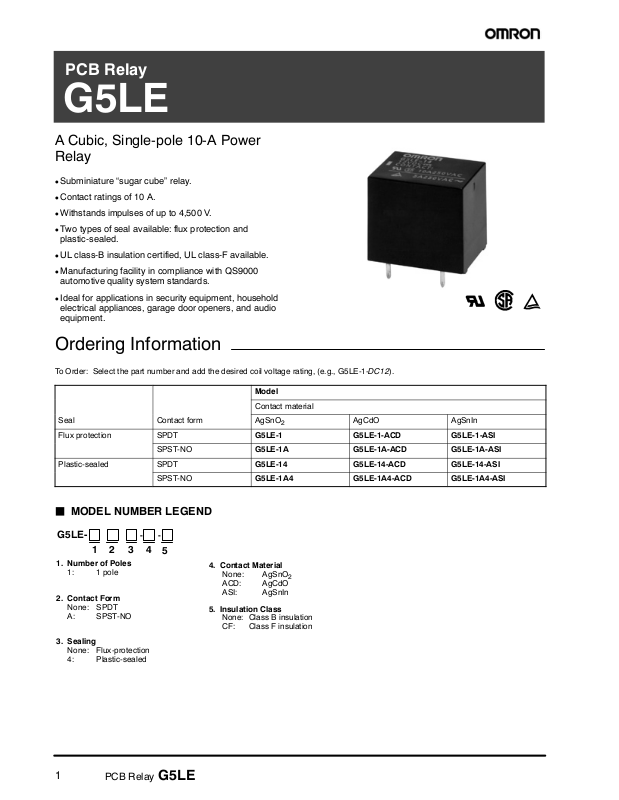

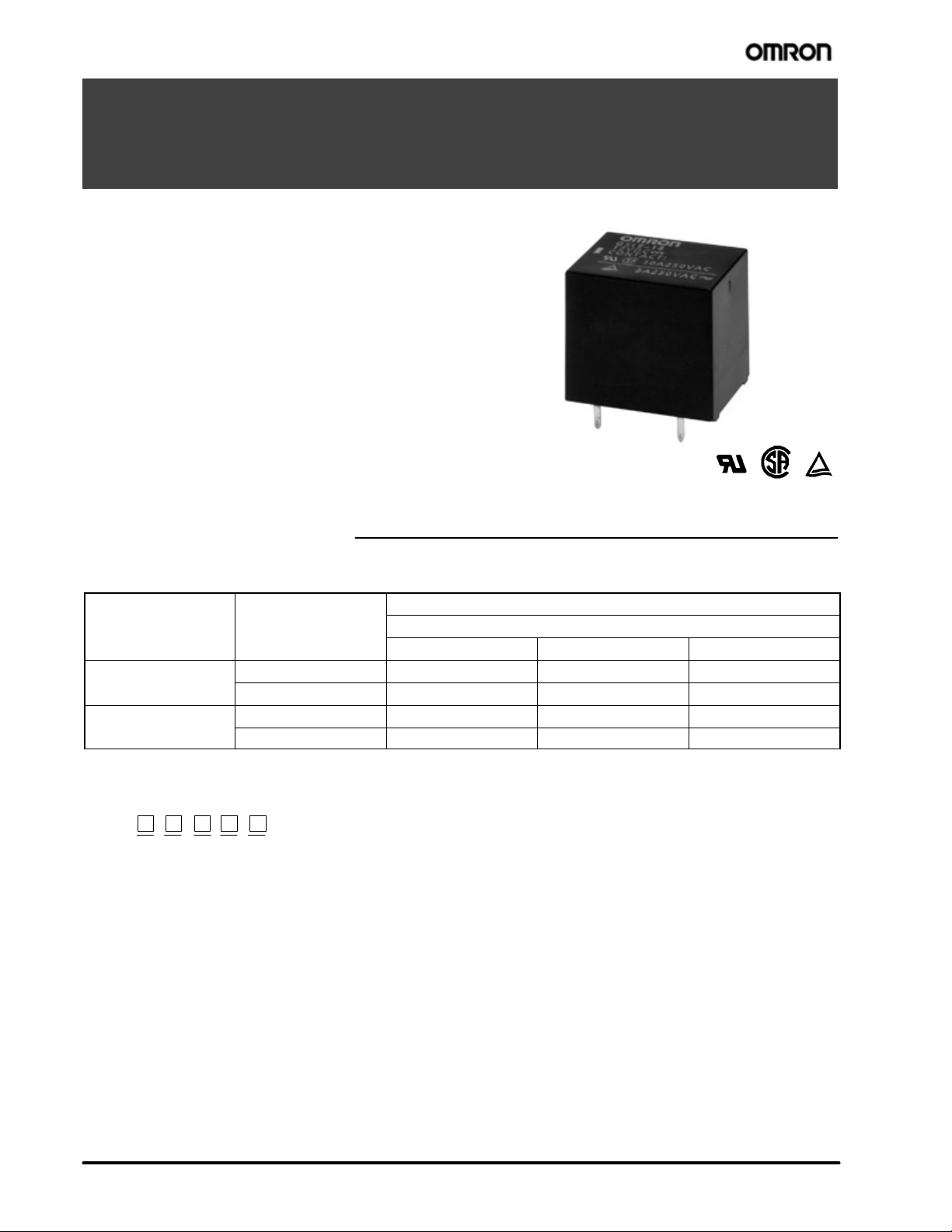

PCB Relay

G5LE

A Cubic, Single-pole 10-A Power Relay

D Subminiature “sugar cube” relay.

D Contact ratings of 10 A.

D Withstands impulses of up to 4,500 V.

D Two types of seal available: flux protection and

plastic-sealed.

D UL class-B insulation certified, UL class-F available.

D Manufacturing facility in compliance with QS9000

automotive quality system standards.

D Ideal for applications in security equipment, household

electrical appliances, garage door openers, and audio equipment.

Ordering Information

To Order: Select the part number and add the desired coil voltage rating, (e.g., G5LE-1-DC12).

Model

Contact material

Seal Contact form AgSnO Flux protection SPDT G5LE-1 G5LE-1-ACD G5LE-1-ASI

SPST-NO G5LE-1A G5LE-1A-ACD G5LE-1A-ASI

Plastic-sealed SPDT G5LE-14 G5LE-14-ACD G5LE-14-ASI

SPST-NO G5LE-1A4 G5LE-1A4-ACD G5LE-1A4-ASI

AgCdO AgSnIn

J MODEL NUMBER LEGEND

G5LE-

12 3 4

1. Number of Poles

1: 1 pole

2. Contact Form

None: SPDT A: SPST-NO

3. Sealing

None: Flux-protection 4: Plastic-sealed

4. Contact Material

None: AgSnO ACD: AgCdO ASI: AgSnIn

5. Insulation Class

None: Class B insulation CF: Class F i nsulation

PCB Relay G5LE

Page 2

Specifications

J COIL DATA

Rated voltage 3VDC 5VDC 6VDC 9VDC 12 VDC 24 VDC 48 VDC

Rated current 136.4 mA 79.4 mA 66.7 mA 45 mA 33.3 mA 16.7 mA 8.33 mA

Coil resistance 22.5 Ω 63 Ω 90 Ω 200 Ω 360 Ω 1,440 Ω 5,760 Ω

Must operate voltage 75% of rated voltage (max.)

Must release voltage 10% of rated voltage (min.)

Max. voltage 130% of rated voltage at 70°C (158°F), 170% of rated voltage at 23°C(73°F)

Power consumption Approx. 400 mW

Note: 1. The rated current and coil resistance are measured at a coil temperature of 23°C(73°F) with a tolerance of ±10%.

2. 360 mW coil is available. Contact Omron for details.

3. VDE approved model available. Contact Omron for details.

J CONTACT DATA

Load Resistive load (cosφ =1)

Rated load 10 A at 120 VAC; 8 A at 30 VDC

Rated carry current 10 A

Max. switching voltage 250 VAC, 125 VDC

Max. switching current

Max. switching capacity 1,200 VA, 240 W

Min. permissible load 100 mA at 5 VDC

AC 10 A

DC 8A

J CHARACTERISTICS

Contact resistance 100 mΩ max.

Operate time 10 ms max.

Release time 5msmax.

Bounce time

Max. switching frequency

Insulation resistance 100 MΩ min. (at 500 VDC)

Dielectric strength 750 VAC, 50/60 Hz for 1 min between contacts of same polarity

Impulse withstand voltage 4,500 V between coil and contacts

Vibration resistance

Shock resistance

Life expectancy

Ambient temperature

Ambient humidity 35% to 85%

Weight Approx. 12 g (0.42 oz)

Operate Approx. 0.6 ms

Release Approx. 7.2 ms

Mechanical 18,000 operations/hr

Electrical 1,800 operations/hr (under rated load)

2,000 VAC, 50/60 Hz for 1 min between coil and contacts

Destruction 10 to 55 Hz, 1.5-mm double amplitude

Malfunction 10 to 55 Hz, 1.5-mm double amplitude

Destruction 1,000 m/s2(approx. 100G)

Malfunction 100 m/s2(approx. 10G)

Mechanical 10,000,000 operations min. (at 18,000 operations/hr)

Electrical 100,000 operations min. (at 1,800 operations/hr)

Operating

-- 4 0 °Cto85°C(--13°F to 185°F)

PCB Relay G5LE

Page 3

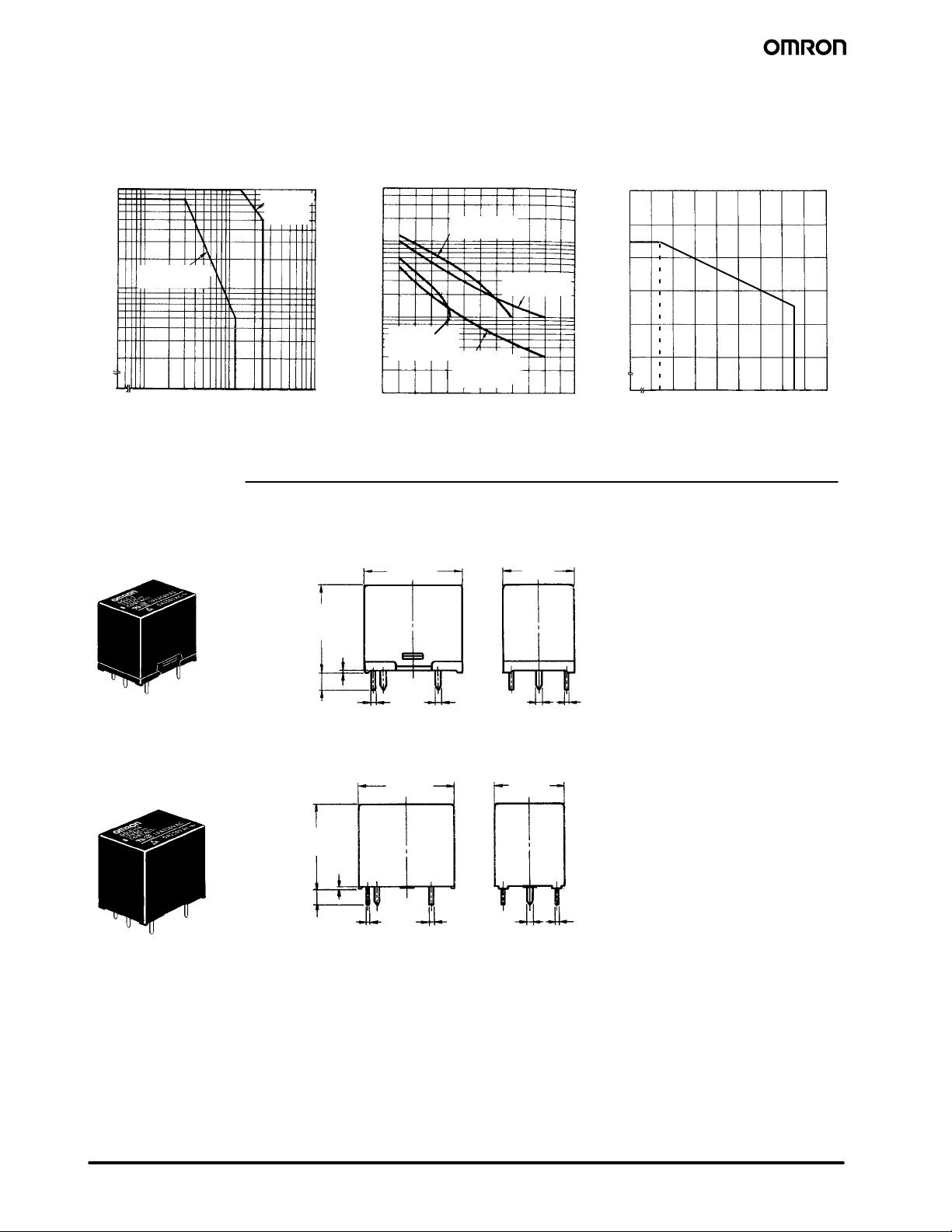

J CHARACTERISTIC DATA

Max. Switching Capacity G5LE

DC resistive load

0.7

0.5

Switching current (A)

0.3

0 10 30 50 125 250 500 1,000

Dimensions

Unit: mm (inch)

J G5LE-1(A)

AC resistive load

Life Expectancy G5LE

5,000

3,000

30-VDC

1,000

700 500

300

100

30-VDC

inductive (L/R = 7ms)

Life expectancy (x10 operations)

024681012

Switching current (A)

[21.6]*

22.5 max. (0.89)

resistive load

120-VAC inductive

cosφ=0.4

120-VAC resistive load

[15.6]*

16.5 max. (0.65)

mbient Temperature

vs. Maximum Voltage

200

180

100

140

120

Maximum voltage (%)

100

--25 20 30 40 50 60 70 80 90 100

Ambient temperature (°C)Switching voltage (V)

J G5LE-1(A)4

[18.5]*

19.0 max. (0.75)

3.5

(0.14)

[18.5]*

19.0 max. (0.75)

3.5

(0.14)

0.5

(0.02)

0.5

(0.02)

0.2

(0.01)

[21.6]*

22.5 max. (0.89)

0.2

(0.01)

(0.04)

*Average value

1.2

(0.05)

[15.6]*

16.5 max. (0.65)

0.4

(0.02)

*Average value

1.2

(0.05)

0.4

(0.02)

PCB Relay G5LE

Page 4

J STANDARD

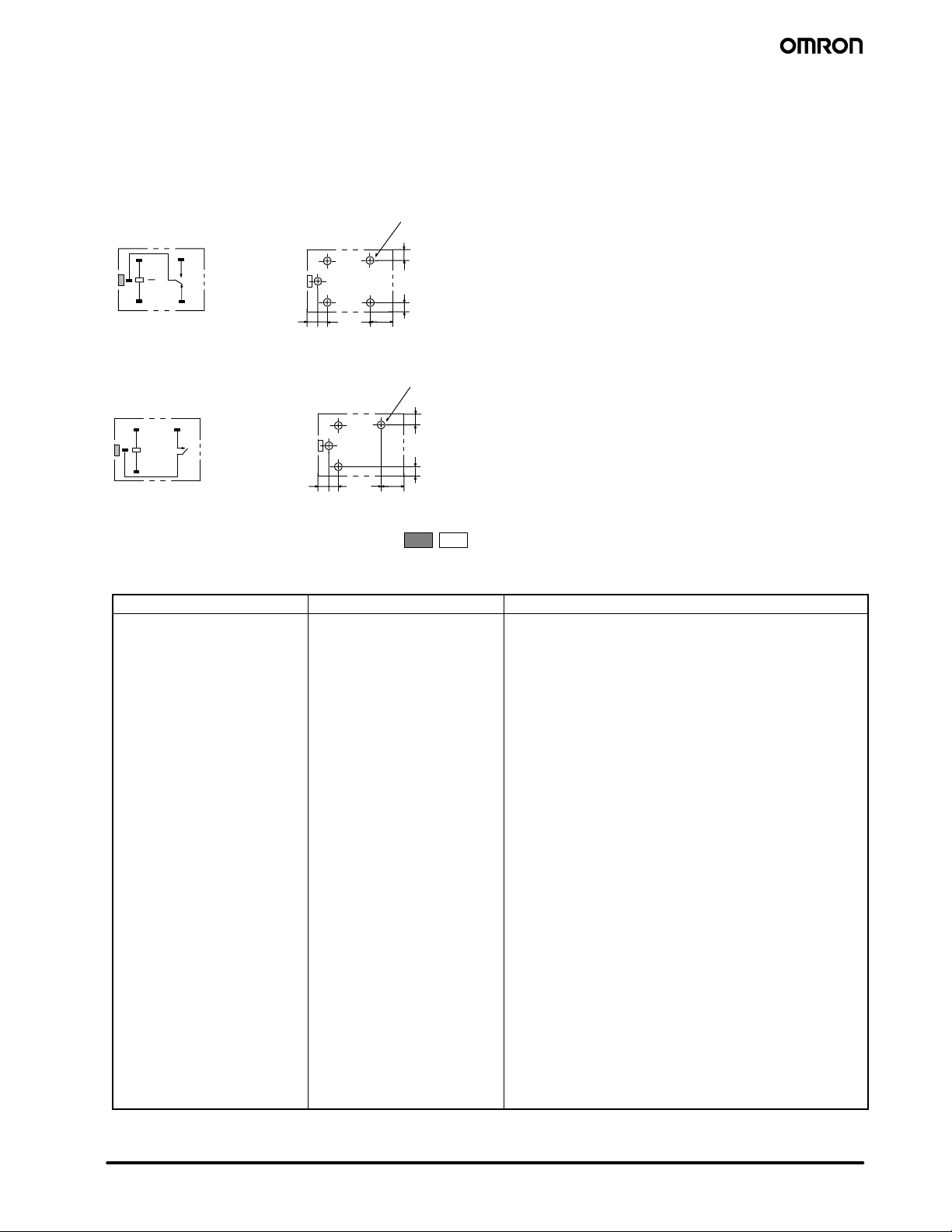

Terminal Arrangement/ Internal Connections (Bottom View)

SPDT

SPST-NO

Mounting Holes (Bottom View)

Tolerance: ±0.1 mm

SPDT

(0.08)

12.2

(0.48)

2.55

(0.10)

SPST-NO

2.55

(0.10)

(0.08)

12.2

(0.48)

Five, 1.3-dia. holes

2.25

(0.09)

(0.47)

2.25

5.75 (0.09)

(0.23)

Four, 1.3-dia. holes

2.25

(0.09)

(0.47)

2.25

5.75 (0.09)

(0.23)

Note: Orientation marks are indicated as follows:

UL325, UL508, UL60950 (File No. E41643) / CSA C22.2 NO. 14 (File No. LR34815)

Part number Coil rating Contact ratings for AgSnO2 & AgCdO G5LE 3to48VDC N.O. Contacts

10 A, 250 VAC, general use 8A,30VDC,resistiveload 1/6 hp , 120 VAC, 50,000 cycles 6 A, 277 VAC, general use, 100,000 cycles 10 A, 125 VAC, general use 100,000 cycles 12 A, 120 VAC, resistive load, 30,000 cycles 6 FLA, 6 LRA, 120 VAC, 100,000 cycles, 85_Cambient 4 FLA, 4 LRA, 120 VAC, 100,000 cycles, 105_Cambient 125 VA, 120 VAC, pilot duty, 100,000 cycles 5 FLA, 30 LRA, 120 VAC TV -- 3, 120 VAC 5 A, 125 VAC, general use, 30,000 cycles, 70_C ambient 1/2 hp, 125 VAC, 100,000 cycles 200W-T (1.6 A), 125 VAC, Tungsten, 100,000 cycles 125 VA, 125 VAC, pilot duty, 100,000 cycles, 105_C 13 A, 120 VAC, resistive, 100,000 cycles, 87_C

2.5 FLA, 15.0 LRA, 120 VAC, 100,000 cycles at 80_C with 75,000 cycles at 5 Sec. ON / 5 Sec. OFF and 25,000 cycles at 30 Sec ON / 30 Sec. OFF

N.C. Contacts

10 A, 250 VAC, general use 8A,30VDC,resistiveload 1/8 hp, 120 VAC, 50,000 cycles 6 A, 277 VAC, general use, 50,000 cycles 10 A, 125 VAC, general use, 100,000 cycles 12 A, 120 VAC, resistive load, 30,000 cycles 6 FLA, 6 LRA, 120 VAC, 100,000 cycles, 85_Cambient 2 FLA, 4 LRA, 120 VAC, 100,000 cycles, 105_Cambient 125 VA, 120 VAC, pilot duty, 100,000 cycles 1/10 hp, 120 VAC, 50,000 cycles 5 A, 125 VAC, general use, 30,000 cycles, 70_C ambient 125 VA, 125 VAC, pilot duty, 100,000 cycles, 105_C

PCB Relay G5LE

Page 5

UL325, UL508, UL60950 (File No. E41643) / CSA C22.2 NO. 14 (File No. LR34815)

Part number Coil rating Contact ratings for AgSnIn G5LE 3to48VDC N.O. Contacts

10 A, 250 VAC, general use 8A,resistive,30VDC 1/3 hp , 120 VAC TV5, 120 VAC 1/2 hp, 125 VAC, 100,000 cycles 200W-T (1.6 A), 125 VAC, Tungsten, 100,000 cycles 125 VA, 125 VAC, pilot duty, 100,000 cycles, 105_C 13 A, 120 VAC, resistive, 100,000 cycles, 87_C

N.C. Contacts

10 A, 250 VAC, general use 8A,resistive,30VDC 1/8 hp, 120 VAC 12 A, 120 VAC, resistive load, 30,000 cycles 125 VA, 125 VAC, pilot duty, 100,000 cycles, 105_C

TÜV (VDE File No. R9151267)

Part number

G5LE

Coil rating Contact rating

3, 5, 6, 9, 12, 24 VDC 1.2 A, 250 VAC (cosφ =0.4)

2.5 A, 250 VAC (resistive load) 5 A, 30 VDC (resistive load)

2.5 A, 250 VAC (cosφ =0.4) 5 A, 250 VAC (resistive load) 8 A, 30 VDC (resistive load)

PCB Relay G5LE

Page 6

ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, divide by 25.4

OMRON ELECTRONICS LLC

One Commerce Drive Schaumburg, IL 60173

847-882-2288

Cat. No. GC RLY8

5/03 Specifications subject to change without notice Printed in USA

OMRON CANADA, INC.

885 Milner Avenue Toronto, Ontario M1B 5V8

416-286-6465

OMRON ON-LINE

Global - http://www.omron.com USA - http://www.omron.com/oei Canada - http://www.omron.ca
