Omron G3R-I-O User Manual

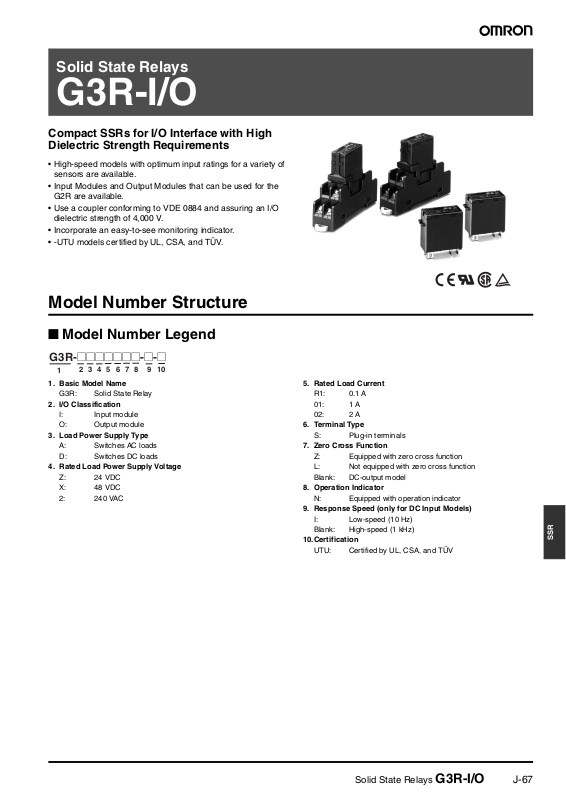

Solid State Relays

G3R-I/O

Compact SSRs for I/O Interface with High
Dielectric Strength Requirements

• High-speed models with optimum input ratings for a variety of
sensors are available.

• Input Modules and Output Modules that can be used for the
G2R are available.

• Use a coupler conforming to VDE 0884 and assuring an I/O
dielectric strength of 4,000 V.

• Incorporate an easy-to-see monitoring indicator.

• -UTU models certified by UL, CSA, and TÜV.

Model Number Structure

■ Model Number Legend

G3R-@@@@@@@-@-@

7 8

5 6

2

1

1. Basic Model Name

G3R: Solid State Relay

2. I/O Classification

I: Input module
O: Output module

3. Load Power Supply Type

A: Switches AC loads
D: Switches DC loads

4. Rated Load Power Supply Voltage

Z: 24 VDC
X: 48 VDC
2: 240 VAC

3 4

10

9

5. Rated Load Current

R1: 0.1 A
01: 1 A
02: 2 A

6. Terminal Type

S: Plug-in terminals

7. Zero Cross Function

Z: Equipped with zero cross function
L: Not equipped with zero cross function
Blank: DC-output model

8. Operation Indicator

N: Equipped with operation indicator

9. Response Speed (only for DC Input Models)

I: Low-speed (10 Hz)
Blank: High-speed (1 kHz)

10.Certification

UTU: Certified by UL, CSA, and TÜV

SSR

Solid State Relays G3R-I/O J-67

Ordering Information

■ List of Models

Input Module

Isolation Indicator Response speed Logic level Rated input

Supply voltage Supply current

Photocoupler Yes --- 4 to 32 VDC 0.1 to 100 mA 100 to 240 VAC G3R-IAZR1SN-UTU

High-speed
(1 kHz)

Low-speed
(10 Hz)

voltage

5 VDC G3R-IDZR1SN-UTU
12 to 24 VDC
5 VDC G3R-IDZR1SN-1-UTU
12 to 24 VDC

Model

Output Module

Isolation Indicator Zero cross

Phototriac Yes Yes 2 A at 100 to 240 VAC 5 to 24 VDC G3R-OA202SZN-UTU

Photocoupler --- 2 A at 5 to 48 VDC G3R-ODX02SN-UTU

Note: When ordering, specify the rated input voltage.

function

No G3R-OA202SLN-UTU

Rated output load Rated input voltage Model

1.5 A at 48 to 200 VDC G3R-OD201SN-UTU

■ Accessories (Order Separately)

Track/Surface Mounting Socket
(Recommended)

Model Number of poles

P2RF-05-E 1 pole (G2R: 1 pole usage)

Note: Refer to page 72 for details on other Sockets.

Connecting Socket Attaching Plate

Model Applicable Socket

P2R-P P2R-05A

J-68 Solid State Relays G3R-I/O

■ I/O Indication

I/O module classification and AC/DC use are indicated on the mark
affixed to the top of the product.

Mark indication Specification

AC IN Input module, AC input
DC IN Input module, DC input
AC OUT Output module, AC output
DC OUT Output module, DC output

Mark attached to the top of the product

Specifications

■ Ratings (at an Ambient Temperature of 25°C)

Input Module

Input

Model Rated voltage Operating voltage Input current Must operate voltage Must release voltage
G3R-IAZR1SN-UTU 100 to 240 VAC 60 to 264 VAC 15 mA max. 60 VAC max. 20 VAC min.
G3R-IDZR1SN-UTU 5 VDC 4 to 6 VDC 8 mA max. 4 VDC max. 1 VDC min.

12 to 24 VDC 6.6 to 32 VDC 6.6 VDC max. 3.6 VDC min.

G3R-IDZR1SN-1-UTU 5 VDC 4 to 6 VDC 4 VDC max. 1 VDC min.

12 to 24 VDC 6.6 to 32 VDC 6.6 VDC max. 3.6 VDC min.

Output

Model Logic level supply voltage Logic level supply current
G3R-IAZR1SN-UTU 4 to 32 VDC 0.1 to 100 mA
G3R-IDZR1SN-UTU
G3R-IDZR1SN-1-UTU

Output Module

Input

Model Rated voltage Operating voltage Input current Must operate voltage Must release voltage
G3R-OA202SZN-UTU 5 to 24 VDC 4 to 32 VDC 15 mA max.
G3R-OA202SLN-UTU
G3R-ODX02SN-UTU 8 mA max.
G3R-OD201SN-UTU

(at 25°C)

4 VDC max. 1 VDC min.

SSR

Output

Model Rated load voltage Load voltage range Load current (See note.) Inrush current
G3R-OA202SZN-UTU 100 to 240 VAC 75 to 264 VAC 0.05 to 2 A 30 A (60 Hz, 1 cycle)
G3R-OA202SLN-UTU
G3R-ODX02SN-UTU 5 to 48 VDC 4 to 60 VDC 0.01 to 2 A 8 A (10 ms)
G3R-OD201SN-UTU 48 to 200 VDC 40 to 200 VDC 0.01 to 1.5 A 8 A (10 ms)

Note: The minimum current value is measured at 10°C min.

Solid State Relays G3R-I/O J-69

■ Characteristics

Input Module

Item G3R-IAZR1SN-UTU G3R-IDZR1SN-UTU G3R-IDZR1SN-1-UTU
Operate time 20 ms max. 0.1 ms max. 15 ms max.
Release time 20 ms max. 0.1 ms max. 15 ms max.
Response frequency 10 Hz 1 kHz 10 Hz
Output ON voltage drop 1.6 V max.
Leakage current 5 µA max.
Insulation resistance 100 MΩ min. between input and output
Dielectric strength 4,000 VAC, 50/60 Hz for 1 min between input and output
Vibration resistance 10 to 55 to 10 Hz, 0.75-mm single amplitude
Shock resistance
Ambient temperature Operating: –30°C to 80°C (with no icing)

Certified standards UL508 File No. E64562

Ambient humidity Operating: 45% to 85%
Weight Approx. 18 g

1,000 m/s

Storage: –30°C to 100°C (with no icing)

CSA C22.2 (No. 14, No. 950) File No. LR35535
TÜV File No. R9650094 (EN60950)

Output Module

Item G3R-OA202SZN-UTU G3R-OA202SLN-UTU G3R-ODX02SN-UTU G3R-OD201SN-UTU
Operate time 1/2 of load power source

Release time 1/2 of load power source cycle + 1 ms max. 2 ms max.
Response frequency 20 Hz 100 Hz
Output ON voltage drop 1.6 V max. 2.5 V max.
Leakage current 1.5 mA max. 1 mA max.
Insulation resistance 100 MΩ min. between input and output
Dielectric strength 4,000 VAC, 50/60 Hz for 1 min between input and output
Vibration resistance Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude
Shock resistance
Ambient temperature Operating: –30°C to 80°C (with no icing)

Certified standards UL508 File No. E64562

Ambient humidity Operating: 45% to 85%
Weight Approx. 18 g

cycle + 1 ms max.

Destruction: 1,000 m/s

Storage: –30°C to 100°C (with no icing)

CSA C22.2 (No. 14, No. 950) File No. LR35535
TÜV File No. R9650094 (EN60950)

2

1 ms max. 1 ms max.

2

J-70 Solid State Relays G3R-I/O

Engineering Data

)

)

)

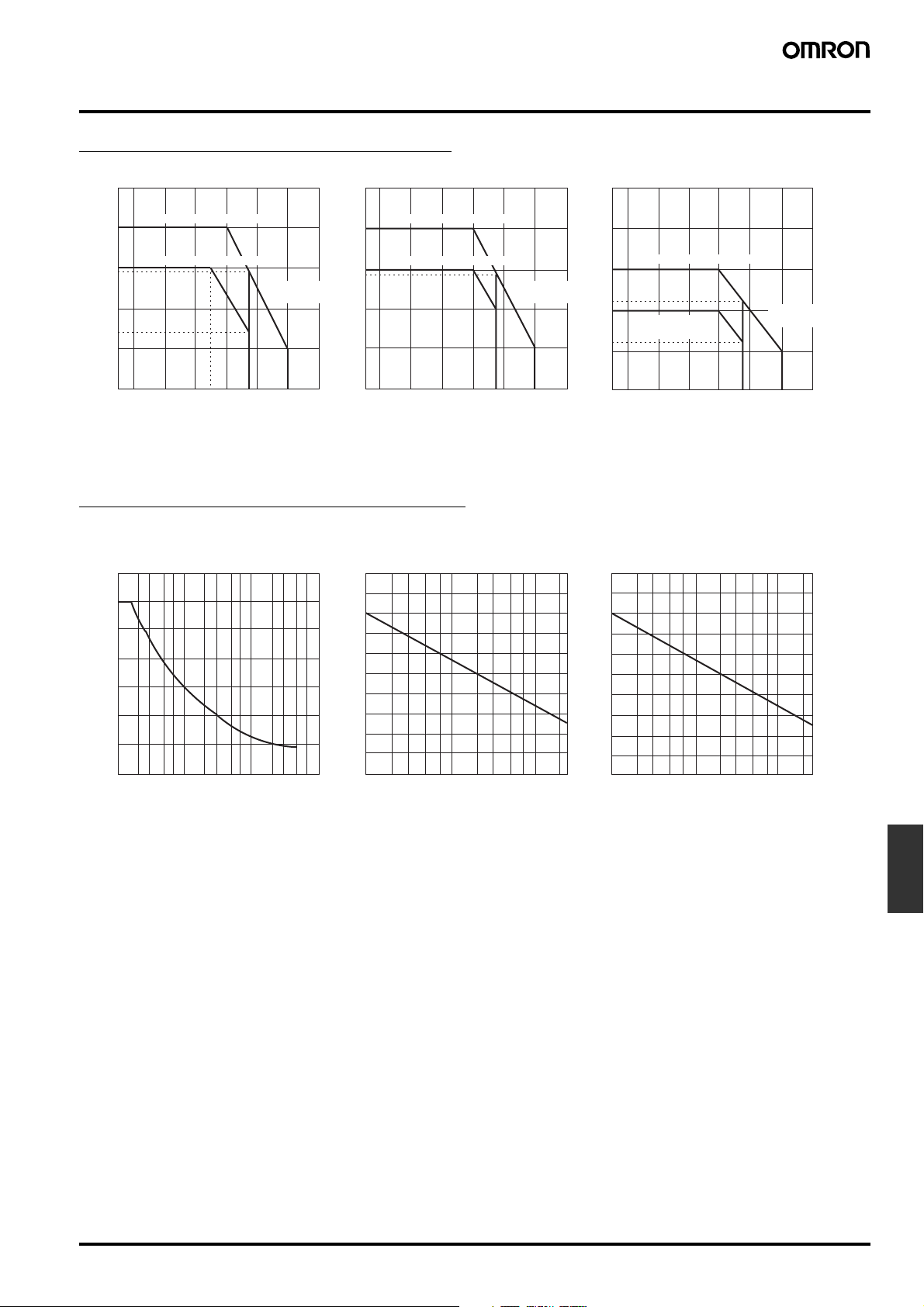

Load Current vs. Ambient Temperature

G3R-OA202SZN-UTU/OA202SLN-UTU G3R-OD201SN-UTU (40 to 200 VAC)G3R-ODX02SN-UTU (4 to 60 VDC)

4-point mounting (see note 1)

2

16-point mounting (see note 2) 4-point mounting (see note 1)

1.5

1.4

1

Load current (A)

0.7

0.5

−30

−20 0 20 30 40 55 60 80 100

Ambient temperature (°C)

Single-point
mounting

4-point mounting (see note 1)

2

16-point mounting (see note 2)

1.5

1.4

1

Load current (A)

0.5

−30 −20 0 20 40 55 60 80 100

Ambient temperature (°C)

Note: 1. When G730-Z0M04-B is mounted.

2. When G70A-Z0C16 is mounted.

One Cycle Surge Current: Non-repetitive

Note: Keep the inrush current to half the rated value if it occurs repetitively.

G3R-OA202SZN-UTU/OA202SLN-UTU G3R-OD201SN-UTUG3R-ODX02SN-UTU

10

30

20

Inrush current (A)

10

10 30 50 100 200 500 1000 5000

Energized time (ms

9

8

7

6

5

4

Inrush current (A)

3

2

1

0

10 30 50 100 500 1000 2000300

Energized time (ms

Single-point
mounting

2

1.5

1.1
1

16-point mounting

Load current (A)

(see note 2)

0.6

0.5

−30 −20 0 20 40 55 60 80 100

Single-point
mounting

Ambient temperature (°C)

10

9

8

7

6

5

4

Inrush current (A)

3

2

1

0

10 30 50 100 500 1000 2000300

Energized time (ms

SSR

Solid State Relays G3R-I/O J-71

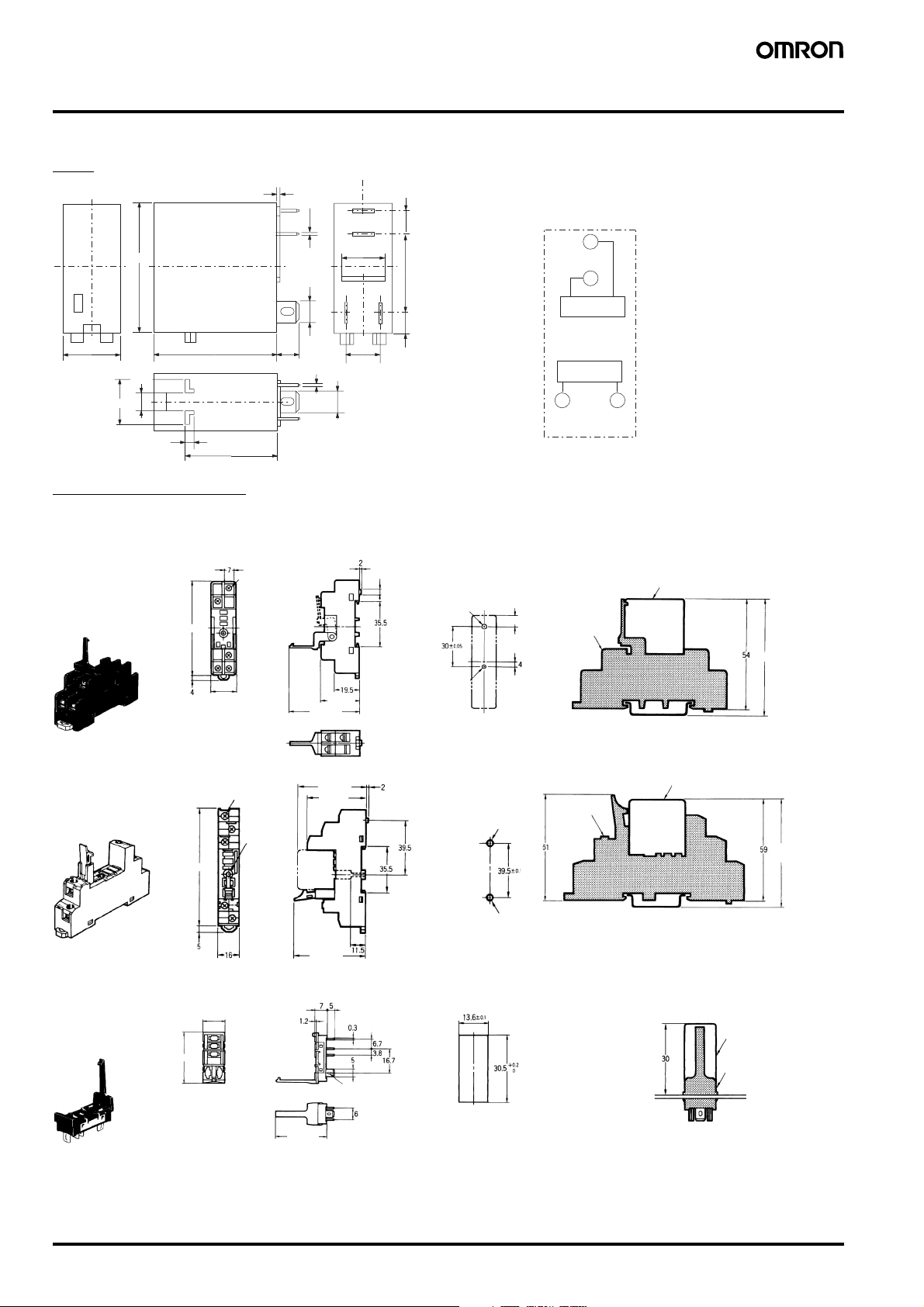

Dimensions

Note: All units are in millimeters unless otherwise indicated.

G3R

1

3

29 max.

0.5

4.75

4

9.6

15

5.2

17.4

Terminal Arrangement/
Internal Connections
(Bottom View)

3

(+)

(−)

4

Load

13 max.

28 max.

4

10

2

20

5

0.5

4.75

Connecting Sockets

Connecting Socket Attaching Plates

P2RF-05

Five, M3.5×8

71.5 max.

P2RF-05-E

85.5 max.

19.5 max.

M3.5 screw

3.5-dia.
hole

30 max.

54 max.

59 max.
48 max.

7.5

4.7

4 dia.

4.2-dia. hole

M3 (M3 x16) or

3.2-dia. hole

12

3.2-dia. hole

Input

1 5

(−) (+)

G3R I/O Relay

P2RF-05 Socket

58.5 *

* Indicates a value when using the PFP-@N

Supporting Rail.
The value is 67.5 when using the PFP-@N2.

G3R I/O Relay

PFRF-05-E
Socket

62.5 **
(66.5)***

61 max.

P2R-05A

14.5 max.

35.5 max.

36 max.

J-72 Solid State Relays G3R-I/O

Five, 3x1.5-dia. hole

M3 or 3.5-dia. hole

(Panel thickness must
be 1.6 to 2.0 mm.)

** Indicates a value when using the PFP-@N

Supporting Rail with the P2RF-05-E
The value is 71.5 when using the PFP-@N2.

*** Indicates a value when using the PFP-@N

Supporting Rail with the P2RF-08-E
The value is 75.5 when using the PFP-@N2.

G3R I/O Relay

P2R-05A Socket

P2R-05P

35.5 max.

14.5 max.

Five, 1.6-dia. hole

G3R I/O Relay

P2R-05P Socket

36 max.

14 max.

P2R-057P

32 max.

41 max.

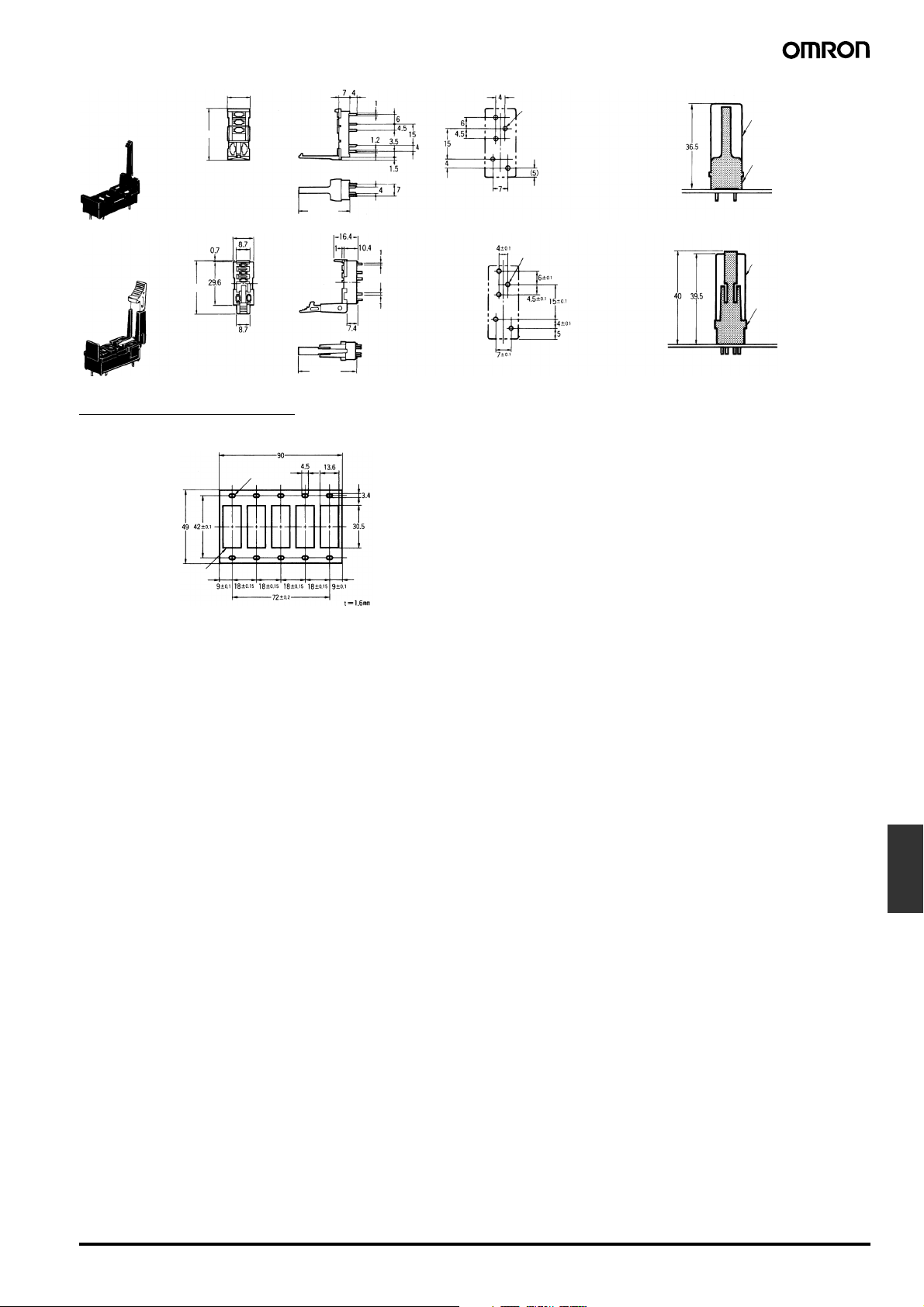

Socket Mounting Plate

Use the Socket Mounting Plate when arranging several Sockets in a row.

R2.25
10 ellipses

Square hole

Dimensional tolerance is ±0.1.

Five, 1.6-dia. hole

G3R I/O Relay

P2R-057P Socket

Solid State Relays G3R-I/O J-73

SSR

G70A I/O Block Base

■ Ordering Information

Classification Internal I/O circuit common Rated voltage Model

Output NPN (+ common) 24 VDC G70A-ZOC16-3

PNP (– common) 24 VDC G70A-ZOC16-4

Input NPN/PNP 110 VDC max., 240 VAC max.

(See note.)

Note: Each relay to be mounted must incorporate a coil that has proper specifications within the maximum rated voltage range.

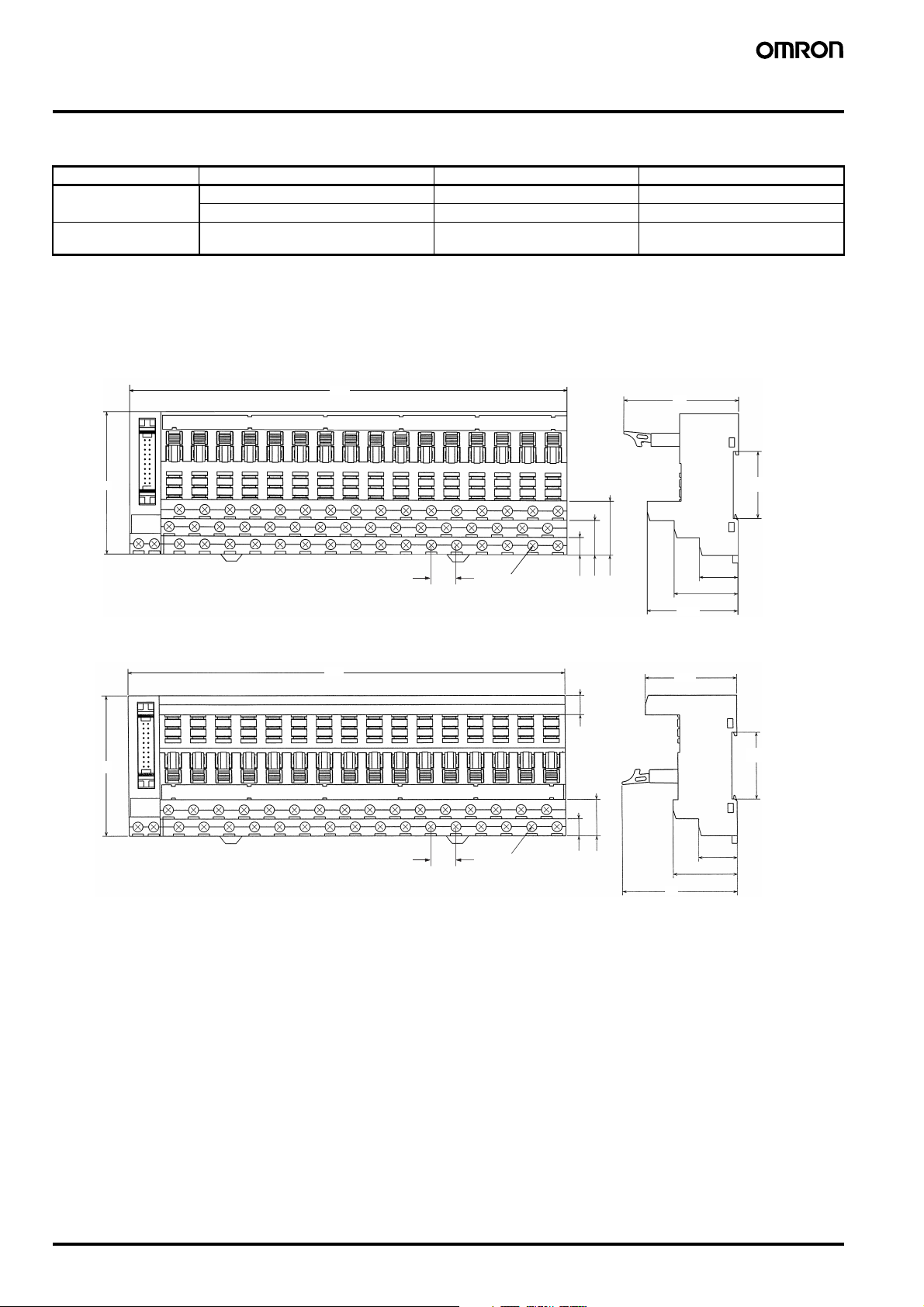

■ Dimensions

Note: All units are in millimeters unless otherwise indicated.

G70A-ZOC16 (Output)

234

75

G70A-ZIM16-5

64

28.6

35.3

+0.2

−0

G70A-ZIM16 (Input)

75

234

13.5

13.5

M3.5

M3.5

9.2 18.4

10.2

9.2 19.6

20.7

34.2

48.7

48.7

+0.2

35.3

−0

20.7

34.2

64

J-74 Solid State Relays G3R-I/O

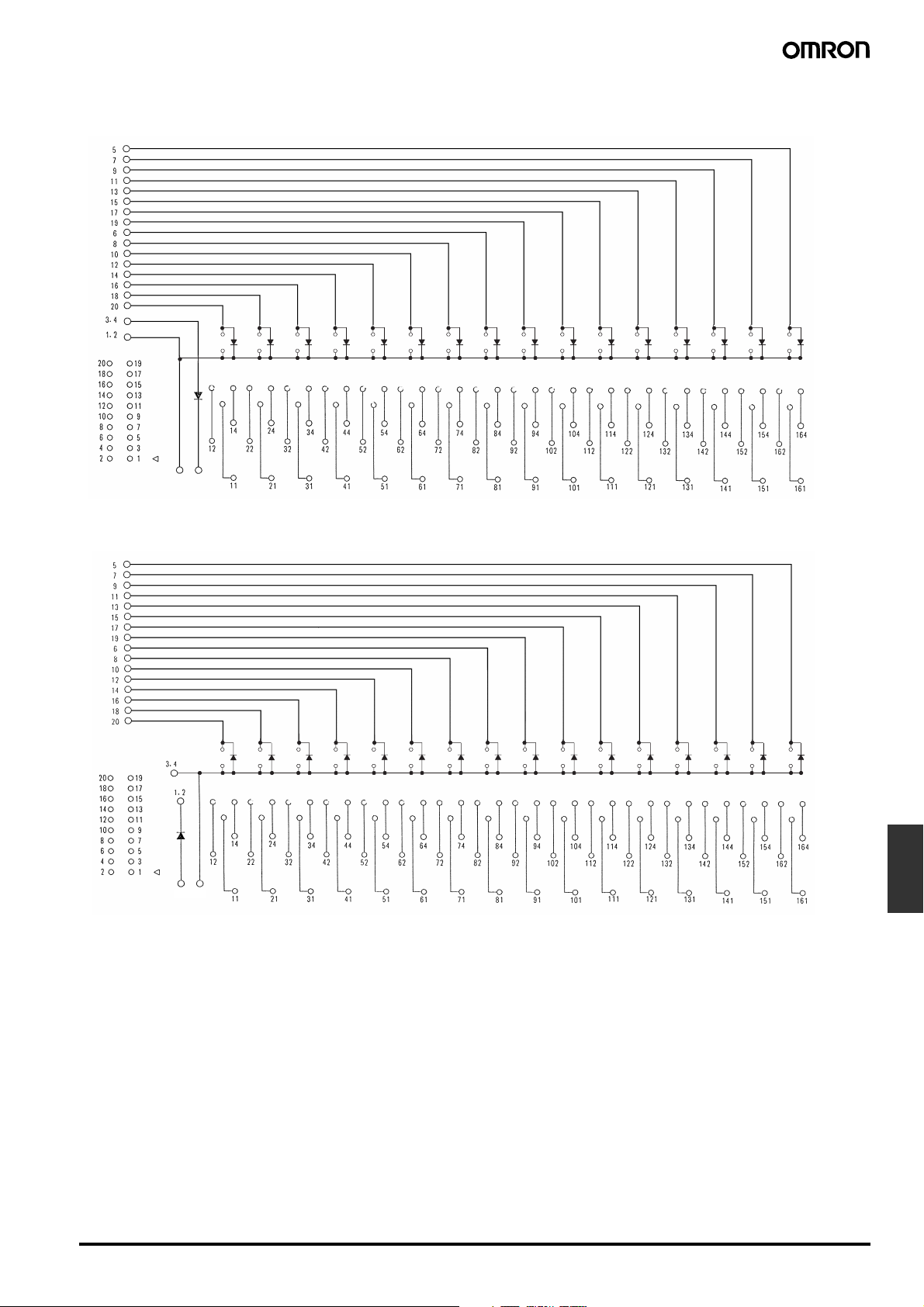

■ Terminal Arrangement/Internal Connection

G70A-ZOC16-3 (NPN)

−

+

−

+

Connector Terminal
Arrangement
(Top View)

(+)

(−)

G70A-ZOC16-4 (PNP)

−

+

Connector Terminal
Arrangement
(Top View)

−

+

(+)

(−)

SSR

Solid State Relays G3R-I/O J-75

G70A-ZIM16-5 (NPN/PNP)

−

+

−

+

Connector Terminal
Arrangement
(Top View)

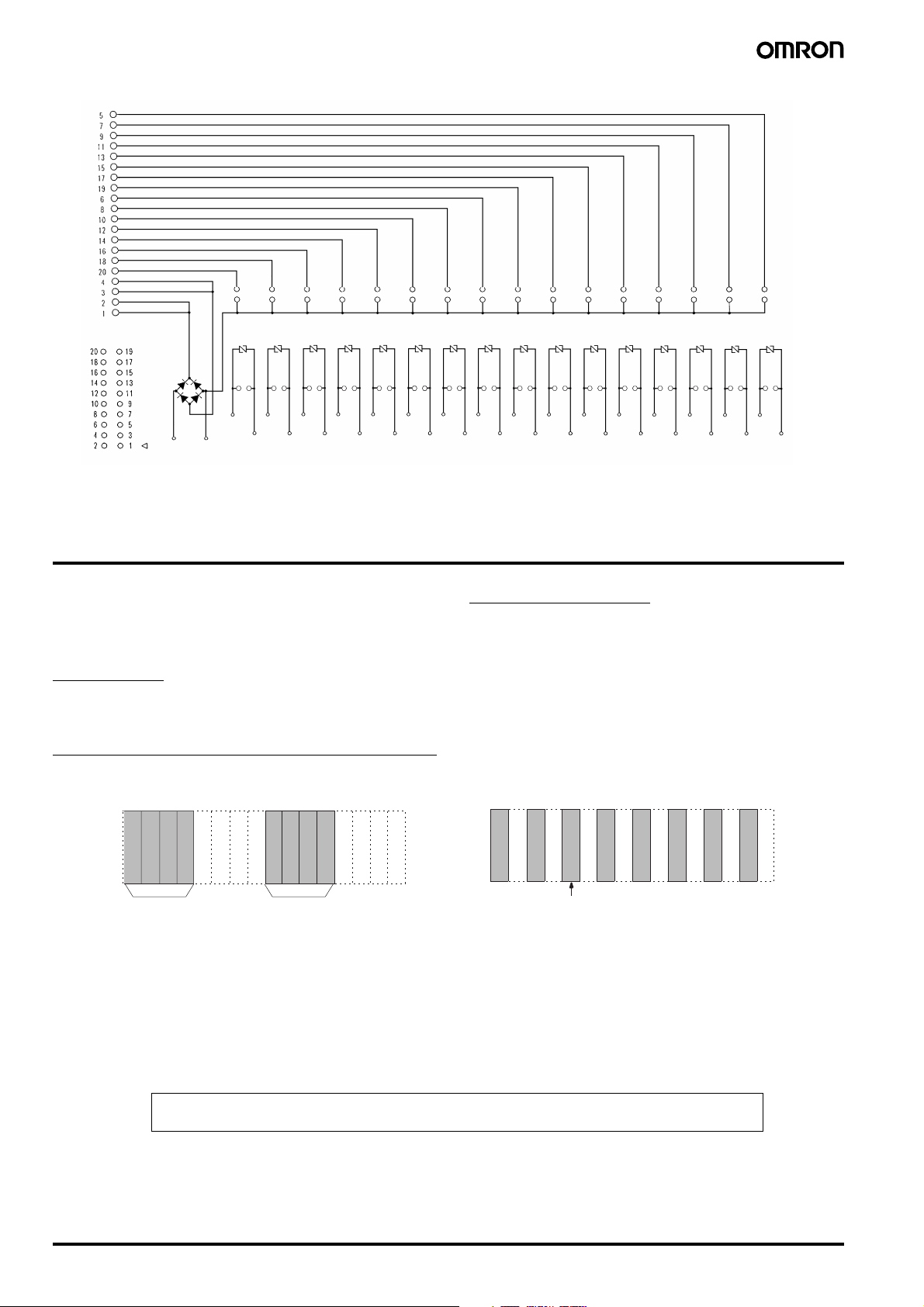

COM.

1A2 2A2 3A2 4A2 5A2 6A2 7A2 8A2 9A2 10A2 11A2 12A2 13A2 14A2 15A2 16A2

Safety Precautions

■ Precautions for Correct Use

Please observe the following precautions to prevent failure to
operate, malfunction, or undesirable effect on product performance.

Connection

With the SSR for DC switching, the load can be connected to either
positive or negative output terminal of the SSR.

Precaution of Mounting Output Modules

With up to four G3R SSRs mounted closely and
side by side, 2-A loads can be switched.

9A1 10A1 11A1 12A1 13A1 14A1 15A1 16A15A1 6A1 7A1 8A11A1 2A1 3A1 4A1

Protective Element

Since the SSR does not incorporate an overvoltage absorption
component, be sure to connect an overvoltage absorption
component when using the SSR under an inductive load.

With a G3R SSRs mounted every other slot,
2-A loads can be switched.

G3R G3R G3R

ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.

Cat. No. K091-E1-04

In the interest of product improvement, specifications are subject to change without notice.
