Solid State Relay
V
A
G3M
1, 2, 3 and 5 A single in-line package SSR
D Thin design for high-density PCB applications.
D DC input-AC output for up to a 5-A load.
D Two foot prints offer greater flexibility.
D Approved by UL and CSA.
Ordering Information
To order: Select the part number and add the desired input voltage rating, (e.g., G3M-202P-US DC5)
Isolation
Phototriac 7.62 mm Yes No 2 A at 100 to 240 VAC
Input terminal
pitch
Zero cross
function
No 2 A at 100 to 120 VAC
Indicator Rated output load
(Applicable output load)
(2Aat75to264VAC)
3 A at 100 to 240 VAC
(3Aat75to264VAC)
5 A at 100 to 240 VAC
(5Aat 75 to 264
(2Aat75to132VAC)
2 A at 100 to 240 VAC
(2Aat75to264VAC)
3 A at 100 to 240 VAC
(3Aat75to264VAC)
5 A at 100 to 240 VAC
(5Aat75to264VAC)
(This table continues on the next page.)
C)
Rated input voltage Model
5VDC
12 VDC
24 VDC
5VDC
12 VDC
24 VDC
5VDC
12 VDC
24VDC
5VDC
12 VDC
24 VDC
5VDC
12 VDC
24 VDC
5VDC
12 VDC
24 VDC
5VDC
12 VDC
24 VDC
G3M-202P-US
G3M-203P
G3M-205P
G3M-102PL-US
G3M-202PL-US
G3M-203PL
G3M-205PL
Solid State Relay G3M
1
Ordering Information (continued)
V
A
Isolation Input terminal
pitch
Phototriac 5.08 mm Yes No 2 A at 100 to 240 VAC
Note: 1. TÜV marking is available with “-UTU” in place of “-US” on the part number.
2. VDE versions available. Contact your local OMRON representative.
Zero cross
function
No 2 A at 100 to 120 VAC
Indicator Rated output load
(Applicable output load)
(2Aat75to264VAC)
3 A at 100 to 240 VAC
(3Aat75to264VAC)
5 A at 100 to 240 VAC
(5Aat 75 to 264
(3Aat75to132VAC)
2 A at 100 to 240 VAC
(2Aat75to264VAC)
3 A at 100 to 240 VAC
(3Aat75to264VAC)
5 A at 100 to 240 VAC
(5Aat75to264VAC)
C)
Rated input voltage Model
5VDC
12 VDC
24 VDC
5VDC
12 VDC
24 VDC
5VDC
12 VDC
24 VDC
5VDC
12 VDC
24 VDC
5VDC
12 VDC
24 VDC
5VDC
12 VDC
24 VDC
5VDC
12 VDC
24 VDC
G3M-202P-US-4
G3M-203P-4
G3M-205P-4
G3M-102PL-US-4
G3M-202PL-US-4
G3M-203PL-4
G3M-205PL-4
Specifications
J RATINGS
Input
Rated voltage Operating voltage Impedance Voltage levels
Must operate voltage Must release voltage
5VDC 4to6VDC 300 Ω±20% 4VDCmax. 1VDCmin.
12 VDC 9.6 to 14.4 VDC 800 Ω±20% 9.6 VDC max.
24 VDC 19.2 to 28.8 VDC 1.6 kΩ±20% 19.2 VDC max.
Note: Each model has 5-VDC, 12-VDC, and 24-VDC input versions.
Output
Model Rated voltage Applicable load
Load voltage Load current Inrush current
G3M-102PL-US (-4) 100 to 120 VAC 75 to 132 VAC
G3M-202P(L)-US (-4)
G3M-203P(L) (-4) 0.1to3A
G3M-205P(L) (-4) 0.1to5A
100 to 240 VAC 75 to 264 VAC
0.1to2A 30 A (60 Hz, 1 cycle)
45 A (60 Hz, 1 cycle)
2 Solid State Relay G3M
J CHARACTERISTICS
Item G3M-102PL-US (-4) G3M-202P(L)-US (-4) G3M-203P(L) (-4)
Operate time 1 ms max. (1/2 of load power source cycle + 1 ms max. for G3M-202P, G3M-203P , G3M-205P)
Release time 1/2 of load power source cycle + 1 ms max.
Output ON voltage drop 1.6 V (RMS) max.
Leakage current 2 mA max. (at 100 VAC) 2 mA max. (at 100 VAC)
5 mA max. (at 200 VAC)
Insulation resistance 1,000 MΩ min. (at 500 VDC)
Dielectric strength 2,000 VAC, 50/60 Hz for 1 min 2,500 VAC, 50/60 Hz for 1 min
Vibration resistance Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistance Malfunction: 1,000 m/s2{approx. 100G}
Ambient temperature Operating: -- 30°Cto80°C (with no icing or condensation)
Storage: --30°C to 100°C (with no icing or condensation)
Approved standards UL508 File No.E64562/CSA C22.2 (No.0, No.14) File No. LR35535
TÜV R9551055 (EN60950)
Ambient humidity Operating: 45% to 85%
Weight Approx. 15 g
1.5 mA (at 200 VAC)
G3M-205P(L) (-4)
Approx. 25 g
J APPROVALS
UL (File No. E64562)/CSA (File No. LR35535)
Input Voltage SSR Type Load Rating
5, 12, 24 VDC
With Suffixes 102 and
US or UTU
With Suffixes 202 andUS2 A, 250 VAC, Resistive 500 W, 250 VAC, Tungsten 2 A FLA, 12 A LRA, 250 VAC
2 A, 125 VAC, Resistive 250 W, 125 VAC, Tungsten 2 A FLA, 12 A LRA, 125 VAC
With Suffixes 202
UTU, UTU-1, and
UTU-2
With Suffixes 103 and
US or UTU
With Suffixes 203 and
US or UTU
With Suffix 105 5 A, 125 VAC, Resistive 625 W, 125 VAC, Tungsten 2.5 A FLA, 15 A LRA, 125 VAC
With Suffix 205 5 A, 250 VAC, Resistive 1250 W, 250 VAC, Tungsten 2.5 A FLA, 15 A LRA, 250 VAC
2 A, 250 VAC, Resistive 250 W, 250 VAC, Tungsten 1 FLA, 6 LRA, 250 VAC
3 A, 125 VAC, Resistive 375 W, 125 VAC, Tungsten 1.5 A FLA, 9 A LRA, 125 VAC
3 A, 250 VAC, Resistive 750 W, 250 VAC, Tungsten 1.5 A FLA, 9 A LRA, 250 VAC
Solid State Relay G3M
3
Engineering Data
Load Current vs. Temperature Ambient Inrush Current Immunity
Non-repetitive
Reduce the current to 1/2 or less if the
G3M is in repetitive operation.
Load Current vs. Ambient Temperature (Close Mounting)
G3M-205 (5-A Load)
D Thirty Relays are soldered to the PCB at each given spacing.
D Continuous power.
4 Solid State Relay G3M

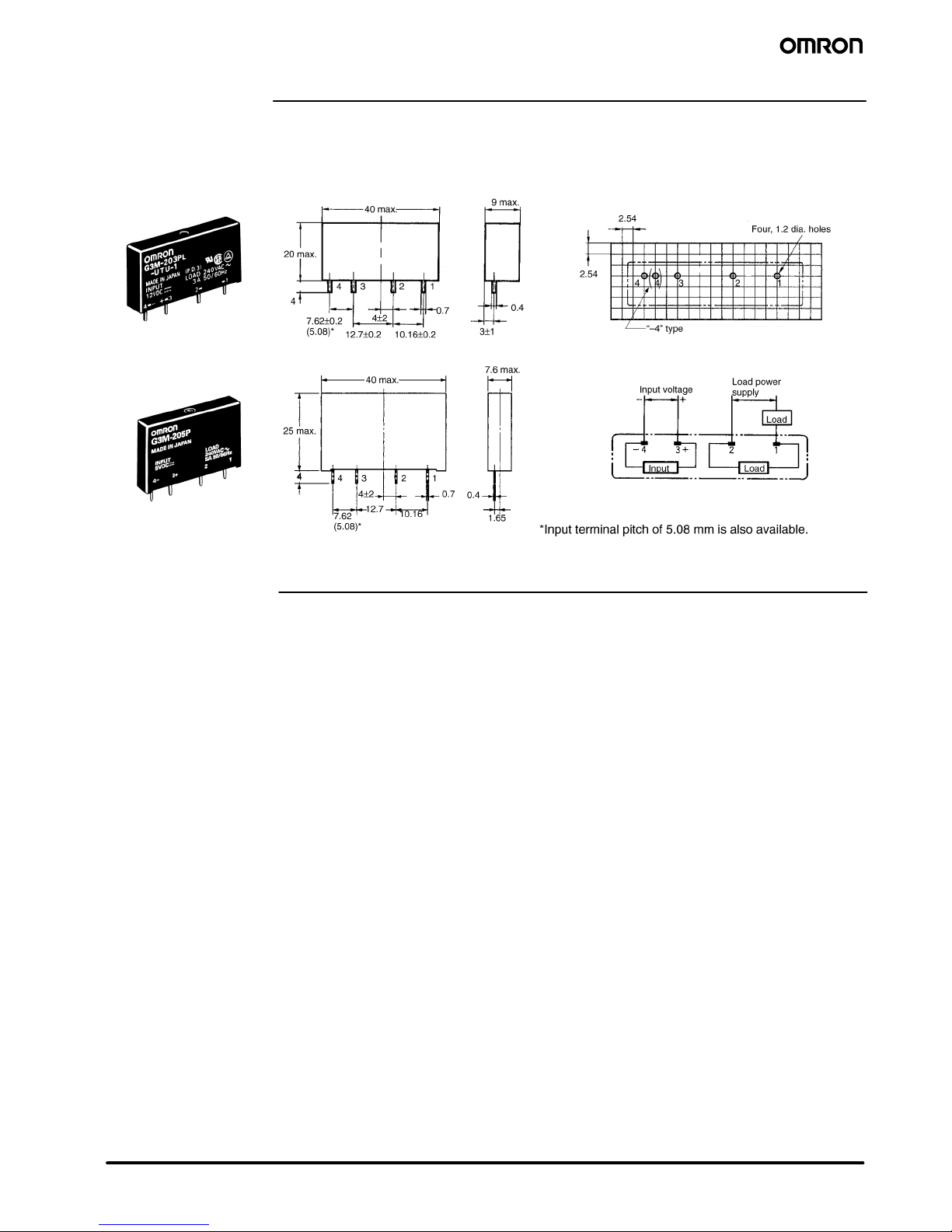

Dimensions
Note: All units are in millimeters unless otherwise indicated.
G3M-102PL-US( -4), G3M-202P(L) -US(-4)
G3M-203P(L)(-4)
G3M-205P(L)(-4)
PCB Dimensions
(Bottom View)
Terminal Arrangement
(Bottom View)
Precautions
Protective Element
No overvoltage absorption element is built in. Therefore, if the G3M
is connected to an inductive load, be sure to connect the overvoltage absorption element.
Solid State Relay G3M
5
