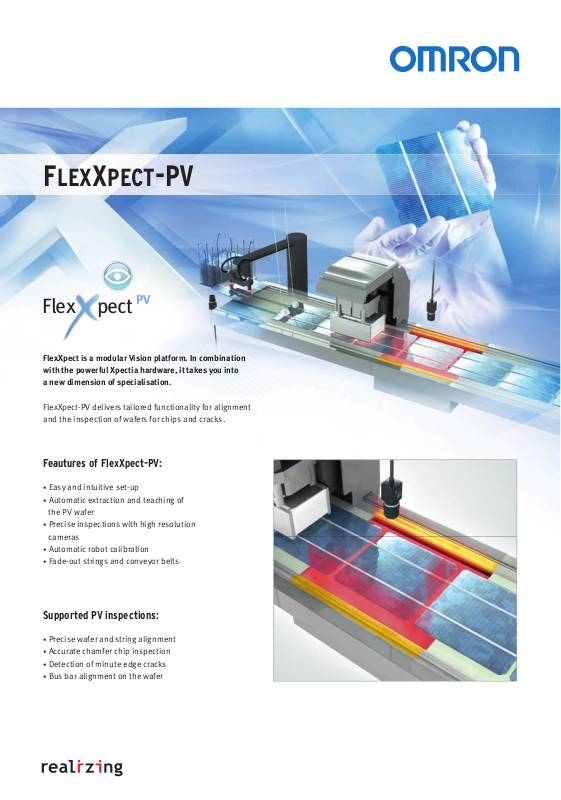

Omron FLEXXPECT-PV BROCHURE

F

LEXXPECT

-PV

FlexXpect is a modular Vision platform. In combination
with the powerful Xpectia hardware, it takes you into
a new dimension of specialisation.

FlexXpect-PV delivers tailored functionality for alignment
and the inspection of wafers for chips and cracks.

Supported PV inspections:

• Precise wafer and string alignment

• Accurate chamfer chip inspection

• Detection of minute edge cracks

• Bus bar alignment on the wafer

Feautures of FlexXpect-PV:

• Easy and intuitive set-up

• Automatic extraction and teaching of

the PV wafer

• Precise inspections with high resolution

cameras

• Automatic robot calibration

• Fade-out strings and conveyor belts

Pharma

Flex pect

Flex pect

Glue Bead

Flex pect

Labelling

Flex pect

PV

Flex pect

Quick set-up in simple steps:

F

LEXXPECT

-PV

Note: FlexXpect software modules require Xpectia/FZW hardware. This is not part of the item and needs to be ordered independently.

Step 3: One step deletion of bus bars and conveyor belts (optional)

Step 1: Select the inspection function Step 2: Draw a rectangle around the wafer

Bus bar alignment

Step 4: Start the inspection

Outline edge alignment Precise detection of edge breakage

OMRON EUROPE B.V.

Wegalaan 67-69, NL-2132 JD, Hoofddorp, The Netherlands. Tel: [phone] Fax: [phone] www.industrial.omron.eu

CD_EN-01+FlexXpect-PV+leaflet

Although we strive for perfection, Omron Europe BV and/or its subsidiary and affiliated companies do not warrant

or make any representations regarding the correctness or completeness of the information described in this document.

We reserve the right to make any changes at any time without prior notice.

Item description Order code

FlexXpect-PV software module FLEXXPECT-PV

Accurate chamfer chip inspection (0.1 mm)
