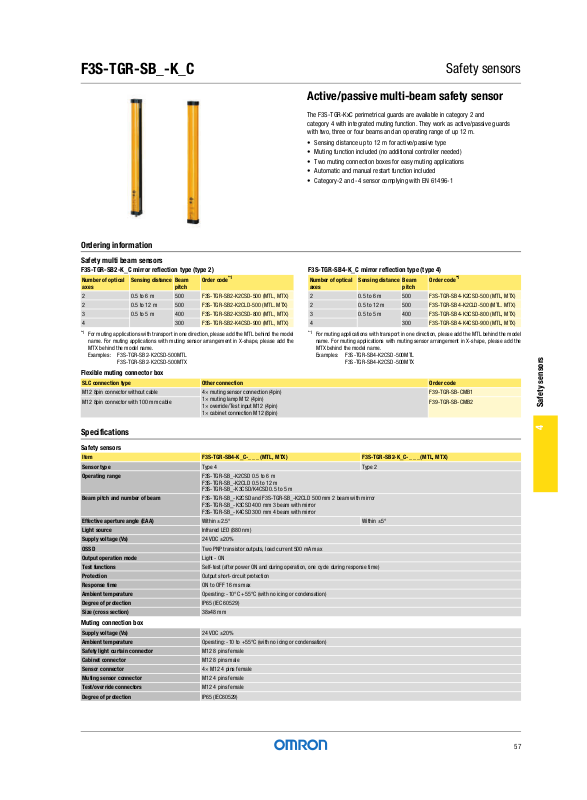

Active/passive multi-beam safety sensor

The F3S-TGR-KxC perimetrical guards are available in category 2 and
category 4 with integrated muting function. They work as active/passive guards
with two, three or four beams and an operating range of up 12 m.

• Sensing distance up to 12 m for active/passive type

• Muting function included (no additional controller needed)

• Two muting connection boxes for easy muting applications

• Automatic and manual restart function included

• Category-2 and -4 sensor complying with EN 61496-1

Ordering information

Safety multi beam sensors

F3S-TGR-SB2-K_C mirror reflection type (type 2) F3S-TGR-SB4-K_C mirror reflection type (type 4)

Number of optical
axes

2 0.5 to 6 m 500 F3S-TGR-SB2-K2CSD-500 (MTL, MTX)

2 0.5 to 12 m 500 F3S-TGR-SB2-K2CLD-500 (MTL. MTX)

3 0.5 to 5 m 400 F3S-TGR-SB2-K3CSD-800 (MTL, MTX)

4 300 F3S-TGR-SB2-K4CSD-900 (MTL, MTX)

*1

For muting applications with transport in one direction, please add the MTL behind the model
name. For muting applications with muting sensor arrangement in X-shape, please add the
MTX behind the model name.
Examples: F3S-TGR-SB2-K2CSD-500MTL

Sensing distance Beam

F3S-TGR-SB2-K2CSD-500MTX

pitch

Order code

Flexible muting connector box

SLC connection type Other connection Order code

M12 8pin connector without cable 4× muting sensor connection (4pin)

M12 8pin connector with 100 mm cable F39-TGR-SB-CMB2

1× muting lamp M12 (4pin)
1× override/Test input M12 (4pin)
1× cabinet connection M12 (8pin)

*1

Number of optical
axes

2 0.5 to 6 m 500 F3S-TGR-SB4-K2CSD-500 (MTL, MTX)

2 0.5 to 12 m 500 F3S-TGR-SB4-K2CLD-500 (MTL. MTX)

3 0.5 to 5 m 400 F3S-TGR-SB4-K3CSD-800 (MTL, MTX)

4 300 F3S-TGR-SB4-K4CSD-900 (MTL, MTX)

*1

For muting applications with transport in one direction, please add the MTL behind the model
name. For muting applications with muting sensor arrangement in X-shape, please add the
MTX behind the model name.
Examples: F3S-TGR-SB4-K2CSD-500MTL

Sensing distance Beam

F3S-TGR-SB4-K2CSD-500MTX

pitch

Order code

F39-TGR-SB-CMB1

*1

Specifications

Safety sensors

Item F3S-TGR-SB4-K_C-___(MTL, MTX) F3S-TGR-SB2-K_C-___(MTL, MTX)
Sensor type Type 4 Type 2
Operating range F3S-TGR-SB_-K2CSD 0.5 to 6 m

Beam pitch and number of beam F3S-TGR-SB_-K2CSD and F3S-TGR-SB_-K2CLD 500 mm 2 beam with mirror

Effective aperture angle (EAA) Within ±2.5° Within ±5°
Light source Infrared LED (880 nm)
Supply voltage (Vs) 24 VDC ±20%
OSSD Two PNP transistor outputs, load current 500 mA max
Output operation mode Light - ON
Test functions Self-test (after power ON and during operation, one cycle during response time)
Protection Output short-circuit protection
Response time ON to OFF 16 ms max
Ambient temperature Operating: -10°C +55°C (with no icing or condensation)
Degree of protection IP65 (IEC 60529)
Size (cross section) 38x48 mm

Muting connection box

Supply voltage (Vs) 24 VDC ±20%
Ambient temperature Operating: -10 to +55°C (with no icing or condensation)
Safety light curtain connector M12 8 pins female
Cabinet connector M12 8 pins male
Sensor connector 4× M12 4 pins female
Muting sensor connector M12 4 pins female
Test/override connectors M12 4 pins female
Degree of protection IP65 (IEC60529)

F3S-TGR-SB_-K2CLD 0.5 to 12 m
F3S-TGR-SB_-K3CSD/K4CSD 0.5 to 5 m

F3S-TGR-SB_-K3CSD 400 mm 3 beam with mirror
F3S-TGR-SB_-K4CSD 300 mm 4 beam with mirror
