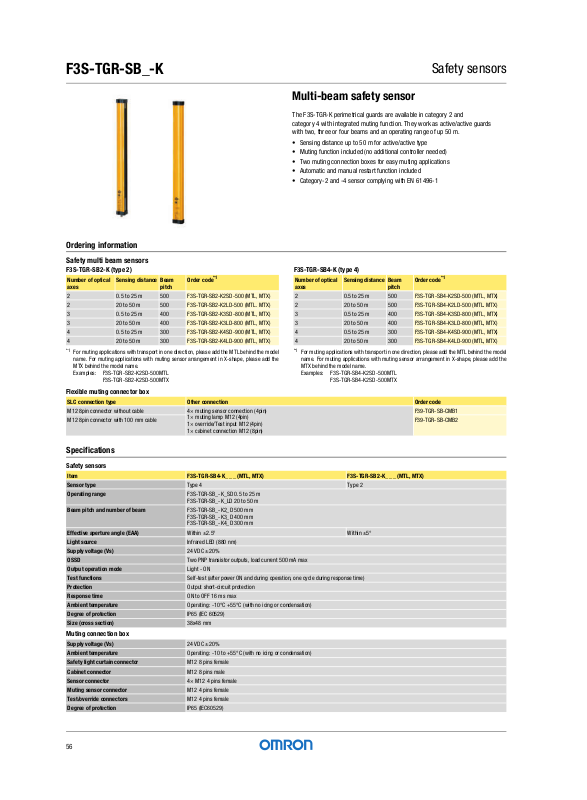

Omron F3S-TGR-SB-K DATASHEET

F3S-TGR-SB_-K

Safety sensors

Multi-beam safety sensor

The F3S-TGR-K perimetrical guards are available in category 2 and category 4 with integrated muting function. They work as active/active guards with two, three or four beams and an operating range of up 50 m.

• Sensing distance up to 50 m for active/active type

• Muting function included (no additional controller needed)

• Two muting connection boxes for easy muting applications

• Automatic and manual restart function included

• Category-2 and -4 sensor complying with EN 61496-1

Ordering information

Safety multi beam sensors

F3S-TGR-SB2-K (type 2) F3S-TGR-SB4-K (type 4)

Number of optical axes

2 0.5 to 25 m 500 F3S-TGR-SB2-K2SD-500 (MTL, MTX)

2 20 to 50 m 500 F3S-TGR-SB2-K2LD-500 (MTL. MTX)

3 0.5 to 25 m 400 F3S-TGR-SB2-K3SD-800 (MTL, MTX)

3 20 to 50 m 400 F3S-TGR-SB2-K3LD-800 (MTL, MTX)

4 0.5 to 25 m 300 F3S-TGR-SB2-K4SD-900 (MTL, MTX)

4 20 to 50 m 300 F3S-TGR-SB2-K4LD-900 (MTL, MTX)

For muting applications with transport in one direction, please add the MTL behind the model name. For muting applications with muting sensor arrangement in X-shape, please add the MTX behind the model name. Examples: F3S-TGR-SB2-K2SD-500MTL

Sensing distance Beam

F3S-TGR-SB2-K2SD-500MTX

pitch

Order code

Flexible muting connector box

SLC connection type Other connection Order code

M12 8pin connector without cable 4× muting sensor connection (4pin)

M12 8pin connector with 100 mm cable F39-TGR-SB-CMB2

1× muting lamp M12 (4pin) 1× override/Test input M12 (4pin) 1× cabinet connection M12 (8pin)

Number of optical axes

2 0.5 to 25 m 500 F3S-TGR-SB4-K2SD-500 (MTL, MTX)

2 20 to 50 m 500 F3S-TGR-SB4-K2LD-500 (MTL. MTX)

3 0.5 to 25 m 400 F3S-TGR-SB4-K3SD-800 (MTL, MTX)

3 20 to 50 m 400 F3S-TGR-SB4-K3LD-800 (MTL, MTX)

4 0.5 to 25 m 300 F3S-TGR-SB4-K4SD-900 (MTL, MTX)

4 20 to 50 m 300 F3S-TGR-SB4-K4LD-900 (MTL, MTX)

Sensing distance Beam

F3S-TGR-SB4-K2SD-500MTX

pitch

Order code

F39-TGR-SB-CMB1

Specifications

Safety sensors

Item F3S-TGR-SB4-K___(MTL, MTX) F3S-TGR-SB2-K___(MTL, MTX) Sensor type Type 4 Type 2 Operating range F3S-TGR-SB_-K_SD 0.5 to 25 m

Beam pitch and number of beam F3S-TGR-SB_-K2_D 500 mm

Effective aperture angle (EAA) Within ±2.5° Within ±5° Light source Infrared LED (880 nm) Supply voltage (Vs) 24 VDC ±20% OSSD Two PNP transistor outputs, load current 500 mA max Output operation mode Light - ON Test functions Self-test (after power ON and during operation, one cycle during response time) Protection Output short-circuit protection Response time ON to OFF 16 ms max Ambient temperature Operating: -10°C +55°C (with no icing or condensation) Degree of protection IP65 (IEC 60529) Size (cross section) 38x48 mm

Muting connection box

Supply voltage (Vs) 24 VDC ±20% Ambient temperature Operating: -10 to +55°C (with no icing or condensation) Safety light curtain connector M12 8 pins female Cabinet connector M12 8 pins male Sensor connector 4× M12 4 pins female Muting sensor connector M12 4 pins female Test/override connectors M12 4 pins female Degree of protection IP65 (IEC60529)

F3S-TGR-SB_-K_LD 20 to 50 m

F3S-TGR-SB_-K3_D 400 mm F3S-TGR-SB_-K4_D 300 mm
