Omron F3SG-R User Manual

Download

Safety Light Curtain

F3SG-□R□ Series

User's Manual

http://www.ia.omron.com/f3sg-r

Cat. No. Z352-E1-09

Original instructions

Introduction

Thank you for purchasing the F3SG-R Series Safety Light Curtain (hereinafter referred to as the "F3SG-R" ). This is the instruction Manual describing the use of F3SG-R. Always heed the following points when using the F3SG-R:

Be sure to have F3SG-R be handled by a "Responsible Person" who is well aware of and familiar with the machine to be installed. The term "Responsible Person" used in this Instruction Manual means the person qualified, authorized and responsible to secure "safety" in each process of the design, installation, operation, maintenance services and disposition of the machine. It is assumed that F3SG-R will be used properly according to the installation environment, performance and function of the machine. Responsible Person should conduct risk assessment on the machine and determine the suitability of this product before installation. Read this Manual thoroughly to understand and make good use of the descriptions before installing and operating the product. Keep this Manual at the place where the operator can refer to whenever necessary.

Trademarks

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. Any use of such marks by Omron is under license. The names of the other companies and products mentioned herein are the trademarks or registered trademarks of their respective owners.

Legislation and Standards

1. The F3SG-R does not receive type approval provided by Article 44-2 of the Industrial Safety and Health Act of Japan. When using the F3SG-R in Japan as a "safety system for pressing or shearing machines" prescribed in Article 42 of that law, the machine control system must receive type approval.

2. The F3SG-R is electro-sensitive protective equipment (ESPE) in accordance with European Union (EU) Machinery Directive Index Annex V, Item 2.

3. EC/EU Declaration of Conformity OMRON declares that the F3SG-R is in conformity with the requirements of the following EC/EU Directives: Machinery Directive 2006/42/EC EMC Directive 2004/108/EC, 2014/30/EU

4. Conforming Standards

(1) European standards

EN61496-1 (Type 4 and Type 2 ESPE), EN 61496-2 (Type 4 and Type 2 AOPD), EN61508-1 through -4 (SIL 3 for Type 4 and SIL 1 for Type 2), EN ISO 13849-1:2008 (PL e, Category 4 for Type 4 and PL c, Category 2 for Type 2)

(2) International standards

IEC61496-1 (Type 4 and Type 2 ESPE), IEC61496-2 (Type 4 and Type 2 AOPD), IEC61508-1 through 4 (SIL 3 for Type 4 and SIL 1 for Type 2), ISO 13849-1:2006 (PL e, Category 4 for Type 4 and PL c, Category 2 for Type 2)

(3) JIS standards

JIS B 9704-1 (Type 4 and Type 2 ESPE), JIS B 9704-2 (Type 4 and Type 2 AOPD)

(4) North American standards

UL61496-1(Type 4 and Type 2 ESPE), UL61496-2(Type 4 and Type 2 AOPD), UL508, UL1998, CAN/CSA C22.2 No.14, CAN/CSA C22.2 No.0.8

(5) Chinese standards

GB4584(Specification of active opto-electronic protective devices for presses)

Introduction

5. Third-Party Certifications

(1) TÜV SÜD

• EC Type-Examination certificate: EU Machinery Directive, Type 4 and Type 2 ESPE (EN61496-1), Type 4 and Type 2 AOPD (EN 61496-

• Certificate: Type 4 and Type 2 ESPE (EN61496-1), Type 4 and Type 2 AOPD (EN61496-2), EN 61508-1 through 4 (SIL 3 for Type 4 and SIL 1 for Type 2), EN ISO 13849-1:2008 (PL e, Category 4 for Type 4, and PL c, Category 2 for Type 2)

(2) UL

• UL Listing: Type 4 and Type 2 ESPE (UL61496-1), Type 4 and Type 2 AOPD (UL61496-2), UL508, UL1998, CAN/ CSA C22.2 No.14, CAN/CSA C22.2 No.0.8

(3) China National Casting and Forging Machines Quality Supervision and Inspection Center

• Certificate: GB4584 (Specification of active opto-electronic protective devices for presses) (Type 4)

F3SG-R

User’s Manual

Introduction

6. Other Standards The F3SG-R is designed according to the standards listed below. To make sure that the final system complies with the following standards and regulations, you are asked to design and use it in accordance with all other related standards, laws, and regulations. If you have any questions, consult with specialized organizations such as the body responsible for prescribing and/or enforcing machinery safety regulations in the location where the equipment is to be used.

• European Standards: EN415-4, EN691-1, EN692, EN693, IEC/TS 62046

• U.S. Occupational Safety and Health Standards: OSHA 29 CFR 1910.212

• U.S. Occupational Safety and Health Standards: OSHA 29 CFR 1910.217

• American National Standards: ANSI B11.1 to B11.19

• American National Standards: ANSI/RIA R15.06

• Canadian Standards Association CSA Z142, Z432, Z434

• SEMI Standards SEMI S2

• Japan Ministry of Health, Labour and Welfare "Guidelines for Comprehensive Safety Standards of Machinery", Standard Bureau's Notification No. 0731001 dated July 31, 2007.rms and Conditions Agreement

• Chinese National Standards: GB17120, GB27607

F3SG-R

User’s Manual

Terms and Conditions Agreement

Warranties.

(a) Exclusive Warranty. Omron's exclusive warranty is that the Products will be free from defects in materials

and workmanship for a period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron). Omron disclaims all other warranties, express or implied.

(b) Limitations. OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED,

ABOUT NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OF THE PRODUCTS. BUYER ACKNOWLEDGES THAT IT ALONE HAS DETERMINED THAT THE PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR INTENDED USE. Omron further disclaims all warranties and responsibility of any type for claims or expenses based on infringement by the Products or otherwise of any intellectual property right.

originally shipped with Buyer responsible for labor charges for removal or replacement thereof) the noncomplying Product, (ii) repair the non-complying Product, or (iii) repay or credit Buyer an amount equal to the purchase price of the non-complying Product; provided that in no event shall Omron be responsible for warranty, repair, indemnity or any other claims or expenses regarding the Products unless Omron's analysis confirms that the Products were properly handled, stored, installed and maintained and not subject to contamination, abuse, misuse or inappropriate modification. Return of any Products by Buyer must be approved in writing by Omron before shipment. Omron Companies shall not be liable for the suitability or unsuitability or the results from the use of Products in combination with any electrical or electronic components, circuits, system assemblies or any other materials or substances or environments. Any advice, recommendations or information given orally or in writing, are not to be construed as an amendment or addition to the above warranty. See http://www.omron.com/global/

or contact your Omron representative for published information.

Introduction

Limitation on Liability; Etc.

OMRON COMPANIES SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, NEGLIGENCE OR STRICT LIABILITY. Further, in no event shall liability of Omron Companies exceed the individual price of the Product on which liability is asserted.

Suitability of Use.

Omron Companies shall not be responsible for conformity with any standards, codes or regulations which apply to the combination of the Product in the Buyer's application or use of the Product. At Buyer's request, Omron will provide applicable third party certification documents identifying ratings and limitations of use which apply to the Product. This information by itself is not sufficient for a complete determination of the suitability of the Product in combination with the end product, machine, system, or other application or use. Buyer shall be solely responsible for determining appropriateness of the particular Product with respect to Buyer's application, product or system. Buyer shall take application responsibility in all cases. NEVER USE THE PRODUCT FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCT(S) IS PROPERLY RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.

F3SG-R

User’s Manual

iii

Introduction

Programmable Products.

Omron Companies shall not be responsible for the user's programming of a programmable Product, or any consequence thereof.

Performance Data.

Data presented in Omron Company websites, catalogs and other materials is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of Omron's test conditions, and the user must correlate it to actual application requirements. Actual performance is subject to the Omron's Warranty and Limitations of Liability.

Change in Specifications.

Product specifications and accessories may be changed at any time based on improvements and other reasons. It is our practice to change part numbers when published ratings or features are changed, or when significant construction changes are made. However, some specifications of the Product may be changed without any notice. When in doubt, special part numbers may be assigned to fix or establish key specifications for your application. Please consult with your Omron's representative at any time to confirm actual specifications of purchased Product.

Errors and Omissions.

Information presented by Omron Companies has been checked and is believed to be accurate; however, no responsibility is assumed for clerical, typographical or proofreading errors or omissions.

F3SG-R

User’s Manual

Safety Precautions

Indications and Meanings for Safe Use

The precautions listed in this document indicated by alert symbols and statements must be followed for the safe use of the F3SG-R. Failure to follow all precautions and alerts may result in an unsafe use or operation.Thoroughly read this manual and understand the installation procedures, operation check procedures, and maintenance procedures before using F3SG-R. The following word and symbols are used in this document.

Meaning of Signal Word

Indicates an imminently hazardous situation which, if not avoided, is likely to result in serious injury or may result in death. Additionally there may be severe property damage.

Indicates a potentially hazardous situation which, if not avoided, will result in minor or moderate injury, or may result in serious injury or death. Additionally there may be significant property damage.

Meanimgs of Alert Symbols

Introduction

Indicates prohibited actions.

Indicates mandatory actions.

Indicates the risk of electric shock.

Alert Statements in this Manual

Stop the machine immediately if the F3SG-R and the machine installed with the F3SG-R does not operate as intended.

Make sure to test the operation of the F3SG-R after setting with DIP Switch to verify that the F3SG-R operates as intended. Make sure to stop the machine until the test is complete. Unintended settings may cause a person to go undetected, resulting in serious injury or death.

For users

The F3SG-R must be installed, configured, and incorporated into a machine control system by a sufficiently trained and qualified person. An unqualified person may not be able to perform these operations properly, which may cause a person to go undetected, resulting in serious injury.

F3SG-R

User’s Manual

Introduction

For machines

Do not use this sensor for machines that cannot be stopped by electrical control. For example, do not use it for a pressing machine that uses full-rotation clutch. Otherwise, the machine may not stop before a person reaches the hazardous part, resulting in serious injury.

To use F3SG-R in PSDI mode (initiation of cycle operations by a presence sensing device), you must configure an appropriate circuit between F3SG-R and the machine.For details about PSDI, refer to OSHA1910.217, IEC61496-1, and other relevant standards and regulations.

For installation

Make sure Responsible Person tests the operation of the F3SG-R after installation to verify that the F3SG-R operates as intended. Make sure to stop the machine until the test is complete. Unintended installation, wiring or function settings may cause a person to go undetected, resulting in serious injury.

Make sure to install the F3SG-R at the safety distance from the hazardous part of the machine. Otherwise, the machine may not stop before a person reaches the hazardous part, resulting in serious injury.

Install a protective structure so that the hazardous part of a machine can only be reached by passing through the sensor's detection zone. If access to the hazardous part by reaching over the detection zone of a vertically mounted F3SG-R cannot be excluded, the height of the detection zone and the safety distance shall be determined in consideration of such a risk. Install the sensors so that part of the person is always present in the detection zone when working in a machine's hazardous zones. If a person is able to step into the hazardous zone of a machine and remain behind the F3SG-R's detection zone, configure the system with Restart Interlock function due to unexpected startup. Failure to do so may result in serious injury.

Install the reset switch in a location that provides a clear view of the entire hazardous zone and where it cannot be activated from within the hazardous zone.

Install the pre-reset switch always in the hazardous zone and where it cannot be activated from outside the hazardous zone.

The F3SG-R cannot protect a person from a projectile exiting the hazardous zone. Install protective cover(s) or fence(s).

When the fixed blanking or floating blanking function is used, observe the following. Failure to do so may cause a person to go undetected, resulting in serious injury.

• Responsible Person must verify that a test rod is detected for all detection zones except the blanked area.

• When the fixed blanking function is used, install a protective structure to cover the whole blanked area in order to prevent personnel approach to hazardous part of the machine through the blanked area.

F3SG-R

User’s Manual

Detection capability gets larger when fixed/floating blanking or reduced resolution function is used. When these functions are used, the safety distance calculation must be based on the increased detection capability for these functions. Otherwise the machine may not stop before a person reaches to the hazardous part, resulting in serious injury.

A warning zone must not be used for safety applications. Always install your system so that a detection zone should be passed before reaching a hazardous part of the machine. If access to the hazardous part by reaching over the detection zone of a vertically mounted F3SG-R cannot be excluded, the height of the detection zone and the safety distance shall be determined in consideration of such a risk.

When a warning zone is configured, you must attach labels that indicate a border between normal detection zone and warning zone. Otherwise the machine may not stop before a person reaches to the hazardous part, resulting in serious injury.

A warning zone must be configured based on a safety distance.

The muting and override functions disable the safety functions of the device. You must ensure safety using other method when these functions are operating.

Introduction

Install muting sensors so that they can distinguish between the object that is being allowed to pass through the detection zone and a person. If the muting function is activated by the detection of a person, the machine may not stop operating, resulting in serious injury.

Muting lamps that indicate the state of the muting and override functions must be installed where they are clearly visible to workers from all the operating positions.

Use 2 independent input devices for muting inputs. Failure to do so may result in a muting status due to a single muting sensor's failure.

You must install F3SG-R, muting sensor, and physical barrier, and configure time settings for muting so that an operator should not enter hazardous zone.

The Dynamic Muting function can configure a new muting zone after muting is enabled based on a result measuring a workpiece height for a certain period of time. The function must be completely verified by a trained and qualified person before being used. Take additional safety measures if necessary.

Install the switch to activate the override function in a location that provides a clear view of the entire hazardous zone and where it cannot be activated from within the hazardous zone. Make sure that nobody is in the hazardous zone before activating the override function.

Override time must be properly configured for its application by a sufficiently trained and qualified person.

Make sure to connect an override cancel switch to the Reset line when using the override function. Otherwise the override state may not be released by the override cancel switch, resulting in serious injury.

F3SG-R

User’s Manual

vii

Introduction

Reflector

Position with retro-reflection

Position with detection zone bent at 90

When muting error occurs with workpiece blocking the F3SG-R, there are two methods to forcibly remove the workpiece.

1) Manual operation (with additional safety measure); or

2) Override function (Override at Normal Operation / Override upon Startup)

Only one of the methods, either 1) or 2) must be used. If they are used at the same time, the override may be activated at an unexpected timing.

Install F3SG-R so that it is not affected by reflective surfaces. Failure to do so may hinder detection, resulting in serious injury. For an installation distance from reflective surfaces, see 4-1-

3. Distance from Reflective Surfaces.

When using more than 1 set of F3SG-R in adjacent areas, the emitter of one F3SG-R may interfere with the receiver of the other, causing the safety functions to stop working properly. Install and configure them so that mutual interference does not occur.

Make sure that foreign material such as water, oil, or dust does not enter the F3SG-R or the connector while the cap or the cover of the DIP Switch is removed.

To change the response time, calculate the safety distance based on the setting. Otherwise, the machine may not stop before a person reaches the hazardous part, resulting in serious injury.

Do not use the sensor system with mirrors in a retro-reflective configuration as shown below.Doing so may hinder detection. It is possible to use mirrors to alter the detection zone to a 90-degree angle.

Perform an inspection for all F3SG-R as described in Chapter 6 Checklists. When using cascade connections, perform inspections for every connected F3SG-R.

viii

For wiring

When using the PNP output, connect the load between the output and 0 V line. When using the NPN output, connect the load between the output and +24 VDC line. Connecting the load between the output and a different power supply line from the above will result in a dangerous condition because the operation mode of safety output is reversed to "Dark-ON".

F3SG-R

User’s Manual

When using the PNP output, do not ground +24 VDC line. When using the NPN output, do not ground 0 V line. Otherwise, a ground fault may turn the safety output ON, resulting in a failure of stopping the machine.

Configure the system by using the optimal number of safety outputs that satisfy the requirements of the necessary safety category.

Do not connect each line of F3SG-R to a DC power supply of higher than 24 VDC+20%. Also, do not connect it to an AC power supply. Failure to do so may result in electric shock.

Make sure to perform wiring while the power supply is OFF.

Do not use the auxiliary output for safety applications. Failure to do so may result in serious injury when the F3SG-R fails.

For the F3SG-R to comply with IEC 61496-1 and UL 508, the DC power supply unit must satisfy all of the following conditions:

• Must be within the rated power voltage (24 VDC ± 20%)

• Must have tolerance against the total rated current of devices if it is connected to multiple devices

• Must comply with EMC directives (industrial environment)

• Double or reinforced insulation must be applied between the primary and secondary circuits

• Automatic recovery of overcurrent protection characteristics

• Output holding time must be 20ms or longer

• Must satisfy output characteristic requirements for class 2 circuit or limited voltage current circuit defined by UL508. Refer to 4-5-2. Power Supply Unit.

• Must comply with laws and regulations, regarding EMC and electrical equipment safety, of the country or region where the F3SG-R is used (For example, in EU, the power supply must comply with the EMC Directive and the Low Voltage Directive.)

Introduction

Double or reinforced insulation from hazardous voltage must be applied to all input and output lines. Failure to do so may result in electric shock.

Extension of the cable must be within a specified length. If it isn't, safety function may not work properly, resulting in danger.

Settings

Some settings of functions or the Setting Recovery function configurable with the Configuration Tool may increase risks. Make sure the Responsible Person conduct a thorough risk assessment analysis before managing and changing the settings. Unintended changes to the settings may cause a person go to undetected, resulting in serious injury.

After completion of teach-in, check that the configuration have been properly done.

F3SG-R

User’s Manual

Introduction

Other

Do not try to disassemble, repair, or modify this product. Doing so may cause the safety functions to stop working properly.

Do not use the F3SG-R in environments where flammable or explosive gases are present. Doing so may result in explosion.

Perform daily and 6-month inspections for the F3SG-R as described in Chapter 6 Checklists. Otherwise, the system may fail to work properly, resulting in serious injury.

Do not use the F3SG-R in environments where strong electromagnetic field may be produced. Doing so may cause the safety functions to stop working properly.

F3SG-R

User’s Manual

Precautions for Safe Use

Make sure to observe the following precautions that are necessary for ensuring safe use of the product. Do not install, use, or store the F3SG-R in the following types of environments:

- Areas exposed to intense interference light, such as direct sunlight

- Areas with high humidity where condensation is likely to occur

- Areas where oil mist or corrosive gases are present

- Areas exposed to vibration or shock levels higher than in the specification provisions

- Areas where the product may come into contact with water

- Areas where the pollution degree is harsher than 3, such as outdoor environment

- Areas where the product may get wet with oil that can solve adhesive

• Loads must satisfy both of the following conditions:

- Not short-circuited

- Not used with a current that is higher than the rating

• Do not drop the product.

• Dispose of the product in accordance with the relevant rules and regulations of the country or area where the product is used.

• Make sure that the F3SG-R is securely mounted and its cables and connectors are properly secured based on the torque recommended in this document.

• Bending radii of cables must be equal to or higher than specified minimum values.

• When replacing the cable connectors with other types of connectors, use connectors that provide a protection grade of IP54 or higher.

• Be sure to route the input/output lines for the F3SG-R separate from high-potential power lines or through an exclusive conduit.

• To extend a cable length with a cable other than the dedicated cable, use a cable with the same or superior specifictions.

Refer to 4-5-3-4. Extending Cable Length with Commercially Available Cable

Introduction

• In environments where foreign material such as spatter adheres to the F3SG-R, attach a cover to protect the F3SG-R from the spatter.

• Interface Unit F39-GIF is dedicated to the F3SG-R series. Do not use it for F3SJ-A or F3SJ-E/B series.

• Read and understand this document for DIP Switch setting.

• The rated life of this product is 6 years.

F3SG-R

User’s Manual

Introduction

Precautions for Correct Use

Observe the precautions described below to prevent operation failure, malfunctions, or undesirable effects on product performance.

 Storage conditions and installation environment

• Do not install, use, or store the F3SG-R for a long time at a temperature or humidity out of the specified range.

• This is a class A product. In residential areas it may cause radio interference, in which case the Responsible Person may be required to take adequate measures to reduce interference.

 Wiring and installation

• Properly perform the wiring after confirming the signal names of all the terminals.

• Be sure that there is nothing in the detection zone and the stable-state indicator is turned ON after power is turned ON.

• Do not operate the control system until 2 seconds or more after turning ON the power of the F3SG-R.

• When using a commercially available switching regulator power supply, make sure to ground the PE terminal (protective earth terminal).

• Install the emitter and receiver to the same vertical direction.

• Use brackets of specified quantities and locations according to the dimensions. If the brackets described above are not used, ratings and performance cannot be met.

• Do not install the F3SG-R close to a device that generates high-frequency noise. Otherwise, take sufficient blocking measures.

 Cleaning

• Do not use thinner, benzene, or acetone for cleaning. They affect the product's resin parts and paint on the housing.

 Object detection

• The F3SG-R cannot detect transparent and/or translucent objects.

 Settings

• Do not operate the DIP Switch during normal operation of the F3SG-R. Otherwise, the F3SG-R enters the Lockout state.

• Do not operate the DIP Switch and Push Switch with tools that may damage the product.

• Be sure that the F3SG-R is in the Setting mode when making a change to the setting.

xii

F3SG-R

User’s Manual

Visual Aids

The following symbols appear in this document to help you locate different types of information.

Indicates important information or advice on a function or operation of the product.

Indicates page numbers or chapter title of related information.

Introduction

F3SG-R

User’s Manual

xiii

Introduction

xiv

F3SG-R

User’s Manual

Legislation and Standards i Terms and Conditions Agreement iii Safety Precautions v Precautions for Safe Use xi Precautions for Correct Use xii Visual Aids xiii

Chapter1 Overview and Specifications 1

1-1. What is Included 2 1-2. System Components 3

1-2-1. Basic Components 4 1-2-2. Model Overview 5

1-3. List of Features 6

1-3-1. Model Overview 6

Introduction

1-3-2. Versions 6 1-3-3. List of Features 7

1-4. LED Indicators 9

1-4-1. LED Indicator Status 10 1-5. Ratings/Specifications 12 1-6. List of Models 16

1-6-1. List of Models/Response Time/Current Consumption/Weight 16

1-6-2. Calculation of Response Time of Cascaded Segments 19

Chapter2 System Operation and Functions 21

2-1. Combination of Functions 23 2-2. Operating States 25

2-2-1. Machine Run State 25

2-2-2. Machine Stop State 25

2-2-3. Interlock State 25

2-2-4. Lockout State 25

2-2-5. Teach-in Mode 25

2-2-6. Setting State 26

2-3. Optical Synchronization 27

2-3-1. Overview 27 2-4. Scan Code Selection 28

2-4-1. Overview 28

2-4-2. Factory Default Setting 28

2-4-3. Setting with DIP Switch 28

2-4-4. Setting with Configuration Tool 28

F3SG-R

User’s Manual

Introduction

2-5. PNP/NPN Selection 29

2-5-1. Overview 29

2-5-2. Factory Default Setting 29

2-5-3. Setting with DIP Switch 29

2-5-4. Setting with Configuration Tool 29 2-6. Self-Test 30

2-6-1. Overview 30

2-6-1-1. Self-Test details 30 2-6-1-2. Waveform of safety outputs 31

2-7. External Test 32

2-7-1. Overview 32

2-7-2. Factory Default Setting 33

2-7-3. Setting with DIP Switch 33

2-7-4. Setting with Configuration Tool 33 2-8. Lockout Reset 34

2-8-1. Overview 34 2-9. Interlock 35

2-9-1. Over view 35

2-9-2. Factory Default Setting 38

2-9-3. Setting with DIP Switch 38

2-9-4. Setting with Configuration Tool 39 2-10. External Device Monitoring (EDM) 40

2-10-1.Overview 40

2-10-2.Factory Default Setting 41

2-10-3.Setting with DIP Switch 41

2-10-4.Setting with Configuration Tool 41

2-11. Auxiliary Output 43

2-11-1.Overview 43

2-11-2.Factory Default Setting 44

2-11-3.Setting with DIP Switch 44

2-11-4.Setting with Configuration Tool 45 2-12. Muting 47

2-12-1.Standard Muting Mode 49

2-12-2.Exit-Only Muting Mode 59

xvi

2-13. Override 72

F3SG-R

User’s Manual

2-12-3.Position Detection Muting Mode 65

2-12-4.Dynamic Muting 69

2-12-5.Factory Default Setting 70

2-12-6.Setting with DIP Switch 70

2-12-7.Setting with Configuration Tool 70

2-13-1.Override at Normal Operation 73

2-13-2.Override upon Startup 77

2-13-3.Setting with DIP Switch 78

2-13-4.Setting with Configuration Tool 78 2-14. Fixed Blanking 79

2-14-1.Overview 79

2-14-2.Factory Default Setting 82

2-14-3.Setting with DIP Switch 82

2-14-4.Setting with Configuration Tool 82 2-15. Floating Blanking 83

2-15-1.Overview 83

2-15-2.Factory Default Setting 86

2-15-3.Setting with DIP Switch 86

2-15-4.Setting with Configuration Tool 87 2-16. Reduced Resolution 88

2-16-1.Overview 88

2-16-2.Factory Default Setting 89

2-16-3.Setting with DIP Switch 89

Introduction

2-16-4.Setting with Configuration Tool 89 2-17. Warning Zone 91

2-17-1.Overview 91

2-17-2.Factory Default Setting 94

2-17-3.Setting with DIP Switch 94

2-17-4.Setting with Configuration Tool 94 2-18. Setting Zone Adjacency Conditions 95 2-19. Operating Range Selection 97

2-19-1.Overview 97

2-19-2.Factory Default Setting 97

2-19-3.Setting with DIP Switch 97

2-19-4.Setting by Wiring 98

2-19-5.Setting with Configuration Tool 98 2-20. Response Time Adjustment 99

2-20-1.Overview 99

2-20-2.Factory Default Setting 99

2-20-3.Setting with DIP Switch 99

2-20-4.Setting with Configuration Tool 99 2-21. Lamp 100

2-21-1.Overview 100

2-21-2.Factory Default Setting 100

2-21-3.Setting with DIP Switch 100

2-21-4.Setting with Configuration Tool 100 2-22. Designated Beam Output 103

2-22-1.Overview 103

2-22-2.Factory Default Setting 103

F3SG-R

User’s Manual

xvii

Introduction

2-22-3.Setting with DIP Switch 104

2-22-4.Setting with Configuration Tool 104 2-23. Light Level Monitoring 105

2-23-1.Incident Light Level Information 105

2-23-1-1. Overview 105 2-23-1-2. Setting with Configuration Tool 105

2-23-2.Ambient Light Level Information 105

2-23-2-1. Overview 105 2-23-2-2. Setting with Configuration Tool 105

2-24. Maintenance Information 106

2-24-1.Overview 106

2-24-2.Error Log 106

2-24-3.Warning Log 106

2-24-4.Power-ON Time 106

2-24-5.Load Switching Frequency 107

2-24-6.Muting Statistics Information 107 2-25. Operating Status Monitoring 108

2-25-1.Overview 108

2-25-2.Readout Information 108 2-26. Setting Recovery 109

2-26-1.Overview 109

Chapter3 Setting with DIP Switch 111

3-1. List of Features Configurable by DIP Switch 112 3-2. DIP Switch 113

3-2-1. DIP Switch on Receiver 114

3-2-2. DIP Switch on Emitter 115

3-2-3. Push Switch 115 3-3. Setting by Teach-in 116

3-3-1. Setting Fixed Blanking by Teach-in 116

3-3-2. Setting Floating Blanking by Teach-in 119

Chapter4 Wiring/Installation 123

xviii

4-1. Installation Considerations 125

F3SG-R

User’s Manual

4-1-1. Detection Zone and Approach 125

4-1-2. Safety Distance 126

4-1-2-1. Safety Distance Formulas according to ISO 13855/EN ISO 13855 126 4-1-2-2. Safety Distance Formulas according to ANSI B11.19 129

4-1-3. Distance from Reflective Surfaces 130

4-1-3-1. F3SG-4R (Type 4 ESPE) 130

4-1-3-2. F3SG-2R (Type 2 ESPE) 130

4-1-4. Mutual Interference Prevention 131 4-2. Cascade Connection 133

4-2-1. Overview 133

4-2-2. Connection Procedure 135 4-3. Dimensions 136

4-3-1. Mounted with Standard Fixed Brackets (F39-LGF) 136

4-3-1-1. F3SG-RA Series 136 4-3-1-2. F3SG-RE Series 138 4-3-1-3. Standard Fixed Bracket 140

4-3-2. Mounted with Standard Adjustable Brackets (F39-LGA) 141

4-3-2-1. F3SG-RA Series 141 4-3-2-2. F3SG-RE Series 143 4-3-2-3. Standard Adjustable Bracket 145

4-3-3. Mounted with Top/Bottom Adjustable Brackets (F39-LGTB) and Standard Adjustable Brackets

(F39-LGA) 146

4-3-3-1. F3SG-RA Series 146

Introduction

4-3-3-2. F3SG-RE Series 152 4-3-3-3. Top/Bottom Adjustable Bracket (F39-LGTB) 156 4-3-3-4. Top/Bottom Adjustable Bracket (F39-LGTB-1) 156

4-4. Mounting 157

4-4-1. Mounting Method 157

4-4-2. Number of Brackets Required 157

4-4-3. Mounting Procedure 158

4-4-3-1. Mounting with Standard Fixed Brackets (F39-LGF) 158 4-4-3-2. Mounting with Standard Adjustable Brackets (F39-LGA) 159 4-4-3-3. Mounting with Top/Bottom Adjustable Brackets (F39-LGTB) 163

4-4-4. Beam Alignment Procedure 166 4-5. Wiring 167

4-5-1. Wiring Precautions 167

4-5-2. Power Supply Unit 168

4-5-3. Cable Connections(F3SG-RA Series) 169

4-5-3-1. Single-Ended Cable 169 4-5-3-2. Double-Ended Cable 170 4-5-3-3. Cascading Cable 172 4-5-3-4. Extending Cable Length with Commercially Available Cable 173 4-5-3-5. Adapter Cable (A) 173 4-5-3-6. Adapter Cable (B) 175 4-5-3-7. Reduced Wiring Connector System with Y-Joint Plug/Socket Connector 177 4-5-3-8. Reduced Wiring Connector System with 4-Joint Plug/Socket Connector 178

4-5-4. Cable Connections(F3SG-RE Series) 181

4-5-4-1. Recommended Cable 181

F3SG-R

User’s Manual

xix

Introduction

4-5-4-2. Extending Cable Length with Commercially Available Cable 182 4-5-4-3. Adapter Cable (C) 182 4-5-4-4. Reduced Wiring Connector System 184

4-5-5. Functional Earth Connection 185

Chapter5 Input/Output Circuit and Applications 187

5-1. Input/Output Circuit 189

5-1-1. Entire Circuit Diagram 189

5-1-1-1. F3SG-RA Series 189 5-1-1-2. F3SG-RE Series 191

5-1-2. Input Circuit Diagram by Function 193

5-1-2-1. F3SG-RA Series 193 5-1-2-2. F3SG-RE Series 193

5-2. Wiring Examples(F3SG-RA Series) 194

5-2-1. Standalone F3SG-RA using PNP Outputs 194

5-2-1-1. Auto Reset Mode, EDM disabled and PNP Outputs 194

5-2-1-2. Manual Reset Mode, EDM enabled and PNP Outputs 195 5-2-1-3. Y-Joint Plug/Socket Connector using PNP outputs 196 5-2-1-4. Pre-Reset Mode using PNP Output 197

5-2-2. Muting using PNP Outputs 198

5-2-2-1. Standard Muting Mode/Exit-Only Muting Mode using PNP Outputs 198 5-2-2-2. F3SG-RA with Y-Joint Plug/Socket Connector in Standard Muting Mode/Exit-Only Muting

Mode using PNP outputs 199 5-2-2-3. Standard Muting Mode/Exit-Only Muting Mode with two Muting Sensors using PNP Out-

puts 200 5-2-2-4. Standard Muting Mode with four Muting Sensors using PNP Outputs 201 5-2-2-5. Standard Muting Mode with F3W-MA (T-Shaped Configuration with 4-Joint Plug/Socket

Connector) 202 5-2-2-6. Exit-Only Muting Mode with F3W-MA (L-Shaped Configuration with 4-Joint Plug/Socket

Connector) 203

5-2-3. Standalone F3SG-RA using NPN Outputs 204

5-2-3-1. Auto Reset Mode, EDM disabled and NPN Outputs 204 5-2-3-2. Manual Reset Mode, EDM enabled and NPN Outputs 205 5-2-3-3. Y-Joint Plug/Socket Connector using NPN outputs 206 5-2-3-4. Pre-Reset Mode using NPN Output 207

5-3. Wiring Examples (F3SG-RE Series) 211

F3SG-R

User’s Manual

5-2-4. Muting using NPN Outputs 208

5-2-4-1. Standard Muting Mode/Exit-Only Muting Mode using NPN Outputs 208 5-2-4-2. Standard Muting Mode/Exit-Only Muting Mode with two Muting Sensors using NPN Out-

puts 209 5-2-4-3. Standard Muting Mode with four Muting Sensors using NPN Outputs 210

5-3-1. Short Mode 211

5-3-2. Long Mode 212

5-3-3. Standalone F3SG-RE with Y-Joint Plug/Socket Connector 213

5-4. Connectable Safety Control Units 214

Chapter6 Checklists 215

6-1. Pre-Operation Checklists 216

6-1-1. Checklists 216

6-1-1-1. Installation Condition Check 216 6-1-1-2. Wiring Check Before Power Is Turned ON 216 6-1-1-3. Operation Check While the Machine Is Stopped 217 6-1-1-4. Checking that Hazardous Parts Stop While the Machine Operates 218

6-2. Maintenance Checklists 219

6-2-1. Checklists 219

6-2-1-1. Inspection at Startup and When Changing Operators 219 6-2-1-2. Checking that Hazardous Parts Stop While the Machine Operates 220

Introduction

6-2-1-3.

Chapter7 Appendix 223

7-1. Troubleshooting 224

7-1-1. Lockout State 225

7-1-1-1. Description 225 7-1-1-2. Troubleshooting 226

7-1-2. Warning 230

7-1-2-1. Description 230 7-1-2-2. Troubleshooting 230 7-1-2-3. Muting Sequence Error Indication 231

7-1-2-4. Interlock Sequence Error Indication 232 7-2. Optional Accessories(Sold Separately) 233 7-3. Glossary 241 7-4. Revision History 245

Items to Inspect Every 6 Months or When Machine Settings Are Changed 220

F3SG-R

User’s Manual

xxi

Introduction

xxii

F3SG-R

User’s Manual

Chapter 1 Overview and Specifications

1-1. What is Included 2

1-2. System Components 3

1-2-1. Basic Components 4

1-2-2. Model Overview 5

1-3. List of Features 6

1-3-1. Model Overview 6

1-3-2. Versions 6

1-3-3. List of Features 7

1-4. LED Indicators 9

Chapter1 Overview and Specifications

1-4-1. LED Indicator Status 10

1-5. Ratings/Specifications 12

1-6. List of Models 16

1-6-1. List of Models/Response Time/Current Consumption/Weight 16

1-6-2. Calculation of Response Time of Cascaded Segments 19

F3SG-R

User’s Manual

Overview and Specifications

1-1. What is Included

Chapter1 What is Included

Before use, confirm that the items below are included with the product. If you find that an item is missing, please contact your local branch office or distributor.

F3SG-RA main unit

F3SG-RE main unit

Product Quantity

Emitter x 1, Receiver x 1

Standard Fixed Bracket The number of brackets included depends on protective height of the F3SG-R.

Less than 1,280 mm: 2 sets 1,280 mm or longer and up to 2,270 mm: 3 sets 2,350 mm or longer and up to 2,510 mm: 4 sets

Warning Zone Label F3SG-RA series: 1, F3SG-RE series: Not included

Troubleshooting Guide Sticker 1

Safety Precautions 4

Quick Installation Manual 1

F3SG-R

User’s Manual

1-2. System Components

Indicator

Beam

Beam center-line mark

DIP Switch (Receiver)

DIP Switch (Emitter)

Emitter

Receiver

Power Cable (Black)

Power Cable (Gray)

Push-Switch

Communication Port

Extension cable

Indicator

Beam

Emitter

Receiver

Power Cable (Black)

Power Cable (Gray)

Extension cable

Beam center-line mark

 F3SG-RA Series  F3SG-RE Series

Overview and Specifications

This section describes the system components and part names of the F3SG-R system.

Chapter1 System Components

F3SG-R

User’s Manual

Overview and Specifications

F3SG-RE-

1-2-1. Basic Components

Chapter1 System Components

Component Model name Description

Emitter, receiver F3SG-RA-- Select a model name based on the required protective

height and ESPE type. The model name can be understood as follows:

F3SG-RA--

1: ESPE type (4: Type 4, 2: Type 2) 2: Protective height (mm) 3: Object resolution (mm) 4: L: Emitter, D: Receiver, blank: Emitter and receiver.

Emitter, receiver F3SG-RE- Select a model name based on the required protective

height and ESPE type. The model name can be understood as follows:

1: ESPE type (4: Type 4, 2: Type 2) 2: Protective height (mm) 3: Output type (P: PNP output, N: NPN output*) 4: Object resolution (mm) 5: L: Emitter, D: Receiver, blank: Emitter and receiver. * For emitter, a hyphen "-" is indicated instead of "P" or "N".

To distinguish between the emitter and receiver, find the labels attached to the front of the F3SG-R. The label on the emitter reads "EMITTER" and the label on the receiver reads "RECEIVER".

F3SG-R

User’s Manual

Overview and Specifications

1-2-2. Model Overview

The F3SG-R safety light curtain family is available in two ESPE types, Type 4 and Type 2 according to EN 61496-1, identified as follows: F3SG-4RA : Type 4 ESPE F3SG-2RA : Type 2 ESPE (These are also referred to as the "F3SG-RA".)

The F3SG-RA is multi-functional and designed for various applications.

Refer to Chapter 2 System Operation and Functions for more information on available features.

Chapter1 System Components

F3SG-R

User’s Manual

Overview and Specifications

1-3. List of Features

Chapter1 List of Features

1-3-1. Model Overview

The F3SG-R safety light curtain family has two types, F3SG-RA and F3SG-RE.

 F3SG-RA Series

The model name is represented as F3SG-RA-. The F3SG-RA series is an advance model, allowing you to configure the safety light curtain to fit your application. Refer to the List of Features below for available features.

 F3SG-RE Series

The model name is represented as F3SG-RE. The F3SG-RE series is a limited-function model, easy to use with simple wiring (emitter: 4-wire, receiver: 4-wire). Refer to the List of Features below for available features.

1-3-2. Versions

The F3SG-R has Version 1.0 and Version 1.1. Avaialble features vary depending on the versions. When Version 1.0 and Version 1.1 of F3SG-RA are in cascade connection, all cascaded segments operate as Version 1.0.

Configuration Tool Version

1.01 and down Supported -

1.10 and up Supported Supported

Refer to  Functions by F3SG-RA software versions under 1-3-3. List of Features for more information.

Please note that it is not possible to update the version of the F3SG-RA with the Configuration tool.

You can find a version of F3SG-R on the nameplate of the receiver as shown below.

F3SG-R Version

1.0 1.1 and up

F3SG-R

User’s Manual

Overview and Specifications

1-3-3. List of Features

The F3SG-R safety light curtain family has the following features. For the F3SG-RA, some of the features are available or configurable by the DIP Switch on the body of the safety light curtain or the Configuration Tool (SD Manager 2) via a PC.

Setting with DIP Switch and Configuration Tool is not available for the F3SG-RE.

F3SG-RA Series

Feature

Scan Code Selection X Code A p.28 PNP/NPN Selection X PNP output p.29 External Test X 24 V Active p.32 Interlock X X Auto Reset Mode p.35 Pre-Reset X X Disabled p.40 External Device Monitoring(EDM) X X Disabled p.40 Auxiliary Output

Muting X Standard Muting mode p.47 Override X Enabled p.72 Fixed Blanking * X X Disabled p.79 Floating Blanking * X X Disabled p.83 Reduced Resolution X Disabled p.88 Warning Zone X Disabled p.91 Operating Range Selection X Long mode X p.97 Response Time Adjustment X Normal mode p.99 Lamp

Designated Beam Output X Disabled p.103 Muting Statistics Data Recording * X Enabled p.107

Setting by

DIP Switch

Setting by

Configuration

Tool

Factory default setting

Safety output information

(Inverted signal output:Enable)

Red:Safety output information(Inverted

signal output :Enable)

Orange:Stable-state

information(Inverted signal output

:Enable, Output pattern:ON 1 time)

Green:Safety output information

F3SG-RE

Series

Chapter1 List of Features

Page

p.43

p.100

* The functions are upgraded in Version 1.1 of F3SG-RA.

F3SG-R

User’s Manual

Overview and Specifications

D 0000 2 16

Year of manufacture (last two digits) Month of manufacture (January to September, X: October, Y: November, Z: December) Serial number (4 digits) This number is reset at the start of each month. L: emitter, D: receiver

 Functions by F3SG-RA software versions

Function

Chapter1 List of Features

Floating Blanking Temporarily Disable Monitoring function is only

available when the F3SG-RA is in one segment system.

Muting Statistics Information All functions available except Online

monitoring and Clearing muting statistic logs.

Version 1.0 Version 1.1 and up

Note: F3SG-RA of serial number D□□□□216 and later have different factory default settings from

the older ones, as shown in the below table.*1

*1. The serial number indicates the following meanings.

Refer to Safety Light Curtain Configuration Tool for Model F3SG (SD Manager 2) User’s Manual for more information on differences of the functions by Configuration Tool versions.

F3SG-RA Software Version

Temporarily Disable Monitoring function is available when the F3SG-RA is in either one segment system or cascade connection.

All functions available including Online monitoring and Clearing muting statistic logs.

Difference in F3SG-RA factory default settings

Output Muting Function

Output operation mode Muting/Override information Safety output information

Enabled

Auxiliary Output

Disabled

Enabled

Lamp

(red)

Disabled

Enabled

Lamp

(orange)

Disabled

Enabled

Lamp

(green)

Disabled

Inverted signal output Disable Enable Output pattern ON 1 time Solid-ON Output operation mode Safety output information Safety output information Inverted signal output Enable Enable Output pattern Solid-ON Solid-ON Output operation mode None Safety output information Inverted signal output Disable Enable Output pattern Solid-ON Solid-ON Output operation mode None Safety output information Inverted signal output Disable Enable Output pattern Solid-ON Solid-ON Output operation mode None Stable-state information Inverted signal output Disable Enable Output pattern Solid-ON ON 1 time Output operation mode None Stable-state information Inverted signal output Disable Enable Output pattern Solid-ON ON 1 time Output operation mode Muting/Override information Safety output information Inverted signal output Disable Disable Output pattern ON 1 time Solid-ON Output operation mode None Safety output information Inverted signal output Disable Disable Output pattern Solid-ON Solid-ON

Factory Default Setting

Before D□□□□216 D□□□□216 and later

Refer to 1-3-2. Versions to check versions of your F3SG-R.

F3SG-R

User’s Manual

1-4. LED Indicators

1. Top-beam-state indicator (Blue)

Operating range indicator (Green)

3. Power indicator (Green)

4. Lockout indicator (Red)

9. Internal error indicator (Red)

10. Lockout indicator (Red)

11. Stable-state indicator (Green)

12. ON/OFF indicator (Green/Red)

13. Communication indicator (Green)

14. Bottom-beam-state indicator (Blue)

Overview and Specifications

 F3SG-RA Series

1. Test indicator (Green)

Operating range indicator (Green)

3. Power indicator (Green)

4. Lockout indicator (Red)

1. Top-beam-state indicator (Blue)

2. PNP/NPN mode indicator (Green)

3. Response time indicator (Green)

4. Sequence error indicator (Yellow)

5. Blanking indicator (Green)

6. Configuration indicator (Green)

7. Interlock indicator (Yellow)

External device monitoring indicator (Green)

9. Internal error indicator (Red)

10. Lockout indicator (Red)

11. Stable-state indicator (Green)

12. ON/OFF indicator (Green/Red)

13. Communication indicator (Green)

14. Bottom-beam-state indicator (Blue)

Chapter1 LED Indicators

 F3SG-RE Series

F3SG-R

User’s Manual

Overview and Specifications

1-4-1. LED Indicator Status

Shown below are indication statuses of F3SG-R LED indicators when you purchased.

Chapter1 LED Indicators

Emitter

Location Name of Indicator Color

1 Test TEST Green X -

2 Operating range LONG Green X X

3 Power POWER Green X X Power is ON. Error due to noise

4 Lockout LOCKOUT Red X X -

F3SG-RA

Series

F3SG-RE

Series

Illuminated Blinking

Long range mode is selected

External Test is being performed

Lockout state due to DIP Switch setting error or Operating range selection setting error

Lockout state due to error in emitter

Receiver

Location Name of Indicator Color

1 Top-beam-state TOP Blue X X

2 PNP/NPN mode NPN Green X

3 Response time SLOW Green X

4 Sequence error SEQ Yellow X -

5 Blanking BLANK Green X

6 Configuration CFG Green X -

7 Interlock INT-LK Yellow X Interlock state Pre-reset mode *2

External device

monitoring

9 Internal error

10 Lockout LOCKOUT Red X X -

11 Stable-state STB Green X X

12 ON/OFF ON/OFF

EDM Green X

INTERNAL

F3SG-RA

Red X X -

Green

Red

F3SG-RE

Series

Illuminated Blinking

The top beam is unblocked

NPN mode is selected by DIP Switch

Response Time Adjustment is enabled

Blanking, Warning Zone or Reduced Resolution is enabled

RESET input is in ON state *1

Incident light level is 170% or higher of ONthreshold

Safety output is in ON state

Safety output is in OFF state, or the sensor is in Setting state

Muting/Override state, or Lockout state due to Cap error or Other sensor error *3

Sequence error in Muting or Pre-reset mode

Teach-in mode, or Blanking Monitoring error

Teach-in mode, zone measurement beng performed by Dynamic Muting, or Lockout state due to Parameter error or Cascading Configuration error

Lockout state due to EDM error

Lockout state due to Internal error, or error due to abnormal power supply or noise

Lockout state due to error in receiver

Safety output is instantaneously turned OFF due to ambient light or vibration

Lockout state due to Safety Output error, or error due to abnormal power supply or noise

F3SG-R

User’s Manual

Overview and Specifications

Location Name of Indicator Color

13 Communication COM Green X X

Bottom-beamstate

BTM Blue X X

F3SG-RA

Series

F3SG-RE

Series

Illuminated Blinking

Synchronization between emitter and receiver is maintained

The bottom beam is unblocked

Lockout state due to Communication error, or error due to abnormal power supply or noise

Muting/Override state , or Lockout state due to DIP Switch setting error *3

*1. The EDM indicator is illuminated when the RESET input is in the ON state regardless of the use of

the EDM function. *2. Refer to the timing chart of Pre-Reset mode in 2-9. Interlock for more information of blinking patterns. *3. Muting/Override and cascade connection are not available for the F3SG-RE.

Refer to 7-3. Glossary for definitions of terms used in the table above.

TOP, CFG, LOCKOUT, STB and ON/OFF indicators are illuminated when the receiver of the F3SG-RA is in Setting mode.

Chapter1 LED Indicators

F3SG-R

User’s Manual

Overview and Specifications

1-5. Ratings/Specifications

Chapter1 Ratings/Specifications

The  in the model names indicate the protective heights in millimeters.

F3SG-4RA-14 F3SG-2RA-14

Type of ESPE (IEC 61496-1)

Performance Object Resolution

(Detection Capability)

Beam Gap 10 mm 20 mm 10 mm 20 mm Number of Beams 15 to 207 8 to 124 15 to 207 8 to 124 Lens Size 5.2 × 3.4 (W × H) mm 7-mm dia. 5.2 × 3.4 (W × H) mm 7-mm dia. Protective Height 160 to 2080 mm (6.3 to

Operating Range

Response Time

Type 4 F3SG-4RA-14/-30 F3SG-4RE14/30 Type 2 F3SG-2RA-14/-30 F3SG-2RE14/30

Opaque objects 14-mm dia. 30-mm dia. 14-mm dia. 30-mm dia.

81.9 inch) Long 0.3 to 10.0 m (1 to 32 ft.) 0.3 to 20.0 m (1 to 65 ft.) 0.3 to 10.0 m (1 to 32 ft.) 0.3 to 20.0 m (1 to 65 ft.) Short 0.3 to 3.0 m (1 to 10 ft.) 0.3 to 7.0 m (1 to 23 ft.) 0.3 to 3.0 m (1 to 10 ft.) 0.3 to 7.0 m (1 to 23 ft.)

ON to OFF

OFF to ON 40 to 90 ms *1 25 to 75 ms *1. Response time when used in one segment system or in cascaded connection.

Normal mode: 8 to 18 ms *1 Slow mode: 16 to 36 ms *1 *2

F3SG-4RA-30 F3SG-2RA-30

190 to 2510 mm (7.3 to

98.7 inch)

F3SG-4RE14 F3SG-2RE14

160 to 2080 mm (6.3 to

81.9 inch)

5 to 15 ms

F3SG-4RE30 F3SG-2RE30

190 to 2510 mm (7.3 to

98.7 inch)

Refer to 1-6. List of Models for more information.

*2. Selectable by Configuration Tool.

Effective Aperture Angle (EAA) (IEC 61496-2)

Light Source Infrared LEDs, Wavelength: 870 nm Startup Waiting Time 2 s max. Electrical Power Supply Voltage (Vs) SELV/PELV 24 VDC±20% (ripple p-p 10% max.)

Type 4 ±2.5° max., emitter and receiver at operating range of 3 m or greater

Type 2

±5.0° max., emitter and receiver at operating range of 3 m or greater

Current Consumption

Safety Outputs (OSSD)

Auxiliary Output

Safety

Output Operation Mode

Output Auxiliary

Output

Refer to 1-6. List of Models

Two PNP or NPN transistor outputs (PNP or NPN is selectable by DIP Switch.)

Load current of 300 mA max., Residual voltage of 2 V max. (except for voltage drop due to cable extension), Capacitive load of 1 F max., Inductive load of 2.2 H max. *1 Leakage current of 1 mA max. (PNP), 2 mA max. (NPN) *2

*1. The load inductance is the maximum value when the safety output frequently repeats ON and OFF.

When you use the safety output at 4 Hz or less, the usable load inductance becomes larger.

*2. These values must be taken into consideration when connecting elements including a capacitive

load such as a capacitor.

One PNP or NPN transistor output (PNP or NPN is selectable by DIP Switch.) Load current of 100 mA max., Residual voltage of 2 V max .

Light-ON (Safety output is enabled when the receiver receives an emitting signal.)

Safety output (Inverted signal output:Enable) (default) (Cofigurable by Configuration Tool)

F3SG-REP: Two PNP transistor outputs F3SG-REN: Two NPN transistor outputs

F3SG-R

User’s Manual

Overview and Specifications

F3SG-4RA-14 F3SG-2RA-14

TEST:

24 V Active: 9 V to Vs (sink current 3 mA max.) * 0 V Active: 0 to 3 V (source current 3 mA max.)

ON Voltage

Input Voltage

OFF Voltage

* The Vs indicates a supply voltage value in your environment.

Overvoltage Category (IEC 60664-1)

Indicators

Protective Circuit Output short protection, Power supply reverse polarity protection Insulation Resistance 20 M or higher (500 VDC megger) Dielectric Strength 1,000 VAC, 50/60 Hz (1 min) Functional Mutual Interference Prevention

(Scan Code)

Cascade Connection

Test Function

Safety-Related Functions

MUTE A/B:

PNP: Vs to Vs-3 V (sink current 3 mA max.) * NPN: 0 to 3 V (source current 3 mA max.)

RESET:

PNP: Vs to Vs-3 V (sink current 5 mA max.) * NPN: 0 to 3 V (source current 5 mA max.)

TEST:

24 V Active: 0 to 1.5 V or open 0 V Active: 9 V to Vs or open

MUTE A/B, RESET:

PNP: 0 to 1/2 Vs, or open * NPN: 1/2 Vs to Vs, or open *

Refer to 1-4-1. LED Indicator Status

This function prevents mutual interference in up to two F3SG-RA systems.

4-1-4. Mutual Interference Prevention

Number of cascaded segments: 3 max. Total number of beams: 255 max. Cable length between sensors: 10 m max.

Self-test (at power-on, and during operation) External test (light emission stop function by test input)

Interlock External device monitoring (EDM) Pre-reset Fixed blanking/Floating blanking Reduced resolution Muting/Override Scan code selection PNP/NPN selection Response time adjustment

Chapter 2 System Operation and Functions

F3SG-4RA-30 F3SG-2RA-30

F3SG-4RE14 F3SG-2RE14

Operating Range Select Input:

Long: 9 V to Vs (sink current 3 mA max.) * Short: 0 to 3 V (source current 3 mA max.)

Self-test (at power-on, and during operation)

F3SG-4RE30 F3SG-2RE30

Chapter1 Ratings/Specifications

Environmental Ambient

Temperature

Ambient Humidity

Ambient Illuminance

Degree of Protection (IEC 60529)

Vibration Resistance (IEC 61496-1)

Shock Resistance (IEC 61496-1)

Chapter 3 Setting with DIP Switch

Operating -10 to 55°C (14 to 131°F) (non-icing) Storage -25 to 70°C (-13 to 158°F) Operating 35% to 85% (non-condensing) Storage 35% to 95%

Incandescent lamp: 3,000 Ix max. on receiver surface Sunlight: 10,000 Ix max. on receiver surface

IP65 and IP67

10 to 55 Hz, Multiple amplitude of 0.7 mm, 20 sweeps for all 3 axes

100 m/s

, 1000 shocks for all 3 axes

F3SG-R

User’s Manual

Overview and Specifications

F3SG-4RA-14 F3SG-2RA-14

Pollution Degree

Chapter1 Ratings/Specifications

(IEC 60664-1) Connections

Type of Connection

Number of Wires

Power cable

Cascading cable

Extension cable

- Single-ended cable

- Double-ended cable

Extension of Power Cable 100 m max.(Emitter/Receiver) Material

Material

Cable Length

Cable Diameter

Minimum Bending Radius

Type of Connection

Number of Wires

Cable Length

Cable Diameter

Minimum Bending Radius

Type of Connection

Number of Wires

Cable Length

Cable Diameter

Minimum Bending Radius

Pollution Degree 3

M12 connectors: 5-pin emitter and 8-pin receiver, IP67 rated when mated, Cables prewired to the sensors

Emitter: 5, Receiver: 8

0.3 m

6 mm

R5 mm

M12 connectors: 5-pin emitter and 8-pin receiver, IP67 rated when mated

Emitter: 5, Receiver: 8

0.2 m

6 mm

R5 mm

M12 connectors: 5-pin emitter and 8-pin receiver, IP67 rated when mated

Emitter: 5, Receiver: 8

Refer to 4-5-3-1. Single-Ended Cable and 4-5-3-2. Double-Ended Cable for cable lengths and twisted pair wires.

6.6 mm

R36 mm

Housing: Aluminum Cap: PBT Front window: PMMA Cable: Oil resistant PVC Mounting Bracket: ZDC2 FE plate: SUS

F3SG-4RA-30 F3SG-2RA-30

F3SG-4RE14 F3SG-2RE14

M12 connectors: 4-pin, IP67 rated when mated, Cables prewired to the sensors

Emitter: 4, Receiver: 4

Use the XS5-D42 series cables.

F3SG-4RE30 F3SG-2RE30

Weight (packaged) Refer to 1-6. List of Models

Included Accessories Safety Precautions, Quick Installation Manual, Standard Fixed Bracket*1, Troubleshooting Guide

Sticker, Warning Zone Label *2

*1. The quantity of Standard Fixed Brackets included varies depending on the protective height.

[F3SG-RA-14]/F3SG-RE14]

- Protective height of 0160 to 1200: 2 sets

- Protective height of 1280 to 2080: 3 sets

[F3SG-RA-30]/F3SG-RE30]

- Protective height of 0190 to 1230: 2 sets

- Protective height of 1310 to 2270: 3 sets

- Protective height of 2350 to 2510: 4 sets

*2. Included in the F3SG-RA series.

F3SG-R

User’s Manual

Overview and Specifications

F3SG-4RA-14 F3SG-2RA-14

Conformity

Conforming standards Refer to Legislation and Standards

Performance Level (PL)/Safety category

PFHd 1.1 × 10 Proof test interval T SFF 99% (IEC 61508) HFT 1 (IEC 61508) Classification Type B (IEC 61508-2)

Type 4 PL e/Category 4 (EN ISO 13849-1:2008) Type 2 PL c/Category 2 (EN ISO 13849-1:2008)

-8

(IEC 61508) 9.1×10-9 (IEC 61508)

M Every 20 years (IEC 61508)

F3SG-4RA-30 F3SG-2RA-30

F3SG-4RE14 F3SG-2RE14

F3SG-4RE30 F3SG-2RE30

Chapter1 Ratings/Specifications

F3SG-R

User’s Manual

Chapter1 List of Models

Overview and Specifications

1-6. List of Models

1-6-1. List of Models/Response Time/Current Consumption/Weight

F3SG-RA-14

Current

Number

Model

F3SG-4RA0160-14 F3SG-2RA0160-14 15 160 8 40 140 40 75 1.8 F3SG-4RA0240-14 F3SG-2RA0240-14 23 240 8 40 140 45 75 2.0 F3SG-4RA0320-14 F3SG-2RA0320-14 31 320 8 40 140 55 75 2.2 F3SG-4RA0400-14 F3SG-2RA0400-14 39 400 8 40 140 60 80 2.7 F3SG-4RA0480-14 F3SG-2RA0480-14 47 480 13 65 165 50 80 2.9 F3SG-4RA0560-14 F3SG-2RA0560-14 55 560 13 65 165 55 80 3.1 F3SG-4RA0640-14 F3SG-2RA0640-14 63 640 13 65 165 60 85 3.3 F3SG-4RA0720-14 F3SG-2RA0720-14 71 720 13 65 165 65 85 3.9 F3SG-4RA0800-14 F3SG-2RA0800-14 79 800 13 65 165 65 90 4.1 F3SG-4RA0880-14 F3SG-2RA0880-14 87 880 13 65 165 70 90 4.3 F3SG-4RA0960-14 F3SG-2RA0960-14 95 960 13 65 165 75 90 4.5 F3SG-4RA1040-14 F3SG-2RA1040-14 103 1040 13 65 165 80 95 4.7 F3SG-4RA1120-14 F3SG-2RA1120-14 111 1120 13 65 165 85 95 4.8 F3SG-4RA1200-14 F3SG-2RA1200-14 119 1200 13 65 165 90 100 5.0 F3SG-4RA1280-14 F3SG-2RA1280-14 127 1280 13 65 165 95 100 5.2 F3SG-4RA1360-14 F3SG-2RA1360-14 135 1360 13 65 165 95 105 5.6 F3SG-4RA1440-14 F3SG-2RA1440-14 143 1440 18 90 190 85 105 5.8 F3SG-4RA1520-14 F3SG-2RA1520-14 151 1520 18 90 190 90 105 6.0 F3SG-4RA1600-14 F3SG-2RA1600-14 159 1600 18 90 190 90 110 6.6 F3SG-4RA1680-14 F3SG-2RA1680-14 167 1680 18 90 190 95 110 6.8 F3SG-4RA1760-14 F3SG-2RA1760-14 175 1760 18 90 190 100 115 7.0 F3SG-4RA1840-14 F3SG-2RA1840-14 183 1840 18 90 190 100 115 7.2 F3SG-4RA1920-14 F3SG-2RA1920-14 191 1920 18 90 190 105 120 7.3 F3SG-4RA2000-14 F3SG-2RA2000-14 199 2000 18 90 190 105 120 7.5 F3SG-4RA2080-14 F3SG-2RA2080-14 207 2080 18 90 190 110 125 8.1

The response times are values when Scan Code is set at Code B. The response times for Code A are 1 ms shorter than these values.

*1. *2. Refer to 2-3. Optical Synchronization for more information. *3. The weight includes an emitter, a receiver and included brackets in a product package.

Beams

Protective

Height

[mm]

ON→OFF *1

Response Time[ms]

OFF

(Synchronized)

→ON *2

OFF (Not

synchronized)

→ON *2

Consumption

[mA]

Emitter Receiver

Weight

[kg] *3

F3SG-RA-30

Current

Number

Protective

Beams

Height[m

ON→OFF *1

Model

F3SG-4RA0190-30 F3SG-2RA0190-30 8 190 8 40 140 35 75 1.8

F3SG-4RA0270-30 F3SG-2RA0270-30 12 270 8 40 140 35 75 2.0

F3SG-4RA0350-30 F3SG-2RA0350-30 16 350 8 40 140 40 75 2.2

F3SG-4RA0430-30 F3SG-2RA0430-30 20 430 8 40 140 45 75 2.7

F3SG-4RA0510-30 F3SG-2RA0510-30 24 510 8 40 140 50 75 2.9

F3SG-4RA0590-30 F3SG-2RA0590-30 28 590 8 40 140 50 75 3.1

F3SG-4RA0670-30 F3SG-2RA0670-30 32 670 8 40 140 55 75 3.3

F3SG-4RA0750-30 F3SG-2RA0750-30 36 750 8 40 140 60 80 3.9

F3SG-4RA0830-30 F3SG-2RA0830-30 40 830 8 40 140 65 80 4.0

F3SG-R

User’s Manual

Response Time[ms]

OFF

(Synchronized)

→ON *2

OFF (Not

synchronized)

→ON *2

Consumption

[mA]

Emitter Receiver

Weight

[kg] *3

Overview and Specifications

Current

Number

Protective

Model

F3SG-4RA0910-30 F3SG-2RA0910-30 44 910 13 65 165 50 80 4.2

F3SG-4RA0990-30 F3SG-2RA0990-30 48 990 13 65 165 50 80 4.4

F3SG-4RA1070-30 F3SG-2RA1070-30 52 1070 13 65 165 55 80 4.6

F3SG-4RA1150-30 F3SG-2RA1150-30 56 1150 13 65 165 55 85 4.8

F3SG-4RA1230-30 F3SG-2RA1230-30 60 1230 13 65 165 55 85 4.9

F3SG-4RA1310-30 F3SG-2RA1310-30 64 1310 13 65 165 60 85 5.1

F3SG-4RA1390-30 F3SG-2RA1390-30 68 1390 13 65 165 60 85 5.6

F3SG-4RA1470-30 F3SG-2RA1470-30 72 1470 13 65 165 65 85 5.8

F3SG-4RA1550-30 F3SG-2RA1550-30 76 1550 13 65 165 65 90 6.0

F3SG-4RA1630-30 F3SG-2RA1630-30 80 1630 13 65 165 70 90 6.5

F3SG-4RA1710-30 F3SG-2RA1710-30 84 1710 13 65 165 70 90 6.7

F3SG-4RA1790-30 F3SG-2RA1790-30 88 1790 13 65 165 70 90 6.9

F3SG-4RA1870-30 F3SG-2RA1870-30 92 1870 13 65 165 75 90 7.1

F3SG-4RA1950-30 F3SG-2RA1950-30 96 1950 13 65 165 75 95 7.3

F3SG-4RA2030-30 F3SG-2RA2030-30 100 2030 13 65 165 80 95 7.4

F3SG-4RA2110-30 F3SG-2RA2110-30 104 2110 13 65 165 80 95 8.0

F3SG-4RA2190-30 F3SG-2RA2190-30 108 2190 13 65 165 85 95 8.2

F3SG-4RA2270-30 F3SG-2RA2270-30 112 2270 13 65 165 85 100 8.4

F3SG-4RA2350-30 F3SG-2RA2350-30 116 2350 13 65 165 85 100 8.8

F3SG-4RA2430-30 F3SG-2RA2430-30 120 2430 13 65 165 90 100 8.9

F3SG-4RA2510-30 F3SG-2RA2510-30 124 2510 13 65 165 90 100 9.1

*1.

The response times are values when Scan Code is set at Code B. The response times for Code A are 1 ms shorter than these values. *2. Refer to 2-3. Optical Synchronization for more information. *3. The weight includes an emitter, a receiver and included brackets in a product package.

Beams

Height[m

ON→OFF *1

Response Time[ms]

OFF

(Synchronized)

→ON *2

OFF (Not

synchronized)

→ON *2

Consumption

[mA]

Emitter Receiver

Weight

[kg] *3

Chapter1 List of Models

F3SG-RE14

Current

Model

Number

F3SG-RE016014 15 160 5 25 125 45 50 1.7 F3SG-RE024014 23 240 5 25 125 55 55 1.9 F3SG-RE032014 31 320 7 35 135 55 55 2.1 F3SG-RE040014 39 400 7 35 135 65 60 2.6 F3SG-RE048014 47 480 7 35 135 70 60 2.8 F3SG-RE056014 55 560 7 35 135 80 60 3.1 F3SG-RE064014 63 640 7 35 135 85 65 3.3 F3SG-RE072014 71 720 9 45 145 80 65 3.8 F3SG-RE080014 79 800 9 45 145 85 70 4.0 F3SG-RE088014 87 880 9 45 145 90 70 4.2 F3SG-RE096014 95 960 9 45 145 95 75 4.4 F3SG-RE104014 103 1040 9 45 145 100 75 4.6 F3SG-RE112014 111 1120 11 55 155 90 75 4.7 F3SG-RE120014 119 1200 11 55 155 95 80 4.9 F3SG-RE128014 127 1280 11 55 155 100 80 5.1 F3SG-RE136014 135 1360 11 55 155 105 85 5.6 F3SG-RE144014 143 1440 11 55 155 110 85 5.7

Beams

Protective

Height

[mm]

ON→OFF

Response Time[ms]

OFF

(Synchronized)

→ON *1

OFF (Not

synchronized)

→ON *1

Consumption

[mA]

Emitter Receiver

Weight [kg] *2

F3SG-R

User’s Manual

Chapter1 List of Models

Overview and Specifications

Current

Model

Number

F3SG-RE152014 151 1520 13 65 165 100 90 5.9 F3SG-RE160014 159 1600 13 65 165 105 90 6.5 F3SG-RE168014 167 1680 13 65 165 110 95 6.7 F3SG-RE176014 175 1760 13 65 165 115 95 6.9 F3SG-RE184014 183 1840 13 65 165 115 95 7.1 F3SG-RE192014 191 1920 15 75 175 110 100 7.3 F3SG-RE200014 199 2000 15 75 175 115 100 7.4 F3SG-RE208014 207 2080 15 75 175 115 105 8.0 *1. Refer to 2-3. Optical Synchronization for more information.

*2. The weight includes an emitter, a receiver and included brackets in a product package.

Beams

Protective

Height

[mm]

ON→OFF

Response Time[ms]

OFF

(Synchronized)

→ON *1

OFF (Not

synchronized)

→ON *1

Consumption

[mA]

Emitter Receiver

Weight [kg] *2

F3SG-RE30

Current

Model

Number

F3SG-RE019030 8 190 5 25 125 40 50 1.7 F3SG-RE027030 12 270 5 25 125 45 50 1.9 F3SG-RE035030 16 350 5 25 125 50 50 2.1 F3SG-RE043030 20 430 5 25 125 55 55 2.6 F3SG-RE051030 24 510 5 25 125 60 55 2.8 F3SG-RE059030 28 590 7 35 135 50 55 3.0 F3SG-RE067030 32 670 7 35 135 55 55 3.2 F3SG-RE075030 36 750 7 35 135 60 60 3.8 F3SG-RE083030 40 830 7 35 135 65 60 4.0 F3SG-RE091030 44 910 7 35 135 65 60 4.2 F3SG-RE099030 48 990 7 35 135 70 60 4.4 F3SG-RE107030 52 1070 7 35 135 75 60 4.5 F3SG-RE115030 56 1150 7 35 135 80 65 4.7 F3SG-RE123030 60 1230 7 35 135 85 65 4.9 F3SG-RE131030 64 1310 7 35 135 85 65 5.1 F3SG-RE139030 68 1390 9 45 145 75 65 5.5 F3SG-RE147030 72 1470 9 45 145 80 65 5.7 F3SG-RE155030 76 1550 9 45 145 80 70 5.9 F3SG-RE163030 80 1630 9 45 145 85 70 6.4 F3SG-RE171030 84 1710 9 45 145 85 70 6.6 F3SG-RE179030 F3SG-RE187030 92 1870 9 45 145 95 75 7.0 F3SG-RE195030 96 1950 9 45 145 95 75 7.2 F3SG-RE203030 100 2030 9 45 145 100 75 7.3 F3SG-RE211030 104 2110 9 45 145 100 75 7.9 F3SG-RE219030 108 2190 11 55 155 90 75 8.1 F3SG-RE227030 112 2270 11 55 155 95 80 8.2 F3SG-RE235030 116 2350 11 55 155 95 80 8.7 F3SG-RE243030 120 2430 11 55 155 95 80 8.8 F3SG-RE251030 124 2510 11 55 155 100 80 9.0 *1. Refer to 2-3. Optical Synchronization for more information.

*2. The weight includes an emitter, a receiver and included brackets in a product package.

Beams

Protective

Height

[mm]

1790 9 45 145 90 70 6.8

ON→OFF

Response Time[ms]

OFF

(Synchronized)

→ON *1

OFF (Not

synchronized)

→ON *1

Consumption

[mA]

Emitter Receiver

Weight [kg] *2

F3SG-R

User’s Manual

The maximum speed of movement of a test rod up to which the detection capability is maintained is 2.0 m/s.

Overview and Specifications

12ms (CodeA) / 13ms (CodeB)

17ms (CodeA) / 18ms (CodeB)

3 segments cascaded

2 segments cascaded

255 beams

140 beams

Total No. of beams

* The number of beams of each segment in cascaded connection must be 112 or less.

1-6-2. Calculation of Response Time of Cascaded Segments

The F3SG-RA can be used in cascade connection. In case of a cascade connection, a response time is determined by the total number of beams. If the total number of beams of all F3SG-RA in a cascade connection is 140 or less, its response time is 12 ms (Code A)/13 ms (Code B). The number of beams of respective F3SG-RA, however, must be 112 or less. If an F3SG-RA with 113 or more beams is included in the cascade connection, its response time is 17 ms (Code A)/18 ms (Code B).

The F3SG-RE cannot be used in cascade connection.

The diagram below summarizes the relation described above.

Chapter1 List of Models

2-4. Scan Code Selection

4-2. Cascade Connection

F3SG-R

User’s Manual

Chapter1 List of Models

Overview and Specifications

F3SG-R

User’s Manual

Chapter 2 System Operation and Functions

2-1. Combination of Functions 23

2-2. Operating States 25

2-2-1. Machine Run State 25

2-2-2. Machine Stop State 25

2-2-3. Interlock State 25

2-2-4. Lockout State 25

2-2-5. Teach-in Mode 25

2-2-6. Setting State 26

2-3. Optical Synchronization 27

2-4. Scan Code Selection 28

Chapter2 System Operation and Functions

2-5. PNP/NPN Selection 29

2-6. Self-Test 30

2-7. External Test 32

2-8. Lockout Reset 34

2-9. Interlock 35

2-10. External Device Monitoring (EDM) 40

2-11. Auxiliary Output 43

2-12. Muting 47

2-13. Override 72

2-14. Fixed Blanking 79

2-15. Floating Blanking 83

2-16. Reduced Resolution 88

2-17. Warning Zone 91

2-18. Setting Zone Adjacency Conditions 95

2-19. Operating Range Selection 97

2-20. Response Time Adjustment 99

2-21. Lamp 100

F3SG-R

User’s Manual

System Operation and Functions

2-22. Designated Beam Output 103

2-23. Light Level Monitoring 105

2-24. Maintenance Information 106

2-25. Operating Status Monitoring 108

Chapter2

2-26. Setting Recovery 109

F3SG-R

User’s Manual

System Operation and Functions

2-1. Combination of Functions

Possible combinations of the F3SG-RA functions are shown in the table below. The combinations in the table are available under certain conditions. The other functions can be combined without any limitations.

The functions listed in the table below are not available for the F3SG-RE.

Refer to 2-18. Setting Zone Adjacency Conditions for further information.

The DIP Switch must be set so as to allow the F3SG-R to be configurable by the Configuration Tool. Refer to Chapter 3 Setting with DIP Switch for more information.

YES: Combination available YES-C: Combination available by setting with Configuration Tool. NO: Combination unavailable

Fixed

Blanking

Fixed Blanking - YES-C

Floating Blanking YES-C

Reduced Resolution NO NO - NO YES-C NO YES-C YES-C

Muting/Override YES YES

Pre-Reset NO NO YES-C NO - YES-C YES NO

Warning Zone YES-C YES-C NO YES-C YES-C - YES-C YES-C

EDM YES YES YES-C YES YES YES-C - YES

Interlock YES YES YES-C YES NO YES-C YES -

Floating

Blanking

- NO YES

Reduced

Resolution

NO YES NO YES-C YES YES

NO - NO YES-C YES YES

Muting/

Override

Pre-Reset

NO YES-C YES YES

Warning

Zone

EDM Interlock

Chapter2 Combination of Functions

*1.This combination requires that the Floating Blanking zone covers the full detection zone and that the

Muting/Override function also covers the full detection zone.

*2.When the Fixed Blanking and Floating Blanking are selected, the top or bottom beam must be included in

the Fixed Blanking zone, as shown in the left figure below. It is not allowed to set the Fixed Blanking zone not to cover the top or bottom beam, as shown in the right figure below. It is also not allowed to set a Fixed Blanking zone to split a Floating Blanking zone.

Floating blanking zone

Fixed blanking zone

Floating blanking zone

Fixed blanking zone

F3SG-R

User’s Manual

System Operation and Functions

 Considerations for enabling and disabling Muting function

Setting parameters of the following functions can be saved according to the state where the Muting function is enabled and disabled, respectively. After changing the Muting function from Enable to Disable or from Disable to Enable, check the settings of these functions again.

Chapter2 Combination of Functions

Affected functions:

• External Device Monitoring (EDM)

• Start Interlock

• Restart Interlock

• Auxiliary Output

• Lamp Output

Refer to the Setting with Configuration Tool sections of the affected functions in Chapter 2 System Operation and Functions for more information on the setting parameters.

F3SG-R

User’s Manual

System Operation and Functions

2-2. Operating States

The operating condition of a F3SG-R system is described in terms of states. The following operating states exist for a F3SG-R system.

2-2-1. Machine Run State

The two receiver safety outputs are in the ON state, the green ON/OFF indicator is illuminated. The protected machine is allowed to operate. Pressing and releasing the reset switch has no effect.

2-2-2. Machine Stop State

The two receiver safety outputs are in the OFF state, the red ON/OFF indicator is illuminated. The protected machine is not allowed to operate.

2-2-3. Interlock State

The two receiver safety outputs are in the OFF state, yellow Interlock indicator is illuminated. The Interlock state does not allow the protected machine to operate until the detection zone is clear of obstructions and the reset switch is pressed and released.

The F3SG-RE does not have the Interlock state.

Refer to 2-9. Interlock for more information.

2-2-4. Lockout State

Chapter2 Operating States

The two receiver safety outputs are in the OFF state, the red Lockout indicator is blinking, and another indicator is blinking showing an error. The Lockout state does not allow the protected machine to operate. The primary difference between Lockout and Interlock states is that the F3SG-R system will remain in the Lockout state until the cause of the error is corrected, regardless of power cycling or an external reset switch press and release.

2-2-5. Teach-in Mode

The two receiver safety outputs are in the OFF state, the green Blanking indicator and the green Configuration indicator are blinking.

The F3SG-RE does not have the Teach-in mode.

Refer to 3-3. Setting by Teach-in for more information.

F3SG-R

User’s Manual

System Operation and Functions

2-2-6. Setting State

The two receiver safety outputs are in the OFF state, the green Power indicator of the emitter is blinking. The blue Top-beam-state indicator, green Configuration indicator, red Lockout indicator, green Stable-state indicator and green ON/OFF indicator of the receiver are blinking. The Setting state does not allow the protected machine to operate. The user can change settings of the functions, monitor the

Chapter2 Operating States

operating states or view maintenance information with the Configuration Tool (SD Manager 2) under this state.

The F3SG-RE does not have the Setting state.

Refer to Safety Light Curtain Configuration Tool for Model F3SG (SD Manager 2) User’s Manual for more

information.

F3SG-R

User’s Manual

2-3. Optical Synchronization

F3SG-RA Series X

F3SG-RE Series X

System Operation and Functions

2-3-1. Overview

Synchronization is required between an emitter and a receiver for normal operation of F3SG-R. F3SG-R uses a specific beam for Synchronization. The beam is hereinafter called synchronization beam.

Depending on sensor configuration, the synchronization beam is either of the followings:

• One segment system: End beams (Top or Bottom beam)

• Cascaded system* : End beams (Top or Bottom beam) of the primary sensor * The F3SG-RE cannot be used in cascade connection.

For an emitter and a receiver to synchronize, at least one synchronization beam must be unblocked.

The synchronization process is performed when: (1) The power is turned on for an emitter and a receiver (2) All beams of the primary sensor are blocked and then unblocked (3) Synchronization is lost due to an error such as noise and ambient light

Conditions to establish synchronization



Upper Upper

Conditions to fail synchronization



Upper Upper

Upper Uppe

Chapter2 Optical Synchronization

Lower Lower

The sensor can maintain the synchronization in other cases than those described above and it is not necessary to keep the synchronization beam unblocked all the time.



Response time of “OFF (Synchronized) → ON” and “OFF (Not synchronized) → ON”

Lower Lower

Response time of “OFF (Synchronized) → ON” is the response time from when the F3SG-R is in the OFF state and the emitter and receiver are synchronized to when the F3SG-R is turned to the ON state. Response time of “OFF (Not synchronized) → ON” is the response time from when the F3SG-R is in the OFF state and the emitter and receiver are not synchronized to when the F3SG-R is turned to the ON state. This response time is longer since the F3SG-R evaluates if it is blocked or unblocked, after the synchronization is established.

F3SG-R

User’s Manual

System Operation and Functions

2-4. Scan Code Selection

F3SG-RA Series X

F3SG-RE Series

Chapter2 Scan Code Selection

2-4-1. Overview

2-4-2. Factory Default Setting

The F3SG-RA has two scan codes (Code A and Code B). These scan codes have different internal processing time. The use of different scan codes allows for placement of systems in close proximity and in line with each other and minimize mutual interference. The response time for Code A is 1 ms shorter than that for Code B.

The Scan Code Selection is not available for the F3SG-RE.

1-6-1. List of Models/Response Time/Current Consumption/Weight for more information on the response time.

Refer to 4-1-4. Mutual Interference Prevention for how to mitigate mutual interference.

The factory default setting is Code A.

Both the emitter and receiver units must be set to the same code.

2-4-3. Setting with DIP Switch

The user can select the scan code from Code A or Code B by the DIP Switch.

Refer to Chapter 3 Setting with DIP Switch for more information on setting this function by the DIP Switch.

2-4-4. Setting with Configuration Tool

The user cannot make any changes to the scan code by the Configuration Tool.

F3SG-R

User’s Manual

2-5. PNP/NPN Selection

F3SG-RA Series X

F3SG-RE Series

System Operation and Functions

2-5-1. Overview

The F3SG-RA offers PNP/NPN selection for the user to select the polarity of the inputs and outputs of the receiver between PNP and NPN. When the system is set to the NPN type, the “NPN” indicator is illuminated.

The PNP/NPN Selection function is not available for the F3SG-RE. Select an F3SG-RE of your preferred I/O type.

2-5-2. Factory Default Setting

The factory default setting is PNP type.

2-5-3. Setting with DIP Switch

The user can select the type from PNP or NPN by the DIP Switch.

Refer to Chapter 3 Setting with DIP Switch for more information on setting this function by the DIP Switch.

2-5-4. Setting with Configuration Tool

The user cannot make any changes to the PNP/NPN selection by the Configuration Tool.

Chapter2 PNP/NPN Selection

F3SG-R

User’s Manual

System Operation and Functions

2-6. Self-Test

F3SG-RA Series X

F3SG-RE Series X

Chapter2 Self-Test

2-6-1. Overview

The F3SG-R performs the Self-Test when power is turned ON (within 2 seconds) to check for errors. Also, it regularly performs the Self-Test (within a response time) while operating. This function cannot be cancelled.

Power supply

Self test

If an error is found in the Self-Test, the F3SG-R enters the Lockout state, keeps the safety output in the OFF state, and indicates the error at the same time.

2-6-1-1. Self-Test details

The Self-Test detects such error as described below. Emitter

• Failure of emitter unit or circuit

• CPU failure

• Memory failure

• Failure of DIP Switch*

Receiver

• Abnormal external power supply voltage

• Failure of internal power supply circuit

• Failure of receiver unit or detection circuit

• CPU failure

• Memory failure

• Failure of safety output circuit

• Disconnected or short-circuited cable

• Failure of DIP Switch*

* The Self-Test for the DIP Switch is not available for the F3SG-RE as it does not have the DIP Switch.

OFF

2 s max.

Subsequently performs periodic test

F3SG-R

User’s Manual

System Operation and Functions

2-6-1-2. Waveform of safety outputs

When the safety outputs are in the ON state, they are cyclically turned OFF as shown below to test the output circuit. When this OFF signal is fed back, the output circuit is diagnosed as normal. If the output signal does not include an OFF pulse signal due to short-circuit, etc, the receiver diagnoses a failure in the output circuit or wiring, and it enters the Lockout state.

 F3SG-RA Series

OSSD 1

OFF

OSSD 2

OFF

*1. Approx. 15 to 35 ms

*2. Signal when in 2-segment or 3-segment cascade.

*3. Signal when in 3-segment cascade.

*4. An OFF pulse signal of safety output may extend to about 100 μs

due to the effect of the connected load (mostly capacitive load ).

 F3SG-RE Series

Approx. 90 to 240 ms

*1 *1

*2 *3

Approx.

45 to 120ms

Chapter2 Self-Test

Approx. 40 us *4

OSSD 1

OSSD 2

Approx. 200 ms

OFF

Approx. 100 ms

OFF

Approx. 40 us *

*An OFF pulse signal of safety output may extend to about 100 μs due

to the effect of the connected load (mostly capacitive load ).

F3SG-R

User’s Manual

System Operation and Functions

㻱㼙㼕㼠㼠㼑㼞

24 V Active 0 V Active

+24 VDC

Power Supply

S1: Test Switch(Connect the line to 0 V if this switch is not required)

S1: Test Switch (Connect the line to 24 V if this switch is not required)

0 VDC

+24 VDC

Power Supply

0 VDC

24 VDC: Brown

TEST: Black

0 VDC: Blue

24 VDC: Brown

TEST:



Black

0 VDC: Blue

F39-JGA-L F39-JGA-L

2-7. External Test

F3SG-RA Series X

F3SG-RE Series

Chapter2 External Test

2-7-1. Overview

This function stops the emission using an external signal. It can be used to verify that a safety system should properly stop (safety output turns OFF) when F3SG-RA is blocked. To stop the emission, apply the following voltage to the emitter's TEST input line according to the DIP switch settings of the emitter.

When muting, safety output is kept ON even if the emission is stoped.

DIP Switch settings (Position 4 on Emitter)

Input voltage 9 V to Vs 0 to 3 V

The External Test is not available for the F3SG-RE.

24 V Active 0 V Active

F3SG-R

User’s Manual

System Operation and Functions

TEST

OFF

OSSD

OFF

Toff: ON to OFF Response time

Toff x 4 or less

Toff x 12 or less

2-7-2. Factory Default Setting

The factory default setting is 24 V Active.

2-7-3. Setting with DIP Switch

The user can select the setting from 24 V Active or 0 V Active by the DIP Switch.

Refer to Chapter 3 Setting with DIP Switch for more information on setting this function by the DIP Switch.

Chapter2 External Test

2-7-4. Setting with Configuration Tool

The user cannot make any changes to the External Test settings by the Configuration Tool.

F3SG-R

User’s Manual

System Operation and Functions

RESET

OFF

Lockout reset

1 s or more

2-8. Lockout Reset

F3SG-RA Series X

F3SG-RE Series

Chapter2 Lockout Reset

2-8-1. Overview

When the cause of the lockout is removed, you can release the Lockout state of the F3SG-RA by using either of the following methods.

• Cycle the power back ON

• Reset input

For the F3SG-RE, you can release the Lockout state by cycling the power back ON.

PNP output NPN output

Receiver

F39-JGA-D F39-JGA-D

Receiver

0 VDC: Blue

+24 VDC

Power Supply

0 VDC

RESET: Yellow

S2: Lockout/InterlockReset Switch

24 VDC: Brown

+24 VDC

Power Supply

0 VDC

0 VDC: Blue

S2: Lockout/Interlock Reset Switch

RESET: Yellow

The table below shows the relation between the ON/OFF states and external lines.

Input

ON Vs-3 V to Vs 0 to 3 V

OFF 0 V to 1/2 Vs, or open 1/2 Vs to Vs, or open

PNP NPN

External Connection

24 VDC: Brown

F3SG-R

User’s Manual

System Operation and Functions

2-9. Interlock

Install the reset switch in a location that provides a clear view of the entire hazardous zone and where it cannot be activated from within the hazardous zone.

Install the pre-reset switch always in the hazardous zone and where it cannot be activated from outside the hazardous zone.

F3SG-RA Series X

F3SG-RE Series

2-9-1. Over view

The F3SG-RA turns the safety outputs OFF when its power is turned on or the F3SG-RA is blocked and holds this state until a reset signal is received. This state is called "interlock state". The function to keep the Interlock state is called "Interlock function". The F3SG-RA has two Interlock functions, Start Interlock and Restart Interlock.

Chapter2 Interlock

The F3SG-RE does not have the Interlock state and is only available with Auto Reset mode.

• Start Interlock

The F3SG-RA turns the safety output OFF at power-on or recovery from power failure and keep this state until a reset signal is received. This is useful if you want to keep the machine stopped until a pre-operation check is completed after the power is turned ON.

• Restart Interlock

The F3SG-RA turns the safety output OFF when the F3SG-R is blocked and keep this state until a reset signal is received. Restart interlock is useful if you want to restart the machine being stopped upon interruption of the F3SG-R, only after the operator confirms a safe condition.

The F3SG-RA offers three ways to reset the Interlock state: Auto Reset, Manual Reset, and Pre-Reset applicable to specific applications.

• Auto Reset mode

Auto Reset mode disables the Start Interlock and Restart Interlock. When the interrupting object is removed from the detection zone, the Interlock state is automatically released and the safety outputs are automatically turned ON. Auto Reset is desirable for application where a worker is not able to enter the area between the detection zone and the hazardous part of the machine or you use a relay unit to activate Start Interlock and Restart Interlock.

• Manual Reset mode

Manual Reset mode enables the Start Interlock and Restart Interlock. When a reset signal is given while no interrupting object exists in a detection zone, the safety outputs are turned ON.

• Pre-Reset mode

An operator may enter and work in the hazardous zone for maintenance. Under such a circumstance, another operator may press the resest switch to restart the machine without recognizing the operator working in the hazardous zone, posing a danger. The Pre-Reset

F3SG-R

User’s Manual

Chapter2 Interlock

F3SG-R

Operator

Pre-reset Switch

Reset Switch

䚷䚷䚷䚷䚷䚷䚷

䚷䚷

Hazardous area

PNP output NPN output

Power supply

0 VDC: Blue

RESET: Yellow

24 VDC: Brown

0 VDC: Blue

RESET: Yellow

24 VDC: Brown

0 VDC

+24 VDC

Power supply

0 VDC

+24 VDC

Receiver

S1: Lockout/Interlock Reset Switch

F39-JGA-D F39-JGA-D

System Operation and Functions

function ensures safety for an operator working in the hazardous zone by adding another reset switch (pre-reset switch) in the hazardous zone. If the Pre-Reset function is enabled, an operator can work in the hazardous zone and press the prereset switch installed in the hazardous zone, pass the light curtain, and press the reset switch to restart the machine.

Shown below is overview of restarting the machine using the Pre-Reset.

1.Press the Pre-Reset switch (Input PRE-RESET signal)

2.Pass and interrupt F3SG-RA

3.Press the Reset switch to restart the system (Input RESET signal)

Refer to 2-1. Combination of Functions for more information on the use in conjunction with other functions.

• Auto or Manual Reset mode

F3SG-R

User’s Manual

System Operation and Functions

Power

Beam state

RESET

OSSD

OFF

Unblocked

Blocked

Beam state

Unblocked

Blocked

OFF

Power

RESET

OSSD

OFF

Start Interlock: Enabled Start Interlock: Disabled

300 ms or more

50 ms or less

Toff x 10 or less

Beam state

RESET

OSSD

OFF

Unblocked

Blocked

Beam state

Unblocked

Blocked

RESET

OSSD

OFF

Restart Interlock: Enabled Restart Interlock: Disabled

OFF

Power

OFF

Power

300 ms or more

50 ms or less

Toff x 5 or less

PNP output NPN output

PRERESET: Gray

S1 S2

Receiver

S1: Lockout/Interlock Reset Switch S2: Pre-reset Switch

Power supply

0 VDC : Blue

RESET : Yellow

24 VDC : Brown

PRERESET: Gray

0 VDC : Blue

RESET : Yellow

24 VDC : Brown

0 VDC

+24 VDC

Power supply

0 VDC

+24 VDC

F39-JGA-D F39-JGA-D

The table below shows the relation between the ON/OFF states and external lines.

Input

ON Vs-3 V to Vs 0 to 3 V

OFF 0V to 1/2 Vs, or open 1/2 Vs to Vs, or open

PNP NPN

External Connection

• Start Interlock

• Restart Interlock

Chapter2 Interlock

• Pre-Reset mode

Toff: Response time ON to OFF

F3SG-R

User’s Manual

Chapter2 Interlock

T1 T1

T2 T2

T3 T3

Pre Reset SW

Beam state

Reset SW

OSSD

OFF

Unblocked

Blocked

OFF

Auxiliary Output *

OFF

INT-LK Indicator

OFF

Flash once

Flash twice

Solid on

T1: Push time: must be T1 >= 300 ms

T3: Push time: must be T3 >= 300 ms

* When Auxiliary Output is set to Pre-Reset Enabled by the Configuration Tool.

T2: Pre-reset limit time between Pre-reset and Reset:

must be T2 <= 8 s (Factory default setting)

System Operation and Functions

The table below shows the relation between the ON/OFF states and external lines.

Input

PNP NPN

ON Vs-3 V to Vs 0 to 3 V

OFF 0V to 1/2 Vs, or open 1/2 Vs to Vs, or open

External Connection

2-9-2. Factory Default Setting

The factory default setting is Auto Reset mode enabled, Start Interlock, Restart Interlock and PreReset mode disabled.

2-9-3. Setting with DIP Switch

The user can select the mode from Auto Reset, Manual Reset or Pre-Reset by the DIP Switch. When configured to Manual Reset mode, the Start Interlock and Restart Interlock are enabled. When configured to Pre-Reset mode, the function is activated with the following conditions:

• Maximum number of times the F3SG-RA can be blocked after input of PRE-RESET signal: Infinite

(The F3SG-RA must be blocked at least once.)

• Maximum permissible time from input of PRE-RESET signal to input of RESET signal: 8 s

F3SG-R

User’s Manual

Make sure the Position 8 of the DIP Switch is set to DIP Switch Enabled to activate the settings by the DIP Switch.

Refer to Chapter 3 Setting with DIP Switch for more information on setting this function by the DIP Switch.

System Operation and Functions

2-9-4. Setting with Configuration Tool

Some settings of functions configurable with the Configuration Tool may increase risks. Make sure the Responsible Person conduct a thorough risk assessment analysis before managing and changing the settings. Unintended changes to the settings may cause a person to go undetected, resulting in serious injury.

The user can make changes to the settings by the Configuration Tool.

Interlock function

Function

Start Interlock Disable Disable Enable/Disable

Restart Interlock Disable Disable Enable/Disable

Muting function enabled* Muting function disabled*

* Setting parameters of this function can be saved according to the states where the Muting function is

enabled and disabled, respectively. After changing the Muting function from Enable to Disable or from Disable to Enable, also check the settings of this function again.

Refer to  Considerations for enabling and disabling Muting function under 2-1. Combination of Functions for more information.

Factory Default Setting

Available Parameters

Chapter2 Interlock

Pre-Reset function

Function Factory Default Setting Available Parameters

Pre-Reset Disable Enable*1*2/Disable

Maximum number of times F3SG-R can be blocked *3 infinite 1 to 9 times in 1-time increments, or infinate

Maximum permissible time from input of PRE-RESET signal to input of RESET signal

8 s 1 to 60 s in 1-s increments

*1. When the Pre-Reset is enabled, it precedes all other interlock functions and the parameters of Start

Interlock and Restart Interlock are ignored.

*2. It is not possible to configure the Pre-Reset function together with the Muting function. To enable

settings of the Pre-Reset function, disable the Muting function. In addition, setting parameters of the following functions can be saved according to the states where the Muting function is enabled and disabled, respectively. After changing the Muting function from Enable to Disable or from Disable to Enable, also check the settings of these functions again. Affected functions: External Device Monitoring (EDM), Start Interlock, Restart Interlock, Auxiliary Output, Lamp Output

*3. The minimum number of times is fixed to 1.

Make sure the Position 8 of the DIP Switch is set to Configuration Tool Enabled to activate the settings by the Configuration Tool.

Refer to Safety Light Curtain Configuration Tool for Model F3SG (SD Manager 2) User’s Manual for more information on setting this function by the Configuration Tool.

F3SG-R

User’s Manual

System Operation and Functions

S1: Lockout/Interlock Reset Switch KM1, KM2: External device

S1 S1

KM1

F39-JGA-D F39-JGA-D

KM2

KM1

KM2

PNP output NPN output

Receiver

Also used as EDM input line

Power supply

0 VDC : Blue

RESET: Yellow *

24 VDC : Brown

0 VDC : Blue

RESET : Yellow *

24 VDC : Brown

0 VDC

+24 VDC

Power supply

0 VDC

+24 VDC

2-10. External Device Monitoring (EDM)

F3SG-RA Series X

F3SG-RE Series

Chapter2 External Device Monitoring (EDM)

2-10-1. Overview

This function monitors if external relays (or contactors) operate normally to detect malfunctions, such as welding, in the external relays. When the N.C. contact of the external relays is open before the safety outputs switch from OFF to ON, the safety outputs remain in the OFF state. When the N.C. contact is not open within the allowable delay time after the safety outputs switch from OFF to ON, the F3SG-RA enters the Lockout state.

Wiring Perform wiring so that the specified voltage is applied to the RESET input line via the N.C. contact of the extenal relays. Refer to the table below for the specified voltage. The external relays or contactors must have the direct opening mechanism or be force-guided ones.

PNP/NPN Voltage

PNP Vs-3 V to Vs NPN 0 V to 3 V

The External Device Monitoring is not available for the F3SG-RE.

F3SG-R

User’s Manual

System Operation and Functions

OFF

Lockout

T1 max.

T1: Allowable delay time

Unblocked

Blocked

Beam state

OSSD

EDM input

2-10-2. Factory Default Setting

The default setting is EDM Disable.

2-10-3. Setting with DIP Switch

The user can select the setting from EDM Enabled or Disabled by the DIP Switch. When it is enabled, the allowable delay time is set to 0.3 s.

Chapter2 External Device Monitoring (EDM)

Make sure the Position 8 of the DIP Switch is set to DIP Switch Enabled to activate the setting by the DIP Switch.

After making the setting, make sure to perform the wiring so that the specified voltage is supplied into the Reset input of the receiver without passing through the N.C. contacts of the external relays, and confirm the F3SG-RA enters the Lockout state.

Refer to Chapter 3 Setting with DIP Switch for more information on setting this function by the DIP Switch.

2-10-4. Setting with Configuration Tool

The user can make changes to the settings by the Configuration Tool.

Function

EDM Disable Disable Enable/Disable

Allowable delay time 0.3 s 0.3 s 0.1 to 4 s in 0.1-s increments

Muting function enabled* Muting function disabled*

Factory Default Setting

Available Parameters

*Setting parameters of this function can be saved according to the states where the Muting function is

enabled and disabled, respectively. After changing the Muting function from Enable to Disable or from Disable to Enable, also check the settings of this function again.

Refer to  Considerations for enabling and disabling Muting function under 2-1. Combination of Functions for more information.

F3SG-R

User’s Manual

Chapter2 External Device Monitoring (EDM)

System Operation and Functions

Make sure the Position 8 of the DIP Switch is set to Configuration Tool Enabled to activate the settings by the Configuration Tool.

After you make any change to the setting, verify that the F3SG-RA goes to the Lockout state when the F3SG-RA is wired in such a way that the specified voltage is applied directly to the RESET input of the receiver without the N.C. contact of an external device.

Refer to Safety Light Curtain Configuration Tool for Model F3SG (SD Manager 2) User’s Manual for more information on setting this function by the Configuration Tool.

F3SG-R

User’s Manual

2-11. Auxiliary Output

Load

AUX: Red

Load

AUX: Red

0 V

0 VDC: Blue

F3SG-R

Receiver

PNP

F3SG-R

Receiver

NPN

+24 VDC: Brown +24 VDC: Brown

+24 V +24 V

0 V

Do not use the auxiliary output for safety applications. Failure to do so may result in serious injury when the F3SG-RA fails.

F3SG-RA Series X

F3SG-RE Series

2-11-1. Overview

The auxiliary output is used to monitor the status of F3SG-RA. This output can be connected to a device such as an indication lamp, programmable controller, etc. Usage Example:

• Indicate that F3SG-RA is in muting or override state

• Indicate that a machine is stopped (Safety outputs are in the OFF state)

System Operation and Functions

Chapter2 Auxiliary Output

The Auxiliary Output is not available for the F3SG-RE.

<Basic wiring diagram> Sh own below are hard wirings for PNP and NPN types, respectively.

The load current of the auxiliary output is 100 mA max.

F3SG-R

User’s Manual

Chapter2 Auxiliary Output

Toff Ton

Beam state

Unblocked

Blocked

OSSD

OFF

Auxiliary output

Ton: Response time OFF to ON Toff: Response time ON to OFF

OFF

Toff Ton

Beam state

Unblocked

Blocked

OSSD

OFF

Auxiliary output

Ton: Response time OFF to ON Toff: Response time ON to OFF

OFF

System Operation and Functions

2-11-2. Factory Default Setting

The factory default setting is inverted signal of the safety output.

2-11-3. Setting with DIP Switch

The factory default setting is inverted signal of the safety output.

F3SG-R

User’s Manual

System Operation and Functions

Solid-ON

ON 1 time

1 s

2-11-4. Setting with Configuration Tool

The user can make changes to the settings by the Configuration Tool.

• Output operation mode

Information to be allocated to the auxiliary output

• Inverted signal output mode

Auxiliary output gives a inverted signal of the safety output.

• Output pattern

Pattern to send an output signal from the auxiliary output

The user can make changes to the settings by the Configuration Tool.

Chapter2 Auxiliary Output

Factory Default Setting

Function

Enabled Disabled

Output operation mode Safety output information Safety output information *2

Inverted signal output Enable Enable Enable/Disable

Output pattern Solid-ON Solid-ON Solid-ON/ON 1 time *3

Available ParametersMuting function *1

*1. Setting parameters of this function can be saved according to the states where the Muting function

is enabled and disabled, respectively. After changing the Muting function from Enable to Disable or from Disable to Enable, also check the settings of this function again.

Refer to  Considerations for enabling and disabling Muting function under 2-1. Combination of Functions for more information. Refer to 2-12. Muting for more information on settings of the Muting function.

*2. Refer to the table of Information (Output operation mode) assigned to auxiliary output below. *3. Output signal is sent according to the patterns as shown in the output pattern chart below.

 Output pattern chart

F3SG-R

User’s Manual

Chapter2 Auxiliary Output

System Operation and Functions

Information (Output operation mode) assigned to auxiliary output

Information Name

Safety output information When Safety output is in the ON state

Interlock information Under Interlock state

Lockout information Under error/ Lockout state

Excess power-on time information

Excess load switching frequency information

Stable-state information When the F3SG-R is unblocked with stable light intensity

Muting information Under Muting state

Override information Under Override state

Muting/Override information Under either Muting or Override state

Light level diagnosis information

Warning Zone Information When warning zone is blocked

Blanking bream unblocked information

Troubleshooting support signal

Designated beam output information

Sequence error information Under Muting sequence error state or Interlock sequence error state

Reset-input information When Reset/EDM/Override input is in the ON state

Mute A input information When MUTE A input is in the ON state

Mute B input information When MUTE B input is in the ON state

EDM input information When EDM signal input is in the ON state

Individual cascaded sensor output (Channel 1)

Individual cascaded sensor output (Channel 2)

Individual cascaded sensor output (Channel 3)

Blanking/Warning-zone information

Interference/vibration information

Pre-reset Information Under Pre-reset state

When power-on time exceeds power-on time threshold

When load switching frequency exceeds load switching frequency threshold

When the F3SG-R is unblocked and light intensity is within a range from 100% to 170% of ONthreshold for 10 s or longer

When Fixed-Blanking or Floating Blanking beams are unblocked

When one of the signals of Sequence error information, Interference/vibration information and Light level diagnosis information is in the ON state.

When a designated beam is blocked or unblocked

When Safety output of Primary sensor in cascade connection is the ON state

When Safety output of 1st Secondary sensor in cascade connection is the ON state

When Safety output of the 2nd Secondary sensor in cascade connection is the ON state

When Fixed Blanking, Floating Blanking, Reduced Resolution or Warning Zone function is enabled

When the F3SG-R system stops accidentally due to interference or vibration. (In case of cascade connection, when any of cascaded segments comes under this condition.)

(Auxiliary output is turned ON under the following condition)

Description

F3SG-R

User’s Manual

Make sure the Position 8 of the DIP Switch is set to Configuration Tool Enabled to activate the settings by the Configuration Tool.

Refer to Safety Light Curtain Configuration Tool for Model F3SG (SD Manager 2) User’s Manual for more information on setting this function by the Configuration Tool.

System Operation and Functions

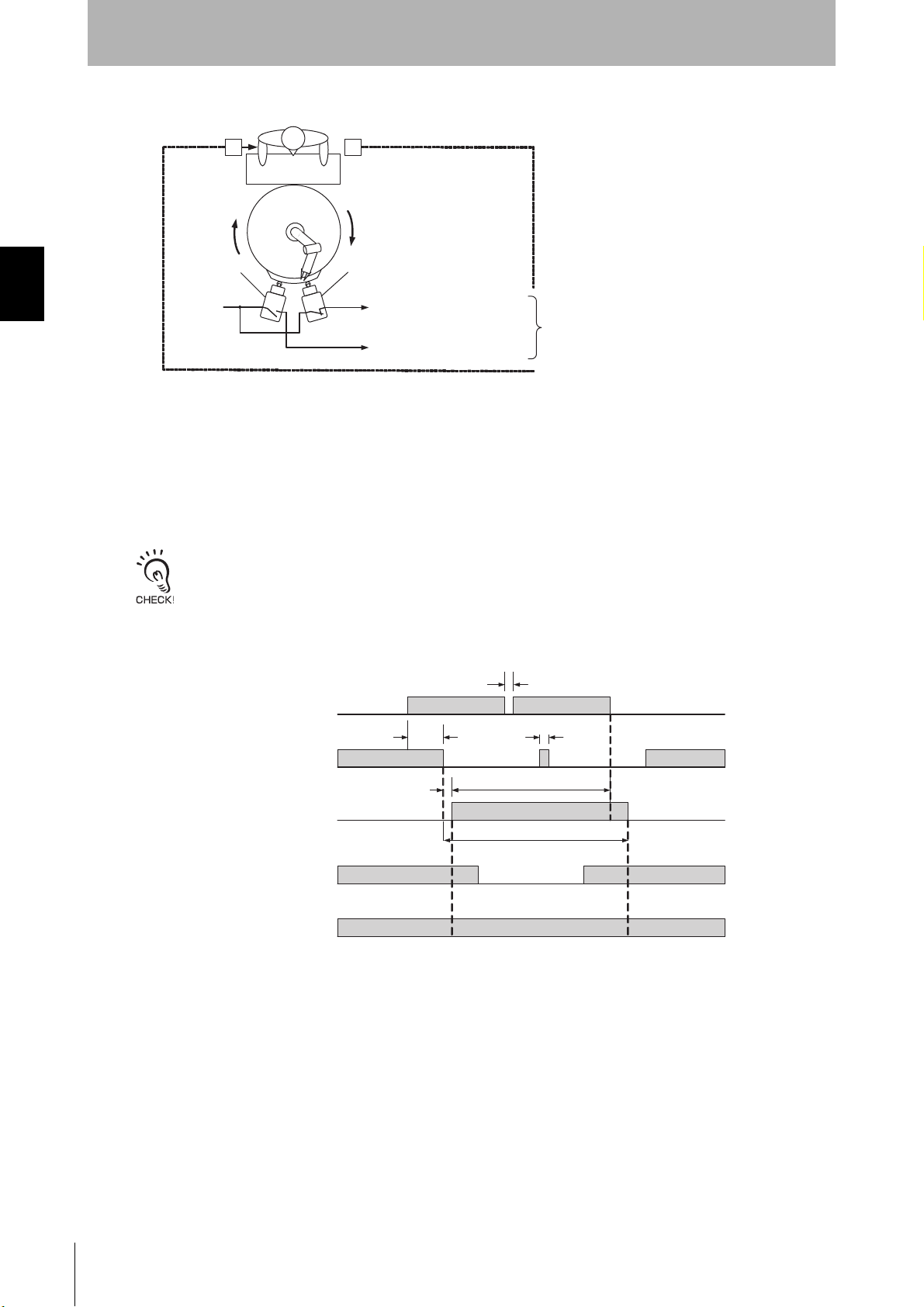

2-12. Muting

F3SG-RA Series X

F3SG-RE Series

Muting function temporarily disables safety function of the F3SG-RA, keeping safety output ON even if beams are blocked. This makes it possible to install safety light curtains for AGV passage, enabling both safety and productivity. When muting, the top-beam-state indicator (TOP), bottom-beam-state indicator (BTM) and external indicator (if wired) connected to the auxiliary output blink to notify people in the surrounding zone that the safety functions are disabled. The following three operation modes are available for the muting function.

1.Standard Muting Mode (factory default setting)

2.Exit-Only Muting Mode

3.Position Detection Muting Mode

Refer to 2-1. Combination of Functions for more information on the use in conjunction with other functions.

Chapter2 Muting

The Muting is not available for the F3SG-RE.

The following settings are available for a beam range to be the muting state.

• All Range Disabled Setting

• Partially Disabled Setting

• Dynamic Muting Setting

The muting and override functions disable the safety functions of the device. You must ensure safety using other method when these functions are operating.

Install muting sensors so that they can distinguish between the object that is being allowed to be passed through the detection zone and a person. If the muting function is activated by the detection of a person, it may result in serious injury.

F3SG-R

User’s Manual

Chapter2 Muting

System Operation and Functions

All muting lamps that indicate state of muting function must be installed where workers can see them from all the operating positions.

Use 2 independent input devices for muting input. A muting state may occur due to a single failure of the muting sensor.

You must install F3SG-RA, muting sensor, and physical barrier, and configure time settings for muting so that an operator should not enter hazardous zone.

The Dynamic Muting function can configure a new muting zone after muting is enabled based on a result of workpiece height measurement for a certain period of time. The function must be used after careful verification by a qualified person with sufficient training. Apply additional safety measures if required.

 Using muting function

<Muting sensor> The muting sensor is the sensor to trigger a signal to temporarily disable the safety functions of the F3SG-R. You can use a photoelectric switch of through-beam type or reflective type proximity switch, or limit switch. (Recommended: OMRON E3Z series, E2E series (3-wire type), D4N series) Use a 3-wire type transistor output, which is the same as the output type of the F3SG-RA, or N.O. type contact. Two-wire type sensor must not be used.

When the F3SG-RA is in PNP settings, use the muting sensor of the PNP transistor type. When the F3SG-RA is in NPN settings, use the muting sensor of the NPN transistor type.

<Muting lamp> You may need a muting lamp depending on your application or as a result of a risk assessment analysis. Before determining the use of the muting lamp, check laws and regulations of the country or region where the F3SG-RA is used and make sure of full compliance with them. For the muting lamp, use a Lamp (F39-LP and F39-BTLP, sold separately) or a commercially available external indicator. The external indicator can be connected to the auxiliary output.

For settings of the auxiliary output, see 2-11. Auxiliary Output.

For settings of the optional Lamp (F39-LP and F39-BTLP, sold separately), see 2-21. Lamp

Top-beam-state indicator Blinks during muting/override. Bottom-beam-state indicator Sequence error indicator Blinks during a muting sequence error. Configuration indicator If the Dynamic Muting function is enabled, the indicator flashes while measuring

the workpiece height. If the Dynamic Muting function is enabled, the indicator turns on after the new

muting zone is reflected.

F3SG-R

User’s Manual

For muting error indication, see 7-1-2-3. Muting Sequence Error Indication.

For dynamic muting, see 2-12-4. Dynamic Muting.

For the use in conjunction with other functions, see 2-1. Combination of Functions.

System Operation and Functions

<Muting range> You can specify a detection zone to be muted within the detection zone of the F3SG-RA.

Muting Range Description

Full Zone Muted State (factory default setting)

Partial Zone Muted State

Dynamic Muting This can be used by enabling the Dynamic Muting function.

Full area of the detection zone is muted. This disables the full detection zone and is used typically.

A specified area in the detection zone configured by the Configuration Tool is muted. This can be used if you want to disable only a specific area of the detection zone. Specifying the full zone results in the Full Zone Setting State.

The full detection zone is disabled for a certain time period from the start of the muting, then a partial zone is muted depending on the detected workpiece size.

2-12-4. Dynamic Muting

2-12-1. Standard Muting Mode

The factory default setting is set to this mode. Turning muting inputs A and B ON with time difference enables muting state.

Chapter2 Muting

 Start Conditions

If both of the following two conditions are satisfied, the muting state is enalbed.

1. No interrupting object is found in the F3SG-RA's detection zone, and safety outputs are ON.

2. After muting input A is turned ON*, muting input B is turned ON* within the range between the

muting input time limit values T1min (0.1 s) and T1max (4 s).

*PNP setting: Vs-3V to Vs, NPN setting: 0 to 3V

Muting state can be enabled in up to 80ms after the condition No.2 is satisfied. When the condition No.1 is satisfied but the time requirement of the condition No.2 is not, a muting sequence error occurs and the Sequence error indicator on the receiver blinks. However, when there is a muting sequence error, the F3SG-RA does not enter the Muting state but it continues the normal operation with the safety function enabled.

For muting error indication, see 7-1-2-3. Muting Sequence Error Indication.

Muting error can be released by any of following conditions:

1. Correct muting initial condition continues for 0.1 s or longer. *

2. Power cycle when muting inputs A and B are in the OFF state.

* The correct initial muting condition is the state where the following two conditions are satisfied.

• Safety outputs of the F3SG-RA are turned ON.

• Muting input A and B are turned OFF.

 End conditions

If either of the following conditions is satisfied, the muting state is released.

• Muting input A or B turns OFF for the maximum allowable muting signal interruption of T3 (at least

0.1 s: configurable) or longer.

• The duration of the muting state exceeds the muting time limit of T2 (at least 60 s: configurable).

Muting state is also released when the F3SG-RA enters the Lockout state.

F3SG-R

User’s Manual

Chapter2 Muting

Beam state

Muting input A

OFF

Muting input B

Muting state

OSSD

OFF

Unblocked

Blocked

OFF

Enabled

Disabled

T2 max.

T3 max.

T1min to T1max

80 ms max.

MUTE A : Gray

MUTE B : Pink

MUTE A : Gray

MUTE B : Pink

S1 S2

S1, S2:

Muting sensor

F39-JGA-D F39-JGA-D

S1, S2:

Muting sensor

PNP output NPN output

Receiver

Power supply

0 VDC : Blue

24 VDC : Brown

0 VDC : Blue

24 VDC : Brown

0 VDC

+24 VDC

Power supply

0 VDC

+24 VDC

System Operation and Functions

 Timing chart

 Default settings

Variable Variable name Va lue Description

1min Muting input time limit value

(minimum)

1max Muting input time limit value

(maximum)

2 Muting time limit 60 s The duration time of the Muting function. The Muting state is

3 Maximum allowable muting

signal interruption

0.1 s Minimum time difference between muting inputs A and B. If the time difference between muting inputs A and B is smaller than this value, a muting sequence error occurs.

4 s Maximum time difference between muting inputs A and B.

If the time difference between muting inputs A and B is larger than this value, a muting sequence error occurs.

cancelled if it continues for longer than this time limit.

0.1 s Maximum duration of a signal interruption allowed in muting inputs A and B.

 Wiring diagram

F3SG-R

User’s Manual

System Operation and Functions

 Installation standard for muting sensors

• Set the muting sensors so that they can detect all of the passing detection (palettes, automobiles, etc.). Do not install the muting sensor in a position so that only the front or rear end of the objects is detected.

• Set the muting sensors so that they detect the objects even when they are loaded on palettes or other transport devices.

• Also, install the F3SG-R and muting sensors so that each object passes through all muting sensors before the next object arrives at the first muting sensor. Also, install all F3SG-Rs and muting sensors so that no person is able to accidentally enter the hazardous zone while the muting function is enabled.

• If objects' speeds can vary, the allocation of muting sensors must be taken into consideration.

• Install muting sensors so that they can distinguish between the object that is being allowed to be passed through the detection zone and a person.

Chapter2 Muting

F3SG-R

User’s Manual

System Operation and Functions

 Installation example 1 of standard muting mode (Using two muting sensors)

This is an example of two retro-reflective type photoelectric sensors used as muting sensors installed in a cross pattern. Use two sensors when the length L of the workpieces are not constant or are insufficient.

Chapter2 Muting

1. Before a workpiece passes through

Hazardous zone

Workpiece

L: Length of workpiece d1: Maximum distance required for the muting sensor to keep the muting function enabled D1: Minimum distance required for the muting sensor to keep the muting function enabled

F3SG-RA

d1=D1

The output state of muting sensors A1 and B1 are both OFF, and the safety function of the F3SG-RA is working. In this example where two muting sensors are used, the crossover point of muting sensors A1 and B1 is in the hazardous zone. This configuration prevents the muting function from being enabled by a person passing through the crossover point.

Reflector

The crossover point of muting sensors A1 and B1 must be located within the hazardous zone

Reflector

2. Muting state started

Hazardous zone

Workpiece

F3SG-RA

When muting sensors A1 and B1 are turned ON in this order, the F3SG-R enters the muting state. In this state, the safety function of F3SG-RA is disabled.

Reflector

F3SG-R

User’s Manual

System Operation and Functions

Workpiece

F3SG-RA

Reflector

Hazardous zone

3. Muting state is maintained

The F3SG-RA is blocked but the safety function is disabled due to the muting state, and safety outputs 1 and 2 are turned ON.

4. The muting state is released

Chapter2 Muting

Hazardous zone

Reflector

Workpiece

Reflector

F3SG-RA

Muting sensor A1 is turned OFF, the muting state is released, and the safety function of the F3SG-RA is enabled. <Installation distance> The minimum distance, D1 [m], required for muting sensors to keep the muting state enabled is :

D1 < L . . . . . Formula (1)

L [m]: Length of a workpiece

The maximum distance, d1 [m], required for muting sensors to keep the muting state enabled is :

V x T1min < d1 < V x T1max . . . . . Formula (2)

V [m/s]: Approach speed of a workpiece T1min [s]: Muting input time limit value (minimum). It is set as 0.1 s. T1max [s]: Muting input time limit value (maximum). It is set as 4 s.

To enable the muting state, D1 and d1 must satisfy formulas (1) and (2), respectively.

F3SG-R

User’s Manual

Chapter2 Muting

B1 A1

+ 24 VDC

0 V

Power supply

Muting Input B: Pink

Muting Input A: Gray

Muting Input B: Pink

Muting Input A: Gray

Reflector

Reflector A1

F3SG-RA

Using a photoelectric switch as a muting sensor

Note. Two-wire type muting sensor cannot be used.

Using an N.O contact type switch as a muting sensor

A1, B1: Retro-reflective photoelectric switch

- PNP Output

- Dark-ON

A1, B1: N.O. contact type switch

Muting sensor A1

OFF

Muting sensor B1

Unblocked

Blocked

OSSD

OFF

Muting state

Enabled

Disabled

T2 max.

Beam state

T3 max.

T1min to T1max

80 ms max.

System Operation and Functions

This distance must prevent the muting state from being enabled by a person passing through the muting sensors. Also, install the F3SG-R and muting sensors so that each workpiece passes through all muting sensors before the next workpiece arrives at the first muting sensor (PNP mode).

F3SG-R

User’s Manual

System Operation and Functions

 Installation example 2 of standard muting mode (Using four muting sensors)

This installation example uses four through-beam type photoelectric sensors as muting sensors. The use of four muting sensors is useful when the length of the workpieces is constant or longer, and the entrance and exit have enough space. Muting can be performed from both directions in the arrangement as shown below.

1. Before a workpiece passes through

Hazardous zone

F3SG-RA

Workpiece V

d2: Maximum distances required for the muting sensor to keep the muting function enabled D3: Minimum distance required for the muting sensor to keep the muting function enabled

d2 d2

All muting sensors are turned OFF and the safety function of the F3SG-RA is working.

Workpiece V

Chapter2 Muting

2. The muting sensor is blocked and the safety function of the F3SG-RA is disabled

Hazardous zone

A1 F3SG-RA A2

Workpiece

B1 B2

When muting sensors A1 and B1 are turned ON in this order, the muting state is enabled. In this state, the safety function of F3SG-RA is disabled.

F3SG-R

User’s Manual

Chapter2 Muting

System Operation and Functions

3. The muting sensor is blocked and the safety function of the F3SG-RA is disabled

Hazardous zone

A1 F3SG-RA A2

Workpiece

B1 B2

Muting sensors A1 and B1 are turned OFF but A2 and B2 are ON, so the muting state is still maintained. Safety outputs 1 and 2 are turned ON.

4. The muting state is released

Hazardous zone

F3SG-RA

Workpiece

Muting sensor B2 is turned OFF, the muting state is released, and the safety function of the F3SG-RA is enabled.

The minimum distance, D3 [m], required for muting sensors to keep the muting state enabled is :

D3 < L . . . . . Formula (3)

L [m]: Length of a workpiece

The maximum distance, d2 [m], required for muting sensors to keep the muting state enabled is :

V x T1min < d2 < V x T1max . . . . . Formula (4)

V [m/s] : Approach speed of a workpiece T1min [s] : Muting input time limit value (minimum). It is set as 0.1 s. (configurable) T1max [s] : Muting input time limit value (maximum). It is set as 4 s. (configurable)

F3SG-R

User’s Manual

System Operation and Functions

Moving direction

Workpiece Workpiece Workpiece Workpiece

Moving direction

+ 24 VDC

0 V

Power supply

A2 A1 B2 B1

Muting input A: Gray

A1 A2

F3SG-R

Using a photoelectric switch as a muting sensor

Note. Two-wire type muting sensor cannot be used.

Using an N.O. contact type switch as a muting sensor (PNP mode)

A1, B1, A2, B2 : Through-beam type photoelectric switch

- PNP Output

- Dark-ON

A1, A2, B1, B2: N.O. contact type switch

Muting input B: Pink

Muting input A: Gray

Muting input B: Pink

To enable the muting state, D3 and d2 must satisfy formulas (3) and (4), respectively. This distance must prevent the muting state from being enabled by a person passing through the muting sensors. Also, install the F3SG-RA and muting sensors so that each workpiece passes through all muting sensors before the next workpiece arrives at the first muting sensor.

Chapter2 Muting

F3SG-R

User’s Manual

System Operation and Functions

A2 B2 A1 B 1 A 1 B1 B2 A2 A1 B1 B2 A2

Workpiece Workpiece Workpiece

(1) (1)

(1)

(2)

(3)

(1)

Reflected light

Direct light Light from other F3SG-RA

F3SG-RA F3SG-RA F3SG-RA

Chapter2 Muting

T3 (0.1 s) max.

T1min to T1max

80 ms max.

T3 (0.1 s) max.

T2 max.

Muting sensor A1

Muting sensor B1

Muting sensor B2

Muting sensor A2

Muting state

Beam state

OSSD

OFF

Enabled

Disabled

Unblocked

Blocked

OFF

<Reference: Preventing light interference of muting sensor> When a photoelectric sensor is used as a muting sensor, light interference may cause a muting error of F3SG-RA. The cause and measures for light interference are shown as follows:

(1) Interference between muting sensors

• Use sensors with mutual interference prevention (such as retro-reflective E3Z-R series)

• Use laser-type sensors (such as laser-type E3Z-LR series)

• Take distance from a sensor causing the interference

• Displace beams for each other to prevent interference (change installation height or place them

crosswise)

• Install a physical barrier

• Attach interference prevention filter (provided for E3Z series as accessories)

• Attach a slit to reduce light intensity (provided for E3Z series as accessories)

• Lower the sensitivity

• Reduce a distance between a workpiece and a muting sensor to prevent reflected light from a workpiece

F3SG-R

User’s Manual

System Operation and Functions

(2) Interference to a muting sensor from F3SG-RA

• Take distance (D) from a sensor causing the interference

• Displace beams for each other to prevent interference (change installation height or place them

crosswise)

• Install a physical barrier

• Arrange sensors in alternation

• Lower the sensitivity

(3) Interference to F3SG-RA from a muting sensor

• Use a red LED type sensor (such as retro-reflective E3Z-R series)

• Use laser-type sensors (such as laser-type E3Z-LR series)

• Take distance (D) from a sensor causing the interference

• Displace beams for each other to prevent interference (change installation height or place them

crosswise)

• Install a physical barrier

• Arrange sensors in alternation

• Attach a slit to reduce light intensity (provided for E3Z series as accessories)

Chapter2 Muting

Mutual interference between a muting sensor and F3SG-RA in (2) and (3) above can be prevented by configuring D satisfying a formula shown below:

•If L = 0.3 to 3 m, D = 0.26 m or larger

•If L = 3 m or larger, D = L x tan5° = L x 0.088 m or larger

L : Distance between an emitter and a receiver of the F3SG-RA D : Distance between a muting sensor and a F3SG-RA

2-12-2. Exit-Only Muting Mode

Turning muting inputs A and B ON with time difference enables muting state. Difference from standard mode exists in muting completion condition.

 Start conditions

If both of the following 2 conditions are satisfied, the muting state is enalbed.

1. No interrupting object is found in the F3SG-RA's detection zone, and the safety outputs are ON.

2. After muting input A is turned ON*, muting input B is turned ON* within the range between the

muting input time limit values T1min (0.1 s) and T1max (4 s).

*PNP setting: Vs-3V to Vs, NPN setting: 0 to 3V

Muting state can be enabled in up to 80 ms after the condition No.2 is satisfied. If the condition No.1 is satisfied but the time requirement of the condition No.2 is not, a muting error occurs, and the Sequence error indicator on the receiver turns ON. However, when there is a muting error, the F3SG-RA continues the normal operation with the safety function enabled.

For muting error indication, see 7-1-2-3. Muting Sequence Error Indication.

Muting error can be released by any of following conditions:

1. Correct muting initial condition continues for 0.1 s or longer. *

2. Power cycle when the muting inputs A and B are in the OFF state.

* The correct initial muting condition is the state where the following two conditions are satisfied.

• Safety outputs of the F3SG-RA are turned ON.

• Muting input A and B are turned OFF.

F3SG-R

User’s Manual

Chapter2 Muting

Muting input A

(Muting sensor A1)

OFF

(Muting sensor B1)

Muting input B

Unblocked

Blocked

OSSD

OFF

Muting state

Enabled

Disabled

T2 max.

T3 (0.1s) max.

T5 max.

Beam state

T3 (0.1 s) max.

T4 (1 s)

T1min to T1max

80 ms max.

System Operation and Functions

 End conditions

If any of the following condition is satisfied, the muting state is released.

• When a workpiece passes a muting sensor A or B and the exit-only muting delay time (4 s) passes.

• When a workpiece passes F3SG-R's detection zone and the muting end wait time (1 s:

configurable) passes.

• The duration of the muting state exceeds the muting time limit (60 s: configurable).

 Timing chart

* This timing chart shows the case in which the muting state was released under the condition of T4 (1 s).

 Factory default setting

Variable Variable name Va lue Description

T1min Muting input time limit value

(minimum)

T1max Muting input time limit value

(maximum)

T2 Muting time limit 60 s The duration time of the Muting function. The Muting state is

T3 Maximum allowable muting

signal interruption

T4 Muting end wait time 1 s Time difference from when the F3SG-RA is unblocked until the

T5 Exit-only muting delay time 4 s Time difference from when the signal of Muting input A or B is

0.1 s Minimum time difference between muting inputs A and B. If the time difference between muting inputs A and B is smaller than this value, a muting sequence error occurs.

4 s Maximum time difference between muting inputs A and B.

If the time difference between muting inputs A and B is larger than this value, a muting sequence error occurs.

cancelled if it continues for longer than this time limit.

0.1 s Maximum duration of a signal interruption allowed in muting inputs A and B.

Muting state is cancelled.

turned OFF until the Muting state is cancelled.

F3SG-R

User’s Manual

 Wiring diagram

MUTE A : Gray

MUTE B : Pink

MUTE A : Gray

MUTE B : Pink

S1 S2

S1, S2:

Muting sensor

F39-JGA-D F39-JGA-D

S1, S2:

Muting sensor

PNP output NPN output

Receiver

Power supply

0 VDC : Blue

24 VDC : Brown

0 VDC : Blue

24 VDC : Brown

0 VDC

+24 VDC

Power supply

0 VDC

+24 VDC

Workpiece

F3SG-RA

A1 B1

Hazardous zone

A1 : Muting sensor to be connected to muting input A

B1 : Muting sensor to be connected to muting input B

System Operation and Functions

Chapter2 Muting

 Installation Example of Exit-Only Muting Mode

This is an installation example of exit-only muting mode. When exit-only muting mode is set, install the muting sensor on the hazardous side of the workpiece exit. This can be used if a workpiece has a certain length and the hazardous side of the workpiece exit has enough space around it.

1. Before a workpiece passes through

All muting sensors are turned OFF and the safety function of the F3SG-RA is working.

F3SG-R

User’s Manual

Chapter2 Muting

Workpiece

F3SG-RAA1 B1

Hazardous zone

A1 : Muting sensor to be connected to muting input A

B1 : Muting sensor to be connected to muting input B

Workpiece

F3SG-RAA1 B1

Hazardous zone

A1 : Muting sensor to be connected to muting input A

B1 : Muting sensor to be connected to muting input B

System Operation and Functions

2. The muting sensor is blocked and the safety function of the F3SG-RA is disabled

Hazardous zone

F3SG-RAA1 B1

A1 : Muting sensor to be connected to muting input A

Workpiece

B1 : Muting sensor to be connected to muting input B

When muting sensors A1 and B1 are turned ON in this order, and the muting state is enabled. In this state, the safety function of F3SG-RA is disabled.

3. Muting sensor A1 is turned OFF

The workpiece has completely passed the muting sensor A1 and the sensor starts turning OFF. For standard muting system, muting is released here. For exit-only muting, F3SG-RA's safety function is disabled for the exit-only muting delay time: T5.

4. Muting sensor B1 is turned OFF

The workpiece has completely passed the muting sensor B1 and the sensor is turned OFF. F3SG-RA disables its safety function if it is within the exit-only muting delay time.

F3SG-R

User’s Manual

System Operation and Functions

Workpiece

F3SG-RAA1 B1

Hazardous zone

A1 : Muting sensor to be connected to muting input A

B1 : Muting sensor to be connected to muting input B

5. The workpiece passed F3SG-RA’s detection zone

A workpiece has passed F3SG-RA’s detection zone. When the muting end wait time: T4 (1 s: configurable) passes after the F3SG-RA is unblocked, the muting state is released.

 Installation Distance

Distances between muting sensors A1, B1, and F3SG-RA must be configured based on speed of a workpiece. Distance d1 between muting sensors A1 and B1 must satisfy Equations (1) and (2). Distance d2 between muting sensor A1 and F3SG-RA must satisfy Equations (3) and (4). Time t1 [ s ] to turn muting sensors A1 and B1 in this order is:

t1 = d1 / V . . . . . . . . . . . Equation (1) d1 [ m ] : Distance between muting sensors A1 and B1

V [ m/s ] : Approach speed of a workpiece

Chapter2 Muting

Time t1 in Equation (1) for F3SG-RA to enter muting state is within a range shown below:

T1min < t1 < T1max. . . . Equation (2) T1min [ s ] : Muting input time limit value (minimum)

T1max [ s ] : Muting input time limit value (maximum)

The values of T1min and T1max can be changed by the Configuration Tool.

Time t2 [ s ] for a workpiece to pass F3SG-RA’s detection zone after passing the muting sensor A1 is:

t2 = d2 / V . . . . . . . . . . . . Equation (3) d2 [ m ] : Distance between muting sensor A1 and F3SG-RA

V [ m/s ] : Approach speed of a workpiece

Time t2 in Equation (3) must satisfy following condition:

t2 < T5 . . . . . . . . . . . . . . Equation (4) T5: Exit-only muting delay time

The value of T5 can be changed by the Configuration Tool.

Sensors must be installed so that person’s passing should not cause muting state.

F3SG-R

User’s Manual

Chapter2 Muting

T2 max.

80 ms max.

T5 max.

Muting input A

(Muting sensor A1)

OFF

Muting input B

(Muting sensor B1)

Beam state

Unblocked

Blocked

OSSD

OFF

Muting state

Enabled

Disabled

T1max

T4 (1 s)

T1min to T1max

T3 (0.1 s) max.

T3(1 s) max.

System Operation and Functions

Also, muting sensors and F3SG-RA must be installed so that muting state caused by a workpiece should be ended before the next workpiece arrives at the first muting sensor.

Hazardous zone Hazardous zone

F3SG-RAA1 B1 F3SG-RAA1 B1

Workpiece Workpiece Workpiece Workpiece

 Timing Chart

Moving direction

F3SG-R

User’s Manual

System Operation and Functions

2-12-3. Position Detection Muting Mode

Muting state is enabled when muting input A turns ON from the OFF state and muting input B turns OFF from the ON state within the muting input time limit value T1max, measured by a limit switch, etc. Muting inputs must be heterogeneous redundant inputs such as the combination of N.O. contact and N.C. contact types. (When using photoelectric sensors of PNP output, use one for Light-ON operation while the other for Dark-ON.) This mode can be used for such a case that the F3SG-RA should be temporarily disabled while a worker puts objects at a loading station.

 Start conditions

If both of the following 2 conditions are satisfied, the muting state is enalbed.

1. No interrupting object is found in the F3SG-RA's detection zone, and the safety outputs are ON.

2. The duration between when the muting input A is turned ON* from the OFF state and when the muting input B is turned OFF from the ON state* is within the range between the muting input time limit values T1min (0.1 s) and T1max (4 s). Order of muting inputs A and B is irrelevant.

*PNP setting: Vs-3V to Vs, NPN setting: 0 to 3V

Chapter2 Muting

Muting state can be enabled in up to 80 ms after the condition No. 2 is satisfied. If the condition No. 1 is satisfied but the time requirement of the condition No.2 is not, a muting error occurs, and the Sequence error indicator on the receiver turns ON. However, when there is a muting error, the F3SG-RA continues the normal operation with the safety function enabled.

For muting error indication, see 7-1-2-3. Muting Sequence Error Indication.

Muting error can be released by any of following conditions:

1. Correct muting initial condition continues for 0.1 s or longer. *1

2. Power cycle when the muting inputs A and B are in the OFF state.

*1 The correct initial muting condition is the state where the following two conditions are satisfied.

• Safety outputs of the F3SG-RA are turned ON.

• Muting input A is turned OFF and Muting input B is turned ON.

 End conditions

If any of the following conditions is satisfied, the muting state is released.

• Muting input A is in the OFF state for T3 or longer (0.1 s or longer).

• Muting input B is in the ON state for T3 or longer (0.1 s or longer).

• The duration of the muting state exceeds the muting time limit of T2 (60 s).

Muting state is also released when the F3SG-RA enters the Lockout state.

F3SG-R

User’s Manual

Chapter2 Muting

Muting input A (Limit switch1)

OFF

Muting input B (Limit switch2)

Beam state

Unblocked

Blocked

OSSD

OFF

Enabled

Disabled

T1max

Muting state

T2 max.

80 ms max.

T3 (0.1 s) max.

㻿㻞

MUTE A : Gray

MUTE B : Pink

MUTE A : Gray

MUTE B : Pink

S1, S2:

Muting sensor

F39-JGA-D F39-JGA-D

S1, S2:

Muting sensor

PNP output NPN output

Receiver

Power supply

0 VDC : Blue

24 VDC : Brown

0 VDC

+24 VDC

Power supply

0 VDC

+24 VDC

System Operation and Functions

 Timing chart

Variable Variable name Va lue Description

1max Muting input time limit value

(maximum)

2 Muting time limit 60 s The duration time of the Muting function. The Muting state is

3 Maximum allowable muting

signal interruption

3 s Maximum time difference between muting inputs A and B.

If the time difference between muting inputs A and B is larger than this value, a muting error occurs.

cancelled if it continues for longer than this time limit.

0.1 s Maximum duration of a signal interruption allowed in muting inputs A and B.

 Wiring diagram

F3SG-R

User’s Manual

System Operation and Functions

Under normal operation

Guard fence

F3SG-RA

24 V or 0 V

Worktable

Robot arm table

OFF: To muting input A

ON: To muting input B

Limit switch1 (N.O. Contact)

Limit switch 2 (N.C. Contact)

F3SG-RA

Under normal operation

OFF -> ON: To muting input A

ON: To muting input B

Limit switch1 (N.O. Contact)

Limit switch 2 (N.C. Contact)

Guard fence

24 V

 Installation Example of Position Detection Muting Mode

Shown below is an installation example of position detection muting mode. This is an application that places a workpiece on a machine’s turntable surrounded by guard fence. When hazardous part of the machine is on the opposite side of a human body, safety function of F3SG-RA can be disabled so that an operator should be able to place a workpiece on the turntable.

1. Hazardous part of the machine is on the same side of a human body

The safety functions of the F3SG-RA is activated with the limit switch 1 being in the OFF state and the limit switch 2 in the ON state. 2, Hazardous part of the machine is on the opposite side of a human body

Chapter2 Muting

Rotation of a robot arm sets the muting input A from OFF to ON. Safety function of F3SG-RA is enabled.

F3SG-R

User’s Manual

Chapter2 Muting

Guard fence

Limit switch1 (N.O. Contact)

Limit switch 2 (N.C. Contact)

During muting

ON: To muting input A

ON -> OFF: To muting input B

Input time difference between muting inputs A and B must be T1max or less (initial setting is 4 s)

F3SG-RA

24 V

Muting input A (Limit switch1)

OFF

Muting input B (Limit switch2)

Beam state

Unblocked

Blocked

OSSD

OFF

Enabled

Disabled

T1max

Muting state

T2 max.

80 ms max.

T3 (0.1 s) max.

System Operation and Functions

If the duration between when the muting input A is turned ON from the OFF state and when the muting input B is turned OFF from the ON state is within T1max [ s ], the safety function of the F3SG-RA is disabled. (Safety outputs are kept ON even if F3SG-RA is blocked)

Time t1 [ s ] for F3SG-RA to enter muting state is within the range shown below:

t1 < T1max. . . . . . . . . . . Equation (5) T1max [ s ] : Muting input time limit value (maximum)

The value of T1max can be changed by the Configuration Tool.

 Timing Chart

F3SG-R

User’s Manual

System Operation and Functions

㻺㼑㼣㻌㼦㼛㼚㼑

2-12-4. Dynamic Muting

The Dynamic Muting function can configure a new muting zone while the muting state is enabled, based on a result measuring a workpiece height for a certain period of time. This materializes safer muting function with a limited muting zone adjusted according to a workpiece height.

 Usage Example

This function cannot be used for an application in which a workpiece height gets larger after measuring the zone as shown below.

Applicable Example NOT Applicable Example

Application Examples Position after Zone

Measurement

Application Examples Position after Zone

Measurement

Chapter2 Muting

㻺㼑㼣㻌㼦㼛㼚㼑

 Zone Measurement Start Condition

After the muting start condition is satisfied and the full detection zone is muted, interruption of a part of the F3SG-RA causes the Zone Measurement to start.

 Zone Measurement

The Zone Measurement monitors the highest and lowest parts of a passing workpiece during the dynamic muting measurement time Tdyn (3 s). (Void spaces in workpiece(s) are ignored.)

 Zone Determination

A zone enclosed by the highest and the lowest parts of the workpiece is set as a new muting zone. Configuring a dynamic muting allowable beam allows the muting zone to be expanded by the number of allowable beams. Configuring a dynamic muting allowable beam prevents unintended line stop due to swing of a workpiece, etc. (The factory default setting of the dynamic muting allowable beam is 1.)

F3SG-R

User’s Manual

Chapter2 Muting

OFF

Muting Input A

Muting State

OFF

Enabled

Disabled

Zone Measurement

Beam state

Unblocked

Blocked

Partial Zone

Tdyn (3 s)

All Zone

Muting Input B

System Operation and Functions

 Dynamic Muting Allowable Beam

The dynamic muting allowable beam allows the muting zone measured by the Zone Measurement to be expanded by the number of additional beam(s) specified as allowable beam.

 Timing chart

2-12-5. Factory Default Setting

2-12-6. Setting with DIP Switch

2-12-7. Setting with Configuration Tool

In the factory default setting, the muting mode is set to Standard Muting Mode and the dynamic muting to Disable.

If the pre-reset function is enabled by the DIP Switch, the muting function is disabled. Otherwise the muting function is always being enabled.

Refer to Chapter 3 Setting with DIP Switch for more information on setting this function by the DIP Switch.

The user can make changes to the settings by the Configuration Tool.

Muting function * Enable Enable/Disable

Muting mode Standard muting mode Standard muting mode/Exit-only muting

Statistics data recording Enable Enable/Disable

*Setting parameters of the following functions can be saved according to the states where the Muting function is

enabled and disabled, respectively. After changing the Muting function from Enable to Disable or from Disable to Enable, also check the settings of these functions again. Affected functions: External Device Monitoring (EDM), Start Interlock, Restart Interlock, Auxiliary Output, Lamp

Output

Function Factory Default Setting Available Parameters

mode/Position detection muting mode

F3SG-R

User’s Manual

System Operation and Functions

Refer to 2-24-6. Muting Statistics Information for more information.

Standard Muting Mode

Function Factory Default Setting Available Parameters

Muting zone Bottom beam All beams any beam in 1-beam increments

Top beam

min: Muting input time limit value (minimum) 0.1 s 0.1 to 3.9 s in 0.1-s increments

max: Muting input time limit value (maximum) 4 s 0.2 to 60 s in 0.1-s increments, or infinite

T2: Muting time limit 60 s 1 to 600 s in 1-s increments, or infinite

T3: Maximum allowable muting signal interruption 0.1 s 0.1 to 20 s in 0.1-s increments

Exit-Only Muting Mode

Function Factory Default Setting Available Parameters

Muting zone Bottom beam All beams any beam in 1-beam increments

Top beam

min: Muting input time limit value (minimum) 0.1 s 0.1 to 3.9 s in 0.1-s increments

max: Muting input time limit value (maximum) 4 s 0.2 to 4 s in 0.1-s increments, or infinite

T2: Muting time limit 60 s 1 to 600 s in 1-s increments, or infinite

T3: Maximum allowable muting signal interruption 0.1 s 0.1 to 4 s in 0.1-s increments

T4: Muting end wait time 1 s 0.1 to 20 s in 0.1-s increments

T5: Exit-only muting delay time 4 s 4 to 20 s in 0.1-s increments

Chapter2 Muting

Position Detection Muting Mode

Function Factory Default Setting Available Parameters

Muting zone Bottom beam All beams any beam in 1-beam increments

Top beam

max: Muting input time limit value(maximum) 4 s 0.2 to 60 s in 0.1-s increments, or infinite

T2: Muting time limit 60 s 1 to 600 s in 1-s increments, or infinite

T3: Maximum allowable muting signal interruption 0.1 s 0.1 to 4 s in 0.1-s increments

Dynamic Muting

Function Factory Default Setting Available Parameters

Dynamic muting

Dynamic muting measurement time 3 s 1 to 25 s in 0.1-s increments

Number of dynamic muting allowable beams 1 0 to 5 in 1-beam increments

Make sure the Position 8 of the DIP Switch is set to Configuration Tool Enabled to activate the settings by the Configuration Tool.

Setting the muting time limit to infinite may cause a failure of the muting sensors to go undetected, resulting in the F3SG-RA in an unintended muting state. Conduct risk assessment analysis thoroughly before enabling this setting.

Setting the muting input time limit value (maximum) to infinite may cause a failure of the muting sensors to go undetected, resulting in a failure of disabling the muting state. Conduct risk assessment analysis thoroughly before enabling this setting.

Disable Enable/Disable

Dynamic Muting can be used in conjunction with any of Standard, Exit-only and Position detection muting modes.

Refer to Safety Light Curtain Configuration Tool for Model F3SG (SD Manager 2) User’s Manual for more information on setting this function by the Configuration Tool.

F3SG-R

User’s Manual

System Operation and Functions

2-13. Override

F3SG-RA Series X

F3SG-RE Series

Chapter2 Override

The override function turns the safety outputs ON when the muting start condition is not satisfied. If a workpiece stops while passing through the F3SG-RA, as shown below, causing a muting error, the normal state cannot be recovered unless the workpiece is removed from the muting sensors and the detection field of the F3SG-RA. However, the override function will mute the safety outputs of the F3SG-RA so that the conveyor only can be restarted to move the workpiece out of the muting sensors and detection zone.

F3SG-RA

Workpiece

Reflector

F3SG-RA

Reflector

The override function can be enabled for up to 600 s. Receiver's top-beam-state indicator and bottom-beam-state indicator blink during override.

The Override is not available for the F3SG-RE.

The muting and override functions disable the safety function of the device. You must ensure safety using other method when these functions are operating.

Override time must be properly configured for its application by a sufficiently trained and qualified person.

F3SG-R

User’s Manual

System Operation and Functions

F3SG-RA

Override

Workpiece

Reflector

When muting error occurs with workpiece blocking the F3SG-RA, there are 2 methods to forcibly remove the workpiece.

1) Manual operation (with additional safety measure); or

2) Override function (Override at Normal Operation / Override upon Start up) Only one of the methods, either 1) or 2) must be used. If they are used at the same time, the override may be activated at an unexpected timing.

Chapter2 Override

2-13-1. Override at Normal Operation

You can enable the override function under the normal operation.

 Override start conditions under normal operation

If all of the following conditions are satisfied, the override state is enabled.

The F3SG-RA does not enter Override state when the sensor is in Lockout state.

 Under standard muting mode

1. Either muting input A or B is in the ON state. (One or more muting sensors are turned ON by a workpiece)

2. The F3SG-RA is blocked and the safety outputs are in the OFF state.

3. An input signal of a special sequence is entered three times to the reset input when the conditions No. 1 and 2 above are satisfied. The signal must be entered within a range from 0.1 s to the override input time limit T1 (1 s) (can be changed). (See the timing chart below.)

 Under position detection muting mode

1. Either muting input A or B detects a mutable position. (Either muting input A is ON or muting input B is OFF)

2. The F3SG-RA is blocked and the output is OFF.

3. Under the state of 1 and 2, provide a special sequence to the reset input three (3) times. The signal must be entered within a range from 0.1 s to the override input time limit T1 (1 s)(can be changed). (See the timing chart below.)

F3SG-R

User’s Manual

System Operation and Functions

 Under exit-only muting mode

1. Muting sequence error occurred

2. The F3SG-RA is blocked and the output is OFF.

3. Under the state of 1 and 2, a special sequence is entered to the reset input three (3) times. The signal must be entered within a range from 0.1 s to the override input time limit T1 (1 s) (can be changed). (See the timing chart below.)

Chapter2 Override

 Override end conditions under normal operation

When any of the following conditions is satisfied, the override state is released.

Override state can be also released when the F3SG-RA enters the Lockout state.

 Under standard muting mode

1. A period of 600 s (configurable) passes in the OVERRIDE state

2. All muting inputs are turned OFF.

3. The following signal to cancel the OVERRIDE state is entered:

• When the external device monitoring function is enabled, the RESET line is turned ON. (PNP: Connected to Vs-3 V~Vs; NPN: Connected to 0 V~3 V)

• When the external device monitoring function is disabled, the RESET line is turned OFF.

 Under position detection muting mode

1. A period of 600 s (configurable) passes in the OVERRIDE state

2. When muting input A is OFF and muting input B is ON

3. The following signal to cancel the OVERRIDE state is entered:

• When the external device monitoring function is enabled, the RESET line is turned ON. (PNP: Connected to Vs-3 V~Vs; NPN: Connected to 0 V~3 V)

• When the external device monitoring function is disabled, the RESET line is turned OFF.

 Under exit-only muting mode

1. A period of 600 s (configurable) passes in the OVERRIDE state

2. When F3SG-RA is unblocked

3. The following signal to cancel the OVERRIDE state is entered:

• When the external device monitoring function is enabled, the RESET line is turned ON. (PNP: Connected to Vs-3 V~Vs; NPN: Connected to 0 V~3 V)

• When the external device monitoring function is disabled, the RESET line is turned OFF.

F3SG-R

User’s Manual

 Timing chart

OFF

T1 T1 T1 T1 T1 T1

Muting input A

Muting input B

RESET

Override state

Beam state

OSSD

Note. In this timing chart, all muting inputs switched to OFF ends the OVERRIDE state.

Enabled

Disabled

Unblocked

Blocked

1 s max.

T2 max.

Under standard muting mode

System Operation and Functions

Chapter2 Override

Under position detection muting mode

Muting input A

Muting input B

RESET

Override state

Beam state

OSSD

Note. In this timing chart, muting input A switched to OFF and muting input B switched to ON end the OVERRIDE state.

OFF

Enabled

Disabled

Unblocked

Blocked

OFF

Under exit-only muting mode

OFF

Enabled

Disabled

Unblocked

Blocked

OFF

Muting input A

Muting input B

RESET

Override state

Beam state

Note. In this timing chart, the F3SG-RA being unblocked ends the OVERRIDE state.

OSSD

T1 T1 T1 T1 T1 T1

1 s max.

T1 T1 T1 T1 T1 T1

1 s max.

T2 max.

1 s max.

T2 max.

F3SG-R

User’s Manual

System Operation and Functions

*1. Also used as Override input line. *2. Make sure to connect an override cancel switch to

the Reset line when using the override function. Otherwise the override state may not be released by the override cancel switch, resulting in serious injury.

F39-JGA-D F39-JGA-D

S1: Lockout/Interlock Reset Switch or Override Switch S2: Override Cancel Switch S3, S4: Muting sensor KM1, KM2: External device feedback

RESET : Yellow *1

S3 S4

KM1

KM2

S3 S4

KM1

KM2

MUTE A : Gray

MUTE B : Pink

PNP output NPN output

Receiver

Power supply

0 VDC : Blue

24 VDC : Brown

RESET : Yellow *1

MUTE A : Gray

MUTE B : Pink

0 VDC : Blue

24 VDC : Brown

0 VDC

+24 VDC

Power supply

0 VDC

+24 VDC

 Factory default setting

Variable Variable name Val ue Description

T1 Override input time limit 1 s Maximum input time of override input.

T2 Override time limit 600 s The duration time of the Override function. The Override state is

cancelled if it continues for longer than this time limit.

Chapter2 Override

 Wiring diagram

When External Device Monitoring Enabled

F3SG-R

User’s Manual

Omron F3SG-R User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Legislation and Standards

Terms and Conditions Agreement

Safety Precautions

Precautions for Safe Use

Precautions for Correct Use

Visual Aids

Table of Contents

Chapter 1 Overview and Specifications

1-1. What is Included

1-2. System Components

1-2-1. Basic Components

1-2-2. Model Overview

1-3. List of Features

1-3-1. Model Overview

1-3-2. Versions

1-3-3. List of Features

1-4. LED Indicators

1-4-1. LED Indicator Status

1-5. Ratings/Specifications

1-6. List of Models

1-6-1. List of Models/Response Time/Current Consumption/Weight

1-6-2. Calculation of Response Time of Cascaded Segments

Chapter 2 System Operation and Functions

2-1. Combination of Functions

2-2. Operating States

2-2-1. Machine Run State

2-2-2. Machine Stop State

2-2-3. Interlock State

2-2-4. Lockout State

2-2-5. Teach-in Mode

2-2-6. Setting State

2-3. Optical Synchronization

2-3-1. Overview

2-4. Scan Code Selection

2-4-1. Overview

2-4-2. Factory Default Setting

2-4-3. Setting with DIP Switch

2-4-4. Setting with Configuration Tool

2-5. PNP/NPN Selection

2-5-1. Overview

2-5-2. Factory Default Setting

2-5-3. Setting with DIP Switch

2-5-4. Setting with Configuration Tool

2-6. Self-Test

2-6-1. Overview

2-6-1-1. Self-Test details

2-6-1-2. Waveform of safety outputs

2-7. External Test

2-7-1. Overview

2-7-2. Factory Default Setting

2-7-3. Setting with DIP Switch

2-7-4. Setting with Configuration Tool

2-8. Lockout Reset

2-8-1. Overview

2-9. Interlock

2-9-1. Over view

2-9-2. Factory Default Setting

2-9-3. Setting with DIP Switch

2-9-4. Setting with Configuration Tool

2-10. External Device Monitoring (EDM)

2-10-1. Overview

2-10-2. Factory Default Setting

2-10-3. Setting with DIP Switch

2-10-4. Setting with Configuration Tool

2-11. Auxiliary Output

2-11-1. Overview

2-11-2. Factory Default Setting

2-11-3. Setting with DIP Switch

2-11-4. Setting with Configuration Tool

2-12. Muting

2-12-1. Standard Muting Mode

2-12-2. Exit-Only Muting Mode

2-12-3. Position Detection Muting Mode

2-12-4. Dynamic Muting

2-12-5. Factory Default Setting

2-12-6. Setting with DIP Switch
