Omron F500ETN, F210-C10-ETN, F210-C15-ETN, F500-C10-ETN, F500-C15-ETN Datasheet
1F210ETN / F500ETN
Network-Ready Vision System Series
F210ETN / F500ETN
Ultimate Power - High Resolution (F500)
Network-Ready Vision System
• Two digital cameras ports, high resolution (1K x 1K) with
F500ETN
• Advanced real time data logging and storage functions
• 10/100 Base TX Ethernet Port, USB, RS232/422,
33 digital I/O

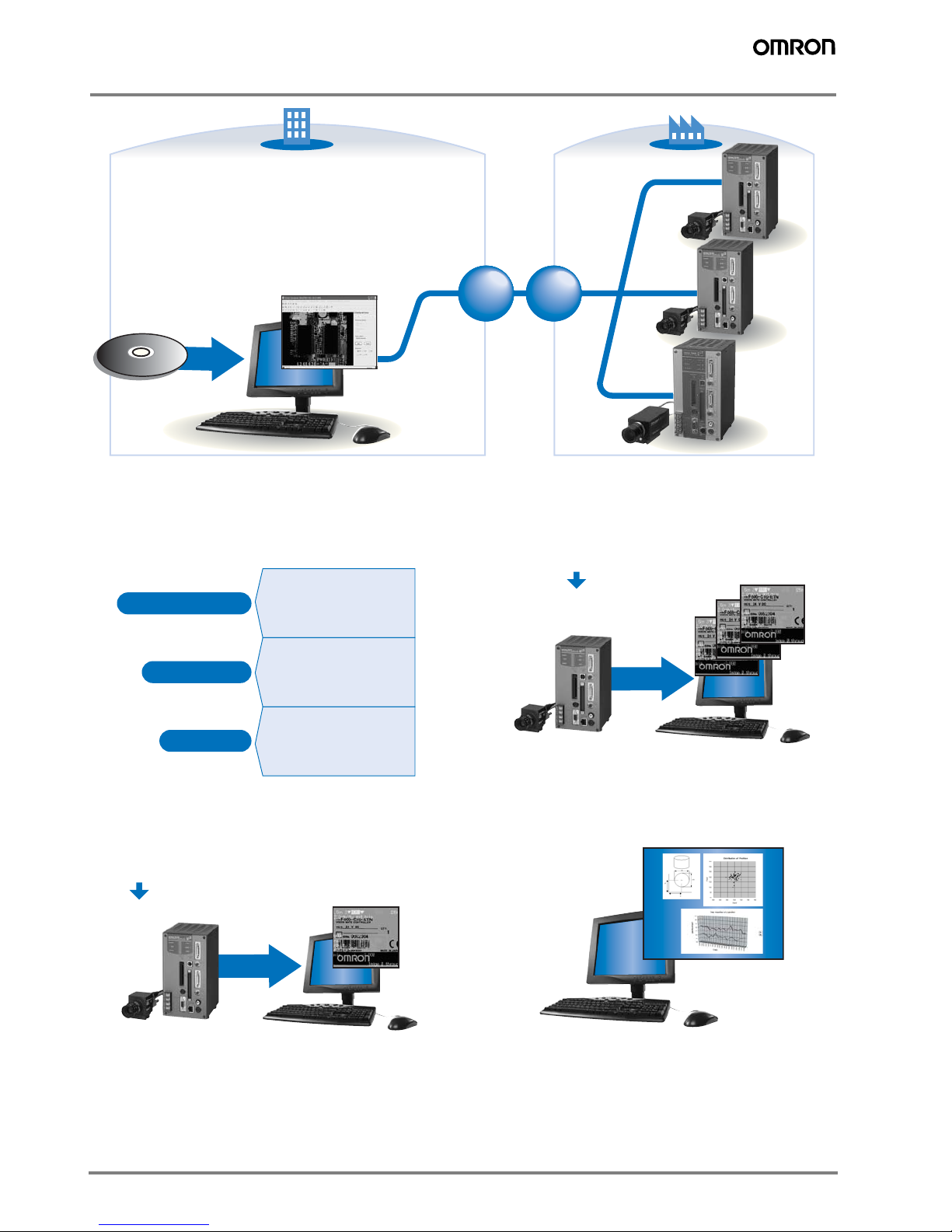

• Optional VisionComposerNET for remote configuration/
maintenance
• Security tools, audit trail creation in security sensitive
environment

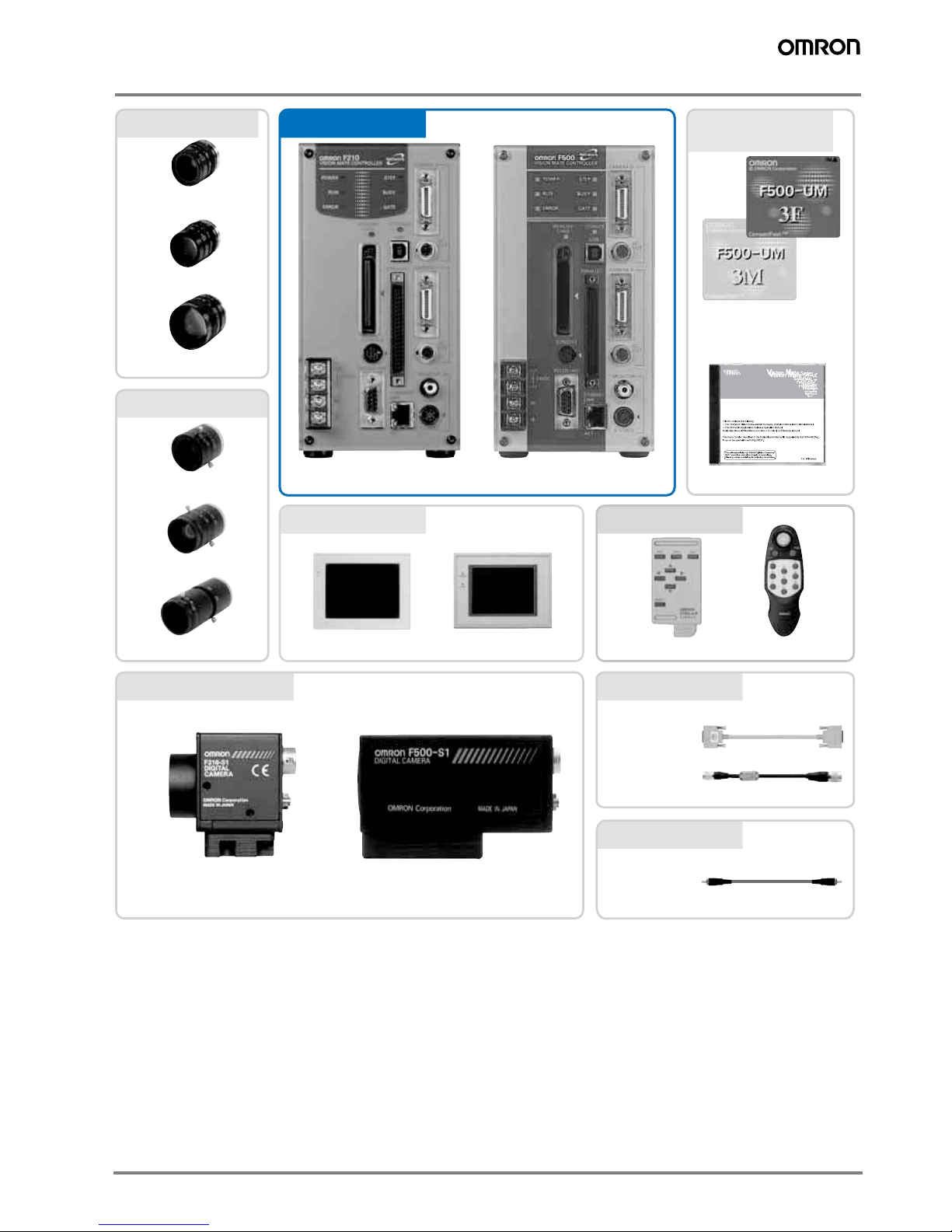

Ordering information
Name Model Remarks
Controller Standard Resolution F210-C10-ETN NPN Input / Output
F210-C15-ETN PNP Input / Output
High Resolution F500-C10-ETN NPN Input / Output
F500-C15-ETN PNP Input / Output
Camera 250 K Pixel F210-S1 For F210ETN only
1 M Pixel F500-S1 For F500ETN only
Monitor F150-M05L 5.5" color TFT LCD
F500-M10L 10.4" color TFT LCD
Console F150-KP Standard Console
F-160-KP Console with additional function keys
Memory Cards F160-N64S(S) Memory capacity 64 MB
F160-N256S Memory capacity 256 MB
PC-Software F500-CD3E Optional remote configuration software (via ETN)
Application Software F500-UM3ME With macro function
F500-UM3FE Without macro function
High precision Lenses F500-LE16 focal length 16 mm
F500-LE25 focal length 25 mm
F500-LE50 focal length 50 mm
Camera cable F500-VS2 Available lenght 2 m, 5 m, 10 m
Monitor cable F500-VM Cable length 2 m
Parallel cable F160-VP Loose-wire cable for parallel I/O connectors.
Cable length 2 m
2 Vision Systems
Specifications
Controller
Digital Interface Cameras
Monitor
System Requirements for F500-CD3E Vision Composer Net
Model F210-C10-ETN / F210-C15-ETN F500-C10-ETN / F500-C15-ETN
Connected Camera F210-S1 F500-S1
No. of connectable Cameras 2 2
Processing resolution 512x484 (HxV) 1024x1024 (HxV)
No. of scenes 32 (Can be increased using Memory Cards.) 32 (Can be increased using Memory Cards.)
Image memory function 35 images max. 35 images max.
Storage 64 MB non-volatile memory 256 MB non-volatile memory
Operation and settings
Measurement items installed using Applications Software.
Menu operations used to combine measurement items.
Vision Composer Net can be used for operation and settings.
Measurement items installed using Applications Software.
Menu operations used to combine measurement items.
Vision Composer Net can be used for operation and settings.
Menu language Japanese or English (switchable) Japanese or English (switchable)
Serial communications
USB series B: 1 channel USB series B: 1 channel
RS-232C/422: 1 channel RS-232C/422: 1 channel
Network communications Ethernet 100Base-TX/10Base-T Ethernet 100Base-TX/10Base-T
Parallel I/O 11 inputs, 22 outputs 11 inputs, 22 outputs
Monitor interface
Composite video output: 1 channel,
S-VIDEO output: 1 channel
Composite video output: 1 channel,
S-VIDEO output: 1 channel
Memory Card interface Compact Flash card slot, 1 channel Compact Flash card slot, 1 channel
Power supply voltage 20.4 to 26.4 VDC 20.4 to 26.4 VDC
Current consumption 2.1 A max. (with two F210-S1 Cameras connected) 2.1 A max. (with two F500-S1 Cameras connected)
Ambient temperature
Operating: 0 to +50 °C Operating: 0 to +50 °C
Storage: -25 to +65 °C with no icing or condensation Storage: -25 to +65 °C with no icing or condensation
Ambient humidity Operating/storage: 35% to 85% with no condensation Operating/storage: 35% to 85% with no condensation

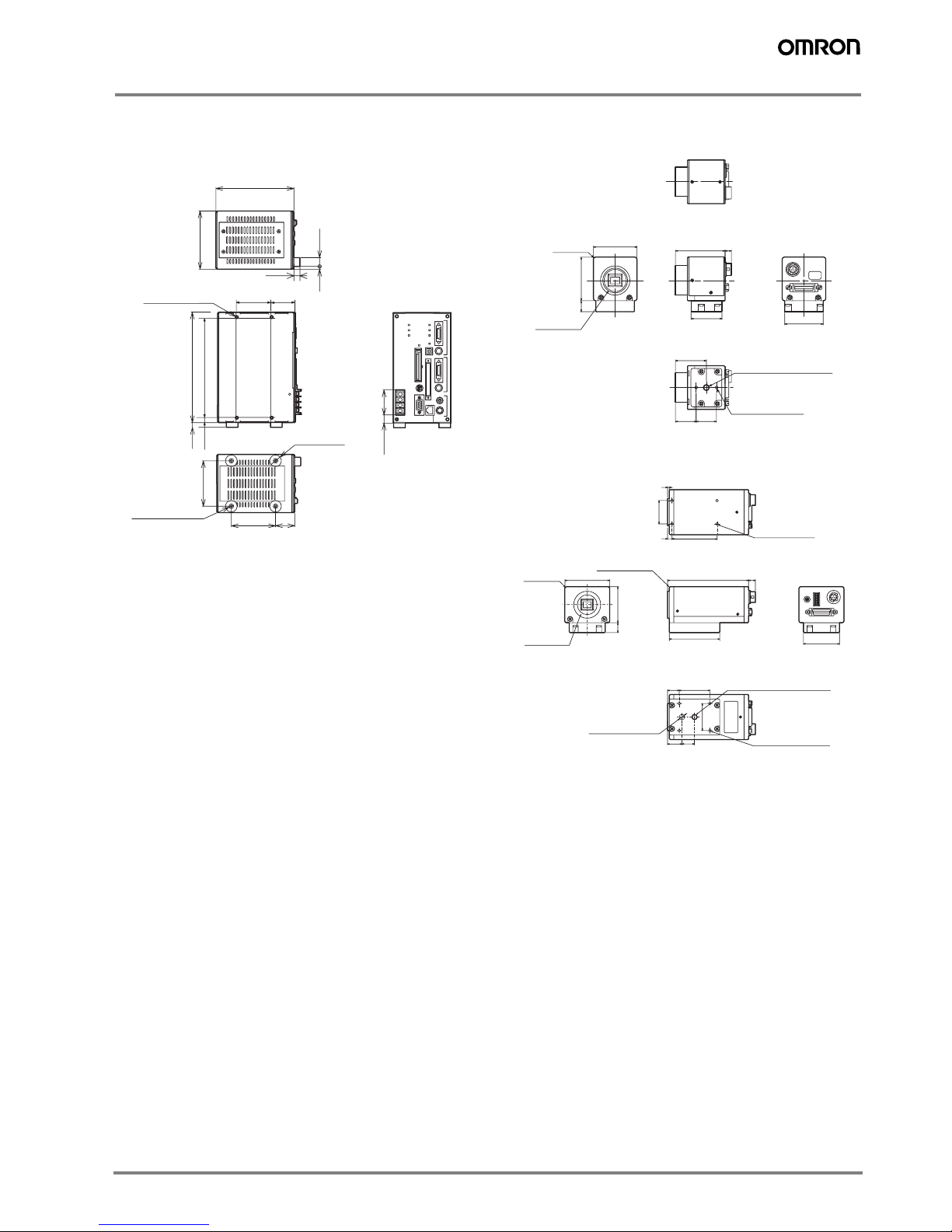

Dimensions
100x198x134 mm (WxHxD)
(without connectors and other protrusions)
100x198x134 mm (WxHxD)
(without connectors and other protrusions)
Weight Approx. 1.6 kg (Controller only) Approx. 1.6 kg (Controller only)
Accessories
Ferrite core for Console (1)
Setup Manual
Ferrite core for Console (1)
Setup Manual
Model F210-S1 F500-S1
Imaging device 1/3-inch CCD 2/3-inch CCD
Pixel size 7.4x7.4 µm (HxW) 6.45x6.45µm (HxW)
Shutter
Electronic shutter, 8 shutter speeds
(1/60 to 1/12,000 s), changed via menu
Electronic shutter, 10 shutter speeds
(1/24 to 1/10,000 s), changed via menu
Partial function Seven settings Four settings
Communications interface Conforms to Camera Link Conforms to Camera Link
Ambient temperature
Operating: 0 to +50 °C Operating: 0 to +50 °C
Storage: -25 to +60 °C with no icing or condensation Storage: -25 to +60 °C with no icing or condensation
Ambient humidity Operating/storage: 35% to 85% with no condensation Operating /storage: 35% to 85% with no condensation
Dimensions
43x43x49 mm (WxHxD)
(without connectors and other protrusions)
50x40x90 mm (WxHxD)
(without connectors and other protrusions)
Weight Approx. 110 g Approx. 270 g
Accessories Instruction Manual Instruction Manual
Model F500-M10L
Size in inches 10.4 inches
Type LCD TFT
Resolution 640 x 480
Brightness 350 cdm/m (typical)
Input signal NTSC composite video (1.0 V / 75 Ω termina-
tion), S-VIDEO
Power supply voltage 20.4 to 26.4 VDC
Current consumption 1.0 A max.
Ambient temperature Operating: 0 to +50 °C
Storage: -20 to +65 °C with no icing or condensation
Ambient humidity Operating/storage: 30% to 80% with no con-
densation
Dimensions 285x225x49 mm (WxHxD)
Weight Approx. 1.8 kg
Accessories Instruction Manual, 4 mounting brackets
CPU Pentium III 600 MHz min.
(Pentium III 1 GHz min. recommended)
OS Windows 2000 Professional,
Service Pack 4 or higher
Windows XP Home Edition,
Service Pack 2 or higher
Windows XP Professional,
Service Pack 2 or higher
Memory 192 MB min.
(256 MB min. recommended)
Hard disk 300 MB min. available space
Monitor Resolution: 1,024 x 768 min.
Display colors: High Color (16-bit) min.
(True Color (32-bit) min. recommended)
Network 10BaseT-compliant network
(100Base-TX recommended)
Vison
Sensor
Controller F210-C10-ETN/F210-C15-ETN,
F500-C10-ETN / F500-C15-ETN
Application
software
F500-UM Version 3.00 or later
