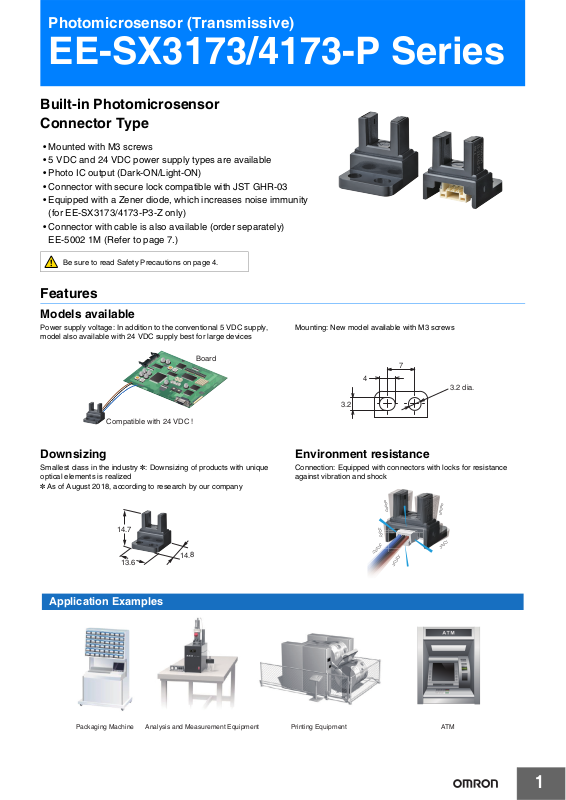

OMRON EESX3173P2 Datasheet

Photomicrosensor (Transmissive)

Be sure to read Safety Precautions on page 4.

Board

Compatible with 24 VDC !

3.2 dia.

3.2

7

4

14.7

14.8

13.6

Application Examples

Packaging Machine Analysis and Measurement Equipment Printing Equipment ATM

EE-SX3173/4173-P Series

Built-in Photomicrosensor
Connector Type

• Mounted with M3 screws

• 5 VDC and 24 VDC power supply types are available

• Photo IC output (Dark-ON/Light-ON)

• Connector with secure lock compatible with JST GHR-03

• Equipped with a Zener diode, which increases noise immunity
(for EE-SX3173/4173-P3-Z only)

• Connector with cable is also available (order separately)
EE-5002 1M (Refer to page 7.)

Features

Models available

Power supply voltage: In addition to the conventional 5 VDC supply,
model also available with 24 VDC supply best for large devices

Downsizing

Smallest class in the industry *: Downsizing of products with unique
optical elements is realized
* As of August 2018, according to research by our company

Mounting: New model available with M3 screws

Environment resistance

Connection: Equipped with connectors with locks for resistance
against vibration and shock

1

EE-SX3173/4173-P Series

EE-SX@@@@-P@ -@

(1) Sensing method

X: Transmissive

(1) (3) (4)

(5) Appearance

3: L-shaped mounting

(3) Structure

1: Standard structure

(2)

(5) (6) (7)

(7) Protection circuit

Z: Available

(2) Operating mode

3: Dark-ON
4: Light-ON

(6) Power supply voltage

2: 5 VDC
3: 24 VDC

(4) Mounting screw size

7: M3

14.7

14.8

13.6

5 mm

(Slot width)

Model Number Structure

Ordering Information

Appearance

Sensing

method

Transmissi

ve

(slot type)

Connecting

method

Connector

Sensing distance

Aperture size

H x W (mm)

Emitter

1.4 × 1.4

Detector

1.4 × 0.5

Output

type

Photo IC

Power

supply

voltage

24 VDC

5 VDC

Ratings, Characteristics and Exterior Specifications

Absolute Maximum Ratings (Ta = 25°C)

Item Symbol

Power supply
voltage

Output voltage VOUT 26.4 13.2 V ---

Output current IOUT 16 mA ---

Permissible
output
dissipation

Operating
temperature

Storage
temperature

Soldering
temperature

CC 26.4 DC 5.5 DC V ---

V

P

OUT 80 mW Fig 1.

opr -25 to +55 °C *

T

stg -30 to +80 °C *

T

sol --- °C ---

T

* Reduce the voltage and current, if necessary, by reference to the

temperature rating chart (Fig. 1.), even if the temperature is within
the specified range. The product should be used without freezing or
condensation.

Rated value

EE-SX3173-P3-Z
EE-SX4173-P3-Z

EE-SX3173-P2
EE-SX4173-P2

Unit

Remarks

Exterior Specifications

Appearance L-shaped mounting

EE-SX3173-P3-Z

Item

Connecting method Connector

Weight Approx. 1.5 g

Materials

Case Polybutylene terephthalate (PBT)

Emitter/
receiver

EE-SX4173-P3-Z
EE-SX3173-P2
EE-SX4173-P2

Polyphenylene sulfide (PPS) fiber

Electrical and Optical Characteristics

(Ta = 25°C)

Symbol

Item

Power supply
voltage

Current
consumption

Low-level
output voltage

High-level
output voltage

Sensing object --- 1.4 × 0.5 min. *1

Response
frequency

Operating
ambient light

Peak emission
wavelength

*1. Objects that do not allow infrared light to pass through them.
*2. The value of the response frequency is measured by rotating the

disk as shown below.

0.5 mm

*3. When fluorescent light is used.

Dark-ON EE-SX3173-P3-Z EE-SX3173-P2

Light-ON EE-SX4173-P3-Z EE-SX4173-P2

CC

V

CC

I

OL

V

V

OH

f

--- 1000 lx max.

λP 855 nm 940 nm

0.5 mm

Operating

mode

Dark-ON EE-SX3173-P3-Z

Light-ON EE-SX4173-P3-Z

Dark-ON EE-SX3173-P2

Light-ON EE-SX4173-P2

Value

24 VDC model 5 VDC model

24 ±10%V

Ripple (p-p) 10%

15 mA max.
(With and without
incident)

0.3 V max. (IOUT = 16 mA)
(Dark-ON: Without incident,
Light-ON: With incident)

(Vcc x 0.9 V min. (VOUT = VCC,
(Dark-ON: With incident,
Light-ON: Without incident)

3kHz min.

OUT = VCC, IOUT = 16 mA

(V

*3

2.1 mm

Ripple (p-p) 10%

25 mA max.
(With and without
incident)

*2)

Disk

Model

5 ±10%V

RL = 47 k

Ω))

2

Engineering Data (Reference Value)

0

20

40

60

80

100

-40 -30 -20 -10 0 102030405060708090100
Ambient temperature Ta (ºC)

Output allowable dissipation Pout (mW)

Output OFF

(High)

Output ON

(Low)

-3

d2 = 0±0.7 mm

VCC = 24 V Ta = 25°C
R

L = 47 k

-2 -1 0 1 2 3

(Center of
optical axis)

d

-



0



+

d2

Distance d (mm)

Output transistor

Vcc =24 V, No. of repetitions: 20

Δd1 = 0.001 mm, Δd2 = 0.004 mm,
Δd3 = 0.007 mm, Δd4 = 0.026 mm,
Δd5 = 0.045 mm

Note: The data applies to dark status.

Operation may be affected by external
light interference or light coming through
the sensing object.

-0.2 -0.1 0 0.1 0.2

OFF

(ON)

ON

(OFF)

Vcc = 24 V
RL = 47 kΩ

-0+

d

Output transistor

(Center of optical axis)

Opaque

object

Distance d (mm)

Δd1

Δd2

Δd3

Δd4

Δd5

Ta

=

-25°CTa

=

55°C

Ta

=

25°C

Fig 1. Output Allowable Dissipation vs.

Ambient Temperature
Characteristics

EE-SX3173/4173-P Series

Fig 2. Sensing Position Characteristics

(Typical)

1 = 0±0.3 mm

d

ON

(OFF)

Output transistor

OFF
(ON)

-3d1-2 -1 0 1 2 3

V

CC = 24 V Ta = 25°C
L = 47 k

R

Opaque

Distance d (mm)

object

(Center of
optical axis)

-0+

d

Fig 3. Sensing Position Characteristics

(Typical)

Fig 4. Repeated Sensing Position

Characteristics

3

EE-SX3173/4173-P Series

Load

Vcc

OUT

GND

Sensor

Load

Vcc

OUT

GND

Sensor

++

-

(Load
short-circuit)

+

-

+

-

Load

Vcc

OUT

GND

Sensor

+

-

Vcc

OUT

GND

Sensor

++

-

Vcc

OUT

GND

Sensor 1

Vcc

OUT

GND

Sensor 2

++

-

Load

Safety Precautions

To ensure safe operation, be sure to read and follow the Instruction Manual provided with the sensor.

WARNING

This product cannot be used as a safety device for
press machines or for protecting the safety of
persons. This product is designed for use in
applications for sensing workpieces and workers
that do not affect safety.

CAUTION

This product is not designed or rated for ensuring
safety of persons either directly or indirectly.
Do not use it for such purposes.

Precautions for Safe Use

Be sure to observe the following precautions to ensure safety.

Wiring

Power Supply Voltage

Do not exceed the operating voltage and current ranges. Applying a
voltage or current exceeding the operating range or using an AC
power supply for the DC power supply sensor may result in rupture or
burning.

Connection without a Load

If the power supply is connected directly without a load, the internal
elements may explode or burn. Be sure to insert a load when
connecting the power supply.

AND Connection

With an AND connection as shown in the figure below, a voltage is
applied to Vcc while GND of sensor 2 is not securely grounded. A
failure may occur. Do not make this kind of connection. Also in some
models, an inrush current may occur in sensor 2 when sensor 1 is
turned on, causing failure or malfunction.

Load Short-circuit

Do not short-circuit the load. Doing so may result in rupture or
burning.

Faulty Wiring

Do not make a mistake with the wiring, such as reversing the power
supply polarity. Doing so may result in rupture or burning.

Typical example 1) Wrong polarity

Sensor

Sensor

Vcc

OUT

GND

Vcc

OUT

GND

(Load short-circuit)

Load

+

Load

Storage and Operating Environment

1. Places where the product is not exposed to corrosive gases, such

as hydrogen sulfide gas, or salty wind.

2. Places where it is not exposed to direct sunlight.

3. Make sure that flux, oil, or other chemicals do not adhere to the

surface of the emitter and receiver.

4. Do not apply a load that may deform or deteriorate the product in

any circumstances.

5. Store the product in a normal temperature, humidity, and pressure

environment.

6. The product should be used without freezing or condensation.

7. Do not use the product in atmospheres or environments that

exceed product ratings.

8. This product does not have a water-proof or dust-proof structure.

Therefore, do not use it in an application or environment where it
will be subjected to dust or splashes from water, oil, or any other
liquid.

4

Precautions for Correct Use

Vcc

Z

D

ZD: Zener diode

0.1 to 1 µF

OUT

GND

+

-

≤

Output current mA 5.1 mA

4.7 k

24 V

R

Vcc

Iout===16

Mounting

1. This product is intended to be built into devices so no special

measures have been taken against external light interference.
When using a DC light sensor in an area exposed to an
incandescent lamp or other external light interference, it should be
mounted so that the effects of external light interference can be
avoided.

2. Mount the sensor securely on a flat surface.

3. Use M3 screws to secure the Photomicro Sensor (use together

with spring washers and 6-mm-diameter flat washers to prevent
screws from loosening). Use a tightening torque of 0.54 N·m max.

4. Take care that nothing comes into contact with the sensing

element of the sensor. Damage to the sensing element will result
in poor performance.

5. Before using the sensor, check to make sure that it has not

become loose due to vibration or shock.

Wiring

Surge Prevention

1. If there is a surge in the power supply, try connecting a Zener

diode (ZD with a voltage of 30 to 35 V) or a capacitor (with a
capacitance of 0.1 to 1 µF), depending on the operating
environment. Use the sensor only after confirming that the surge
has been removed.

EE-SX3173/4173-P Series

Voltage Output

A sensor with an open collector output can be connected to a counter
with a voltage input by connecting a resistor between the power
supply and output. Select a resistor with reference to the following
example. The resistance of the resistor is normally 4.7 kΩ. The
wattage of the resistor is 0.5 W at a power supply voltage of 24 V.

1. A sensor with an open collector output can be connected to a

counter with a voltage input by connecting a resistor between the
power supply and output. Select a resistor with reference to the
following example. The resistance of the resistor is normally 4.7
kΩ. The wattage of the resistor is 0.5 W at a power supply voltage
of 24 V.

Sensor

Vcc

OUT

GND

Insert resistor

Load R

Counter (Voltage input type)

+24 V
Power supply

Input terminal (CP)

(Input

Z

impedance)
Approx. 5.6 kΩ

GND

2. Do not use a small inductive load, such as a relay.

Vcc

OUT

GND

3. If photomicrosensor wires are placed in the same tubes or ducts

as high-voltage lines or power lines, induction may cause
malfunction or damage. Either wire the photomicrosensor
separately or place the wires in separate tubes.

4. Make sure that connectors (commercially available) are securely

locked.

D

Relay

Example: EE-SX4173-P3-Z
When inserting a load resistor (R = 5.6 kΩ) in the following device

Counter Specifications

Input impedance 5.6 kΩ

Voltage judged as high level (input ON) 4.5 to 30 VDC

Voltage judged as low level (input OFF) 0 to 2 VDC

The high and low levels are found using the following formulas. The
input device specifications must satisfy both formulas.

High level:

Z

V

Input voltage

Low level:

Input voltage V
(Low-level output voltage V

Note: Refer to the ratings of the sensor for the residual voltage of the

load current.

=

H

L ≤ 0.3 V

Vcc

+

ZR

OL at an output current (Iout) of 16 mA)

5.6 k

=

+

×

5.6 k4.7 k

13 V 24 V

=

5

EE-SX3173/4173-P Series

External force

External force

External

force

External

force

External

force

Vcc

IN

COM

OUT

GND

+

-

Internal circuit

Vcc

OUT

GND

+
–

CP1(N)
CP2(N)
(Reset)

(+)

External resistor

(–)

+
–

Handling during Wiring

1. If a force is applied to the connection area between the terminal

and connector by bending or pulling the cable after the wiring is
completed, the connector contact part or connection area with the
cable may be damaged, resulting in contact failure. Make sure that
a stress (external force) as shown in the figure below is not applied
to the connection area between the terminal and connector when
routing and connecting cables or harnesses.

2. Do not perform cord wiring when power supply voltage is applied.

Doing so may result in damage.

Other Precautions

Make sure the total length of the power cable connected to the
product is less than 10 m.

Design

Design should be made so that light is completely shut off during
operation. We recommend that sensing objects are made of metal.
(With an infrared light sensor, infrared light will pass through the
sensing object made of resin, resulting in unstable detection.)

Connection with PLC (NPN Open Collector Type)

Mounting should be carried out by reference to the figure below.

Others

1. Do not connect or disconnect the connector while power is

applied. Doing so may result in breakage.

2. Do not mount the sensor in the following places because doing so

may cause malfunction or damage.

1) Places exposed to dust or oil mist

2) Places exposed to corrosive gas

3) Places directly or indirectly exposed to water, oil, or chemicals

4) Outdoor or places exposed to intensive light, such as direct
sunlight

5) Make sure that the operating ambient temperature is within the
rated range.

3. The sensor may be dissolved by exposure to organic solvents,

acid, alkali, aromatic hydrocarbon, and chlorinated aliphatic
hydrocarbon solvents, causing deterioration in the characteristics.
Do not expose the sensor to such chemicals.

4. An output pulse may occur when the power supply is turned ON

depending on the power supply and other conditions. Use the
sensor in the stable ready-for-detection state reached in 100 ms
after turning on the power supply.

Connection with Counter (NPN Open Collector Type)

Mounting should be carried out by reference to the figure below.

1. Non-voltage input

Vcc

OUT

GND

2. Transistor input (voltage input)

* For details on external resistance calculation, see the text.

+
–

CP1(N)
CP2(N)
(Reset)

Remote

controller for

input

6

EE-SX3173/4173-P Series

(7.5)

Optical axis

(13.2)(14.7)

(14.8)

A

A

Cross-section diagram A-A

3.2 dia.

(Aperture width)

1.4

0.5

6.4

7.5

8.4

6.3

3.2

3

1

2

8.3 6.5

5.6

2.4

Mark surface (Brand
mark, model, lot)

52.7 2.7

12.4

13.6

7

4

Manufactured by JST
(Japan Solderless Terminal)
SM03B-GH

V

O

G

V

O

G

EE-SX3173-P3-Z
EE-SX4173-P3-Z
EE-SX3173-P2
EE-SX4173-P2

Internal circuit

Unless otherwise specified, the
tolerances are as shown below.

Note: Dimensions in

parentheses are for
reference only.

Dimensions

(mm)

Tolerance

chart

Above Below

--- 3 ±0.2

36 ±0.24

6 10 ±0.29

10 18 ±0.35

18 30 ±0.42

Terminal No. Name

(1) Ground GND

(2) Output OUT

(3) Power supply V

CC

Aperture size (H × W)

Emitter Detector

1.4 × 1.4 1.4 × 0.5

EE-SX3173-P3-Z
EE-SX4173-P3-Z

EE-SX3173-P2
EE-SX4173-P2

3
2
1

(3)

(1) (2)

1,000

±10

3

±0.5

EE-5002 1M

No. Product Model/Specification Quantity Manufacturer

(1)

Connector, HS for

101-150 harness

GHR-03V-S 1 JST

(2)

Connector, CT for

101-150 harness

SSHL-002TP0.2 3 JST

(3) Lead wire

UL1061
AWG26

3 ---

Wiring

Connector circuit

Number

Lead wire color

1Blue

2Black

3Brown

Dimensions and Internal Circuit (Unit: mm)

Photomicrosensor

Connector with Cable (Order Separately)

7

Terms and Conditions Agreement

Read and understand this catalog.

Please read and understand this catalog before purchasing the products. Please consult your OMRON representative if you have
any questions or comments.

Warranties.

(a) Exclusive Warranty. Omron’s exclusive warranty is that the Products will be free from defects in materials and workmanship

for a period of twelve months from the date of sale by Omron (or such other period expressed in writing
by Omron). Omron disclaims all other warranties, express or implied.

(b) Limitations. OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, ABOUT

NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OF THE
PRODUCTS. BUYER ACKNOWLEDGES THAT IT ALONE HAS DETERMINED THAT THE PRODUCTS WILL
SUITABLY MEET THE REQUIREMENTS OF THEIR INTENDED USE.

Omron further disclaims all warranties and responsibility of any type for claims or expenses based on infringement by the Products
or otherwise of any intellectual property right. (c) Buy

er Remedy. Omron’s sole obligation here

under shall be, at Omron’s election,
to (i) replace (in the form originally shipped with Buyer responsible for labor charges for removal or replacement thereof) the
non-complying Product, (ii) repair the non-complying Product, or (iii) repay or credit Buyer an amount equal to the purchase price
of the non-complying Product; provided that in no event shall Omron be responsible for warranty, repair, indemnity or any other
claims or expenses regarding the Products unless Omron’s analysis confirms that the Products were properly handled, stored,
installed and maintained and not subject to contamination, abuse, misuse or inappropriate modification. Return of any Products by
Buyer must be approved in writing by Omron before shipment. Omron Companies shall not be liable for the suitability or
unsuitability or the results from the use of Products in combination with an

y electr

ical or electronic components, circuits, system
assemblies or any other materials or substances or environments. Any advice, recommendations or information given orally or in
writing, are not to be construed as an amendment or addition to the above warranty.

See http://www.omron.com/global/ or contact your Omron representative for published information.

Limitation on Liability; Etc.

OMRON COMPANIES SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES,
LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS,
WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, NEGLIGENCE OR STRICT LIABILITY.

Further, in no event shall liability of Omron Companies exceed the individual price of the Product on which liability is asserted.

Suitability of Use.

Omron Companies shall not be responsible for conformity with any standards, codes or regulations which apply to the
combination of the Product in the Buyer’s application or use of the Product. At Buyer’s request, Omron will provide applicable
third party certification documents identifying ratings and limitations of use which apply to the Product. This information by itself is
not sufficient for a complete determination of the suitability of the Product in combination with the end product, machine, system,
or other application or use. Buyer shall be solely responsible for determining appropriateness of the particular Product with
respect to Buyer’s application, product or system. Buyer shall take application responsibility in all cases.

NEVER USE THE PRODUCT FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY OR IN LARGE
QUANTITIES WITHOUT ENSURING

THA

T THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS,
AND THAT THE OMRON PRODUCT(S) IS PROPERLY RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE
OVERALL EQUIPMENT OR SYSTEM.

Programmable Products.

Omron Companies shall not be responsible for the user’s programming of a programmable Product, or any consequence thereof.

Performance Data.

Data presented in Omron Company websites, catalogs and other materials is provided as a guide for the user in determining
suitability and does not constitute a warranty. It may represent the result of Omron’s test conditions, and the user must correlate it
to actual application requirements. Actual performance is subject to the Omron’s Warranty and Limitations of Liability.

Change in Specifications.

Product specifications and accessories may be changed at any time based on improvements and other reasons. It is our practice
to change part numbers when published ratings or features are changed, or when significant construction changes are made.
However, some specifications of the Product may be changed without any notice. When in doubt, special part numbers may be
assigned to fix or establish key specifications for your application. Please consult with your Omron’s representative at any time to
confirm actual specifications of purchased Product.

Errors and Omissions.

Information presented by Omron Companies has been checked and is believed to be accurate; however, no responsibility is
assumed for clerical, typographical or proofreading errors or omissions.

Please check each region's Terms & Conditions by region website.

OMRON Corporation

Electronic and Mechanical Components Company

Regional Contact

Cat. No. E586-E1-01

1809(1809)(O)

Americas Europe

https://www.components.omron.com/ http://components.omron.eu/

Asia-Pacific China

https://ecb.omron.com.sg/ https://www.ecb.omron.com.cn/

Korea Japan

https://www.omron-ecb.co.kr/ https://www.omron.co.jp/ecb/

In the interest of product improvement, specifications are subject to change without notice.

© OMRON Corporation 2018 All Rights Reserved.
