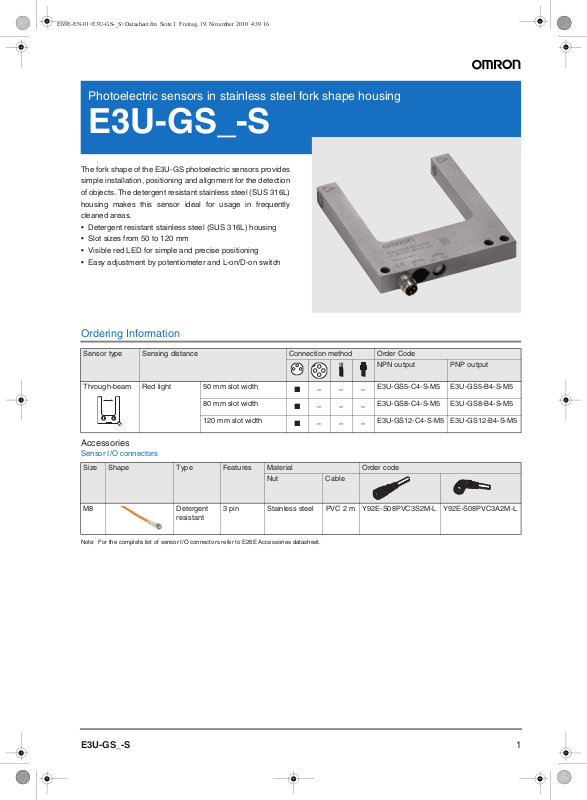

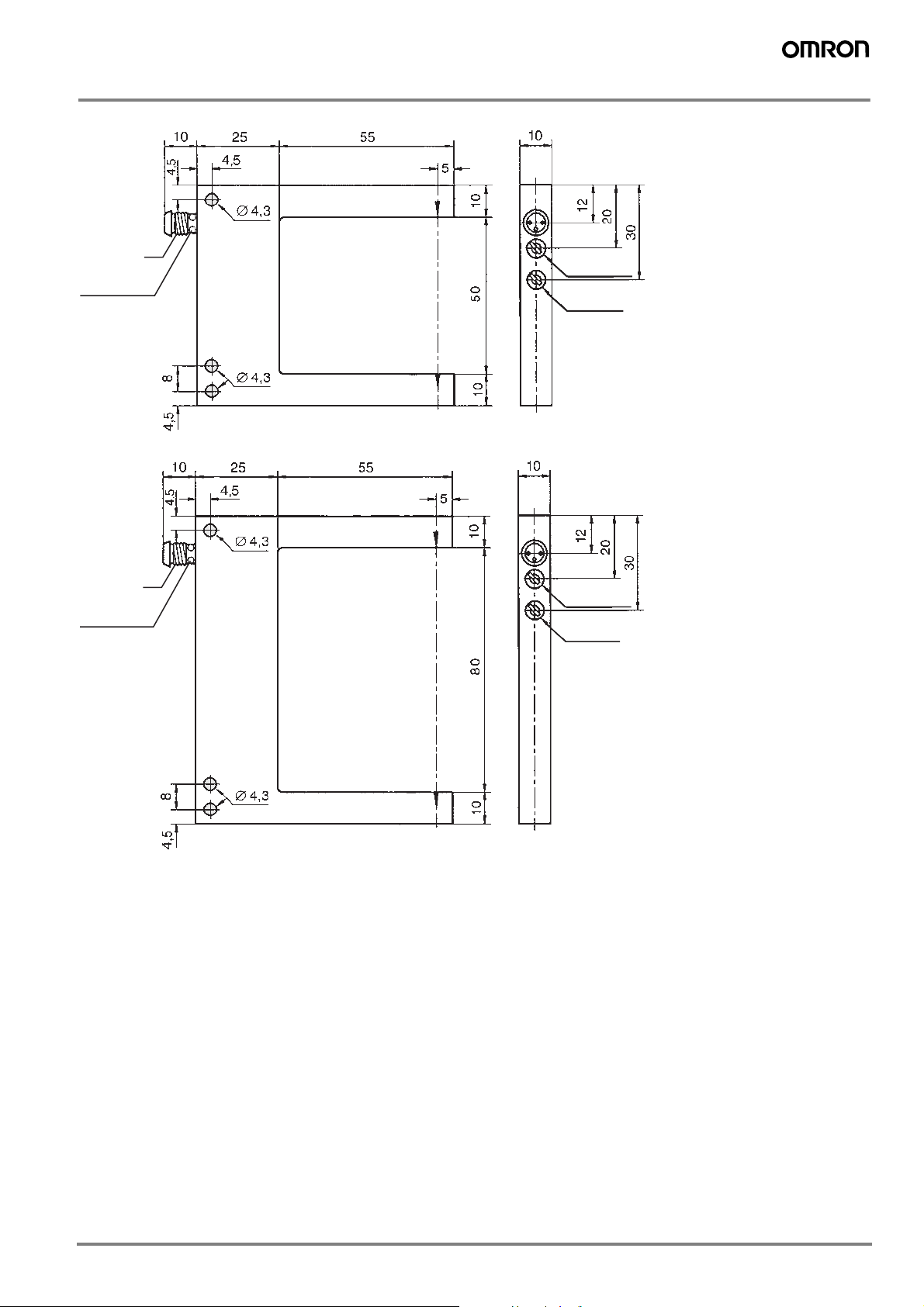

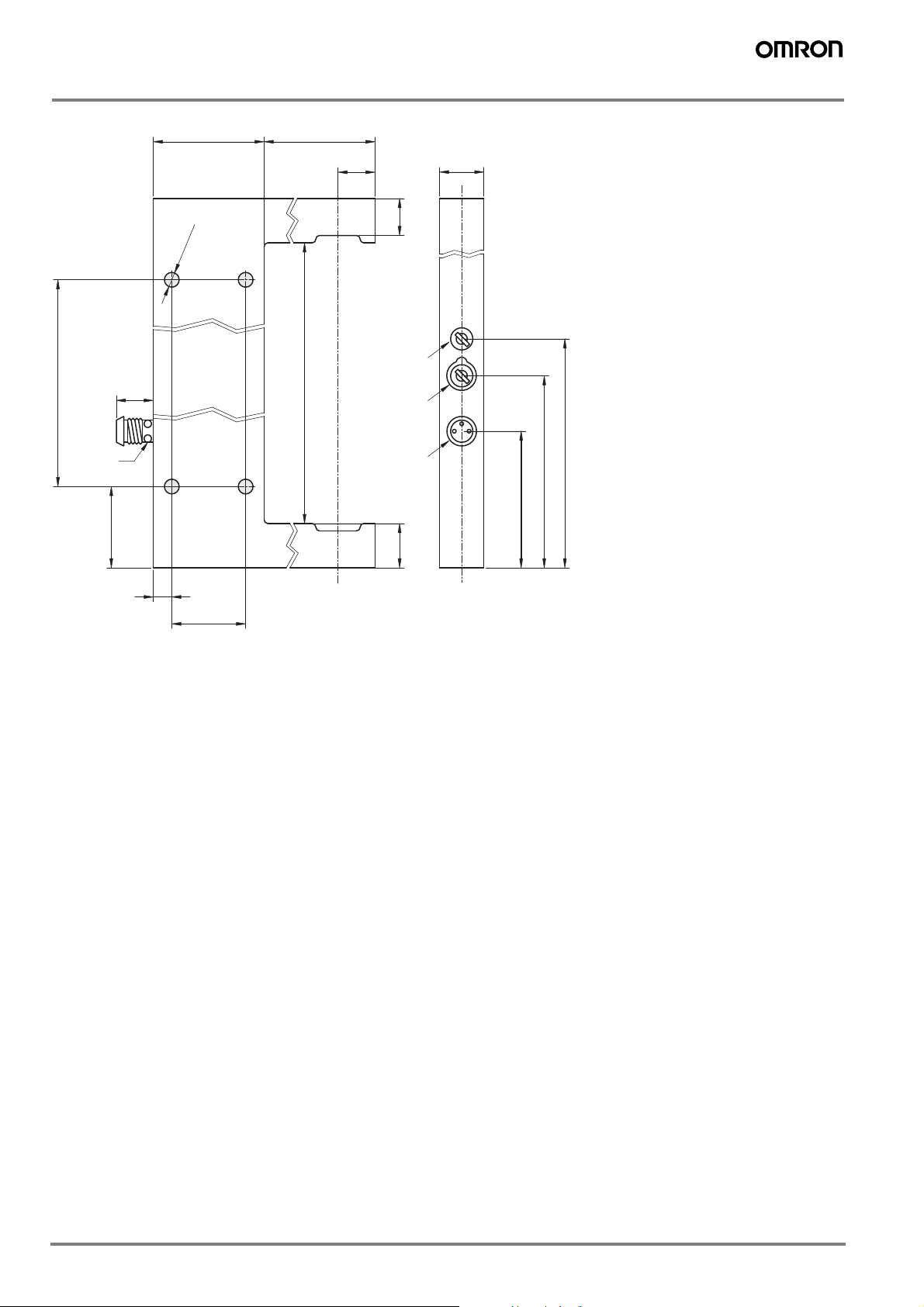

Omron E3U-GS-S DATASHEET
Photoelectric sensors in stainless steel fork shape housing
E3U-GS_-S
The fork shape of the E3U-GS photoelectric sensors provides
simple installation, positioning and alignment for the detection
of objects. The detergent resistant stainless steel (SUS 316L)
housing makes this sensor ideal for usage in frequently
cleaned areas.
• Detergent resistant stainless steel (SUS 316L) housing
• Slot sizes from 50 to 120 mm
• Visible red LED for simple and precise positioning
• Easy adjustment by potentiometer and L-on/D-on switch
Ordering Information
Sensor type Sensing distance Connection method Order Code
NPN output PNP output
Through-beam Red light 50 mm slot width
80 mm slot width
120 mm slot width
–––
–––
–––
E3U-GS5-C4-S-M5 E3U-GS5-B4-S-M5
E3U-GS8-C4-S-M5 E3U-GS8-B4-S-M5
E3U-GS12-C4-S-M5 E3U-GS12-B4-S-M5
Accessories
Sensor I/O connectors
Size Shape Type Features Material Order code
Nut Cable
M8 Detergent
resistant
Note: For the complete list of sensor I/O connectors refer to E26E Accessories datasheet.
3 pin Stainless steel PVC 2 m Y92E-S08PVC3S2M-L Y92E-S08PVC3A2M-L
1E3U-GS_-S
Specifications
E3U-GS_
Slot width 50 mm 80 mm 120 mm
Light source (wave length) Red LED (660 nm)
Min. detectable object size dia 0.5 mm dia 0.8 mm
Power supply voltage 10 to 35 VDC
Operating frequency 4,000 Hz 2,000 Hz
Control output Transistor, Load current 200 mA max., light-ON/dark-ON switch selectabel
Sensitivity adjustment one turn potentiometer adjuster
Side by side mounting (gang
mounting)
Ambient illumination 10,000 lx max.
Ambient temperature Operating: -10°C to 60°C
Degree of protection IEC 60529: IP67
Indicators Operation indicator (yellow)
Weight 50 g 60 g 70 g
Material (case) Stainless steel (SUS 316L)
possible not possible
Output Circuit Diagram
PNP NPN
Brown
10 to 35VDC
1
Brown
10 to 35VDC
1
Load
Black
4
Load
Blue
3
0V
M8 connector
(3 pin)
Pin Arrangement
4
3
1
Black
4
Blue
3
0V
2 Photoelectric Sensors
