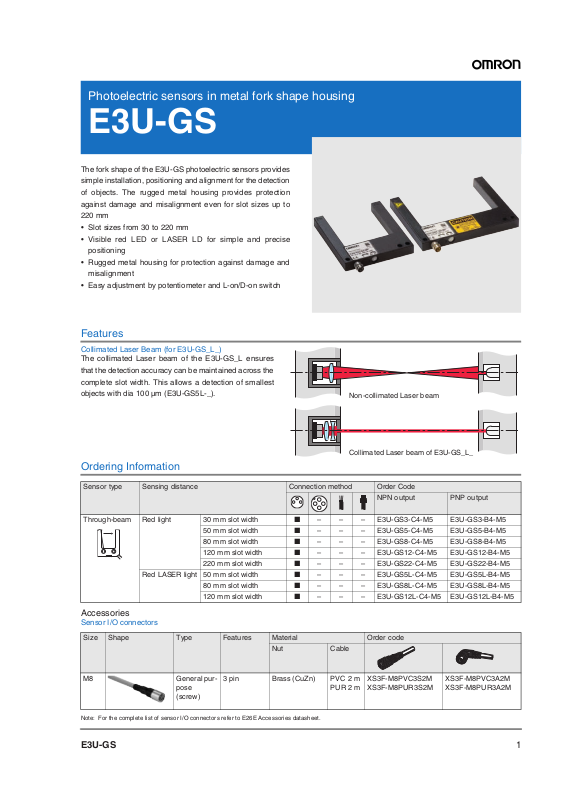

Omron E3U-GS DATASHEET

Photoelectric sensors in metal fork shape housing

Non-collimated Laser beam

Collimated Laser beam of E3U-GS_L_

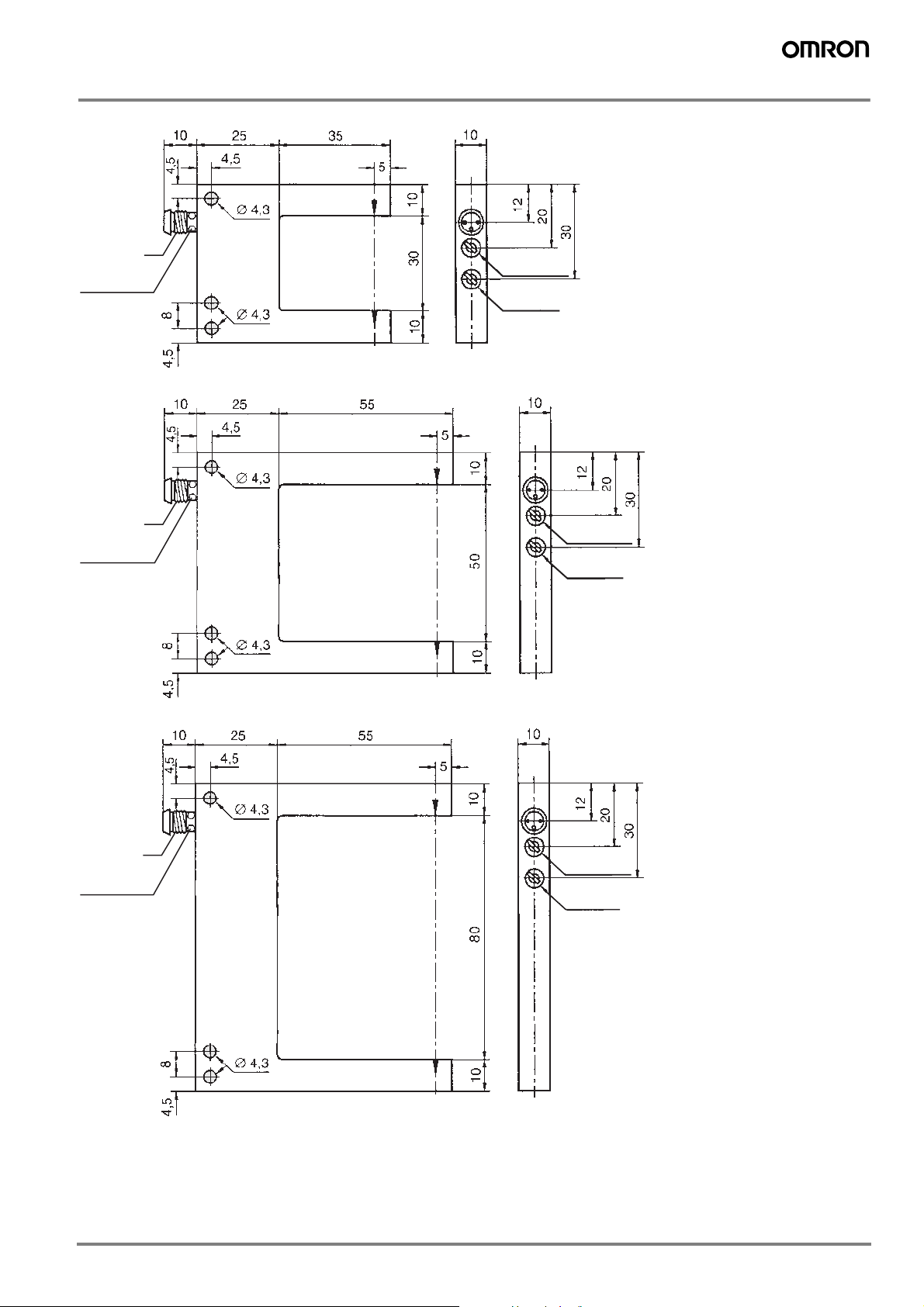

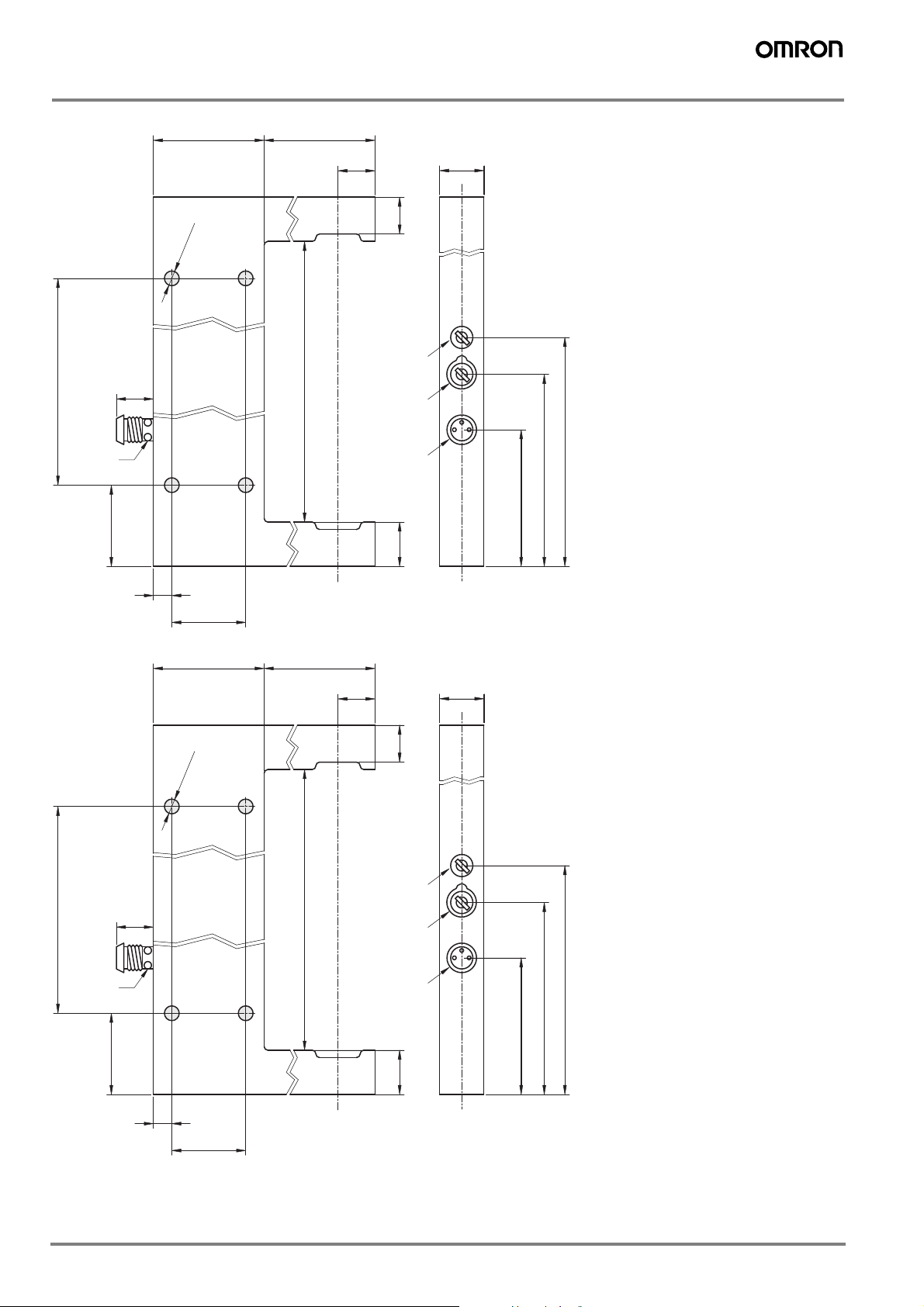

E3U-GS

The fork shape of the E3U-GS photoelectric sensors provides

simple installation, positioning and alignment for the detection

of objects. The rugged metal housing provides protection

against damage and misalignment even for slot sizes up to

220 mm

• Slot sizes from 30 to 220 mm

• Visible red LED or LASER LD for simple and precise

positioning

• Rugged metal housing for protection against damage and

misalignment

• Easy adjustment by potentiometer and L-on/D-on switch

Features

Collimated Laser Beam (for E3U-GS_L_)

The collimated Laser beam of the E3U-GS_L ensures

that the detection accuracy can be maintained across the

complete slot width. This allows a detection of smallest

objects with dia 100 µm (E3U-GS5L-_).

Ordering Information

Sensor type Sensing distance Connection method Order Code

NPN output PNP output

Through-beam Red light 30 mm slot width

50 mm slot width

80 mm slot width

120 mm slot width

220 mm slot width

Red LASER light 50 mm slot width

80 mm slot width

120 mm slot width

 –––

E3U-GS3-C4-M5 E3U-GS3-B4-M5

E3U-GS5-C4-M5 E3U-GS5-B4-M5

E3U-GS8-C4-M5 E3U-GS8-B4-M5

E3U-GS12-C4-M5 E3U-GS12-B4-M5

E3U-GS22-C4-M5 E3U-GS22-B4-M5

E3U-GS5L-C4-M5 E3U-GS5L-B4-M5

E3U-GS8L-C4-M5 E3U-GS8L-B4-M5

E3U-GS12L-C4-M5 E3U-GS12L-B4-M5

Accessories

Sensor I/O connectors

Size Shape Type Features Material Order code

Nut Cable

M8 General pur-

pose

Note: For the complete list of sensor I/O connectors refer to E26E Accessories datasheet.

(screw)

3 pin Brass (CuZn) PVC 2 m

PUR 2 m

XS3F-M8PVC3S2M XS3F-M8PUR3S2M

XS3F-M8PVC3A2M XS3F-M8PUR3A2M

1E3U-GS

Specifications

Brown

Black

Blue

10 to 35VDC

Load

Brown

Black

Blue

10 to 35VDC

Load

M8 connector

(3 pin)

Pin Arrangement

E3U-GS_ E3U-GS_L-_

Slot width 30 mm 50 mm 80 mm 120 mm 220 mm 50 mm 80 mm 120 mm

Light source (wave length)

Min. detectable object size

Laser class - 2 (EN 60825-1)

Power supply voltage 10 to 35 VDC

Operating frequency 4,000 Hz 2,000 Hz 3,000 Hz

Control output Transistor, Load current 200 mA max., light-ON/dark-ON switch selectable

Sensitivity adjustment one turn potentiometer adjuster

Side by side mounting (gang mounting)

Ambient illumination 10,000 lx max. 5,000 lx max.

Ambient temperature Operating: -10°C to 60°C

Degree of protection IEC 60529: IP67

Indicators Operation indicator (yellow)

Weight 40 g 50 g 60 g 70 g 90 g 50 g 60 g 70 g

Material (case) zinc diecast, black lacquered finished Aluminium,

Red LED (660 nm) Red LD (670 nm)

dia 0.5 mm dia 0.8 mm dia 1.5 mm dia 0.1 mm dia 0.2 mm

possible not possible possible

zinc diecast, black lacquered finished black anodized

Output Circuit Diagram

PNP NPN

2 Photoelectric Sensors
