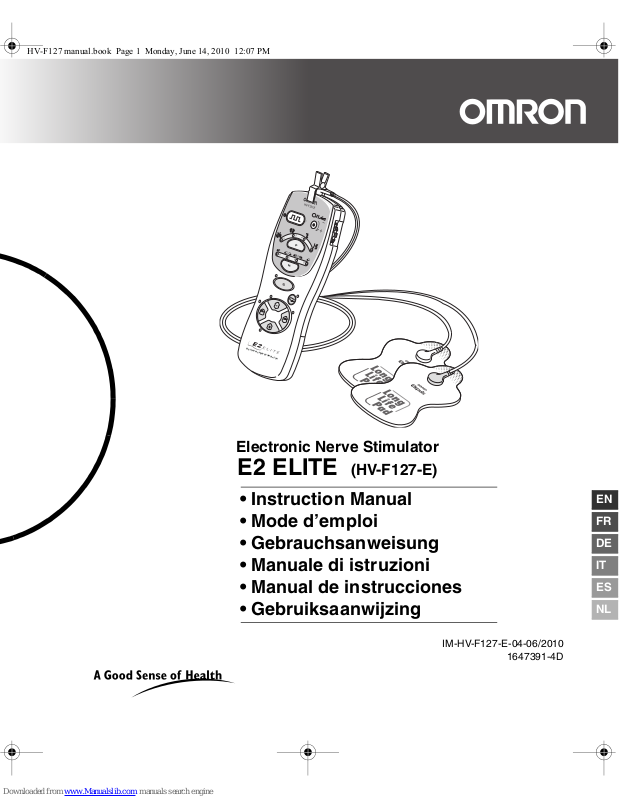

Electronic Nerve Stimulator
E2 ELITE (HV-F127-E)
• Instruction Manual
• Mode d’emploi
• Gebrauchsanweisung
• Manuale di istruzioni
• Manual de instrucciones
• Gebruiksaanwijzing
EN
FR
DE
IT
ES
NL
IM-HV-F127-E-04-06/2010
1647391-4D
HV-F127 manual.book Page 2 Monday, June 14, 2010 12:07 PM
Instruction Manual
Electronic Nerve Stimulator
E2 ELITE (HV-F127-E)
1
3
4
2
P
5
7
8
9
M
S
SPECIAL
MODE
6
CONTENTS
1. Before using the unit
1.1 Notes on safety . . . . . . . . . . . . . . . . . . 3
General information on OMRON E2 ELITE
1.2
Electronic Nerve Stimulator
1.3 Features of the product. . . . . . . . . . . . 4
1.4 Intended use. . . . . . . . . . . . . . . . . . . . 4
1.5 Package contents . . . . . . . . . . . . . . . . 5
1.6 Information on
high & low-frequency therapy . . . . . . . 5
1.7 Names and functions of the parts. . . . 6
. . . . . . . . . . 4
ELECTRONIC NERVE STIMULATOR
Thank you for purchasing the OMRON Electronic Nerve
Stimulator E2 ELITE (HV-F127-E).
Please read this Instruction Manual thoroughly before using
this unit, this ensures safe and correct use.
Please keep this Instruction Manual always at hand for your
future reference.
2
2. How to use the device
2.1 How to insert batteries . . . . . . . . . . . . 8
2.2 How to connect the electrode cord . . . 8
2.3 How to attach the electrode pads . . . . 9
2.4 Examples of application . . . . . . . . . . . 9
2.5 How to treat. . . . . . . . . . . . . . . . . . . . 10
Treat with the Quick Relief button . . . 12
Treat with the Region button . . . . . . . 12
Treat with the Massage button . . . . . 13
2.6 After treatment – storing the unit. . . . 14
3. Maintenance
3.1 When it is difficult to attach the pads . . 15
3.2 How to clean and store . . . . . . . . . . . 15
3.3 Troubleshooting. . . . . . . . . . . . . . . . . 16
3.4 Specifications . . . . . . . . . . . . . . . . . . 18
(Please read this section carefully before using the unit.)
HV-F127 manual.book Page 3 Monday, June 14, 2010 12:07 PM
1. Before using the unit
1.1 Notes on safety
The icons and warning signs are indicated here for your
safety and correct usage of the product as well as to prevent injuries and/or damage to properties.
The icons and meanings are as follows:
Examples of Icons
The icon indicates prohibitions (must not do).
Matters involving certain prohibitions are indicated by
text or pictures in or near .
The icon to the left means “Prohibitions to Disassemble”.
The icon indicates something that is compulsory
(must be observed).
Matters involving certain compulsory actions are indicated by text or pictures in or near .
The icon to the left refers to “General compulsory action”.
DANGER
This unit must not be used in combination with the
following medical devices:
(1)Internally transplanted electronic medical devices,
e.g. pacemakers
(2)Electronic life support equipment, such as respi-
rators
(3)Electronic medical devices attached to the body,
such as electrocardiographs
Using this unit with other electronic medical devices
may cause erroneous operation of those devices.
WARNING
Persons with the following conditions must consult
the doctor before using this unit:
1) acute disease
2) malignant tumor
3) infectious disease
4) pregnancy
5) cardiac dysfunction
6) high fever
7) abnormal blood pressure
8) skin sensory disorders or skin problems
9) receiving medical treatment, especially those feeling discomfort
May cause an accident or ill health.
Do not use this unit near the heart, above the neck,
on the head, around the mouth or on diseased skin.
May cause an accident or ill health.
- Application of electrodes near the thorax may
increase the risk of cardiac fibrillation.
Do not use this unit simultaneously with other therapeutic device or in combination with ointments
including spraytype ointments.
May cause discomfort or ill health.
- Simultaneous connection of a PATIENT to a h.f. surgical
EQUIPMENT may result in burns at the site of the STIMULATOR electrodes and possible damage to the STIMULATOR.
- Operation in close proximity (e.g. 1 m) to a shortwave or
microwave therapy EQUIPMENT may produce instability
in the STIMULATOR output.
1.Before using the unit
Do not use this unit for purposes other than treatment indicated in this manual.
May lead to accident, problems, or failure of the unit.
Do not insert the electrode cord plug into any place
other than the electrode cord jack of the main unit.
May cause an electric shock or accident.
Do not disassemble or remodel this unit.
May cause fire, trouble, or accident.
CAUTION
If the unit is not functioning properly or you feel discomfort, immediately stop using the unit.
If you feel any problems with your body or skin, consult
the doctor and follow his/her instructions.
If you want to move the Electrode Pad to another
region or your body during treatment, be sure to turn
off the power.
If not, you may receive a strong electrical shock.
Do not try to attach the Pads to any other person
during the treatment.
You may receive strong electrical shock.
Do not start treatment while wearing an electronic
device.
The settings and timings of the device may be affected.
Do not use this unit on infants or people not capable
of expressing their intentions.
May cause an accident or ill health.
Do not use this unit in places with high humidity
such as bathrooms or while taking a bath or shower.
You will receive a strong electrical shock.
Do not use this unit while sleeping.
The main unit may develop trouble, or the pad may move
to an unexpected region and cause ill health.
Do not use this unit while driving.
Receiving sudden strong stimulation may lead to traffic
accident or trouble.
Do not leave the Electrode Pad attached to the skin
after treatment.
Prolonged attachment may cause skin irritation or infection.
Be careful not to allow any metal object, such as a
belt buckle or necklace to come into contact with the
Electrode Pad during treatment.
You may receive a strong electrical shock.
Do not use cellular phones or other electronic
devices near this unit.
Do not use this unit to treat one region for a long
time (more than 30 minutes).
The muscles of the region under treatment may be
exhausted and may cause poor physical condition.
EN
3
HV-F127 manual.book Page 4 Monday, June 14, 2010 12:07 PM
1.Before using the unit
1.2
General information on OMRON E2 ELITE Electronic Nerve Stimulator
The OMRON E2 ELITE Electronic Nerve Stimulator
is an electro-therapeutic device.
The E2 ELITE Electronic Nerve Stimulator enables you to
reduce and relieve your pain symptoms. The treatment alleviates muscle and nerve pain through gentle stimulation. But
always remember that pain also has a very important warning
function, telling us that something is wrong. If you suffer from
any serious illness, consult your doctor in order to confirm
whether you can use the Electronic Nerve Stimulator.
For active people, it provides a massaging experience which
has a very beneficial effect on muscle and shoulder or neck
stiffness. It is very good for soothing overall bodily fatigue and
improves the blood circulation in the treated areas.
1.3 Features of the product
• 9 Automatic Programmes
The device allows you to select your favourite stimulation programme for optimized treatment according to your symptom
and needs.
Quick RELIEF Button (for muscle pain)
This function relieves acute pain quickly with high frequency of
1200 Hz. It is suitable for treatment of pain in the lower back
and joints.
REGION Button (4 programmes for shoulders, sole, calf,
and lower back)
Treats the selected region with effective pre-programmed
modes.
Our nerves, which radiate throughout the entire body as a
complex network, perform various tasks which are indispensable for maintaining proper functioning. They conduct
impulses between the central nervous system and an organ or
a part of the body. They also transmit commands from and to
the brain, and they regulate the body’s functions, as well as
muscle contraction and relaxation. Using this method of Electrical Nerve Stimulation, the important nerve functions can be
activated effectively. The electrical impulses, which are comparable to the natural bioelectricity, stimulate the body’s painrelieving mechanisms. In this way, the transmission of pain by
the nerve fibres is inhibited and secretion of pain-relieving,
morphine like substances such as endorphins, are triggered.
Furthermore, the blood flow through the treated body zones is
improved.
MASSAGE Button (4 programmes for Tapping, Kneading,
Pushing, and Rubbing)
Allows you to select the massage method according to your
needs.
• 4 Special Modes
Allows you to adjust the unit to your favourite stimulations.
Use the Special Modes of SOFT, REPEAT, POINT, WIDE and
Balance Adjustment (switching between red and
white buttons) in combination with the Automatic programme
to receive treatment in your favourite stimulation mode.
• Washable and long-lasting Long-Life Pads
1.4 Intended use
Medical Purpose
This Electronic Nerve Stimulator is intended to be used as a
massager to relieve (muscle) pain, stiffness and fatigue. The
massaging effect is achieved by electronic stimulation of the
nerves through electrode pads placed on the skin. Various
massage regions and treatment programs can be selected.
Suitable Users
Please read “Notes on safety” before using the unit.
(This unit should not be used by people prohibited from doing
so in “Notes on safety”.)
4
Environment
This unit is intended for home use only.
Effectiveness
Massager: relieve of (muscle) pain, stiffness and fatigue
Precautions for use
Please read “Notes on safety” before using the unit.
The following components are included in the box.
If any components are missing, please contact the nearest OMRON dealer.
P
M
SPECIAL
MODE
S
ELECTRONIC NERVE STIMULATOR
1
2
34
5
6978
Electronic Nerve Stimulator
Flex T.E.N.S.
(HV-F127-E)
• Instruction Manual
Mode d’emploi
Gebrauchsanweisung
Manuale di istruzioni
Manual de instrucciones
Gebruiksaanwijzing
P
M
S
P
E
C
I
A
L
M
O
D
E
S
E
L
E
CTR
O
N
I
C N
E
RV
E
S
T
I
M
UL
A
T
OR
EN
FR
DE
IT
ES
NL
100 stimulations in a second = 100 Hz3 stimulations in a second = 3 Hz
one second
one second
HV-F127 manual.book Page 5 Monday, June 14, 2010 12:07 PM
1.5 Package contents
1. Main unit 2.Electrode Cord 5. Electrode Holder
1.Before using the unit
3.Long-Life Pad
(to be referred to as “Pad”
hereafter.)
One set contains two Pads.
4.AAA size (R03) batteries for
trial use
1.6 Information on high & low-frequency therapy
What is frequency?
Frequency is the number of times electric stimulation is
applied to the body per second and is represented by a unit
called Hertz (Hz).
I. What is Low Frequency?
Although we do not notice it, our bodies generate very weak
electricity from various parts of the body including the brain,
heart, muscles, and nerves. This electricity is called bioelectricity. The bioelectricity plays an essential role for the normal
functioning of our bodies. Our bodies sensitively react to electric stimulation applied from the outside and cause various
changes. The method to treat abnormality of bioelectricity,
which is manifested as stiffness or pain, by effectively using
the above mentioned action is called electrotherapy of which
low-frequency therapy is typical.
Effects of low frequency stimulation
Low-frequency stimulation is effective in relieving symptoms of
chronic pain, stiffness and numbness. It is said to have the
effects to activate secretion of pain surpressing substances or
to improve the blood circulation.
Mechanism of low-frequency electrotherapy
Muscles contract and relax with the flow of the low-frequency
current. When the muscle relaxes, a large amount of blood
flows in, and when the muscle contracts, the blood containing
wastes is pumped out. With repeated actions, the blood flows
smoother and the blood circulation is improved.
Shutting out pain signal
When low-frequency current flows to the region experiencing
pain, it acts on the transmission mechanism of pain.
Thus low-frequency current is said to reduce the transmission
of pain to the brain.
II. What is High Frequency?
High frequency stimulation is effective for acute (nerve) pain
and is said to be especially useful in the immediate blockage
of pain transmission compared to low-frequency stimulation.
Standard treatment time
Long-time treatment and strong stimulation may cause muscular fatigue and may generate adverse effects. In order to
avoid excessive treatment, this model is made to turn off the
power automatically after 15 minutes.
6. Soft fabric pouch
7. Instruction Manual
- Pumping action of muscles -
EN
- as used for the “Quick Relief” function -
5
P
M
SPECIAL
MODE
S
ELECTRONIC NERVE STIMULATOR
1
2
3
4
5
6789
Electrode Cord Plug
Main Unit
Connects the Main unit with the Pad
Electrode Cord
Electrode
Cord Jack
Intensity Adjustment
Dial/Power Button
Turns on and off the power
and adjusts the intensity of
stimulation.
Automatic Programmes
Select one programme from each course in
the treatment, region, and massage method.
Quick Relief Button
The programme treats the region with high frequency of 1200 Hz, which helps to relieve acute
pain promptly.
Region Button
The unit treats the selected region with the effective programme.
Massage Button
Select your favourite massage method according
to your symptom.
M
Battery
cover
Back of the Main Unit
Special Mode
You can use this mode when you want to adjust the
stimulation to your favourite programme according to
the stiffness and pain. This mode can be used in combination with any Automatic Programmes.
Soft Mode
The unit relieves stiffness comfortably with soft
stimulation without feeling irritation.
Repeat mode
The unit repeats your favourite stimulation.
Shoulder
Sole
Leg
Waist
Ta p
Knead
Push
Rub
HV-F127 manual.book Page 6 Monday, June 14, 2010 12:07 PM
1.Before using the unit
1.7 Names and functions of the parts
P
6
S
Loading...
