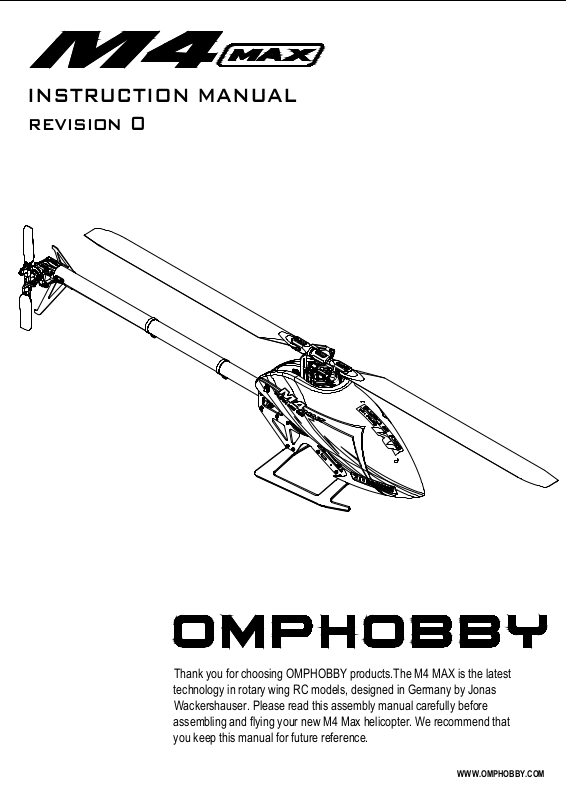

OMP Hobby M4 MAX User guide

Page 1

Thank you for choosing OMPHOBBY products.The M4 MAX is the latest technology in rotary wing RC models, designed in Germany by Jonas Wackershauser. Please read this assembly manual carefully before assembling and flying your new M4 Max helicopter. We recommend that you keep this manual for future reference.

WWW.OMPHOBBY.COM

INSTRUCTION MANUAL

revision 0

Page 2

遥控模型飞机、直升机属于高危险性商品，飞行时务必远离人群，人为组装不当或机件损坏，电子控制设备不良，以及操控上的不熟悉、都有可能导致飞行失控损伤等不可预期的意外，请飞行者务必注意飞行安全，并需了解自负疏忽所造成的任何意外之责任。

Fly only in safe areas, at a safe distance from other people. Do not operate R/C aircraft within the vicinity of homes or crowds of people. R/C aircraft may

suffer accidents, failures,and crashes due to a variety of reasons including, but not limited to: Lack of maintenance, pilot error and radio interference. Pilots are responsible for their actions, as well as damage or injury occurring during the operation of their R/C aircraft models.

SAFETY NOTES 安全注意事项

模型商品属于需高操作技术且为消耗性之商品，如经拆装使用后，会造成不等情况零件损耗，任何使用情况所造成的商品不良或不满意，将无发于保固条件内更换新品或者退货，如遇有使用操作维修问题，本公司全球分公司或者代理商将提供技术指导，特价零件供应服务。

M4 Max遥控直升机并非玩具，它是结合了许多高科技产品所设计出来的休闲用品，所以商品的使用不当或者不熟悉都可能会造成严重伤害甚至死

亡，使用之前请务必详细阅读本说明书，勿轻忽并注意自身安全。

注意！任何遥控直升机的使用，制造商和经销商是无法对使用者于零件使用的损耗异常或组装不当所发生之意外负责任何责任，本产品是提供给有操作过模型直升机经验的成人或者有相当技术的人员在旁指导于当地合法遥控飞行场飞行，以确保安全无误下操作使用，产品售出后该公司将不负责任何操作和使用控制上的任何性能与安全责任。

RC Helicopters require skill to operate. We recommend that inexperienced pilots obtain the assistance of an experienced pilot before attempting to fly

our products for the first time. Local expert assistance is the best way to assure proper assembly, setup, and safe flight of your model. Any damage or dissatisfaction as a result of crashes, incorrect setup, modifications or lack of necessary user skill are not covered by any warranty and cannot be returned for repair or replacement.

Please contact our distributors for technical support and parts supply if you experience problems.

R/C helicopters, including the OMPHOBBY M4 MAX , are not toys. R/C helicopters utilize various high-tech components and technologies to provide

superior flight performance. lmproper use of this product can result in damage to property, serious injury or even death. Please read this manual carefully before using and make sure to be conscious of your own personal safety, the safety of others and your environment when operating OMPHOBBY products. Manufacturer and seller assume no liability for the operation or the use of this product. The OMPHOBBY M4 MAX is intended for use only by adults with

experience flying remote control helicopters at a legal flying field. After the sale of this product, OMPHOBBY cannot maintain any control over its operation

or usage.

IMPORTANT NOTES 重要声明

Do not attempt under any circumstances

在任何禁止的环境下，请勿尝试操作。

Mishandling due to failure to follow these instructions may result in danger.

因为疏忽这些操作说明，而使用错误可能造成危险。

因为疏忽这些操作说明，而使用错误可能造成财产损失或严重伤害。

Mishandling of the helicopter and failure to follow these instructions may result in damage, injury or death.

WARNING LABEL LEGEND 标志代表含义

感谢您选购边锋智驱公司产品，为了你容易方便使用M4 Max直升机，请您详细的阅读完这本说明书之后再进行组装以及操作这台直升机，同时请您妥善保存这本说明书，作为日后进行调整以及维修的参考。

The M4 MAX is a new product developed by OMPHOBBY. lt features the best design available on the Mini-Heli market to date, providing high flight

stability for beginners, full aerobatic capability with virtually unlimited control power for advanced pilots, as well as unsurpassed reliability for all customers.

Thank you for choosing OMPHOBBY products. The M4 MAX Helicopter is designed as an easy to use, fully featured Helicopter R/C model capable of

all styles of rotary flight. Please read this manual carefully before operating the model and follow all precautions, limitations and recommendations in

the manual. Be sure to retain the manual for future reference, routine maintenance, and tuning.

INTRODUCTION 前言

WARNING

警告

注意

CAUTION

禁止

FORBIDDEN

注意

CAUTION

M4 Max是边锋智驱有限公司自行研发的新产品，不论您是需求飞行稳定的初学者还是追求性能卓越的飞行爱好者。M4 Max将是您最佳的选择。

WWW.OMPHOBBY.COM

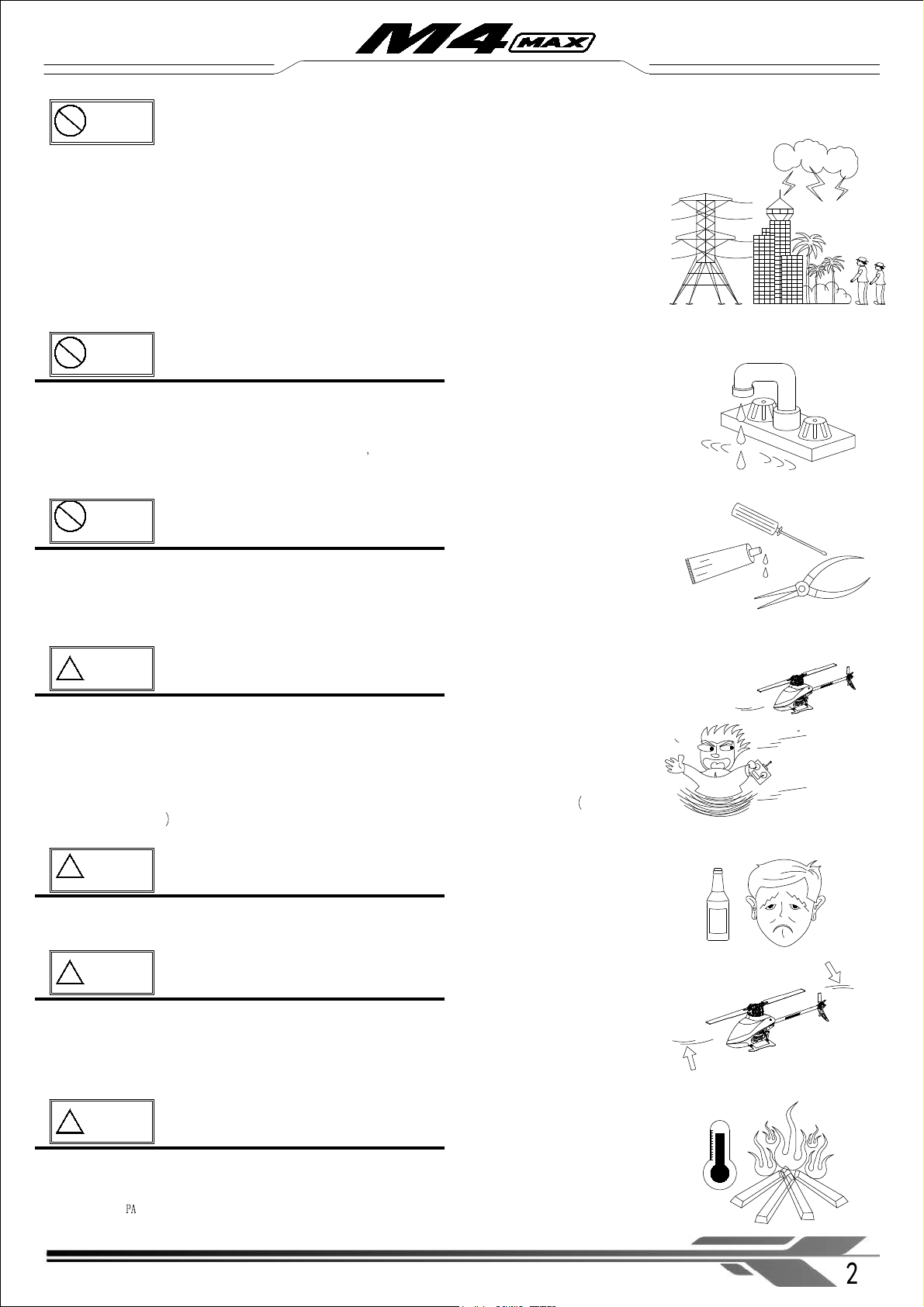

Page 3

Beer

请于自己能力内及需要一定技术范围内操作这台直升机，过于疲劳，精神不佳或不当操作，意外发生风险将可能会提高。

Operate this helicopter within your ability. Do not fly under the influence of perception-altering substances, as well as when you’re sleep deprived. It may result in danger or injury.

ALWAYS BE AWARE OF THE ROTATING BLADES 远离运转中的零件

SAFE OPERATION 安全操作

R/C models are made of various forms of plastics. Plastic is very susceptible to damage or deformation due to extreme heat and cold. Make sure not to store the model near any source of heat, such as direct, strong sunlight or a heater. It is best to store the model indoors, in a climate-controlled, room-temperature environment.

KEEP AWAY FROM HEAT 远离热源

遥控飞机多半是以纤维或聚乙烯、电子商品为主要材质，因此要尽量远离热源、日照、以避免因高温而变形甚至熔毁损坏的可能。

当直升机主旋翼与尾旋翼运转时，切勿触摸并远离任何物件，以避免造成危险及损坏。

During the operation of the helicopter, the main rotor and tail rotor will be spinning at very high rotation speeds. Rotor blades are capable of inflicting serious to lethal bodily injury and damage to the environment. Be conscious of the hazards posed by the spinning rotor blades and maintain safe distance from the helicopter at all times.

Always fly the model a safe distance from yourself and others,as well as your surroundings. Never take your eyes off the model or leave it unattended while it is turned on. Immediately turn off the model and transmitter and remove battery after you have landed the model.

避免独自操控

至飞行场地前，需确认是否有相同频率的同好正在飞行，因为开启相同的频率的发射机将导致自己与他人立即干扰等意外危险。

For inexperienced pilots, the guidance provided by an experienced pilot can be invaluable for the assembly, setup, tuning, trimming and first

flight. (It is recommend to practice with computer-based flight simulator beforehand.)

Before turning on your model and transmitter, check with other RC model users in the area that it is safe to fly.

OBTAIN THE ASSISTANCE OF AN EXPERIENCED PILOT

遥控飞机操控技巧在学习初期有着一定的难度，要尽量避免独自操作飞行，需有经验的人士在旁指导，才可以操控飞行。勤练电脑模拟器及老手指导是入门必要的选择

请确认于产品限界内操作，请勿过载使用，并勿用于安全、法令外其他非法用途。

MALOPERATION 勿不当使用本产品

Please use only genuine replacement parts listed in the manual to ensure correct operation. Use of non-standard or damaged parts voids the product warranty and may cause danger. This product is designed for leisure R/C modelling, do not use the model for other purposes.

请勿自行改造加工，任何的升级改装或维修，请使用三源电子科技产品目录中的零件，以确保结构的安全。

直升机内部也是由精密的电子零件组成，所以必须绝对的防止潮湿或水气避免在浴室或雨天时使用，防止水气进入机身内部而导致机件及电子零件故障而引发不可预期的意外！

It is critical to keep the model and associated equipment away from moisture and other contaminants.The introduction or exposure to water or moisture in any form can cause the model to malfunction, resulting in loss of control or a crash. Do not operate or expose the model to rain or moisture.

R/C models are composed of many precision mechanical and electrical components.

PREVENT MOISTURE 远离潮湿环境

For the first flights, please choose a legal flying field with ample clear space. Flying over long grass reduces damage in the event of a crash. Consider the use of a training landing gear. Do not fly your model in inclement weather, such as rain, wind, snow or darkness.

R/C helicopters can fly at high speed and have rotor blades spinning at high RPM, thus posing a certain degree of potential danger during operation. Choose a legal and safe flying field consisting of flat, smooth ground without obstacles, other people, animals etc.

初次练习时，务必选择在空旷合法专属飞行场地并适当搭配练习架飞行，这对于飞行失误所造成的损伤将会大幅的降低。请勿在下雨天、打雷等恶劣天气下操作，以确保本身及机体的安全。

必须注意周边有没有人、高楼、建筑物、高压电线、树木等等、避免操控的不当造成自己或与他人的财产损坏。

LOCATE AN APPROPRIATE LOCATION 远离障碍物及人群

To ensure the safety of yourself, others and your model, do not fly near airports, buildings, roads, crowded areas or high voltage cables.

直升机飞行时具有一定的速度，相对的也潜在着危险性，场地的选择也相对的重要，请遵守当地的法律法规到合法的遥控飞行场地去飞行。

禁止

FORBIDDEN

禁止

FORBIDDEN

禁止

FORBIDDEN

WARNING

警告

WARNING

警告

注意

CAUTION

注意

CAUTION

WWW.OMPHOBBY.COM

Precautions before use 使用前须知

Page 4

六角螺丝起子

十字螺丝起子

When you see the marks as below, please use glue or grease to ensure flying safety.

剪刀

Scissors

刀子

Cutter Knife

斜口钳

Diagonal Cutting Pliers

尖嘴钳

Needle Nose Pliers

CA Glue瞬间胶

Hex Driver (1.5 & 2 & 2.5mm)

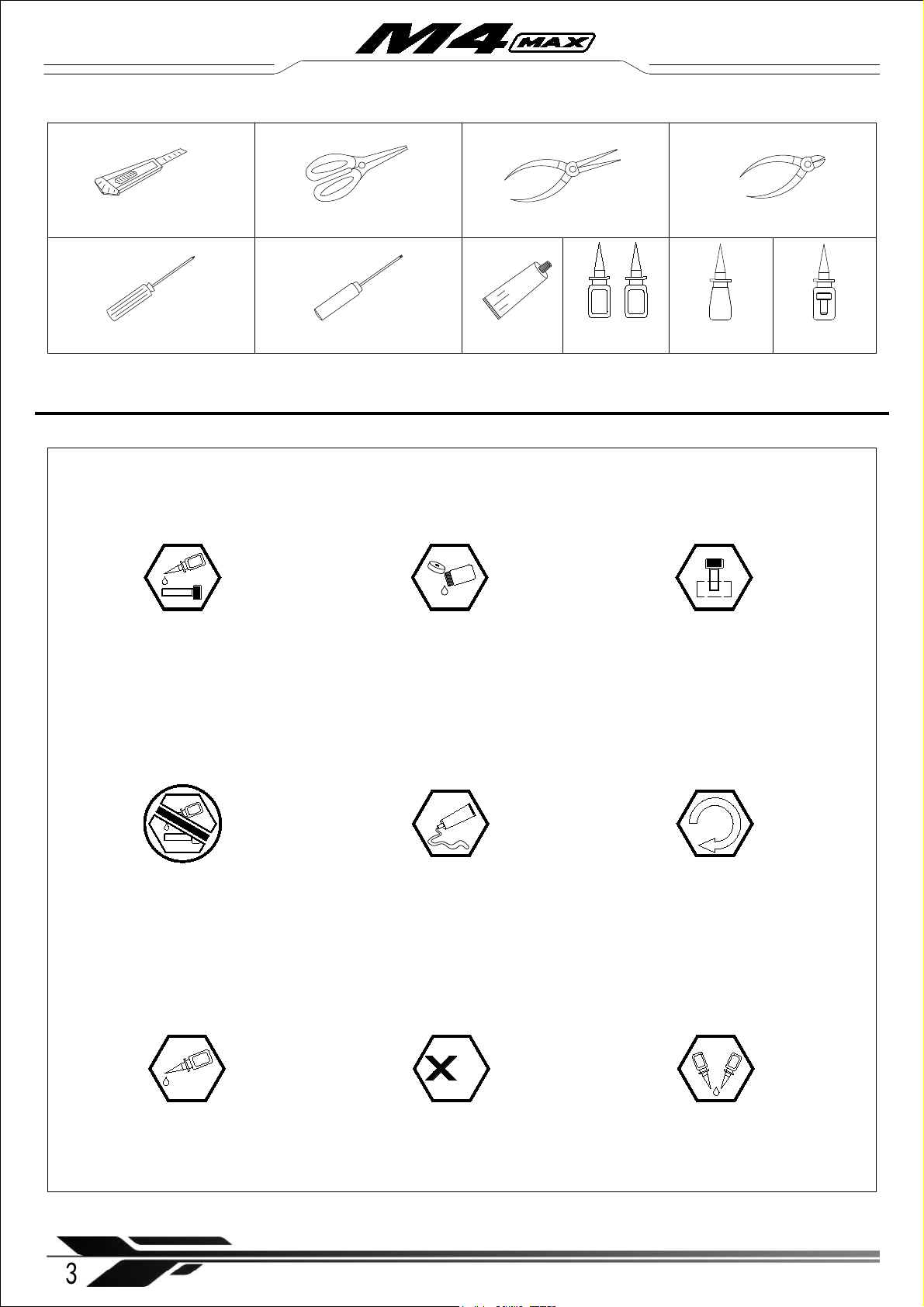

Self-provided tools 自备工具

胶水使用方法

标有以下符号之组装步骤，请配合上胶或上油，以确保使用之可靠度。

WWW.OMPHOBBY.COM

Grease

Repeat Multiple Times

Apply Threadlocker

Apply Petroleum-Based,

Light Viscosity Lube

Loosely Tighten

Apply NO Threadlock

Apply Synthetic Grease

Fully Tighten

Apply MEDIUM CA

使用螺丝胶

添加润滑油

普通拧紧

使用瞬间胶固定

重复多次

无需使用螺丝胶

添加润滑油脂

完全拧紧

Use AB glue

使用AB胶

Threadlocker 螺纹胶

Viscous grease润滑油

AB glue AB胶

Philips Screw Driver

Page 5

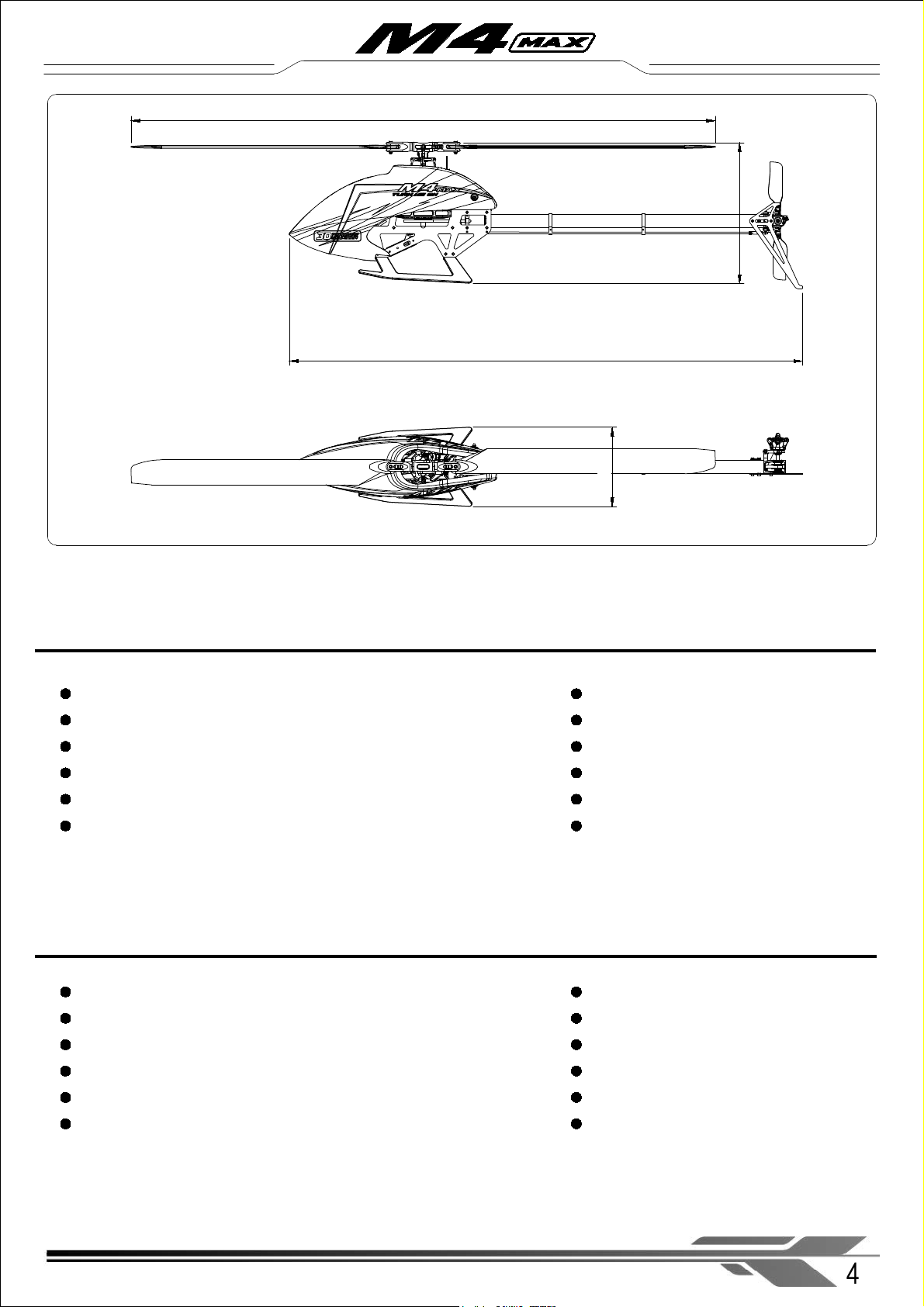

Length：830mm

Specifications 参数配备

Height：226mm

Main Blade：420mm Main Rotor Diameter：945mm

Tail Rotor Diameter：190mm

Flying Weight：1500g

Features 设计特点

Large pitch range main rotor design for extreme control power in any situation

Highly compact flight mechanics design

Lightweight carbon fiber and aluminium airframe design

Streamlined low wind resistance canopy design

Frame mounted XT60 connector for easy battery connection

Open frame design for easy wiring and serviceability

机身长：830mm

机身高：226mm

主旋翼长度：420mm 主旋翼直径：945mm

尾旋翼直径：190mm

起飞重量约：1500g

大螺距主旋翼设计，实现极限控制

高度紧凑的飞行力学设计

碳纤维和铝机身轻量化设计

流线型低风阻机头罩设计

XT60连接器框架安装，便于电池连接

开放式框架设计，便于接线和维护

WWW.OMPHOBBY.COM

Specifications 参数规格

830

226

945

128

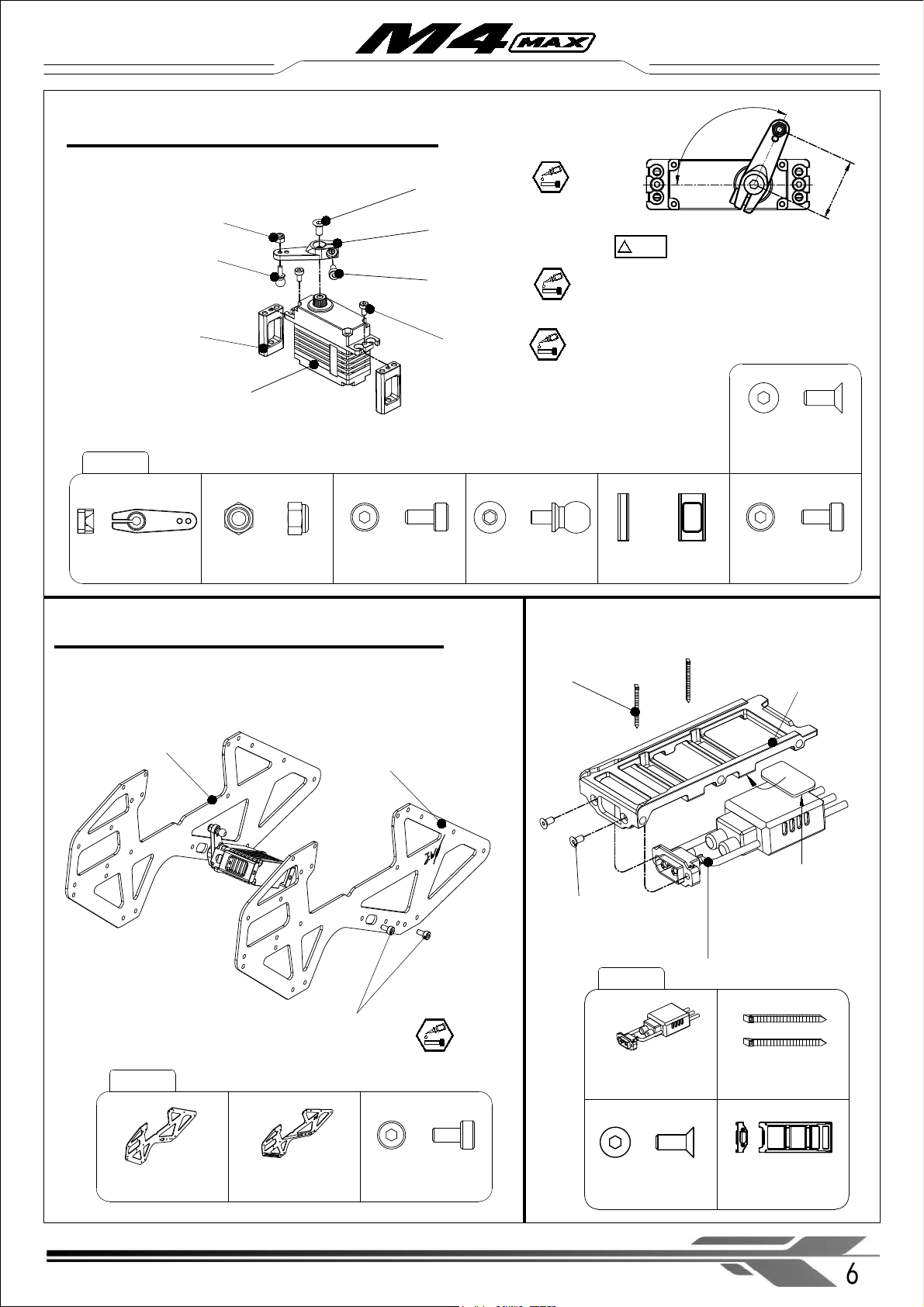

Page 6

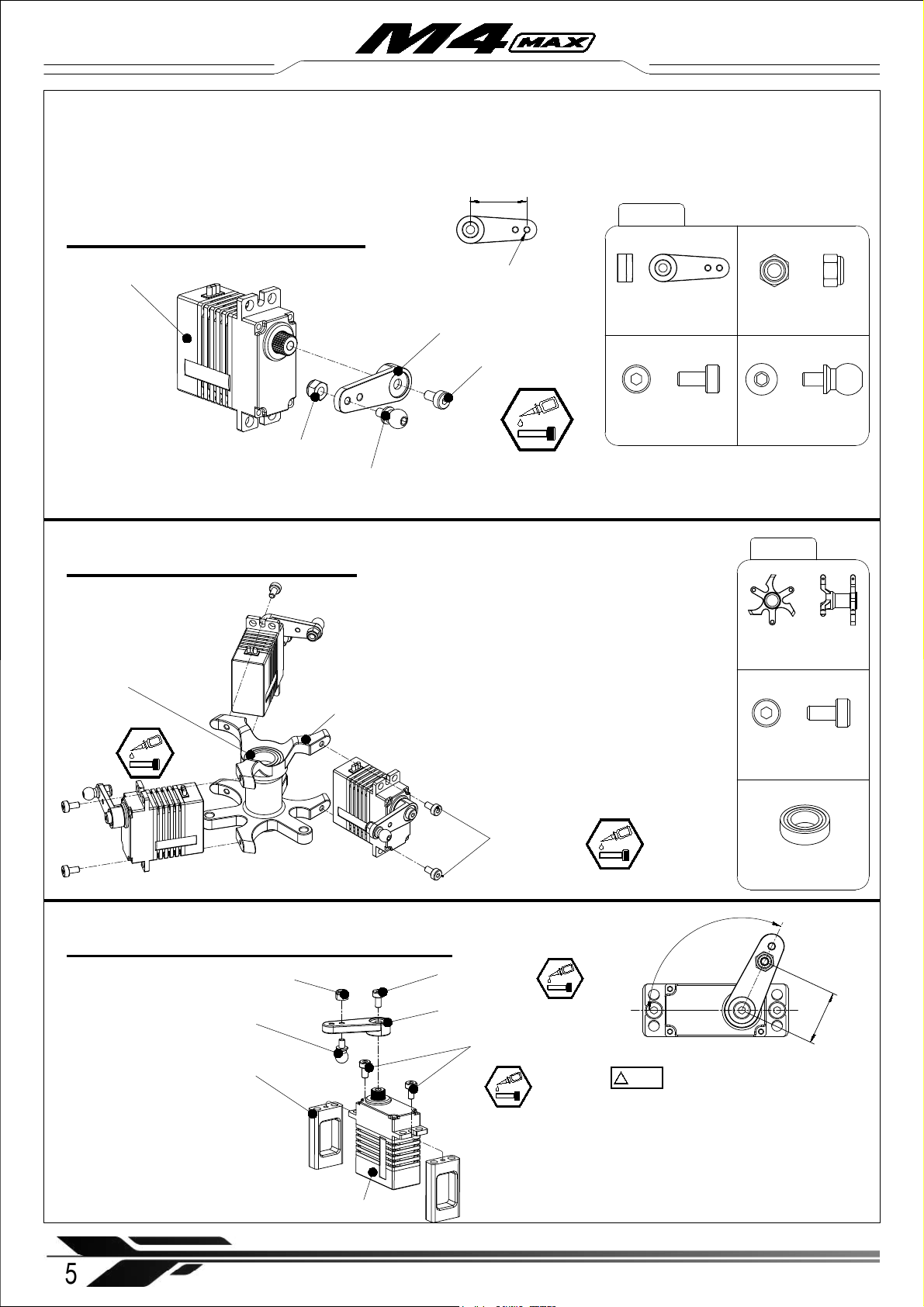

1-1 Cyclic Servo Assembly

Servo Swashplate (×3)

Servo Arm (×3)

Socket cap screw M2x4mm (×3)

Ball Joint Screw - L4.65 (×3)

M2 Nylon locknut (×3)

Servo Arm (×3)

Socket cap screw M2x4mm (×3)

Ball Joint Screw - L4.65 (×3)

M2 Nylon locknut (×3)

Socket cap screw M2x4mm (×6)

M4X-101

M4X-102

Servo Rack (×1)

Socket cap screw

M2x4mm (×6)

1-2 Servo Rack Assembly

1-3 Tail servo (Micro servo) assembly

※

The ball joint screw should be screwed

into the outer hole of the servo arm.

WWW.OMPHOBBY.COM

Installation steps 安装步骤

Bearing ∅8x∅14x4mm (×2)

※ Note: All servo wires should exit the servo rack

in one position, which should be aligned with the rear of the frame.

Partially pre-assembled parts are loosely screwed together without thread locker/glue

Recommendation: Loctite 243 for screws, Loctite 648 for bearing seats.

※ Note: In a crash, the servo arm spline can strip.

※ The servo wires can be wrapped around the

core of the servo rack to shorten them neatly.

16mm

115°

M2 Nylon locknut (×1)

Tail servo (×1)

Tail servo mount set (×2)

Servo Arm (×1)

Socket cap screw M2x4mm (×2)

Socket cap screw M2x4mm (×1)

Ball Joint Screw - L4.65 (×1)

注意

CAUTION

The maximum height of the tail servo, including servo arm, must be less than 40. 0mm. When the tail servo arm is in the middle position, the angle relative to the tail servo should be 115°, as shown above.

※ The M4 Max can be equipped with the

DS2312T micro servo, and the ball head screw should be installed in the outer hole of the servo arm. The manual will provide an illustrative installation diagram for the mini servo, and the installation method for the micro servo is the same as that for the mini servo.

12.5mm

Page 7

M2 Nylon locknut (×1)

Socket cap screw

M2x4mm (×2)

Ball Joint Screw - L4.65 (×1)

Tail servo mount set (×2)

2-1 Main frame tail servo assembly

M2 Nylon locknut (×1)

X Tail servo (×1)

Tail servo mount set (×2)

Socket cap screw M2x4mm (×2)

Ball Joint Screw - L4.65 (×1)

Socket cap screw M2.5x5mm (×2)

X Main Frame (left) (×1)

M4-201

注意

CAUTION

※ The maximum height of the tail servo, including

servo arm, must be less than 40. 0mm. When the tail servo arm is in the middle position, the angle relative to the tail servo should be 115°, as shown above.

WWW.OMPHOBBY.COM

X Main Frame (right) (×1)

Installation steps 安装步骤

X Main Frame (left) (×1)

Socket cap screw M2.5x5mm (×2)

X Main Frame (right) (×1)

85A ESC (×1)

Strap (×2)

M4-202

Battery mounting rail (×1)

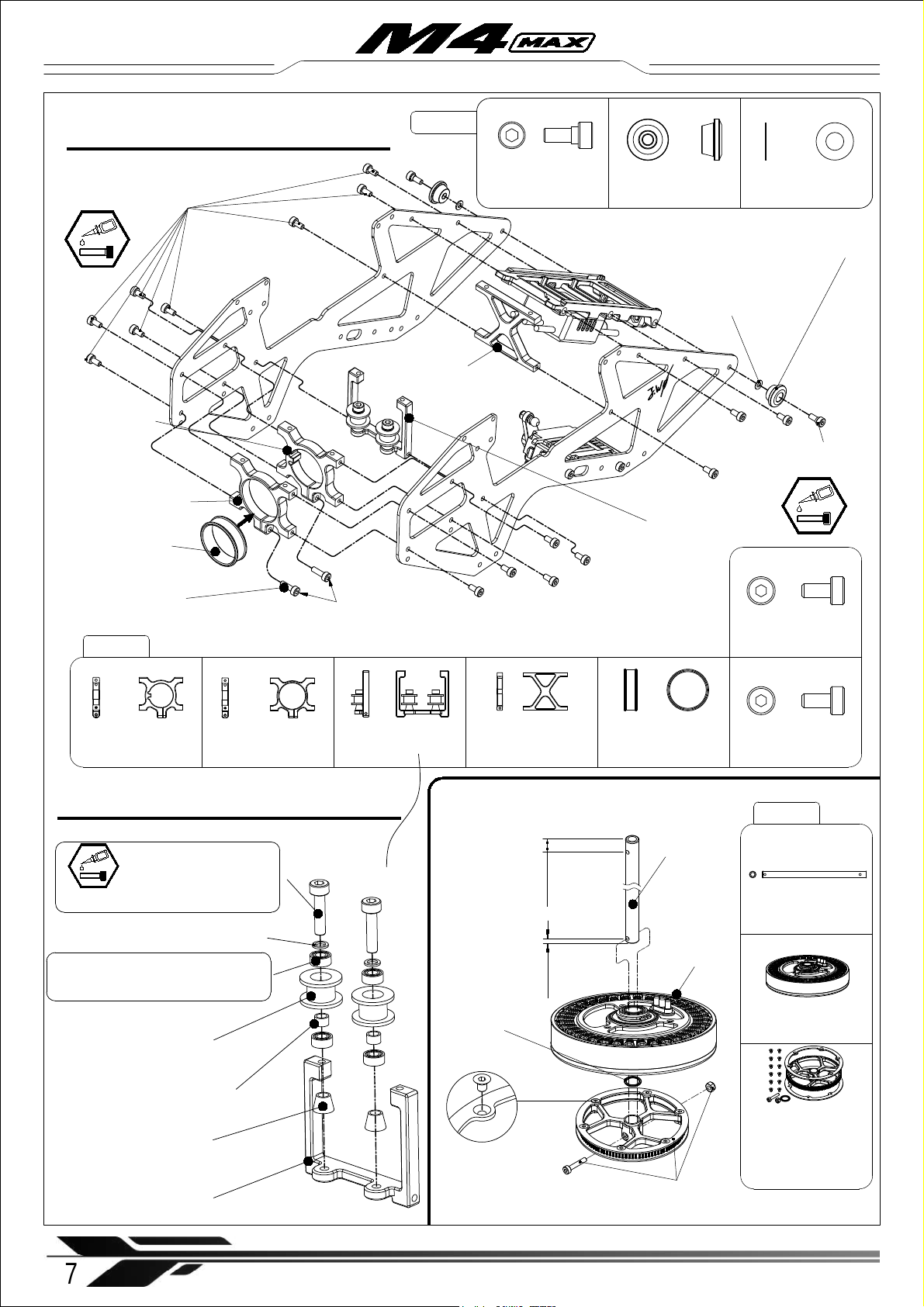

2-2 Main frame set assembly

Strap (×2)

Countersunk head hexagon socket screw M2.5x6mm (×2)

Battery mounting rail (×1)

Countersunk head hexagon socket screw M2.5x6mm (×2)

※ The ball head screw should be installed in the outer hole of the servo arm.

Socket cap screw M2.5x5mm (×1)

Countersunk head hexagon socket screw M3x6mm (×1)

18mm

Mid servo metal arm (×1)

M4X-103

Mid servo metal arm (×1)

Socket cap screw M2.5x5mm (×1)

Countersunk head hexagon socket screw M3x6mm (×1)

85A ESC (×1)

1-3 Tail servo (Mini servo) assembly

115°

Installing the ESC, the 3M adhesive should be adhered to the end half of the ESC and bonded with the bottom surface of the rail at this point.

Page 8

2-2 Main frame set assembly

X Brace (×1)

Socket cap screw

M2.5x5mm (×16)

X Tail Boom Mount (×1)

X Square Frame Brace (×1)

X-Brace (×1)

Socket cap screw

M2.5x5mm (×16)

2-3 Motor assembly

Main Pulley (×1)

Main Rotor Shaft (×1)

WWW.OMPHOBBY.COM

Main Rotor Shaft (×1)

Main Pulley (×1) Countersunk head hexagon socket

screw M2x3mm (×12) Main Pulley Flanges (×2) Socket cap screw M2.5x15mm (×1) Nyloc Nut M2.5 (×1) Shim ∅8x∅10x0.2mm (×1)

Socket cap screw

M2.5x8mm (×2)

※ Do not tighten the M2.5x8mm clamping screws on the tail boom mounts. ※ The clamping screws should be inserted from right side to prevent interference with the tail

rotor linkage.

Socket cap screw

M2.5x8mm (×2)

Installation steps 安装步骤

Socket cap screw M3x16mm (×2)

Bearing ∅3x∅6x2.5mm (×4)

X Idler Pulley (×2)

X Bushing ∅3x∅4x2 (×2)

X Idler Cone (×2)

Square Brace (×1)

Square Frame Brace Assembly

Shim

∅2.5x∅5x0.5mm (×2)

Canopy frame support rubber (×2)

Step socket cap screw

M2.5x6mm (×2)

Step socket cap screw

M2.5x6mm (×2)

Canopy frame support rubber (×2)

Shim

∅2.5x∅5x0.5mm (×2)

※ Note that the main

pulley flange carbon plates are recessed one

side to suit countersunk screws.

Shim ∅3.05x∅4.5x0.5mm (×2)

(Already installed with retaining compound)

X Square Frame Brace (×1)

X Tail Boom Mount convex (×1)

M4X-202

X-fixed seat gasket

(×1)

X Tail Boom Mount (×1) X-fixed seat gasket (×1)

X Tail Boom Mount convex (×1)

SUNNYSKY 8110 Motor (×1)

M4X-203

SUNNYSKY 8110 Motor (×1)

3mm

7.5mm

Shim

∅8x∅10x0.2mm

(×1)

Page 9

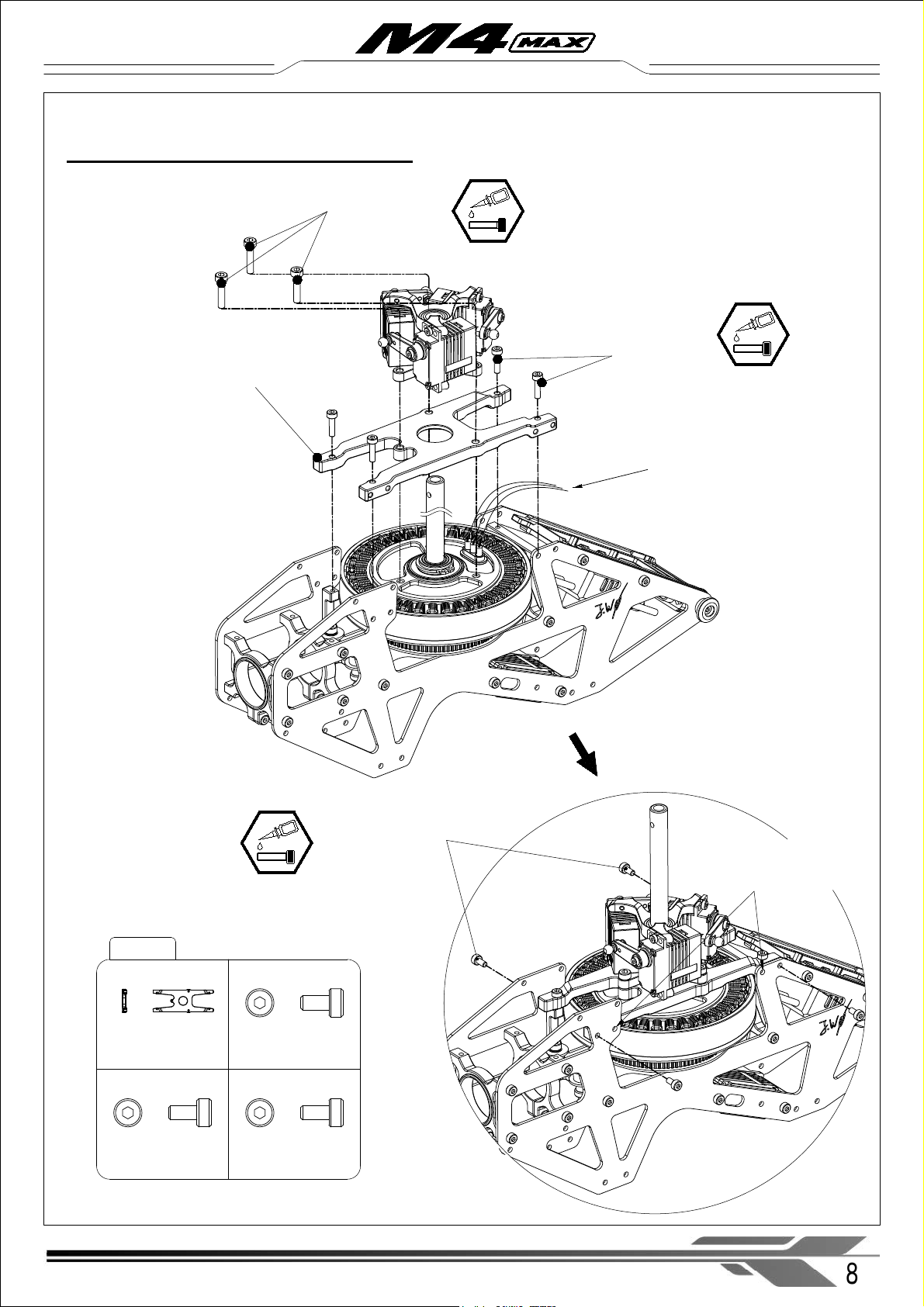

2-4 Motor and servo assembly

Main Plate (×1)

M4X-204

Socket cap screw M3x14mm (×3)

Socket cap screw M2.5x10mm (×4)

Socket cap screw M2.5x5mm (×4)

WWW.OMPHOBBY.COM

These four screw holes are reserved for installation of the the motor roll bars in a later step.

Socket cap screw M2.5x5mm (×4)

Socket cap screw

M2.5x10mm (×4)

Socket cap screw M3x14mm (×3)

X Main Plate (×1)

Installation steps 安装步骤

※ Motor wires should exit

towards the front

Page 10

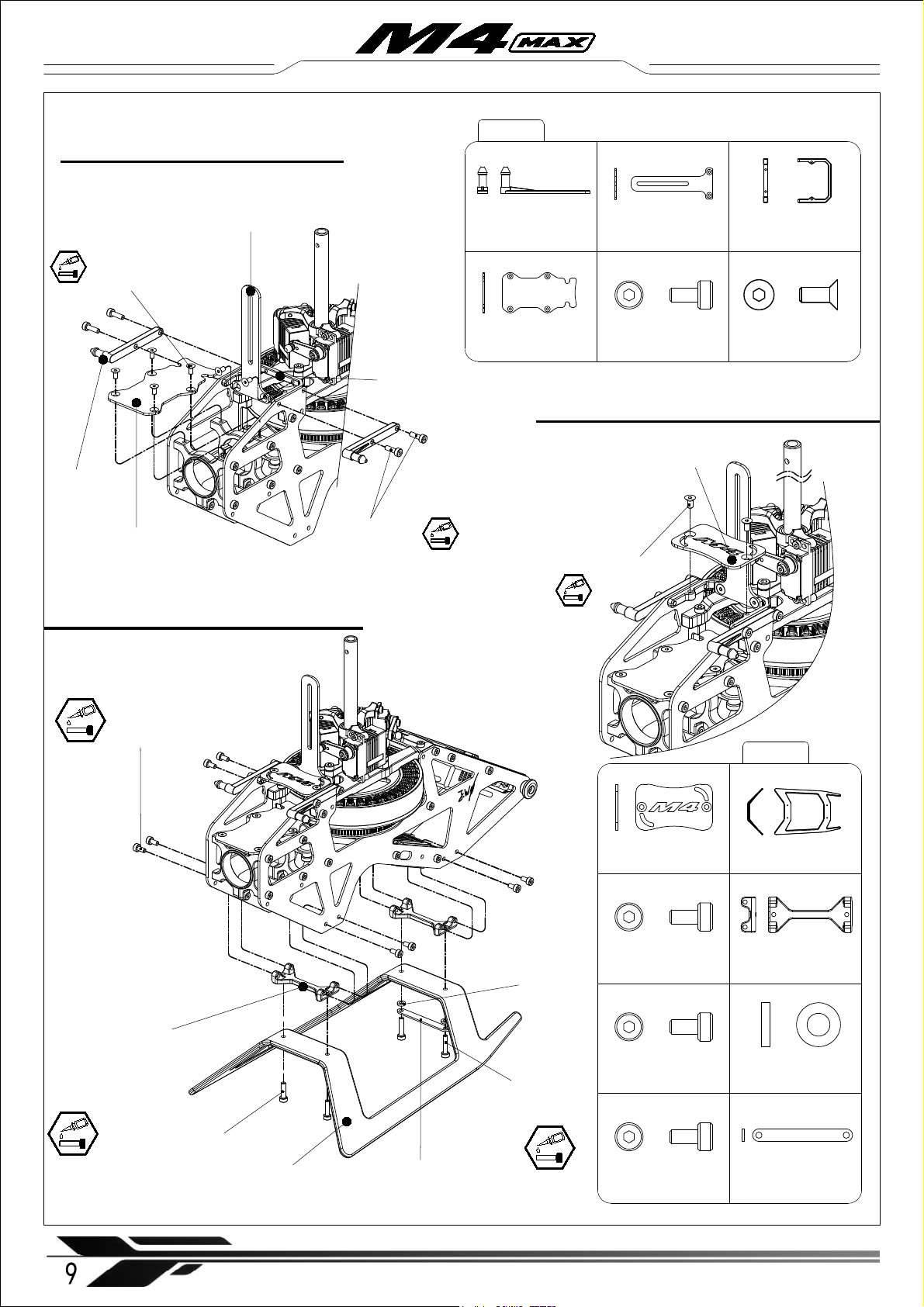

2-5 Landing gear and flight controller

mount assembly

Swashplate Guidance Mount (×1)

Flight Control Mounting Plate (×1)

Swashplate Guidance

Plate (×1)

Countersunk head hexagon socket screw

M2.5x5mm (×6)

Canopy Mounting Post (×2)

Socket cap screw M2.5x8mm (×4)

Socket cap screw M2.5x10mm (×2)

Socket cap screw M2.5x12mm (×2)

Landing Skid Mount set (×2)

Canopy support brace (×1) (Heat shrink preinstalled)

X Landing gear (×1)

※ Attach the landing skid

mount to the side frame before installing the landing gear.

Countersunk head hexagon socket screw M2.5x5mm (×2)

Receiver Mounting Plate(×1)

Socket cap screw M2.5x5mm (×8)

M4X-205

WWW.OMPHOBBY.COM

Installation steps 安装步骤

X Landing gear (×1)

Receiver Mounting Plate (×1)

Landing Skid Mount set (×2)

Canopy support (×1)

Socket cap screw

M2.5x10mm (×2)

Socket cap screw

M2.5x5mm (×8)

Socket cap screw

M2.5x12mm (×2)

Swashplate Guidance Plate (×1)

Flight Control Mounting Plate (×1)

countersunk head hexagon socket screw M2.5x5mm (×8)

Swashplate Guidance Mount (×1)

Canopy Mounting Post (×2)

Socket cap screw

M2.5x8mm (×4)

Shim

∅2.6x∅5x1mm (×2)

Shim

∅2.6x∅5x1mm (×2)

Page 11

Tail Slider Sleeve (×1)

Bearing

∅6x∅10x3mm (×2)

Tail Slider Ring (×1)

Tail Slider Bridge (×1)

4.5mm Tail Slider Joint (×2)

Shim

∅6x∅7x1mm (×1)

Socket cap screw M2x6mm (×2)

Tail Slider Joint Bushing (×2)

※ Note that the raised

face of the tail slider yoke must face the bearing.

※ The tail slider comes pre-assembled

with thread locker from the factory, there is no need to disassemble it again.

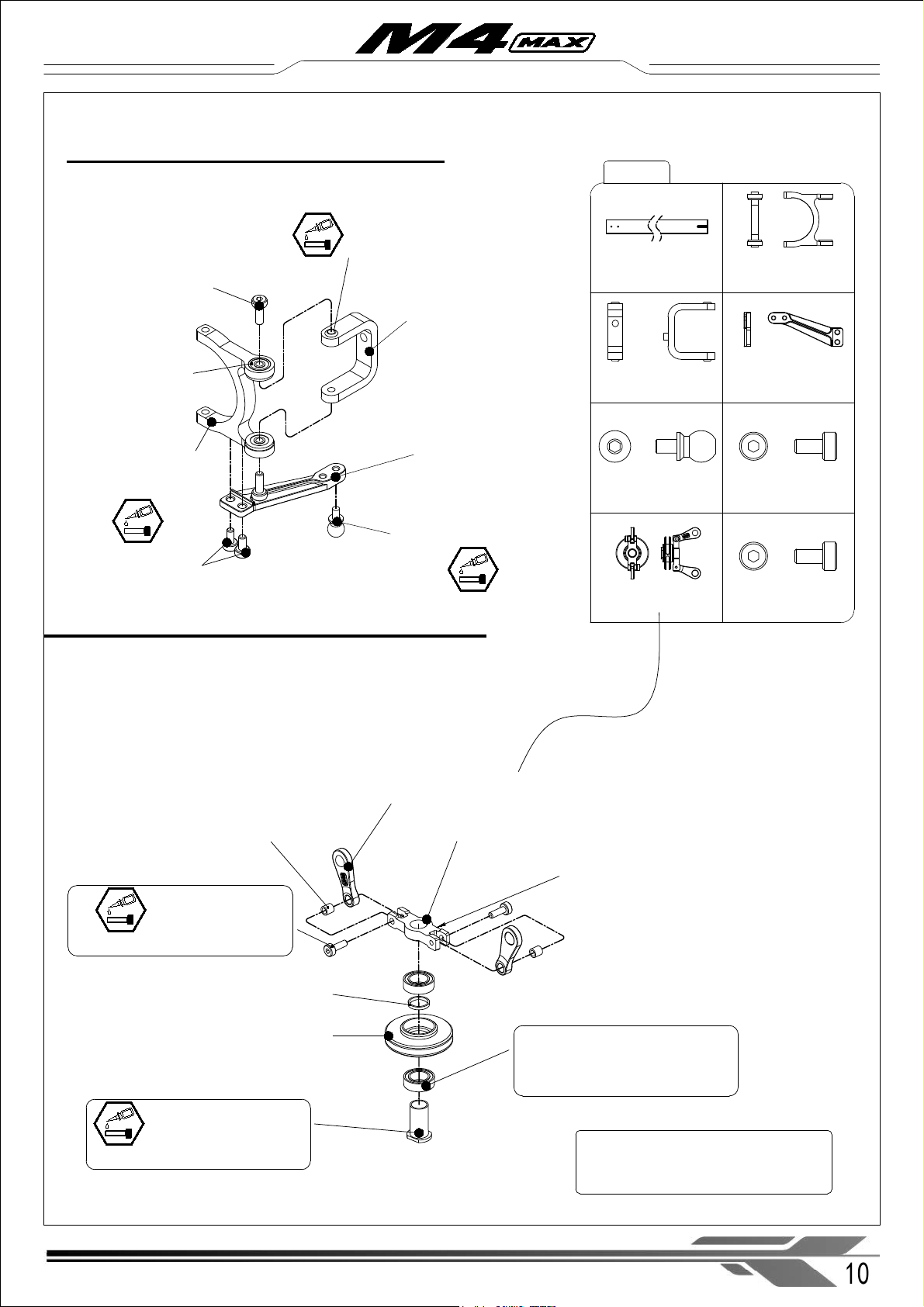

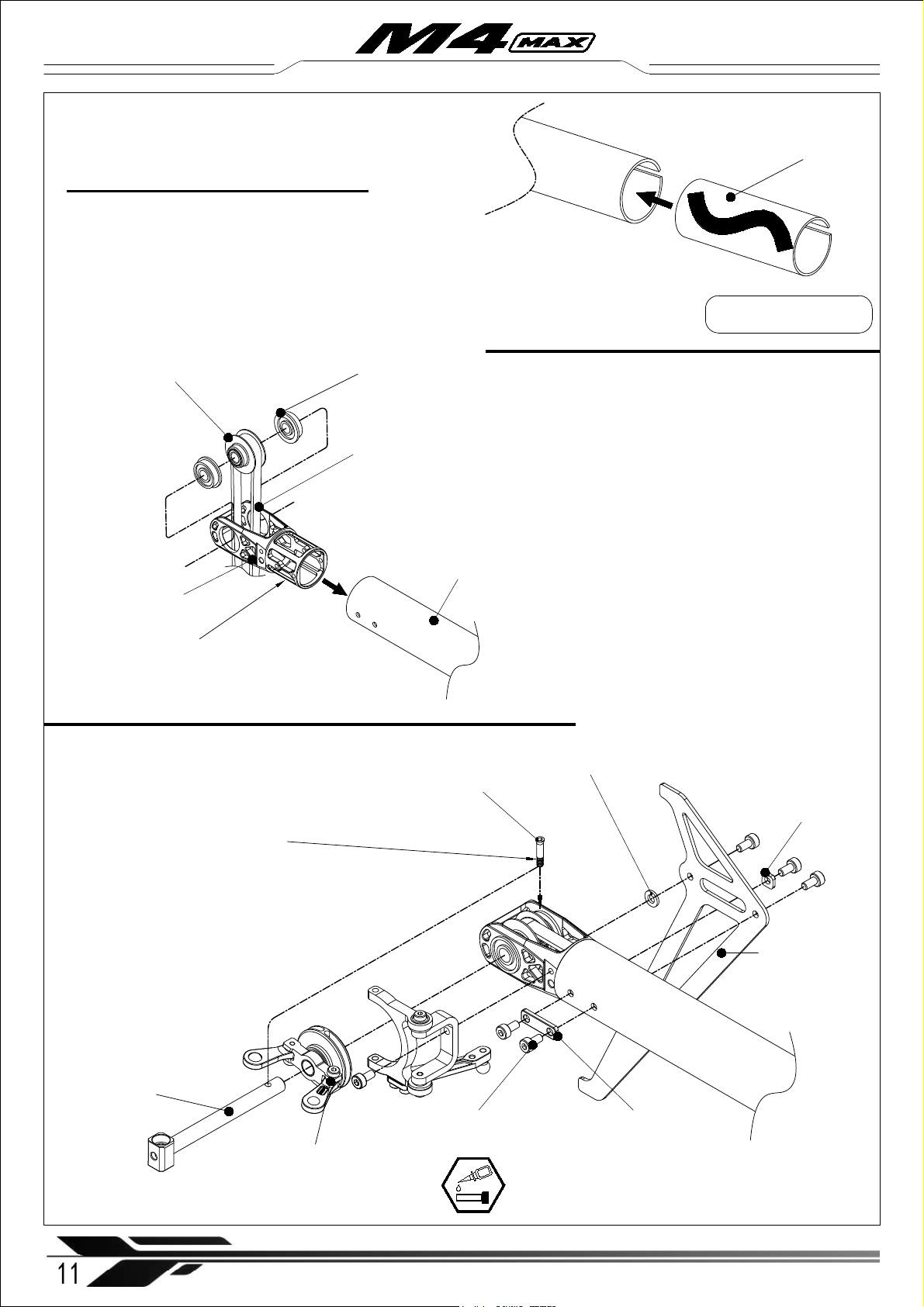

X Tail bellcrank Arm (×1)

Tail Bellcrank Base (×1)

Ball Joint Screw - L3 (×1)

Socket cap screw

M2x4mm (×2)

Tail Bellcrank Base (×1)

X Tail bellcrank Arm (×1)

Tail Bellcrank (×1)

Socket cap screw M2x4mm (×2)

Socket cap screw M2x6mm (×2)

Ball Joint Screw - L3 (×1)

Flanged Bearing

∅2x∅6x3mm (×2)

Apply thread-lock into threaded holes to avoid contamination of bearing.

(Already installed with retaining compound)

Tail Slider Ring Set (×1)

3-1 Tail Thrust Component Installation

Socket cap screw M2x6mm (×2)

X Tail boom (×1)

WWW.OMPHOBBY.COM

M4X-301

Installation steps 安装步骤

Tail Bellcrank (×1) Flanged Bearing

∅2x∅6x3mm (×2)

Page 12

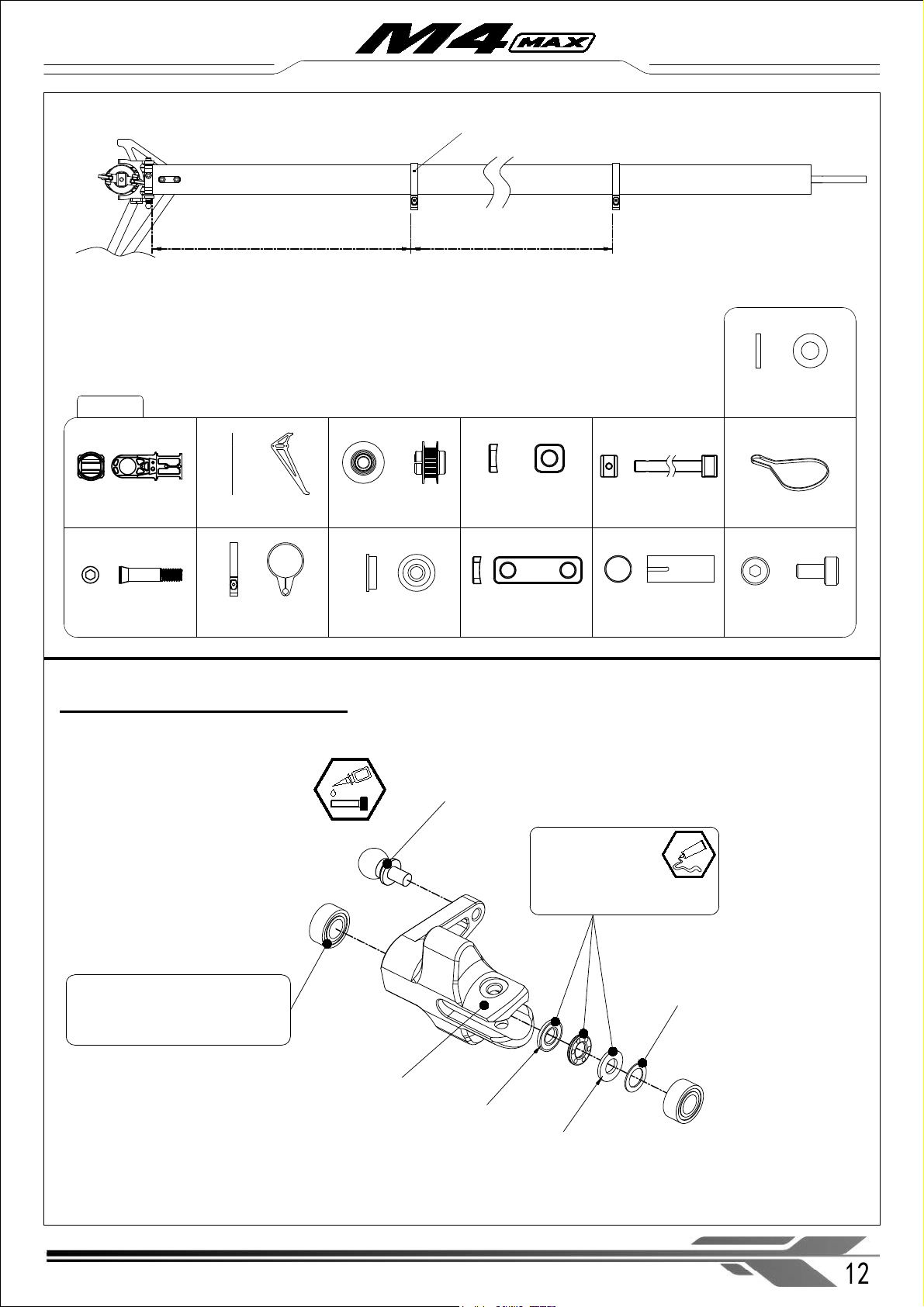

Tail Slider Ring Set (×1)

X Tail Fin (×1)

X Tail boom (×1)

X Tail Rotor Shaft (×1)

Flanged Bearing

∅5x∅13x4mm (×2)

Tail Belt 1280mm (×1)

X Tail Pulley Set (×1)

3-1 Installation of Tail Gearbox and

Tail Thrust set

WWW.OMPHOBBY.COM

Installation steps 安装步骤

Socket cap screw M2.5x5mm (×6)

X tail boom long washer (×1)

X tail pipe short washer (×1)

※ Thread the timing belt and the Tail Case

through the end, aligning the four threaded holes with the tail boom.

※ The tail shaft passes through the

tail pulley, then insert the blade screw to secure it

X Carbon Tube Liner (×1)

Shim

∅2.6x∅5x0.7mm (×1)

※ Apply glue to the X Carbon Tube

Liner, align it with the slot, and insert

the X Carbon Tube Liner into the tail

boom

（Assembled and glued at the factory）

Screw M2x10.5mm (×1)

Tail Case (×1)

Page 13

X Tail Control Rod Guide (×2)

Bearing

∅3x∅6x2.5mm (×4)

Ball Joint Screw - L3 (×2)

X Tail Rotor Blade Grip (×2)

Thrust Bearing

∅3x∅6x2.8 (×2)

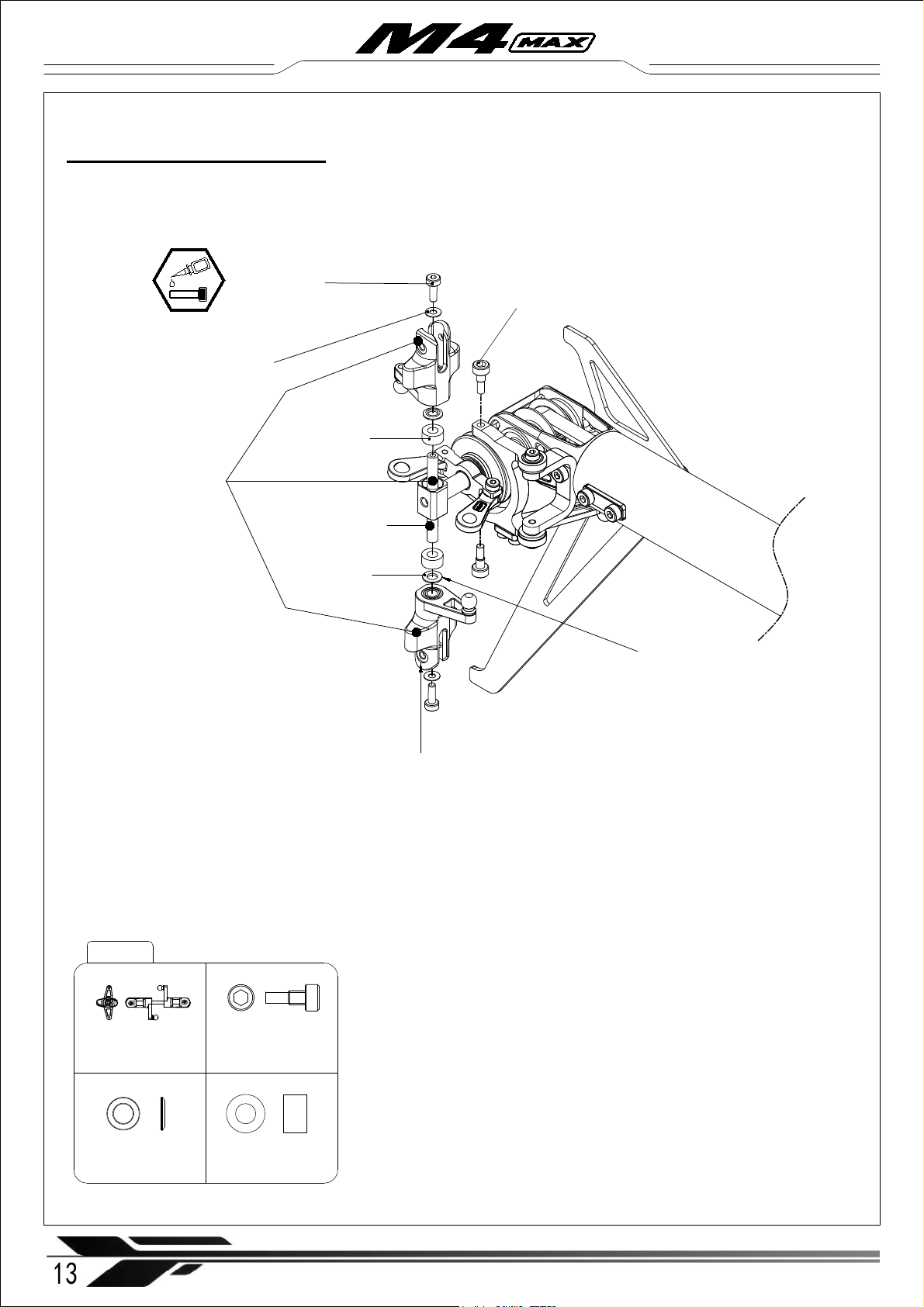

3-2 Tail blade Set installation

Inner Dia. : Large

Inner Dia. : Small

Grease

(Already installed with retaining compound)

(Items are shipped pre-lubricated)

X Tail Fin (×1)X Tail Boom Mounting Brace (×1)

M4X-301

X Tail Pulley Set (×1) X Tail Rotor Shaft (×1)

Screw M2x10.5mm (×1)

Flanged Bearing

∅5x∅13x4mm (×2)

Tail Belt 1280mm (×1)

Shim

∅3x∅4.5x0.2mm (×2)

WWW.OMPHOBBY.COM

Installation steps 安装步骤

Socket cap screw M2.5x5mm (×6)

X Tail Control Rod Guide (×2)

about 140mm about 180mm

X tail pipe short washer (×1)

X tail boom long washer (×1) X Carbon Tube Liner (×1)

Shim

∅2.6x∅5x0.7mm (×1)

Page 14

3-2 Tail rotor assembly

Tail Blade Grip Set (×1)

Tail Bellcrank Pin (×2)

Tail Blade Grip Set (×1)

Tail Bellcrank Pin (×2)

Shim

∅2x∅4.5x0.2mm (×2)

Socket cap screw

M2x6mm (×2)

※ Note: The round screw head

seat must face outward

Tail Rotor Hub (×1)

Tail Rubber

Damper

Shore (×2)

Tail Damper Shim (×2)

※ The stepped side of the shim faces

outwards toward the blade grip.

Tail Rubber Damper Shore Φ3xΦ6x3mm (×2)

Tail Damper Shim Φ3xΦ5.5x0.6mm (×2)

M4X-302

WWW.OMPHOBBY.COM

Installation steps 安装步骤

Page 15

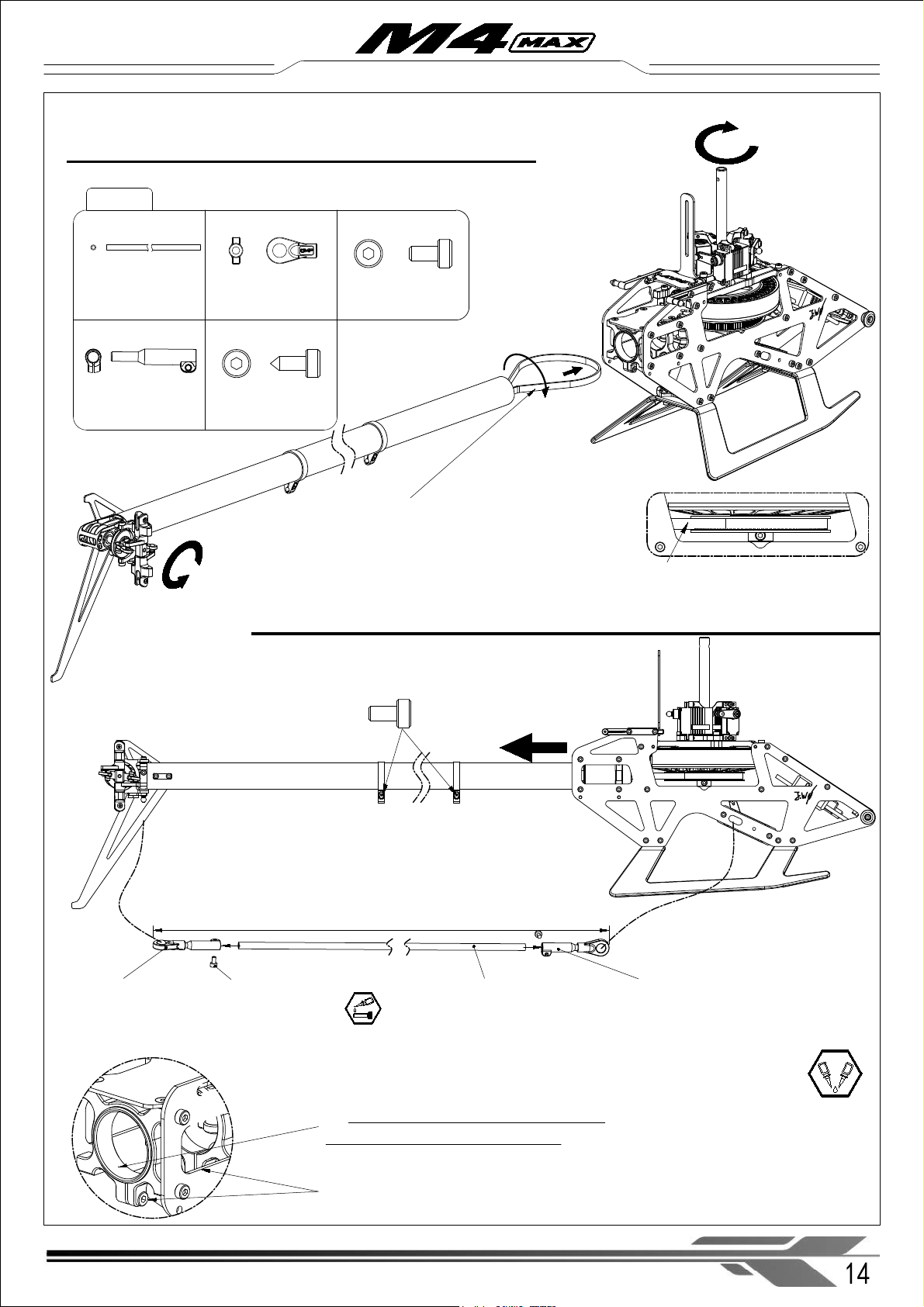

3-3 Tail boom, tail servo linkage rod assembly

※ Pay close attention to the twist direction of

the belt. The belt should be pulled straight through the boom. Rotate the free end 90° as shown to achieve proper tail rotor rotation. Do

not twist the belt further than 90°.

The tail boom can be pushed further inward to give the belt more slack for installing it onto the main pulley.

X Tail servo linkage rod (×1)

4.5 linkage ball set (M2.5) (×2)

X Control Rod Joint (×2)

※ After the tail belt is tensioned, tighten the

two clamping screws left loose in step 2-2 to secure the boom in place.

※ The control rod ends should be sand and glued onto the carbon rod with AB glue/Epoxy, avoid

using Superglue/CA. Pay attention to the correct rod length.

※ Use sand paper on the rod ends to roughen them and make insertion into the joint easier.

Pull the tail boom backwards to tension the belt, to ensure that the flying power is effectively transmitted to the tail. Do not over-tighten the belt to avoid excessive drag, but do not

over-loosen it, as too much looseness will cause the belt to jump, vibrate, and wear out. After installation the rotary drive runs smoothly and the tensioner pulley rotates normally with the timing belt

Different types of servos require different linkage rod lengths, with micro servos

needing approximately 584mm, and mini servos requiring about 589mm

M4X-303

4.5 linkage ball set (M2.5) (×2)

X Tail servo linkage rod (×1)

X Control Rod Joint (×2)

WWW.OMPHOBBY.COM

Installation steps 安装步骤

Socket cap screw

M1.6x3mm (×2)

Lock the M2x6 screws to the tail rod limiters after attach the X tail servo linkage

Socket cap screw M1.6x3mm (×2)

Self-tapping screws

M2x6mm (×2)

※ Here to put on some grease onto the

rubber ring for easier installation.

Page 16

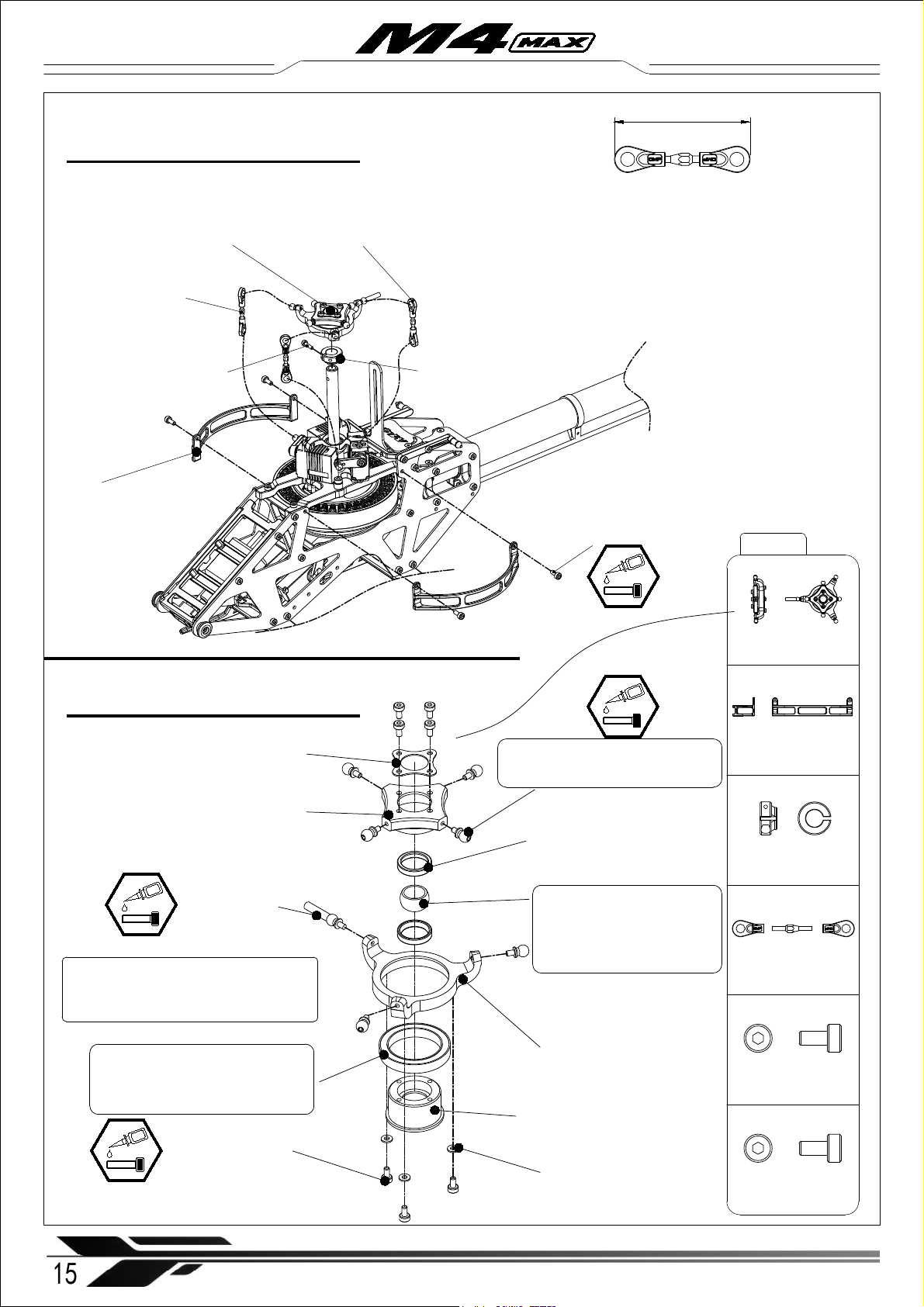

4-1 Swashplate assembly

约38mm

4.5mm linkage Ball Joint Set (×6)

Servo linkage (×3)

Main shaft clamping ring (×1)

Socket cap screw M2.5x8mm (×1)

※ Make three linkages of the same length, note that

turnbuckles feature one right hand and one left hand thread each. The tapered side of the turnbuckle faces down. The ball joint’s flat spot with OMP logo faces outward when connecting the linkages with the ball screws. The turnbuckles can be adjusted in length without removing them from the helicopter.

Socket cap screw M2.5x6mm (×4)

Swashplate (×1)

Motor roll bar (×2)

Main shaft spacing ring (×1)

Servo linkage (×3)

4.5mm linkage Ball Joint Set (×6)

Swashplate (×1)

Motor roll bar (×2)

Socket cap screw M2x4mm (×7)

Ball Joint Screw - L3 (×6)

Guidance Ball Screw (×1)

Swashplate Bearing Retainer (×1)

Swashplate Hub (×1)

Bearing

∅20x∅27x4mm (×1)

Swashplate Outer Ring (×1)

Swashplate Connector (×1)

Swashplate Spherical Joint

∅8x∅11x6 (×1)

Swashplate Joint Seat (×2)

Shim

∅2x∅4.3x0.5mm (×3)

4-1 swash plate assembly

※ The swashplate comes pre-assembled

with thread locker from the factory, there is no need to disassemble it again.

(Already installed with retaining compound)

(Items are shipped pre-lubricated)

Socket cap screw M2.5x8mm (×1)

M4X-401

Socket cap screw M2.5x6mm (×4)

WWW.OMPHOBBY.COM

Installation steps 安装步骤

Page 17

WWW.OMPHOBBY.COM

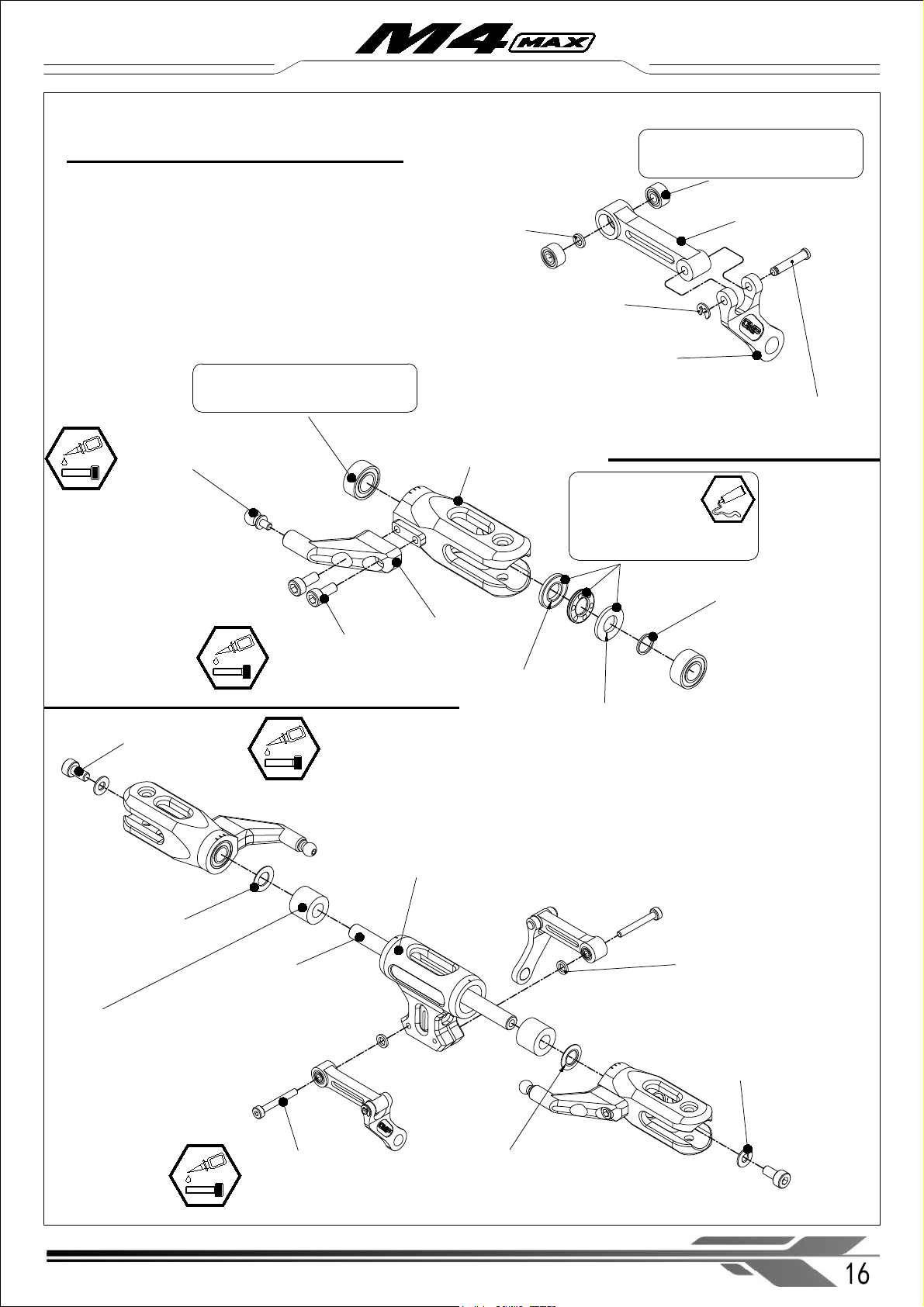

4-2 Main rotor hub assembly

Bearing ∅5x∅10x4mm (×4)

Thrust Bearing

∅5x∅10x4mm (×2)

Shim

∅5x∅6x0.5mm (×2)

Main Rotor Blade Grip (×2)

Main Rotor Blade Grip Arm (×2)

Socket cap screw

M2.5x6mm (×4)

Ball Joint Screw - L3 (×2)

Bearing ∅2x∅5x2.5mm (×4)

Swashplate Driver Arm (×2)

Swashplate Driver Joint (×2)

Shim

∅2x∅3.2x0.5mm (×2)

Shim

∅2x∅3.2x0.5mm (×2)

Main Rotor Yoke (×1)

Spindle Shaft

∅5x73mm (×1)

Main Rotor Rubber Damper Shore ∅5x∅10x8 (×2)

Socket cap screw

M2x16mm (×2)

Damper Shim (×2)

∅5x∅9x0.6mm

Shim

∅3x∅6.5x0.5mm (×2)

Socket cap screw

M3x6mm (×2)

Inner Dia. : Large

Inner Dia. : Small

※ The stepped side of the shim faces

outwards toward the blade grip.

Installation steps 安装步骤

(Already installed with retaining compound)

Grease

(Items are shipped pre-lubricated)

(Already installed with retaining compound)

Swashplate Driver Pin (×2)

E-type circlip (×2)

Page 18

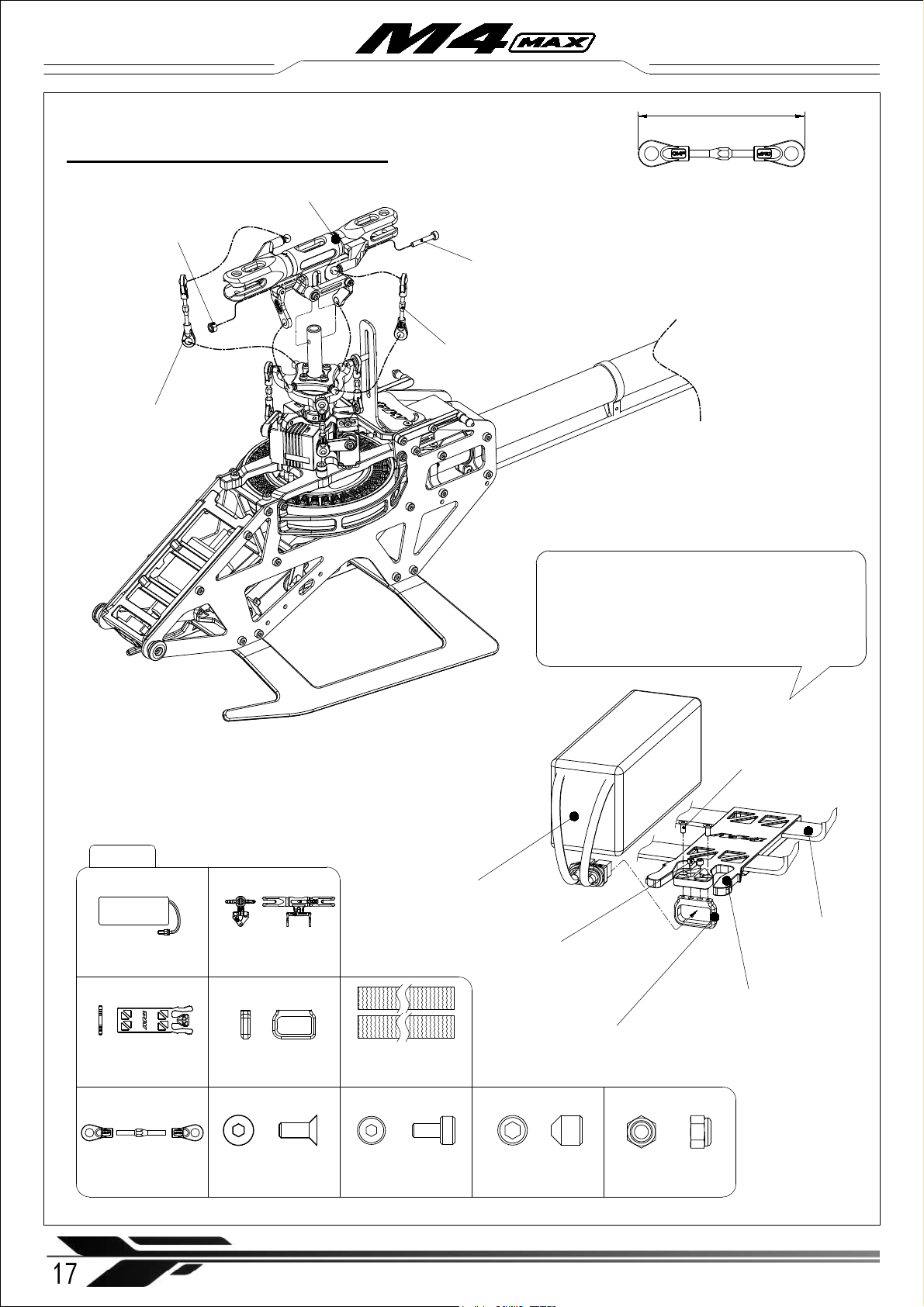

Main rotor hub linkage (×2)

4.5mm linkage Ball Joint Set (×4)

※ First fix the XT60 plug holder (optional) to the

battery plate with countersunk head screws, then insert the XT60 plug through the XT60 plug holder support and secure it in place with set screws. Lastly, tie the battery to the tray with battery straps.

XT60 plug holder set (×1)

Battery panel set (×1)

4-2 Main rotor hub assembly

约45mm

※ Make two linkages of the same length, note that

Setscrew M3x3mm (×2)

Countersunk head hexagon socket screw M2x6mm (×2)

6S Battery (×1)

XT60 plug holder set (×1)

※ Can optionally be added as per pilot preference.

Countersunk head hexagon socket screw M2x6mm (×2)

Setscrew M3x3mm (×2)

Battery panel set (×1)

※ The main rotor hub thrust bearing and rubber dampers are subject to high

flight forces and thus should be periodically inspected and lubricated, and, if worn or damaged, replaced. When flying hard at high rotor speeds, the inspection interval should be reduced. Replace on condition to ensure flight safety.

Battery strap (×2)

Main rotor hub set (×1)

Main rotor hub linkage (×2)

4.5mm linkage Ball Joint Set (×4)

Socket cap screw M2.5x15mm (×1)

M2.5 Nylon locknut (×1)

6S Battery (×1)

Main rotor hub set (×1)

Socket cap screw M2.5x15mm (×1)

M2.5 Nylon locknut (×1)

M4X-402

WWW.OMPHOBBY.COM

Installation steps 安装步骤

Page 19

Socket cap screw M3x18mm (×2)

M3 Nylon locknut (×2)

Main rotor 420mm (×2)

M4X-71mm tail blade (×2)

Shim

∅2x∅8x0.2mm (×4)

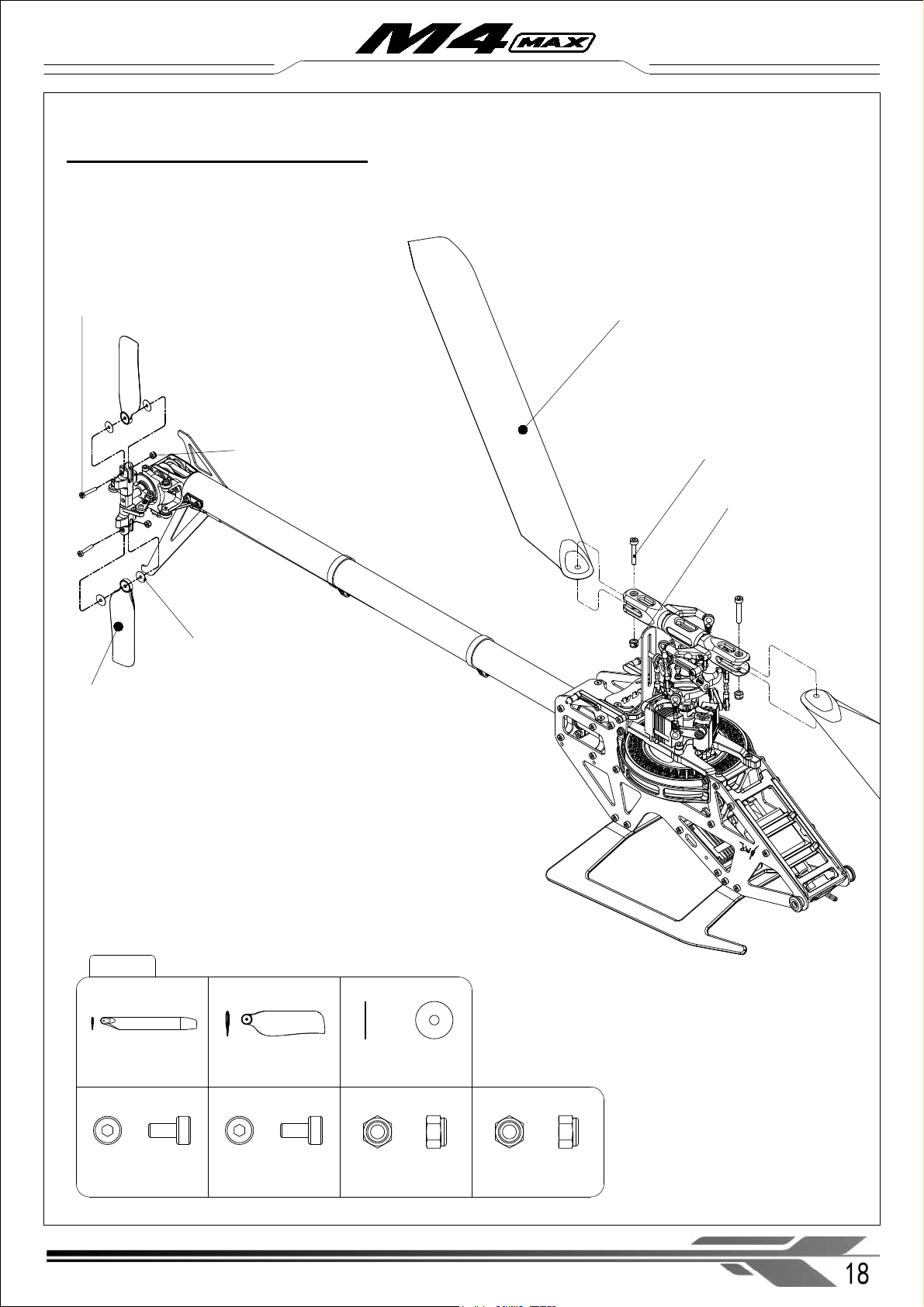

4-3 Rotor blade installation

Main rotor 420mm (×2)

Shim

∅2x∅8x0.2mm (×4)

※ This washer is only required for 2.6mm

root blade, such as RT-71, as well as the OMPHOBBY 71mm tail blades. RT-72 don’t require these.

M4X-71mm tail blade (×2)

Socket cap screw ( Thread

length 4mm) M2x12mm (×2)

M2 Nylon locknut

(×2)

Socket cap screw (Thread length 4mm) M2x12mm (×2)

Socket cap screw M3x18mm (×2)

M2 Nylon locknut (×2) M3 Nylon locknut (×2)

※ Properly tighten the main and tail rotor blades so that they

do not fall under their own weight, but are easy to move in the blade grips. Over-tightening may cause damage to the rotor blade and compromise flight safety.

※ Please make sure to only use precisely balanced tail rotor

blades from reputable manufacturers. The M4's tail rotor spins at very high RPM during flight, even slight imbalances in the tail blades can place high stress on the tail mechanics.

WWW.OMPHOBBY.COM

M4X-403

Installation steps 安装步骤

Page 20

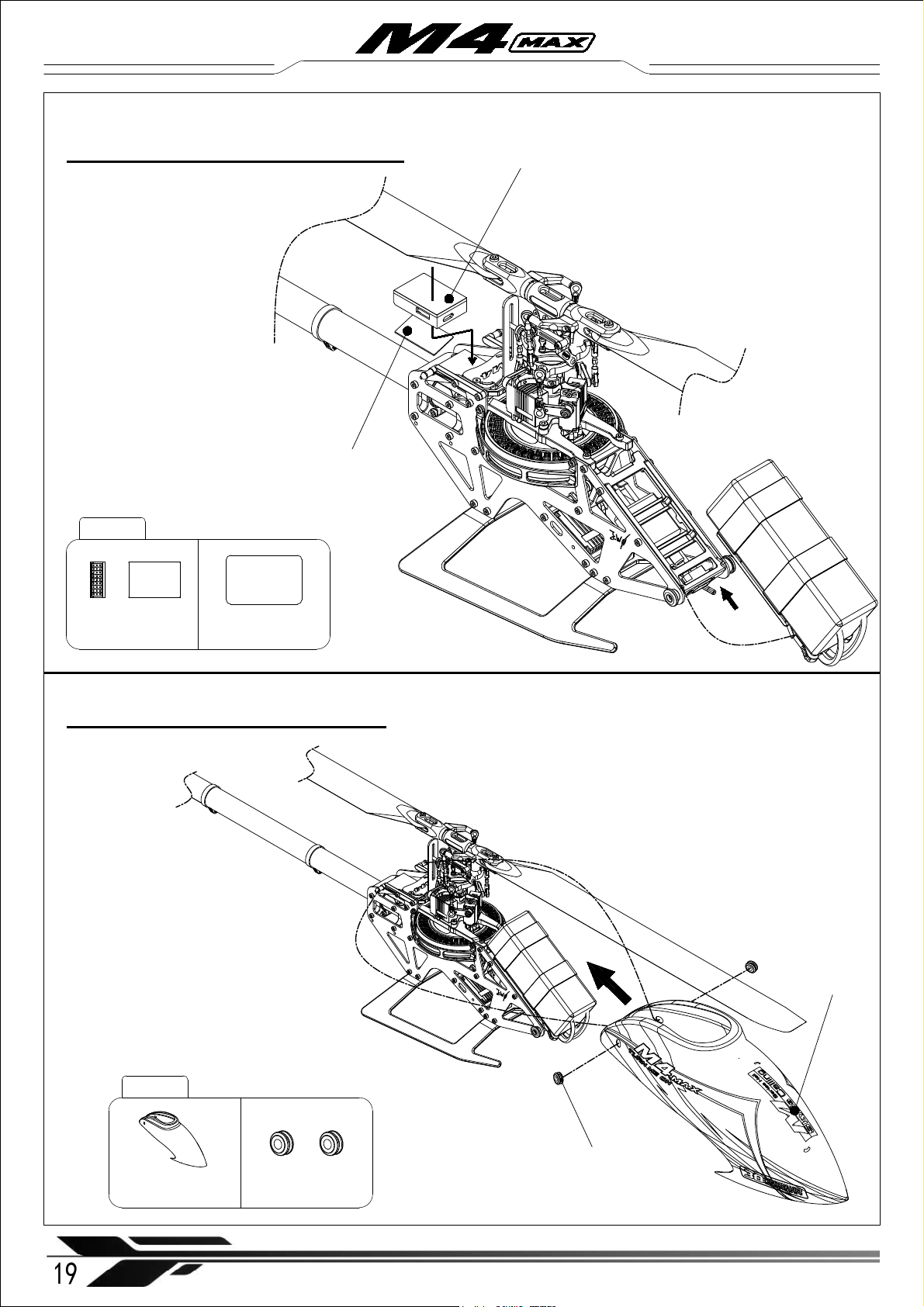

4-4 ESC, FC, Battery installation

FC (×1)

FC Mounting Pad (×1)

FC (×1)

Damping sticker (×1)

4-5 Canopy Installationallation

Canopy Rubber Grommet (×2)

Canopy (×1)

Canopy Rubber Grommet (×2)

※ Recommended battery weight: 310-360g

Possible max battery dimensions in mm:

35x40x160 35x43x140 35x46x130 35x48x120 35x50x110 35x53x90 35x55x70

M4X-404

M4X-405

WWW.OMPHOBBY.COM

Installation steps 安装步骤

Page 21

Operation settings 操作设置

Flying Style

Recommended RPM Range

Recommended Collective Pitch Range

Hovering

Low RPM 3D

Sport

Aerobatics

Soft 3D

Hard 3D

1400-1800RPM

1500-1900RPM

1600-1900RPM

2000-2300RPM

2300-2600RPM

2600-2850RPM

-5° +12°

±16°

±13°

Maximum Rotor Speed: 3000RPM

Maximum Collective Pitch below 1900RPM: ±16°

Maximum Collective Pitch below 2850RPM: ±13°

Maximum Collective Pitch above 2850RPM: ±12°

Recommended Rotor Blades: RotorTech 420mm Ultimate, OMPHOBBY APEX 420mm.

Collective pitch and rotor speed recommendations

WWW.OMPHOBBY.COM

X 30 Y 1050

X 50

Y1750

X 70 Y 2450

X 87.5 Y 3000

10 20 30 40 50 60 70 80 90 100

500

1000

1500

2000

2500

3000

3500

4000

Rotor Speed 1/min

Throttle %

Throttle vs Rotor Speed M4 RPM Limit Bailout Range

Legend

X 40 Y 1400

X 60 Y 2100

X 80 Y 2800

Tareq Alsaadi

3000RPM ±12°

Page 22

WWW.OMPHOBBY.COM

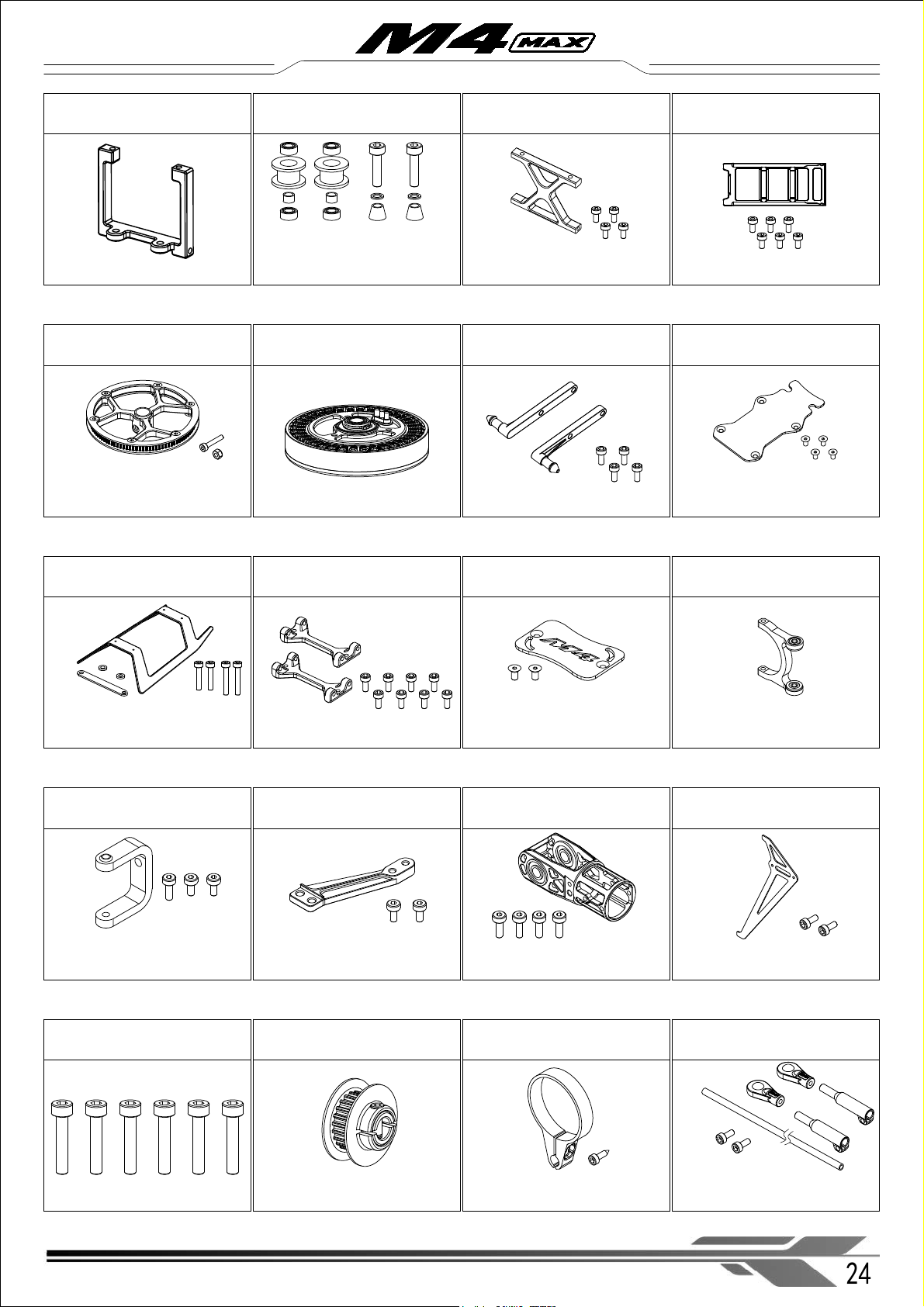

Spare parts Pack 跟机配件包

Spare parts Pack

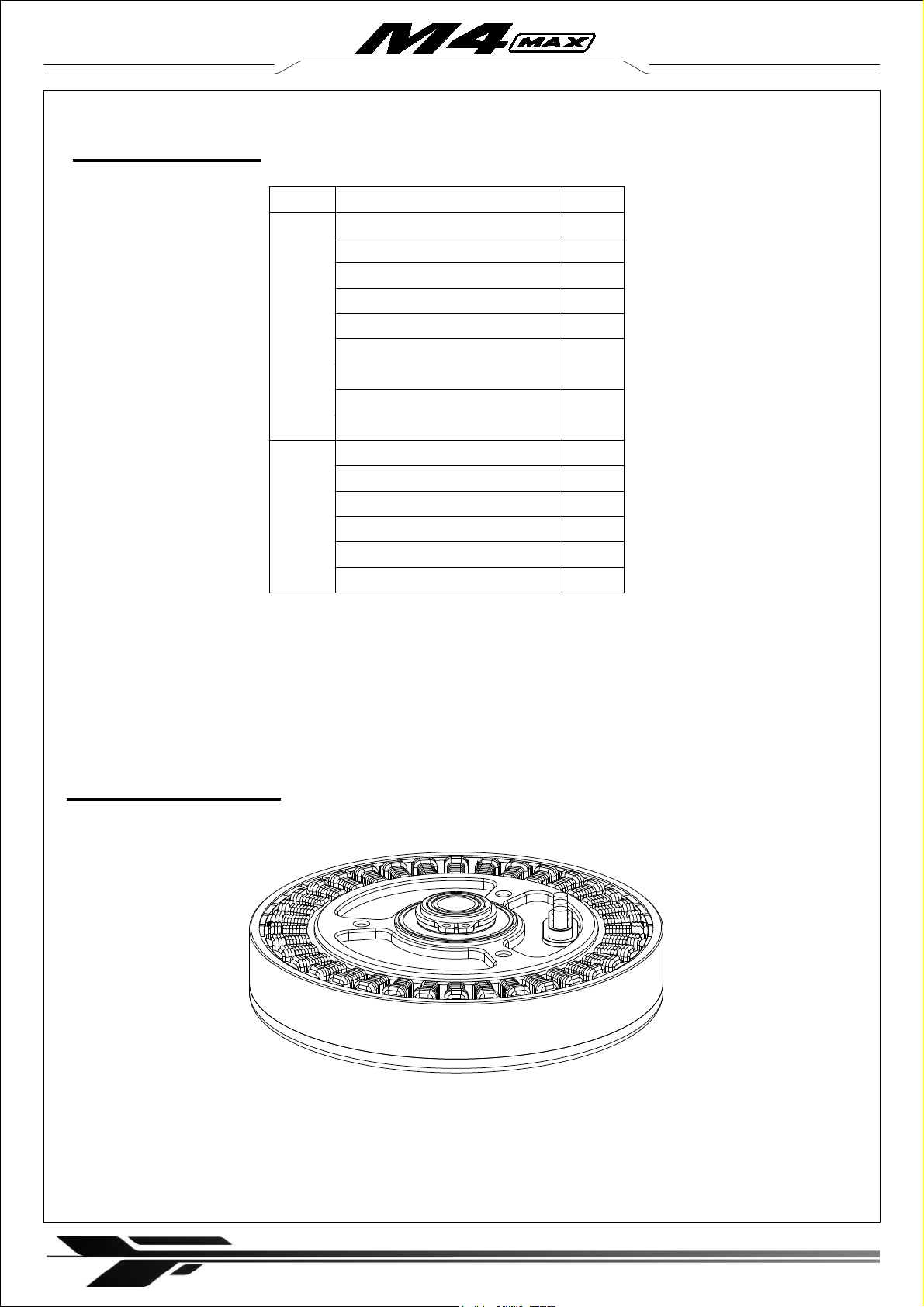

Motor specifications

Model

Socket cap screw M2x4mm Socket cap screw M2.5x5mm Socket cap screw M2.5x6mm Socket cap screw M2.5x8mm Socket cap screw M2.5x10mm

Countersunk head hexagon socket screw M2x3mm

Countersunk head hexagon socket screw M2.5x5mm

Washers Φ2xΦ4.3x0.5mm Washers Φ2xΦ8x0.2mm Washers Φ3xΦ4.5x0.2mm Washers Φ5xΦ6x0.5mm Washers Φ2xΦ3.2x0.5mm Washers Φ8.05xΦ10x0.2mm

Screw

Washers

Quantity

2 1 1

  P 

Page 23

WWW.OMPHOBBY.COM

Servo & Motor Spec 舵机与电机参数

Servo Spec

ESC 85A Specification

Continuous/Peak current

Input voltage

BEC

Input/output wire

Size/Weight

3-6S Lipo HV 6V/7.4V/8.4V, 10A

Black & Red 12AWG Silicon wire / Black 14AWG Silicon wire. 67x33x20mm / 66g

85A/120A

1. Throttle signal/BEC output wire (Black, Red, White): Plugs into the receiver throttle channel. The white wire carries the throttle signal, the red wire and

black wire carry the BEC voltage and ground.

2. RPM signal wire (Yellow): Plug into the RPM input port. (If applicable)

Throttle calibration procedure

Turn on the transmitter, move the throttle stick to the top possition.

Connect the battery to the ESC and wait for about 2 secs.

The motor will

beep for twice, then move the throttle stick to the bottom position in 2 Secs.

The motor will beep several sounds, sounds time presents the amount of the battery cells

When the motor emits "Beep...Beep", means the ESC is ready to work.

Wire Connections

(Important:Please make the throttle calibration for the first time using ESC!!!)

OMPHOBBY M4 Max Mini Tail Servo

Model

Working pulse length：

Connector： Servo Arm： Item： Operating Voltage： Dead Band： Stall Current

Operating Speed(no load)：

Torque： Stall Torque：

Weight

OMPHOBBY M4 Max Micro cyclic Servo

2312C 800-2200us 3P Dupont 25T

4.8V-8.4V

220mm 140 Deg

Spec

7.4V 2u

1.7A

0.073sec/60°

4.9kg.cm 9kg.cm

PWM max.333Hz

3515T 500-1000us 3P Dupont 5mm 25T

4.8V-8.4V

220mm 140 Deg

Spec

7.4V 2u

3.4A

0.051sec/60°

4.5kg.cm

9.5kg.cm 43g

PWM max.560Hz

2312T 500-1000us 3P Dupont 25T

4.8V-8.4V

220mm 140 Deg

Spec

7.4V 2u

1.7A

0.053sec/60°

3.5kg.cm 7kg.cm 21g

PWM max.560Hz

Operating Voltage：

Max Freq： Wire length：

Operation Angle：

OMPHOBBY M4 Micro Tail Servo

Operating Voltage：

Max Freq： Wire length：

Operation Angle：

Model

Working pulse length：

Connector： Servo Arm： Item： Operating Voltage： Dead Band： Stall Current

Operating Speed(no load)：

Torque： Stall Torque：

Weight

Model

Working pulse length：

Connector： Servo Arm： Item： Operating Voltage： Dead Band： Stall Current

Operating Speed(no load)：

Torque： Stall Torque ：

Operating Voltage：

Max Freq： Wire length：

Operation Angle：

Page 24

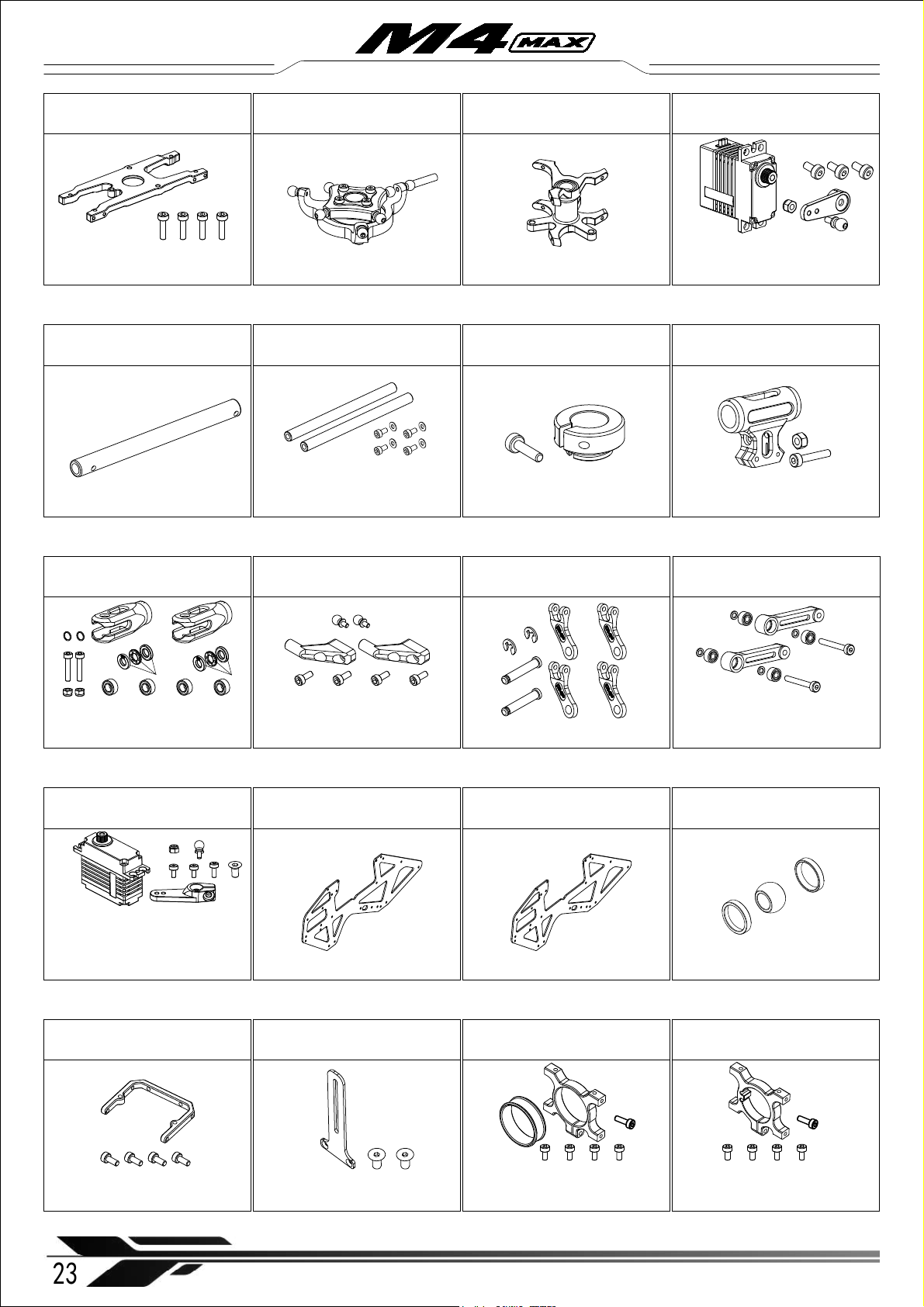

Bearing ∅5x∅10x4mm (×4) Thrust Bearing ∅5x∅10x4mm (×2)

Shim∅5x∅6x0.5mm (×2)

M3 Nylon locknut (×2) Socket cap screw M3x18mm (×2)

Socket cap screw M2.5x6mm (×2) Ball Joint Screw - L3 (×2)

Socket cap screw M2x16mm (×2) Shim ∅2x∅3.2x0.5mm (×4) Bearing ∅2x∅5x2.5mm (×4)

主轴限位环（黑色）

横轴

主旋翼固定座（黑色）

配件编号:

配件名称:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

Product name:

配件编号:

配件名称:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

Product name:

配件编号:

配件名称:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

Product name:

Feathering Shaft

Main Shaft Clamp（Black） Main Rotor Hub（Black）

主轴

配件编号:

配件名称:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

Product name:

Main Rotor Shaft

倾斜盘组（黑色）

舵机固定支架组（黑色）倾斜舵机组

配件编号:

配件名称:

OSHM4002B

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4002B

Product name:

配件编号:

配件名称:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

Product name:

配件编号:

配件名称:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

Product name:

Swashplate（Black）

Servo Mount（Black）

Cyclic Servo Set

主旋翼夹组（黑色）

主旋翼夹臂组（黑色）

倾斜盘支架组

螺距辅助臂组（黑色）

配件编号:

配件名称:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

Product name:

配件编号:

配件名称:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

Product name:

Main Rotor Grip Arm Set（Black）

配件编号:

配件名称:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

Product name:

Swashplate Driver Linkage Set

配件编号:

配件名称:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

Product name:

Swashplate Driver Arm Set（Black）

Main Rotor Blade Grip Set（Black）

OSHM4003B

OSHM4004

OSHM4008B

OSHM4007B

OSHM4006

OSHM4005

OSHM4009B

OSHM4010B

OSHM4011

OSHM4012B

Bearing ∅8x∅14x4mm (×2)

Socket cap screw M2.5x8mm (×1)

配件编号:

配件名称:

X飞机主固定板（黑色）

OSHM4X001

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X001

Product name:

X Main Plate（Black）

Socket cap screw M2.5x10mm (×4)

WWW.OMPHOBBY.COM

Accessories package 配件包

倾斜球固定座组

倾斜盘导向板安装座（黑色）

倾斜盘导向板

X尾管固定座（黑色）

X尾舵机组

配件编号:

配件名称:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

Product name:

X Tail Servo Set

配件编号:

配件名称:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

Product name:

Swashplate Spherical Ball Joint

配件编号:

配件名称:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

Product name:

Swashplate Guidance Mount（Black）

配件编号:

配件名称:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

Product name:

Swashplate Guidance Plate

配件编号:

配件名称:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

Product name:

X Tail Boom Mount（Black）

OSHM4X002

OSHM4015

OSHM4016B

OSHM4017

OSHM4X004

Socket cap screw M2.5x8mm (×4)

Socket cap screw M2.5x5mm (×4) Socket cap screw M2.5x8mm (×1)

X右机身侧板

配件编号:

配件名称:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

Product name:

X Right Main Frame

OSHM4X003R

X右机身侧板

配件编号:

配件名称:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

Product name:

X Left Main Frame

OSHM4X003L

Socket cap screw M3x6mm (×4)

Shim ∅3x∅6.5x0.5mm (×4)

Socket cap screw M2.5x15mm (×1) M2.5 Nylon locknut (×1)

Socket cap screw M2x4mm (×2) Socket cap screw M2.5x5mm (×1)

Countersunk head hexagon socket screw M3x6mm (×1)

Ball Joint Screw - L4.65 (×1)

M2 Nylon locknut (×1)

Countersunk head hexagon

socket screw M2.5x5mm (×2)

X尾管固定座凸（黑色）

配件编号:

配件名称:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

Product name:

X Tail Boom Mount convex（Black）

OSHM4X005

Socket cap screw M2.5x5mm (×4) Socket cap screw M2.5x8mm (×1)

Socket cap screw M2x4mm (×3) Ball Joint Screw - L4.65 (×1) M2 Nylon locknut (×1)

Page 25

张紧轮支架（黑色）

X皮带张紧轮组（黑色）

配件编号:

配件名称:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

Product name:

Square Frame Brace（Black）

配件编号:

配件名称:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

Product name:

X Idler Pulley Set（Black）

OSHM4019B

OSHM4X006

机身侧板支撑架（黑色）

配件编号:

配件名称:

OSHM4021B

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4021B

Product name:

X Frame Brace（Black）

WWW.OMPHOBBY.COM

Accessories package 配件包

电池导轨

X 主同步滑轮组（黑色）

飞控固定板

X脚架脚架固定座（黑色）

接收机垫板

尾变距推座（黑色）

X尾变距支撑座（黑色）尾波箱（黑色）

配件编号:

配件名称:

OSHM4022

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4022

Product name:

Battery Rail

配件编号:

配件名称:

OSHM4X007

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X007

Product name:

X Main Pulley 99t（Black）

配件编号: OSHM4026

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4026

Product name:

Flight Control Mounting Plate

配件编号: OSHM4X009

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X009

Product name:

X Landing skid

配件编号: OSHM4028B

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4028B

Product name:

Landing Skid Mount set（Black）

配件编号: OSHM4029

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4029

Product name:

Receiver Mounting Plate

配件编号: OSHM4030B

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4030B

Product name:

Tail Bellcrank（Black）

配件编号: OSHM4X010

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X010

Product name:

X Tail Bellcrank Base（Black）

配件编号:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

Product name:

配件编号: OSHM4X011

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X011

Product name:

Tail Case （Black）

配件名称:

配件名称: 配件名称: 配件名称: 配件名称:

配件名称: 配件名称: 配件名称:

8110动力电机

头罩安装柱

配件编号: OSHM4X008

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X008

Product name:

SUNNYSKY 8110

配件编号: OSHM4025

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4025

Product name:

Canopy Mounting Post

配件名称: 配件名称:

Socket cap screw M2.5x5mm (×6)

Socket cap screw M2.5x8mm (×4)

Socket cap screw M2.5x10mm (×2) Socket cap screw M2.5x12mm (×2)

Shim ∅2.6x∅5x1mm (×2)

Socket cap screw M2.5x5mm (×8)

X尾垂直翼

X尾同步滑轮（黑色） X 尾舵机连杆支撑座

配件编号: OSHM4X012

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X012

Product name:

X Tail Fin

配件编号: OSHM4X014

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X014

Product name:

X Tail Pulley 22t（Black）

配件编号: OSHM4X015

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X015

Product name:

X Tail Linkage Guide

配件名称:

配件名称: 配件名称:

Socket cap screw M2.5x5mm (×2)

X尾舵机连杆组

配件编号: OSHM4X016

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X016

Product name:

X Tail Linkage Rod Set

配件名称:

Bearing ∅3x∅6x2.5mm (×4)

Bushing ∅3x∅4x2.5mm (×2)

Shim ∅3.05x∅4.5x0.5mm (×2)

Socket cap screw M3x16mm (×2)

Socket cap screw M2.5x5mm (×4)

Countersunk head hexagon socket screw M2.5x5mm (×4)

Countersunk head hexagon socket screw M2.5x5mm (×2)

Flanged Bearing ∅2x∅6x3mm (×2)

Socket cap screw M2x6mm (×2) Socket cap screw M2.5x5mm (×1)

Socket cap screw M2x4mm (×2)

Socket cap screw M2.5x5mm (×4) Flanged Bearing ∅5x∅13x4mm (×2)

Screw M2x10.5mm (×1)

Self-tapping screws

M2x6mm (×1)

Socket cap screw M2.5x15mm (×1)

Countersunk head hexagon socket

screw M2x3mm (×12) M2.5 Nylon locknut (×1)

4.5 linkage ball set (M2.5) (×2) Socket cap screw M2x6mm (×2)

配件编号: OSHM4X033

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X033

Product name:

Socket cap screw M3x16mm

配件名称:

圆柱头内六角螺丝（半牙）M3x16mm

X尾变距连接摆臂

OSHM4X034

X Tail Bellcrank Arm

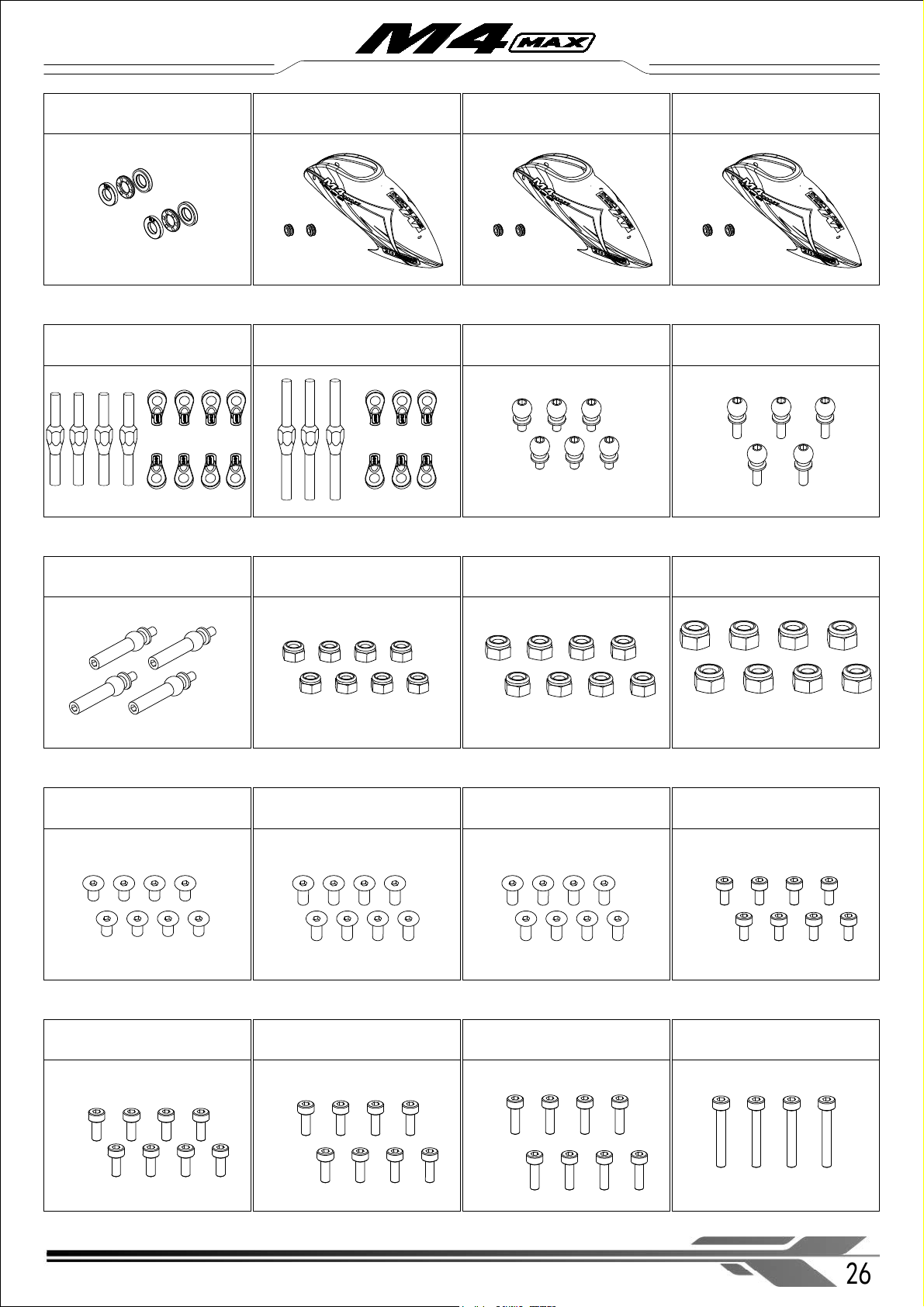

Page 26

WWW.OMPHOBBY.COM

Accessories package 配件包

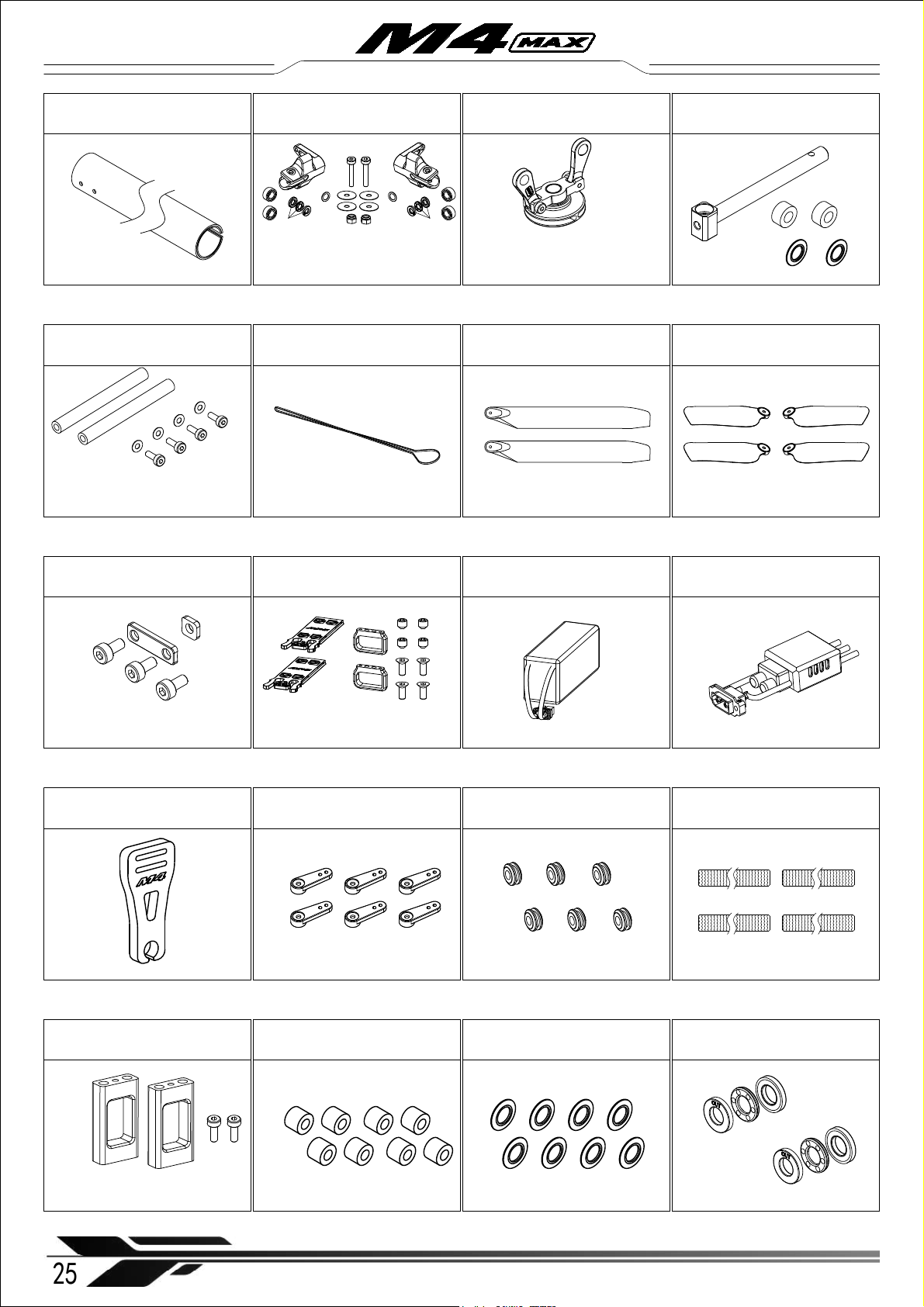

X尾管

配件编号: OSHM4X017

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X017

Product name:

X Tail Boom

配件名称:

X尾旋翼夹组（黑色）

尾变距滑动座组（黑色） X尾主轴

配件编号:

配件名称:

OSHM4X018

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X018

Product name:

X Tail Blade Grip Set（Black）

配件编号:

配件名称:

OSHM4042B

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4042B

Product name:

Tail Pitch Slider Set（Black）

配件编号:

配件名称:

OSHM4X019

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X019

Product name:

X Tail Rotor Shaft

尾中心座轴组

配件编号: OSHM4044

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4044

Product name:

Tail Spindle Shaft

配件名称:

420主旋翼 X 71mm尾旋翼桨

电池板组

6S 2000mAh HV电池

85A电调

电池扎带

尾舵机固定座（黑色）

舵机摆臂头罩固定圈

横轴避震套横轴松紧垫圈主旋翼夹止推轴承

配件编号: OSHM4X021

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X021

Product name:

420mm Main blade

配件编号: OSHM4X032

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X032

Product name:

X OMPHOBBY 71mm Tail blade

配件编号: OSHM4048

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4048

Product name:

Battery Tray Set

配件编号: OSHM4049

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4049

Product name:

6S 2000mAh HV Battery

配件编号: OSHM4X023

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X023

Product name:

85A ESC

配件编号: OSHM4052

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4052

Product name:

Servo Arm Set

配件编号: OSHM4053

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4053

Product name:

Canopy mount set

配件编号: OSHM4054

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4054

Product name:

Battery Velcro Strap Set

配件编号: OSHM4055B

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4055B

Product name:

Tail Servo Mount Set（Black）

配件编号: OSHM4056

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4056

Product name:

Main Rotor Damper Set

配件编号: OSHM4057

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4057

Product name:

Feathering Shaft Damper Spacer

配件编号: OSHM4058

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4058

Product name:

Main Rotor Thrust Bearing

配件名称: 配件名称:

配件名称: 配件名称: 配件名称:

配件名称: 配件名称: 配件名称: 配件名称:

X同步皮带

配件编号: OSHM4X020

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X020

Product name:

X Timing Belt

配件名称:

X 桨托

配件编号: OSHM4X035

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X035

Product name:

X Blade Caddy

配件名称:

Socket cap screw M2.5x5mm (×2)

Socket cap screw M2x6mm (×4)

Shim ∅2x∅4.5x0.2mm (×4)

X尾管垫片

配件编号: OSHM4X022

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X022

Product name:

X Tail Boom Washer

配件名称:

Socket cap screw M2.5x5mm (×3)

Bearing ∅3x∅6x2.5mm (×4) Thrust Bearing ∅3x∅6x2.8mm (×2) Shim ∅3x∅4.5x0.2mm (×2) Shim ∅2x∅8x0.2mm (×4)

M2 Nylon locknut (×2)

Socket cap screw M2x12mm (×2)

Bearing ∅6x∅10x3mm (×2) Shim ∅6x∅7x1mm (×1)

Socket cap screw M2x6mm (×2)

Tail Slider Joint Bushing ∅2x∅3x3mm (×1)

Countersunk head hexagon socket screw M2x6mm (×6) Set Screw M3x3mm (×6)

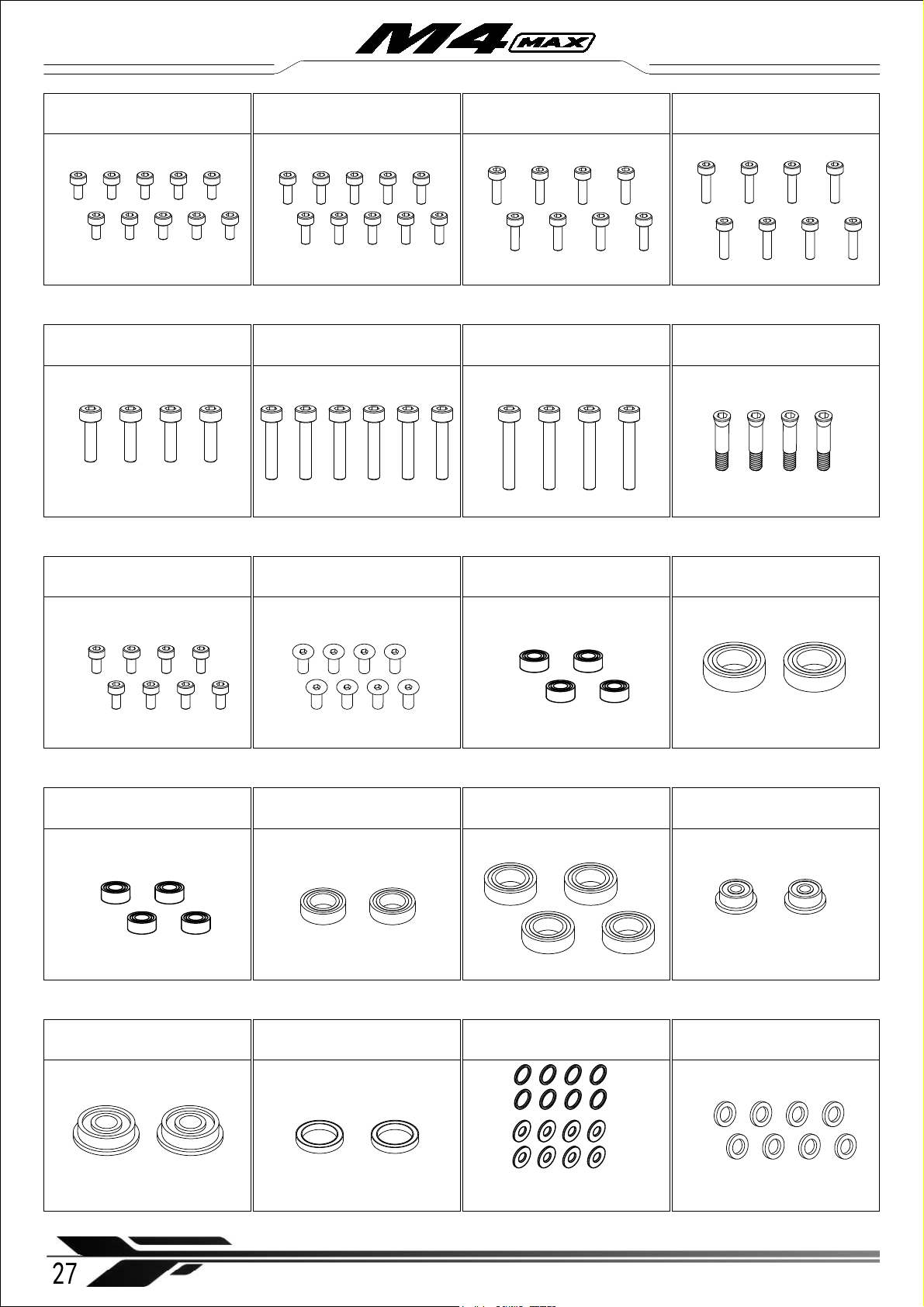

Page 27

WWW.OMPHOBBY.COM

Accessories package 配件包

尾旋翼夹止推轴承

配件编号: OSHM4059

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4059

Product name:

Tail Rotor Thrust Bearing

配件名称:

X头罩（绿）

配件编号:

配件名称:

OSHM4X024G

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X024G

Product name:

X Canopy-Green

M2尼龙防松螺母

沉头内六角螺丝M2x6mm 沉头内六角螺丝M2.5x5mm

M2.5尼龙防松螺母 M3尼龙防松螺母

沉头内六角螺丝M2x3mm

圆柱头内六角螺丝M2x4mm

圆柱头内六角螺丝M2x6mm 圆柱头内六角螺丝（半牙）M2.5x8mm

配件编号: OSHM4063

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4063

Product name:

Main Rotor Linkage Set

配件编号: OSHM4064

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4064

Product name:

Ball Joint Screw - L3 (Rotors)

配件编号: OSHM4065

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4065

Product name:

Ball Joint Screw - L4.65 (Servos)

配件编号: OSHM4066

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4066

Product name:

Swashplate Guidance Ball Joint Screw

配件编号: OSHM4067

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4067

Product name:

M2 Nylon locknut

配件编号: OSHM4068

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4068

Product name:

M2.5 Nylon locknut

配件编号: OSHM4069

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4069

Product name:

M3 Nylon locknut

配件编号: OSHM4070

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4070

Product name:

Countersunk head hexagon socket screw M2x3mm

配件编号: OSHM4071

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4071

Product name:

Countersunk head hexagon socket screw M2x6mm

配件编号: OSHM4072

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4072

Product name:

Countersunk head hexagon socket screw M2.5x5mm

配件编号: OSHM4073

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4073

Product name:

Socket cap screw M2x4mm

配件编号: OSHM4074

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4074

Product name:

Socket cap screw M2x6mm

配件编号: OSHM4075

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4075

Product name:

Socket cap screw M2.5x8mm

配件名称: 配件名称: 配件名称:

配件名称: 配件名称: 配件名称: 配件名称:

配件名称: 配件名称:

配件编号: OSHM4062

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4062

Product name:

Servo Linkage Set

配件名称:

圆柱头内六角螺丝(螺纹长4mm) M2x12mm

配件编号: OSHM4076

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4076

Product name:

Socket cap screw(Thread length 4mm) M2x12mm

配件名称:

圆柱头内六角螺丝M2x16mm

配件编号: OSHM4077

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4077

Product name:

Socket cap screw M2x16mm

配件名称:

主旋翼连杆球头螺丝-L3

舵机连杆组

球头螺丝-L4.65

倾斜盘相位球头螺丝

X头罩（橙）

配件编号:

配件名称:

OSHM4X024O

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X024O

Product name:

X Canopy-Orange

X头罩（红）

配件编号:

配件名称:

OSHM4X024R

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X024R

Product name:

X Canopy-Red

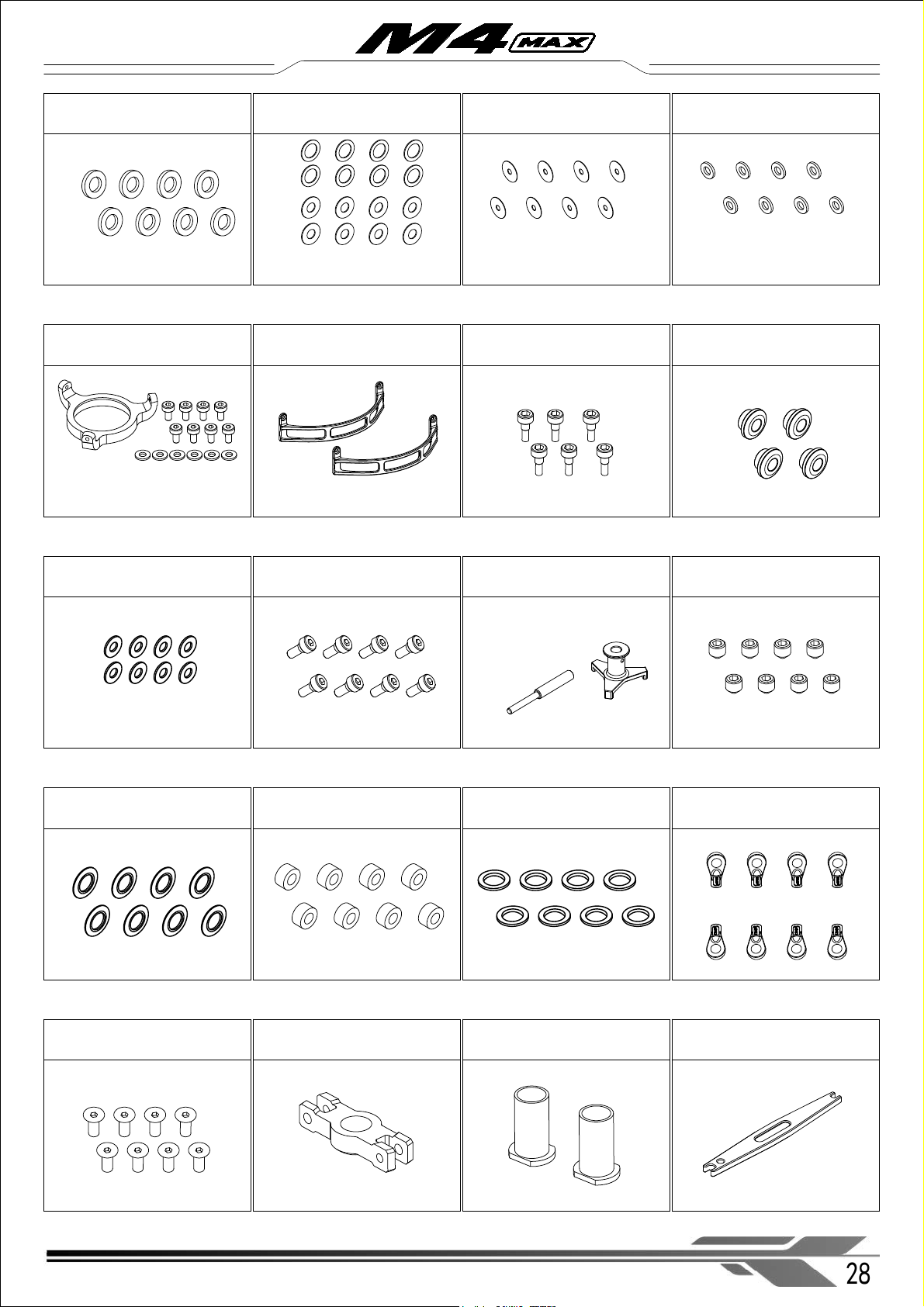

Page 28

WWW.OMPHOBBY.COM

Accessories package 配件包

圆柱头内六角螺丝M2.5x5mm

圆柱头内六角螺丝M2.5x6mm 圆柱头内六角螺丝M2.5x8mm

配件编号:

配件名称:

OSHM4078

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4078

Product name:

Socket cap screw M2.5x5mm

配件编号:

配件名称:

OSHM4079

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4079

Product name:

Socket cap screw M2.5x6mm

配件编号:

配件名称:

OSHM4080

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4080

Product name:

Socket cap screw M2.5x8mm

轴承Ø2xØ5x2.5mm

法兰轴承Ø5xØ13x4mm 轴承Ø20xØ27x4mm

轴承Ø5xØ10x4mm 轴承Ø6xØ10x3mm 法兰轴承Ø2xØ6x3mm

垫片(主旋翼夹) 垫片(螺距辅助臂)

配件编号: OSHM4083

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4083

Product name:

Socket cap screw M3x14mm

配件编号: OSHM4084

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4084

Product name:

Socket cap screw M3x18mm

配件编号: OSHM4085

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4085

Product name:

Bearing Ø3xØ6x2.5mm

配件编号: OSHM4086

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4086

Product name:

Bearing Ø8xØ14x4mm

配件编号: OSHM4087

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4087

Product name:

Bearing Ø2xØ5x2.5mm

配件编号: OSHM4088

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4088

Product name:

Bearing Ø5xØ10x4mm

配件编号: OSHM4089

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4089

Product name:

Bearing Ø6xØ10x3mm

配件编号: OSHM4090

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4090

Product name:

Flange bearing Ø2xØ6x3mm

配件编号: OSHM4091

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4091

Product name:

Flange bearing Ø5xØ13x4mm

配件编号: OSHM4092

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4092

Product name:

Bearing Ø20xØ27x4mm

配件编号: OSHM4093

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4093

Product name:

Washers (Main Blade Grip Set )

配件编号: OSHM4094

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4094

Product name:

Washers (Swashplate Driver Arm)

配件名称: 配件名称:

配件名称: 配件名称: 配件名称: 配件名称:

圆柱头内六角螺丝M2.5x10mm

配件编号: OSHM4081

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4081

Product name:

Socket cap screw M2.5x10mm

配件编号: OSHM4082

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4082

Product name:

Socket cap screw M3x6mm

配件名称:

圆柱头内六角螺丝（半牙）M3x14mm 圆柱头内六角螺丝（半牙）M3x18mm

圆柱头内六角螺丝M3x6mm

轴承Ø3xØ6x2.5mm 轴承Ø8xØ14x4mm

Shim ∅3x∅6.5x0.5mm (×8) Shim ∅5x∅6x0.5mm (×8)

Shim ∅2x∅3.2x0.5mm (×8)

刀杆螺丝 M2x10.5mm

配件编号:

配件名称:

OSHM4X025

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X025

Product name:

Screw M2x10.5mm

圆柱头内六角螺丝M1.6x3mm

配件编号:

配件名称:

OSHM4X026

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X026

Product name:

Socket cap screw M1.6x3mm

配件编号:

配件名称:

OSHM4X027

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X027

Product name:

沉头内六角螺丝M3x6mm

Countersunk head hexagon socket screw M3x6mm

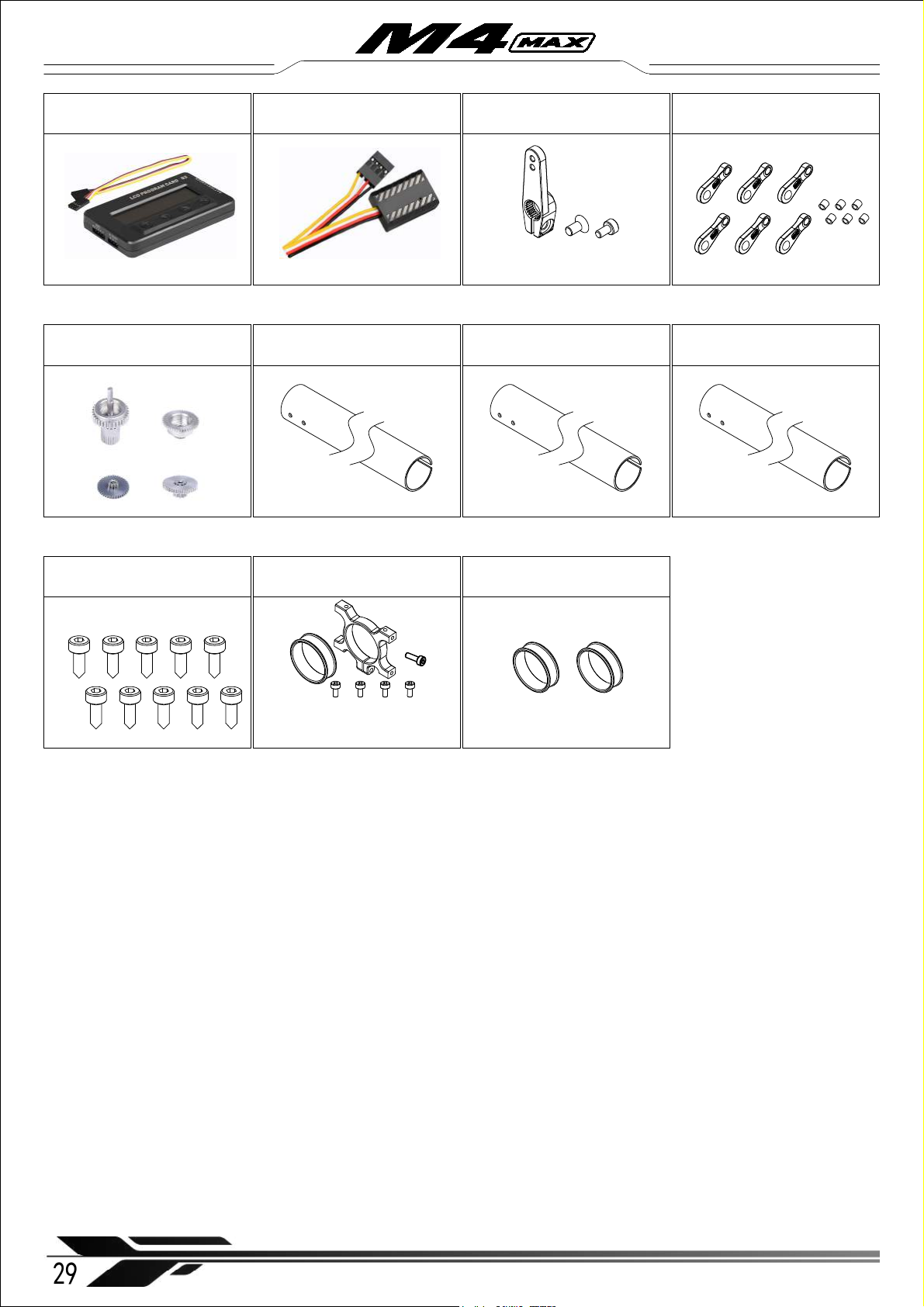

Page 29

WWW.OMPHOBBY.COM

Accessories package 配件包

垫片(倾斜盘)

配件编号: OSHM4095

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4095

Product name:

Washers (Swash plate)

配件名称:

垫片(尾旋翼夹)

配件编号: OSHM4096

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4096

Product name:

Washers (Tail Blade Grip Set )

配件名称:

Shim ∅2x∅4.3x0.5mm (×8)

Shim ∅2x∅4.5x0.2mm (×8) Shim ∅3x∅4.5x0.2mm (×8)

垫片(2.6mm尾桨垫片)

配件编号: OSHM4097

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4097

Product name:

Washers (2.6mm Tail Blade Spacers)

配件名称:

Shim ∅2x∅8x0.2mm (×8)

倾斜盘外壳（黑色）

配件编号:

配件名称:

OSHM4098B

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4098B

Product name:

Swashplate ring（Black）

电机保护套

配件编号: OSHM4101

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4101

Product name:

Motor protective sleeve

配件编号: OSHM4102

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4102

Product name:

Tail Bellcrank Pin M2.5x7x2

配件名称: 配件名称:

尾变距销M2.5x7x2

Socket cap screw M2x4mm (×8)

Shim ∅2x∅4.3x0.5mm (×6)

配件编号: OSHM4105

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4105

Product name:

Step socket cap screw M2.5x6mm

配件名称:

台阶圆柱头内六角M2.5x6mm

配件编号: OSHM4103

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4103

Product name:

Canopy grommet

配件名称:

头罩垫圈

配件编号: OSHM4104

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4104

Product name:

Washers (Canopy grommet)

配件名称:

垫片（头罩垫圈）

Shim ∅2.5x∅5x0.5mm (×8)

配件编号: OSHM4107

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4107

Product name:

Leveling limiter

配件名称:

调平器组

配件编号: OSHM4108

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4108

Product name:

Set Screw M3x3mm

配件名称:

紧定螺丝 M3x3mm

配件编号: OSHM4109

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4109

Product name:

Tail Damper Shim

配件名称:

尾横轴松紧垫圈

配件编号: OSHM4110

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4110

Product name:

Tail Rubber Damper Shore

配件名称:

尾横轴避震套

配件编号: OSHM4111

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4111

Product name:

Washers (Idler Pulley Set)

配件名称:

垫片（皮带张紧轮组）

Shim ∅3.05x∅4.5x0.5mm (×8)

配件编号: OSHM4112

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4112

Product name:

Universal Ball Joint

配件名称:

4.5连杆球头座

配件编号: OSHM4113

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4113

Product name:

配件名称:

沉头内六角螺丝M2.5x6mm

Countersunk head hexagon socket screw M2.5x6mm

配件编号: OSHM4114B

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4114B

Product name:

配件名称:

尾部滑块桥（黑色）

Tail Slider Bridge（Black）

配件编号: OSHM4115

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4115

Product name:

配件名称:

尾部滑块套筒

Tail Slider Sleeve

配件编号: OSHM4116

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4116

Product name:

配件名称:

拉杆调平扳手

Rod adjustment wrench

垫片(X尾垂直翼)

配件编号: OSHM4X028

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X028

Product name:

Washers (X Tail Fin)

配件名称:

Shim ∅2.6x∅5x0.7mm (×8)

Page 30

WWW.OMPHOBBY.COM

Accessories package 配件包

配件编号: OSHM4119

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4119

Product name:

配件名称:

中舵金属摆臂

Mid servo metal arm

Socket cap screw M2.5x5mm (×1)

Countersunk head hexagon socket screw M3x6mm (×1)

配件编号: OSHM4120

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4120

Product name:

Tail Slider Joint Arm

配件名称:

尾滑块球头座

配件编号: OSHM4117

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4117

Product name:

配件名称:

电调编程卡

ESC LCD program card

配件编号: OSHM4118

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4118

Product name:

配件名称:

蓝牙编程卡

BlueTooth program Module

配件编号: OSHM4124

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4124

Product name:

20g tail servo gear

配件名称:

20g 斜舵机齿轮组

圆柱头内六角自攻牙M2x6

配件编号: OSHM4X037

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X037

Product name:

Self-tapping screws M2x6mm

配件名称:

X铝尾管（绿）

配件编号: OSHM4X036

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X036

Product name:

X Aluminum Tail Boom-Green

配件名称:

X铝尾管（橙）

配件编号: OSHM4X036

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X036

Product name:

X Aluminum Tail Boom-Orang

配件名称:

X铝尾管（红）

配件编号: OSHM4X036

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM4X036

Product name:

X Aluminum Tail Boom-Red

配件名称:

X铝尾管固定座（黑色）

配件编号:

配件名称:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

Product name:

X Aluminum Tail Boom Mount（Black）

OSHM4X038

X铝管固定座胶垫（POM）

配件编号:

配件名称:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

Product name:

X Aluminum Tube Mounting Pad（POM）

OSHM4X039

Socket cap screw M2.5x5mm (×4) Socket cap screw M2.5x8mm (×1) X Aluminum Tube Mounting Pad（POM）

Page 31

2023

www.omphobby.com

Zhuhai edge smart drive technology Co., Ltd
