INSTRUCTION MANUAL
使用说明书
Thank you for buying OMP HOBBY
products.The M2 is the
latest technology in Rotary RC mldels.Please read this manual
carefully before assembling and flying the New M2
helicopter.
We recommend that you keep this manual for future reference
regarding and maintenance
感谢您选用边锋智驱系列产品。
进入遥控世界前必须告诉您许多相关的知识与注意事项，以确保您能够在学
习的过程中较得心应手。在开始操作之前，请务必详细阅读本说明书，相信
一定能够给您带来相当大的帮助，也请您妥善保管这本说明书，以作为日后
参考。
#1 BY DESIGN
Page 2
2
遥控模型飞机、直升机属于高危险性商品，飞行时务必远离人群，人为组装不当或机件损坏，电子控制设备不良，以及操控上的不熟悉、都有可能导致
飞行失控损伤等不可预期的意外，请飞行者务必注意飞行安全，并需了解自负疏忽所造成的任何意外之责任。
Fly only in safe areas,away from other people. Do not operate R/C aircraft within the vicinity of homes or crowds of people .R/C aircraft are prone to
accidents,failures,and crashes due to a variety of reasons including,lack of maintenance,pilot error, and radio interference. Pilots are responsible for their
actions and damage or injury occurring during the poeration or as of a result of R/C aircraft models.
SAFETY NOTES 安全注意事项
模型商品属于需高操作技术且为消耗性之商品，如经拆装使用后，会造成不等情况零件损耗，任何使用情况所造成的商品不良或不满意，将无发于
保固条件内更换新品或者退货，如遇有使用操作维修问题，本公司全球分公司或者代理商将提供技术指导，特价零件供应服务。
遥控直升机并非玩具，它是结合了许多高科技产品所设计出来的休闲用品，所以商品的使用不当或者不熟悉都可能会造成严重伤害甚至死亡，
使用之前请务必详细阅读本说明书，勿轻忽并注意自身安全。
注意！任何遥控直升机的使用，制造商和经销商是无法对使用者于零件使用的损耗异常或组装不当所发生之意外负责任何责任，本产品是提供给
有操作过模型直升机经验的成人或者有相当技术的人员在旁指导于当地合法遥控飞行场飞行，以确保安全无误下操作使用，产品售出后该公司将
不负责任何操作和使用控制上的任何性能与安全责任。
We recommend that you obtain the assistance of an experienced pilot before attempting to fly our products for the first time, A lcoal expert is the best
way to properly assmble , setup, and fly your mldel for the first time .M2 Helicopter requires a certain degree of skill to operate, and is a consumer
item. Any damage or dissatisfaction as a result or accidents or modifications are not covered by any warrantee and cannot be returned for repair or
replacement. Please contact our distributors for free technical consultation and parts at discounted rates when you experience problems during
operation or maintenance.
R/C helicopters, including The M2 are not toys.R/C helicopter utilize various high-tech products and technologies to provide superior
performance.lmproper use of this product can result in serious injury or even death. Please read this manual carefully before using and make sure to
be conscious of your own personal safety and the safety of others and your environment when operating allOMPHOBBY products.
Manufacturer and seller assume no liability for the operation or the use of this product . lntended for use only by adults with experience flying remote
control helicopters at a legal flying field. After the sale of this product we cannot maintain any control over its operation or usage.
IMPORTANT NOTES 重要声明
Do not attempt under any circumstances
在任何禁止的环境下，请勿尝试操作。
Mishandling due to failure to follow these instructions may result in danger.
因为疏忽这些操作说明，而使用错误可能造成危险。
因为疏忽这些操作说明，而使用错误可能造成财产损失或严重伤害。
Mishandling due to failure to follow these instructions may result in damage or injury.
WARNING LABEL LEGEND 标志代表含义
感谢您选购边锋智驱公司产品，为了你容易方便使用
直升机，请您详细的阅读完这本说明书之后再进行组装以及操作这台直升机，同时请您妥
善保存这本说明书，作为日后进行调整以及维修的参考。
The M2 is a new product developed by OMPHOBBY. lt features the best design available on the Micro-Heli market to date, providing flying stability for
beginners,full aerobatic capbility for advanced fliers, and unsurpassed reliability for customer support.
Thank you for buying OMPHOBBY Products. The M2 Helicopter is designed as an easy to use,full featured Helicopter R/C model capable of all forms
of rotary flight. Please read the manual carefully before assembling the model, and follow all precautions and recommendations located within the
manual. Be sure to retain the manal for future reference, routine maintenance, and tuning.
INTRODUCTION 前言
WARNING
警告
!
!
注意
CAUTION
禁止
FORBIDDEN
!
注意
CAUTION
EN
是由边锋智驱有限公司自行研发的新产品，不论您是需求飞行稳定的初学者还是追求性能卓越的飞行爱好者。 将是您最佳的选择。
WWW.OMPHOBBY.COM
Page 3
Beer

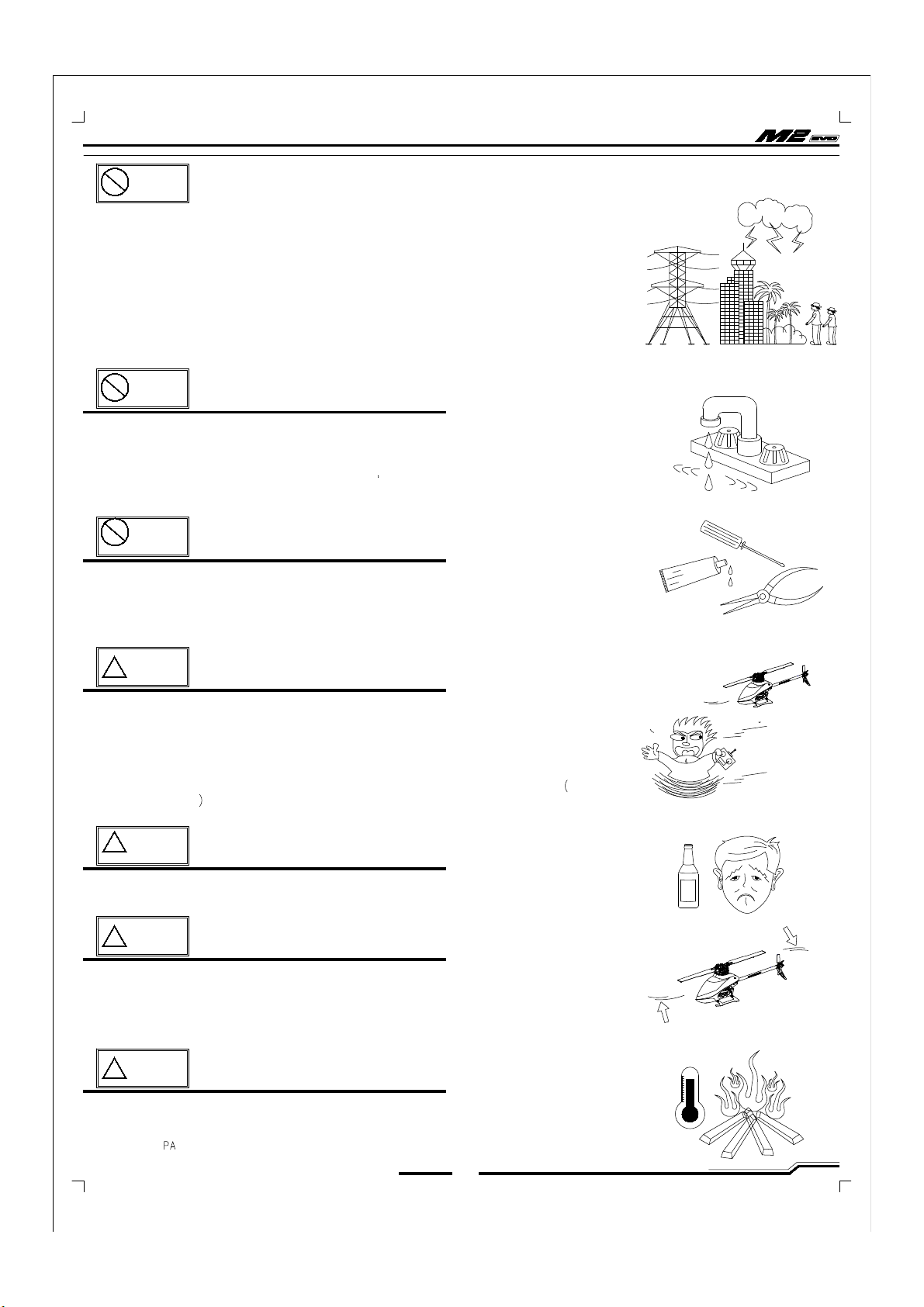

请于自己能力内及需要一定技术范围内操作这台直升机，过于疲劳，精神不佳或不当操作，意外发生风险将可能会提高。
Operate this unit within your ability.Do not fly under tired condition and improper operation may cause in danger
ALWAYS BE AWARE OF THE ROTATING BLADES 远离运转中的零件
SAFE OPERATION 安全操作
R/C models are made of various forms of plastisc.Plastic is very susceptible to damage or deformation due to extreme heat and clod climate .Make
sure not to store the model near any source of heat such as an oven,or heater.lt is best to store the model indoors ,in a climate-controlled,room
temperature environment.
KEEP AWAY FROM HEAT 远离热源
遥控飞机多半是以 纤维或聚乙烯、电子商品为主要材质，因此要尽量远离热源、日照、以避免因高温而变形甚至熔毁损坏的可能。
当直升机主旋翼与尾旋翼运转时，切勿触摸并远离任何物件，以避免造成危险及损坏。
During the operation of the helicopter,the main rotor and tail rotor will be spinning at a high rate of speed .The blades are capable of inflicting
serious bodily injury and damage to the environment.Be conscious of your actions,and careful to keep your face,eyes,hands,and loose clothing
away from the blades.Always fly the model a safe distance from yourself and others,as well as surrounding objects.Never take your eyes off the
model or leave it unattended while it is turned on.Immediately turn off the model and transmitter when you have landed model.
(Recommend you to practice with computer-based flight simulator.)
避免独自操控
至飞行场地前，需确认是否有相同频率的同好正在飞行，因为开启相同的频率的发射机将导致自己与他人立即干扰等意外危险。
The guidance provided by an experienced pilot will be invaluable for the assembly,tuning,trimming,and actual first flight.
Before turning on your model and transmitter,check to make sure no one else is operating on the same frequency.Frequency interference can
cause your model,or other models to crash.
OBTAIN THE ASSISTANCE OF AN EXPERIENCED PILOT
遥控飞机操控技巧在学习初期有着一定的难度，要尽量避免独自操作飞行，需有经验的人士在旁指导，才可以操控飞行。 勤练电脑模拟器及
老手指导是入门必要的选择
请确认于产品限界内操作，请勿过载使用，并勿用于安全、法令外其他非法用途。
PREVENT OPETATION 勿不当使用本产品
Please use the replacement of parts on the manual to ensure the safety of instructors.
This product is for R/C model,so do not use for other purpose.
请勿自行改造加工，任何的升级改装或维修，请使用三源电子科技产品目录中的零件，以确保结构的安全。
直升机内部也是由精密的电子零件组成，所以必须绝对的防止潮湿或水气 避免在浴室或雨天时使用，防止水气进入机身内部而导致机件及电
子零件故障而引发不可预期的意外！
It is crtical to keep the model and associated equipment away from moisture and other contaminants.The introduction or exposure to water or
moisture in any form can cause the model to malfuntion resulting in loss of use,or a crash .Do not operate or expose to rain or moisture
R/C models are composed of many precision electrical components.
PREVENT MOISTURE 远离潮湿环境
For the first practice,please choose a legal flying field and can use a training skid to fly for reducing the damage .Do not fly your model in
inclement weather,such as rain,wind snow or darkness.
Do not fly near buildings,high voltage cables ,or trees to ensure the safety of yourself,others and your model.
初次练习时，务必选择在空旷合法专属飞行场地并适当搭配练习架飞行，这对于飞行失误所造成的损伤将会大幅的降低。请勿在下雨天、打雷
等恶劣天气下操作，以确保本身及机体的安全。
必须注意周边有没有人、高楼、建筑物、高压电线、树木等等、避免操控的不当造成自己或与他人的财产损坏。
LOCATE AN APPROPRIATE LOCATION 远离障碍物及人群
R/C helicopters fly at high speed ,thus posing a certain degree of potential danger .Choose a legal flying field consisting of flat,smooth groumd
without obstacles.
直升机飞行时具有一定的速度，相对的也潜在着危险性，场地的选择也相对的重要，请遵守当地的法律法规到合法的遥控飞行场地去飞行。
禁止
FORBIDDEN
禁止
FORBIDDEN
禁止
FORBIDDEN
WARNING
警告
!
WARNING
警告
!
!
注意
CAUTION
!
注意
CAUTION
3
EN
WWW.OMPHOBBY.COM
Precautions before use 使用前须知
Page 4
六角螺丝起子
十字螺丝起子

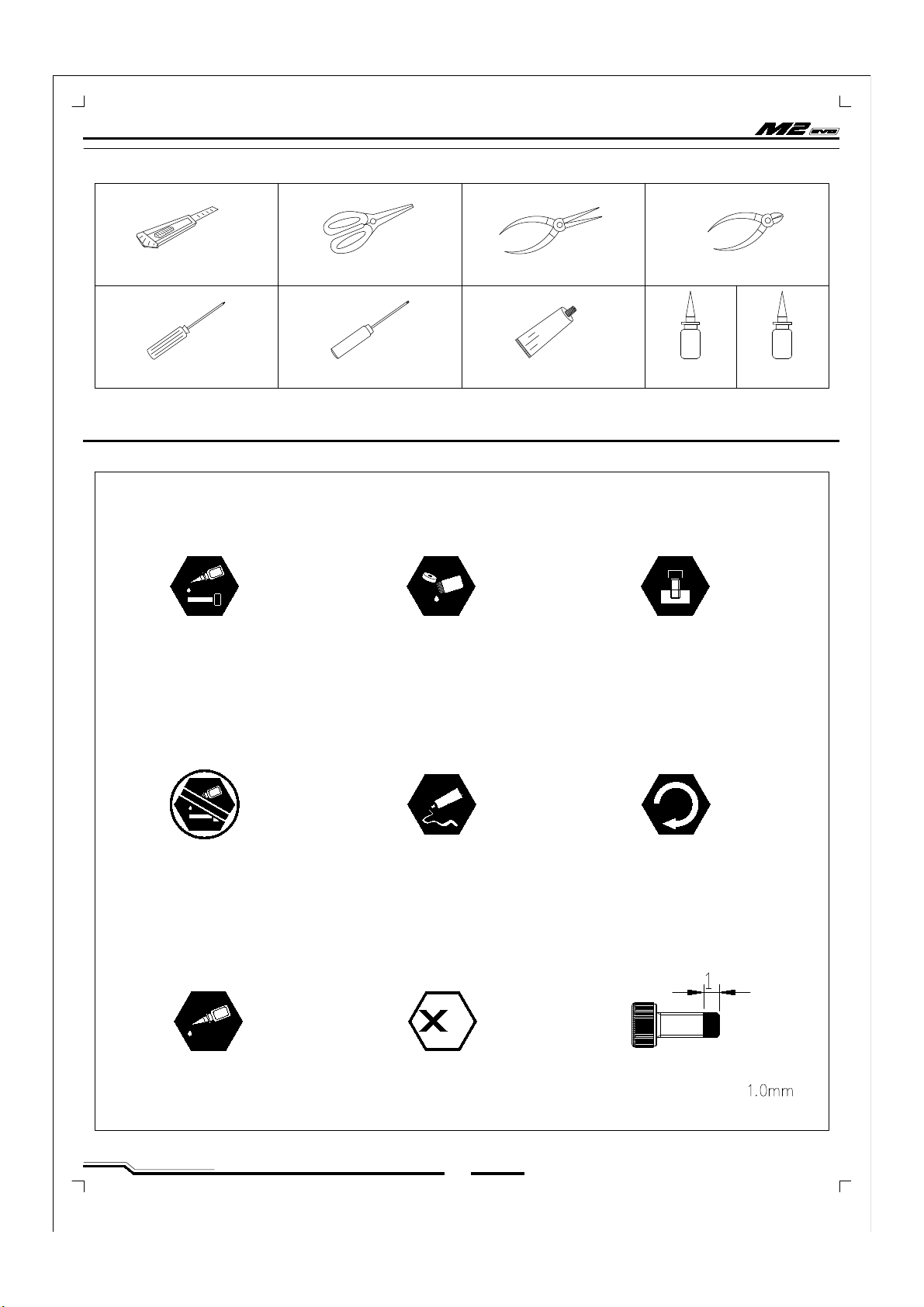

When you see the marks as below,please use glue or greae to ensure flying safety.
剪刀
Scissors
刀子
Cutter Knife
斜口钳
Diagonal Cutting Pliers
尖嘴钳
Needle Nose Pliers
BLUE Glue width:approx 1mm
AB Glue AB胶CA瞬间胶
Oil润滑油
Hexagon Screw DriverPhilips Screw Drive
EQUIPMENT REQUIRED FOR ASSEMBLY 自备工具
胶水使用方法
2
Gr
ease
Repeat Multiple Times
Apply BLUE Threadlock
Apply Petroleum-Based,
Light Viscosity Lube
Loosely Tighten
Apply NO Threadlock
Apply Synthetic
Grease
Fully Tighten
Apply MEDIUM CA
4
EN
WWW.OMPHOBBY.COM
标有以下符号之组装步骤，请配合上胶或上油，以确保使用之可靠度。
使用螺丝胶
添加润滑油
普通拧紧
使用瞬间胶固定
重复多次
无需使用螺丝胶
添加润滑油脂
完全拧紧
蓝色螺丝胶上胶宽度约
Page 5

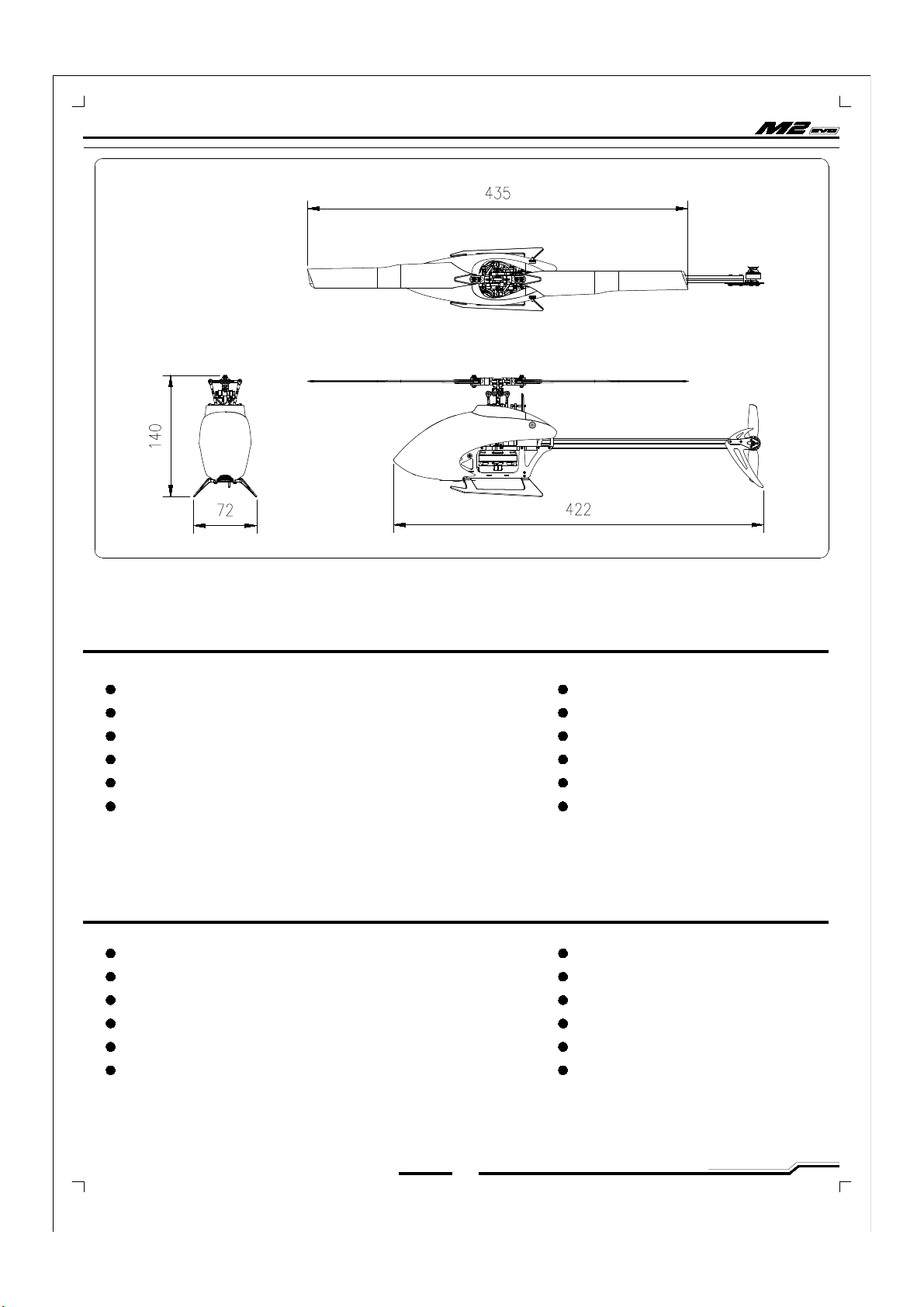

Specifications 参数规格
Lenght：422mm
Specifications 参数配备
Height：140mm
Main Blade：190mm
Main Rotor Diameter：434mm
Tail Rotor Diameter：88.9mm
Flying Weight：345g
Features 设计特点
5
EN
WWW.OMPHOBBY.COM
Direct drive main and tail rotor design with dual brushless motor
All metal 7075 aluminum alloy material flybarless head design
Airframe all carbon fiber lightweight design
Streamlined low wind resistance hood design
4 in 1 OFS control system
Attitude stabillization mode and 3D lock mode switch freely
机身长：422mm
机身高：140mm
主旋翼长度：190mm
主旋翼直径：434mm
尾旋翼直径：88.9mm
起飞重量约：345g
采用双无刷电机直接驱主尾旋翼设计
全金属7075铝合金材质无副翼旋翼头设计
机身全碳纤维轻量化设计
流线型低风阻机头罩设计
四合一OFS控制系统
姿态增稳模式和3D锁定模式自由切换
Page 6

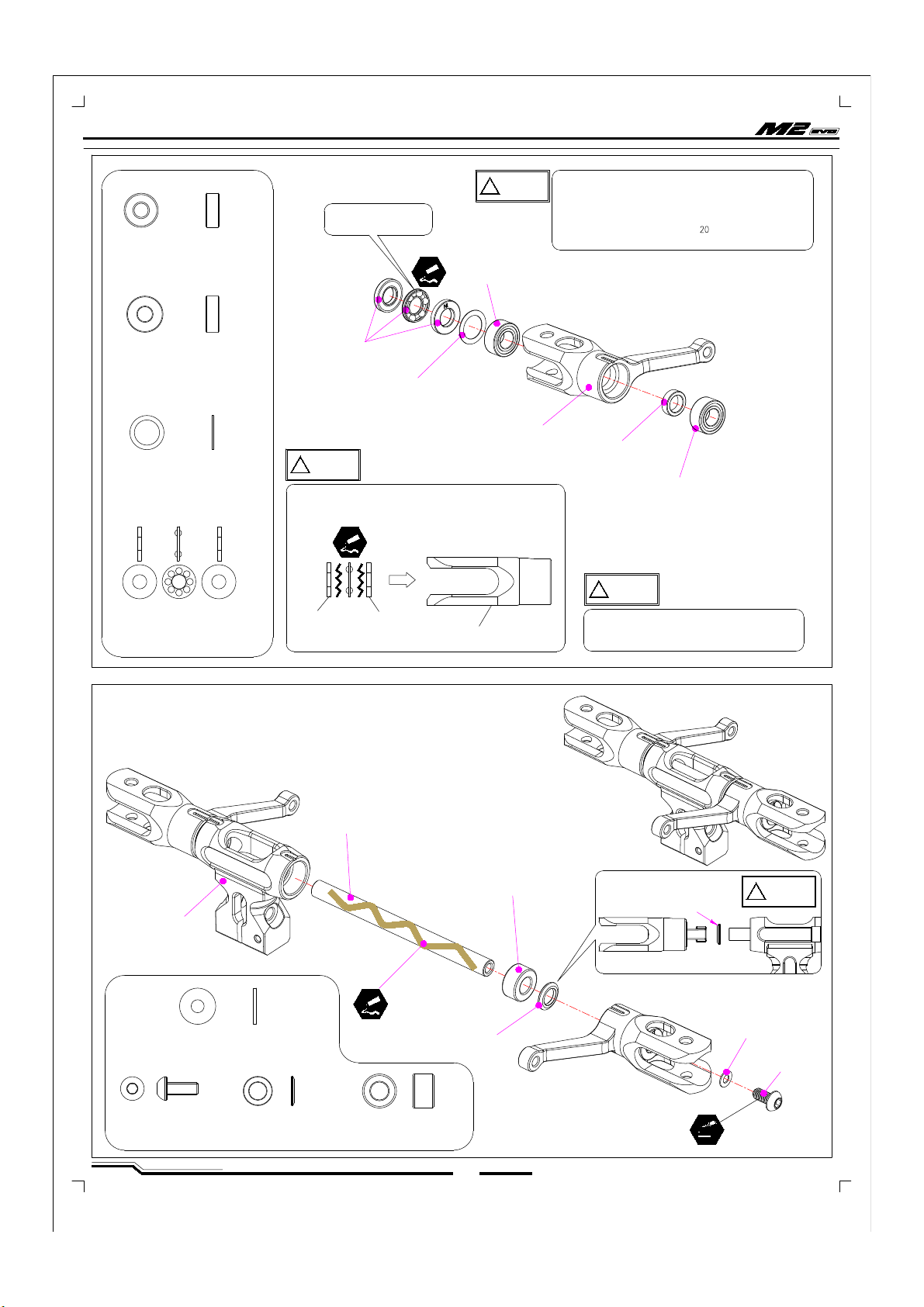

step 1 步骤一
!
注意
CAUTION
止轴及横轴属于飞行品，建 定期及换，高主旋翼
转速飞行时，请缩定期数，以确保飞行安全。
横轴避
Ø2.95xØ5.95x2.9mm)x2
轴开内
止轴
-Ø3xØ6x2.8mm
主旋翼夹座
主夹头轴
Ø3xØ4.4x1.4mm
轴
Ø3xØ6x2.5mm
(OUT)
内径
内径大
(IN)
止轴(Ø3xØ6x2.8)
主旋翼夹座
!
注意
CAUTION
装组装成品，一次飞行前请确认螺丝是否胶不会。
轴(Ø3xØ6x2.5mm)x4
主夹头轴Ø3xØ4.4x1.4mm)x2
横轴轴片(Ø4.2xØ6x0.1mm)x2
止轴(Ø3xØ6x2.8mm)x2
!
注意
CAUTION
片(Ø3.1xØ4.5x0.6mm)x2
片Ø2xØ5x0.2mm)x2
Gr
e
a
se
Gr
e
a
se
6
EN
WWW.OMPHOBBY.COM
横轴轴片(Ø4.2xØ6x0.1mm)
头内螺丝(M2x6mm)x2
!
注意
CAUTION
台轴方
Bearing-MR63ZZ
Washer
Spindle bearing spacer
Thrust bearingF3-6M
Obverse of bearing faces inside.
Thrust braring and washer for radial bearing are wear items,and thus should be
inspected for replacement after every 20 flights.
For flights with high headspeed ,the inspection interval should be reduced to
ensure flight safety.
Thrust bearing0FM-6M
Spindle bearing spacer
Main rotor holder
Washer
Bearing-MR63ZZ
Washer
Socket screw
Damper rubber-red
Washer
Pay attention to the direction
of the copper washer
Thrust bearing
轴
Ø3xØ6x2.5mm
Bearing-MR63ZZ
柱头内螺丝
M2x4mm
Socket screw
Washer
片
Ø2xØ5x0.2mm
片Ø3.1xØ4.5x0.5mm
Washer
Gr
e
a
se
横轴避
Ø2.95xØ5.95x2.9mm
Damper rubber
横轴Ø3x38.8mm
Feathering shaft
金属主旋翼固定座
Metal main rotor housing
After the feathering shaft screw is locked, please note that the rotor holder can
rotate smoothly
Page 7
7
EN
WWW.OMPHOBBY.COM

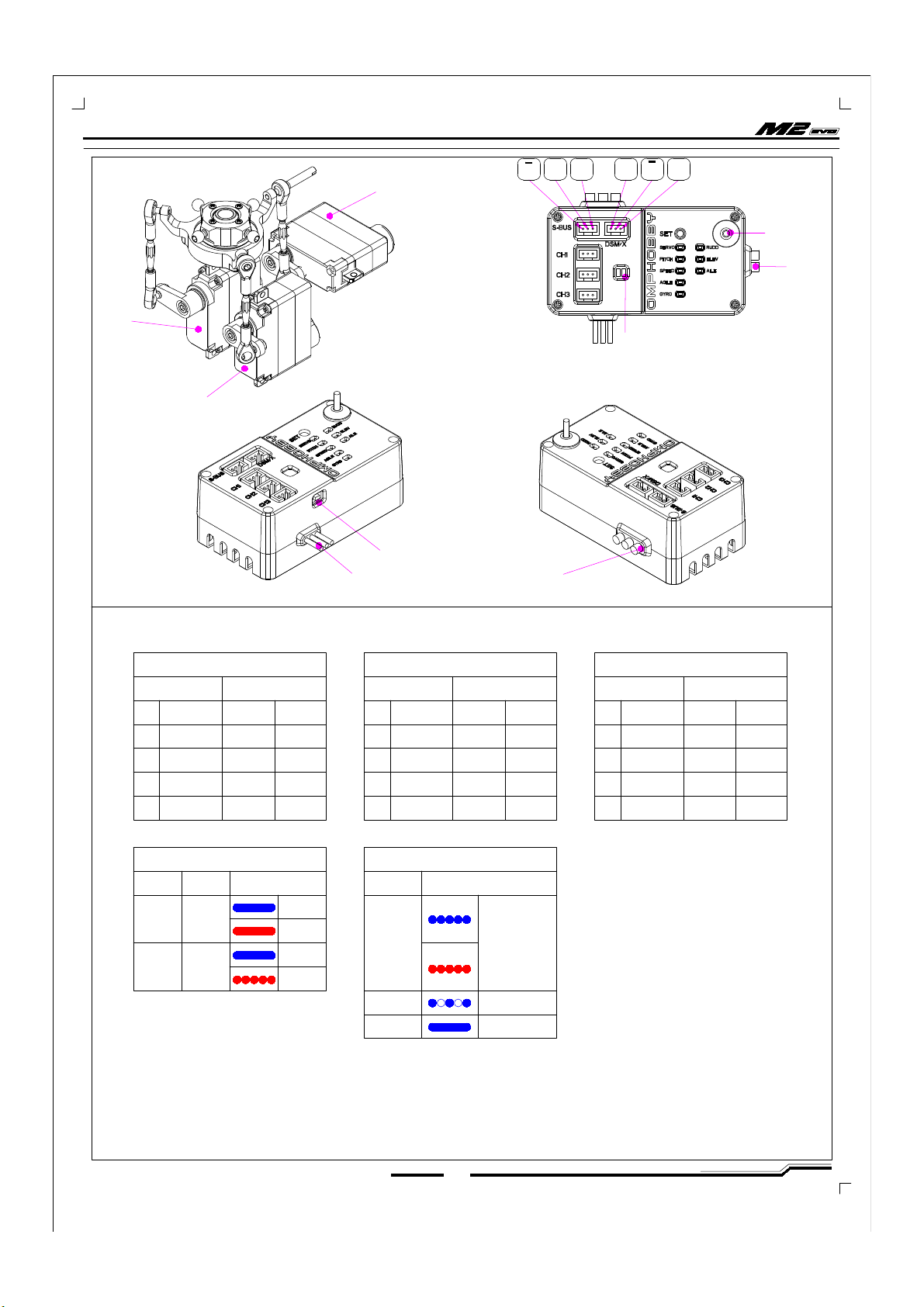

step 2 步骤二
螺丝
M3X2.5)x1
(Ø4xØ9x4mm)x1
Socket screw
Bearing-684ZZ

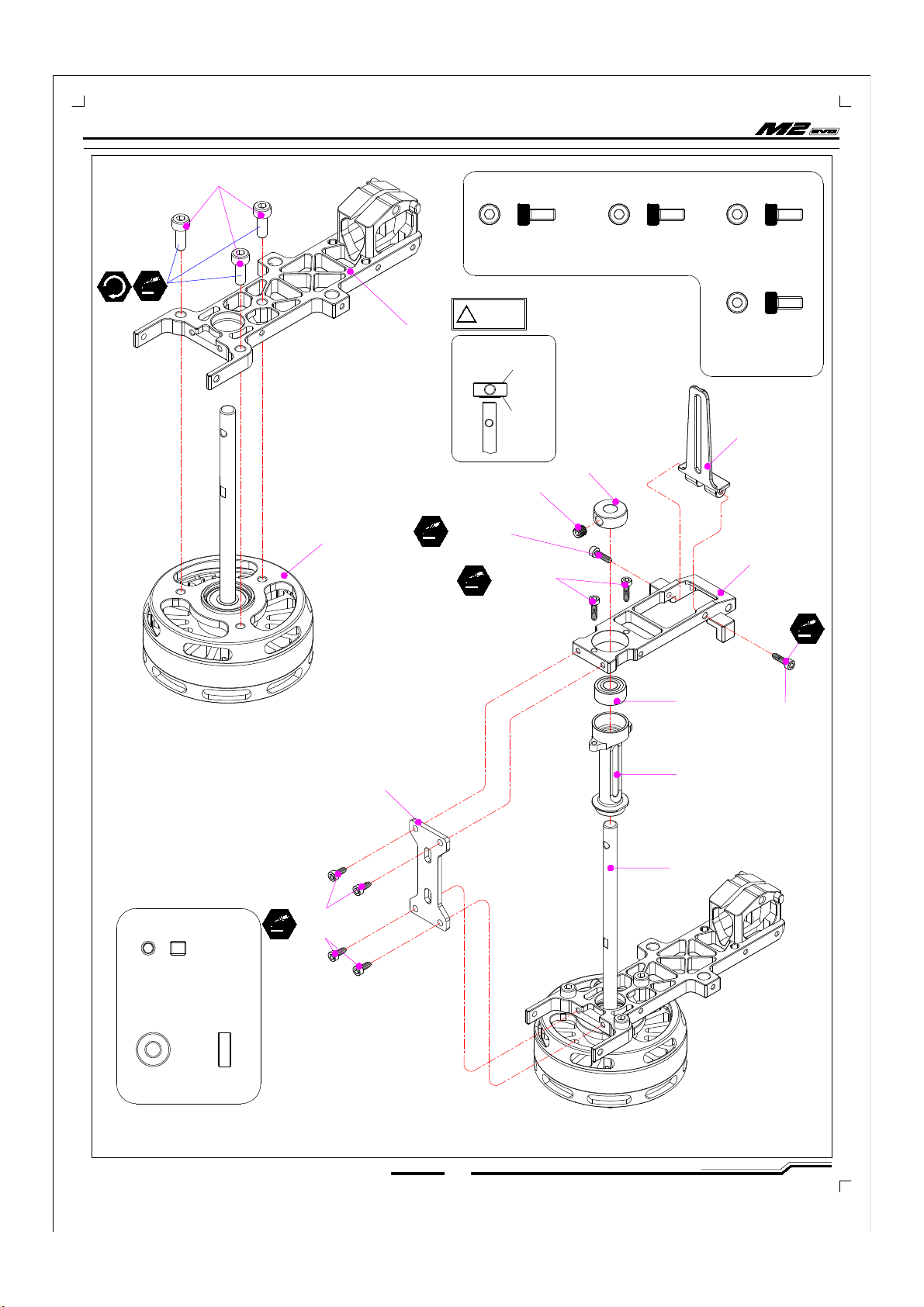

电机固定
电机
Motor Mount
Main Motor
内六角螺丝
M2.5x7mm
Socket screw
固定环
螺丝M3X2.5
机固定
内六角螺丝
M1.7x8mm
内六角螺丝
M1.7x8mm
(Ø4xØ9x4mm)x1
同度保
机身间加
Main Shaft
Socket screw
Socket screw
Socket screw
Spindle retaining ring
Servo Mount set
Bearing-684ZZ
Coaxiality mount
内六角螺丝
M1.6x4mm
Socket screw
内六角螺丝
M1.6x6mm
Socket screw
内六角螺丝
(M1.7x8mm)x2
Socket screw
内六角螺丝
(M2.5x7mm)x3
Socket screw
内六角螺丝
(M1.6x6mm)x2
Socket screw
内六角螺丝
(M1.6x4mm)x4
Socket screw
Carbon fiber middle frame
斜胶相
Swashplate Phase
plastic Panel
!
注意
CAUTION
斜
(Inclined plane)
(Plane)
固定环
Spindle retaining ring
Page 8
8
EN
WWW.OMPHOBBY.COM

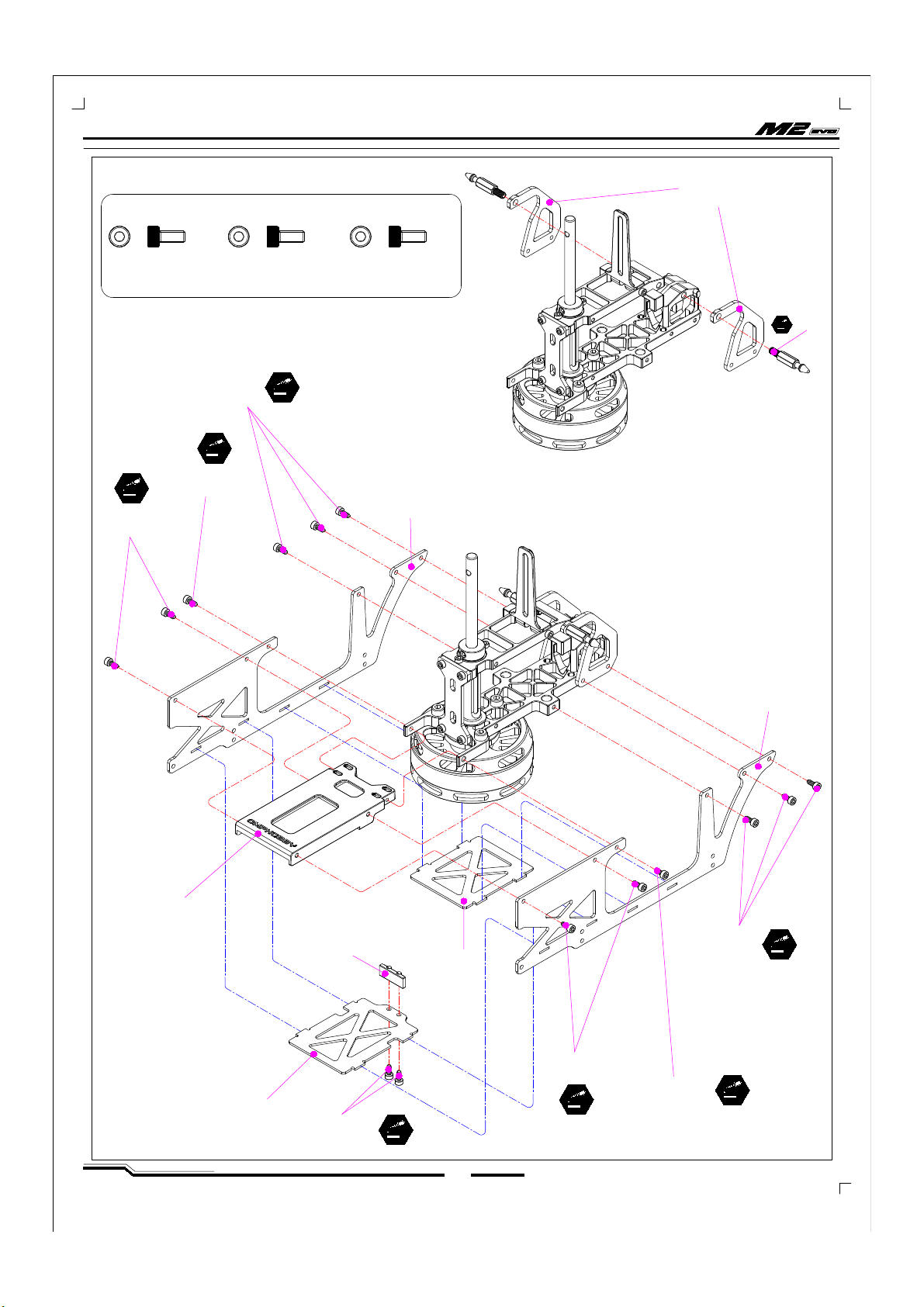

step 3 步骤三
机固定
机身后加
Canopy Fixed Bolt
Frame Rear carbon
Reinforcement Plate
set
内六角螺丝
M1.6x4mm
Socket screw
内六角螺丝
M1.6x4mm
Socket screw

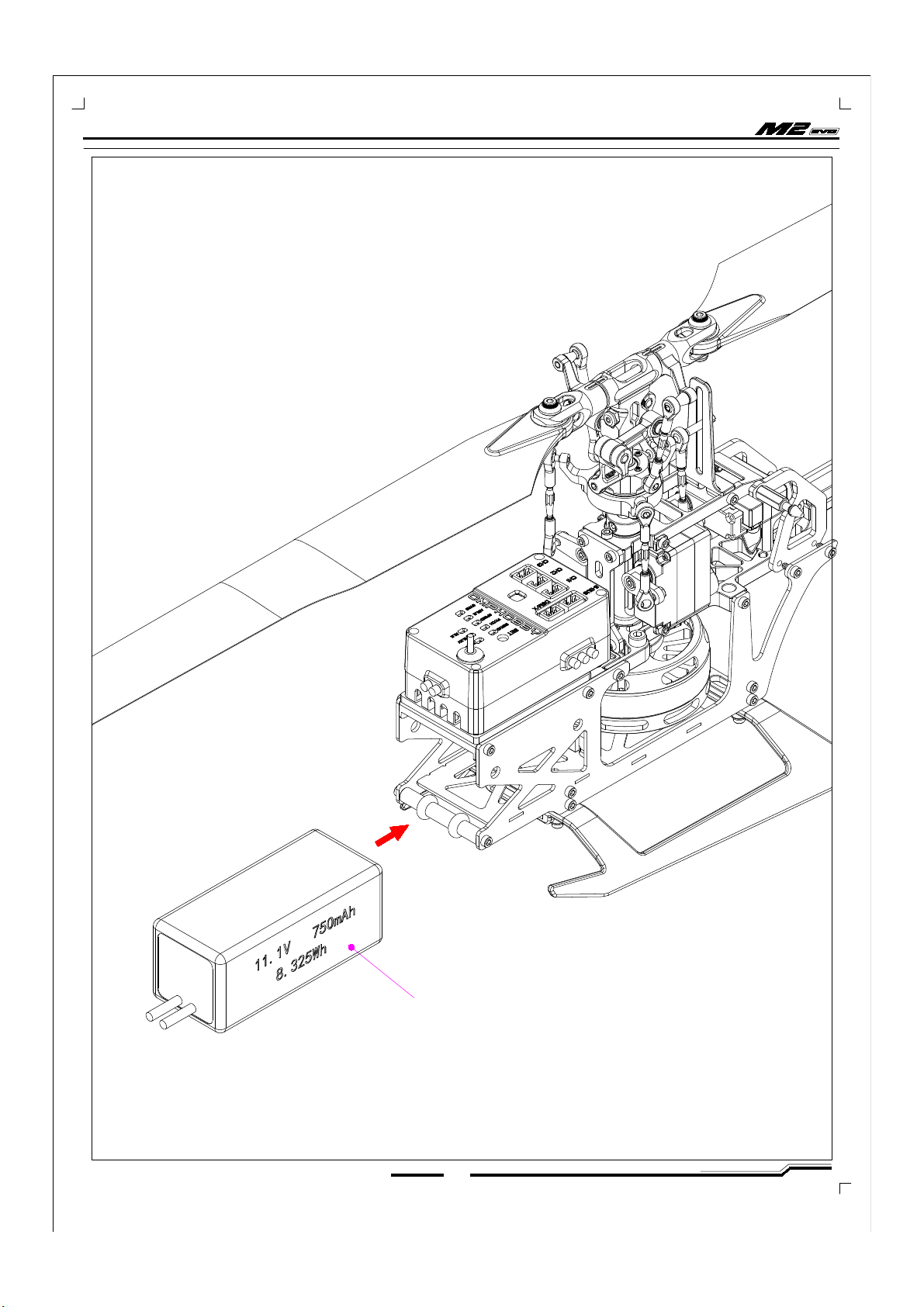

电
battery lower panel set
电限
Battery phase panel
机身下
机身下
Fuselage Lower Left
Carbon Fiber Board set
Fuselage lower Right Carbon
Fiber Board set
内六角螺丝
M1.6x4mm
Socket screw
内六角螺丝
(M1.6x4mm)x6
Socket screw
飞控机身胶固定
Flight Control Mounting
Panel
内六角螺丝
M1.7x6mm
Socket screw
内六角螺丝
M1.7x4mm
Socket screw
内六角螺丝
M1.7x4mm
Socket screw
内六角螺丝
M1.7x6mm
Socket screw
内六角螺丝
(M1.7x4mm)x4
Socket screw
内六角螺丝
(M1.7x6mm)x2
Socket screw
电限
Fuselage Lower
Carbon panel(RoHS)
Page 9

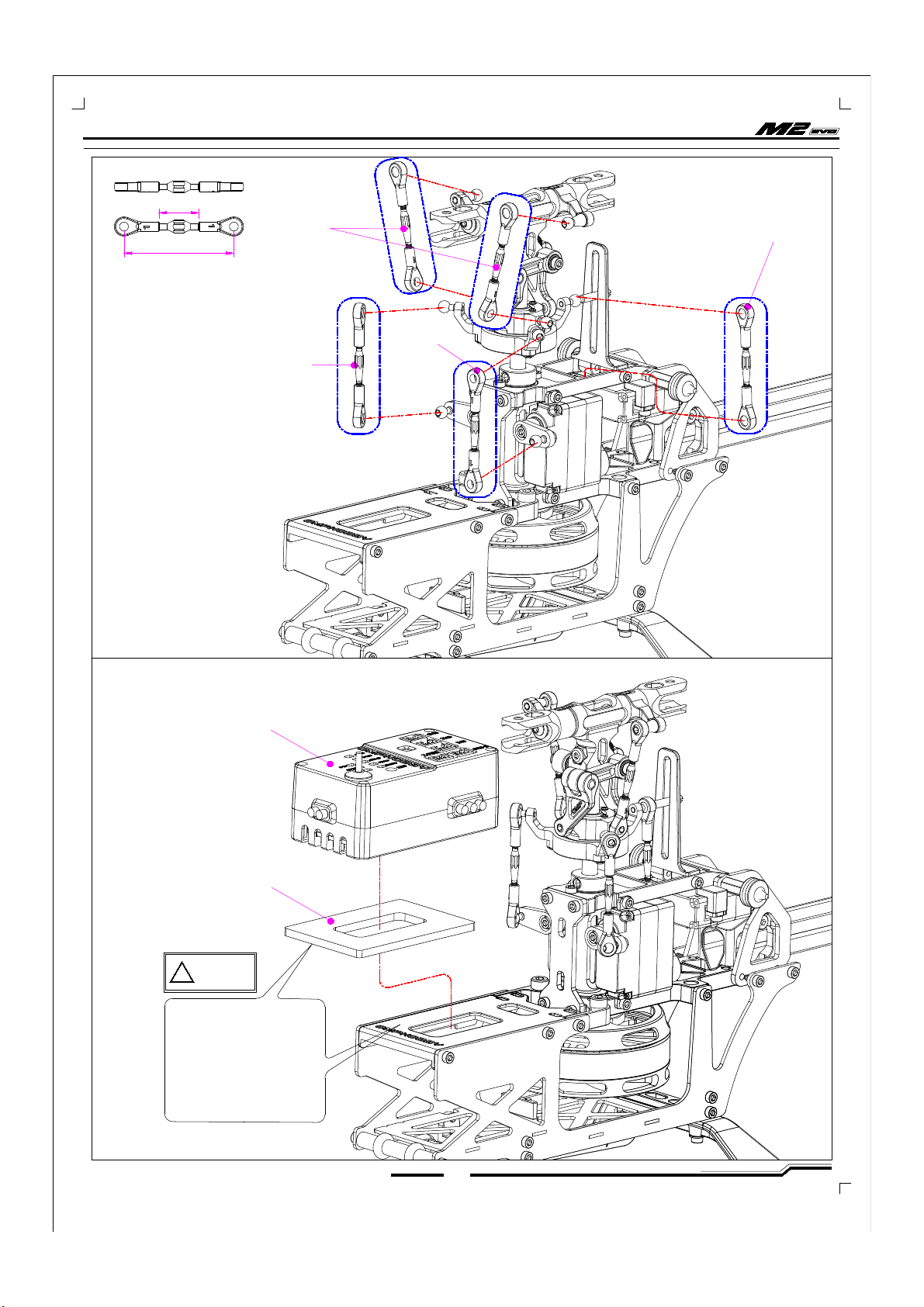

step 4 步骤四

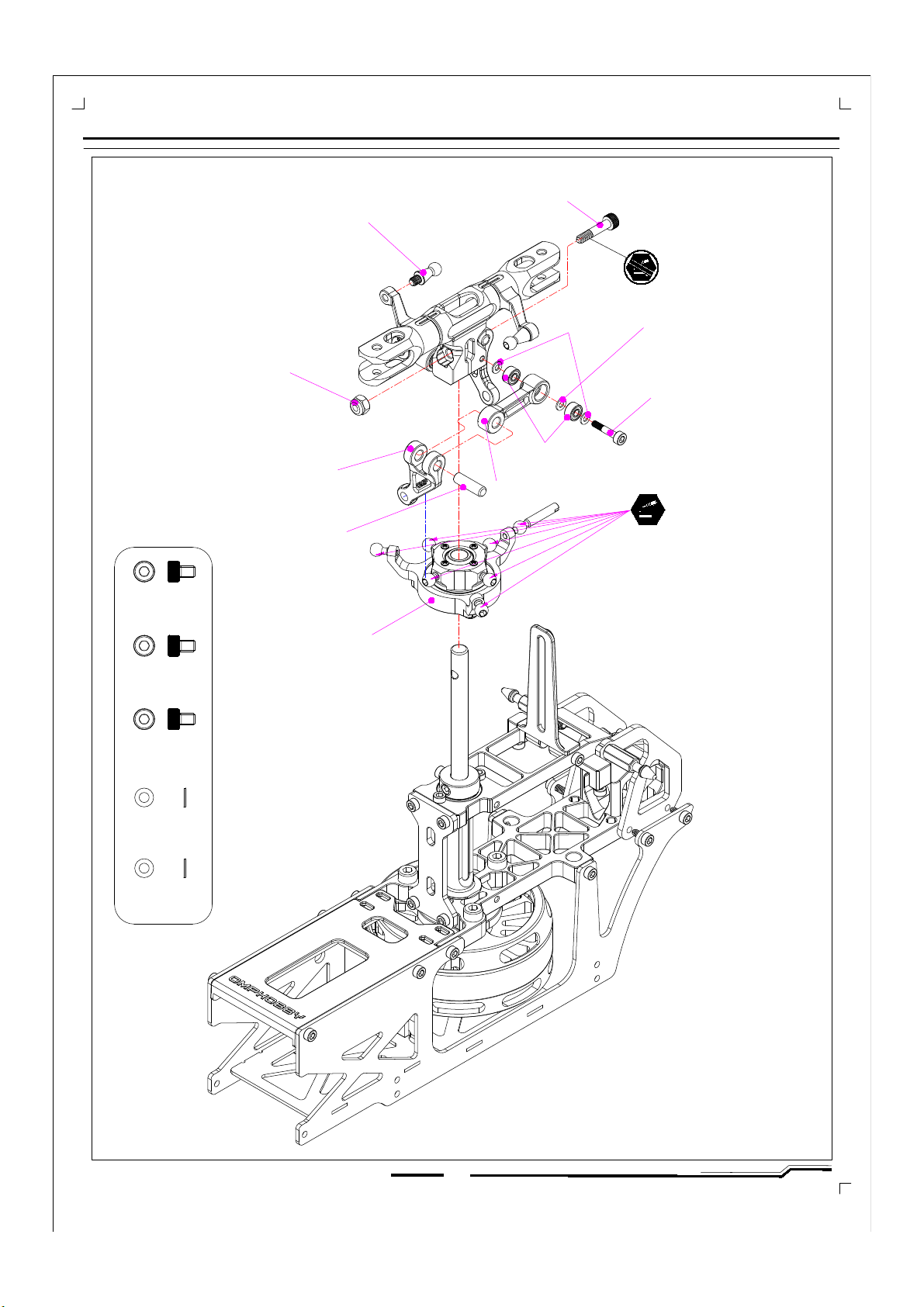

柱头内螺丝
M2x10mm-L4
M2防螺
Socket screw
M2 Nut
倾斜盘
Swash plate
柱头内螺丝
M2x8mm
Socket screw
球头螺丝
Ball screws
片
Ø2xØ3.5x0.3mm
Washer
轴
5
Bearing
倾斜盘架
Tilt tray bracket
轴
5
Pin Shaft
螺距臂
Pros and Cons auxiliary arm
柱头内螺丝
(M2x8mm)x2
柱头内螺丝
(M2x10mm-L4)x1
柱头内螺丝
(M2x4mm)x4
Socket screw
Socket screw
Socket screw
片(Ø2xØ3.5x0.3mm)x4
Washer
9
EN
W
W
W
.
OMPH
OB
B
Y
.
C
OM
片
Ø2xØ3.5x0.4mm
Washer
片(Ø2xØ3.5x0.4mm)x2
Washer
Page 10

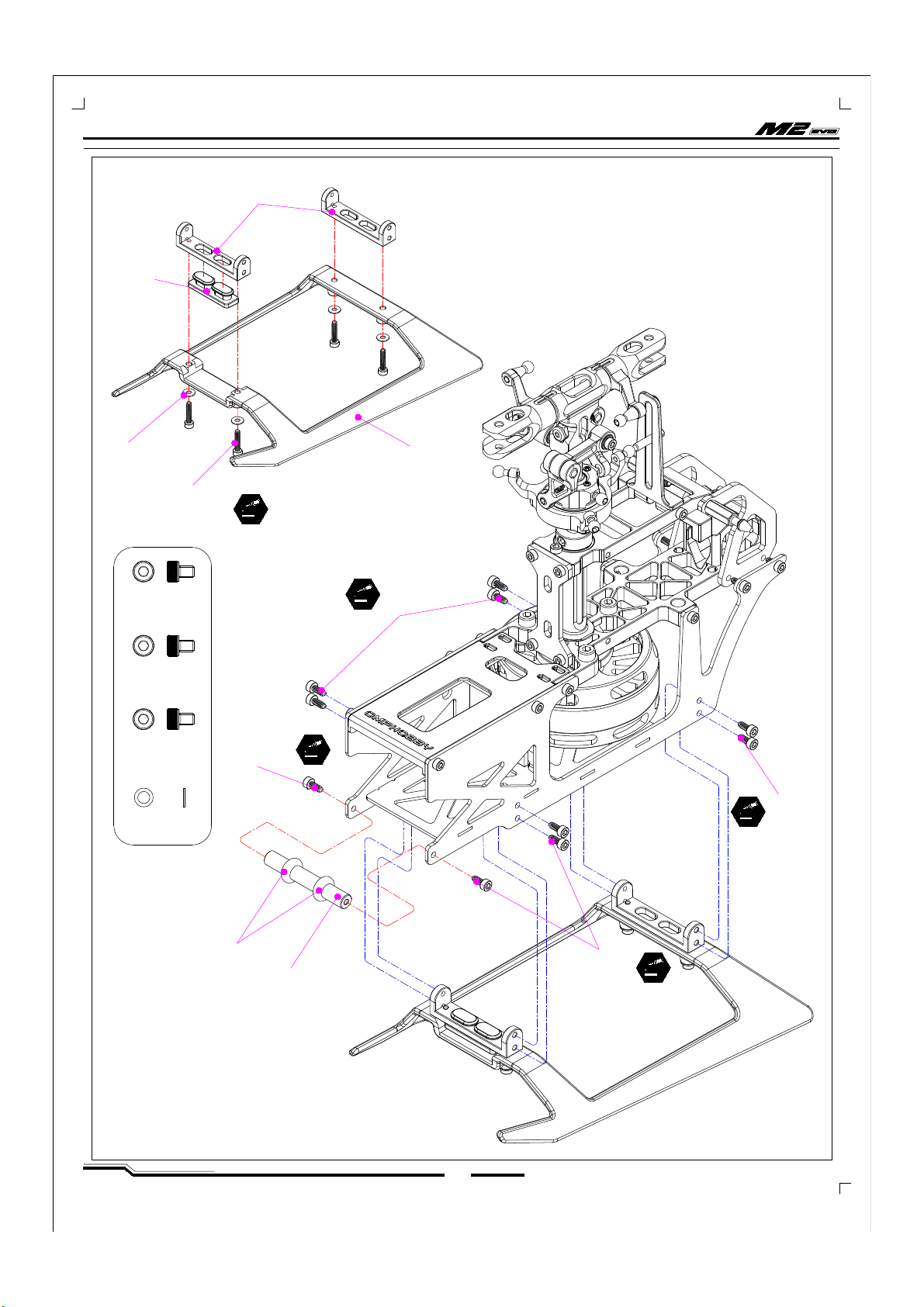

step 5 步骤五

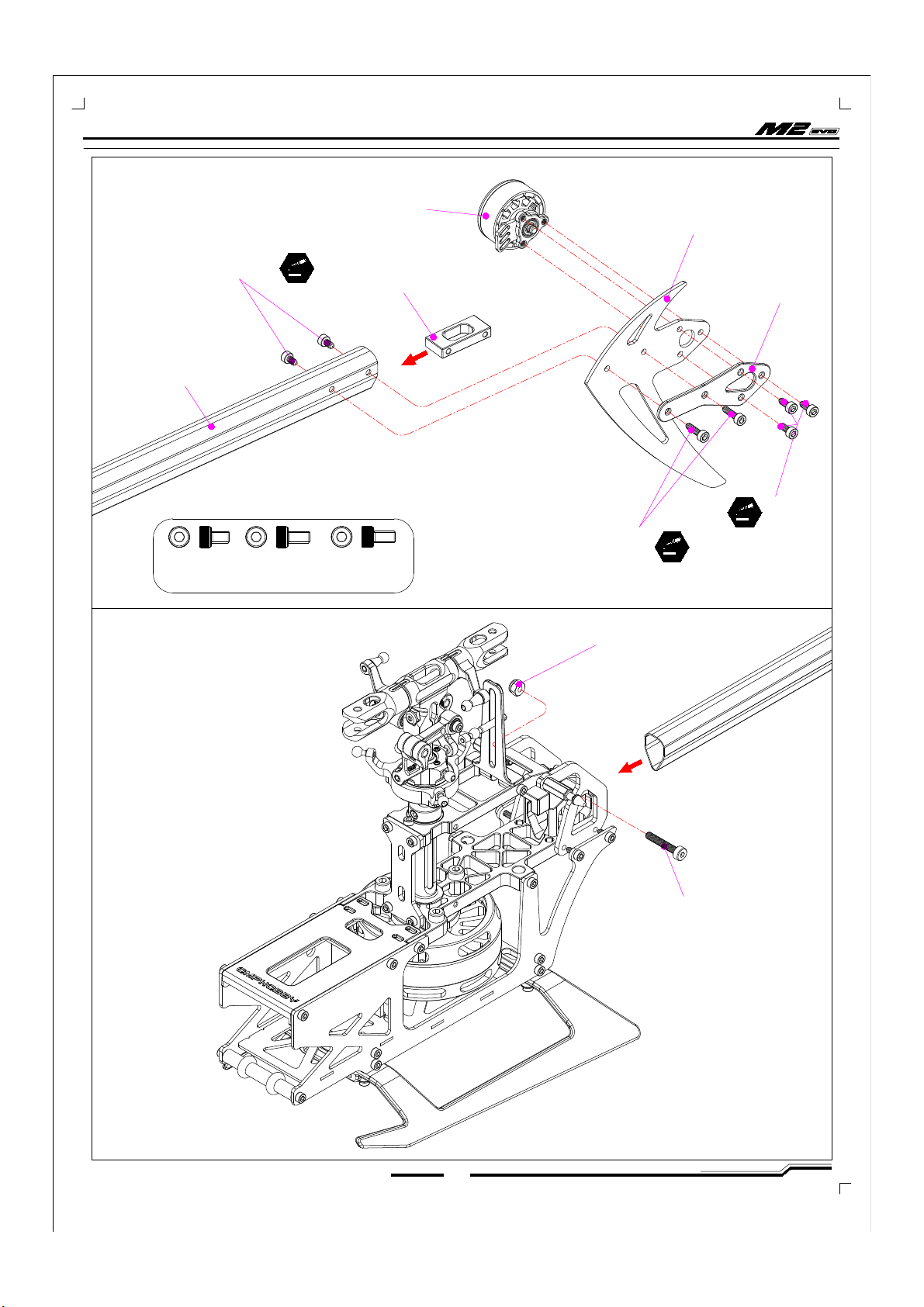

固定
Landing skid mount
Landing skid
Ø1.6xØ3.5x0.4mm
Washer
内六角螺丝
M1.6x8mm
Socket screw
内六角螺丝
(M1.6x8mm)x4
内六角螺丝
(M1.6x4mm)x10
内六角螺丝
(M2x4mm)x4
Socket screw
Socket screw
Socket screw
(Ø1.6xØ3.5x0.4mm)x4
Washer
内六角螺丝
M1.6x4mm
Socket screw
内六角螺丝
M1.6x4mm
Socket screw
内六角螺丝
M1.6x4mm
Socket screw
内六角螺丝
M1.6x4mm
Socket screw
Side plate struts
机罩
Landing Skids lock pad
型
O-ring
10
EN
WWW.OMPHOBBY.COM
Page 11

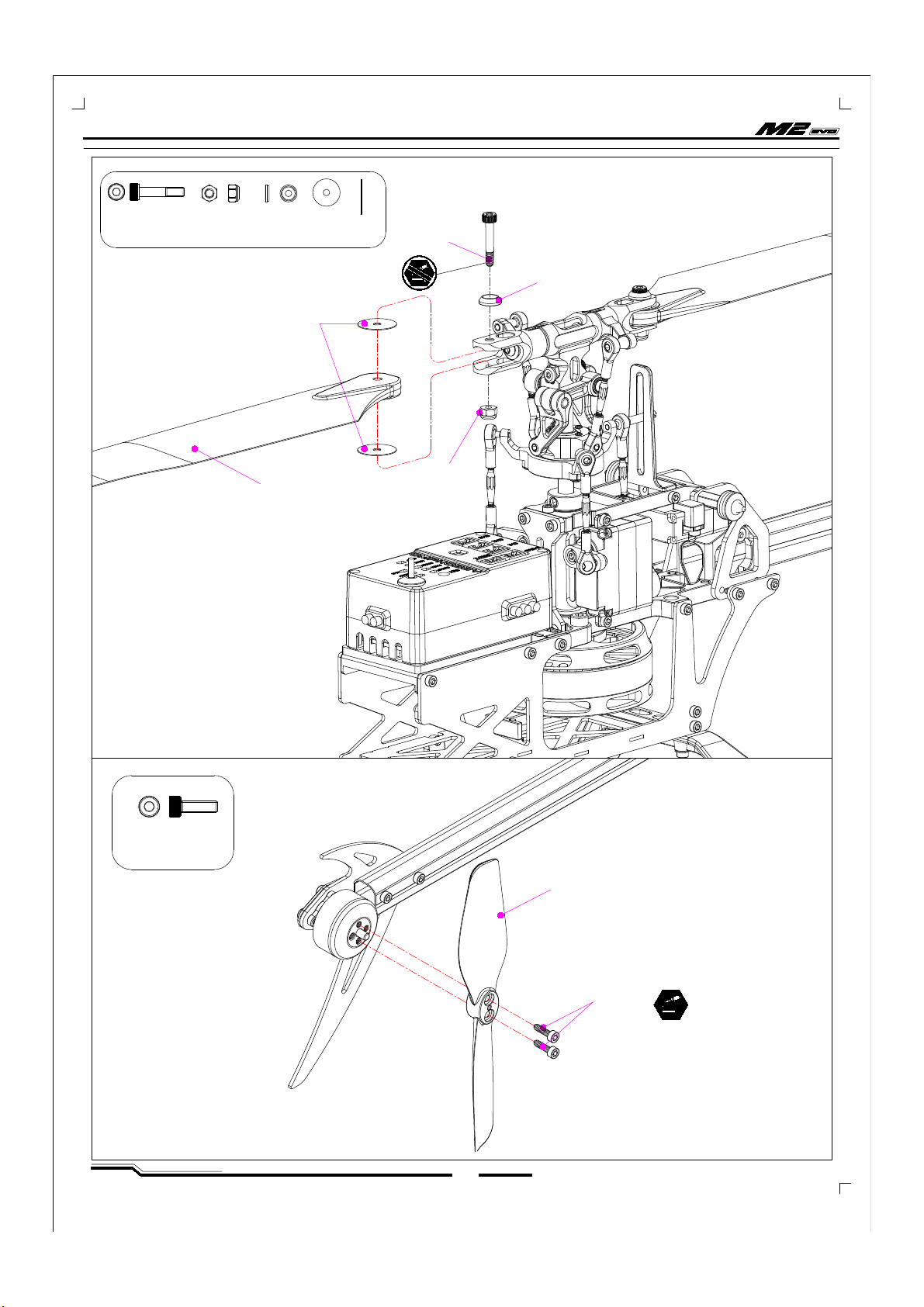

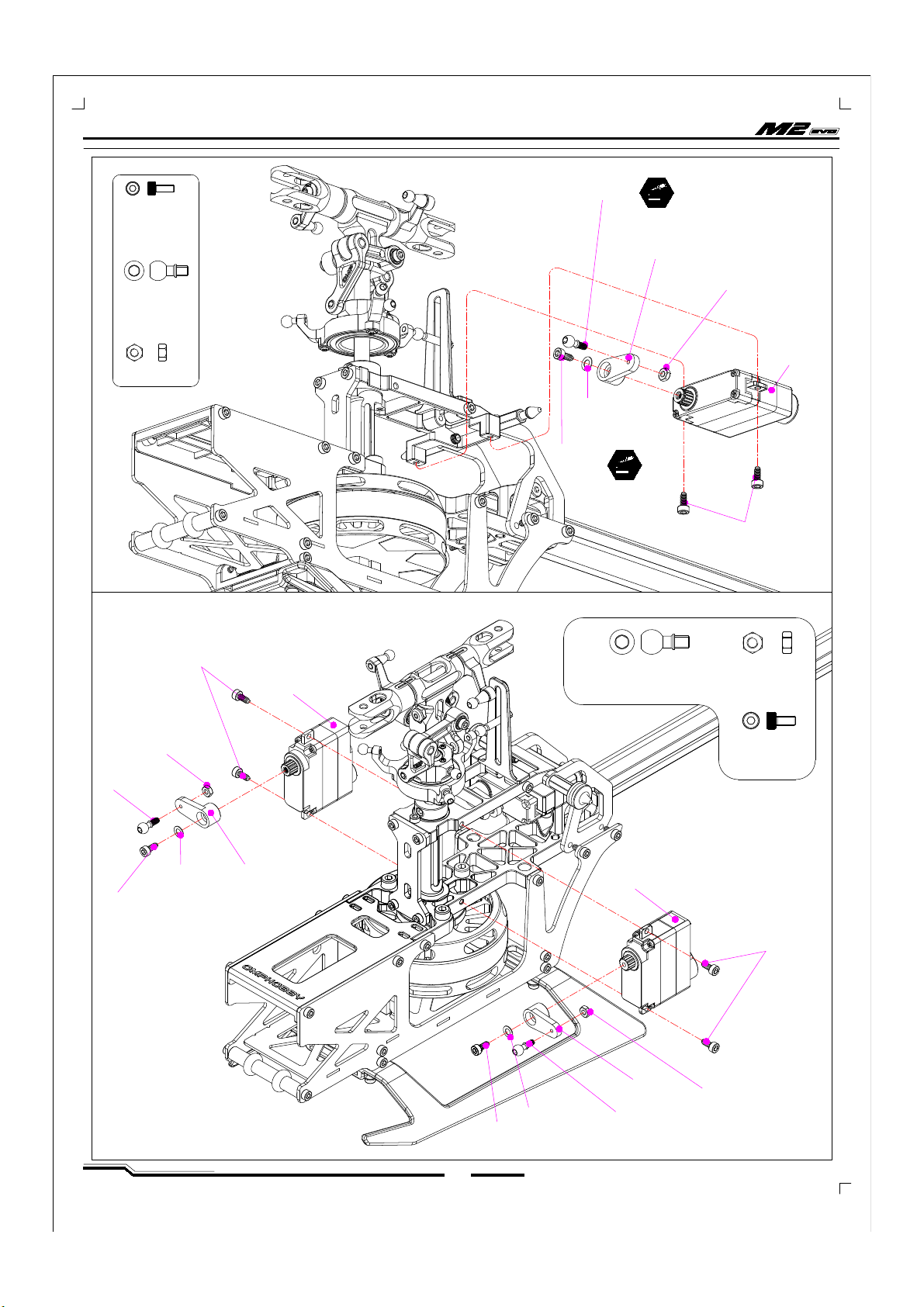

step 6 步骤六
内六角螺丝
M1.6x3mm
电机
3K 碳纤维垂直翼
内六角螺丝
(M1.6x4mm)x3
内六角螺丝
(M1.6x3mm)x2
内六角螺丝
M2x14mm
Socket screw Socket screw
Tail Motor
Socket screw
3K CF Vertical Stabilizer
内六角螺丝
M1.6x6mm
Socket screw
内六角螺丝
M1.6x4mm
Socket screw
电机固定加
Tail Motor
Reinforcement Plate
内六角螺丝
(M1.6x6mm)x2
Socket screw
内固定
Tail Boom inner Mount
block
尾管
Tail Boom
M2螺
M2 Nut
Hexagon socket
head M2*14(9mm)
11
EN
WWW.OMPHOBBY.COM
Page 12
step 7 步骤七
球头(Ø3.175x3-M1.6)
头内螺丝
M1.6x4mm
舵机摆臂
M1.6螺
全金属舵机
球头(Ø3.175x3-M1.6)x1
螺(M1.6)x1
球头(Ø3.175x3-M1.6)x2
螺(M1.6)x2
球头(Ø3.175x3-M1.6)
舵机摆臂
M1.6螺
柱头内螺丝
M1.6x4mm
全金属舵机
柱头内螺丝
(M1.6x4mm)x3
柱头内螺丝
(M1.6x4mm)x6
柱头内螺丝
M1.6x4mm
Socket screw
Linkage Ball
M1.6 Nut
Socket screw
Socket screw
Ball Joint Screw - L3 tooth
Length
Servo Swing Arm
M1.6 Nut
Servo
Linkage Ball
M1.6 Nut
Socket screw
Servo
Socket screw
Ball Joint Screw - L3 tooth
Length
Servo
M1.6 Nut
片
Ø2xØ3.6x0.2mm
Washer
柱头内螺丝
M1.6x4mm
Socket screw
片
Ø2xØ3.6x0.2mm
Washer
柱头内螺丝
M1.6x4mm
Socket screw
片
Ø2xØ3.6x0.2mm
Washer
舵机摆臂
Servo
球头(Ø3.175x3-M1.6)
Ball Joint Screw - L3 tooth
Length
柱头内螺丝
M1.6x4mm
Socket screw
全金属舵机
Servo
M1.6螺
M1.6 Nut
12
EN
WWW.OMPHOBBY.COM
Page 13
step 8 步骤八
约28.2mmx3
CH3
CH1
CH2
约28.2mm
约
10
飞控
胶
注意将胶与机
完全合好，再安装飞控。飞控必
与机身完全行，以最佳的
飞行。
!
注意
CAUTION
Linkage rod
Approx.28.2mmx3
CH2 Linkage rod
CH1 Linkage rod
CH3 Linkage rod
Flight Control
Double-sided tape
Note:Fist,the double-sided damping rubber
should be fully fitted with the receiver board,
and then install the flight control.The flight
control must be completely parallel to the
fuselage to achieve the best flight performance.
Linkage rod
13
EN
WWW.OMPHOBBY.COM
Page 14
step 9 步骤九
柱头内螺丝
(M2x12mm-L4)x2
M2螺丝
片
Ø2xØ10x0.2mm
主旋翼
M2防螺
柱头内螺丝
M1.6x6mm
柱头内螺丝
(M2x12mm-L4)x2
M2防螺(M2)x2
M2螺丝 x2
横轴轴片
(Ø2.1xØ10x0.3mm)x4
柱头内螺丝
(M1.6x6mm)x2
M2 Nut
Screw sleeve
Socket screw
Socket screw
M2 Nut
Screw sleeve
Washer
Washer
Main Blade
Socket screw
Socket screw
尾桨
Tail Blade
14
EN
WWW.OMPHOBBY.COM
Page 15
step 10 步骤十
电
Batteries
15
EN
WWW.OMPHOBBY.COM
Page 16

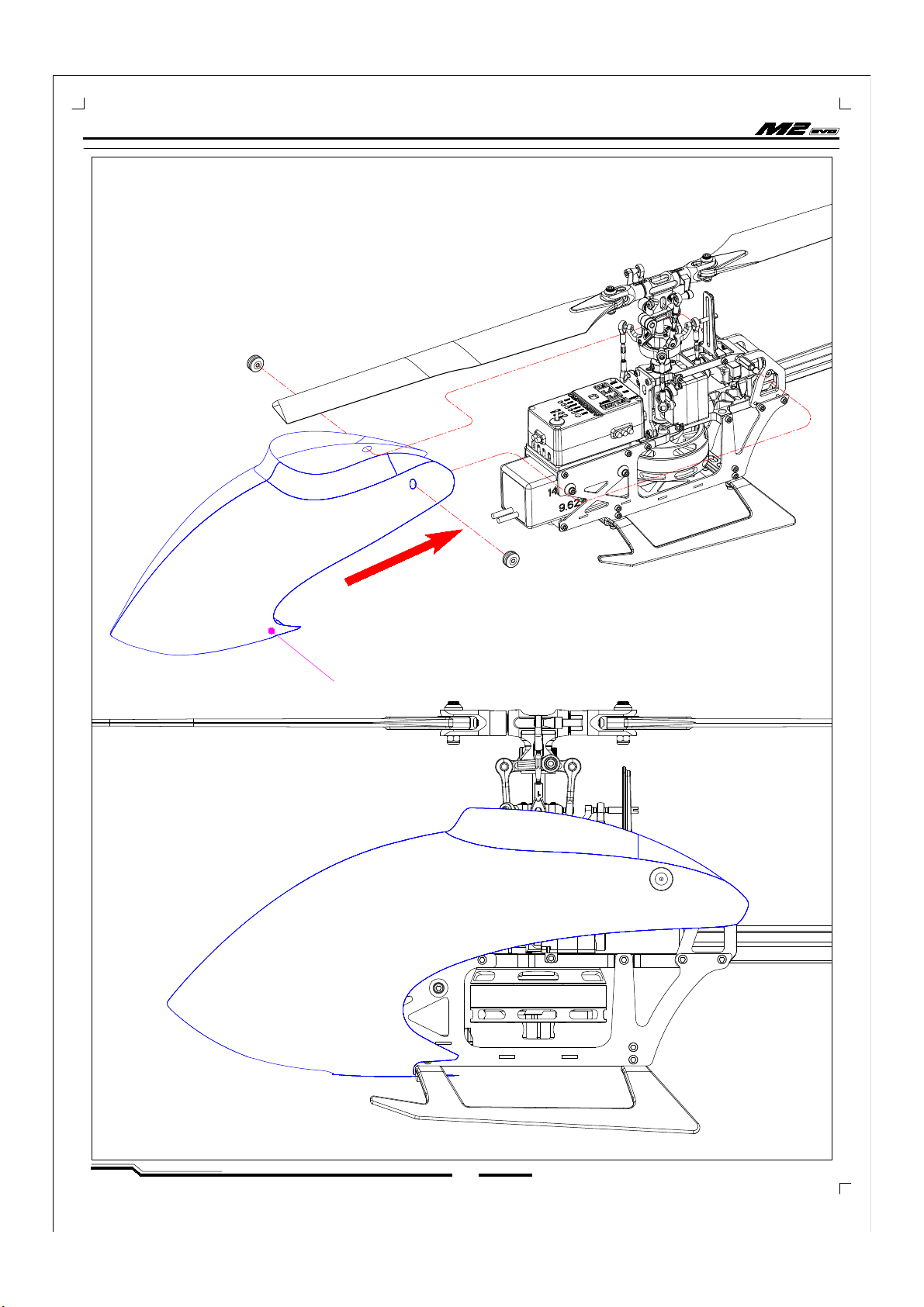

step 11 步骤十一
机罩
Canopy
16
EN
WWW.OMPHOBBY.COM
Page 17
step 12 步骤十二
Antenna
LED
Light
尾电机线接口
对频按键
主电机线接口
电源线
飞行参数设置说明
一般飞行模式
油门
螺距
5
60 100 12°
4
60 65
5.5°
3
60 15 1.8°
2
60
-5
-0.6°
1
0 -20 -2.4°
姿态模式/3D模式
模式
飞控LED
CH5
姿态模式
75-100
3D模式
0-25
蓝灯常亮
红灯常亮
蓝灯常亮
红灯慢闪
IDLE 1模式
油门
螺距
5
65 100 11°
4
65 50
5.5°
3
65
5
0.6°
2
65 -50
-5.5°
1
65 -100 -11°
油门
螺距
5
80 100 11°
4
80 50
5.5°
3
80 0 0°
2
80 -50
-5.5°
1
80 -100 -11°
IDLE 1模式
通电自检/对频
状态
飞控LED
上电自检
需将M2放在平地上通电，通
电后蓝灯、红灯快闪，静止3
秒钟直到蓝灯常亮.
对频前
对频后
蓝灯常亮
蓝灯慢闪
BIND
Tail Motor
LED灯
Main Motor
POWER
General Flight Model
IDLE 1 Model IDLE 1 Model
Throttle Screw Pitch Throttle Screw Pitch Throttle Screw Pitch
Flight Parameter Setting lntroduction
Attitude mode /3D mode
Power On Self Test / Binding
Modes
Attitude Modes
3D Modes
Flight Control LED
Blue LED Steady Lit
Red LED Steady Lit
Blue LED Steady Lit
Red LED Slow Flash
Status
Flight Control LED
Power On Self Test
Before Binding
After Binding
The M2 should be placed on
the ground to be energized.
After power on,the blue and
red Led flash quickly and
wait for 3 seconds until the
blue Led is steady lit.
Blue LED Slow Flash
Blue LED Steady Lit
负
5V
Data
3.3V
Data
负
CH1
CH2
CH3
17
EN
WWW.OMPHOBBY.COM
Page 18
限位环
主轴、横轴组
旋翼中心座组
配件编号
:
配件名称:
OSHM2306
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2306
Product name:
配件编号:
配件名称:
OSHM2307
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2307
Product name:
配件编号:
配件名称:
OSHM2308
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2308
Product name:
Main shaft & Feathering shaft set
Spacing ring Set Main Rotor housing set
倾斜盘组
配件编号:
配件名称:
OSHM2305
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2305
Product name:
Swash plate set

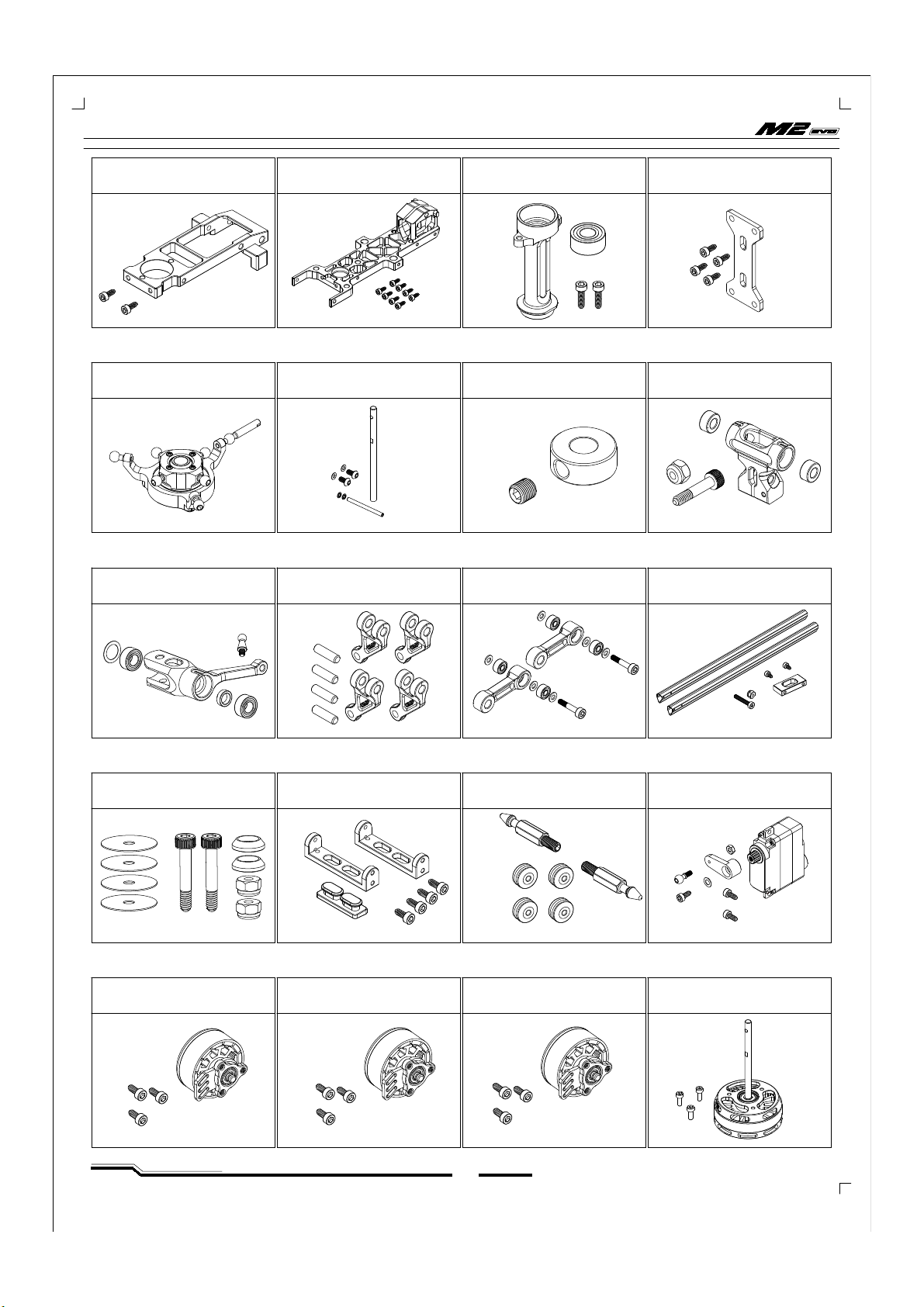

Spare parts picture-1 配件-1
配件编号:
配件名称:
舵机固定座组
OSHM2301
主电机固定座组
同心度保持架组
机身中加强板
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2301
Product name:
Servo Mount set
配件编号:
配件名称:
OSHM2302
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2302
Product name:
配件编号:
配件名称:
OSHM2303
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2303
Product name:
配件编号:
配件名称:
OSHM2304
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2304
Product name:
Main Motor Mount set
Coaxiality mount Carbon fiber middle frame
脚架固定座组
机壳固定柱组
舵机组
尾电机(黄色）
尾电机(银色）
尾电机（橙色）
主电机组（黄色）
主桨螺丝组
桨夹组
倾斜盘球头臂
FBL螺距臂
尾管组
配件编号:
配件名称:
OSHM2309
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2309
Product name:
配件编号:
配件名称:
OSHM2310
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2310
Product name:
Swash plate ball joint arm
配件编号:
配件名称:
OSHM2311
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2311
Product name:
FBL Pros and Cons linkage rod
配件编号:
配件名称:
OSHM2312
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2312
Product name:
Tail Boom set
配件编号:
配件名称:
OSHM2313
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2313
Product name:
Main Rotor Holder Screw group
配件编号:
配件名称:
OSHM2314
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2314,OSHM2026
Product name:
Canopy Fixed Bolt Set
配件编号:
配件名称:
OSHM2315
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2315
Product name:
Canopy Fixed Bolt set
配件编号:
配件名称:
OSHM2094
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2094
Product name:
Servo set
配件编号:
配件名称:
OSHM2316Y
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2316Y
Product name:
Tai Motor set-Yellow
配件编号:
配件名称:
OSHM2316W
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2316W
Product name:
Tai Motor set-Silver
配件编号:
配件名称:
OSHM2316O
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2316O
Product name:
Tai Motor set-Orange
配件编号:
配件名称:
OSHM2317Y
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2317Y
Product name:
Main Motor set-Yellow
Main Rotor Holder set
18
EN
WWW.OMPHOBBY.COM
Page 19
主电机组（银色）
主电机组（橙色） 舵机连杆组 尾电机加强片组（银色）
尾电机加强片组（黄色）
尾电机加强片组（橙色） 舵机摆臂组 飞控机身塑胶固定座
尾桨组
主桨（竞赛黄） 主桨（典雅白） 主桨（魅力橙）
主桨（魅力红）
脚架组（竞赛黄）
脚架组（竞赛蓝）
脚架组（竞赛橙）
脚架组（竞赛红）
机头罩（竞赛黄） 机头罩（典雅白） 机头罩（魅力橙）
配件编号:
配件名称:
OSHM2317W
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2317W
Product name:
Main Motor set-Silver
配件编号:
配件名称:
OSHM2317O
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2317O
Product name:
Main Motor set-Orange
配件编号:
配件名称:
OSHM2014
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2014
Product name:
Servo Linkage Rod set
配件编号:
配件名称:
OSHM2318W
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2318W
Product name:
Tail Motor Reinforcement Plate set-Silver
配件编号:
配件名称:
OSHM2318Y
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2318Y
Product name:
Tail Motor Reinforcement Plate set-Yellow
配件编号:
配件名称:
OSHM2318O
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2318O
Product name:
Tail Motor Reinforcement Plate set-Orange
配件编号:
配件名称:
OSHM2059
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2059
Product name:
Servo Swing Arm（6pcs）
配件编号:
配件名称:
OSHM2319
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2319
Product name:
Flight Control Mounting Panel set
配件编号:
配件名称:
OSHM2320
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2320
Product name:
Tail Blade set
配件编号:
配件名称:
OSHM2321Y
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2321Y
Product name:
Main Blades-Racing Yellow
配件编号:
配件名称:
OSHM2321O
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2321O
Product name:
Main Blades-Elegant White
配件编号:
配件名称:
OSHM2321Y
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2321Y
Product name:
Main Blades-Charm Orange
配件编号:
配件名称:
OSHM2321R
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2321R
Product name:
Main Blades-Glamour Red
配件编号:
配件名称:
OSHM2322R
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2322R
Product name:
Landing Skids set-Glamour Red
配件编号:
配件名称:
OSHM2322O
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2322O
Product name:
Landing Skids set-Charm Orange
配件编号:
配件名称:
OSHM2322W
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2322W
Product name:
Landing Skids set-Elegant White
配件编号:
配件名称:
OSHM2322Y
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2322Y
Product name:
Landing Skids set-Racing Yellow
配件编号:
配件名称:
OSHM2323Y
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2323Y
Product name:
Canopy set-Racing Yellow
配件编号:
配件名称:
OSHM2323W
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2323W
Product name:
Canopy set-Elegant White
配件编号:
配件名称:
OSHM2323O
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2323O
Product name:
Canopy set-Charm Orange
19
EN
WWW.OMPHOBBY.COM

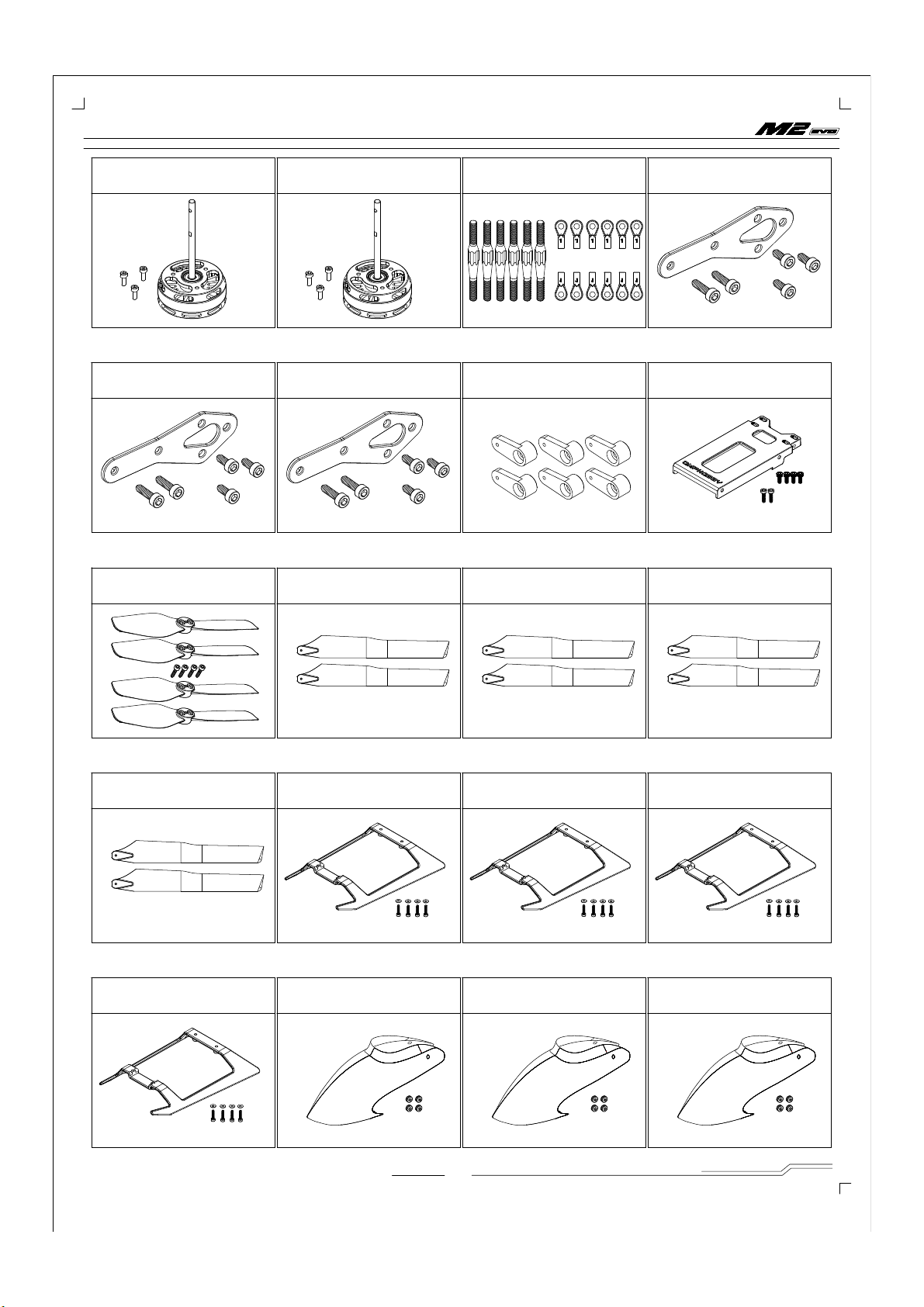

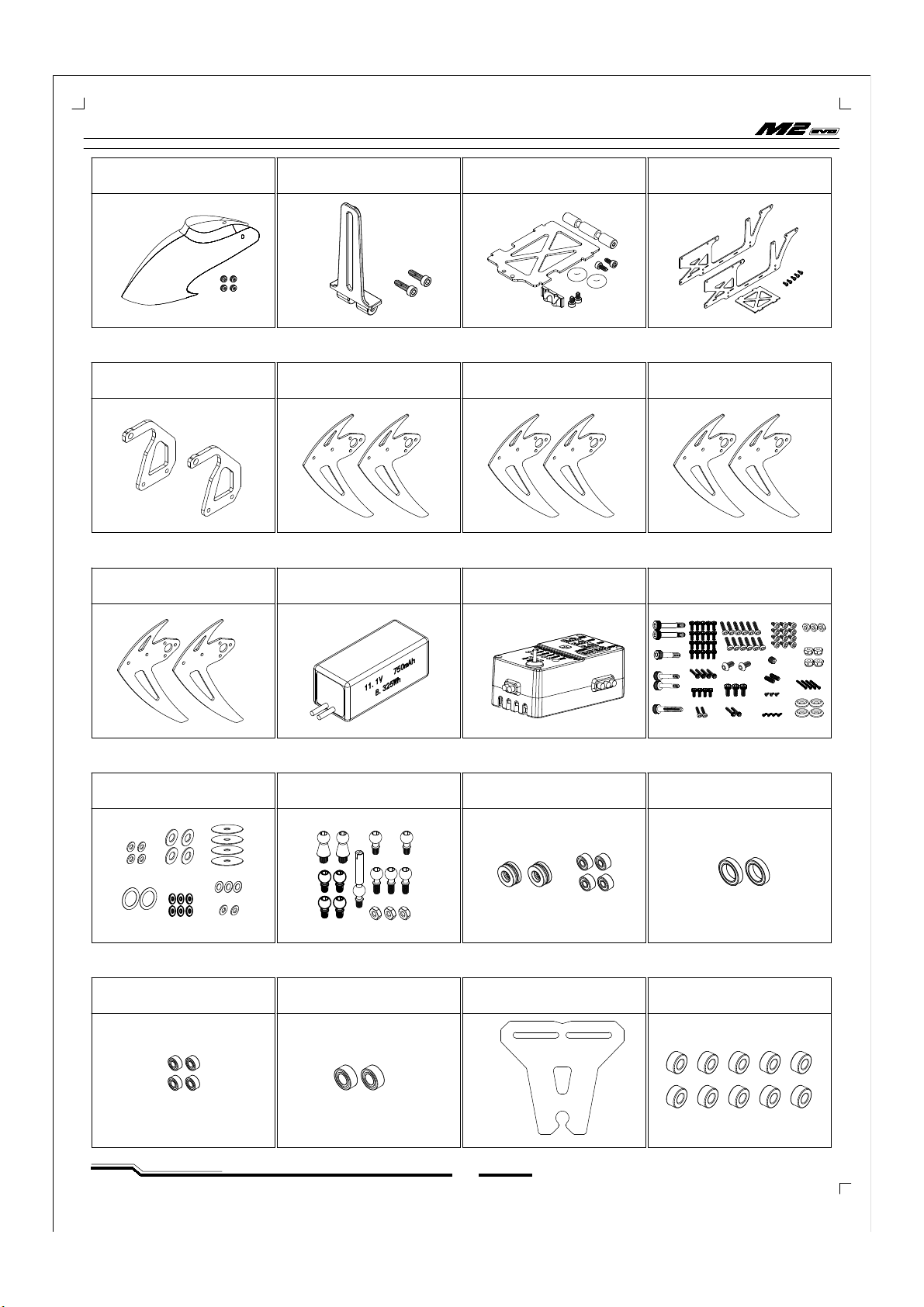

Spare parts picture-2配件-2
Page 20
机头罩（魅力红）
相位座组 电池仓下板组
垂直翼组（典雅白） 垂直翼组（竞赛黄） 垂直翼组（魔力橙）
垂直翼组（魅力红） 电池
M2 EVO球头螺丝组 桨夹轴承
飞控组 M2 EVO螺丝组
M2 EVO垫片组
倾斜盘轴承
辅助臂轴承
同心柱轴承
配件编号:
配件名称:
OSHM2323R
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2323R
Product name:
Canopy set-Glamour Red
配件编号:
配件名称:
OSHM2324
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2324
Product name:
Phase Panel set
配件编号:
配件名称:
OSHM2325
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2325
Product name:
battery lower panel set
配件编号: OSHM2328W
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2328W
Product name:
Vertical Stabilizer set-Elegant White
配件编号: OSHM2328Y
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2328Y
Product name:
Vertical Stabilizer set-Racing Yellow
配件编号: OSHM2328O
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2328O
Product name:
Vertical Stabilizer set-Charm Orange
配件编号: OSHM2328R
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2328R
Product name:
Vertical Stabilizer set-Glamour Red
配件编号: OSHM2329
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2329
Product name:
battery
配件编号: OSHM2113
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2113
Product name:
Flight controller set
配件编号: OSHM2330
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2330
Product name:
M2 EVO Screw Kit set
配件编号:
OSHM2331
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2331
Product name:
M2 EVO Full set washes
配件编号:
OSHM2332
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2332
Product name:
M2 EVO Ball screw set
配件编号:
OSHM2333
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2333
Product name:
Rotor Holder Bearing set
配件编号:
OSHM2050
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2050
Product name:
Swash plate Bearing
配件编号: OSHM2335
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2335
Product name:
Sub-arm Bearing
配件编号: OSHM2049
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2049
Product name:
Coaxiality Bearing
配件名称: 配件名称: 配件名称:
配件名称: 配件名称: 配件名称: 配件名称:
配件名称: 配件名称: 配件名称: 配件名称:
配件名称: 配件名称:
M2*12=2PCS
M2*10-L4=1PCS
M2*8=2PCS
M2*6=2PCS
M1.6*4=20PCS
M3*2.5=1PCS
M2.5*7=3PCS
M1.6*6=12PCS
M1.6*8=4PCS
M1.6*3=12PCS
M1.6=3PCS
M2=4PCS
M2=4PCS
M1.2*10=4PCS
M2.5*10=2PCS
M2*14=1PCS
M1*3=4PCS
M1.4*3=3PCS
M1.7*4=4PCS
M1.7*6=2PCS
M1.7*8=2PCS
机身侧板组（竞速黄）
机身后碳纤维加强片
配件编号: OSHM2326
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2326
Product name:
Fuselage Carbon panel set
配件编号: OSHM2327
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2327
Product name:
Frame Rear carbon Reinforcement Plate set
配件名称:
配件名称:
焊接好端子
Φ4*Φ9*4
Φ12*Φ18*4
Φ2*Φ5*2
Φ3*Φ6*2.8
Φ3*Φ6*2.5
Spare parts picture-3 配件-3
主翼支撑架
配件编号: OSHM2042
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2042
Product name:
Main Blade Support Frame set
配件名称:
横轴避震套
配件编号: OSHM2045
Model:
包装方式：吊卡+PE袋
Package: Hang tag +PE bag
OSHM2045
Product name:
Damper Rubber
配件名称:
20
EN
WWW.OMPHOBBY.COM
Φ2*Φ3.5*0.3
Φ2*Φ5*0.2
Φ2*Φ10*0.2
Φ4.5*Φ6*0.1
Φ1.6*Φ3.5*0.4
Φ2*Φ3.5*0.4
Φ2*Φ3.6*0.2
Page 21
21
EN
WWW.OMPHOBBY.COM

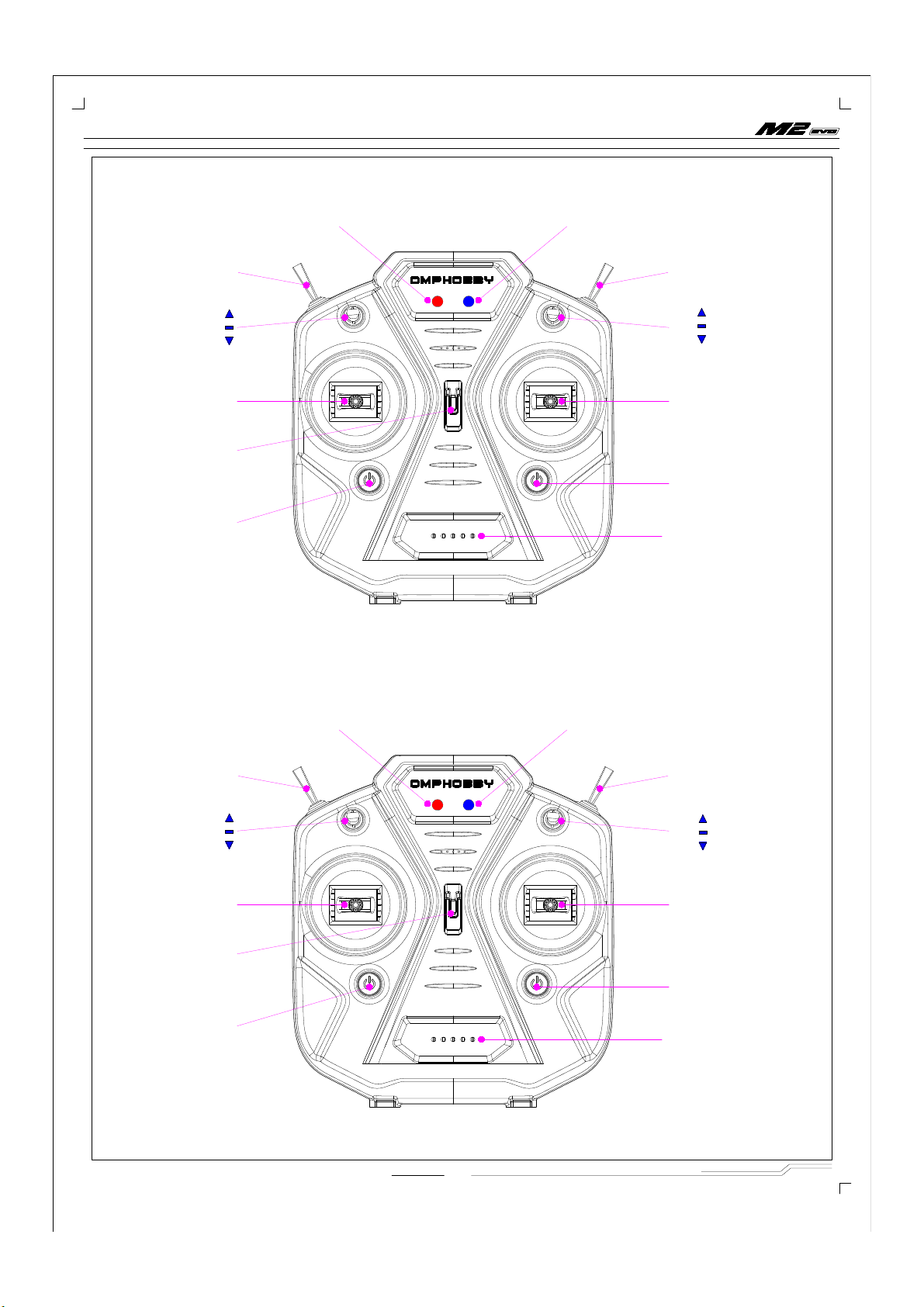

Transmitter description-1 遥控器说明-1
遥控器电（红）
IDLE
方
吊
POWER-1
后
D/R
HOLD
遥控器号（）
直机电
POWER-2
(
MODEL 2)
遥控器电（红）
IDLE
吊
POWER-1
后方
HOLD
遥控器号（）
直机电
POWER-2
(
MODEL 1)
70%
85%
100%
D/R
70%
85%
100%
Remote Control Power Light(Red) Remote Control Power Light(Blue)
Throttle, Orientation
Flying Ring
Front Back, Left Right
Helicopter Battery Indicator
Remote Control Power Light(Red) Remote Control Power Light(Blue)
Flying Ring
Helicopter Battery Indicator
Throttle, Left Right
Front Back, Orientation
式
手式
手式
Attitude mode
Manual mode
Manual mode
式
手式
手式
Attitude mode
Manual mode
Manual mode
Page 22
22
EN
WWW.OMPHOBBY.COM
180
165
97
提手
教练接口
充电接口
(Diameters)外形尺寸长：L165*W98*H180
(Radio Frequency)
无线频率：2.413GHz--2.453 GHz
(Transmit Power)
发射功率：< 20 dBm
(Weight)
重量约：345g
(Modulation Mode)
调制方式：GFSK
(Spread Spectrum Mode)扩频方式：FHSS
(Working Voltage)
工作电压：3.7V
(Remote Distance)
遥控距离：800m
(Charge Interface)
充电接口：Micro
(Low Voltage Alarm)低电压报警：3.4V
(Battery Type)
电池类型：Lithium Polyer Battery
(Battery Capacity)电池容规格：2500mAh 3.7V
(Product Model)产品型号：T6

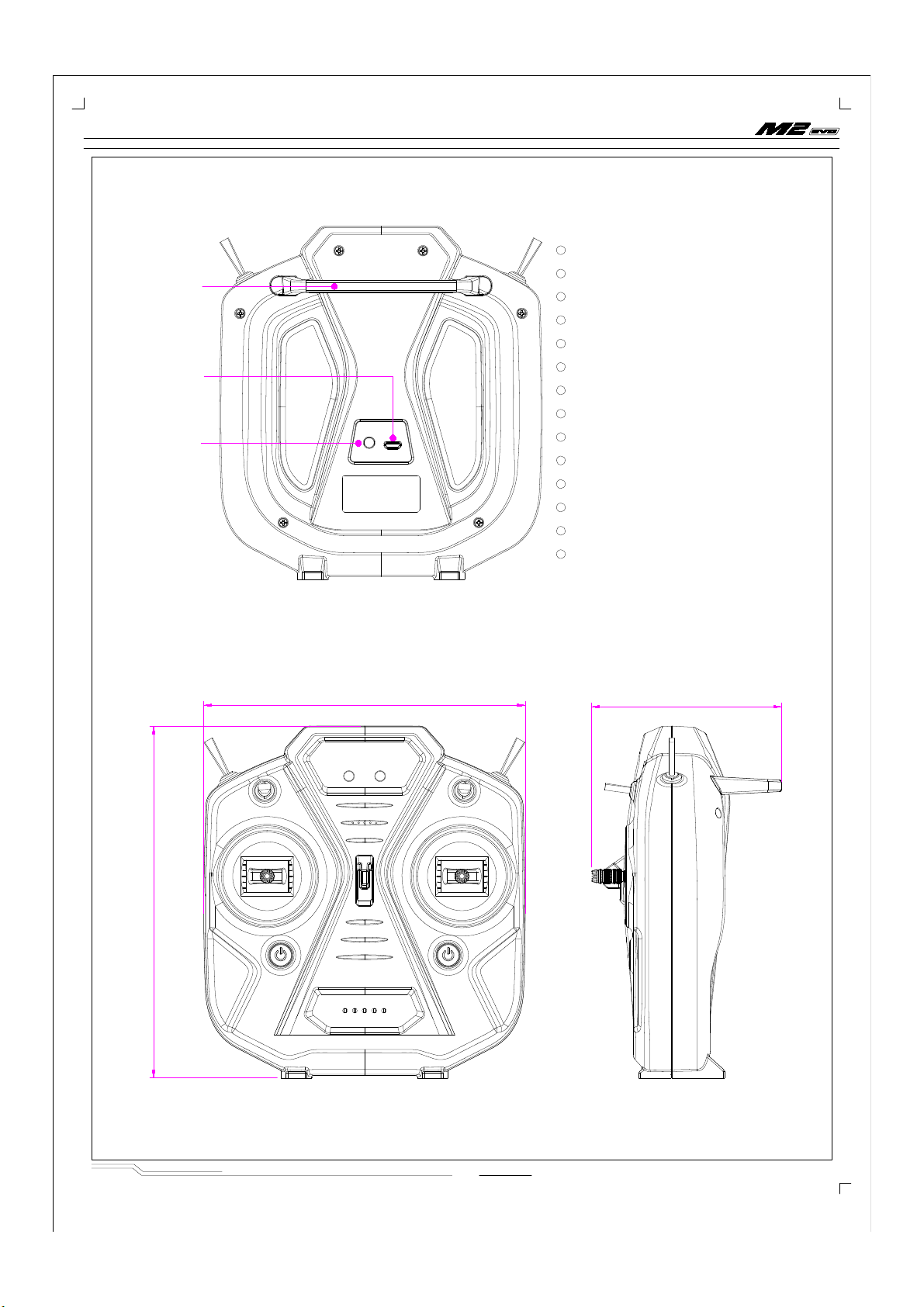

Transmitter description- 遥控器说明-
(Coach Interface)教练接口：Yes
Handle
Charge Interface
Coach Interface
5V <2A
Page 23
23
EN
WWW.OMPHOBBY.COM

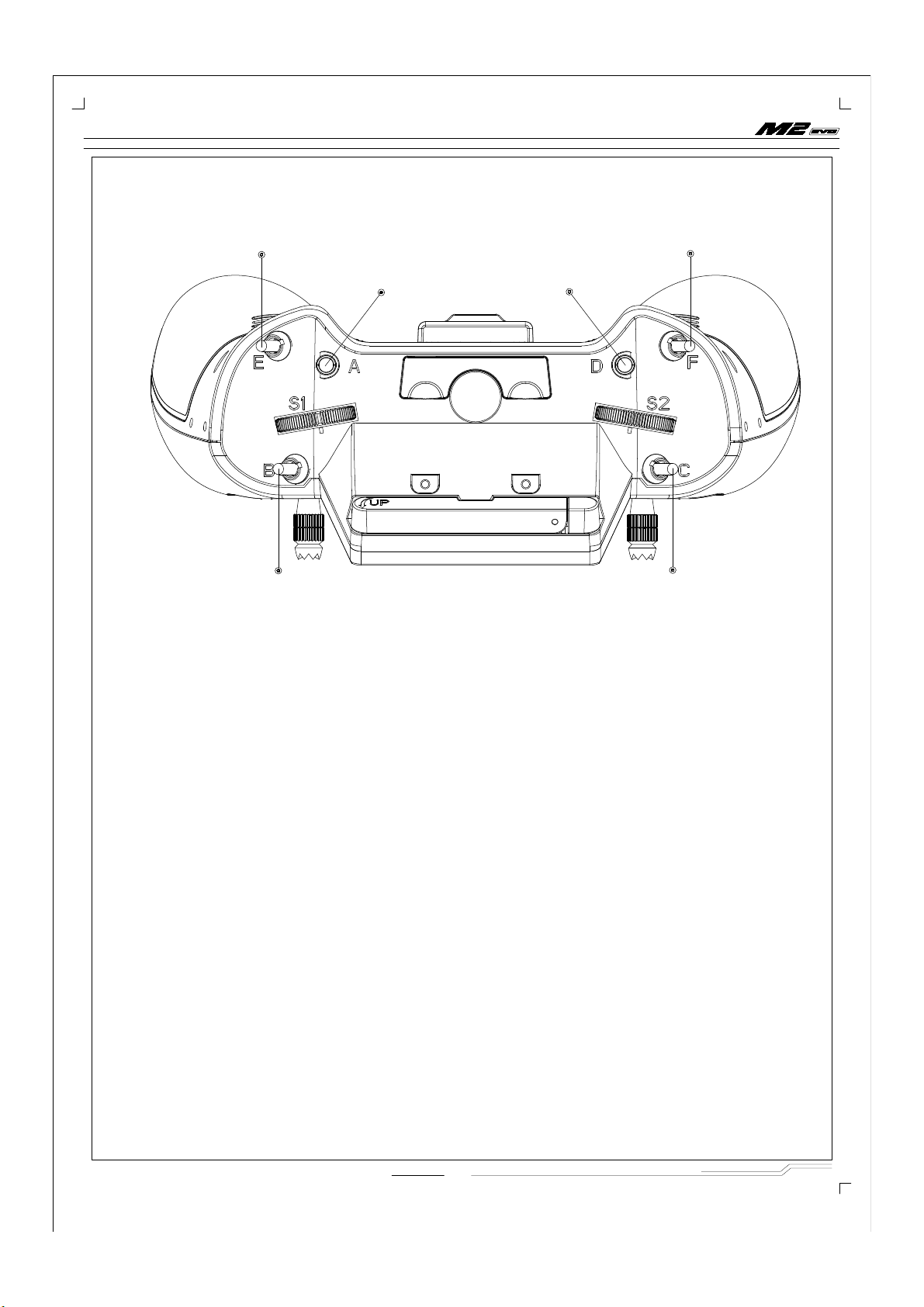

Transmitter description-3 遥控器说明-3
SE-1:手式/Manual mode
SE-0: 式/Attitude mode
SF-1: /Throttle OFF
SF-0: /Throttle ON
SA: /None
SD: 器/Timer clear
SB-1: 3D式1/3D IDLE 1
SB-0: 式/Normal mode
-1
-
SB-2: 3D式2/3D IDLE 2
- 1
emote sensin description o orro remote contro
Zorro遥控器遥说明
Page 24
24
EN
WWW.OMPHOBBY.COM
Memo 备忘录
Page 25
2022
www.omphobby.com
Zhuhai edge smart dirve technology Co., Ltd
Loading...
