Page 1

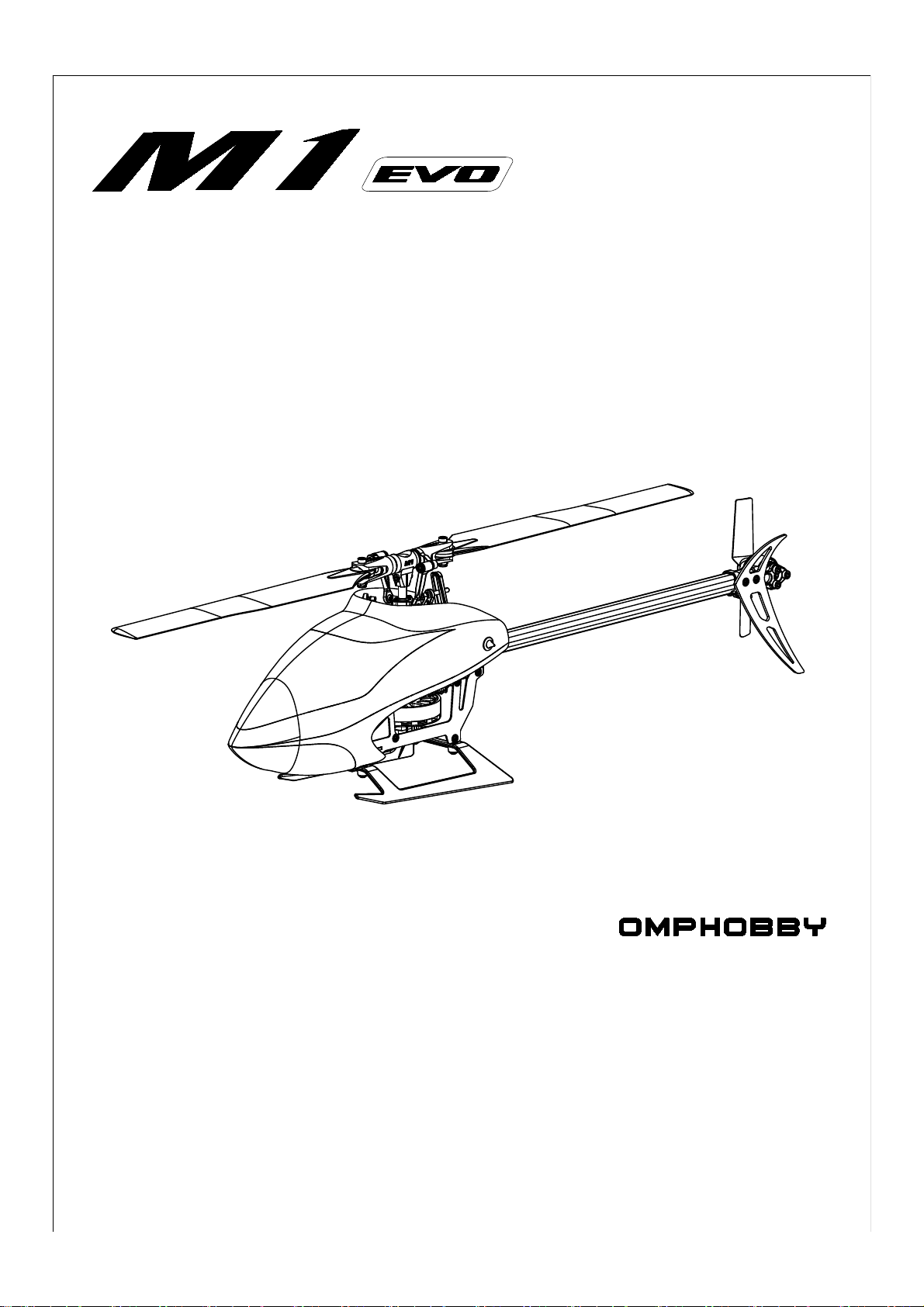

INSTRUCTION MANUAL

使用说明书

Thank you for buying OMP HOBBY products.The M1 EVO

is the latest technology in Rotary RC mldels.Please read this manual carefully before assembling and flying the New

M1 EVO

helicopter.We recommend that you keep this manual for future reference

感谢您选用边锋智驱系列产品。

进入遥控世界前必须告诉您许多相关的知识与注意事项，以确保您能够在学习的过程中较得心应手。在开始操作之前，请务必详细阅读本说明书，相信一定能够给您带来相当大的帮助，也请您妥善保管这本说明书，以作为日后

参考。

#1 BY DESIGN

Page 2

INTRODUCTION 前言

WWW.OMPHOBBY.COM

遥控模型飞机、直升机属于高危险性商品，飞行时务必远离人群，人为组装不当或机件损坏，电子控制设备不良，以及操控上的不熟悉、都有可能导致飞行失控损伤等不可预期的意外，请飞行者务必注意飞行安全，并需了解自负疏忽所造成的任何意外之责任。

Fly only in safe areas,away from other people. Do not operate R/C aircraft within the vicinity of homes or crowds of people .R/C aircraft may suffer

accidents,failures,and crashes due to a variety of reasons including,lack of maintenance,pilot error or radio interference. Pilots are responsible for their actions and damage or injury occurring during the poeration or as of a result of R/C aircraft models.

SAFETY NOTES 安全注意事项

模型商品属于需高操作技术且为消耗性之商品，如经拆装使用后，会造成不等情况零件损耗，任何使用情况所造成的商品不良或不满意，将无发于保固条件内更换新品或者退货，如遇有使用操作维修问题，本公司全球分公司或者代理商将提供技术指导，特价零件供应服务。

遥控直升机并非玩具，它是结合了许多高科技产品所设计出来的休闲用品，所以商品的使用不当或者不熟悉都可能会造成严重伤害甚至死

亡，使用之前请务必详细阅读本说明书，勿轻忽并注意自身安全。

注意！任何遥控直升机的使用，制造商和经销商是无法对使用者于零件使用的损耗异常或组装不当所发生之意外负责任何责任，本产品是提供给有操作过模型直升机经验的成人或者有相当技术的人员在旁指导于当地合法遥控飞行场飞行，以确保安全无误下操作使用，产品售出后该公司将不负责任何操作和使用控制上的任何性能与安全责任。

RC Helicopters require skill to operate. We recommend that you obtain the assistance of an experienced pilot before attempting to fiy our products for

the first time. Local expert assistance is the best way to assure properly assemble, setup, and safe flight of your model for the first time. Any damage or dissatisfaction as a result of crashes, incorrect setup, modifications or lack of necessary user skill are not covered by any warranty and cannot be returned for repair or replacement.

Please contact our distributors for technical support and parts supply if you experience problems.

R/C helicopters, including The M1 EVO are not toys.R/C helicopter utilize various high-tech products and technologies to provide superior performance.lmproper use of this product can result in serious injury or even death. Please read this manual carefully before using and make sure to be conscious of your own personal safety and the safety of others and your environment when operating all OMPHOBBY products.

Manufacturer and seller assume no liability for the operation or the use of this product . lntended for use only by adults with experience flying remote

control helicopters at a legal flying field. After the sale of this product we cannot maintain any control over its operation or usage.

IMPORTANT NOTES 重要声明

Do not attempt under any circumstances

在任何禁止的环境下，请勿尝试操作。

Mishandling due to failure to follow these instructions may result in danger.

因为疏忽这些操作说明，而使用错误可能造成危险。

因为疏忽这些操作说明，而使用错误可能造成财产损失或严重伤害。

Mishandling due to failure to follow these instructions may result in damage or injury.

WARNING LABEL LEGEND 标志代表含义

感谢您选购边锋智驱公司产品，为了你容易方便使用直升机，请您详细的阅读完这本说明书之后再进行组装以及操作这台直升机，同时请您妥善保存这本说明书，作为日后进行调整以及维修的参考。

The M1 EVO is a new product developed by OMPHOBBY. lt features the best design available on the Micro-Heli market to date, providing flying stability for beginners,full aerobatic capbility for advanced fliers, and unsurpassed reliability for all customers.

Thank you for buying OMPHOBBY Products. The M1 EVO Helicopter is designed as an easy to use,full featured Helicopter R/C model capable of all forms of rotary flight. Please read the manual carefully before operating the model and follow all precautions and recommendations in the

manual. Be sure to retain the manal for future reference, routine maintenance, and tuning.

WARNING

警告

注意

CAUTION

禁止

FORBIDDEN

注意

CAUTION

是由边锋智驱有限公司自行研发的新产品，不论您是需求飞行稳定的初学者还是追求性能卓越的飞行爱好者。将是您最佳的选择。

Page 3

WWW.OMPHOBBY.COM

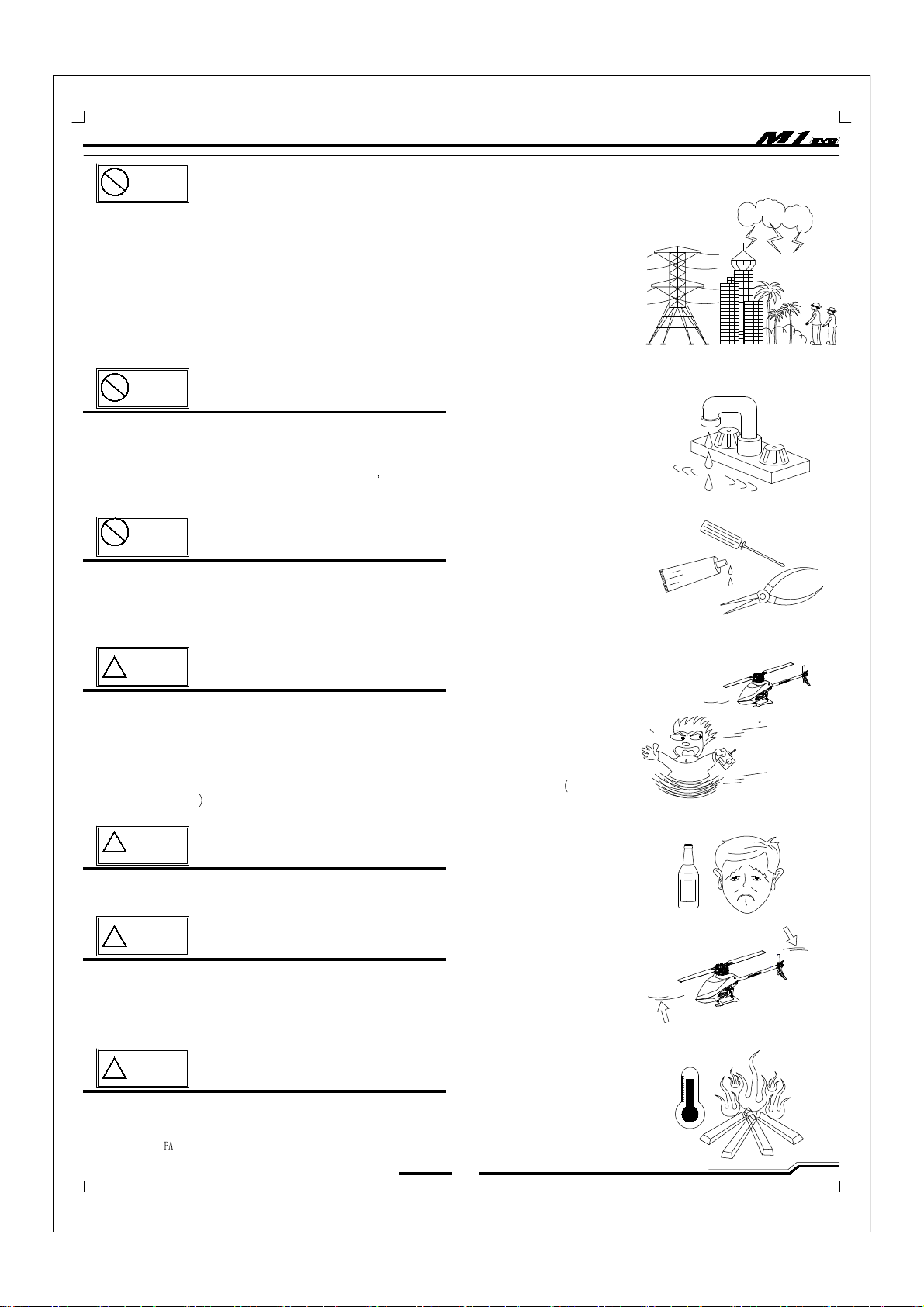

Precautions before use 使用前须知

Beer

请于自己能力内及需要一定技术范围内操作这台直升机，过于疲劳，精神不佳或不当操作，意外发生风险将可能会提高。

Operate this unit within your ability.Do not fly under tired condition and improper operation may cause in danger

ALWAYS BE AWARE OF THE ROTATING BLADES 远离运转中的零件

SAFE OPERATION 安全操作

R/C models are made of various forms of plastisc.Plastic is very susceptible to damage or deformation due to extreme heat and clod climate .Make sure not to store the model near any source of heat such direct strong sunlight or heater.lt is best to store the model indoors ,in a climate-controlled room-temperature environment.

KEEP AWAY FROM HEAT 远离热源

遥控飞机多半是以

纤维或聚乙烯、电子商品为主要材质，因此要尽量远离热源、日照、以避免因高温而变形甚至熔毁损坏的可能。

当直升机主旋翼与尾旋翼运转时，切勿触摸并远离任何物件，以避免造成危险及损坏。

During the operation of the helicopter,the main rotor and tail rotor will be spinning at a high rate of speed .The blades are capable of inflicting serious bodily injury and damage to the environment.Be conscious of the hazard from the rotor blades and maintain safe distance at all time.

Always fly the model a safe distance from yourself and others,as well as surrounding objects.Never take your eyes off the model or leave it

unattended while it is turned on.Immediately turn off the model and transmitter and remove battery when you have landed model.

(It is recommend you to practice with computer-based flight simulator.)

避免独自操控

至飞行场地前，需确认是否有相同频率的同好正在飞行，因为开启相同的频率的发射机将导致自己与他人立即干扰等意外危险。

The guidance provided by an experienced pilot will be invaluable for the assembly,tuning,trimming,and actual first flight.

Before turning on your model and transmitter check with other RC model users in the area that you are safe to fly.

OBTAIN THE ASSISTANCE OF AN EXPERIENCED PILOT

遥控飞机操控技巧在学习初期有着一定的难度，要尽量避免独自操作飞行，需有经验的人士在旁指导，才可以操控飞行。勤练电脑模拟器及老手指导是入门必要的选择

请确认于产品限界内操作，请勿过载使用，并勿用于安全、法令外其他非法用途。

PREVENT OPETATION 勿不当使用本产品

Please use only genuine replacement of parts on the manual to ensure corrrct operation.Use of non-standard or damaged parts voids warranty and may cause danger.This product is for R/C model,do not use for other purpose.

请勿自行改造加工，任何的升级改装或维修，请使用三源电子科技产品目录中的零件，以确保结构的安全。

直升机内部也是由精密的电子零件组成，所以必须绝对的防止潮湿或水气避免在浴室或雨天时使用，防止水气进入机身内部而导致机件及电子零件故障而引发不可预期的意外！

It is crtical to keep the model and associated equipment away from moisture and other contaminants.The introduction or exposure to water or

moisture in any form can cause the model to malfuntion resulting in loss of use or a crash .Do

not operate or expose to rain or moisture

R/C models are composed of many precision electrical components.

PREVENT MOISTURE 远离潮湿环境

For the first practice please choose a legal flying field with ample clear space. Flying over long grass reduces damage in event of a crash.Consider use of training landing gear. Do not fly your model in inclement weather, such as rain, wind snow or darkness.

R/C helicopters can fiy at high speed and have high RPM rotor blades thus they pose a certain degree of potential danger.Choose a legal andsafe flying field consisting of flat, smooth ground without obstacles, other people, animals etc.

初次练习时，务必选择在空旷合法专属飞行场地并适当搭配练习架飞行，这对于飞行失误所造成的损伤将会大幅的降低。请勿在下雨天、打雷等恶劣天气下操作，以确保本身及机体的安全。

必须注意周边有没有人、高楼、建筑物、高压电线、树木等等、避免操控的不当造成自己或与他人的财产损坏。

LOCATE AN APPROPRIATE LOCATION 远离障碍物及人群

To ensure the safety of yourself, others and your model do not fly near airports, buildings, roads, crowded areas or high voltage cables.

直升机飞行时具有一定的速度，相对的也潜在着危险性，场地的选择也相对的重要，请遵守当地的法律法规到合法的遥控飞行场地去飞行。

禁止

FORBIDDEN

禁止

FORBIDDEN

禁止

FORBIDDEN

WARNING

警告

WARNING

警告

注意

CAUTION

注意

CAUTION

Page 4

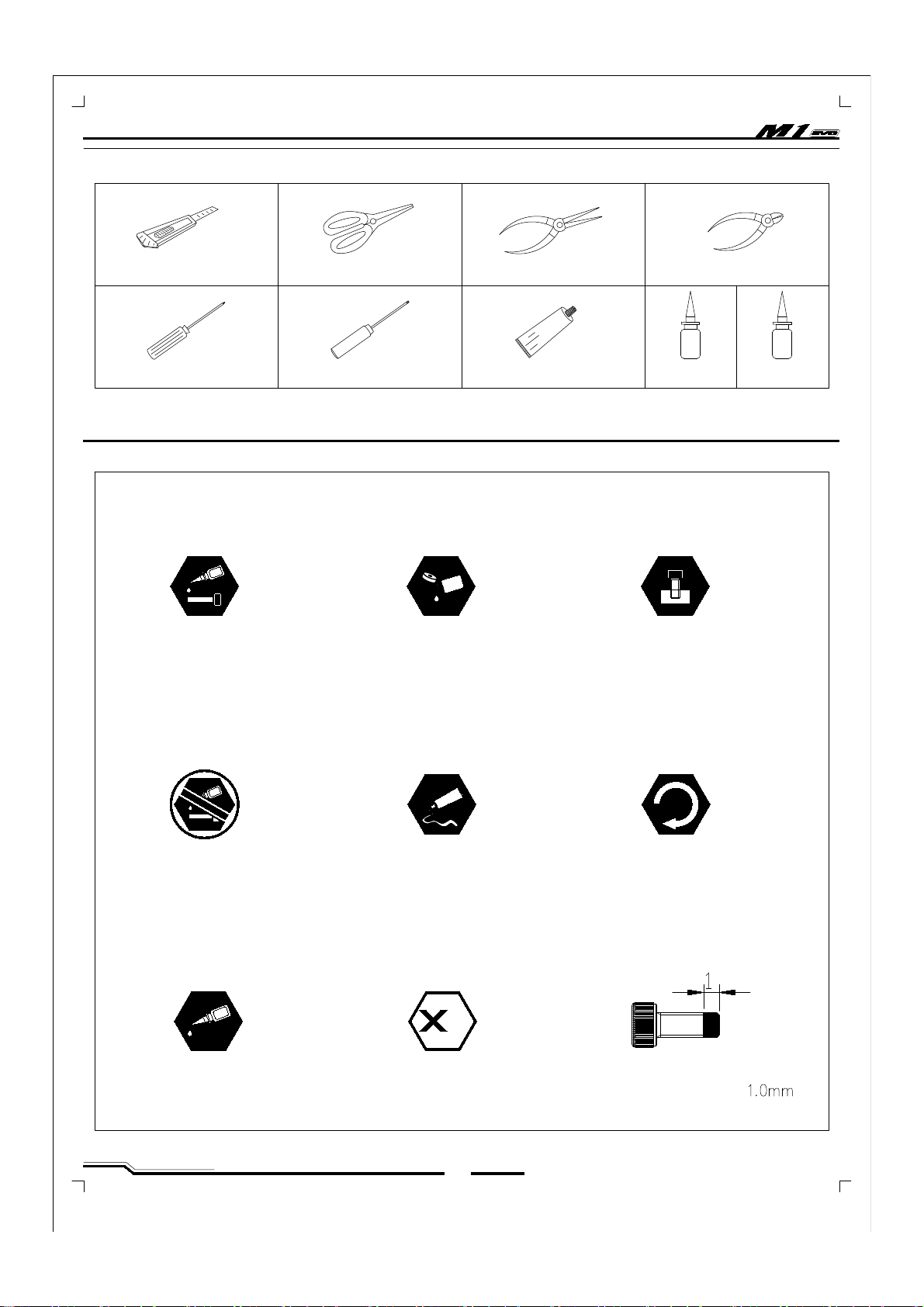

EQUIPMENT REQUIRED FOR ASSEMBLY 自备工具

胶水使用方法

WWW.OMPHOBBY.COM

六角螺丝起子

十字螺丝起子

剪刀

Scissors

刀子

Cutter Knife

斜口钳

Diagonal Cutting Pliers

尖嘴钳

Needle Nose Pliers

Thr'dlock AB胶CA Glue瞬间胶

Oil润滑油

Hex Driver (1.5 & 2mm)Philips Screw Drive

When you see the marks as below,please use glue or greae to ensure flying safety.

Threadlock application area (1mm)

Grease

Repeat Multiple Times

Apply BLUE Threadlock

Apply Petroleum-Based,

Light Viscosity Lube

Loosely Tighten

Apply NO Threadlock

Apply Synthetic Grease

Fully Tighten

Apply MEDIUM CA

标有以下符号之组装步骤，请配合上胶或上油，以确保使用之可靠度。

使用螺丝胶

添加润滑油

普通拧紧

使用瞬间胶固定

重复多次

无需使用螺丝胶

添加润滑油脂

完全拧紧

蓝色螺丝胶上胶宽度约

Page 5

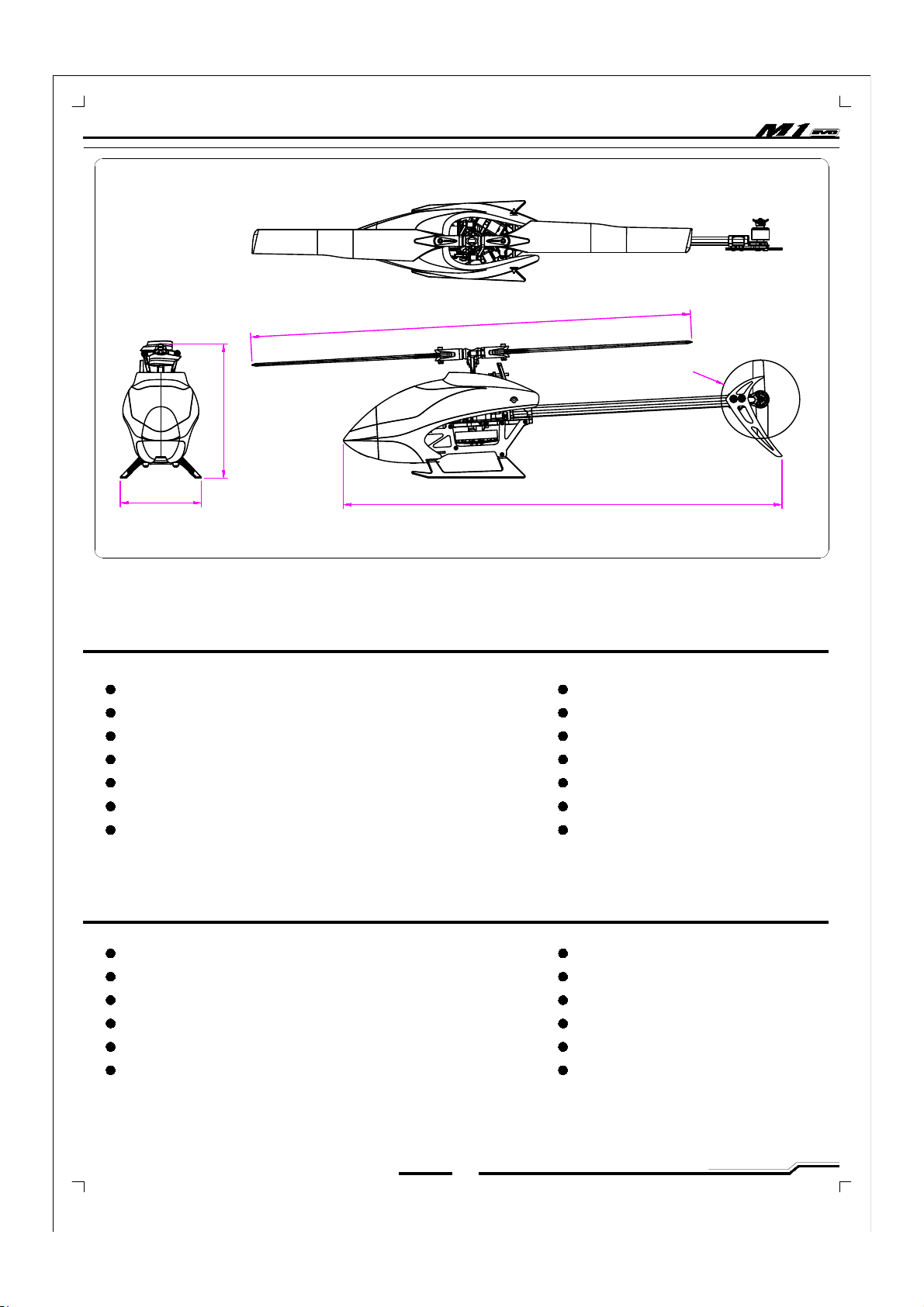

Specifications 参数规格

Lenght：290mm

Specifications 参数配备

Height：88mm

Main Blade

：125mm

Main Rotor Diameter

：290mm

Tail Rotor Diameter：46.5mm

Flying Weight：~118g(ENG)

Features 设计特点

WWW.OMPHOBBY.COM

Direct drive main and tail rotor design with dual brushless motor

All metal 7075 aluminum alloy material flybarless head design

Airframe all carbon fiber lightweight design

Streamlined low wind resistance hood design

4 in 1 OFS control system

Attitude stabillization mode and 3D lock mode switch freely

机身长：290mm

机身高：88mm

主旋翼长度：125mm 主旋翼直径：290mm

尾旋翼直径：46.5mm

起飞重量约：约118g(塑胶外壳舵机)

采用双无刷电机直接驱主尾旋翼设计全金属7075铝合金材质无副翼旋翼头设计机身全碳纤维轻量化设计

流线型低风阻机头罩设计四合一OFS控制系统姿态增稳模式和3D锁定模式自由切换

Flying Weight：~125g(ENG)

起飞重量约：约125g(全金属舵机)

293

292

Page 6

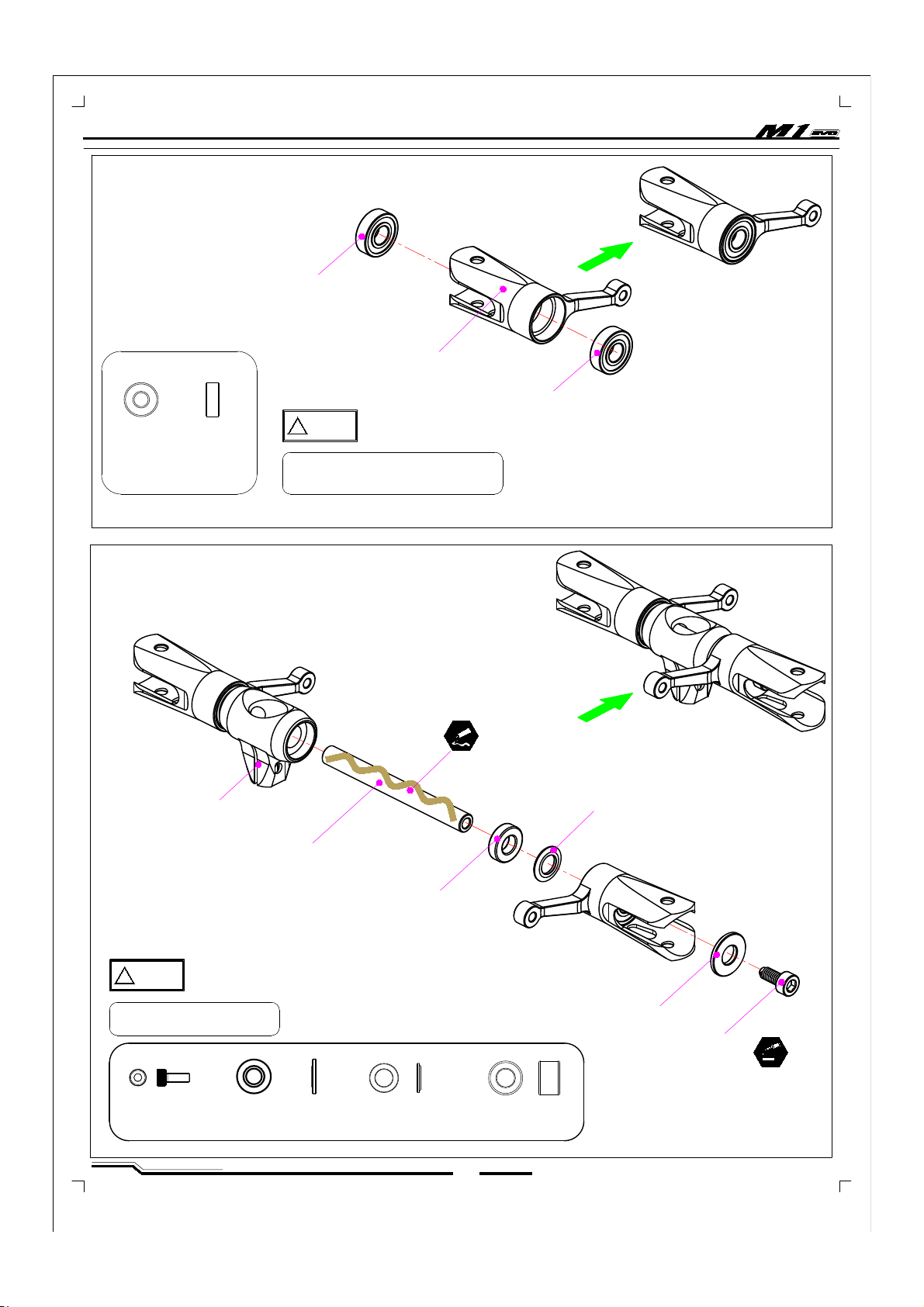

step 1 步骤一

󱊹󰛠

CAUTION

󲺖󲒕󲺖󰅝󰟡󱆠一󱃲󳺯󲸝󳇈󱸿󳅵󲶋󰰀󰏃󲛇󰵏

󳕅󰡐(Ø2.5xØ6x2.6mm)x4

WWW.OMPHOBBY.COM

Bearing-682ZZ

󰮜󲗍󰑸

Main rotor holder

󱠘(Ø2.6xØ4.8x0.4)x2

Washer

󲸽Ø2.6xØ5.9x0.8mm)x2

Washer

󳕅󰡐

Ø2.5xØ6x2.6mm

Bearing-682ZZ

󳕅󰡐

Ø2.5xØ6x2.6mm

Bearing-682ZZ

󳞢󰈯󰮜󲗍󰅫󰑸

Metal main rotor housing

󰿻󳕅Ø2.5x25.6mm

Feathering shaft

Grease

󰿻󳕅󳙐󳳘

Ø2.45xØ4.95x1.4mm

Damper rubber

󱠘-Ø2.6xØ4.8x0.4mm

Washer

󲸽

Ø2.6xØ5.9x0.8mm-2

Washer

󰷂󲾣󲶋

M1.6x3mm

Socket screw

󰿻󳕅󳙐󳳘

Ø2.45xØ4.95x1.4mm

Damper rubber

󰷂󲾣󲶋

(M1.6x3mm)x2

Socket screw

󱊹󰛠

CAUTION

󰿻󳕅󲶋󳫒󲋸󳇈󱊹󰛠󰸹󲛎󳔽󳹋󱬖

For the original assembled product, please confirm whether the screws have been glued and will not loosen before each flight.

After the feathering shaft screw is locked, please note that the rotor holder can rotate smoothly!

Page 7

WWW.OMPHOBBY.COM

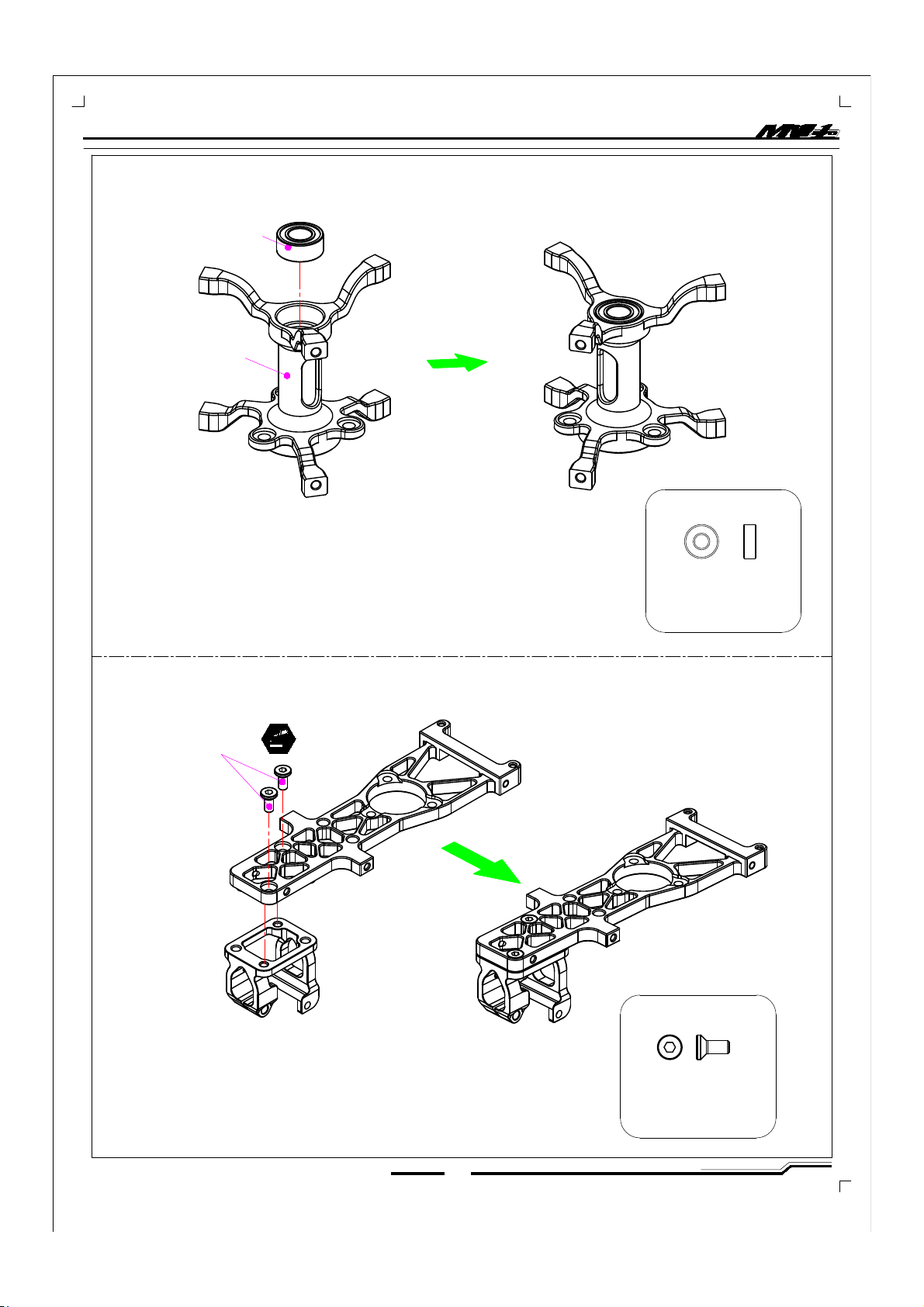

step 2 步骤二

󳕅󰡐Ø3xØ6x2.5mm

Bearing-MR63ZZ

󲠆󰴋󰅫󰑸

Servo Mount

󳕅󰡐(Ø3xØ6x2.5mm)x1

Bearing-MR63ZZ

󱉚󲾣󲶋(M1.6x4mm)x2

Countersunk Hex Socket Screw

󱉚󲾣󲶋

M1.6x4mm

Countersunk Hex Socket Screw

Page 8

WWW.OMPHOBBY.COM

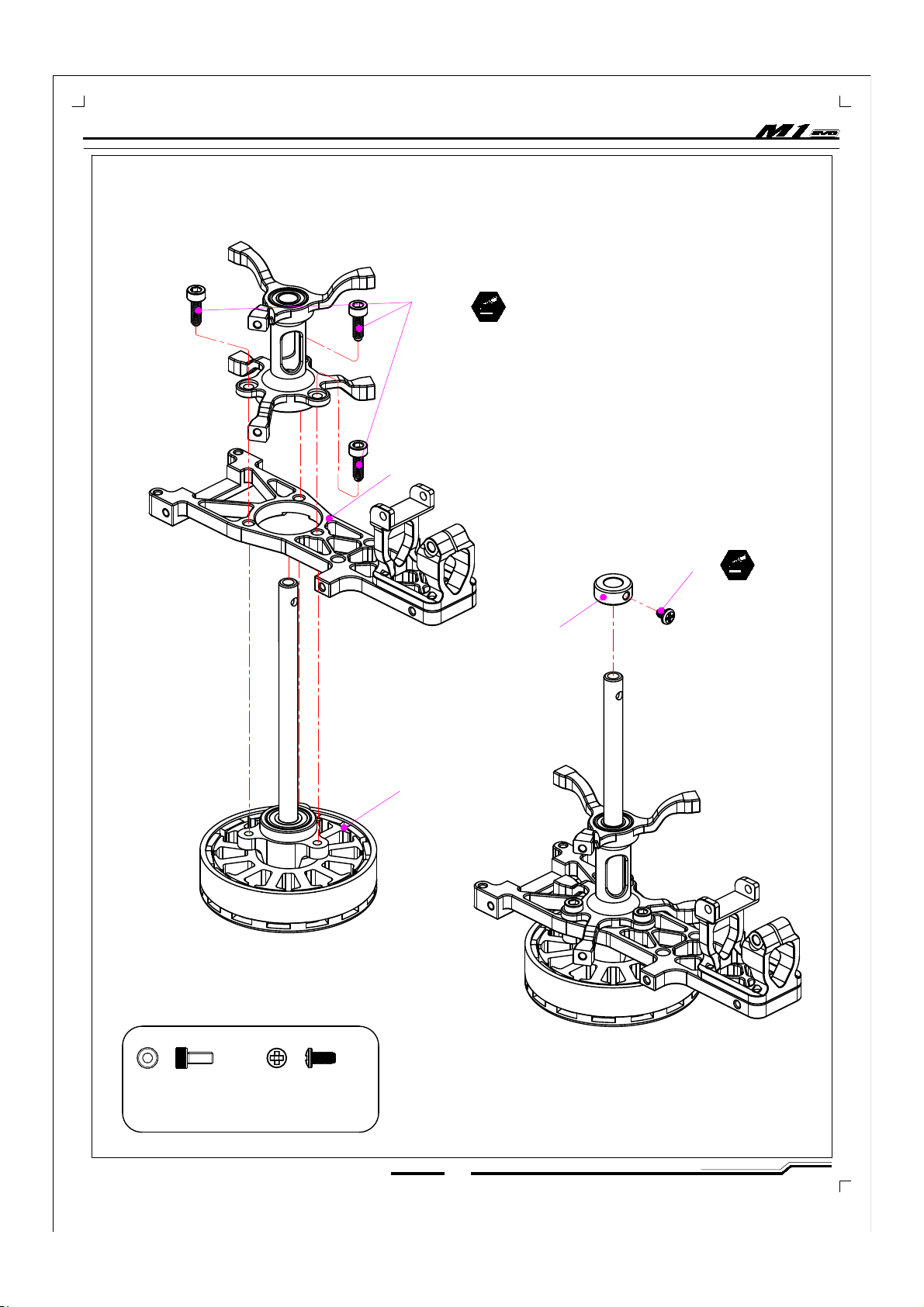

step 3 步骤三

󰷂󲾣󲶋(M1.6x5mm)x3

Socket screw

󰄨󰴋󰺁󱠪󲶋(M1.4x2mm)x1

Socket screw

󲶋M1.4X3

Socket screw

󳕅󰅫󱦀

Spindle retaining ring

󱬆󰴋

Main motor

󱬆󰴋󰅫󰑸

Motor Mount

󰷂󲾣󲶋

M1.6x5mm

Socket screw

Page 9

WWW.OMPHOBBY.COM

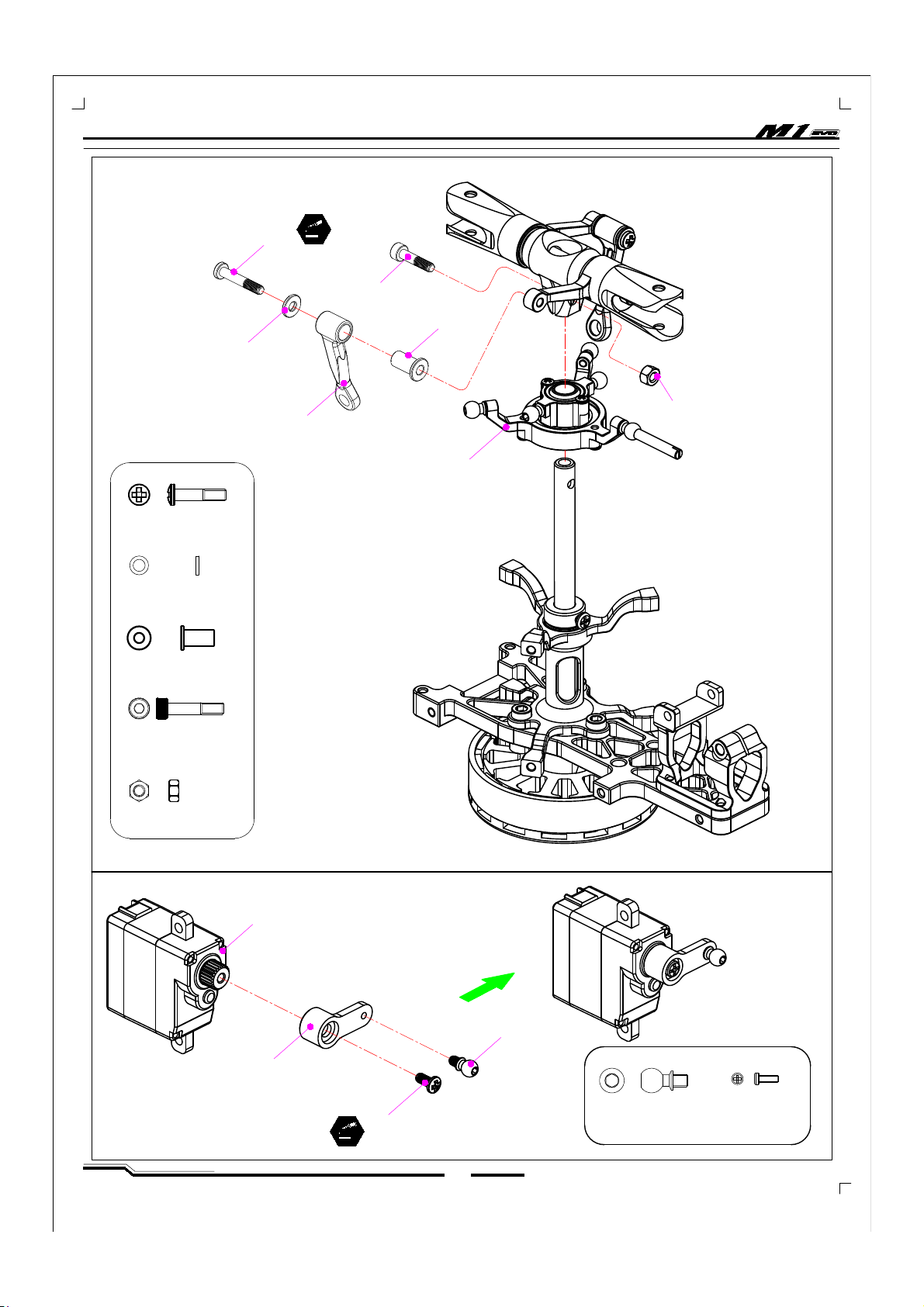

step 4 步骤四

󲶋󱆞(M1.4)x1

M1.4 Nut

󰄨󰴋󰺁󱠪󲶋(M1.4x8mm-L3)x2

Socket screw

󱠘Ø1.4xØ3.5x0.5mm)x2

Washer

󳪭(Ø1.4xØ2.4x4.95)x2

Copper sets

󰷂󲾣󲶋(M1.4x6mm-L2)x1

Socket screw

3 SET

󰄨󰴋󰺁󱠪󲶋

(M1.4x3)x1

󱧔(Ø2.5x4.8-M1.4)x3

Linkage Ball

Socket screw

󰄨󰴋󰺁󱠪󲶋

M1.4x3mm

Socket screw

舵机

Metal Servo

󱧔Ø2.5x4.8-M1.4

Linkage Ball

󲠆󰴋󰨗󲞓

Servo Arm

󰄨󰴋󰺁󱠪󲶋

M1.4x8mm-L3

Socket screw

󱠘

Ø1.4xØ3.5x0.5mm

Washer

󲶋󳎮󰥸󲞓

Main Pitch Control Arm

󰄨󰴋󰺁󱠪󲶋

M1.4x6mm-L2

󳪭

Ø1.4xØ2.4x4.95mm

Copper sets

󰭭󱲩

Swash plate

󲶋󱆞(M1.4)

M1.4 Nut

Page 10

WWW.OMPHOBBY.COM

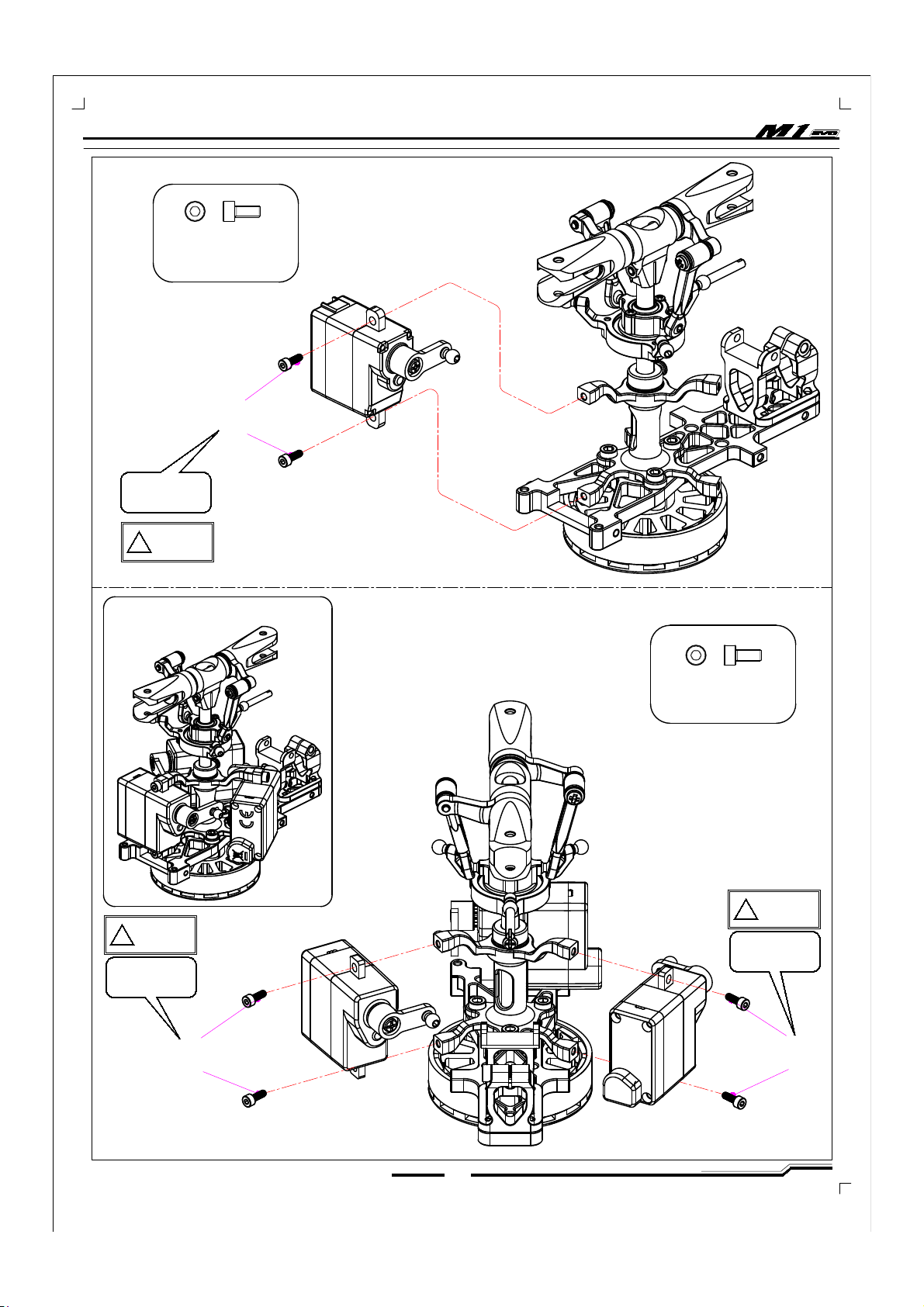

step 5 步骤五

󰷂󲾣󲶋

(M1.4x4mm)

Socket screw

󰷂󲾣󲶋(M1.4x4mm)x2

Socket screw

舵机装配完成视图

󱊹󰛠

CAUTION

Anti-loosening screw

󰏷󲗡󲨎󲛇󲶋

󱊹󰛠

CAUTION

Anti-loosening screw

󰏷󲗡󲨎󲛇󲶋

󱊹󰛠

CAUTION

Anti-loosening screw

󰏷󲗡󲨎󲛇󲶋

󰷂󲾣󲶋(M1.4x4mm)x2

Socket screw

󰷂󲾣󲶋

(M1.4x4mm)

Socket screw

󰷂󲾣󲶋

(M1.4x4mm)

Socket screw

Page 11

WWW.OMPHOBBY.COM

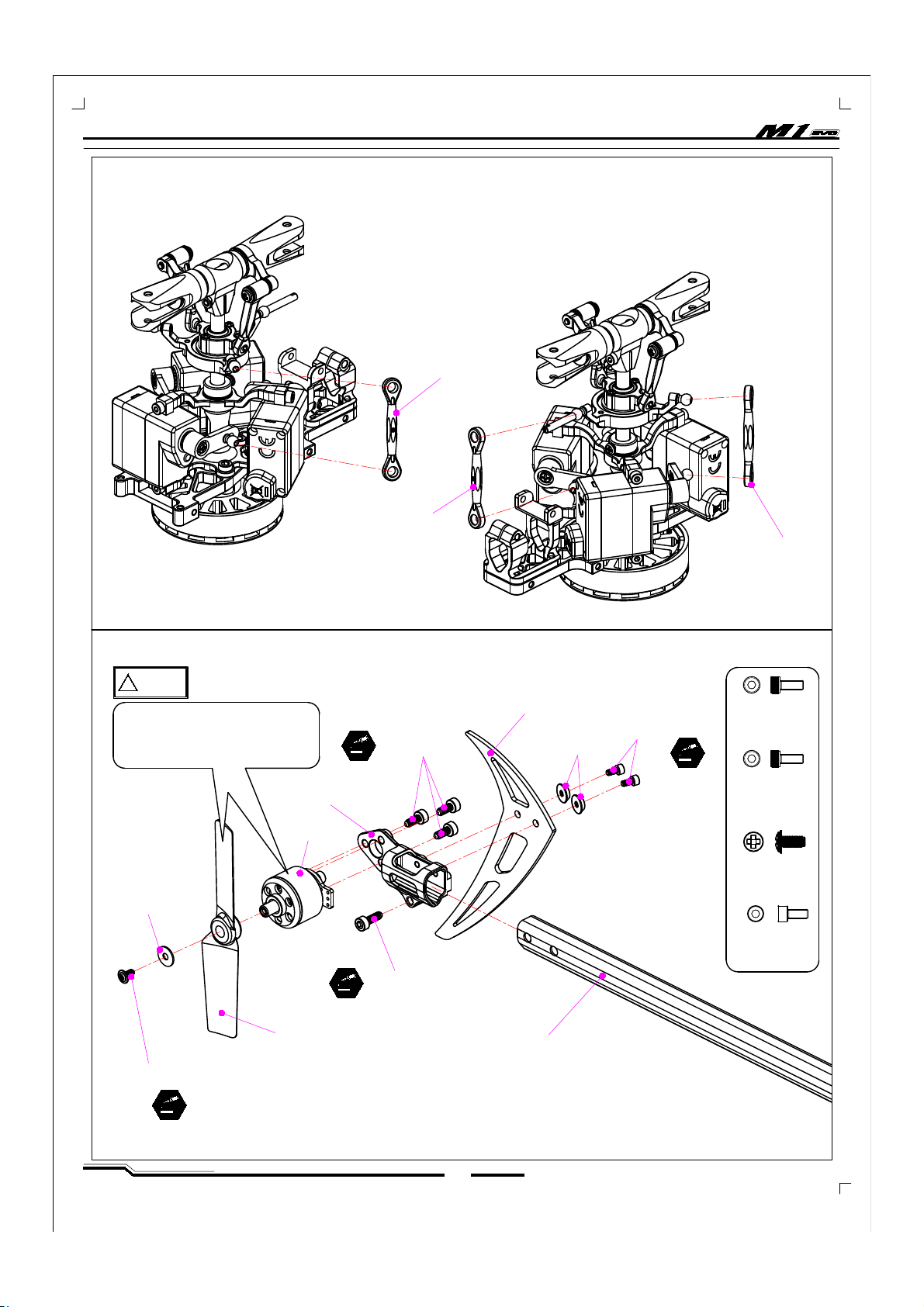

step 6 步骤六

CH1󳖯󰴗

CH1 Linkage rod

CH2󳖯󰴗

CH2 Linkage rod

CH3

󳖯󰴗

CH3 Linkage rod

󰷂六󲾣󲶋

(M1.6x3mm)x3

Socket screw

󱊹󰛠

CAUTION

󱆠󱃲󳺯󲸝󳇈󰺑󰶶󰈏󰸹󱬆󰴋󳕅󳜞󰰀󰳚󰵏󲢶󰳚󰵏 󳇈󰺑󰶶󰈏󰸹󲋸󲶋

Before each flight, please check whether the tail rotor and motor shaft are loose. If loose, please check the tail rotor and tighten the screws!

󰄨󰏷󱠘󲶋

(M1.4x3mm)x1

Socket screw

󰈏󰸹󳪭



Ø4.5xØ1.4x0.3mm)x1

Washer

󰄨󰏷󱠘󲶋

M1.4x3mm

Socket screw

󰈏󰮜󲗍

Tail Blade

󰈏󱬆󰴋

Tail Motor

󰈏󱬆󰴋󰅫󰑸

Tail Motor Mounting Panel

垂直翼

Vertical Stabilizer

󰷂六󲾣󲶋

M1.4x3mm

Socket screw

󰷂六󲾣󲶋

M1.6x3mm

Socket screw

󰷂六󲾣󲶋

M1.6x5mm

Socket screw

󰷂六󲾣󲶋

(M1.6x5mm)x1

Socket screw

尾管

Tail Boom

󰷂六󲾣󲶋

(M1.4x3mm)x2

Socket screw

装饰垫片

Vertical Stabilizer Srcew Gasket

Page 12

WWW.OMPHOBBY.COM

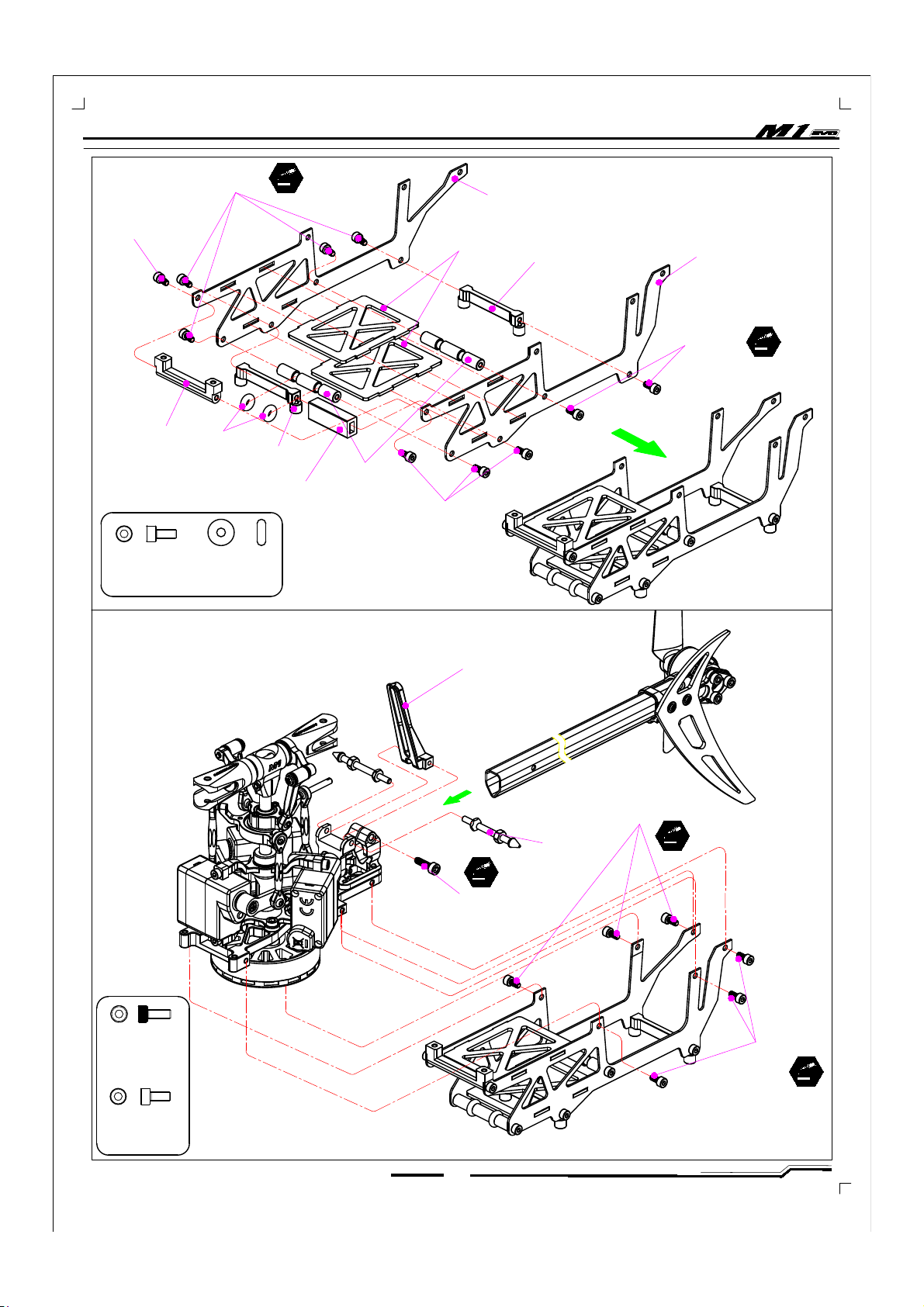

step 7 步骤七

󰷂󲾣󲶋

M1.4x3mm

Socket screw

󰷂󲾣󲶋

M1.4x3mm

Socket screw

󰷂󲾣󲶋

M1.4x3mm

Socket screw

󰷂󲾣󲶋

M1.4x3mm

Socket screw

󱺄󲑵󲓅󰴋󳑼󰎷

Frame Left Carbon Fibre

󱺄󲑵󲓅󰴋󳑼

Frame Right Carbon Fibre

󰴋󳑼󰵐

Frame Middle Plate

󲛫󰶇󰅚󲺖󰑸

Landing Skids Mount

󲛫󰶇󰅚󲺖󰑸

Landing Skids Mount

󰴋󳑼󰬀󰷂

Frame Pillar

󱬆󳇔󰅫󰬀󰶇

ESC Mount Bracket



O-Ring

φ1*φ4.5*φ1.5x2

O-Ring

倾斜盘相位座

Swash plate plastic phase seat

󰴋󰅫󰷂

Canopy Support

󰷂󲾣󲶋

M1.6x6mm

Socket screw

󰷂󲾣󲶋

M1.4x3mm

Socket screw

󰷂󲾣󲶋

M1.4x3mm

Socket screw

󰷂󲾣󲶋

(M1.6x6mm)x1

Socket screw

󰷂󲾣󲶋

(M1.4x3mm)x10

Socket screw

󲔺󳰃󰵏󱸖󲛇

Canopy Anti-loose silicone sleeve

󰷂󲾣󲶋

(M1.4x3mm)x6

Socket screw

Page 13

WWW.OMPHOBBY.COM

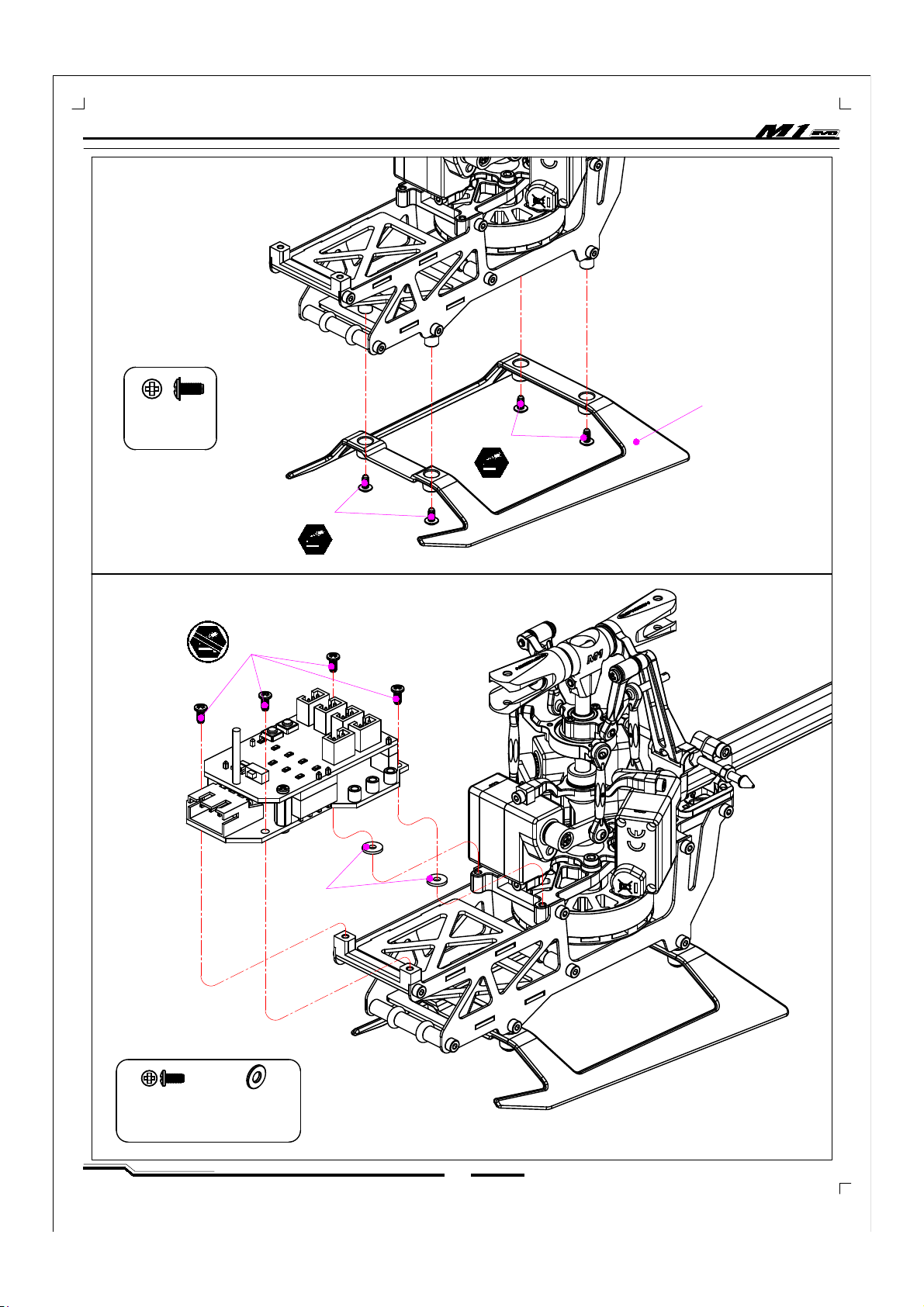

step8 步骤八

󰄨󰏷󱠘󲶋

M1.4x3mm

Socket screw

󰄨󰏷󱠘󲶋

M1.4x3mm

Socket screw

󲛫󰶇

Landing skid

󰄨󰏷󱠘󲶋

(M1.4x3mm)x4

Socket screw

󰄨󰺁󱠪󰑄󰑦󲶋

M1.4x3mm

Cup Head Cross Socket screw

󲒮󲓩󱠘

φ1.4*φ3*0.8

Insulating Washer

󰄨󰺁󱠪󰑄󰑦󲶋

(M1.4x3mm)X4

Cup Head Cross Socket screw

󲒮󲓩󱠘

(φ1.4*φ4*0.5)X2

PVC Insulating Washer

󲃽󳹆

Page 14

WWW.OMPHOBBY.COM

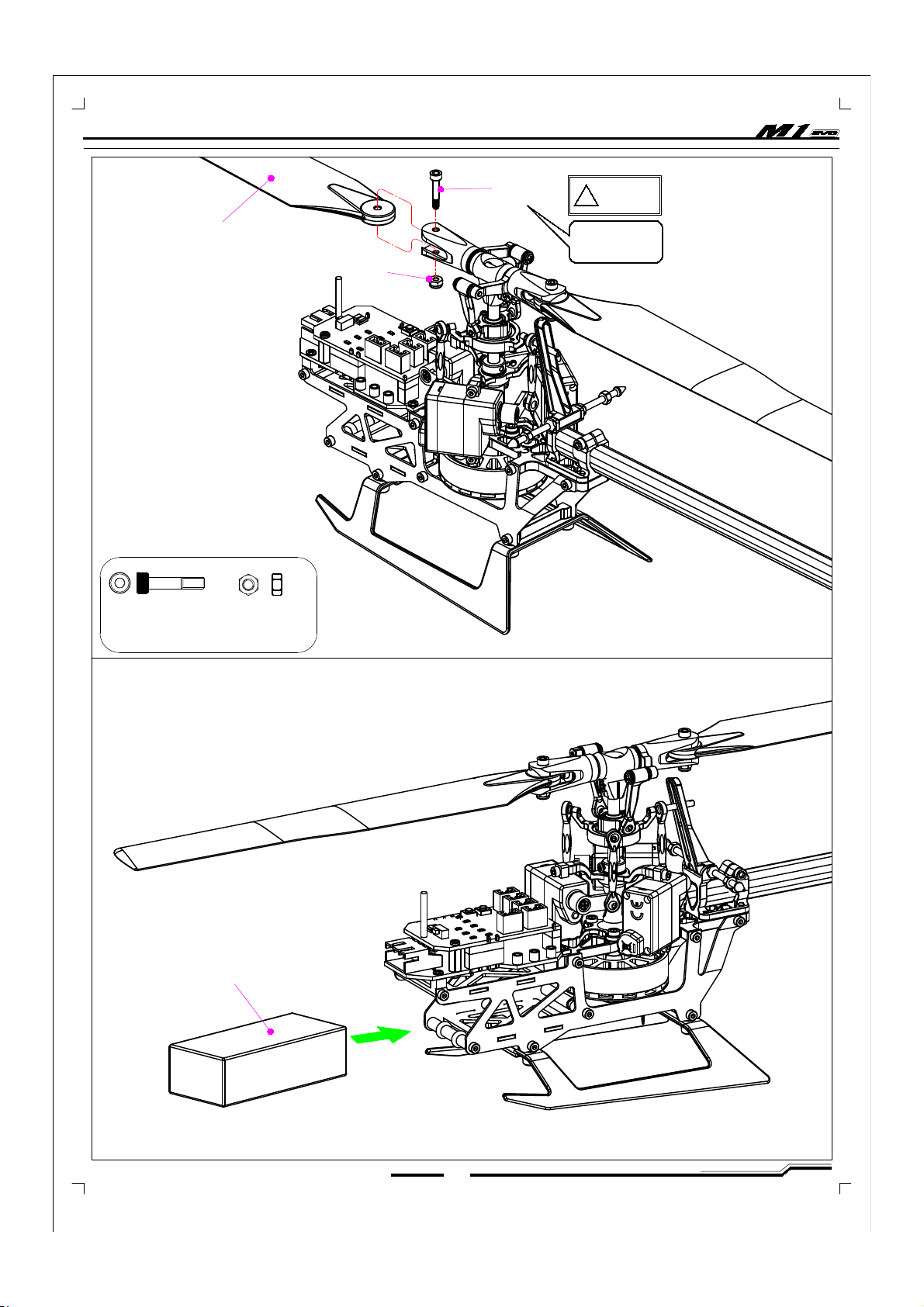

step 9 步骤九

󲃽󳹆

󰷂󲾣󲶋

(M1.6x9mm-L3)x2

M1.6󲶋󱆞 (M1.6)x2

M1.6 Nut

Anti-loosening screw

󱬆󱈱

Battery

󰮜󲗍

Main Blade

M1.6󲶋󱆞

M1.6 Nut

󰷂󲾣󲶋

(M1.6x9mm-L3)x2

Anti-loosening screw

󱊹󰛠

CAUTION

Anti-loosening screw

󰏷󲗡󲨎󲛇󲶋

Page 15

WWW.OMPHOBBY.COM

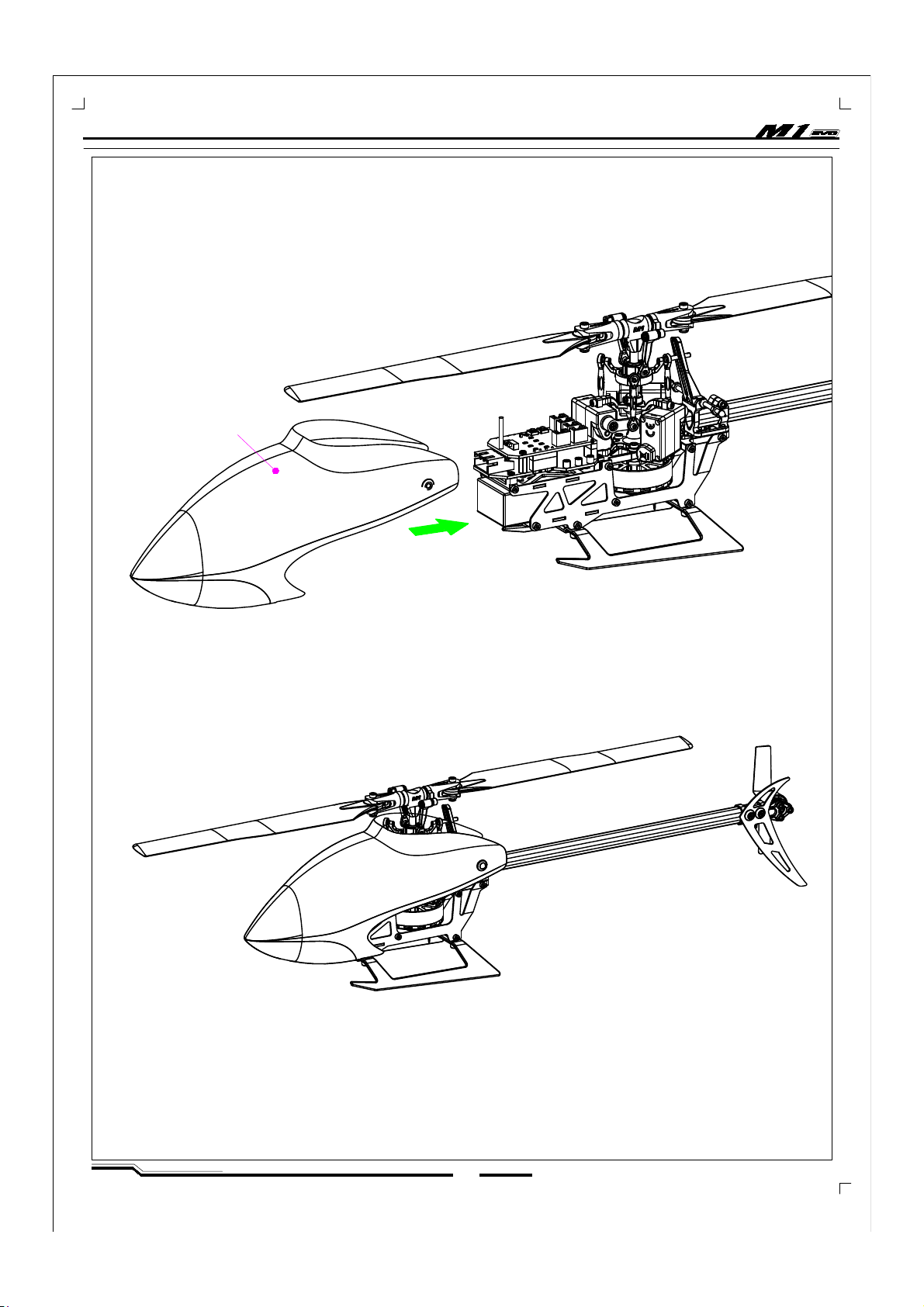

step 10 步骤十

󲃽󳹆

󰴋󲔺

Canopy

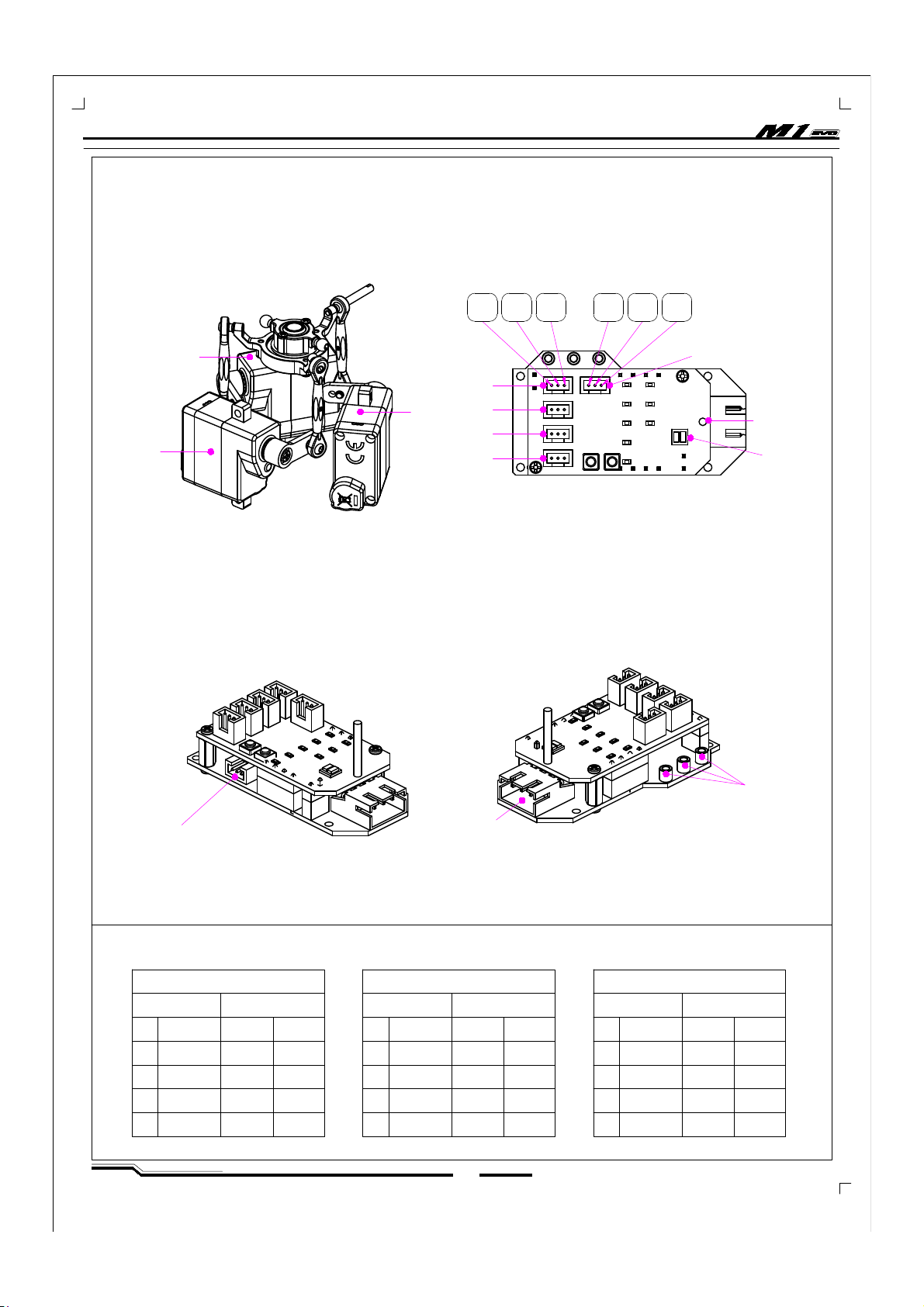

Page 16

CH1

CH2

CH3

CH1

CH2

CH3

S-BUS

DSM/X

GND

天线

Antenna

LED Light LED灯

尾电机线接口

Tail Motor

主电机线接口

Main Motor

电源接口

POWER

第16页

WWW.OMPHOBBY.COM

step 10 󱄶󴁵

飞行参数设置说明

一般飞行模式

油门

螺距

48 100 11°

48 60

5.5°

48 20 1.8°

48 0 -0.6°

0 -30 -2.4°

IDLE 1模式

油门

螺距

68 100 11°

68 50

5.5°

68 0 0°

68 -50

-5.5°

68 -100 -11°

油门

螺距

78 100 11°

78 50

5.5°

78 0 0°

78 -50

-5.5°

78 -100 -11°

IDLE 2模式

General Flight Model

IDLE 1 Model IDLE 2 Model

Throttle Screw Pitch Throttle Screw Pitch Throttle Screw Pitch

Flight Parameter Setting lntroduction

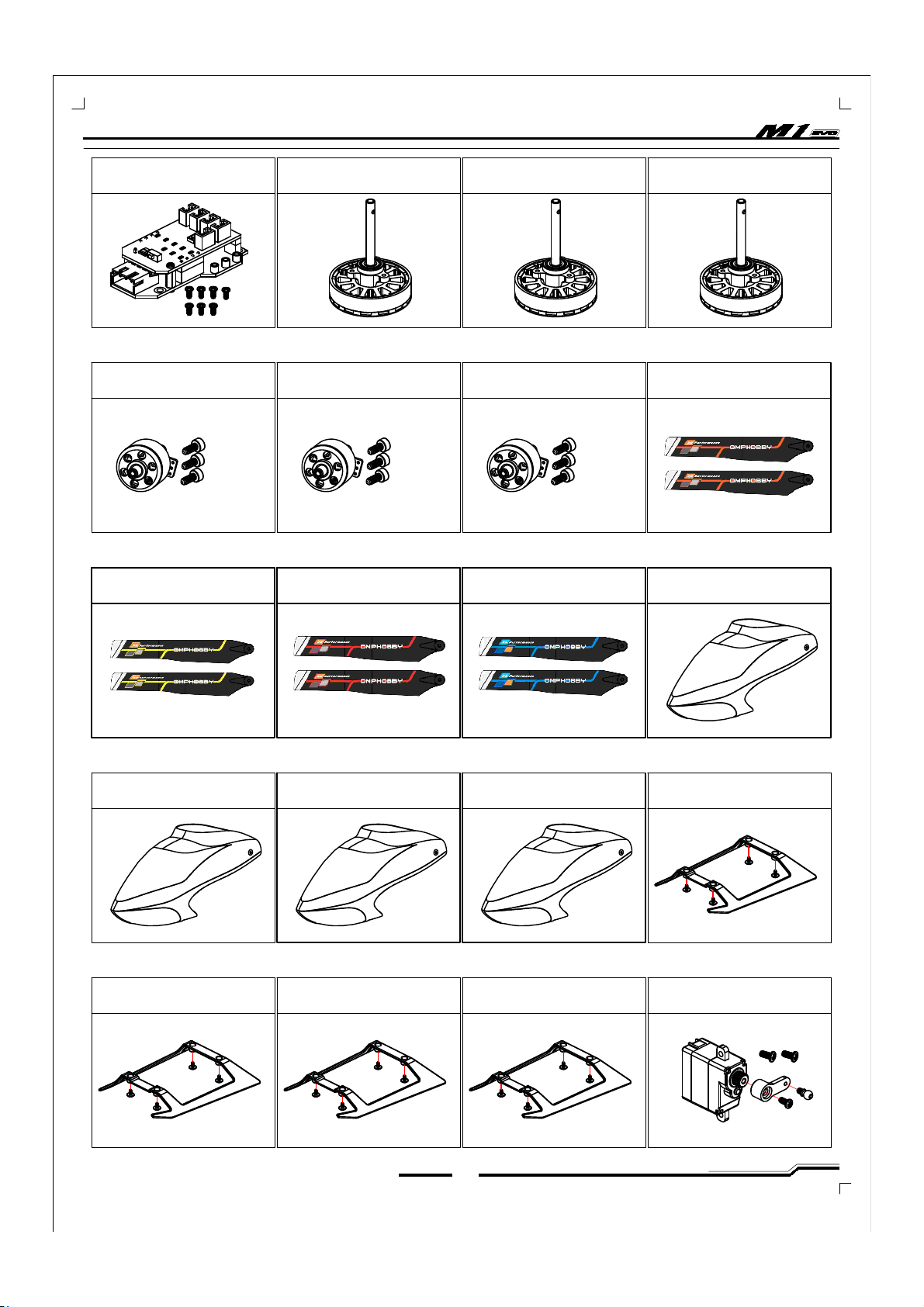

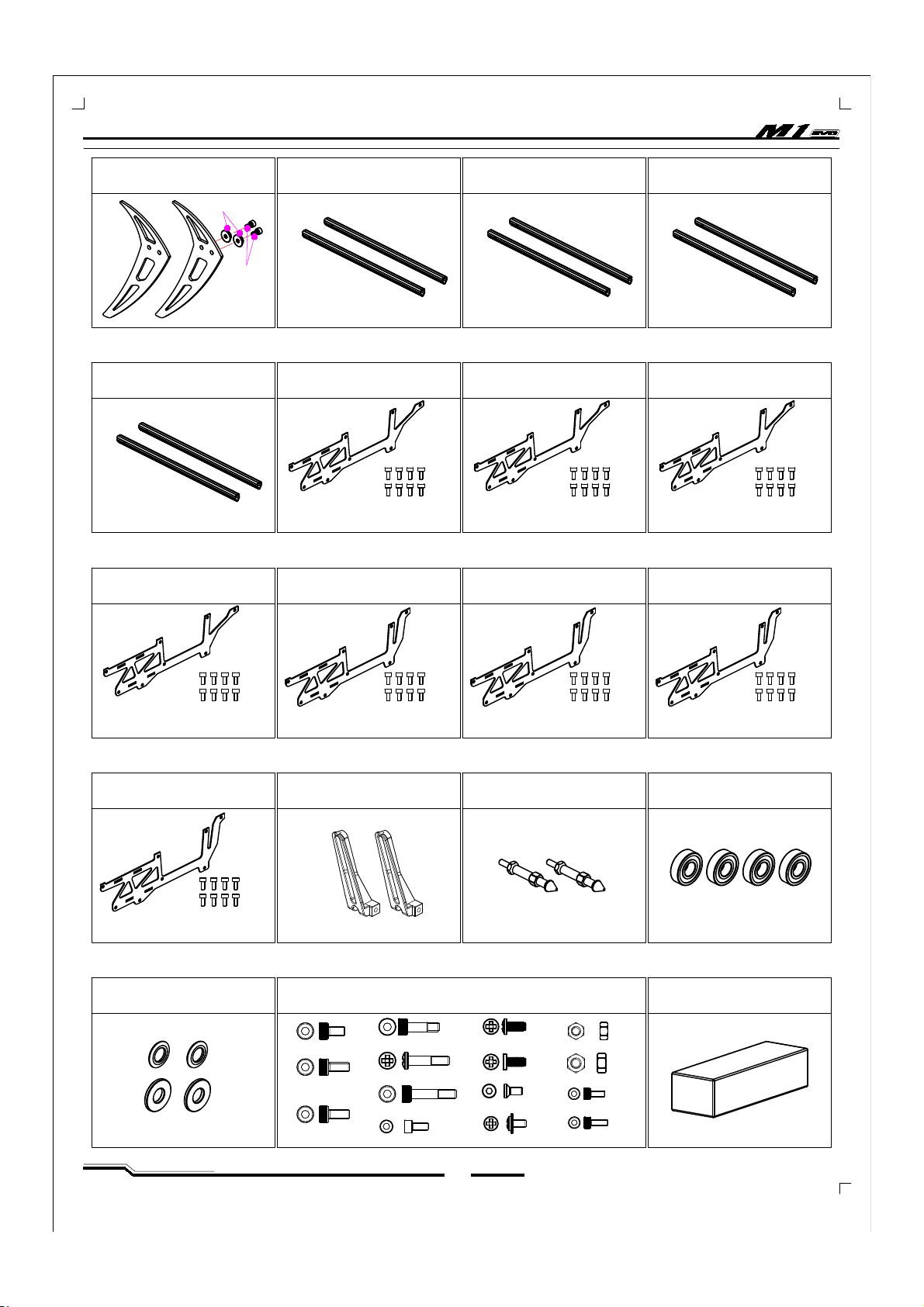

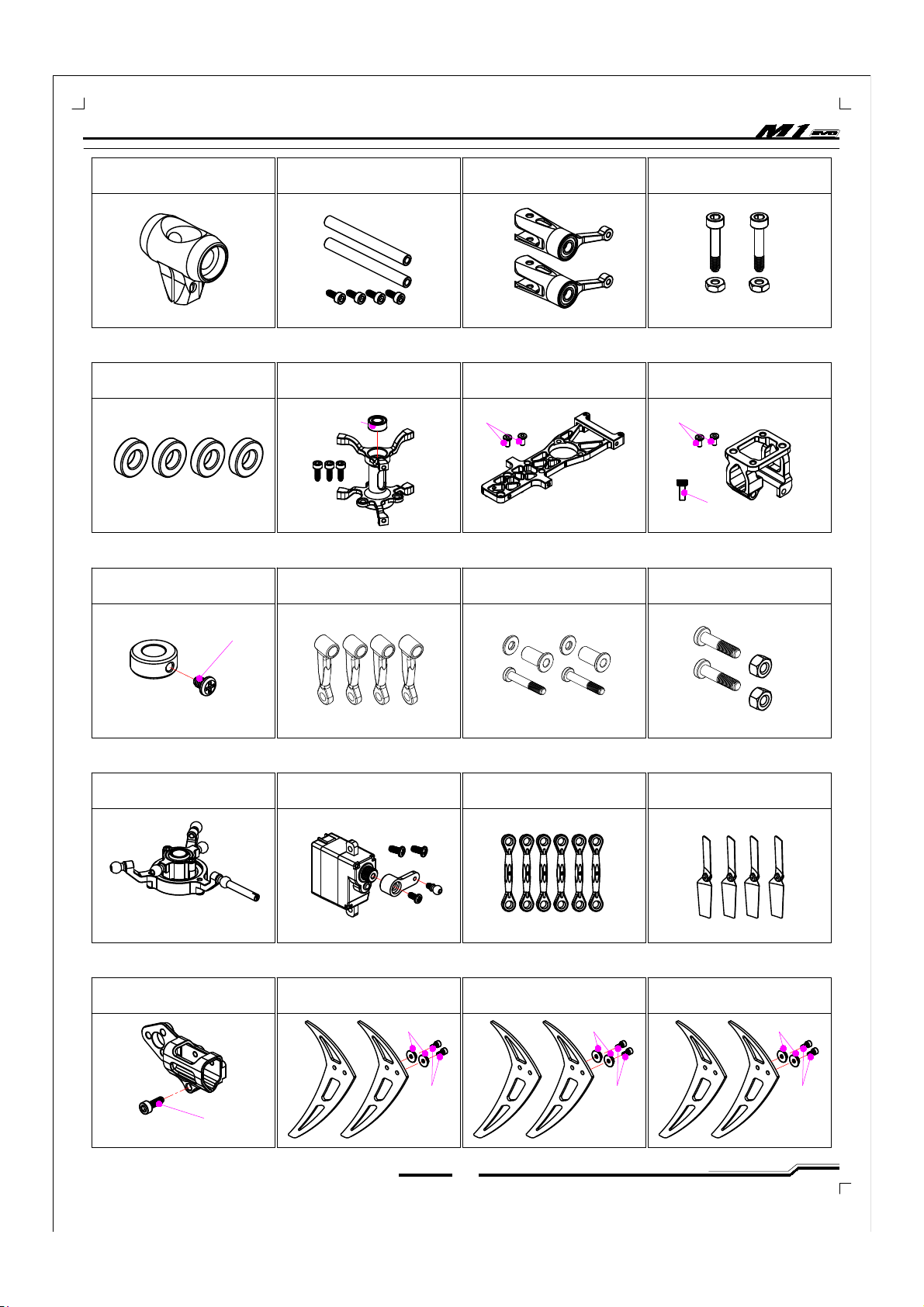

Page 17

WWW.OMPHOBBY.COM

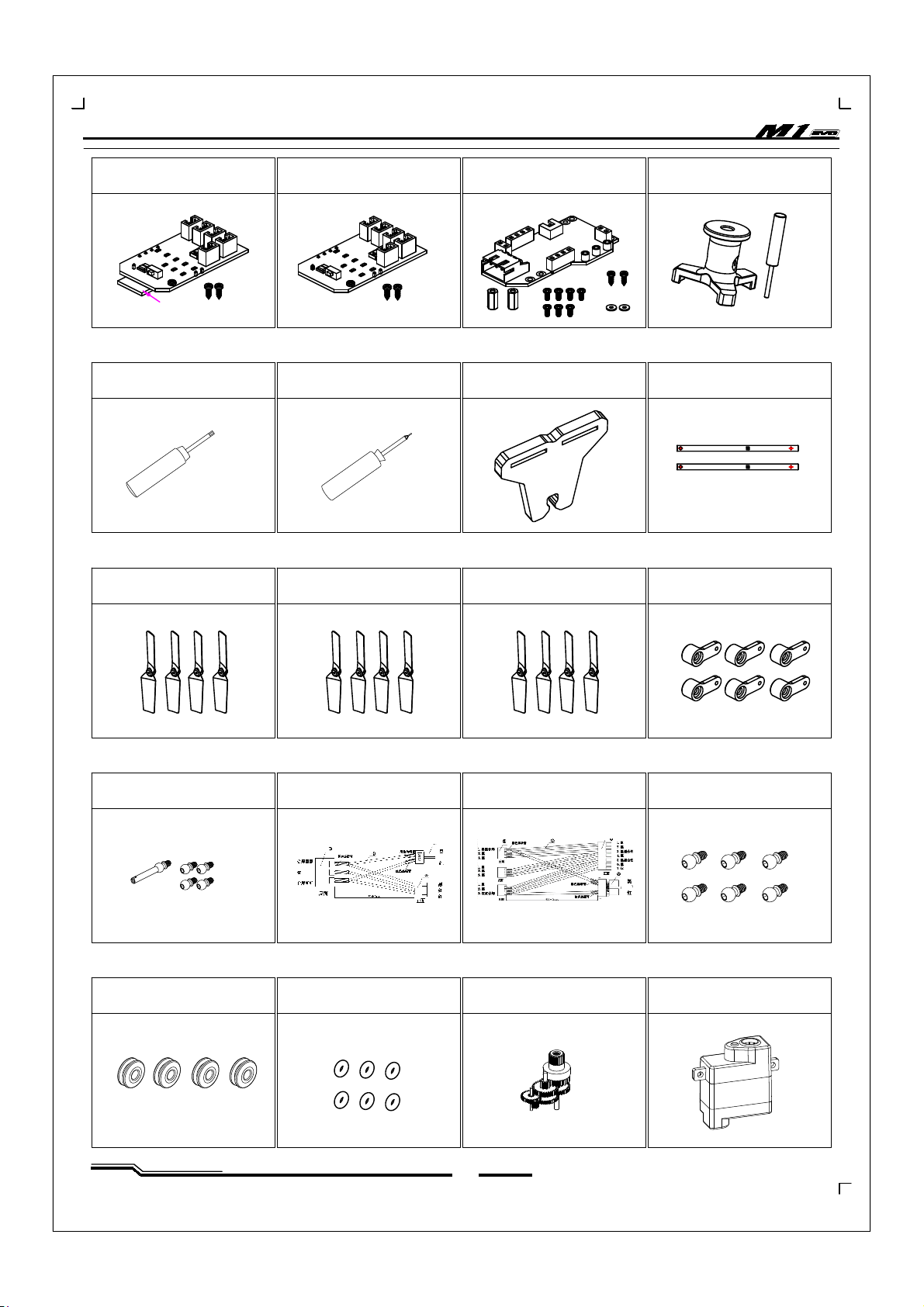

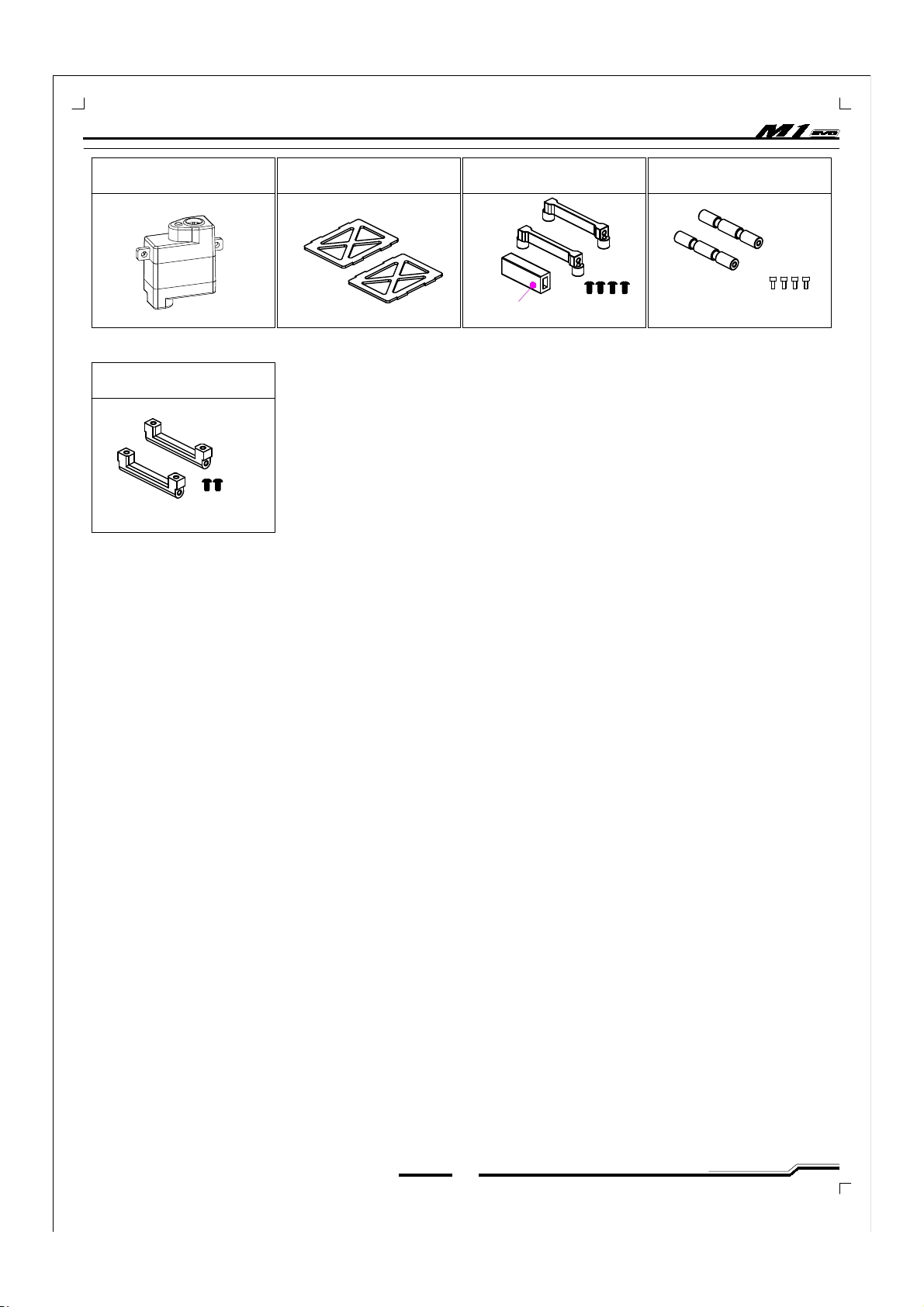

配件编号:

配件名称:

主轴中心座组

OSHM1001

舵机连杆组

Spare parts picture-1 配件-1

横轴组

主夹头组

主桨夹螺丝组

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1001

Product name:

Metal Main Rotor Housing set

配件编号:

配件名称:

OSHM1002

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1002

Product name:

配件编号:

配件名称:

OSHM1003

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1003

Product name:

配件编号:

配件名称:

OSHM1004

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1004

Product name:

配件编号: OSHM1005

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1005

配件编号: OSHM1006

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1006

配件编号: OSHM1201

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1201

配件编号: OSHM1202

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1202

配件编号: OSHM1009

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1009

配件编号: OSHM1010

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1010

配件编号: OSHM1011

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1011

配件编号:

OSHM1012

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1012

配件编号:

OSHM1013

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1013

配件编号:

配件名称:

OSHM1014

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1014

Product name:

Servo Linkage Rod Set

配件编号:

OSHM1015

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1015

配件编号: OSHM1204O

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1204O

Feathering shaft set

Plastics Main Rotor Holder set Main Rotor Holder Screw group

轴承Ø3xØ6x2.5mm

Bearing-MR63ZZ

M1.6x5mm

压好轴承

M1.6*9

M1.6

横轴避震套组

Product name:

Gross Shaft Suspension Set

配件名称:

舵机固定座组

配件名称:

Product name:

Servo Mount set

主电机固定座组--亮银色

配件名称:

Product name:

Main motor mount set(Silver)

尾管固定座组

配件名称:

Product name:

M1 Tail Boom Mount set

主螺距控制臂组

配件名称:

Product name:

FBL Pros and Cons linkage rod

主旋翼头螺丝组

配件名称:

Product name:

Main pitch control arm screw set

主螺距控制臂铜套组

配件名称:

Product name:

Copper set of main pitch control arm

倾斜盘组

配件名称:

Product name:

Swash plate set

舵机组--（塑胶外壳+全金属齿轮）

配件名称:

Product name:

Servo Set

尾螺旋桨组-黑色

配件名称:

Product name:

Tail Blade Set(black)

垂直翼组-魔力橙

配件名称:

Product name:

Vertical Stabilizer set-Orange

配件编号: OSHM1008

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1008

螺丝M1.4X2

Socket screw

主轴固定环组

配件名称:

Product name:

Metal Main Rotor Housing set

沉头内六角螺丝

M1.6x4mm

沉头内六角螺丝

M1.6x4mm

圆柱头内六角螺丝

M1.6x6mm

Socket screw

??????

Countersunk Hex Socket Screw

配件编号: OSHM1203

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1203

尾电机固定座组

配件名称:

Product name:

M1 Tail Motor Mount set

圆柱头内六角螺丝

M1.6x5mm

Socket screw

配件编号: OSHM1204Y

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1204Y

垂直翼组-竞速黄

配件名称:

Product name:

Vertical Stabilizer set-Yellow

配件编号: OSHM1204R

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1204R

垂直翼组-魅惑红

配件名称:

Product name:

Vertical Stabilizer set-Red

圆柱头内六角螺丝

M1.4x3mm

Socket screw

装饰垫片

圆柱头内六角螺丝

M1.4x3mm

Socket screw

装饰垫片

圆柱头内六角螺丝

M1.4x3mm

Socket screw

装饰垫片

Vertical Stabilizer Srcew Gasket Vertical Stabilizer Srcew Gasket Vertical Stabilizer Srcew Gasket

Page 18

Spare parts picture-2 配件-2

配件编号: OSHM1204W

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1204W

垂直翼组-典雅白

配件名称:

Product name:

Vertical Stabilizer set-White

圆柱头内六角螺丝

M1.4x3mm

Socket screw

配件编号:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

尾管组

配件名称:

Product name:

Tail boom set (Orange)

配件编号: OSHM1212O

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1212O

尾管组-魔力橙

配件名称:

Product name:

配件编号:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

尾管组

配件名称:

Product name:

配件编号:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

尾管组-竞速黄

配件名称:

Product name:

配件编号:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

尾管组

配件名称:

Product name:

配件编号:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

尾管组-魅惑红

配件名称:

Product name:

配件编号:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

尾管组

配件名称:

Product name:

配件编号:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

尾管组-典雅白

配件名称:

Product name:

Tail boom set (Yellow)

OSHM1212Y

Tail boom set (Red)

OSHM1212R

Tail boom set (White)

OSHM1212W

配件编号: OSHM1213Y

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1213Y

碳纤维机身右组(竞速黄)

配件名称:

Product name:

Right Carbon panel set (Yellow)

配件编号: OSHM1213O

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1213O

碳纤维机身右组(魔力橙)

配件名称:

Product name:

Right Carbon panel set (Orange)

配件编号: OSHM1213R

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1213R

碳纤维机身右组(魅惑红)

配件名称:

Product name:

Right Carbon panel set (Red)

配件编号: OSHM1213W

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1213W

碳纤维机身右组(典雅白)

配件名称:

Product name:

Right Carbon panel set (White)

圆柱头内六角螺丝

M1.4x3mm

Socket screw

配件编号: OSHM1214O

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1214O

碳纤维机身左组(魔力橙)

配件名称:

Product name:

Left Carbon panel set (Orange)

配件编号: OSHM1214Y

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1214Y

碳纤维机身左组(竞速黄)

配件名称:

Product name:

Left Carbon panel set (Yellow)

配件编号: OSHM1214R

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1214R

碳纤维机身左组(魅惑红)

配件名称:

Product name:

Left Carbon panel set (Red)

配件编号:

OSHM1214W

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1214W

碳纤维机身左组(典雅白)

配件名称:

Product name:

Left Carbon panel set (White)

配件编号:

OSHM1019

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1019

配件编号:

OSHM1020

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1020

滚珠轴承组-682zz

主夹头垫片组

配件编号:

配件名称:

OSHM1021

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1021

Product name:

Bearing Set(682zz)

配件编号:

配件名称:

OSHM1022

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1022

Product name:

Main chuck gasket set

配件编号: OSHM1024

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1024

M1.6x3=3

1.4x3=6 M1.4=1

M1.4x8-L3=2

M1.4x6-L2=1

M1.6x6=1

M1.4x3=3

M1.6x4=2

M1.6x9-L3=2

M1.6=2

M1.6x4=5

M1.6x5=4

倾斜盘相位板组

配件名称:

Product name:

Croduct Phase Panel Set

机头罩固定柱组

配件名称:

Product name:

Canopy Fixed Bolt Set

螺丝包组

配件编号:

配件名称:

M1 EVO Screw kits set

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1215

Product name:

Screw Kit Set

锂电池组

配件名称:

Product name:

Lithium Battery Set

M1.4x4=6

Ø2.5*Ø6*2.6

1.4x2=4

WWW.OMPHOBBY.COM

M1.4x3=20

圆柱头内六角螺丝

M1.4x3mm

Socket screw

圆柱头内六角螺丝

M1.4x3mm

Socket screw

圆柱头内六角螺丝

M1.4x3mm

Socket screw

圆柱头内六角螺丝

M1.4x3mm

Socket screw

圆柱头内六角螺丝

M1.4x3mm

Socket screw

圆柱头内六角螺丝

M1.4x3mm

Socket screw

圆柱头内六角螺丝

M1.4x3mm

Socket screw

装饰垫片

Vertical Stabilizer Srcew Gasket

Page 19

配件编号: OSHM1207O

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1207O

配件编号: OSHM1207Y

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1207Y

配件编号: OSHM1208O

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1208O

配件编号: OSHM1208S

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1208S

配件编号: OSHM1208Y

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1208Y

配件编号: OSHM1209W

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1209W

配件编号: OSHM1209R

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1209R

配件编号: OSHM1209Y

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1209Y

配件编号: OSHM1209O

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1209O

配件编号:

OSHM1210W

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1210W

圆柱头内六角螺丝

M1.6x4mm

Socket screw

M1 EVO主电机组-(魔力橙)

配件名称:

Product name:

Main motor (Orange) set

M1 EVO主电机组-(竞速黄)

Product name:

配件名称:

Main motor (Yellow) set

尾电机组-(魔力橙)

配件名称:

Product name:

Tail Motor Set(Orange)

尾电机组-(银色)

Product name:

配件名称:

Tail motor (Sliver) set

尾电机组-(竞速黄)

Product name:

配件名称:

Tail Motor Set(Racing Yellow)

125 主旋翼组-(魔力橙)

配件名称:

Product name: 125mm main blades (Orange) set

125 主旋翼组-(竞速黄)

配件名称:

Product name: 125mm main blades (Yellow) set

125 主旋翼组-(魅惑红)

配件名称:

Product name: 125mm main blades (Red) set

125 主旋翼组-(典雅白)

配件名称:

Product name: 125mm main blades (Blue) set

M1 EVO机头罩--典雅白

配件名称:

Product name:

M1 Canopy set (White) set

配件编号: OSHM1207S

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1207S

M1 EVO主电机组-(银色)

Product name:

配件名称:

Main motor (Silver) set

M1 EVO机头罩--魔力橙

配件编号: OSHM1210O

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1210O

配件名称:

Product name:

M1 Canopy set (Orange) set

配件编号:

OSHM1210Y

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1210Y

配件编号:

OSHM1211O

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1211O

配件编号: OSHM1211R

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1211R

配件编号: OSHM1211Y

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1211Y

M1 EVO机头罩--竞速黄

配件名称:

Product name:

M1 Canopy set (Yellow) set

脚架组-(竞速黄)

Product name:

配件名称:

M1 landing skid set (Yellow)

脚架组-(魅惑红)

Product name:

配件名称:

M1 landing skid set (Red)

脚架组-(魔力橙)

Product name:

配件名称:

M1 landing skid set (Orange)

配件编号: OSHM1044

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1044

舵机组--（全金属外壳+全金属齿轮）

配件名称:

Product name:

Servo Set(metal housing + metal gear)

配件编号:

OSHM1210R

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1210R

M1 EVO机头罩--魅惑红

配件名称:

Product name:

M1 Canopy set (Red) set

配件编号: OSHM1211W

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1211W

脚架组-(典雅白)

Product name:

配件名称:

M1 landing skid set (White)

配件编号: OSHM1025

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1025

飞控

Product name:

Flight Control

配件名称:

WWW.OMPHOBBY.COM

Spare parts picture-3 配件-3

圆柱头内六角螺丝

M1.6x4mm

Socket screw

圆柱头内六角螺丝

M1.6x4mm

Socket screw

Page 20

WWW.OMPHOBBY.COM

Spare parts picture-4 配件-4

配件编号: OSHM1047

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1047

接收板--内置FUTABA：S-BUS高频

配件名称:

Product name:

Receiver panel--Built-in FUTABA:S-BUS High Frequency

配件编号: OSHM1048

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1048

配件名称:

Product name:

配件编号:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

电调板-10A

配件名称:

Product name:

ESC-10A

接收板--常规版本

receiver panel-- Regular Version

S-BUS高频

配件编号: OSHM1050

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1050

配件名称:

Product name:

配件编号: OSHM1051

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1051

0.3一字螺丝刀

配件名称:

Product name:

Slotted screwdriver

1.0六角螺丝刀

Hexagon screw driver

配件编号: OSHM1052

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1052

主翼支撑架

配件名称:

Product name:

Main wing support frame

配件编号: Main shaft

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1053

主轴组

配件名称:

Product name:

ɸ3 main Shaft Set

配件编号: OSHM1054

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1054

尾螺旋桨组-(魔力橙)

配件名称:

Product name:

Tail Blade Set(Charm Orange)

配件编号: OSHM1055

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1055

尾螺旋桨组-(紫色)

配件名称:

Product name:

Tail Blade Set(purple)

配件编号: OSHM1056

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1056

尾螺旋桨组-(竞速黄)

配件名称:

Product name:

Tail Blade Set(Racing Yellow)

配件编号: OSHM1057

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1057

舵机摆臂组

配件名称:

Product name:

Servo Arm Set

配件编号:

OSHM1059

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1059

充电器线1V1

配件名称:

Product name:

Charger cable(1V1)

配件编号:

OSHM1058

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1058

球头螺丝组

配件名称:

Product name:

Ball Joint Set

配件编号:

OSHM1060

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1060

配件名称:

Product name:

充电器线1V3

Charger cable(1V3)

配件编号:

OSHM1061

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1061

舵机球头螺丝组

配件名称:

Product name:

Servo Ball Joint Set

6PCS

机头罩橡胶圈组(M1)

配件编号: OSHM1062

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1062

Product name:

Canopy Rubber Ring Set(M1)

配件名称:

4PCS

齿轮组（DS2045MG ）

配件编号: OSHM1063

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1063

Product name:

Servo Gear Set(DS2045MG )

配件名称:

配件编号: OSHM1064

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1064

配件名称:

Product name:

舵机外壳组（DS2045MG）

Servo Plastic Shell Set(DS2045MG )

全塑胶外壳

O型圈组(M1 EVO)

配件编号: OSHM1206

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1206

Product name:

Battery tray rubber

配件名称:

配件编号: OSHM1205

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1205

十字盘调平器

配件名称:

Product name:

Cross Plate leveller

OSHM1216

Page 21

配件编号:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

OSHM1065

配件名称:

Product name:

舵机外壳组（DS2045MG）

Servo Metal Shell Set(DS2045MG )

全金属外壳

Spare parts picture-5 配件-5

第21页

WWW.OMPHOBBY.COM

配件编号:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

配件名称:

Product name:

机身中板组

Frame Middle Plate set

配件编号:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

配件名称:

Product name:

脚架安装座组

Landing Skids Mount set

半圆头十字带垫片螺丝

M1.4x3mm

Socket screw

配件编号:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

配件名称:

Product name:

机身支柱组

Frame Pillar set

配件编号:

Model:

包装方式：吊卡+PE袋

Package: Hang tag +PE bag

配件名称:

Product name:

电调固定支架组

ESC Mount Bracket set

半圆头十字带垫片螺丝

M1.4x3mm

Socket screw

OSHM1217

OSHM1218

OSHM1219

OSHM1220

头罩防松硅胶套

Canopy Anti-loose silicone sleeve

圆柱头内六角螺丝

M1.4x3mm

Socket screw

Page 22

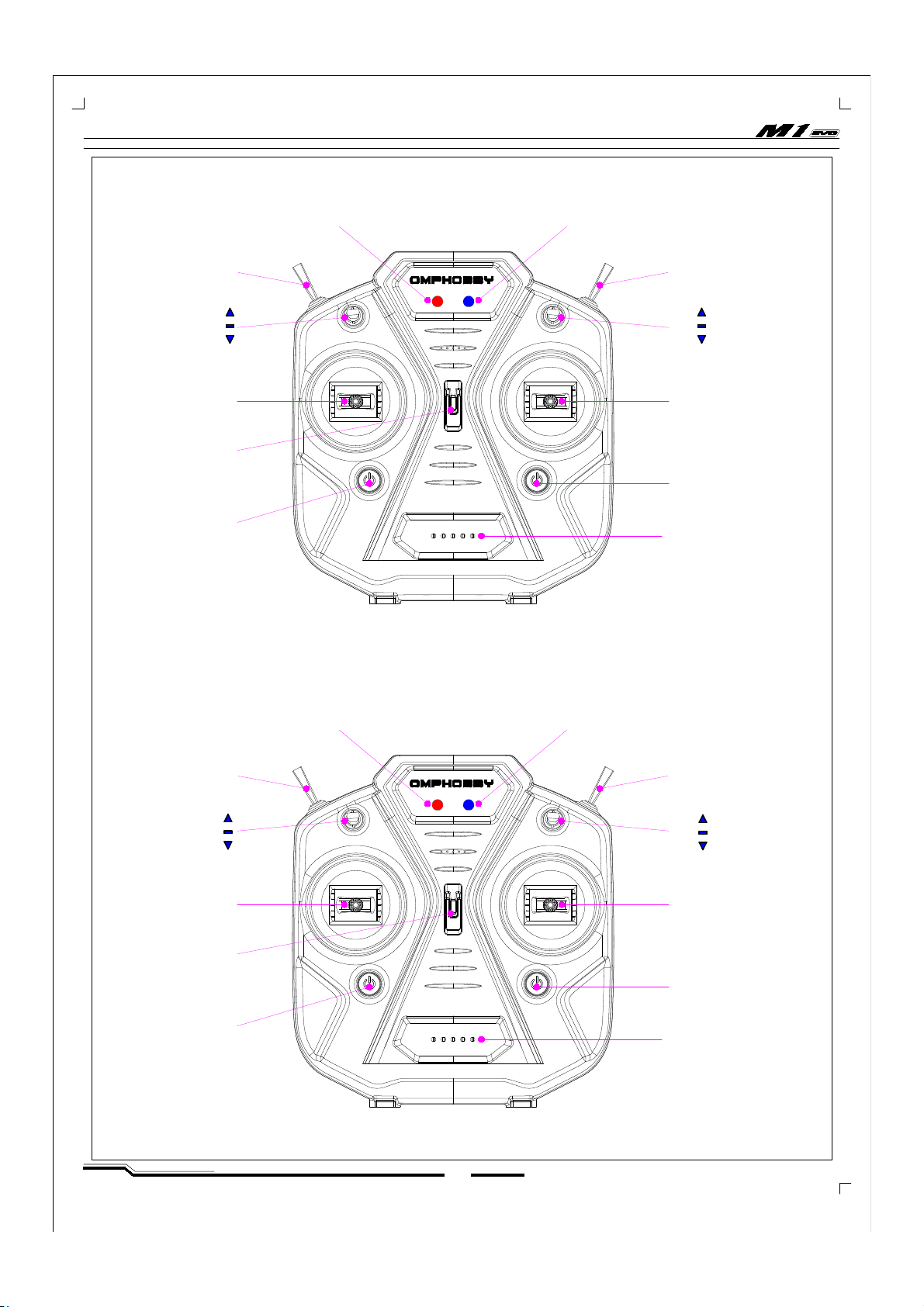

Transmitter description-1 遥控器说明-1

遥控器󱬆󱑡󰣘󱼋󱙀󲑳󲡃

IDLE

󱊊󳮹󰮊

󱦀

POWER-1

󰎷

D/R

HOLD

遥控器󰣘󱼋󱙀󲪮󲡃

󱳅󰴋󱬆󳞠󰣘󱼋󱙀

POWER-2

(

MODEL 2)

遥控器󱬆󱑡󰣘󱼋󱙀󲑳󲡃

IDLE

󱊊󳮹󰎷

󱦀

POWER-1

󰮊

HOLD

遥控器󰣘󱼋󱙀󲪮󲡃

󱳅󰴋󱬆󳞠󰣘󱼋󱙀

POWER-2

(

MODEL 1)

70% 85% 100%

D/R

70% 85% 100%

󰗒󰿲󰓠 󰠜󰿲󰓠

󰠜󰿲󰓠

Remote Control Power Light(Red) Remote Control Power Light(Blue)

Attitude mode

Manual mode

Throttle, Orientation

Flying Ring

Front Back, Left Right

Helicopter Battery Indicator

Remote Control Power Light(Red) Remote Control Power Light(Blue)

Flying Ring

Helicopter Battery Indicator

Throttle, Left Right

Front Back, Orientation

󰗒󰿲󰓠 󰠜󰿲󰓠 󰠜󰿲󰓠

Attitude mode

Manual mode

󲃽󳹆

WWW.OMPHOBBY.COM

Page 23

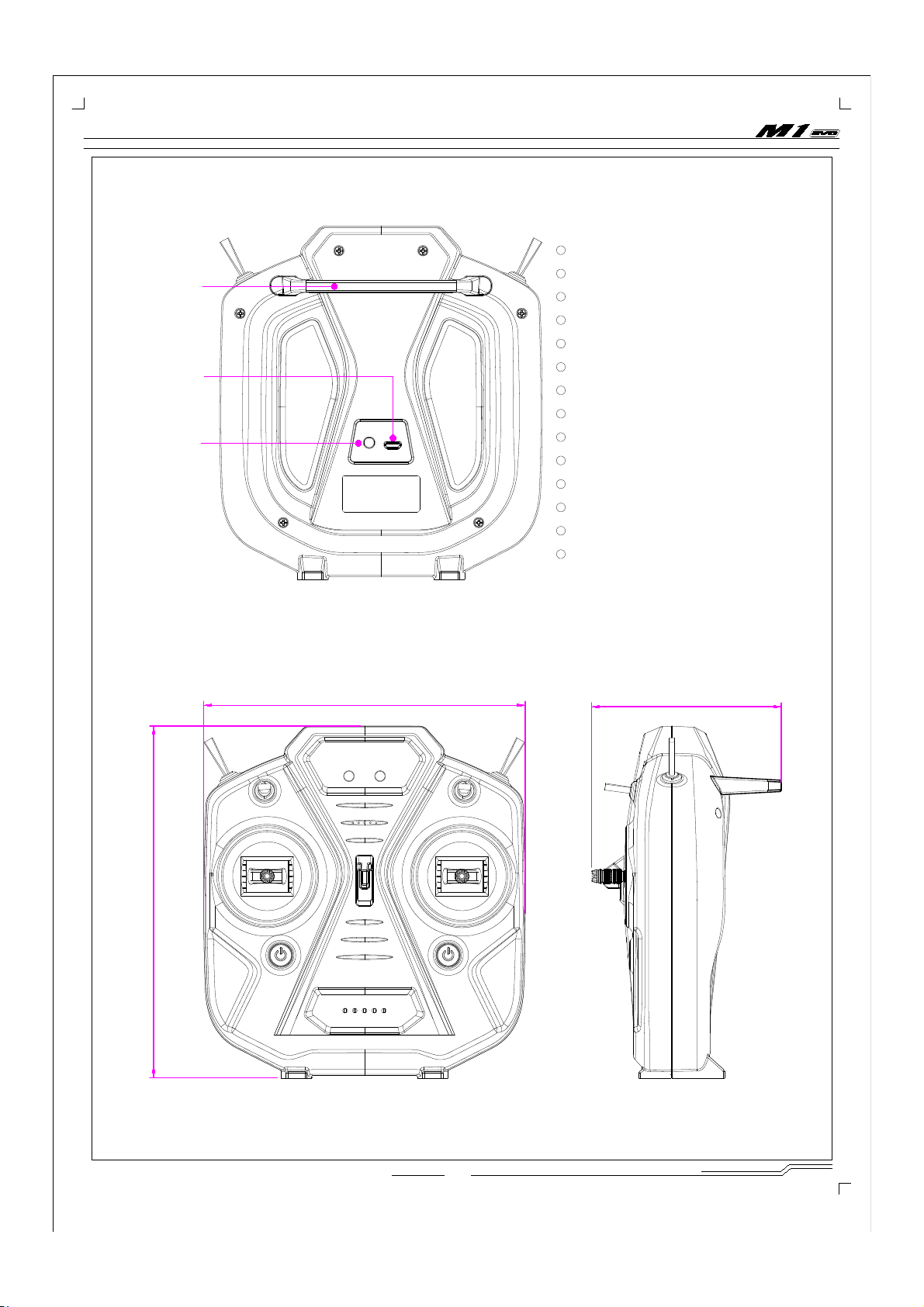

180

165

提手

教练接口

充电接口

(Diameters)外形尺寸长：L165*W98*H180

(Radio Frequency)无线频率

：2.413GHz--2.453 GHz

(Transmit Power)发射功率：< 20 dBm

(Weight)重量约：345g

(Modulation Mode)调制方式

：GFSK

(Spread Spectrum Mode)扩频方式：FHSS

(Working Voltage)工作电压

：3.7V

(Remote Distance)遥控距离：800m

(Charge Interface)充电接口

：Micro

(Low Voltage Alarm)低电压报警

：3.4V

(Battery Type)电池类型

：Lithium Polyer Battery

(Battery Capacity)电池容规格：2500mAh 3.7V

(Product Model)产品型号：T6

2󳘶󰥸󳇅󰯟2

(Coach Interface)教练接口：Yes

Handle

Charge Interface

Coach Interface

5V <2A

第23页

WWW.OMPHOBBY.COM

Page 24

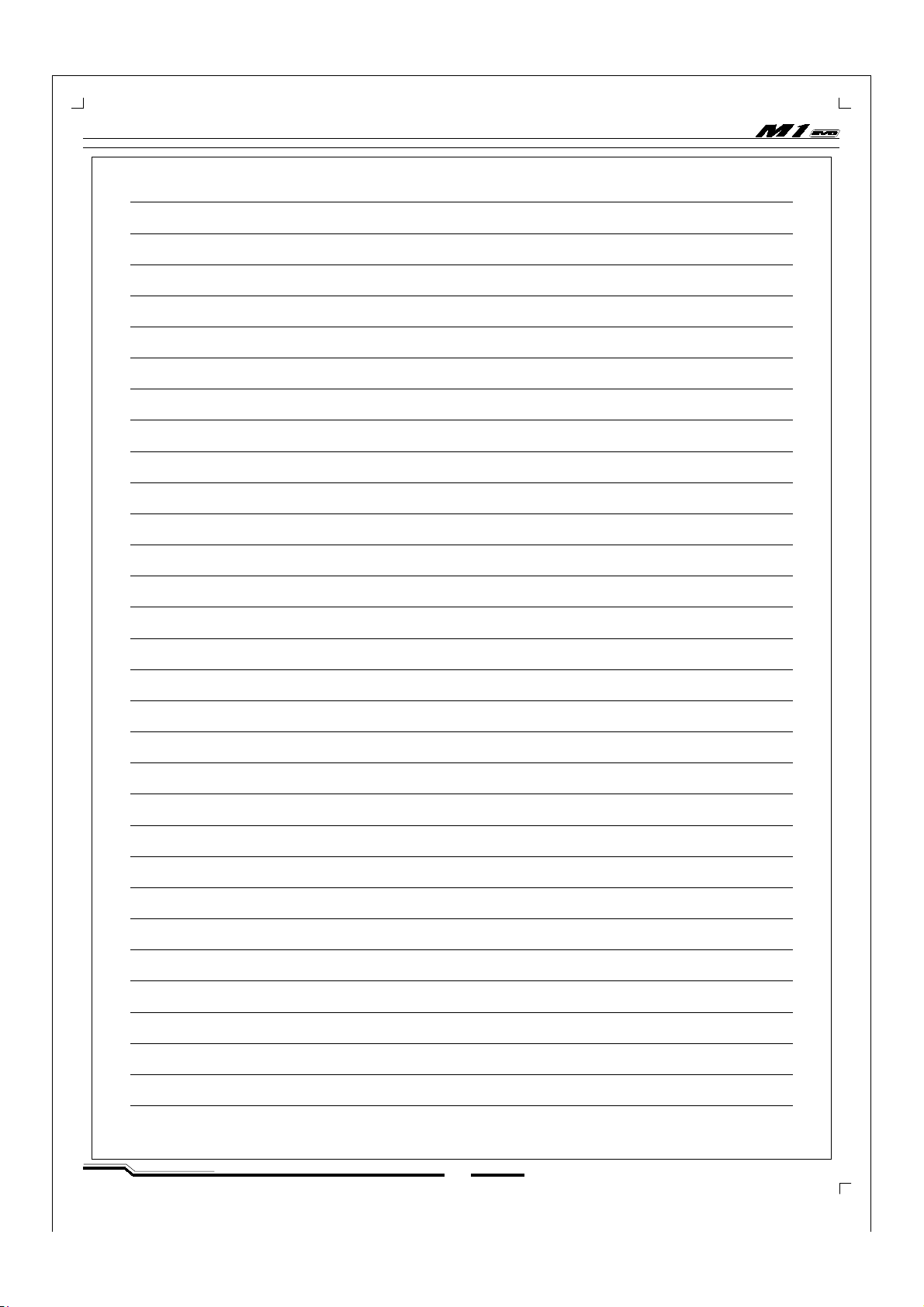

Memo 备忘录

󲃽󳹆

WWW.OMPHOBBY.COM

Page 25

2020

www.omphobby.com

Zhuhai edge smart dirve technology Co., Ltd

第25页
