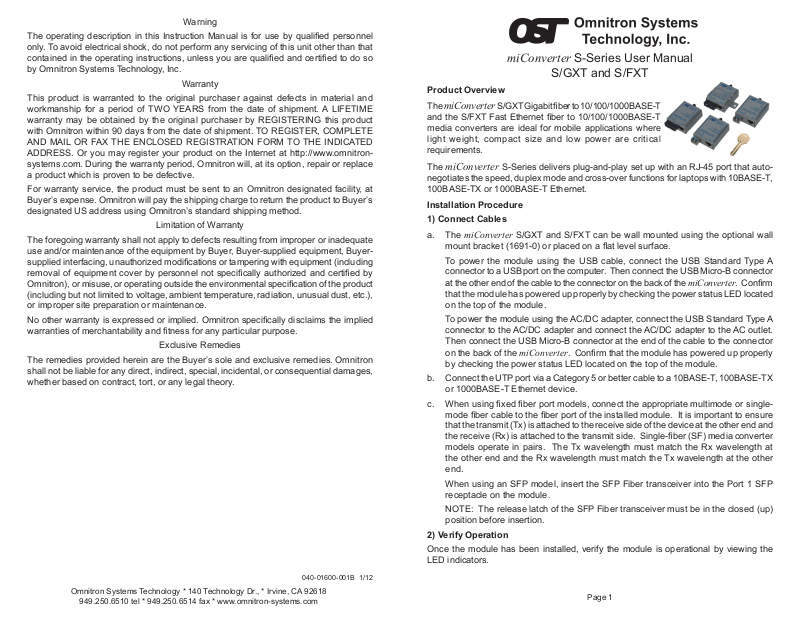

Omnitron Systems Technology S-Series User Manual

Warning
The operating description in this Instruction Manual is for use by qualied personnel only. To avoid electrical shock, do not perform any servicing of this unit other than that contained in the operating instructions, unless you are qualied and certied to do so by Omnitron Systems Technology, Inc.
Warranty
This product is warranted to the original purchaser against defects in material and workmanship for a period of TWO YEARS from the date of shipment. A LIFETIME warranty may be obtained by the original purchaser by REGISTERING this product with Omnitron within 90 days from the date of shipment. TO REGISTER, COMPLETE AND MAIL OR FAX THE ENCLOSED REGISTRATION FORM TO THE INDICATED ADDRESS. Or you may register your product on the Internet at http://www.omnitron­systems.com. During the warranty period, Omnitron will, at its option, repair or replace a product which is proven to be defective.
For warranty service, the product must be sent to an Omnitron designated facility, at Buyer’s expense. Omnitron will pay the shipping charge to return the product to Buyer’s designated US address using Omnitron’s standard shipping method.
Limitation of Warranty
The foregoing warranty shall not apply to defects resulting from improper or inadequate use and/or maintenance of the equipment by Buyer, Buyer-supplied equipment, Buyer­supplied interfacing, unauthorized modications or tampering with equipment (including removal of equipment cover by personnel not specically authorized and certied by Omnitron), or misuse, or operating outside the environmental specication of the product (including but not limited to voltage, ambient temperature, radiation, unusual dust, etc.), or improper site preparation or maintenance.
No other warranty is expressed or implied. Omnitron specically disclaims the implied warranties of merchantability and tness for any particular purpose.
Exclusive Remedies
The remedies provided herein are the Buyer’s sole and exclusive remedies. Omnitron shall not be liable for any direct, indirect, special, incidental, or consequential damages, whether based on contract, tort, or any legal theory.
040-01600-001B 1/12
Omnitron Systems Technology * 140 Technology Dr., * Irvine, CA 92618
949.250.6510 tel * 949.250.6514 fax * www.omnitron-systems.com
miConverter S-Series User Manual
S/GXT and S/FXT
Product Overview
The miConverter S/GXT Gigabit ber to 10/100/1000BASE-T
and the S/FXT Fast Ethernet ber to 10/100/1000BASE-T media converters are ideal for mobile applications where light weight, compact size and low power are critical
requirements.
The miConverter S-Series delivers plug-and-play set up with an RJ-45 port that auto-
Installation Procedure
1) Connect Cables
a. The miConverter S/GXT and S/FXT can be wall mounted using the optional wall
mount bracket (1691-0) or placed on a at level surface.
To power the module using the USB cable, connect the USB Standard Type A
connector to a USB port on the computer. Then connect the USB Micro-B connector at the other end of the cable to the connector on the back of the miConverter. Conrm that the module has powered up properly by checking the power status LED located on the top of the module.
To power the module using the AC/DC adapter, connect the USB Standard Type A
connector to the AC/DC adapter and connect the AC/DC adapter to the AC outlet. Then connect the USB Micro-B connector at the end of the cable to the connector on the back of the miConverter. Conrm that the module has powered up properly by checking the power status LED located on the top of the module.
b. Connect the UTP port via a Category 5 or better cable to a 10BASE-T, 100BASE-TX
or 1000BASE-T Ethernet device.
c. When using xed ber port models, connect the appropriate multimode or single-
mode ber cable to the ber port of the installed module. It is important to ensure that the transmit (Tx) is attached to the receive side of the device at the other end and the receive (Rx) is attached to the transmit side. Single-ber (SF) media converter models operate in pairs. The Tx wavelength must match the Rx wavelength at the other end and the Rx wavelength must match the Tx wavelength at the other
end.
When using an SFP model, insert the SFP Fiber transceiver into the Port 1 SFP
receptacle on the module.
NOTE: The release latch of the SFP Fiber transceiver must be in the closed (up)
position before insertion.
2) Verify Operation
Once the module has been installed, verify the module is operational by viewing the LED indicators.
Page 1
LED Function
“Legend”
Power “PWR”
Fiber Link Activity
“F/O”
UTP Link Activity
“10”
UTP Link Activity
“1000”
UTP Link Activity
“10” and “1000”
Color OFF State ON/Blinking State
Green No power ON: Module has power
Green No ber link
Green No UTP link
Green No UTP link
Green No UTP link
ON: Fiber link Blinking: Data activity
ON: Port linked at 10M Blinking: Data activity
ON: Port linked at 1000M Blinking: Data activity
ON: Port linked at 100M Blinking: Data activity
Specications
Model miConverter S/GXT miConverter S/FXT
Description
Protocols
Frame Size 10,240 byte max frame size
Compliance UL, CE, FCC 15 Class B
UTP Cable EIA/TIA 568A/B, Cat 5 and higher
Fiber Cable
Copper Connector RJ45
Fiber Connector
LED Display Pwr, F/O, UTP
Dimensions W: 1.75” x L: 2.25” x H: 0.84”
Weight
DC Power Input Connector
DC Power Requirements
AC Power Requirements (US)
AC Power Requirements (Univ.)
Temperature
Humidity 5 to 95% (non-condensing)
Altitude -100m to 4000m
MTBF (hrs)
1000BASE-X Fiber to
10/100/1000BASE-T UTP Converter
10BASE-T, 100BASE-TX, 1000BASE-T,
1000BASE-X
Multimode:
Single-mode:
SFP:
Dual Fiber:
Single-Fiber:
without AC/DC adapter:
with USB cable:
with AC/DC adapter (US) and USB:
USB Micro-B
0.5A @ 5VDC
100-120VAC
50-60Hz
0.02A @ 120V
100-240VAC
50-60Hz
0.02A @ 120VAC
Standard:
Wide:
Storage:
without AC/DC adapter:
US AC/DC adapter:
Univ AC/DC adapter:
100BASE-FX Fiber to
10/100/1000BASE-T UTP Converter
10BASE-T, 100BASE-TX, 1000BASE-T,
100BASE-FX
50/125, 62.5/125, 100/140um 9/125um
LC SC, ST
SC
2.5 oz.
3.8 oz.
5.4 oz.
0 to 50°C
-40 to 65°C
-40 to 80°C
1,300,000 50,000 200,000
Ordering Information
Fiber Type
SFP - - - - 1619-0-x
MM/DF 5km 1600-0-x 1600M-0-x 1602-0-x -
SM/DF 30km 1601-1-x 1601M-1-x 1603-1-x -
SM/SF* 20km - - 1610-1-x -
SM/SF* 20km - - 1611-1-x -
SFP - - - - 1639-0-x
MM/DF 220m/550m 1620-0-x 1620M-0-x 1622-0-x -
SM/DF 12km 1621-1-x 1621M-1-x 1623-1-x -
SM/DF 34km - - 1623-2-x -
SM/SF* 20km - - 1630-1-x -
SM/SF* 20km - - 1631-1-x -
When choosing power options, replace (-x) in the model number with the sufx
number that corresponds to the selected power adapter.
-1 Includes US AC/DC power adapter and USB power cable
-1T Includes US AC/DC power adapter, USB power cable and travel case
-3 Includes European AC/DC power adapter and USB power cable
-4 Includes UK AC/DC power adapter and USB power cable
-5 Includes Australian AC/DC power adapter and USB power cable
-6 NO AC/DC power adapter. Includes USB power cable
-6T NO AC/DC power adapter. Includes USB power cable and travel case
-8 Includes Japan AC/DC power adapter and USB power cable
-8T Includes Japan AC/DC power adapter, USB power cable and travel case
Example: 1623-2-4 = SM / DF / 34km with UK AC/DC power adapter and USB power
cable.
*Single-Fiber converters must be used in pairs. The Tx wavelength on one end has to match the Rx wavelength on the other. For wide temperature models (-40 to 65° C), add a “W” to the end of the model number. Contact Omnitron for other congurations.
Model No. Description
9146-1 Spare US/USB AC/DC adapter and 3ft. USB power cable
9146-3 Spare Euro/USB AC/DC adapter and 3ft. USB power cable
9146-4 Spare UK/USB AC/DC adapter and 3ft. USB power cable
9146-5 Spare Aus/USB AC/DC adapter and 3ft. USB power cable
9146-8 Spare Japan/USB AC/DC adapter and 3ft. USB power cable
9146-6 3ft. USB power cable (standard Type A plug to micro-B plug)
1691-0 miConverter S-Series wall mount bracket
1692-0 Spare miConverter S-Series travel case
Distance
miConverter S/FXT Fast Ethernet Fiber Media Converter
miConverter S/GXT Gigabit Ethernet Fiber Media Converter
Connector Type
ST ST Metal SC SFP (LC)
Page 2 Page 3
