Omnitron Systems Technology MAH 200 User Manual

CODE READER

MAH 200

Quickstart Guide

QUICKSTART GUIDE

CODE READER MAH 200

Designation of this documentation:

Technical manual for the Code Reader MAH 200

Version of the described product:

1.0

Editorial version of this documentation:

02/05

© Copyright Omnitron AG

i

QUICKSTART GUIDE

CODE READER MAH 200

GENERAL INFORMATION

This documentation has been created with great care.

Nevertheless, progress in technology can cause changes of the product leading to deviations between
this documentation and the actual product.

The content of this documentation, the technical data and the specifications of the product may be
changed without prior notice.

No part of this documentation may be copied, reprinted or translated without written permission of
the Omnitron AG.

This technical manual serves to assist the user and does not replace adequate education
which is offered by the Omnitron AG and qualified partners.

Omnitron Aktiengesellschaft für

Optoelektronische Geräte

Im Leuschnerpark 4
D-64347 Griesheim

fon [phone]

fax [phone]

e-mail [e-mail]

internet www.pepperl-fuchs.com

ii

QUICKSTART GUIDE

CODE READER MAH 200

TABLE OF CONTENTS

GENERAL INFORMATION ................................................................................................ ii

TABLE OF CONTENTS ...................................................................................................... iii

INTRODUCTION................................................................................................................ 1-1

TARGETING AND READING TECHNIQUES ............................................................. 1-2

VARIOUS PROGRAMMING CODES ............................................................................. 1-4

Reader-ID and Firmware..................................................................................................... 1-4

Reseting and storing of reader configurations...................................................................... 1-4

TECHNICAL DATA ........................................................................................................... 1-5

Overview............................................................................................................................. 1-5

Decode zone........................................................................................................................ 1-6

SYSTEM REQUIREMENTS ............................................................................................. 1-7

Operating System ................................................................................................................ 1-7

Interfaces ............................................................................................................................. 1-7

Bluetooth ............................................................................................................................. 1-7

ORDER INFORMATION ................................................................................................... 1-8

APPENDIX A – USB INTERFACE ................................................................................ A-1

APPENDIX B – RS – 232 INTERFACE ......................................................................... B-2

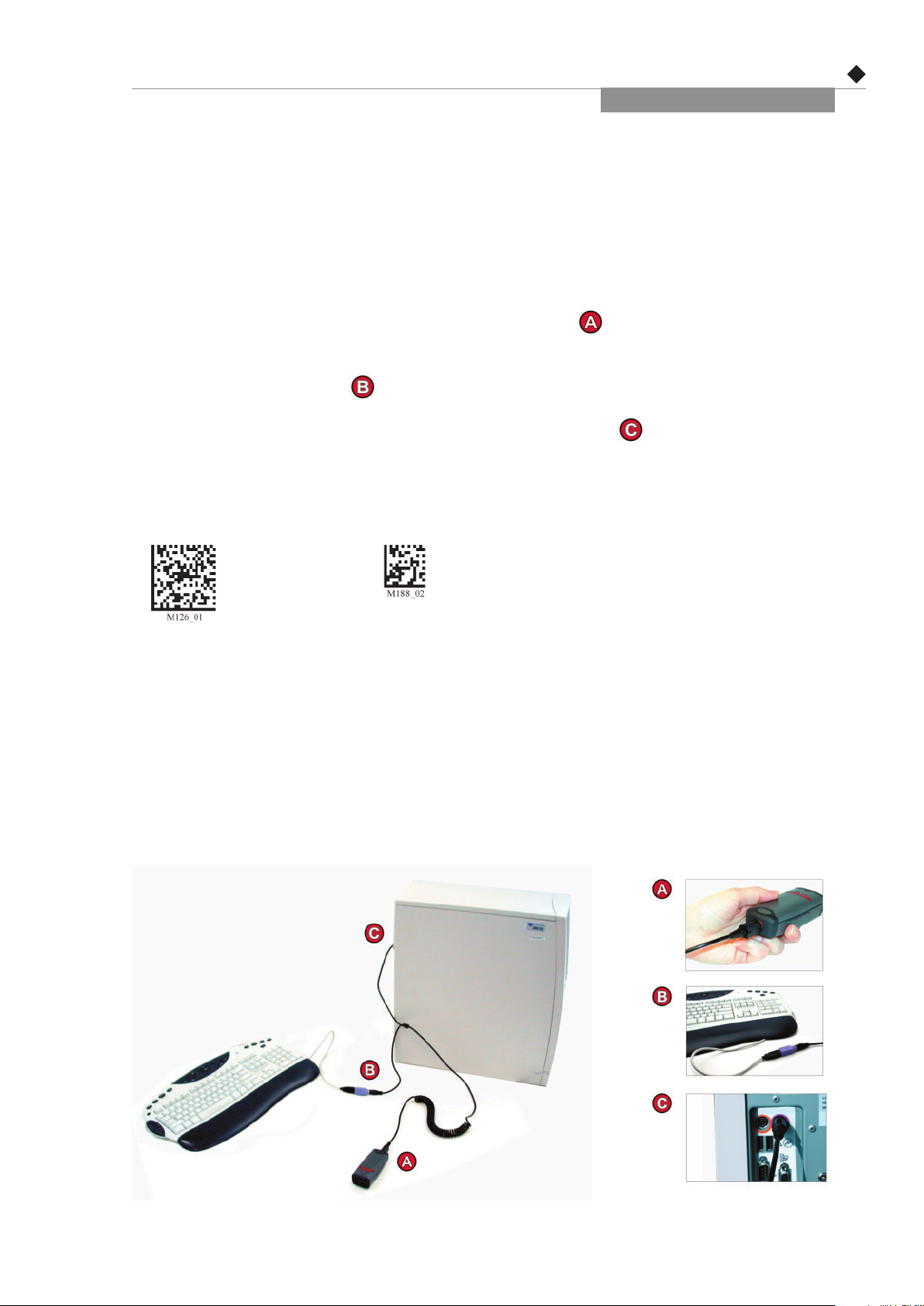

APPENDIX C – PS 2 INTERFACE ................................................................................ C-3

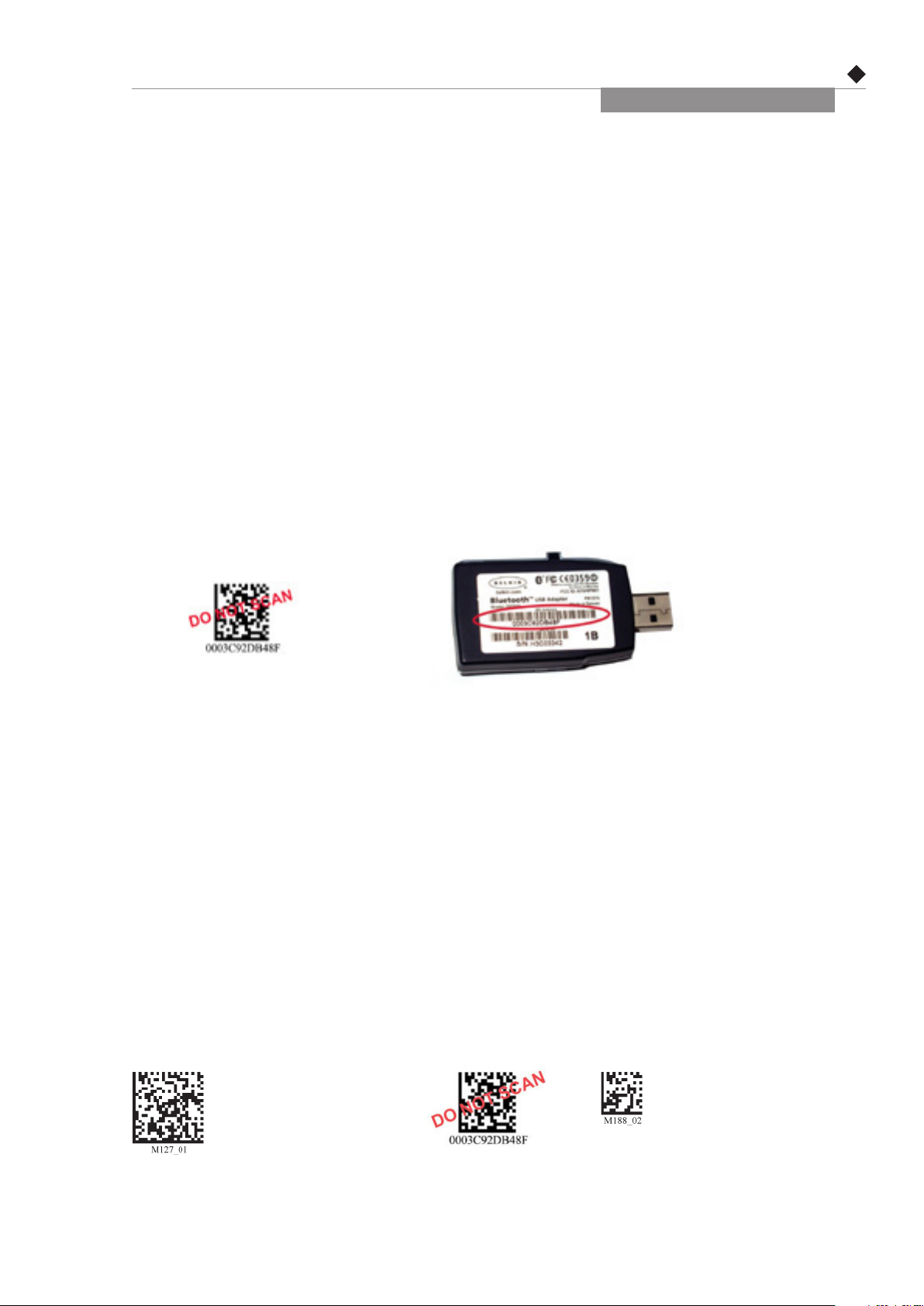

APPENDIX D – BLUETOOTH RADIO OVERVIEW ................................................. D-4

Bluetooth Radio Overview................................................................................................. D-4

Bluetooth Radio Overview (con‘t) ..................................................................................... D-5

iii

QUICKSTART GUIDE

CODE READER MAH 200

INTRODUCTION

MAH 200 is a revolutionary new, bar MAH 200. Developed to be the first universal reader, no
other single device performs as many functions. With a cost of ownership far less than
comparable systems, the MAH 200 incorporates a unique dual path optical system, a 1.3 million
pixel CMOS sensor, and a 400 MHz processor. This combination has created a reading system
that supports:

• High density matrix codes and larger low density linear codes

• Superior working range

• High-speed omni-directional decoding

• Cordless and cabled interfaces

The MAH 200 sets a new benchmark for size and weight. It is smaller and lighter than
comparable systems yet can withstand multiple drops to concrete. It is the only product
available in handheld, gun handle, and presentation stand form factors with cabled,
batch and cordless versions. The cordless version utilizes the latest Bluetooth™ class 1 radio
with a 300 foot operating range. The MAH 200 is rugged and lightweight and the cordless
version will operate for more than a complete shift at the highest use rate. The MAH 200
performs more than 3000 reads and transmits from a single battery charge. The MAH 200 will
automatically discriminate between all major 2-D matrix and linear bar code symbologies and
features a timestamp feature for logging data.

Whether you need a small, palm-held device or a traditional gun, MAH 200 was specifically
developed so users may easily choose the device that best meets their needs.

Omnitron AG
Im Leuschnerpark 4
D-64347 Griesheim
fon [phone]
fax [phone]
e-mail [e-mail]
internet www.pepperl-fuchs.com

If you need technical support please contact us under the above mentioned adresse.

1-1

QUICKSTART GUIDE

CODE READER MAH 200

TARGETING AND READING TECHNIQUES

The MAH 200 utilizes digital camera technology to take a pictures of a symbol. Once an image is
captured, the MAH 200 utilizes advanced decoding algorithms to extract data from the captured
image.

The MAH 200 is available as a palm-held unit or users may purchase a clip-on pistol-grip
handle.

The palm held unit features left and right triggers. These triggers may be programmed to
perform various features. The reader is shipped with the left trigger and right trigger functioning
as a decode symbol command.

The clip-on pistol-grip handle features a trigger on the handle. The two triggers on the top
of the unit also work when the handle is attached.

The MAH 200 – with and without gun handle.

To read a symbol with the MAH 200:

1. The MAH 200 features omnidirectional decoding. Center the symbol in any orientation
within the laser dot aiming pattern.

Laser targeting beam pointed directly into the center of this symbol.

1-2
