Omnitron Systems Technology iConverter 19-Module User Manual
iConverter
®
19-Module Power Chassis
User Manual
38, Tesla, Irvine, CA 92618
Phone: (949) 250-6510; Fax: (949) 250-6514
Warning
The operating description in this Instruction Manual is for use by qualied personnel only. To avoid electrical shock, do not perform any servicing
of this unit other than that contained in the operating instructions, unless you are qualied and certied to do so by Omnitron Systems Technology, Inc.
All user-required operations can be performed without opening the unit. Never attempt to open or remove the cover or tamper with the unit. There
are no user replaceable or serviceable parts in this unit. Equipment is not intended to be installed and used in a place (home, school, or public
area) accessible to the general population.
This product is warranted to the original purchaser against defects in material and workmanship for a period of TWO YEARS from the date of
shipment. A LIFETIME warranty may be obtained by the original purchaser by REGISTERING this product with Omnitron within 90 days from
the date of shipment. TO REGISTER, COMPLETE AND MAIL OR FAX THE ENCLOSED REGISTRATION FORM. Or you may register your
product on the Internet at http://www.omnitron-systems.com. During the warranty period, Omnitron will, at its option, repair or replace a product
which is proven to be defective.
For warranty service, the product must be sent to an Omnitron designated facility, at Buyer’s expense. Omnitron will pay the shipping charge to
return the product to Buyer’s designated US address using Omnitron’s standard shipping method.
The foregoing warranty shall not apply to defects resulting from improper or inadequate use and/or maintenance of the equipment by Buyer,
Buyer-supplied equipment, Buyer-supplied interfacing, unauthorized modications or tampering with equipment (including removal of equipment cover
by personnel not specically authorized and certied by Omnitron), or misuse, or operating outside the environmental specication of the product
(including but not limited to voltage, ambient temperature, radiation, unusual dust, etc.), or improper site preparation or maintenance.
No other warranty is expressed or implied. Omnitron specically disclaims the implied warranties of merchantability and tness for any particular
purpose.
The remedies provided herein are the Buyer’s sole and exclusive remedies. Omnitron shall not be liable for any direct, indirect, special, incidental,
or consequential damages, whether based on contract, tort, or any legal theory.
Caution
Warranty
Limitation of Warranty
Exclusive Remedies
Page 2
iConverter
iConvert er
19-Module Chassis Options
Configuration
19-Module AC
60 watts
(100-240VAC)
19-Module AC
120 watts
(100-240VAC)
19-Module DC
66 watts
(36-60VDC)
19-Module DC
120 watts
(36-60VDC)
19-Module DC
66 watts
(18-36VDC)
One (1) Pow er Supply
8200-1 8201-1 8205-1 8207-1 8206-1
Two (2) Power Supply
8200-2 8201-2 8205-2 8207-2 8206-2
Three (3) Power Supply
8200-3 8201-3 8205-3 8207-3 8206-3
Spare Power Supply
8200-9 8201-9 8205-9 8207-9 8206-9
23" Rack Mounting Kit
8091-2 8091-2 8091-2 8091-2 8091-2
For Wide Temperature (-40 to 60
o
C) chassis, add a "W" to the end of the part number.
Consult factory for extended temperature (-40 to 75
o
C).
19-Module Power Chassis
User Manual
1. 0 GENERAL DESCRIPTION
The iConverter 2U (3.5 inch) 19-Module Power Chassis is powered by up to three (3) hot-swappable and redundant universal
AC or DC power supplies and can accommodate up to nineteen iConverter media converters. It is ideal for enterprise Local
Area Network (LAN) or Metropolitan Area Network (MAN) applications where managed media converters with high density and
a small rack-footprint (2U) are important.
Fig. 1 19-Module Chassis (Shown without modules installed)
This User Manual describes the following models:
1.1 Terms
Backplane A printed circuit board which is permanently mounted inside the chassis and is populated with receptacle
connectors into which modules are inserted.
Module An iConverter plug-in card positioned into a slot location and inserted into a backplane connector.
Module-Guide A mechanical channel, guiding module insertion into a backplane connector.
Slot A single chassis position consisting of a backplane connector and its associated module-guides.
A Link A backplane slot-to-slot connection that provides Ethernet connectivity between adjacent slots (sometimes
referred to as A Backplane Link).
A Port An interface on a module capable of Ethernet trafc via the backplane’s A Link.
B Link A backplane slot-to-slot connection that provides Ethernet connectivity between adjacent slots (sometimes
referred to as B Backplane Link).
B Port An interface on a module capable of Ethernet trafc via the backplane’s B Link.
1.2 Mechanical Description
The 19-Module chassis consists of any combination of one to three AC or DC power supplies. As can be seen from the model
table on the previous page, the 19-Module chassis models have been pre-congured with one, two and three power supplies. Any
other combination of AC and DC power supplies are permitted. The power supplies provide power to the chassis’ 19 backplane
connectors.
1.3 Backplane Architecture

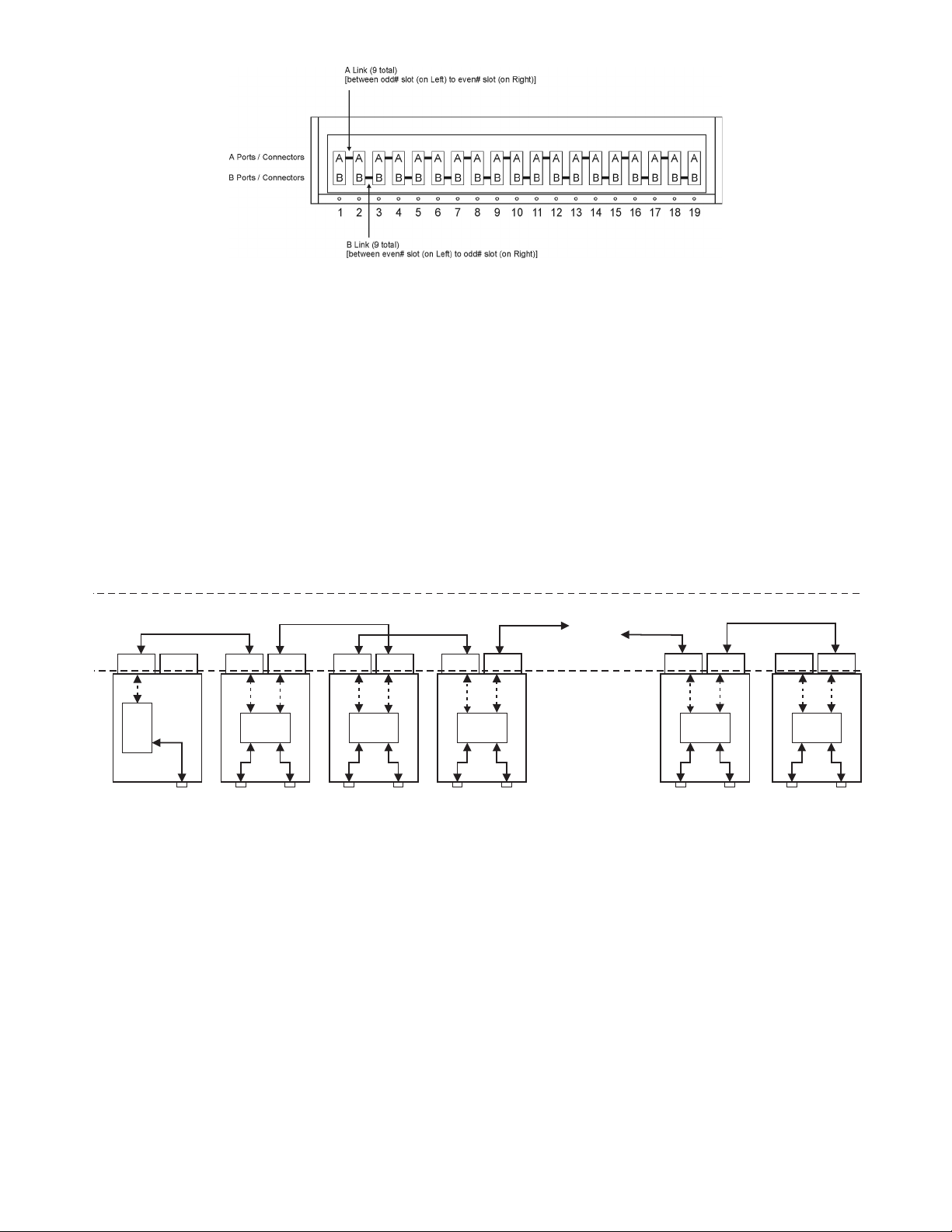

The chassis features 19 module slots numbered 1 (left-most positioned slot) through 19 (right-most positioned slot). As modules
are inserted into the chassis slots, they are seated into the slot connectors.
The A and B Links provide Ethernet connectivity between adjacent slots.
