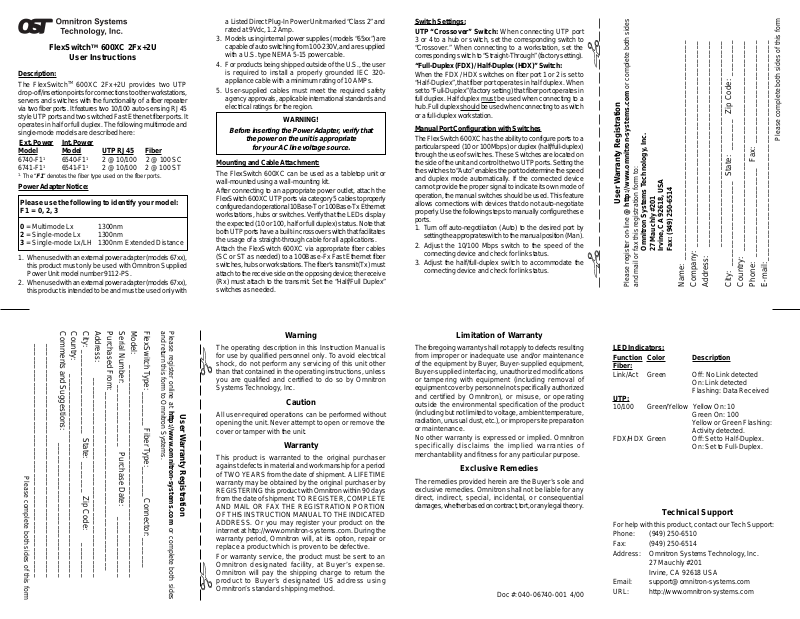

Omnitron Systems Technology FlexSwitch 600XC 2Fx+2U User Manual

FlexSwitchTM 600XC 2Fx+2U

User Instructions

Description:

The FlexSwitchTM 600XC 2Fx+2U provides two UTP
drop-off/insertion points for connections to other workstations,
servers and switches with the functionality of a fiber repeater
via two fiber ports. It features two 10/100 auto-sensing RJ45
style UTP ports and two switched Fast Ethenet fiber ports. It
operates in half or full duplex. The following multimode and
single-mode models are described here:

Ext. Power Int. Power

Model Model UTP RJ45 Fiber

6740-F116540-F112 @ 10/100 2 @ 100 SC
6741-F116541-F112 @ 10/100 2 @ 100 ST

1.

The “F1” denotes the fiber type used on the fiber ports.

Power Adapter Notice:

Please use the following to identify your model:
F1 = 0, 2, 3

0 = Multimode Lx 1300nm
2 = Single-mode Lx 1300nm
3 = Single-mode Lx/LH 1300nm Extended Distance

1. When used with an external power adapter (models 67xx),
this product must only be used with Omnitron Supplied
Power Unit model number 9112-PS.

2. When used with an external power adapter (models 67xx),
this product is intended to be and must be used only with

a Listed Direct Plug-In Power Unit marked “Class 2” and
rated at 9Vdc, 1.2 Amp.

3. Models using internal power supplies (models “65xx”) are
capable of auto switching from 100-230V , and are supplied
with a U.S. type NEMA 5-15 power cable.

4. For products being shipped outside of the U.S., the user
is required to install a properly grounded IEC 320­appliance cable with a minimum rating of 10 AMPs.

5. User-supplied cables must meet the required safety
agency approvals, applicable international standards and
electrical ratings for the region.

WARNING!

Before inserting the Power Adapter, verify that

the power on the unit is appropriate

for your AC line voltage source.

Mounting and Cable Attachment:

The FlexSwitch 600XC can be used as a tabletop unit or
wall-mounted using a wall-mounting kit.

After connecting to an appropriate power outlet, attach the
FlexSwitch 600XC UTP ports via category 5 cables to properly
configured and operational 10Base-T or 100Base-Tx Ethernet
workstations, hubs or switches. Verify that the LEDs display
the expected (10 or 100, half or full duplex) status. Note that
both UTP ports have a built-in crossover switch that facilitates
the usage of a straight-through cable for all applications.

Attach the FlexSwitch 600XC via appropriate fiber cables
(SC or ST as needed) to a 100Base-Fx Fast Ethernet fiber
switches, hubs or workstations. The fiber’s transmit (Tx) must
attach to the receive side on the opposing device; the receive
(Rx) must attach to the transmit. Set the “Half/Full Duplex”
switches as needed.

Switch Settings:
UTP “Crossover” Switch: When connecting UTP port

3 or 4 to a hub or switch, set the corresponding switch to
“Crossover.” When connecting to a workstation, set the
corresponding switch to “Straight-Through” (factory setting).

“Full-Duplex (FDX) / Half-Duplex (HDX)” Switch:

When the FDX / HDX switches on fiber port 1 or 2 is set to
“Half-Duplex” ,that fiber port operates in half duplex. When
set to “Full-Duplex” (factory setting) that fiber port operates in
full duplex. Half duplex
hub. Full duplex
or a full-duplex workstation.

Manual Port Configuration with Switches

The FlexSwitch 600XC has the ability to configure ports to a
particular speed (10 or 100Mbps) or duplex (half/full-duplex)
through the use of switches. These Switches are located on
the side of the unit and control the two UTP ports. Setting the
the switches to “Auto” enables the port to determine the speed
and duplex mode automatically. If the connected device
cannot provide the proper signal to indicate its own mode of
operation, the manual switches should be used. This feature
allows connections with devices that do not auto-negotiate
properly. Use the following steps to manually configure these
ports.

1. Turn off auto-negotiiation (Auto) to the desired port by
setting the approprateswitch to the manual position (Man).

2. Adjust the 10/100 Mbps switch to the speed of the
connecting device and check for link status.

3. Adjust the half/full-duplex switch to accommodate the
connecting device and check for link status.

must be used when connecting to a

should be used when connecting to a switch

User Warranty Registration

Omnitron Systems Technology , Inc.

27 Mauchly #201

Irvine, CA 92618, USA

Fax: [phone]

Please register on-line @ http://www.omnitron-systems.com or complete both sides

and mail or fax this registration form to:

Name: _________________________________________________

Company: ______________________________________________

Address: ______________________________________________

Please complete both sides of this form

______________________________________________

City: ___________________ State: _______ Zip Code: ________

Country: _______________________________________________

Phone: ____________________ Fax: _______________________

E-mail:_________________________________________________

Please register online at http://www.omnitron-systems.com or complete both sides

and return this form to Omnitron Systems.

FlexSwitch Type: ________ Fiber T ype:_______Connector: _______

Model: _________________________________________________

Serial Number: ______________ Purchase Date: ______________

Purchased From: _________________________________________

Address: ______________________________________________

City: ___________________ State: _______ Zip Code: ________

Country: _______________________________________________

Comments and Suggestions: _______________________________

______________________________________________________

______________________________________________________

User Warranty Registration

Please complete both sides of this form

The operating description in this Instruction Manual is
for use by qualified personnel only. To avoid electrical
shock, do not perform any servicing of this unit other
than that contained in the operating instructions, unless
you are qualified and certified to do so by Omnitron
Systems T echnology , Inc.

All user-required operations can be performed without
opening the unit. Never attempt to open or remove the
cover or tamper with the unit.

This product is warranted to the original purchaser
against defects in material and workmanship for a period
of TWO YEARS from the date of shipment. A LIFETIME
warranty may be obtained by the original purchaser by
REGISTERING this product with Omnitron within 90 days
from the date of shipment. TO REGISTER, COMPLETE
AND MAIL OR FAX THE REGISTRATION PORTION
OF THIS INSTRUCTION MANUAL TO THE INDICA TED
ADDRESS. Or you may register your product on the
internet at http://www.omnitron-systems.com. During the
warranty period, Omnitron will, at its option, repair or
replace a product which is proven to be defective.

For warranty service, the product must be sent to an
Omnitron designated facility, at Buyer’s expense.
Omnitron will pay the shipping charge to return the
product to Buyer’s designated US address using
Omnitron’s standard shipping method.

Warning

Caution

Warranty

Limitation of Warranty

The foregoing warranty shall not apply to defects resulting
from improper or inadequate use and/or maintenance
of the equipment by Buyer, Buyer-supplied equipment,
Buyer-supplied interfacing, unauthorized modifications
or tampering with equipment (including removal of
equipment cover by personnel not specifically authorized
and certified by Omnitron), or misuse, or operating
outside the environmental specification of the product
(including but not limited to voltage, ambient temperature,
radiation, unusual dust, etc.), or improper site preparation
or maintenance.

No other warranty is expressed or implied. Omnitron
specifically disclaims the implied warranties of
merchantability and fitness for any particular purpose.

Exclusive Remedies

The remedies provided herein are the Buyer’s sole and
exclusive remedies. Omnitron shall not be liable for any
direct, indirect, special, incidental, or consequential
damages, whether based on contract, tort, or any legal theory.

Doc #: 040-06740-001 4/00

LED Indicators:
Function Color Description

Fiber:

Link/Act Green Off: No Link detected

UTP:

10/100 Green/Yellow Yellow On: 10

FDX/HDX Green Off: Set to Half-Duplex.

On: Link detected
Flashing: Data Received

Green On: 100
Y ellow or Green Flashing:
Activity detected.

On: Set to Full-Duplex.

Technical Support

For help with this product, contact our T ech Support:
Phone: [phone]
Fax: [phone]
Address: Omnitron Systems Technology , Inc.

Email: [e-mail]
URL: http://www.omnitron-systems.com
