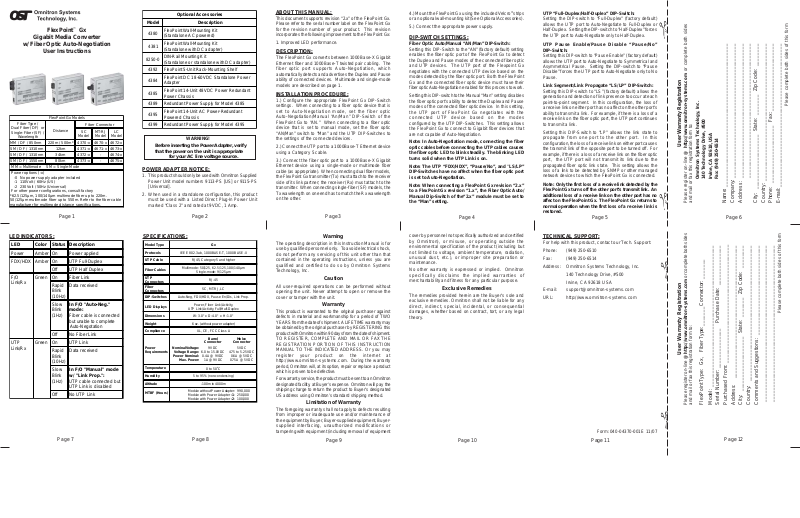

Omnitron Systems Technology FlexPoint Gx User Manual

FlexPoint™ Gx

Gigabit Media Converter

w/ Fiber Optic Auto-Negotiation

User Instructions

Fiber Type /

Dual Fiber (DF) or

Single-Fiber (SF ) /

Wavelength
MM / DF / 850nm 220m / 500m* 4370-x 4670-x 4672-x
SM / DF / 1310nm 12km 4371-x 4671-x 4673-x
SM / DF / 1310nm 34km 4372-x - 4674-x
SM / DF / 1550nm 80km 4373-x - 4675-x
MM = Multimode SM = Single-Mode
Power o p ti o ns (-x)

-0 No power supply adapter included

-1 110Volt / 60Hz (US)

-2 230Volt / 50Hz (Universal)
Fo r o t her p ower config urations , c onsult f actory
*62.5/125µm, 100/140µm multimode fiber up to 220m.
50/125µm multimode fiber up to 550m. Refer to the fiber cable
manufacturer for multimode distance specifications.

FlexPoint Gx Models

Distance

Fiber Connector

SC

MT-RJ

Model

ModelLCModel

Page 1 Page 2 Page 3

Optional Accessories

Model Description

FlexPoint Wall-Mounting Kit

4380

(Standalone AC powered)
FlexPoint Wall-Mounting Kit

4381

(Standalone with DC adapter)
DIN-Rail Mounting Kit

8250-0

(Standalone or standalone with DC adapter)

4392 F lexPoint 5-Unit Rack-Mounting Shelf

FlexPoint DC 1 8-60VD C Standalone Power

4384

Adapter
FlexPoint 14-Unit 48VDC Power Redundant

4385

Power Chassis

4389 Redundant Power Supply for Model 4385

FlexPoint 14-Unit AC Power-Redundant

4395

Powered Chassis

4399 Redundant Power Supply for Model 4395

WARNING!

Before inserting the Power Adapter, verify
that the power on the unit is appropriate

for your AC line voltage source.

POWER ADAPTER NOTICE:

1. This product should only be used with Omnitron Supplied
Power Unit model numbers 9113-PS [US] or 9115-PS
[Universal].

2. When used in a standalone configuration, this product
must be used with a Listed Direct Plug-In Power Unit
marked “Class 2” and rated at 9VDC, 1 Amp.

ABOUT THIS MANUAL:

This document supports revision “2.x” of the FlexPoint Gx.
Please refer to the serial number label on the FlexPoint Gx
for the revision number of your product. This revision
incorporates the following improvement to the FlexPoint Gx:

1. Improved LED performance.

DESCRIPTION:

The FlexPoint Gx converts between 1000Base-X Gigabit
Ethernet fiber and 1000Base-T twisted pair cabling. The
fiber optic port supports Auto-Negotiation, which
automatically detects and advertises the Duplex and Pause
ability of connected devices. Multimode and single-mode
models are described on page 1.

INSTALLATION PROCEDURE:

1.) Configure the appropriate FlexPoint Gx DIP-Switch
settings. When connecting to a fiber optic device that is
set to Auto-Negotiation mode, set the fiber optic
Auto-Negotiation/Manual “An/Man” DIP-Switch of the
FlexPoint Gx to “AN.” When connecting to a fiber optic
device that is set to manual mode, set the fiber optic
“AN/Man” switch to “Man” and the UTP DIP-Switches to
the settings of the connected devices.

2.) Connect the UTP port to a 1000Base-T Ethernet device
using a Category 5 cable.

3.) Connect the fiber optic port to a 1000Base-X Gigabit
Ethernet device using a single-mode or multimode fiber
cable (as appropriate). When connecting dual fiber models,
the FlexPoint Gx transmitter (Tx) must attach to the receiver
side of its link partner; the receiver (Rx) must attach to the
transmitter. When connecting single-fiber (SF) models, the
Tx wavelength on one end has to match the Rx wavelength
on the other.

®

4.) Mount the FlexPoint Gx using the included V elcro

strips

or an optional wall-mounting kit (See Optional Accessories).

5.) Connect the appropriate power supply.

DIP-SWITCH SETTINGS:

Fiber Optic Auto/Manual “AN/Man” DIP-Switch:

Setting this DIP-Switch to the “AN” (factory default) setting
enables the fiber optic port of the FlexPoint Gx to detect
the Duplex and Pause modes of the connected fiber optic
and UTP devices. The UTP port of the Flexpoint Gx
negotiates with the connected UTP device based on the
modes detected by the fiber optic port. Both the FlexPoint
Gx and the connected fiber optic device must have their
fiber optic Auto-Negotiation enabled for this process to work.

Setting this DIP-switch to the Manual “Man” setting disables
the fiber optic port’s ability to detect the Duplex and Pause
modes of the connected fiber optic device. In this setting,
the UTP port of FlexPoint Gx negotiates with the
connected UTP device based on the modes
configured by the UTP DIP-Switches. This setting allows
the FlexPoint Gx to connect to Gigabit fiber devices that
are not capable of Auto-Negotiation.

Note: In Auto-Negotiation mode, connecting the fiber
optic cables before connecting the UTP cables causes
the fiber optic LED to blink steadily. The blinking LED
turns solid when the UTP Link is on.

Note: The UTP “FDX/HDX”, “Pause/No”, and “LS/LP”
DIP-Switches have no affect when the fiber optic port
is set to Auto-Negotiation.

Note: When connecting a FlexPoint Gx revision “2.x”
to a FlexPoint Gx revision “1.x”, the Fiber Optic Auto/
Manual Dip-Switch of the“2.x” module must be set to
the “Man” setting.

Page 4 Page 5 Page 6

UTP “Full-Duplex/Half-Duplex” DIP-Switch:

Setting the DIP-switch to “Full-Duplex” (factory default)
allows the UTP port to Auto-Negotiate to Full-Duplex or
Half-Duplex. Setting the DIP-switch to “Half-Duplex” forces
the UTP port to Auto-Negotiate only to Half-Duplex.

UTP Pause Enable/Pause Disable “Pause/No”
DIP-Switch:

Setting this DIP-switch to “Pause Enable” (factory default)
allows the UTP port to Auto-Negotiate to Symmetrical and
Asymmetrical Pause. Setting the DIP-switch to “Pause
Disable” forces the UTP port to Auto-Negotiate only to No
Pause.

Link Segment/Link Propagate “LS/LP” DIP-Switch:

Setting this DIP-switch to “LS” (factory default) allows the
generation and detection of link presence to occur at each
point-to-point segment. In this configuration, the loss of
a receive link on either port has no affect on the other port’s
ability to transmit a link. For example, if there is a loss of a
receive link on the fiber optic port, the UTP port continues
to transmit a link.

Setting this DIP-Switch to “LP” allows the link state to
propagate from one port to the other port. In this
configuration, the loss of a receive link on either port causes
the transmit link of the opposite port to be turned off. For
example, if there is a loss of a receive link on the fiber optic
port, the UTP port will not transmit its link due to the
propagated fiber optic link state. This setting allows the
loss of a link to be detected by SNMP or other managed
network devices to which the FlexPoint Gx is connected.

Note: Only the first loss of a receive link detected by the
FlexPoint Gx turns off the other port’s transmit link. An
additional loss of a receive link on the other port has no
affect on the FlexPoint Gx. The FlexPoint Gx returns to
normal operation when the first loss of a receive link is
restored.

User Warranty Registration

Omnitron Systems Technology, Inc.

140 Technology Drive, #500

Irvine, CA 92618, USA

Fax: [phone]

Please register on-line @ http://www.omnitron-systems.com or complete both sides

and mail or fax this registration form to:

Name: _________________________________________________

Company: ______________________________________________

Address: ______________________________________________

Please complete both sides of this form

______________________________________________

Country: _______________________________________________

Phone: ____________________ Fax: _______________________

City: ___________________ State: _______ Zip Code: ________

E-mail:_________________________________________________

LED INDICATORS:

LED Color Status Description

Power Amber On P ower applied
FD X/HDX Amber On UTP Full-Duplex

Off UTP Half Duplex

F/O
Link/Rx

Green On Fiber Link

Rapid

Data received
Blink
(10Hz)

Slow

In F/O "Auto-Neg."

Blink

mode:

(1Hz)

Fiber cable is connected

but unable to c omplete

Auto-Negotation

Off No Fiber Link

UTP
Link/Rx

Green On UTP Link

Rapid

Data received
Blink
(10Hz)

Slow

In F/O "Manual" mode

Blink

w/ "Link Prop.":

(1Hz)

UTP cable connected but

UTP Link is disa bled
Off No UTP Link

Page 7

SPECIFICATIONS:

Model Type Gx
Protocols
UTP Cable

Fiber Cables

UTP
Connectors

Fiber
Connectors

DIP-Switches

LED Displays

Dimensions
Weight
Compliance

Power
Requirements

Temperature
Humidity
Altitude

MTBF (H o urs)

IEEE 802.3ab, 1000BASE-T, 1000BASE-X

RJ45, Category 5 and higher

Multimode: 50/125, 62.5/125, 100/140µm

Single-mode: 9/125µm

SC, MT-RJ, LC

Auto-Neg, FDX/HDX, Pause En/Dis, Link Prop.

Power, Fiber Link/Activity,

UTP Link/Activity, Full/Half-Dup le x

W: 3.0" x D: 4.0" x H: 1.0"

6 oz. (without power adapter)

UL, CE, FCC Class A

NominalVoltage:

Voltage Range:

Power Nominal:

Max. Powe r:

Module without Power Adapter: 990,000
Module with Power Adapter -1: 250,000
Module with Power Adapter -2: 100,000

Connector

6.0 to 15.0VDC

0.4A @ 9VDC
1A @ 9VDC

0 to 50

5 to 95% (non-condensing)

-100m to 4000m

Page 8

RJ-45

Barrel

9VDC

o

C

Molex

Connector

5VDC

4.75 to 5.25VDC

0.6A @ 5VDC

0.75A @ 5VDC

Warning

The operating description in this Instruction Manual is for
use by qualified personnel only. To avoid electrical shock,
do not perform any servicing of this unit other than that
contained in the operating instructions, unless you are
qualified and certified to do so by Omnitron Systems
Technology, Inc.

Caution

All user-required operations can be performed without
opening the unit. Never attempt to open or remove the
cover or tamper with the unit.

Warranty

This product is warranted to the original purchaser against
defects in material and workmanship for a period of TWO
YEARS from the date of shipment. A LIFETIME warranty may
be obtained by the original purchaser by REGISTERING this
product with Omnitron within 90 days from the date of shipment.
TO REGISTER, COMPLETE AND MAIL OR FAX THE
REGISTRATION PORTION OF THIS INSTRUCTION
MANUAL TO THE INDICATED ADDRESS. Or you may
register your product on the internet at
http://www.omnitron-systems.com. During the warranty
period, Omnitron will, at its option, repair or replace a product
which is proven to be defective.

For warranty service, the product must be sent to an Omnitron
designated facility, at Buyer’s expense. Omnitron will pay the
shipping charge to return the product to Buyer’s designated
US address using Omnitron’s standard shipping method.

Limitation of Warranty

The foregoing warranty shall not apply to defects resulting
from improper or inadequate use and/or maintenance of
the equipment by Buyer, Buyer-supplied equipment, Buyer­supplied interfacing, unauthorized modifications or
tampering with equipment (including removal of equipment

Page 9 Page 10 Page 11

cover by personnel not specifically authorized and certified
by Omnitron), or misuse, or operating outside the
environmental specification of the product (including but
not limited to voltage, ambient temperature, radiation,
unusual dust, etc.), or improper site preparation or
maintenance.

No other warranty is expressed or implied. Omnitron
specifically disclaims the implied warranties of
merchantability and fitness for any particular purpose.

Exclusive Remedies

The remedies provided herein are the Buyer’s sole and
exclusive remedies. Omnitron shall not be liable for any
direct, indirect, special, incidental, or consequential
damages, whether based on contract, tort, or any legal
theory.

TECHNICAL SUPPORT :

For help with this product, contact our Tech. Support:
Phone: [phone]
Fax: [phone]
Address: Omnitron Systems Technology, Inc.

140 Technology Drive, #500

Irvine, CA 92618 USA
E-mail: [e-mail]
URL: http://www.omnitron-systems.com

Form: 040-04370-001E 11/07

User Warranty Registration

Please register on-line @ http://www.omnitron-systems.com or complete both sides

and mail or fax this registration form to:

FlexPoint Type: Gx, Fiber Type:_______Connector: _______

Model: _________________________________________________

Serial Number: ______________ Purchase Date: ______________

Purchased From: _________________________________________

Address: ______________________________________________

City: ___________________ State: _______ Zip Code: ________

Page 12

Please complete both sides of this form

______________________________________________________

Country: _______________________________________________

______________________________________________________

Comments and Suggestions: _______________________________
