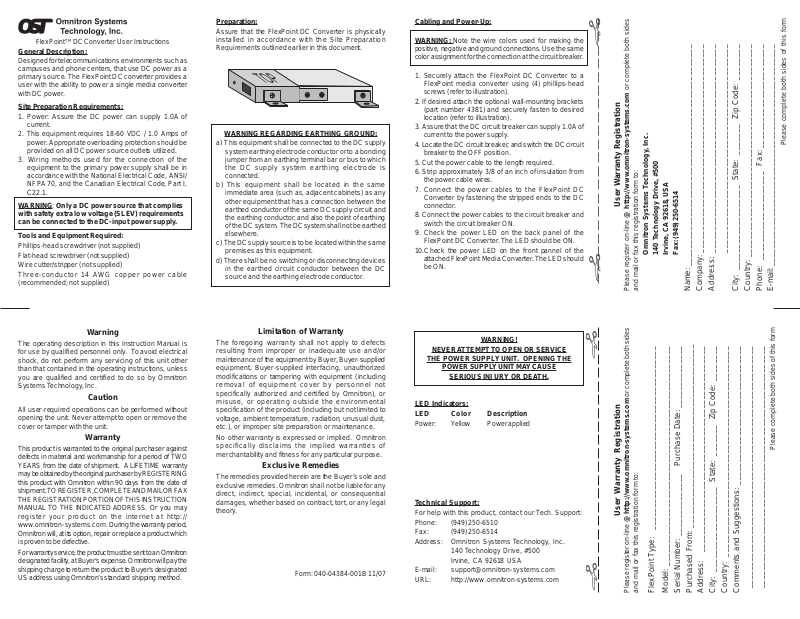

FlexPointTM DC Converter User Instructions

General Description:

Designed for telecommunications environments such as
campuses and phone centers, that use DC power as a
primary source. The FlexPoint DC converter provides a
user with the ability to power a single media converter
with DC power.

Site Preparation Requirements:

1. Power: Assure the DC power can supply 1.0A of
current.

2. This equipment requires 18-60 VDC / 1.0 Amps of
power. Appropriate overloading protection should be
provided on all DC power source outlets utilized.

3. Wiring methods used for the connection of the
equipment to the primary power supply shall be in
accordance with the National Electrical Code, ANSI/
NFPA 70, and the Canadian Electrical Code, Part I,
C22.1.

WARNING: Only a DC power source that complies
with safety extra low voltage (SLEV) requirements
can be connected to the DC-input power supply.

Tools and Equipment Required:

Phillips-head screwdriver (not supplied)
Flat-head screwdriver (not supplied)
Wire cutter/stripper (not supplied)
Three-conductor 14 AWG copper power cable

(recommended; not supplied)

Preparation:

Assure that the FlexPoint DC Converter is physically
installed in accordance with the Site Preparation
Requirements outlined earlier in this document.

WARNING REGARDING EARTHING GROUND:

a) This equipment shall be connected to the DC supply

system earthing electrode conductor or to a bonding
jumper from an earthing terminal bar or bus to which
the DC supply system earthing electrode is
connected.

b) This equipment shall be located in the same

immediate area (such as, adjacent cabinets) as any
other equipment that has a connection between the
earthed conductor of the same DC supply circuit and
the earthing conductor, and also the point of earthing
of the DC system. The DC system shall not be earthed
elsewhere.

c) The DC supply source is to be located within the same

premises as this equipment.

d) There shall be no switching or disconnecting devices

in the earthed circuit conductor between the DC
source and the earthing electrode conductor.

Cabling and Power-Up:

WARNING: Note the wire colors used for making the

positive, negative and ground connections. Use the same
color assignment for the connection at the circuit breaker.

1. Securely attach the FlexPoint DC Converter to a
FlexPoint media converter using (4) phillips-head
screws (refer to illustration).

2. If desired attach the optional wall-mounting brackets
(part number 4381) and securely fasten to desired
location (refer to illustration).

3. Assure that the DC circuit breaker can supply 1.0A of
current to the power supply.

4. Locate the DC circuit breaker, and switch the DC circuit
breaker to the OFF position.

5. Cut the power cable to the length required.

6. Strip approximately 3/8 of an inch of insulation from
the power cable wires.

7. Connect the power cables to the FlexPoint DC
Converter by fastening the stripped ends to the DC
connector.

8. Connect the power cables to the circuit breaker and
switch the circuit breaker ON.

9. Check the power LED on the back panel of the
FlexPoint DC Converter. The LED should be ON.

10.Check the power LED on the front pannel of the
attached FlexPoint Media Converter. The LED should
be ON.

User Warranty Registration

Omnitron Systems Technology, Inc.

140 Technology Drive, #500

Irvine, CA 92618, USA

Fax: [phone]

Please register on-line @ http://www.omnitron-systems.com or complete both sides

and mail or fax this registration form to:

Name: _________________________________________________

Company: ______________________________________________

Address: ______________________________________________

Please complete both sides of this form

______________________________________________

City: ___________________ State: _______ Zip Code: _ __ __ __ _

Country: _______________________________________________

Phone: ____________________ Fax: _______________________

E-mail:_________________________________________________

Warning

The operating description in this Instruction Manual is
for use by qualified personnel only. To avoid electrical
shock, do not perform any servicing of this unit other
than that contained in the operating instructions, unless
you are qualified and certified to do so by Omnitron
Systems T echnology , Inc.

Caution

All user-required operations can be performed without
opening the unit. Never attempt to open or remove the
cover or tamper with the unit.

Warranty

This product is warranted to the original purchaser against
defects in material and workmanship for a period of TWO
YEARS from the date of shipment. A LIFETIME warranty
may be obtained by the original purchaser by REGISTERING
this product with Omnitron within 90 days from the date of
shipment. TO REGISTER, COMPLETE AND MAIL OR FAX
THE REGISTRATION POR TION OF THIS INSTRUCTION
MANUAL TO THE INDICATED ADDRESS. Or you may
register your product on the internet at http://
www.omnitron-systems.com. During the warranty period,
Omnitron will, at its option, repair or replace a product which
is proven to be defective.

For warranty service, the product must be sent to an Omnitron
designated facility, at Buyer’s expense. Omnitron will pay the
shipping charge to return the product to Buyer’s designated
US address using Omnitron’s standard shipping method.

Limitation of Warranty

The foregoing warranty shall not apply to defects
resulting from improper or inadequate use and/or
maintenance of the equipment by Buyer, Buyer-supplied
equipment, Buyer-supplied interfacing, unauthorized
modifications or tampering with equipment (including
removal of equipment cover by personnel not
specifically authorized and certified by Omnitron), or
misuse, or operating outside the environmental
specification of the product (including but not limited to
voltage, ambient temperature, radiation, unusual dust,
etc.), or improper site preparation or maintenance.

No other warranty is expressed or implied. Omnitron
specifically disclaims the implied warranties of
merchantability and fitness for any particular purpose.

Exclusive Remedies

The remedies provided herein are the Buyer’s sole and
exclusive remedies. Omnitron shall not be liable for any
direct, indirect, special, incidental, or consequential
damages, whether based on contract, tort, or any legal
theory.

Form: 040-04384-001B 11/07

NEVER ATTEMPT TO OPEN OR SER VICE

THE POWER SUPPLY UNIT. OPENING THE

POWER SUPPLY UNIT MAY CAUSE

SERIOUS INJURY OR DEA TH.

LED Indicators:
LED Color Description

Power: Y ellow Power applied

Technical Support:

For help with this product, contact our Tech. Support:
Phone: [phone]
Fax: [phone]
Address: Omnitron Systems Technology, Inc.

E-mail: [e-mail]
URL: http://www.omnitron-systems.com
