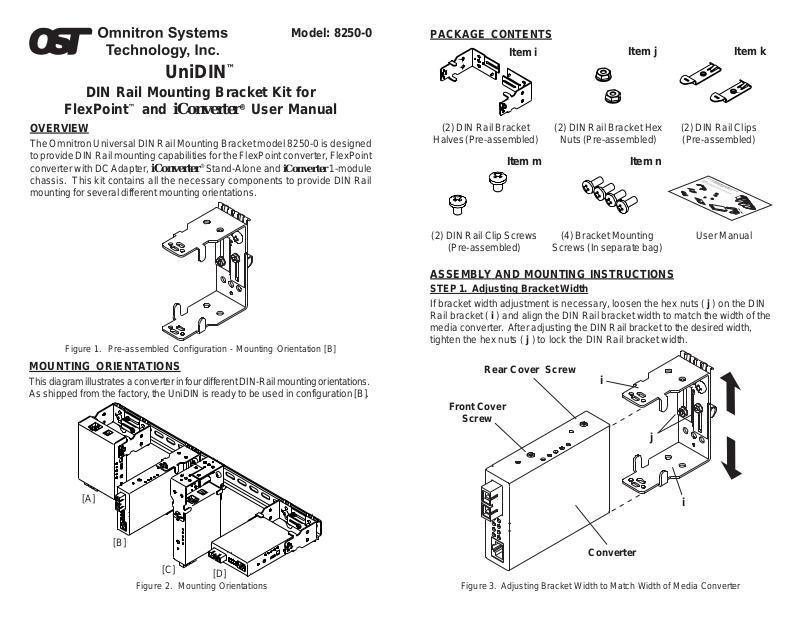

Omnitron Systems Technology 8250-0 User Manual

Model: 8250-0

UniDIN

™

DIN Rail Mounting Bracket Kit for

FlexPoint

OVERVIEW

The Omnitron Universal DIN Rail Mounting Bracket model 8250-0 is designed
to provide DIN Rail mounting capabilities for the FlexPoint converter , FlexPoint
converter with DC Adapter , iConverter® Stand-Alone and iConverter 1-module
chassis. This kit contains all the necessary components to provide DIN Rail
mounting for several different mounting orientations.

™

and iConverter® User Manual

PACKAGE CONTENTS

Item i

(2) DIN Rail Bracket

Halves (Pre-assembled)

Item m Item n

Item j

(2) DIN Rail Bracket Hex

Nuts (Pre-assembled)

Item k

(2) DIN Rail Clips

(Pre-assembled)

Figure 1. Pre-assembled Configuration - Mounting Orientation [B]

MOUNTING ORIENTATIONS

This diagram illustrates a converter in four different DIN-Rail mounting orientations.
As shipped from the factory , the UniDIN is ready to be used in configuration [B].

[A]

(2) DIN Rail Clip Screws

(Pre-assembled)

(4) Bracket Mounting

Screws (In separate bag)

User Manual

ASSEMBLY AND MOUNTING INSTRUCTIONS

STEP 1. Adjusting Bracket Width

If bracket width adjustment is necessary , loosen the hex nuts ( j ) on the DIN
Rail bracket ( i ) and align the DIN Rail bracket width to match the width of the
media converter. After adjusting the DIN Rail bracket to the desired width,
tighten the hex nuts ( j ) to lock the DIN Rail bracket width.

Rear Cover Screw

i

Front Cover

Screw

j

i

[B]

[C]

Figure 2. Mounting Orientations

[D]

Converter

Figure 3. Adjusting Bracket Width to Match Width of Media Converter

STEP 2. Optional Orientation Reconfiguration

If the desired mounting orientation is other than [B] as illustrated in Fig. 2,
remove the DIN Rail clips ( k ) from the bracket by removing the DIN Rail clip
screws ( m ). Determine the desired DIN Rail mounting orientation from the
Figure 2, and match the corresponding DIN Rail clip orientation in Figure 4.
Attach the DIN Rail clips ( k ) to the DIN Rail bracket holes in the DIN Rail
Bracket ( i ) and secure the DIN Rail clips ( k ) with DIN Rail clip screws ( m ).

i

i

STEP 4. Mounting Converter to the DIN Rail

Attach the assembly to the DIN Rail, by aligning the hooks on the DIN Rail clip
( k ) to the upper edge of the DIN Rail. Rotate the assembly downward until the
DIN Rail clip tab engages and snaps to the bottom edge of the DIN Rail. Note
that the tab on the DIN Rail clip should always attach to the bottom of the DIN
Rail. Connect the external power supply to the rear of the installed media
converter.

Hooks on the

DIN Rail Clip

m

m

[C]

i

m

k

k

Figure 4. Configuring Clip Mounting Orientation

STEP 3. Attaching Bracket to Converter

Remove the rear cover screws from the media converter casing. Align the
media converter to the bracket mounting holes that correspond with desired
orientation, then insert and fasten the supplied bracket mounting screws ( n )

to secure the media converter to the DIN Rail bracket ( i ).

[B]

k

[A] and [D]

i

[B], [C] and [D]

n

DIN Rail

Cross Section

Close Up

Tab on the

DIN Rail Clip

Mount

Dismount

Figure 6. Mounting/Dismounting Converter to/from DIN Rail

Dismounting from DIN Rail

To remove the converter assembly from the DIN Rail, hold the converter and
rotate upward to disengage the clip.

TECHNICAL SUPPORT:

For help with this product, contact our Technical Support:

n

[A]

Front Cover

Screw

Converter

Figure 5. Attaching Bracket to Converter

Omnitron Systems Technology, Inc.
Phone: [phone] Fax: [phone]
Address: 140 Technology Dr., #500 Irvine, CA 92618 USA
Email: [e-mail]
URL: www.omnitron-systems.com

Form: 040-08250-001B 9/07

Patent Pending
