Omnitron Systems Technology 4Tx User Manual

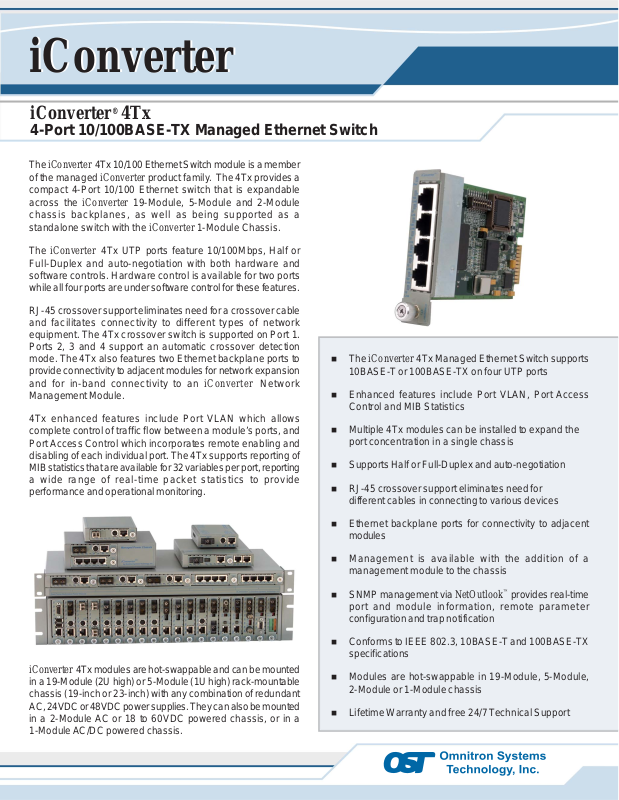

iConverter
iConverter
iConverter
®
4Tx
4-Port 10/100BASE-TX Managed Ethernet Switch
The iConverter 4Tx 10/100 Ethernet Switch module is a member
of the managed
compact 4-Port 10/100 Ethernet switch that is expandable
across the iConverter 19-Module, 5-Module and 2-Module
chassis backplanes, as well as being supported as a
standalone switch with the iConverter 1-Module Chassis.
The iConverter 4Tx UTP ports feature 10/100Mbps, Half or
Full-Duplex and auto-negotiation with both hardware and
software controls. Hardware control is available for two ports
while all four ports are under software control for these features.
RJ-45 crossover support eliminates need for a crossover cable
and facilitates connectivity to different types of network
equipment. The 4Tx crossover switch is supported on Port 1.
Ports 2, 3 and 4 support an automatic crossover detection
mode. The 4Tx also features two Ethernet backplane ports to
provide connectivity to adjacent modules for network expansion
and for in-band connectivity to an iConverter Network
Management Module.
4Tx enhanced features include Port VLAN which allows
complete control of traffic flow between a module’s ports, and
Port Access Control which incorporates remote enabling and
disabling of each individual port. The 4Tx supports reporting of
MIB statistics that are available for 32 variables per port, reporting
a wide range of real-time packet statistics to provide
performance and operational monitoring.
iConverter product family. The 4Tx provides a
The iConverter 4Tx Managed Ethernet Switch supports
10BASE-T or 100BASE-TX on four UTP ports
Enhanced features include Port VLAN, Port Access
Control and MIB Statistics
Multiple 4Tx modules can be installed to expand the
port concentration in a single chassis
Supports Half or Full-Duplex and auto-negotiation
RJ-45 crossover support eliminates need for
different cables in connecting to various devices
iConverter
in a 19-Module (2U high) or 5-Module (1U high) rack-mountable
chassis (19-inch or 23-inch) with any combination of redundant
AC, 24VDC or 48VDC power supplies. They can also be mounted
in a 2-Module AC or 18 to 60VDC powered chassis, or in a
1-Module AC/DC powered chassis.
4Tx modules are hot-swappable and can be mounted
Ethernet backplane ports for connectivity to adjacent
modules
Management is available with the addition of a
management module to the chassis
SNMP management via NetOutlook
port and module information, remote parameter
configuration and trap notification
Conforms to IEEE 802.3, 10BASE-T and 100BASE-TX
specifications
Modules are hot-swappable in 19-Module, 5-Module,
2-Module or 1-Module chassis
Lifetime Warranty and free 24/7 Technical Support
™
provides real-time
Mode l Type 4Tx
Protocols
UTP Connectors
Controls
LED Displays
Dimensions
Weight
Compliance
Power Requirement
Temperature
Humidity
Altitude
MTB F (hrs)
Standard: 0 to 50º C
Wide: -40 to 60º C
Storage: -40 to 80º C
10BASE-T, 100BASE-TX
RJ-45
UTP X-over (Port 1), BP Enable,
Auto/Man, 10/100, FD X/HDX
Power, 10/100 UTP Link
W:0.85" x D:4.5" x H:2.8"
8 oz.
UL, CE, FCC Class A
0.9 @ 3.3VD C (typical)
5 to 95% (non-condensi ng)
-100m to 4000m
910, 000
Management is accomplished by using a Network Management
Module (NMM) or a media converter with integrated management
(such as an iConverter 10/100M2) that provides monitoring,
remote configuration and trap notification. The management
module can be accessed via SNMP , Telnet and via a serial port.
The SNMP-based management is accomplished via Omnitron’s
intuitive, graphic-oriented NetOutlook management software or
third party SNMP management software, while the Telnet and
the serial interfaces have an easy-to-use, menu-driven interface.
Some of the real-time 4Tx parameters that can be monitored
include link and data receive status. Other parameters include
module type and model, hardware and software revisions, serial
numbers and a user-defined identifier.
The user can override the 4Tx module’s physical switch settings
by using SNMP or T elnet to remotely configure switch-select able
parameters such as auto-negotiation, Half or Full-Duplex and
Backplane Selection.
In addition to all standard iConverter SNMP traps such as module
insertion and removal, the 4Tx modules can generate traps on
port state changes including link-up and link-down. Trap
monitoring of specific events can be selectively enabled or
disabled by the network administrator.
Model Type Connectors Distance
8480-4
For wi de temperature (-40 to 60º C) modules, add a "W" to the end of
the model number. Consult factory for other configurations and
extended temperature (-40 to +75º C) modules.
Configuration 19-Module 5-Module 2-Module 1-Module
One (1) Power Supply 8200-1 8206-1 8205-1 8220-1 8226-1 8225-1 8230-0 8235-0 8240-1 8240-2
One (1) Power Supply
w/ D ying Gasp Support
Two (2) Power Supplies 8200-2 8206 -2 8205-2 8220-2 8226-2 8225-2 -- -- 8245-111* 8245-112*
Thre e (3) P o wer Suppli e s 8200-3 8206-3 8205-3 -- -- -- -- -- -- --
Spare Power Supp ly 8200-9 8206-9 8205-9 8220-9 8226-9 8225-9 -- -- -- --
23" Rack Mounting Kit 8091-2 8091-2 8091-2 8092-2 8092-2 8092-2 -- -- -- --
Blank Mo dule Panel 8090-0 8090-0 8090-0 8090-0 8090-0 8090-0 8090-0 8090-0 -- --
Wall-Mo unting Hardware Kit -- -- -- -- -- -- 8249-0 8249-0 8249-0 8249-0
DIN-Rail Mounting Kit -- -- -- -- -- -- -- -- 8250-0 8250-0
*Ple a s e refer to the iConverter 1-Module Redundant Power Chassis data sheet for additional model numbers and ordering options.
For wide (-40 to +60 º C) and extended (-40 to +75º C) temperature range chassis, contact Omni tron for d etails.
RJ-45 x 4 100m
AC 24VDC 48VDC AC 24VDC 48VDC AC
-- -- -- -- -- -- 8230-1 8235-1 8241-1 8241 -2
18-60
VDC
US AC
Universal
AC
Trademarks are owned by their respective companies. iConverter is a registered trademark of Omnitron Systems Technology, Inc.
NetOutlook is a trademark of Omnitron Systems T echnology , Inc. Specifications subject to change without notice.
©2003-2007 Omnitron Systems T echnology, Inc. All rights reserved.
091-18480-004E 9/07
