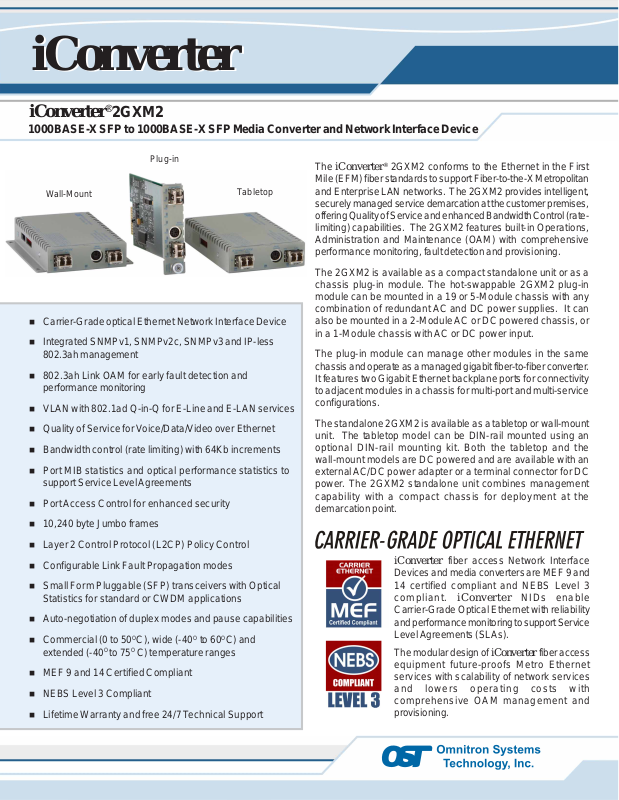

iConverter
iConverter
iConverter
®
2GXM2
1000BASE-X SFP to 1000BASE-X SFP Media Converter and Network Interface Device
Plug-in
Wall-Mount
Carrier-Grade optical Ethernet Network Interface Device
Integrated SNMPv1, SNMPv2c, SNMPv3 and IP-less
802.3ah management
802.3ah Link OAM for early fault detection and
performance monitoring
VLAN with 802.1ad Q-in-Q for E-Line and E-LAN services
Quality of Service for V oice/Data/Video over Ethernet
Bandwidth control (rate limiting) with 64Kb increments
Port MIB statistics and optical performance statistics to
support Service Level Agreements
Port Access Control for enhanced security
10,240 byte Jumbo frames
Tabletop
The iConverter® 2GXM2 conforms to the Ethernet in the First
Mile (EFM) fiber standards to support Fiber-to-the-X Metropolitan
and Enterprise LAN networks. The 2GXM2 provides intelligent,
securely managed service demarcation at the customer premises,
offering Quality of Service and enhanced Bandwidth Control (ratelimiting) capabilities. The 2GXM2 features built-in Operations,
Administration and Maintenance (OAM) with comprehensive
performance monitoring, fault detection and provisioning.
The 2GXM2 is available as a compact standalone unit or as a
chassis plug-in module. The hot-swappable 2GXM2 plug-in
module can be mounted in a 19 or 5-Module chassis with any
combination of redundant AC and DC power supplies. It can
also be mounted in a 2-Module AC or DC powered chassis, or
in a 1-Module chassis with AC or DC power input.
The plug-in module can manage other modules in the same
chassis and operate as a managed gigabit fiber-to-fiber converter.
It features two Gigabit Ethernet backplane ports for connectivity
to adjacent modules in a chassis for multi-port and multi-service
configurations.
The standalone 2GXM2 is available as a tabletop or wall-mount
unit. The tabletop model can be DIN-rail mounted using an
optional DIN-rail mounting kit. Both the tabletop and the
wall-mount models are DC powered and are available with an
external AC/DC power adapter or a terminal connector for DC
power. The 2GXM2 standalone unit combines management
capability with a compact chassis for deployment at the
demarcation point.
Layer 2 Control Protocol (L2CP) Policy Control
Configurable Link Fault Propagation modes
Small Form Pluggable (SFP) transceivers with Optical
Statistics for standard or CWDM applications
Auto-negotiation of duplex modes and pause capabilities
Commercial (0 to 50
extended (-40O to 75O C) temperature ranges
MEF 9 and 14 Certified Compliant
NEBS Level 3 Compliant
Lifetime W arranty and free 24/7 Technical Support
O
C), wide (-40O to 60OC) and
iConverter fiber access Network Interface
Devices and media converters are MEF 9 and
14 certified compliant and NEBS Level 3
compliant. iConverter NIDs enable
Carrier-Grade Optical Ethernet with reliability
and performance monitoring to support Service
Level Agreements (SLAs).
The modular design of iConverter fiber access
equipment future-proofs Metro Ethernet
services with scalability of network services
and lowers operating costs with
comprehensive OAM management and
provisioning.
Fiber Port Options
The 2GXM2 Small Form Pluggable (SFP) model supports a wide
variety of SFP transceivers for FTTX and CWDM applications.
SFP fiber transceivers are available with multimode (MM) dual
fiber, single-mode (SM) dual fiber and single-mode single-fiber
(SF) options. They support LC connectors with distances up to
550m over MM fiber, 140km over SM fiber and 40km over SF.
SFP transceivers are available in 20nm increments from 1270nm
to 1610nm to support FTTX and CWDM applications.
Link Modes
The 2GXM2 features multiple, user-selectable link fault detection
modes, including Link Fault Propagation, Remote Fault
Detection and Asymmetrical Fault Detection. These Link Modes
provide rapid fault detection and isolation by monitoring the state
of the cabling hardware, and operate independently of the network
management.
T ag VLAN, Port VLAN and QoS
iConverter 2GXM2 supports the IEEE 802.1Q tag Virtual
The
Local Area Network (VLAN) packet tagging and untagging
(including Q-in-Q) and the 802.1p Quality of Service priority
standards.
2GXM2 VLAN 802.1ad tunneling technology enables service
providers to offer their customers E-Line and E-LAN services
(via Ethernet Virtual Circuit or EVC), which connect multiple
business LANs at different locations and make their networks
appear to be on the same local network. Q-in-Q Service tags
transparently transports customer network traffic across the
service provider network, isolating it from other customer and
service provider management traffic.
2GXM2 Port VLAN enables the ability to specify and restrict
traffic flow between the fiber , backplane and management ports.
The 802.1p prioritization standard enables delivery of Quality of
Service (QoS) to high-priority, real-time applications such as
voice and video over Ethernet.
Port Bandwidth Control and Port Access Control
The enhanced Bandwidth Control feature supports levels of
bandwidth between the fiber ports in 64Kbps increments from
64K to Full Line Speed.
The 2GXM2 features Port Access Control which blocks user
service while maintaining the network link. Port Access Control
enables the service provider to control user access while
maintaining port configuration for easy disabling or enabling of
customer service. Port Access Control provides enterprise
administrators the capability to improve network security by
controlling port access when the port is not in use.
Port Statistics and Optical Performance Statistics
The 2GXM2 supports reporting of utilization, port and optical
performance statistics. Port statistics are available for 38 different
variables for the fiber ports. Additionally, full optical performance
statistics are available on SFP fiber transceivers with a digital
diagnostic bus.
Port and optical performance statistics reporting provides the
ability to monitor customer bandwidth utilization, network
performance and the link signal quality for each individual port.
IEEE 802.3ah Operations, Administration and Maintenance
The 2GXM2 supports the IEEE 802.3ah OAM standard, including
Fault Detection, Performance Monitoring and Remote Loopback.
Fault Detection
The 2GXM2 detects and indicates link failures, dying gasp and
other critical events. The 2GXM2 also supports Unidirectional
Link Fault Detection that indicates faults in either direction of
the fiber link.
Performance Monitoring
802.3ah Performance Monitoring tools are used for the detection
and notification of link performance (quality) faults. Ethernet
data performance can deteriorate slowly before disrupting
service, and the 2GXM2 allows the setting of error-per-second
thresholds. Once the pre-set error threshold is exceeded, an
event notification is generated that provides early indication of a
problem that may be resolved prior to loss of service.
Remote Loopback
Remote Loopback is used for fault localization and link
performance testing. When a 2GXM2 port is in loopback mode,
all received service traffic is looped back and transmitted back
unaltered. The statistics from the 2GXM2 port and the remote
link partner can be compared for consistency .
At the Central Office, the 2GXM2 plug-in module is installed
in a managed iConverter 19-Module chassis providing
high-density fiber access. At Customer Premises 1 and 2,
the 2GXM2 s tandalone NID provides a fiber uplink port for
intelligent demarcation of Ethernet services.
Page 2
The 2GXM2 has integrated management, eliminating the cost
and space required for external management hardware.
The
iConverter management system provides comprehensive
remote configuration and performance monitoring. iConverter
management reduces operational expenditures by keeping truck
rolls to a minimum through remote provisioning, unidirectional
fault detection, trap notification and loopback capabilities.
iConverter management is available out-of-band via IP-Less
protocol using the 802.3ah OAM channel or Omnitron’s Secure
OAM channel, or in-band using SNMP or Telnet.
Management is accessed via Omnitron’s NetOutlook
®
SNMP
Network Management Software with an intuitive Graphical User
Interface, or third party SNMP software. Telnet and CLI
management interfaces are also supported, and utilize an easy
to use, menu-driven interface. The CLI interface is accessed via
a Serial Console Port, that provides local configuration and allows
for firmware updates. Additionally, the port can be connected to
a serial modem to provide an alternative remote management path.
IP-Based Management
The 2GXM2 can be managed through IP protocols, SNMPv1,
SNMPv2c, SNMPv3 and T elnet. The IP address of the 2GXM2
can be user-defined or resolved through the DHCP host on the
network. The IP protocols for management access can be
enabled or disabled individually or as a group. Access to the
management is protected by password authentication. SMNPv3
strengthens secure access to devices by a combination of
authenticating and encrypting packets over the network.
Management VLAN can also be defined to separate
management traffic from customer traffic.
802.3ah and Secure OAM Management Channels
When utilizing a Remote OAM management channel (Secure
IP-less or 802.3ah), the NID at the Customer Premises is
securely managed by its fiber link partner located at the Central
Office or Point of Presence. The management network IP
address is not available to the customer network and is isolated
by the iConverter Network Management Module (NMM) in the
19-Module Chassis at the Central Office.
A management processor on the iConverter 2GXM2 in the
19-Module Chassis isolates the encrypted management data
from the customer data and communicates with the NMM via a
separate management backplane bus. Management traffic on
the user data lines is IP-less and carried on a securely encrypted
data channel to protect the management from unauthorized
access. The chassis at the Central Office requires only a single
IP address to manage itself and all of the connected remote
chassis managed by the Remote OAM channel. This is the
ideal configuration for networks that separate secure
management traffic from the service (customer) traffic on different
networks, or when management IP addresses are at a premium.
Description 1000BASE-X to 1000BASE-X Fiber
Protocols 1000BASE-X
Fiber Cables Multimode: 50/125, 62.5/125, 100/140µm
Serial Cable RS-2 32, 22 to 24 AWG, 1 2 to 50 p F/ft.
Fiber Connectors Small Form Pluggable (SFP)
Serial Connector Mini DIN-6 female,
Controls DIP-Switches and LEDs
DC Power Plug-In Module: 1.1A @ 3.3VDC
DC Power Connector Plug-In: Power supplied by backplane
AC Power Adapter
[US]
AC Power Adapter
[Universal]
Dimensions Plug-In Module: W:0.85" x D:4.5" x H:2.8"
Weight
without p o wer adapter
Weight
with power adapter
Compliance UL, CE, FCC Class A, MEF 9, MEF 14
IP-Based Management Telnet; SNMPv1, SNMPv2c, SNMPv3
Temperature Standard Operating: 0 to 50º C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4000m (Operational)
MTBF (Hours) Plug-In Module: 540,000
Media Converter and Network Interface Device
with 10,240 bytes max. frame size
Single-mode: 9/125µm
mini DIN-6 male to DB-9 female adapter included
Standalone: 8-15VDC,
0.5A @ 9VDC
Standalone: 2.5mm Barrel Connector or
Field-wireable Terminal Connector
Plug-In Module: N/A
Standalone: 100-120VAC/60Hz
0.05A @ 120VAC
Plug-In Module: N/A
Standalone: 100-240VAC/50-60Hz
0.05A @ 120VAC
Standalone: W:3.1" x D:4.8" x H:1.0"
Wallmount: W:3.8" x D:4.8" x H:1.0"
Pl ug-In Mo dule: 8oz.
Standalone: 1 lb.
Plug-In Module: N/A
Standalone: 1.5 lb.
Wide Operating: -40 to 60º C
Extended Operating: -40 to 75º C
Storage: -40 to 80º C
Standalone without Power Adapter: 540,000
Standalone With Power Ada pter: 250,000
Page 3
8999N-0-xx
<Blank> Plug-In Module
A
Tabletop with External US AC Power Supply
Tabletop Universal AC Power Supplywith External
B
Tabletop with DC Terminal Power
C
Wall-Mount External US AC Power Supplywith
D
E
Wall-Mount External Universal AC Power Supplywith
Wall-Mount DC Terminal Powerwith
F
SFP Ordering Information
Fiber Type Distance
MM 220m / 550m 7206-0 850 850 -10 -4 -17 -3 - 7
SM 15km 7207-1 1310 1310 -9.5 -3 -19.5 -3 - 10
SM-SF 20km 7214-1 1310 1550 -9.5 -3 -20 -3 - 10.5
SM-SF 20km 7215-1 1550 1310 -9.5 -3 -20 -3 - 10.5
SM-SF 40km 7214-2 1310 1550 -3 0 -20 -3 3 17
SM-SF 40km 7215-2 1550 1310 -3 0 -20 -3 3 17
Model
Number
Tx
Wavelength
[nm]
Rx
Wavelength
[nm]
Min. Tx
Power
[dBm]
Gigabit Ethe r net
Max. Tx
<Blank>
Power
[dBm]
Standard Operating Temperature Range Model
Wide Temperature Range ModelOperating
W
Extended Operating Temperature Range Model
Z
Min. Rx
Sense
[dBm]
Max. Rx
Power
[dBm]
Min.
Attenuation
(dBm)
Link
Budget
(dB)
*See SFP data sheet (091-17000-001) for other supported transceiver models.
For more information on the variety of SFPs available, visit Omnitron’s web site at: www .omnitron-systems.com
Trademarks are owned by their respective companies. iConverter and NetOutlook are a registered trademarks of Omnitron Systems.
Specifications are subject to change without notice. ©2008 Omnitron Systems Technology, Inc. All rights reserved. 091-8980N-001C 07/08
Page 4
Loading...
