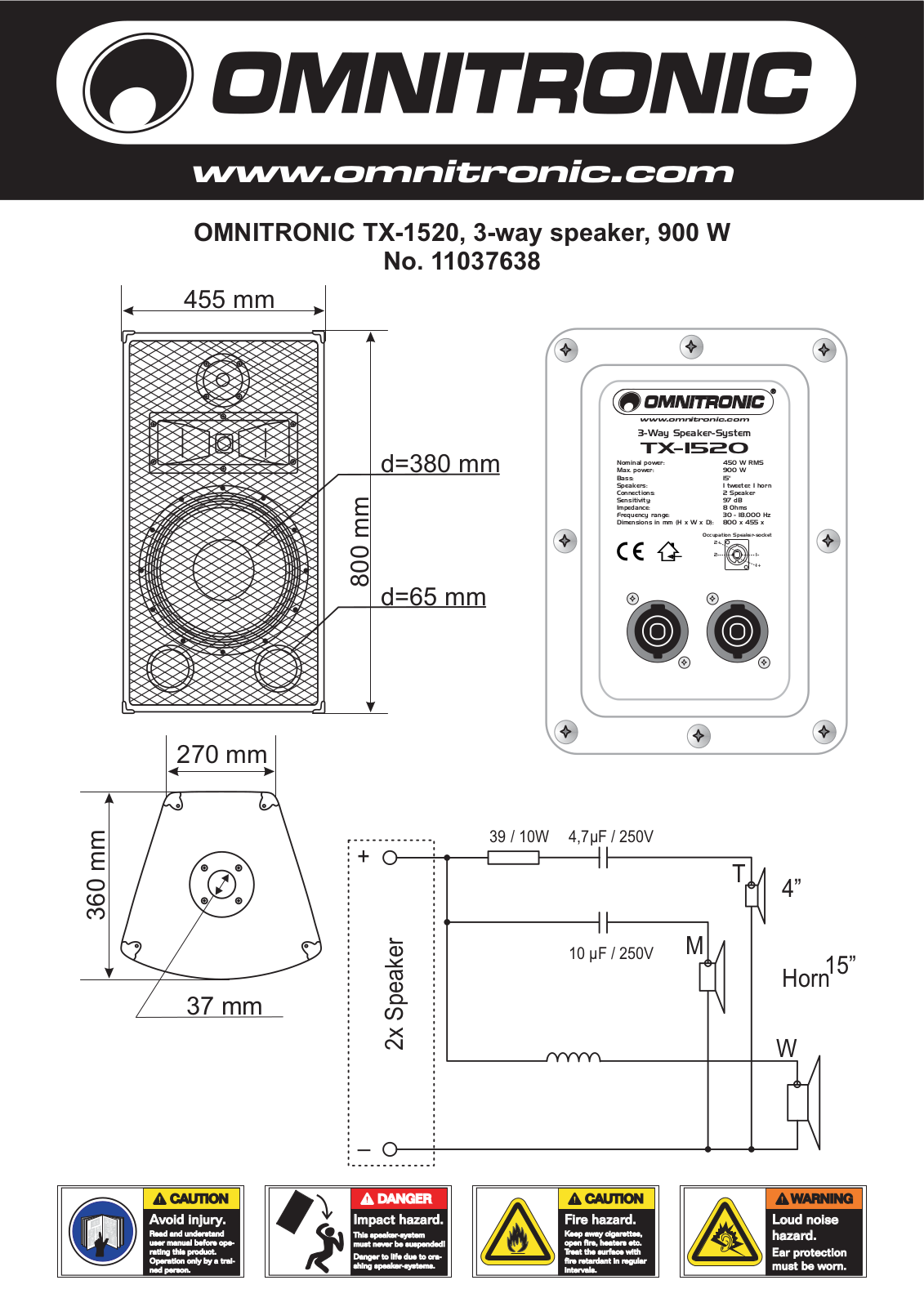

OMNITRONIC TX-1520, 3-way speaker, 900 W
No. 11037638
455 mm
www.omnitronic.com
3-Way Speaker-System
TX-1520
Nominal power: 450 W RMS
d=380 mm
800 mm
d=65 mm
Max. power: 900 W
Bass: 15"
Speakers: 1 tweeter, 1 horn
Connections: 2 Speaker
Sensitivity: 97 dB
Impedance: 8 Ohms
Frequency range: 30 - 18,000 Hz
Dimensions in mm (HxWxD): 800x455x
Occupation Speaker-socket
2+
1-2-
1+
®
®
360 mm
270 mm
37 mm
CAUTION
Avoid injury.Avoid injury.
Read and understand
Read and understand
manual before ope-
user manual before ope-
user
rating
this product.
rating this product.
only by a trai-
Operation
Operation only by a trai-
ned
person.
ned person.
+
2x Speaker
_
DANGER
Impact hazard.Impact hazard.
This speaker-system
This speaker-system
never be suspended!
must never be suspended!
must
Danger to life due to cra-
Danger to life due to cra-
speaker-systems.
shing speaker-systems.
shing
39 / 10W 4,7µF / 250V
10 µF / 250V
CAUTION
Fire hazard.Fire hazard.
Keep away cigarettes,
Keep away cigarettes,
fire, heaters etc.
open fire, heaters etc.
open
the surface with
Treat
Treat the surface with
retardant in regular
fire
fire retardant in regular
intervals.
intervals.
M
T
4”
15”
Horn
W
WARNING
Loud noise
Loud noise
hazard.
hazard.
Ear protection
Ear protection
be worn.
must be worn.
must
