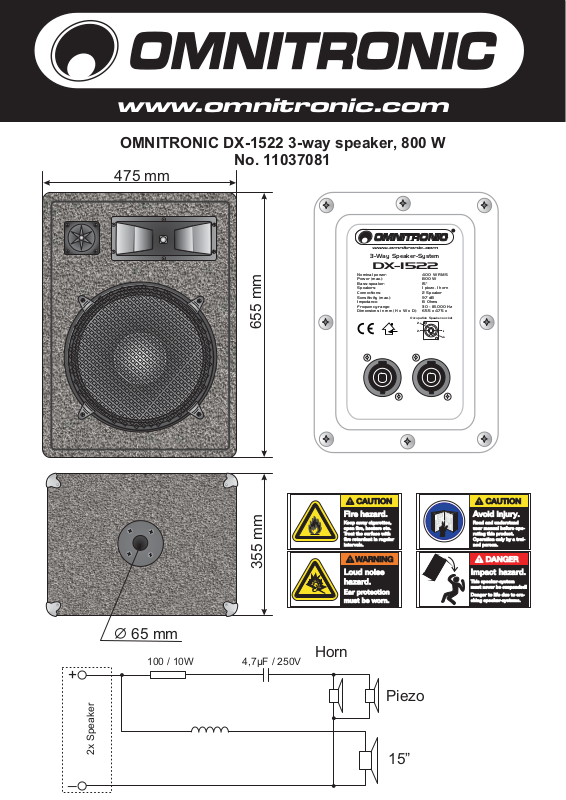

OMNITRONIC DX-1522 3-way speaker, 800 W
No. 11037081
475 mm
www.omnitronic.com
3-Way Speaker-System
DX-1522
Nominal power: 400 W RMS
Power (max.): 800 W
Bass-speaker: 15"
Speakers: 1 piezo, 1 horn
Connections: 2 Speaker
Sensitivity (max.): 97 dB
Impedance: 8 Ohms
Frequency-range: 30 - 18,000 Hz
Dimensions in mm (HxWxD): 655x475x
655 mm
Occupation Speaker-socket
2+
®
®
1-2-
1+
+
2x Speaker
65 mm
100 / 10W 4,7µF / 250V
355 mm
Horn
CAUTION
Fire hazard.Fire hazard.
Keep away cigarettes,
Keep away cigarettes,
fire, heaters etc.
open fire, heaters etc.
open
the surface with
Treat
Treat the surface with
retardant in regular
fire
fire retardant in regular
intervals.
intervals.
WARNING
Loud noise
Loud noise
hazard.
hazard.
Ear protection
Ear protection
be worn.
must be worn.
must
Piezo
15”
CAUTION
Avoid injury.Avoid injury.
Read and understand
Read and understand
manual before ope-
user manual before ope-
user
this product.
rating
rating this product.
only by a trai-
Operation
Operation only by a trai-
person.
ned
ned person.
DANGER
Impact hazard.Impact hazard.
This speaker-system
This speaker-system
never be suspended!
must never be suspended!
must
Danger to life due to cra-
Danger to life due to cra-
speaker-systems.
shing speaker-systems.
shing
