Omnitemp UR-1 User Manual
MODELS
~Oi!!n~

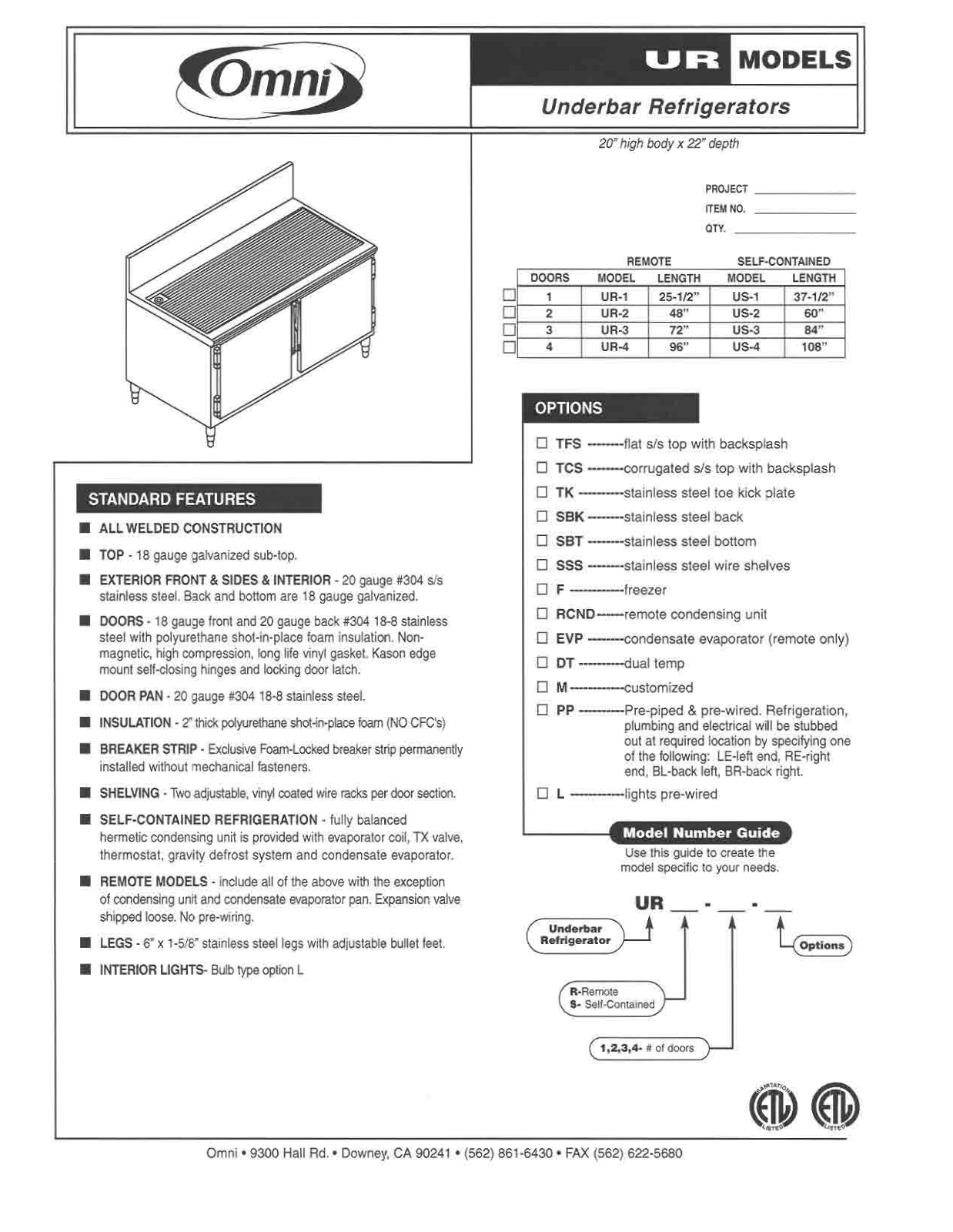

STANDARD FEATURES
. ALL WELDED CONSTRUCTION
. TOP- 18 gauge galvanized sub-top.
. EXTERIORFRONT& SIDES & INTERIOR -20 gauge #304 sls
stainless steel. Back and bottom are 18 gauge galvanized.
. DOORS - 18 gauge front and 20 gauge back #304 18-8 stainless
steel with polyurethane shot-in-place foam insulation. Non-
magnetic, high compression, long life vinyl gasket. Kason edge
mount self-closing hinges and locking door latch.
. DOOR PAN - 20 gauge #30418-8 stainless steel.
. INSULATION - 2" thick polyurethane shot-in-place foam (NO CFC's)
. BREAKERSTRIP-Exclusive Foam-Locked breaker strip permanently
installed without mechanical fasteners.
. SHELVING - Two adjustable, vinyl coated wire racks per door section.
. SELF-CONTAINEDREFRIGERATION- fully balanced
hermetic condensing unit is provided with evaporator coil, TX valve,
thermostat, gravity defrost system and condensate evaporator.
. REMOTE MODELS - include all of the above with the exception.
of condensing unit and condensate evaporator pan. Expansion valve
shipped loose. No pre-wiring.
Underbar Refrigerators
20" high body x 22" depth
PROJECT
ITEMNO.
QTY.
REMOTE
DOORS MODEL
0
1
2 UR-2 48" US-2 60"
0
3
0
4 UR-4
0
UR-1 25-1/2" US-1
UR-3
LENGTH MODEL LENGTH
72"
96" US-4 108"
OPTIONS
D TFS flat sls top with backsplash
D TCS Moo-corrugatedsls top with backsplash
D TK stainless steel toe kick plate
D SBK stainless steel back
D SBT --_n---stainlesssteel bottom
D SSS stainless steel wire shelves
D F freezer
D RCND remotecondensing unit
D EVP-_oM_oM-condensateevaporator(remote only)
D DT dual temp
D M Moo_Moo-customized
D PP Pre-piped& pre-wired.Refrigeration,
D L nlights pre-wired
plumbing and electrical will be stubbed
out at required location by specifying one
of the following: LE-Ieft end, RE-right
end, BL-back left, BR-back right.
Model Number Guide
Use this guide to create the
model specific to your needs.
UR-
SELF-CONTAINED
US-3
37-1/2"
84"
. LEGS - 6" x 1-5/8"stainlesssteel legs with adjustable bullet feet.
. INTERIOR LIGHTS- Bulb type option L
Omni . 9300 Hall Rd.. Downey, CA 90241 . (562) 861-6430 . FAX (562) 622-5680
~Options)
R-Remote
S- Self-Contained
1,2,3,4- # of doors
@@
MODELS
~Oi!!n~
x
I
2'-0"
L

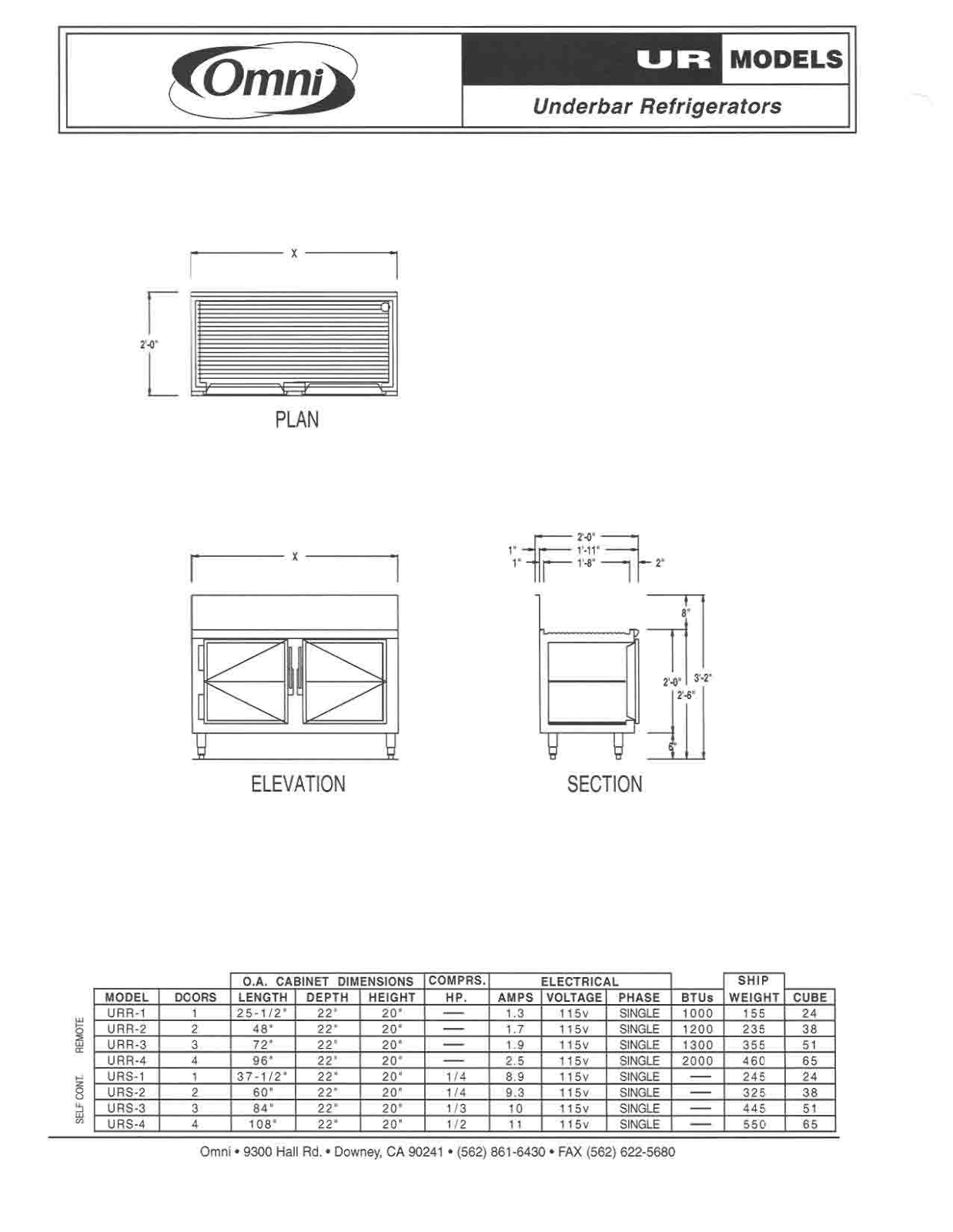

PLAN
x
r
Underbar Refrigerators
1" 1'.11"
F
1"
2'-o"
r 1'-8"I 2"
~
MODEL DOORS LENGTH
URR-1 1 25-1/2"
UJ
URR-2 2 48"
b
:2
UJ
URR-3
a:
URR-4
URS-1
I-'
:z:
0
URS-2 2
<.>
u..
URS-3
--'
UJ
(J)
URS-4
3 72" 22" 20"
4
1
3
4
ELEVATION SECTION
O.A. CABINET DIMENSIONS
96"
37-1/2"
60" .
84" 22" 20" 1/3 10 115v SINGLE
108"
DEPTH
22"
22"
22"
22" 20"
22"
22"
HEIGHT
COMPRS.
HP.
20"
20"
20"
20" 1/4 9.3 115v SINGLE
20" 1/2
-
-
-
-
1/4
ELECTRICAL
AMPS VOLTAGE PHASE BTUs WEIGHT CUBE
1.3 115v SINGLE
1.7 115v SINGLE 1200 -
1.9 115v SINGLE 1300 355 51
2.5 115v
8.9 115v
11 115v
SINGLE
SINGLE
SINGLE
=Ttl
lL
dJJ
1000 155 24
2000
-
-
-
-
SHIP
235 38
460 65
245 24
325 38
445 51
550 65
Omni. 9300 Hall Rd.. Downey, CA 90241 . (562) 861-6430. FAX (562) 622-5680
