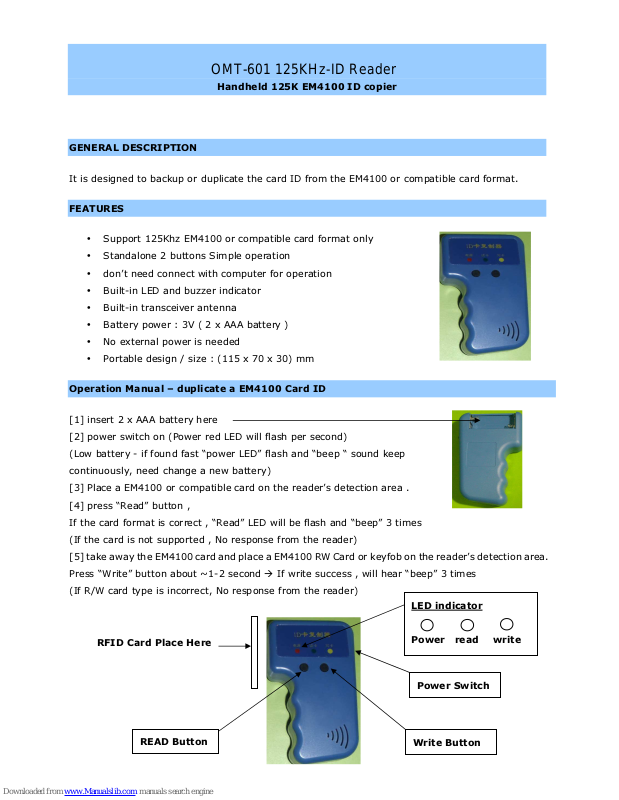

Omnitech OMT-601 User Manual

Handheld 125K EM4100 ID copier

GENERAL DESCRIPTION

It is designed to backup or duplicate the card ID from the EM4100 or compatible card format.

FEATURES

• Support 125Khz EM4100 or compatible card format only

• Standalone 2 buttons Simple operation

• don’t need connect with computer for operation

• Built-in LED and buzzer indicator

• Built-in transceiver antenna

• Battery power : 3V ( 2 x AAA battery )

• No external power is needed

• Portable design / size : (115 x 70 x 30) mm

Operation Manual – duplicate a EM4100 Card ID

[1] insert 2 x AAA battery here

[2] power switch on (Power red LED will flash per second)

(Low battery - if found fast “power LED” flash and “beep “ sound keep

continuously, need change a new battery)

[3] Place a EM4100 or compatible card on the reader’s detection area .

[4] press “Read” button ,

If the card format is correct , “Read” LED will be flash and “beep” 3 times

(If the card is not supported , No response from the reader)

[5] take away the EM4100 card and place a EM4100 RW Card or keyfob on the reader’s detection area.

Press “Write” button about ~1-2 second  If write success , will hear “beep” 3 times

(If R/W card type is incorrect, No response from the reader)

RFID Card Place Here

READ Button

Power Switch

LED indicator

Power read write

Write Button

OMT-601 125KHz-ID Reader
