Omnis Embrace NO Code Manual

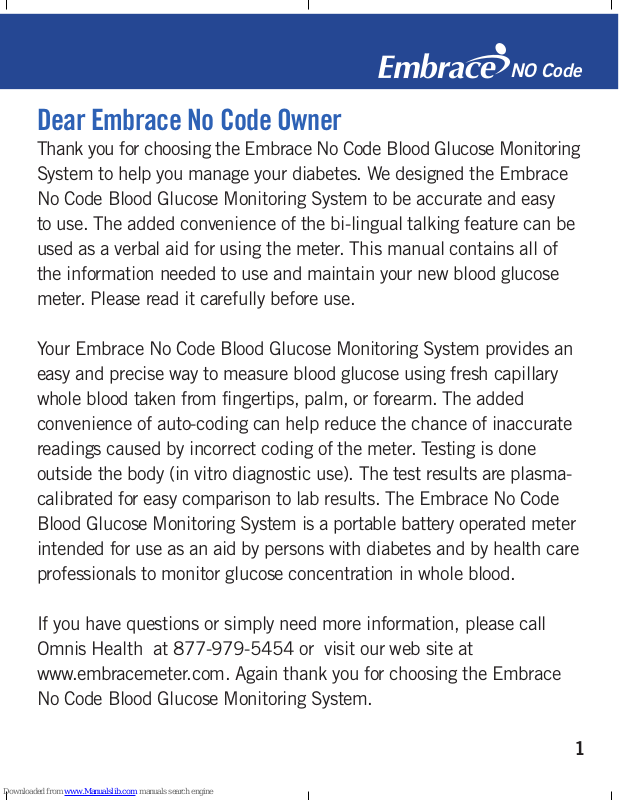

Dear Embrace No Code Owner

Thank you for choosing the Embrace No Code Blood Glucose Monitoring System to help you manage your diabetes. We designed the Embrace No Code Blood Glucose Monitoring System to be accurate and easy to use. The added convenience of the bi-lingual talking feature can be used as a verbal aid for using the meter. This manual contains all of the information needed to use and maintain your new blood glucose meter. Please read it carefully before use.

Your Embrace No Code Blood Glucose Monitoring System provides an easy and precise way to measure blood glucose using fresh capillary whole blood taken from fingertips, palm, or forearm. The added convenience of auto-coding can help reduce the chance of inaccurate readings caused by incorrect coding of the meter. Testing is done outside the body (in vitro diagnostic use). The test results are plasmacalibrated for easy comparison to lab results. The Embrace No Code Blood Glucose Monitoring System is a portable battery operated meter intended for use as an aid by persons with diabetes and by health care professionals to monitor glucose concentration in whole blood.

If you have questions or simply need more information, please call Omnis Health at 877-979-5454 or visit our web site at www.embracemeter.com. Again thank you for choosing the Embrace No Code Blood Glucose Monitoring System.

NO Code

Table of Contents

Understanding Your New Blood Glucose Kit

The Embrace No Code Meter 5 The Embrace No Code Blood Glucose Test Strip 7 Meter Display Screen 8

Setting Up Your New System

The Set Up Screen 10 Setting the Clock 11 Setting the Alarm 14 Talking and Horn Function 16

Talking Function Table 19

Control Solution Testing 24

Performing a Control Solution Test 25 Control Solution Trouble Shooting 28

Testing Your Blood Glucose 29

Preparing Your Lancing Device 30 Performing a Blood Glucose Test 31 Important Information on Alternate Site Testing (AST) 34

Understanding Your Blood Glucose Test Results 36

Viewing Stored Readings and 39 7, 14, 30 Days Average

Caring For The Meter

Changing the Battery 41 Cleaning the Meter 43 Storage and Precautions 43

Solving Problems 44

Product Warranty 47

Specifications 47

Table of Contents

NO Code

Understanding Your New Blood Glucose Kit

The Embrace No Code Blood Glucose Monitoring System comes as a starter kit or simple kit. Each kit may include the following items:

CONTENTS KIT CONFIGURATION

Starter Kit Simple Kit

Embrace No Code Meter 

Instruction Manual 

Carrying Case 

Log Book 



Lancing Device With Clear Cap

Test Strips 

Lancets



Glucose Control Solution



Front of the Embrace No Code Meter

Understanding Your New Blood Glucose Kit

NO Code

Test Strip Port

Insert test strip to turn on the Meter.

Meter Display

Shows your blood glucose test results, memory values, averages, language selection, data port connection, and alarm times. (See page 8)

Meter Buttons

Press and hold the middle button located on the left side of the meter to turn off and on. Press and release middle button for

meter option screen.

(See page 10)

Control Solution Test (see page 23).

➠

NO Code

Understanding Your New Blood Glucose Kit

Battery Compartment

Holds two AAA batteries battery cover.

Data Port

Connect an Omnis Health data cable here to send data into a PC*

*purchased separate l y

Back of the Embrace No Code Meter

BATTERY COVER TABS USED FOR REMOVING BATTERY COVER.

The Embrace Test Strips are glucose specific, biosensor-based test strips that requires very little blood sample to quickly test glucose in fresh capillary whole blood. The test results are plasma-calibrated for an easy comparison to lab results, but may be 10 to 15% higher then results obtained from wholeblood referenced blood glucose analysis. The test strip is also equipped with under-fill detection to alert you when there is not enough blood to perform a test, so you can be assured that each reading you get is an accurate and meaningful result.

IMPORTANT:

• Immediately close the vial cap of the test strip bottle tightly after each use. Keep the unused test strips in the original bottle. DO NOT leave any test strips outside the bottle while not in use.

• DO NOT reuse test strips. Test strips are for single use only.

• Carefully discard used test strips and lancets in proper waste containers.

The Embrace No Code Blood Glucose Test Strip

Understanding Your New Blood Glucose Kit

NO Code

Contact Points

Insert this end of the test strip into the

top of the meter.

Sampling End

Dip this end of the strip into the blood or

control solution drop.

NO Code

ctl

DAY

AVG

mg /dL

mem

Understanding Your New Blood Glucose Kit

Meter Display Screen

CABLE

Indicates the Meter is in data transfer mode to PC*.

*Purchased Separately

MEM

Blood glucose readings are stored (see page 38).

ALARM

To set Alarm or indicates Alarm has been set (see page

14).

CTL

This icon indicates a control solution test (see page 24). To view the control solution test (see page 38).

BATTERY

Appears when batteries need to be changed (see page 41).

HORN

Beeps when voice is turned off. Set sound volume (see page 16).

Display of the date, time, am/pm of past and present blooding readings. As well as the day averages 7, 14, or 30 (see page 38).

{

Understanding Your New Blood Glucose Kit

NO Code

TEMPERATURE

Appears when it is either too hot or too cold to test (outside the ranges of 50ºF~104ºF).

CLOCK

Indicates the Meter is ready to set up the year, date and time (see page 11).

LANGUAGE SELECTION

Indicates the language selection (see page 17).

UNITS

Unit of measurement for your blood glucose is MG/DL.

BLOOD DROP and ARROW

Indicates the Meter is ready for testing.

TEST STRIP

Flashes to prompt you to insert a test strip for testing.

NO Code

Setting Up Your New System

The Setup Screen

The Setup Screen of the Embrace No Code Meter allows you take advantage of the advance functions of this Meter. Simply press and release the middle button for setup screen.

Use the ▲▼buttons to navigate to the desired function icon.

When the icon is flashing press and release middle button to enter that function. Use the up or down arrows for the desired setting then press and release the middle button to set . To exit use the up or down button to navigate to the END of Function mode press and release the middle button. The meter will announce each function when the voice feature is on.

MEM ..............Stored blood and control solution

test (see page 38).

CABLE:...........Press the buttons to enter PC

Link Mode for data transfer to PC*

*Software purchased separately

CLOCK:...........For setting the year, date & time (see page 11).

ALARM CLOCK

..For setting up the Alarms (see page 14). The meter has 3

alarm settings (see page 14).

HORN:............Set sound volume or turn off the voice feature. Setup (see

page 16).

mem

LANGUAGE SELECTION:

.Press the buttons to enter Language Selection

(see page17).

End: ..........................Exit Setup Screen and return to testing screen.

Setting the Clock

You will need:

 Your Embrace No Code Meter

NOTE:

If the date and time on the Embrace No Code Meter has not been set, test or control result will not be stored in memory.

Step 1: Press and hold the middle button to turn on the meter.

Step 2: Press and release middle button for setup screen and then press and release the up or down buttons until the clock (3rdicon on the top row)is flashing. When the clock icon is flashing press and release the middle button to enter the clock setup function. If the talking feature is on the meter will say “set date and time”.

Step 3: Set Year. If the talking feature is on, the meter will say, “Set Year.” Press the up or down button until the desired year is reached and then press and release the middle button.

Setting Up Your New System

NO Code

Setting Up Your New System

Step 4: Set Month: The current month will flash. If the talking feature is on, the meter will say, “Set Month.” Press the up or down button to reach the desired month. Once the desired month is reach press and release the middle button.

Step 5: Set Day: The current date will flash. If the talking feature is on the meter will say “Set Day”. Press and release the up or down button to reach the desired day. When the desired day is reached press and release the middle button.

Step 6: Set Time Format to 12-hours or 24-hours: The current time format will flash.

If the talking feature is on, the meter will say “Set 12 hour/Set 24-hour. When the desired format is reached press and release the middle button.(12 hour is standard time/24 hour is military time).

Step 7: Set Hour: The current hour will flash. If the talking feature is on, the meter will say, “Set Hour.” Press the up or bottom button to reach the correct hour. (AM or PM will be determine by the HOUR) By pressing & releasing the up or down buttons

and passing the 12 this will change (AM to PM) or (PM to AM). When the desired hour and AM or PM is reached press and release the middle button to set the correct hour and if it’s AM or PM.

Step 8: Set Minutes: The current minutes will flash. If the talking feature is on, the Meter will say, “Set Minutes”. Press and release the top or bottom button to the desired minute. Press and release middle button to set the minutes. If the talking feature is on the meter will say. The Year, Date, Time and AM or PM.

• Anytime during set up, inserting a Embrace No Code Test

Strip will begin testing. Any changes made so far are will be stored.

• You may need to reset the Year, Date and Time after

changing the batteries. After date and time have been set, the meter will announce the year, date and time if the talking feature is on. Begin testing by inserting an Embrace Blood Glucose Test Strip (see page 29, Testing Your Blood Glucose), or press and hold the middle button to turn off the meter, or see the next section on how to set up the alarm feature on your meter.

Setting Up Your New System

NO Code

Setting Up Your New System

Setting the Alarms

You can set up to three alarms on the Embrace No Code Meter. You must set the clock before you can set the alarms. When an alarm sounds, the Meter will turn on, and a melody will sound for 30 seconds. Pressing the middle button or inserting a test strip will silence the alarm. You can set up one or all three alarms.

You will need:

 Embrace No Code Meter

Step 1: Press and hold the middle button to turn on the meter.

Step 2: Press and release the middle button to enter the set up screen. Then press and release the up or down button until the on the second row starts to flash. If the talking feature is on, the meter will say, “Set Alarm.” Press and release the middle button to enter the alarm setting.

Step 3: The display screen will indicate alarm 1 ON or OFF. If the alarm is OFF and the voice feature is on the meter will say “Set Alarm 1” Press and release the top button to turn the alarm on. The meter will now show 1 ON. Press and release the middle button to set alarm 1. Press and release the up or down button to desired HOUR.

(AM or PM) will be determined by setting the hour. By pressing and releasing the top or bottom and passing the 12 will change (AM to PM) or (PM to AM). Press and release the middle button to set the hour. The minutes will begin flashing. Press and release the top or bottom button to desired minute. Press and release the middle button to set the minute. Repeat step 3 to Set Alarms 2 and 3.

Step 4: You may set 1 alarm or all 3 alarms. If you choose to only set one alarm and have completed that desired alarm press and release the middle button until you have exited the alarm set up screen. If you choose to set all 3 alarms and the desired alarm times have been set press and release the middle button to exit the alarm set up screen.

NOTE:

• When the alarm or alarms have been set the icons ( and

) should be displayed on the display screen of the meter.

NOTE:

• Alarm will not sound during testing.

• Alarm will follow the time format (12-hour or 24-hour) you

choose when setting the clock.

• Alarm will not be erased when changing the batteries.

Setting Up Your New System

NO Code

Setting Up Your New System

Begin testing by inserting an Embrace Blood Glucose Test Strip (see page 29, Testing Your Blood Glucose) or press and hold the middle button to turn off the meter, or see the next section on how to turn on or off the talking feature on your meter.

Talking and Horn Function

Your Meter has a Language Feature Option for English or Bilingual which can be used as a verbal aid for using the Meter or hearing test results. The default Language is English which can be changed to Bilingual if desired. If the speaking feature is turned off the meter will beep instead of speak.

You will need:

 Your Embrace Meter

Setting The Volume Step 1: Press and hold the middle button to turn on the meter.

Step 2: Press and release the middle button.

Step 3: Press and release the top button until

the starts to flash. Press and release the middle button to enter volume setting.

Press and release the top or bottom button to turn UP or DOWN the volume. (1 being lowest volume and 5 being loudest volume) Once the desired volume is reached press and release the middle button to set the desired volume. To turn off the voice press and release the bottom button until O appears. Press and release the middle button to set VOICE FEATURE OFF. The meter will now beep instead of speaking. To turn the voice feature on if turned off follow steps 1-3.

Language Selection

Step 1: Press and hold the middle

button to turn on the meter.

Step 2: Press and release the middle button to enter set up screen. Press and release the bottom button until the language icon is flashing. If the voice feature is on the meter will say “Language Selection”. Press and release the middle button to enter the Language Selection Option.

Step 3: The default language ENGLISH is announced (graph). To change the Language from the default (English) to another Language. Press and release the top button. The meter will announce the Language change and the number 1 (English) will change to the

Setting Up Your New System

NO Code

Setting Up Your New System

number 2, and will announce that Language. Once the desired Language has been selected press and release the middle button to set that Language and exit the Language Selection Option.

NOTE:

• Anytime during set up you can insert an Embrace No Code

Test Strip and begin testing. Any changes made so far are stored.

• Your choice of language and volume settings will not be

erased when changing batteries.

Begin testing by inserting an Embrace No Code Blood Glucose Test Strip (see page 29, Testing Your Blood Glucose) or press and hold the middle button to turn off the meter.

Talking Function Table

NO Code

Prompt user to insert test strip

“Please insert test strip”

Test strip is inserted and the Meter is ready to test (with flashing arrow and blood drop)

“Blood glucose test. Please apply blood onto the test strip”

Blood Glucose test is completed and the result is shown on screen

“Your blood glucose reading is (number) milligram (mg) per deciliter”(dL).

Blood Glucose test result is ABOVE the measurement range of 600 mg/dL

“Your blood glucose reading is above 600mg/dL”.

Talking Function Table

The talking function can be used as an aid for you to hear the test results and use of the meter. The following table lists WHEN the meter will speak and WHAT the meter will say. Testing Blood and Control Solutions (see page 24, Control Solution Testing, and page 29, Testing Your Blood Glucose).

WHEN the Meter will speak... WHAT the Meter will say...

Turned on Greeting Tone

Blood Glucose test result is BELOW the measurement range of 20 mg/dL

“Your blood glucose reading is below 20mg/dL”.

NO Code

Talking Function Table

WHEN the Meter will speak... WHAT the Meter will say...

Arrow up

Arrow down

Performing a Control solution test.

L1/L2 Control Solution Test please apply Control Solution onto the test strips.

Temperature is outside of testing range( 50ºF~104ºF)

“Temperature is out of range”

When meter is turned on or when the Test Strip is inserted into the meter. When the Meter is turned off.

Melody

Insert Test strip and arrow up or down until CTL

shows next to the test strip icon.

Control solution test is completed and NOT within range. The result is shown on screen.

“Your L1/ L2 control solution test result is (number) milligram per deciliter, is not within range”

Setting Meter Functions via the Setup Screen

(see page 10, “Setting Up Your New System”)

Press and release the middle button to enter the Meter Set Up Screen.

WHEN the Meter will speak... WHAT the Meter will say...

Talking Function Table

NO Code

MEM

PC LINK

CLOCK (time)

ALARM CLOCK

HORN VOLUME

LANGUAGE SELECTION

END

“Memory Recall”

“Sending Data to PC”

“Set Date and Time”

“Set Testing Alarm”

“Set Sound Volume”

“Language Selection”

“End of Function Mode”

NO Code

Talking Function Table

After the year, date and time has been set up.

The date & time include the Year, Month, Date, 12-H/24-H, Hour and Minute

During date and time setup, setting up the year

“Set Year”

During date and time setup, setting up the month

“Set Month”

During date and time setup, setting up the date

“Set Date”

During date and time setup, setting up the hour

“Set Hour”

WHEN the Meter will speak... WHAT the Meter will say...

During date and time setup, setting up the Minutes

“Set Minutes”

Setting the Year

Setting the Month

Setting the Day

Setting Hour

“Set Year”

“Set Month”

“Set Day”

“Set Hour”

Meter Failure “Error 1 Meter Failure”

Used Test Strip

“Error 3 Used Test Strip”

Not Enough Blood or Control Solution

“Error 4 Not Enough Sample”

Talking Function Table

NO Code

Meter Can’t Count Down “Error 5 Count Down Error”

Setting 12-H/24-H

Setting Minute

Setting Alarm

When the Set Date and Time section has been completed

“Set 12th-Hour/Set 24-Hour” (12-H is Standard Time) (24-H is Military Time)

“Set Minute”

“Set Alarm (number)”

“The Date and Time Is (Year) (Month) (Date) (Time) (Minute) (AM/PM)

OTHER WARNING MESSAGES (see page 44, Solving Problems)

WHEN the Meter will speak... WHAT the Meter will say...

NO Code

Control Solution Testing

The purpose of the control solution testing is to make sure the Embrace No Code Meter and the Test Strip are working properly. You should perform Control Solution Testing when:

• Using the Meter for the first time

• Using a new bottle of Embrace No Code Blood Glucose

Test Strips

• You left the test strip bottle cap open for a while

• You dropped the Meter

• You suspect your Meter and test strips are not

working properly

• The blood glucose test results do not reflect how you feel

• Practice the testing procedure

IMPORTANT:

• Use only the Embrace Glucose Control Solutions with the

Embrace No Code Test Strips. Other brands of control solution will produce inaccurate results.

• Always check the expiration date. DO NOT use control

solutions if expired.

• DO NOT FREEZE. Store the control solutions at room

temperature.

You will need:

 Embrace Control Solution

(Low-L1 or High-L2)

 Your Embrace No Code Meter  The Bottle of Embrace No Code Glucose Test Strips  A small clean plate (glass or plastic) or hard surface.

Step 1: Take out the bottle of Control Solution. Check the expiration date. Do not use the Control Solution if EXPIRED. Check the Bottle of Control Solution for LOW or HIGH to determine which Level the Meter will need to be tested on.

(LOW) Meter should be set to L1.

(HIGH) Meter should be set to L2. Shake the Bottle of Control Solution to ensure liquid is mixed well. Place 2 drops of Control Solution on the clean glass/plastic plate. Replace the cap on the Control Solution Bottle IMMEDIATELY.

Step 2: Take out an Embrace No Code Test Strip and CLOSE the LID IMMEDIATELY.

IMPORTANT:

• Check the expiration date printed on the test strip bottle and its

package. Do not use expired test strips.

Control Solution Testing

NO Code

➠

NO Code

Control Solution Testing

• Use each test strip immediately after removing it from the bottle.

• Do not use wet or damaged test strips.

• Keep away from direct sunlight and heat. Store the test strip bottle in a dry, cool place.

• Record the “date opened” on the bottle label. Discard the bottle and any remaining test strip after 3 months from date of opening.

• Test within the temperature range of 50ºF to 104ºF. Your Meter will not work outside these ranges.

Step 3: Inset a test strip to turn on the Meter. If the talking feature is on the Meter will say “Please apply blood onto the test strip.” A flashing blood drop and arrow will appear in the meter display screen. According to the level of Control Solution press and release the bottom button for (LOW-L1). Press and release the top button for (HIGH-L2). L1/L2 will appear on the display screen. The CTL Icon will appear next to the Test Strip Icon. If the talking feature is on the Meter will say “L1/L2 Control Solution Test please apply Control Solution onto the test strip”.

Step 4: Gently guide the tip of the strip into the drop of the Control Solution. When the strip and meter have received the Control Solution the meter will begin to play a melody. The meter will start to count down.

mol/dL

After 6 seconds the Control Solution reading will be displayed on the display screen.

Step 5: Compare the reading on the screen to the Control Solution Range on the bottle of test strips. If the number displayed on the meter is with in the L1 number range printed on the Test Strip Bottle, the Meter and Strips are working properly and are ready for testing. If the reading falls outside the Level of LOW (L1) range printed on the test strip bottle (see page 28, “Control Solution Trouble Shooting”).

Follow steps 3 through 5 for the Level 2 Control Solution test and compare the result with the Level 2 range printed on the test strip bottle.

NOTE:

• Control Solution testing results will be stored in the Meter’s memory and indicated by CTL icon. Control Solution testing result will not be used for calculating averages.

• Remove the test strip from the meter into proper waste container. In approximately 2 minutes the meter will automatically turn off.

IMPORTANT: DO NOT REUSE TEST STRIPS.

Control Solution Testing

NO Code

Control Solution Testing

Control Solution Trouble Shooting

If your control solution testing is out of range (too high or too low), it may be caused by the following:

• Wrong brand of Control Solution being used

• Control Solution not at room temperature

• Expired or contaminated control solution

• Damaged test strip

• Meter malfunction

• Make sure you are using Embrace Control Solution.

• Make sure the testing environment is between 50ºF to 104ºF.

• Check the expiration and open bottle date on both the control solution and test strips. (Both the Control Solution and Strips should be used with in 3 months from date opened). Repeat testing using a new test strip. If the result is still out of range, use a new bottle of control solution and retest.

• If problem persists, call Omnis Health @ 877-979-5454.

Possible Causes What you can do

Testing Your Blood Glucose

Materials you will need:

 Your Embrace No Code Meter  Your Embrace No Code bottle of Test Strips  Lancing device with a clean, unused lancet

(or safety lancets)

 Clear cap for Alternate Site Testing (AST) on palm and

forearm (optional)

Before you begin, make sure:

• Set up your Meter properly and run a control test. See “Setting Up Your New System” on page 4, and “Control Solution Testing” on page 23 for details.

• Wash your hands and testing site thoroughly with soap and warm water, and dry well.

• You are testing in an area between the temperature ranges of 50ºF~104ºF. Your Meter will not test outside of this range and will display . If the voice feature is on the meter will say “temperature out of range”. Move the Meter into an area that is between 50ºF~104ºF, and let it sit for 10 to 15 minutes before testing again.

Testing Your Blood Glucose

NO Code

Testing Your Blood Glucose

Preparing Your Lancing Device

Embrace Lancing Device included in Starter Kit only (see page 4).

Step 1: Twist off the adjustable cap counter clock wise and insert a clean unused lancet as shown.

Step 2: Twist the protective cover off the lancet exposing the needle. Twist clockwise adjustable cover back onto the lancing device.

Step 3. Adjust the puncture setting on the adjustable cap for the puncture depth level (1 is the lightest and 5 is the deepest).

Step 4: With one hand holding middle way down the lancing device, pull and release the opposite end of the inserted lancet (you should hear a click sound). The lancing device is now ready for pricking.

IMPORTANT: Use a new sterile lancet every

time you test to avoid cross contamination. If alcohol wipes are used to cleanse the fingers, make sure the area is dry before the blood sample is obtained. We recommend washing with soap & warm water. Alcohol and Hand Sanitizer may alter the blood test.

Performing a Blood Glucose Test

IMPORTANT:

• Check the expiration date printed on the test strip bottle and its

package. Do not use expired test strips.

• Use each test strip immediately after removing it from the bottle.

• Do not use wet or damaged test strips.

• Keep away from direct sunlight and heat. Store the test strip

bottle in a dry, cool place.

• Record the “date opened” on the bottle label. Discard the bottle

and any remaining test strip after 3 months from date of opening.

For Finger Tip Testing:

Step 1: Set up the Lancing Device.

Step 2: Wash hands with soap and warm water. Rinse and dry

hands thoroughly.

Step 3: Take out an Embrace No Code Strip from the test strip bottle and CLOSE the LID IMMEDIATELY.

Step 4: Insert test strip. A flashing blood drop and arrow icon will appear on the meters display screen. If the talking feature is turned on the meter will say,“Please apply blood onto the test strip”.

Testing Your Blood Glucose

NO Code

Testing Your Blood Glucose

Step 5: Set the lancing device to the desired puncture depth (1 being less deep-5 being deepest). Pull BLUE end of lancing device until you hear a click. Hold the lancing device against the side of your finger and press the small BLUE button located in the middle of the lancing device to create the puncture.

Step 6: Gently guide the tip of the strip straight into the blood drop at a slight angle. The tip of the strip will act as a straw and pull the blood up into the strip. Leave the tip of the strip in the blood drop until the meter begin beeps or plays a melody. The meter will start to count down. After 6 seconds the meter will display your results. If the talking feature is on the meter will say “Your blood glucose reading is [number] milligrams per deciliter”.

NOTE:

• Your reading will automatically be stored in the meter’s memory.

CAUTION: IF YOU SEE “HI” OR “LO” DISPLAYED, YOUR BLOOD

GLUCOSE LEVEL MAY BE ABOVE 600 MG/DL OR BELOW 20 MG/DL, REPEAT TESTING. IF YOU STILL RECEIVE THE SAME RESULT, CALL YOUR PHYSICIAN OR HEALTHCARE PROFESSIONAL IMMEDIATELY.

Step 7: Remove the used test strip and lancet and discard according to your local disposal regulations where applicable. The meter will automatically shut off in 2 minutes.

TIP:

• Gently massage your hand and finger toward the puncture site to form a blood drop (approximately 0.6µl). Do not “milk,” or squeeze around the puncture site.

• If the testing area is moist this may result in the strip not being able to pull enough blood up into the strip. Make sure the drop of blood is in the shape of a dome or bubble.

• Lance the side of your fingertip to avoid soreness. To avoid calluses, choose a different lancing site each time.

Testing Your Blood Glucose

NO Code

Testing Your Blood Glucose

Important Information on Alternate Site Testing (AST)

The Embrace No Code Blood Glucose Monitoring System can test for blood glucose other than your fingertip such as palm and forearm (alternate site testing, or AST). Alternate site testing can be less painful than fingertip testing, but because of the physiological differences between your fingertip and palm and forearm

(1)

; alternate site test results may be significantly different than results from fingertip testing under certain conditions. You should consult with your doctor or healthcare professional before using alternate site testing.

DO AST ONLY in the following intervals:

• In a pre-meal or fasting state (more than 2 hours since the last meal)

• Two hours or more after taking insulin

• Two hours or more after exercise

Alternate Site Testing SHOULD NOT be used when:

• You have Hypoglycemic unawareness (not able to tell if you have

low blood sugar)

• Within 2 hours of a meal, exercise, or medication

• You will be operating machinery or driving a car

• You are sick

• You think your blood glucose is low

• Your AST results do not match the way you feel

• You are testing for hyperglycemia

• Your routine glucose results are often fluctuating

• If you are pregnant

NOTE:

• Rubbing forearm until warm before lancing will help minimize the difference with fingertip test results. The palm (at the base of the thumb) does not require rubbing before testing.

• If results from alternate site testing do not agree with how you feel, use fingertip testing instead.

PERFORMING ALTERNATE SITE TESTING (AST):

Step 1: Set up the Lancing Device (see page 30, Preparing

Lancing Device).

Step 2: Wash hands with soap and warm water. Rinse and Dry hands thoroughly.

Step 3: For Testing on Palm and Forearm: Hold the lancing device (use the clear cap) against the test site (base of palm or forearm). Avoid a test site that has veins, moles, excessive hair, or bone. Press the lancing device firmly against the test site and press the button located in the middle of the lancing device, do not remove the device from your arm. Applying pressure, press down and release with out braking the suction until blood drop is approximately 0.6µl in size is

Understanding Your Blood Glucose Test Results

NO Code

Understanding Your Blood Glucose Test Results

brought to the surface or blood drop is visible. When blood is present lift the lancing device straight up not to smear the blood. Palm testing (at the base of the thumb) does not require the suction method.

1. Jungheim K., Koschinsky T.: “Risky delay of hypoglycemia detection by glucose monitoring at the arm.” Diabetes Care 2001:24(7):1303-04.

IMPORTANT:

• Discard used test strips and lancets according to your local disposal regulations.

Understanding Your Blood Glucose Test Results

Blood glucose value will vary depending on food intake, medication, health, stress, and exercise. The American Diabetes Association suggests the following targets for most non-pregnant adults with diabetes1:

• Between 70–130 mg/dl before meals

• Less than 180 mg/dl two hours after starting a meal

It is important to consult with your physician or healthcare professional to determine an appropriate target range for you.

What to do if you get a high or low reading

If the Meter displays results that are “HI” or “LO,” or you get a result that is more than 250 mg/dL or below 50 mg/dL AND you feel ill:

• Treat your diabetes according to the instructions from your doctor and/or consult your healthcare provider.

If the Meter displays results that are “HI” or “LO,” or you get a result that is more than 250 mg/dL or below 50 mg/dL AND you DO NOT feel ill:

• Test your Meter with control solution, refer to page 27, Control Solution Testing.

• Test again using fingertip or palm (at the base of thumb). Do not test on forearm.

If you still get a high or low reading, contact your health care professional.

Reference: 1. American Diabetes Association. Checking Your Blood Glucose, www.diabetes.org. Accessed 1/24/2012.

Understanding Your Blood Glucose Test Results

NO Code

Viewing Your Meter’s Memory

Viewing Your Meter's Memory

Your Embrace No Code Meter automatically stores up to 300 test and control results with date and time. The Meter also provides 7, 14, and 30 days averaging to help track your blood glucose trend. You must set up your Meter to use the memory and day averaging function, see “Setting Up Your New System” on page 10. The Meter will not memorize test or control results if the date and time are not set.

NOTE:

• The meter will store up to 300 readings. When meter has stored

300 readings, the next reading will replace the oldest reading in memory (the Memory can not be cleared).

Viewing Stored Readings and 7, 14, 30 Days Average from Memory

You will need:

 Your Embrace No Code Meter

Step 1: Press and hold the middle button to turn on the meter.

Step 2: Press release the middle button to enter the set up screen. MEM icon should be flashing. If the MEM icon is not flashing, press and release the up or down buttons until the MEM icon is flashing.

If the talking function is on the meter will say “Memory Recall.”

Step 3: Press and release the middle button to enter the Memory (the 3rd picture should show “nil”). Press and release the top button for the daily readings. When the last reading is reached, press and release bottom button to decline to most recent reading. When most recent reading is reached, press and release the bottom button for the averages (7, 14 & 30 day averages).

Press and release bottom button for the 7 Day Average, again

Viewing Your Meter's Memory

NO Code

code

code me

code

NO Code

Viewing Your Meter's Memory

for 14 Day Average and again for 30 Day Average.

The number of results included in the averages is shown right next to the icon.

Press and release the middle button to exit the Memory Recall Screen. nil will appear on the display screen after the last recorded test result if less then 300 readings are stored. Control solution results are not included in the day average calculations.

DAY AVG

NOTE:

• Control testing results are flagged by CTL on the bottom left

corner of the display screen as well as Control Solution Test stored in Memory.

• When the Meter memory is blank, the display screen will show nil

• When there are no day average data available, the display screen

will show 4 dashes

• If the Meter memory is full, adding a new test result will cause the

oldest one to be deleted

• Stored test results and day averages will not be erased when

changing batteries

• You can begin testing anytime by inserting a test strip

Caring for the Meter

Caring for your Embrace No Code Meter is easy. Follow these simple guidelines to keep your Meter working properly.

Changing the Battery

Batteries need to be changed when the icon appears on the Meter display.

Materials you will need:

 Two Alkaline AAA Batteries  Your Embrace No Code Meter

Viewing Your Meter's Memory/Caring For The Meter

NO Code

Caring For The Meter

Step 1. Pull back and up at the same time on the tabs at the top of the battery cover to remove the battery cover.

Step 2. To insert the new batteries. The top battery, The positive (+) end will face to the left. The bottom battery the positive (+) end will face to the right. Make sure batteries are firmly in place. You should here a click when inserting the batteries, this will ensure the batteries are in firmly.

NOTE:

• When the batteries have been changed. Push and hold the

middle button to turn on the meter.

• The Meter will prompt you to reconfirm the year, date and

time (see page 11 for “Setting the Clock”).

• The year, date, stored results, alarm settings, volume

setting, and language choice stay in memory when the batteries are changed.

Caring For The Meter

NO Code

Cleaning the Meter

• If the Meter gets dirty, use a moist (NOT WET) lint-free cloth dampened with a mild detergent

• Do not get water inside the Meter or hold it under running water

• Do not use glass or household cleaners on the Meter

• Do not try to clean the test strip holder

Storage and Precautions

• Handle the Meter with care- severe shock, such as dropping the Meter, could damage the electronics

• The Meter and test strips are designed to be used within the temperature ranges between 50ºF~104ºF

• Avoid leaving the Meter in extremely hot or cold places,

such as near a heat source or in an extremely hot or cold car

• Do not store or use the Meter or test strips in high

humidity levels, such as bathroom or kitchen

• Always close bottle cap immediately after removing a

test strip and make sure it’s closed tightly

• Do not take the meter apart. Doing so will void the

warranty. If there are technical problems or questions, call Omnis Health at 877-979-5454 for assistance.

NO Code

Caring For The Meter

Solving Problems

This section details the significant display screen messages and error codes you will encounter when using your Embrace No Code Meter and test strips.

All warranty claims must be directed to Omnis Health, LLC.

The warranty applies only to the original purchaser of the system.

Solving Problems

NO Code

“Error 1 Meter Failure”

“Error 3 used test strip”

“Error 4 not enough sample”

“Error 5 count down error”

“Temperature is out of range”

What What the What it What you

you see Meter says means should do

The Meter electronics are damaged

Used or damaged test strip

Not enough sample in the test strip for the meter to read.

Test Strip was removed during testing

Temperature out of range

Remove and put back in the batteries and turn the Meter back on. If problems persists, call us at 877-979-5454

Repeat the test with a new test strip. Remember to add sample only when you see the prompt on the display screen or the Meter verbally prompts you to add sample.

Remove the Test Strip and repeat the test with a new test strip. See “Testing Your Blood Glucose” on page 29.

Move the Meter into an area that is between 50ºF~104ºF, and allow 10 to 15 minutes for the meter’s temperature to get back with in range.

NO Code

Solving Problems

HI “Your blood glucose reading is above 600 mg/dL”

LO “Your blood glucose reading is below 20 mg/dL”

“Low Battery”

“nil”

What What the What it What you

you see Meter says means should do

Test result is higher than 600 mg/dL

Test result is lower than 20 mg/dL

Batteries are low

There are no results stored in the Meter

Wash and dry your hands and repeat the test on your fingertip with a new test strip. If the result is still “HI,” contact your physician or healthcare professional immediately.

Wash and dry your hands and repeat the test on your fingertip with a new test strip. If the result is still “LO,” contact your physician or healthcare professional immediately.

Change the battery according to page 41, Inserting (or changing) the Battery.

Check if the date and time on you Meter is set up. See “Setting Up Your New System” on page 10. Start testing your blood glucose, see “Testing Your Blood Glucose” on page 29.

Warranty/Specifications

NO Code

Product Warranty

Omnis Health, LLC warrants the Embrace Blood Glucose Meter to be free of defects in workmanship and materials under normal use for a 5 year warranty. The liability of Omnis Health, LLC is limited to repair or replacement and in no event shall Omnis Health, LLC be liable for any collateral or consequential damages or loss.Instruments subjected to misuse, abuse, neglect, unauthorized repair or modification will be excluded from this warranty. This warranty specifically excludes expendables and consumables. All warranty claims must be directed to Omnis Health, LLC. The warranty applies only to the original purchaser of the system.

Specifications

Test Strips: Embrace No Code Blood Glucose Test Strips Test Range: 20 - 600 mg/dl Calibration: Plasma Test Time: 6 Seconds Sample Size: 0.6µl Hematocrit Range: 30-55% Display Type: Large LCD screen Memory: 300 blood test results with date and time Result Averaging: 7, 14, and 30 days averaging Dimension: 100L x 54W x 20H (mm) Weight: 66g Battery: 2 Alkaline AAA Battery Battery Life: 1000 tests of continuous use or 1 year Automatic Power-off: After 2 minutes of non-use Operating Temperature: 50ºF~104ºF Relative Humidity: Less than 85% Storage Condition: Meter at 39ºF~122ºF

Test Strips at 39ºF~86ºF

For additional information, refertotheEmbraceNoCode TestStrip insert.

Omnis Embrace NO Code Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
