OMNIREL OM1326NKM, OM1326STM, OM1326SMM, OM1326NTM, OM1326NMM Datasheet
...
3.5 - 25
3.5
Three Terminal, Precision Adjustable
Positive Voltage Regulator In Hermetic
Style Packages (LM117AHV)
4 11 R2
Supersedes 1 07 R1
1.5 AMP POSITIVE ADJUSTABLE VOLTAGE
REGULATOR APPROVED TO DESC DRAWING 7703407
OM1326STM
OM1326N2M
OM1326NMM
OM1326NTM
OM1326SMM
OM1326NKM
FEATURES
• Similar To Industry Standard LM117AHV
• Approved To DESC Standardized Military Drawing Number 7703407
• Built In Thermal Overload Protection
• Short Circuit Current Limiting
• Available In Six Package Styles
• Maximum Output Voltage Tolerance Is Guaranteed to + 1%
DESCRIPTION
These three terminal positive regulators are supplied in hermetically sealed
packages. All protective features are designed into the circuit, including thermal
shutdown, current-limiting, and safe-area control. With heat sinking, these devices
can deliver up to 1.5 amps of output current. The LCC-20 device is limited to .5
amps. The unit also features output voltages that can be fixed from 1.2 volts to 57
volts using external resistors.
ABSOLUTE MAXIMUM RATINGS T
c
@ 25°C
Power Dissipation
Case 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.1 W
Case-All Others. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 W
Input - Output Voltage Differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 V
Operating Junction Temperature Range . . . . . . . . . . . . . . . . . . . . . - 55°C to + 150°C
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . - 65°C to + 150°C
Lead Temperature (Soldering 10 seconds) . . . . . . . . . . . . . . . . . . . . . . . . . . . 300°C
Thermal Resistance, Junction to Case:
Case 2, LCC-20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17°C/W
Case U & M, TO-257 (Isol) and SMD-3 . . . . . . . . . . . . . . . . . . . . . . . . . . 4.2°C/W
Case T&N, TO-257 (Non-Isol) and SMD-1 . . . . . . . . . . . . . . . . . . . . . . . 3.5°C/W
Case Y, TO-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.0°C/W
Maximum Output Current:
Case 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 A
Case-All Others. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5A
Recommended Operating Conditions:
Output Voltage Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.2 to 57 VDC
Ambient Operating Temperature Range (T
A
). . . . . . . . . . . . . . . . - 55°C to + 125°C
Input Voltage Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.25 to 61.25 VDC
Please see mechanical
outlines herein
3.5 - 26
3.5

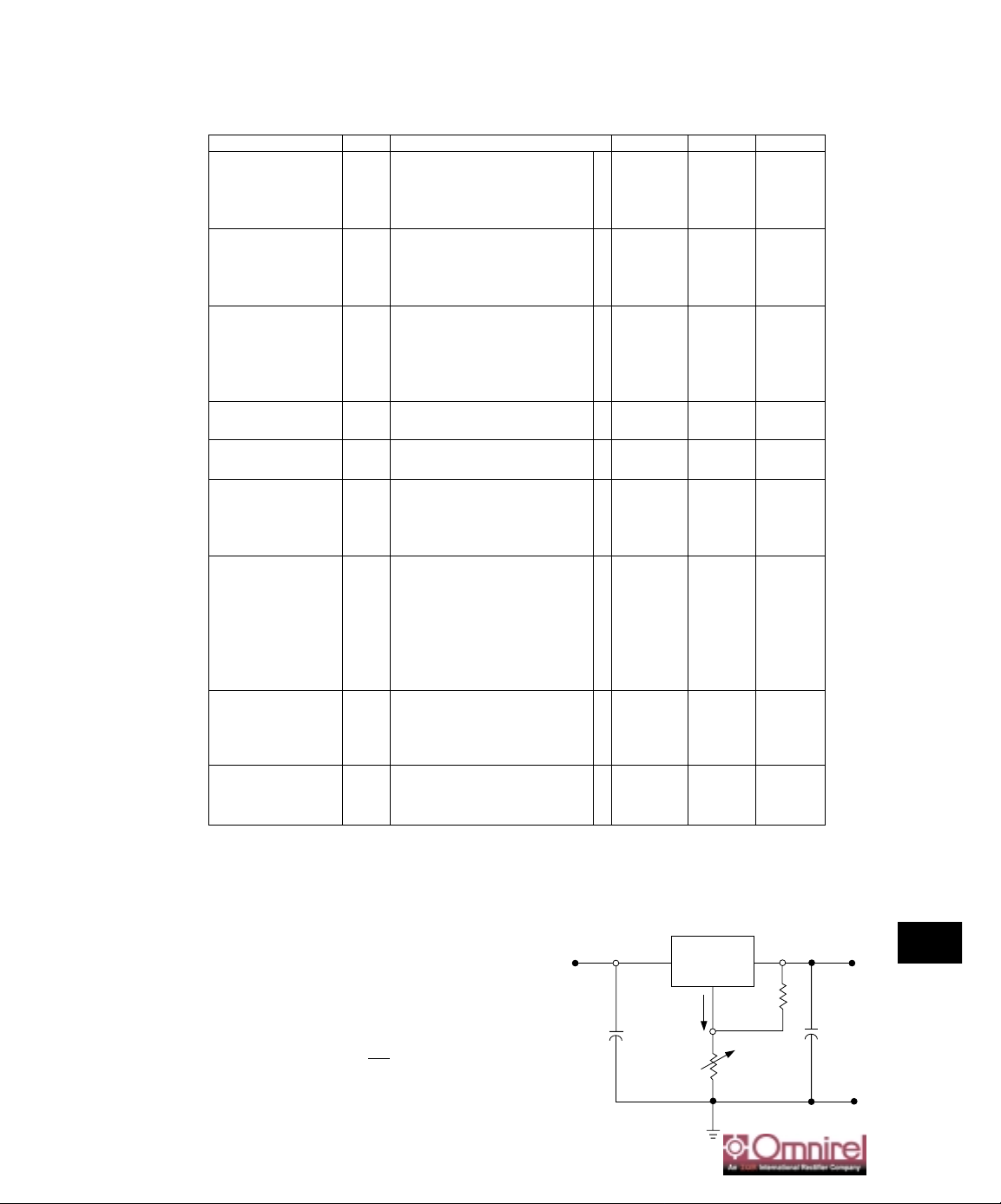

OM1326NTM, OM1326STM, OM1326NKM, OM1326SMM, OM1326NMM, OM1326N2M
Parameter Symbol Test Conditions Min. Max. Unit
Reference Voltage V
REF
V
DIFF
= 3.0V, TA= 25°C 1.238 1.262
V
DIFF
= 3.3V • 1.225 1.270 V
V
DIFF
= 40V • 1.225 1.270
V
DIFF
= 60V • 1.225 1.270
Line Regulation R
LINE
3.0V ≤ V
DIFF
≤ 40V, V
out
= V
ref
, TA= 25°C -4.5 4.5
(Note 1) 3.3V ≤ V
DIFF
≤ 40V, V
out
= V
ref
• -9 -9 mV
40V ≤ V
DIFF
≤ 60V, V
out
= V
ref
, TA= 25°C -5 5
40V ≤ V
DIFF
≤ 60V, V
out
= V
ref
• -10 10
Load Regulation R
LOADVDIFF
= 3.0V, 10mA ≤ IL≤ 1.5A, TA= 25°C -15 15
(Note 1) V
DIFF
= 3.3V, 10mA ≤ IL≤1.5A • -15 15 mV
V
DIFF
= 40V, 10mA ≤ IL≤ 300mA, TA= 25°C -15 15
V
DIFF
= 40V, 10mA ≤ IL≤ 195mA • -15 15
V
DIFF
= 60V, 10mA ≤ IL≤ 30mA • -15 15
Thermal Regulation V
RTH
Vin= 14.6V, IL= 1.5A -5 5 mV
P
d
= 20 Watts, t = 20 ms, TA= 25°C
Ripple Rejection R
N
f = 120 Hz, V
out
= V
ref
• 66 dB
(Note 2) C
Adj
= 10 µF, I
out
= 100 mA
Adjustment Pin Current I
Adj
V
DIFF
= 3.0V, TA= 25°C 100
V
DIFF
= 3.3V • 100 µA
V
DIFF
= 40V • 100
V
DIFF
= 60V • 100
Adjustment Pin ∆I
AdjVDIFF
= 3.0V, 10mA ≤ IL≤ 1.5A, TA= 25°C -5 5
Current Change V
DIFF
= 3.3V, 10mA ≤ IL≤1.5A • -5 5
V
DIFF
= 40V, 10mA ≤ IL≤ 300mA, TA= 25°C -5 5
V
DIFF
= 40V, 10mA ≤ IL≤ 195mA • -5 5 µA
3.0V ≤ V
DIFF
≤ 40V, TA= 25°C -5 5
3.3V ≤ V
DIFF
≤ 40V • -5 5
3.3V ≤ V
DIFF
≤ 60V • -5 5
Miminum Load Current I
Lmin
V
DIFF
= 3.0V, V
out
= 1.4V (forced) 5.0
V
DIFF
= 3.3V, V
out
= 1.4V (forced) • 5.0 mA
V
DIFF
= 40V, V
out
= 1.4V (forced) • 5.0
V
DIFF
= 60V, V
out
= 1.4V (forced) • 7.0
Current Limit I
CL
V
DIFF
= 5V • 1.5 3.5
(Note 2) V
DIFF
= 40V, TA= 25°C 0.3 1.5 A
V
DIFF
= 60V, TA= 25°C 0.05 0.50
Notes:
1. Load and Line Regulation are specified at a constant junction temperature. Pulse testing with low duty cycle is used.
Changes in output voltage due to heating effects must be taken into account separately.
2. If not tested, shall be guaranteed to the specified limits.
3. The • denotes the specifications which apply over the full operating temperature range.
PART NUMBER DESIGNATOR
Standard Military Drawing Number Omnirel Part Number Omnirel Package Designation
7703407M OM1326SMM SMD-3
7703407U OM1326STM TO-257 (Isolated)
7703407T OM1326NTM TO-257 (non-Isolated)
7703407Y OM1326NKM TO-3
7703407N OM1326NMM SMD-1
77034072 OM1326N2M LCC-20
ELECTRICAL CHARACTERISTICS -55°C ≤ T
A
≤ 125°C, IL= 8mA (unless otherwise specified)
OM1326NTM, OM1326STM, OM1326NKM, OM1326SMM, OM1326NMM
