Omnimount NC30C User Manual

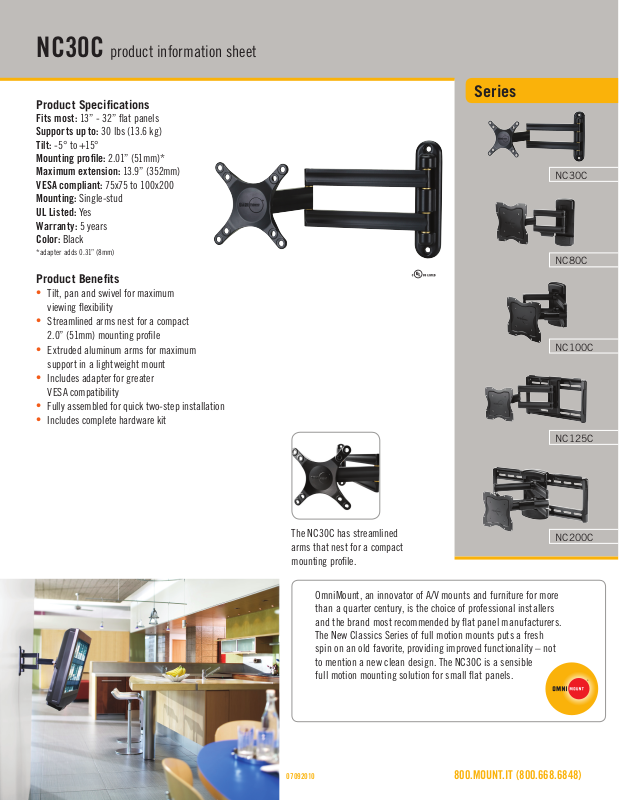

NC30C product information sheet
Product Specifications
Fits most: 13” - 32” flat panels
Supports up to: 30 lbs (13.6 kg)
Tilt: -5° to +15°
Mounting profile: 2.01” (51mm)*
Maximum extension: 13.9” (352mm)
VESA compliant: 75x75 to 100x200
Mounting: Single-stud
UL Listed: Yes
Warranty: 5 years
Color: Black
*adapter adds 0.31” (8mm)
Product Benefits
• Tilt, pan and swivel for maximum
viewing flexibility
• Streamlined arms nest for a compact
2.0” (51mm) mounting profile
• Extruded aluminum arms for maximum
support in a lightweight mount
• Includes adapter for greater
VESA compatibility
• Fully assembled for quick two-step installation
• Includes complete hardware kit
Series
NC30C
NC80C
NC100C
The NC30C has streamlined
arms that nest for a compact
mounting profile.
OmniMount, an innovator of A/V mounts and furniture for more
than a quarter century, is the choice of professional installers
and the brand most recommended by flat panel manufacturers.
The New Classics Series of full motion mounts puts a fresh
spin on an old favorite, providing improved functionality – not
to mention a new clean design. The NC30C is a sensible
full motion mounting solution for small flat panels.
NC125C
NC200C
07092010
800.MOUNT.IT (800.668.6848)
NC30C technical data sheet
OmniMount, an innovator of A/V mounts and
furniture for more than a quarter century, is the
choice of professional installers and the brand
most recommended by flat panel manufacturers.
The New Classics Series of full motion mounts
puts a fresh spin on an old favorite, providing
improved functionality – not to mention a new
clean design. The NC30C is a sensible full
motion mounting solution for small flat panels.
Product Specifications
Fits most: 13” - 32” flat panels
Supports up to: 30 lbs (13.6 kg)
Tilt: -5° to +15°
Mounting profile: 2.01” (51mm)*
Maximum extension: 13.9” (352mm)
VESA compliant: 75x75 to 100x200
Mounting: Single-stud
UL Listed: Yes
Warranty: 5 years
Color: Black
*adapter adds 0.31” (8mm)
Product Benefits
• Tilt, pan and swivel for maximum viewing flexibility
• Streamlined arms nest for a compact 1.9” (49mm)
mounting profile
• Extruded aluminum arms for maximum support in a
lightweight mount
• Includes adapter for greater VESA compatibility
• Fully assembled for quick two-step installation
• Includes complete hardware kit
Stock Code Packaging UPC MC UPC
Americas
International
Box Contents Qty
Full motion mount 1
Strip adapter 2
Complete mount installation hardware kit 1
1004381-1 728901023118 728901716560
1004381INT-1 728901023118 728901716560
shown with adapter
Dimensions WxDxH Inches (mm) Wt lbs (kg)
Product Box
Master Carton
Box Contents Qty
Complete panel attachment hardware kit 1
Instruction manual 1
9.3 x 7.5 x 2.1 (235x190x54) 2.7 (1.3)
9.5 X 9.5 X 8.2 (242X242X209) 12.6 (5.7)
07092010
800.MOUNT.IT (800.668.6848)
