Omnimount FPK200FT Sales Sheet

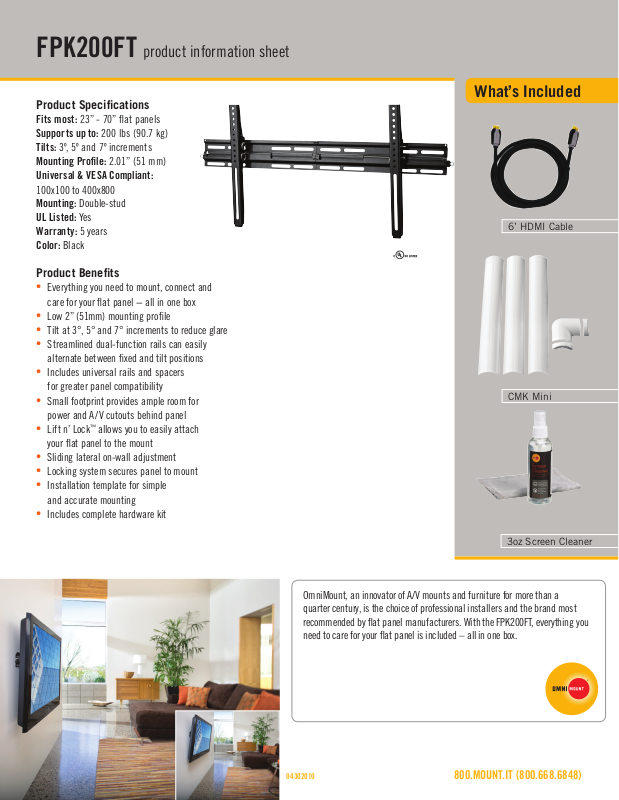

FPK200FT product information sheet
Product Specifications
Fits most: 23” - 70” flat panels
Supports up to: 200 lbs (90.7 kg)
Tilts: 3º, 5º and 7º increments
Mounting Profile: 2.01” (51 mm)
Universal & VESA Compliant:
100x100 to 400x800
Mounting: Double-stud
UL Listed: Yes
Warranty: 5 years
Color: Black
Product Benefits
• Everything you need to mount, connect and
care for your flat panel − all in one box
• Low 2” (51mm) mounting profile
• Tilt at 3°, 5° and 7° increments to reduce glare
• Streamlined dual-function rails can easily
alternate between fixed and tilt positions
• Includes universal rails and spacers
for greater panel compatibility
• Small footprint provides ample room for
power and A/V cutouts behind panel
• Lift n’ Lock
your flat panel to the mount
• Sliding lateral on-wall adjustment
• Locking system secures panel to mount
• Installation template for simple
and accurate mounting
• Includes complete hardware kit
™
allows you to easily attach
What’s Included
6’ HDMI Cable
CMK Mini
3oz Screen Cleaner
OmniMount, an innovator of A/V mounts and furniture for more than a
quarter century, is the choice of professional installers and the brand most
recommended by flat panel manufacturers. With the FPK200FT, everything you
need to care for your flat panel is included – all in one box.
04302010
800.MOUNT.IT (800.668.6848)
FPK200FT technical data sheet
OmniMount, an innovator of A/V mounts and furniture for more than a
quarter century, is the choice of professional installers and the brand most
recommended by flat panel manufacturers. With the FPK200FT, everything you
need to care for your flat panel is included – all in one box.
Product Specifications
Fits most: 23” - 70” flat panels
Supports up to: 200 lbs (90.7 kg)
Tilts: 3º, 5º and 7º increments
Mounting Profile: 2.01” (51 mm)
Universal & VESA Compliant:
100x100 to 400x800
Mounting: Double-stud
UL Listed: Yes
Warranty: 5 years
Color: Black
Product Benefits
• Everything you need to mount, connect and
care for your flat panel − all in one box
• Low 2” (51mm) mounting profile
• Tilt at 3°, 5° and 7° increments to reduce glare
• Streamlined dual-function rails can easily
alternate between fixed and tilt positions
• Includes universal rails and spacers for greater panel compatibility
• Small footprint provides ample room for
power and A/V cutouts behind panel
• Lift n’ Lock
your flat panel to the mount
• Sliding lateral on-wall adjustment
• Locking system secures panel to mount
• Installation template for simple and accurate mounting
• Includes complete hardware kit
™
allows you to easily attach
Stock Code Packaging UPC MC UPC
Americas
International
Box Contents Qty
Wall plate 2
Vertical rail 2
Locking bar 2
Tilt bracket 2
6’ HDMI cable 1
CMK Mini kit 1
1004651-1 728901025297 728901718748
1004651INT-1 728901025297 728901718748
Dimensions WxDxH Inches (mm) Wt lbs (kg)
Product Box
Master Carton
Box Contents Qty
3oz screen cleaner 1
Microber cleaning mitt 1
Complete mount attachment hardware kit 1
Complete mount installation hardware kit 1
Instruction manual 1
Flat panel compatibility chart 1
17 x 21.6 x 2 (431x548x51) 11.9 (5.4)
17.4 x 22 x 2.2 (441x559x57) 12.8 (5.8)
800.MOUNT.IT (800.668.6848)04302010
