Omnimount 37FB-T Information Sheet

37FB-T product information sheet
Product Specifications
Fits most: 23” - 42” flat panels Supports up to: 80 lbs (36.3 kg) Tilt: -5º to +15º Mounting profile: 1.9” (49mm) Universal & VESA compliant: 100x100 to 300x400 Mounting: Double-stud UL listed: Yes Warranty: 5 years Color: Black
Series
37FB-T
Product Benefits
• Tilt -5° to +15° to reduce glare
• Universal rails for greater panel compatibility
• Lift n’ Lock
for quick installation
• Tension adjustment for variable tilt
• Sliding lateral on-wall adjustment
• Open architecture for easy trim out
• Locking bar secures panel to mount
• Includes complete Grade 5 hardware kit
Keeping ease-of-installation in mind, the 37FB-T was designed to be installed in a few simple steps
37FB-F
54FB-T
54FB-F
63FB-F
Dedicated to being a one-stop shop for professional products, OmniMount remains on the cutting edge of product innovation. That’s why we’re the natural choice for any professional, industrial or commercial application. The Fastback Series offers both fixed and tilt universal mounting solutions that are designed for quick and easy installs. The 37FB-T is ideal for budget-conscious customers or high-volume jobs requiring a dependable medium tilt mount.
12132010
800.MOUNT.IT (800.668.6848)

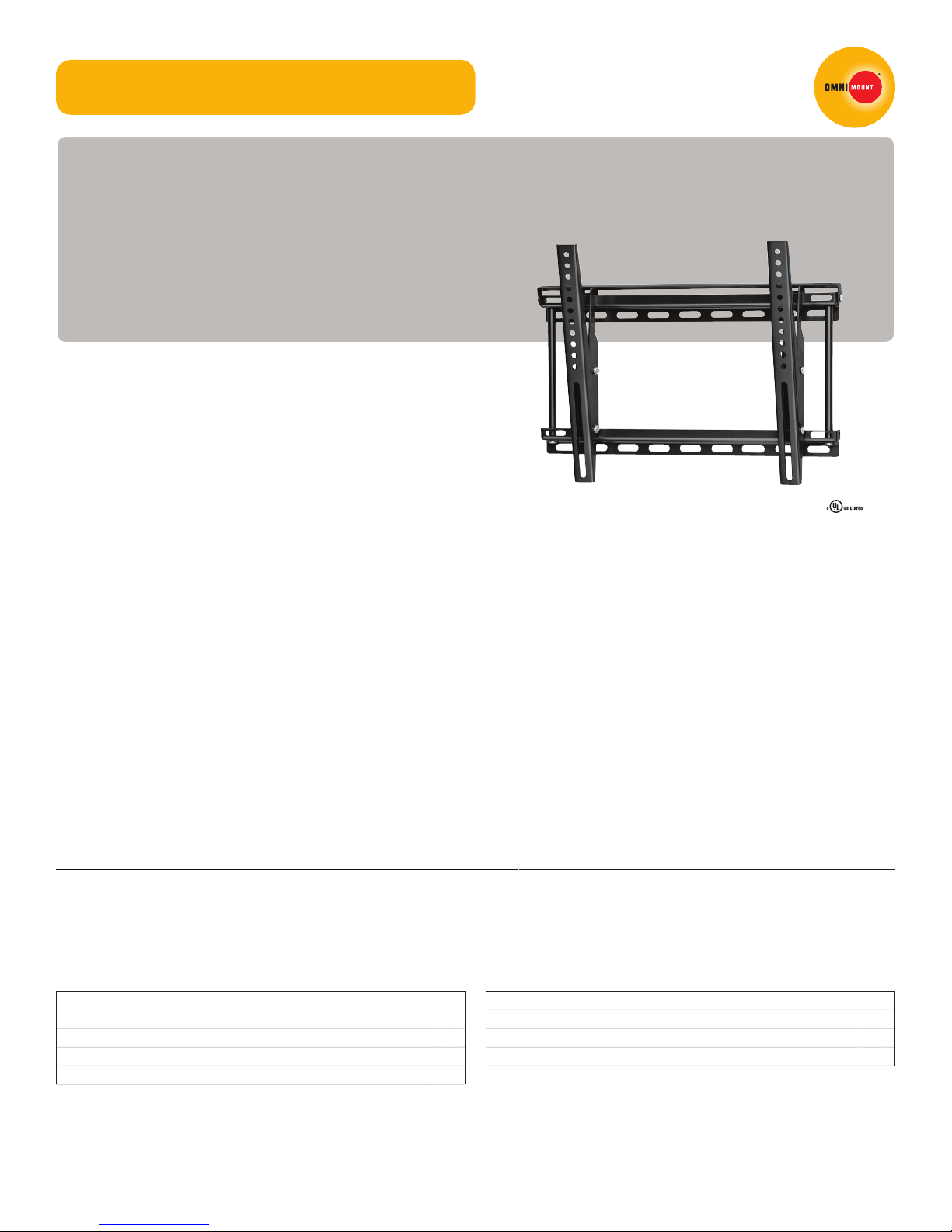

37FB-T technical data sheet
Dedicated to being a one-stop shop for professional products, OmniMount remains on the cutting edge of product innovation. That’s why we’re the natural choice for any professional, industrial or commercial application. The Fastback Series offers both fixed and tilt universal mounting solutions that are designed for quick and easy installs. The 37FB-T is ideal for budget-conscious customers or high-volume jobs requiring a dependable medium tilt mount.
Product Specifications
Fits most: 23” - 42” flat panels Supports up to: 80 lbs (36.3 kg) Tilt: -5º to +15º Mounting profile: 1.9” (49mm) Universal & VESA compliant: 100x100 to 300x400 Mounting: Double-stud UL listed: Yes Warranty: 5 years Color: Black
Product Benefits
• Tilt -5° to +15° to reduce glare
• Universal rails for greater panel compatibility
• Lift n’ Lock
for quick installation
• Tension adjustment for variable tilt
• Sliding lateral on-wall adjustment
• Open architecture for easy trim out
• Locking bar secures panel to mount
• Includes complete Grade 5 hardware kit
Color Stock Code Packaging UPC MC UPC
Americas International
Box Contents Qty
Wall plate 1 Tilt rail 2 Locking bar 1 Complete mount installation hardware kit 1
Black 1002885PRO 728901015052 728901708350 Black NA NA NA
Dimensions WxDxH Inches (mm) Wt lbs (kg) Qty
11.2 x 21.1 x 2.8 (285x535x70) 7.2 (3.3) NA
Box
11.8 x 22.8 x 5.5 (300x580x140) 21 (9.5) 2
MC
Box Contents Qty
Complete panel attachment hardware kit 1 Instruction manual 1 Flat panel compatibility chart 1
800.MOUNT.IT (800.668.6848)12132010
37FB-T line drawing
10.2
(260)
Ø (9)
18.9
(479)
FRONT VIEW
(100 - 400)
14.5
(368)
-5˚ to +15˚
MOUNTING PROFILE
18.7
(475)
2.2
(57)
1.2
(30)
(338)
R .2
(4)
(203)
9.7
8
(245)
(30)
.75
PANEL ATTACHMENT -
VESA COMPATABILITY (mm)
Architects Specifications
The flat panel wall shall be an OmniMount model 37FB-T and shall be located where indicated on the plans. It shall be constructed of sheet metal with -5º/+15º adjustable forward tilt. Assembly and installation shall be done according to instructions provided by the manufacturer.
(19)
WALL MOUNTING
17
(432)
inches (mm)
12132010
800.MOUNT.IT (800.668.6848)
