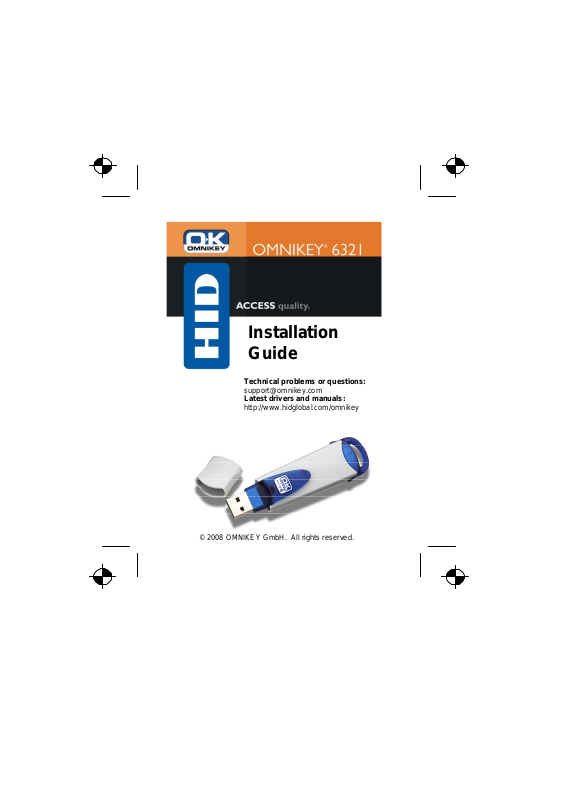

OMNIKEY OK6321 User Manual

Installation

Guide

Technical problems or questions:

© 2008 OMNIKEY GmbH. All rights reserved.

[e-mail]

Latest drivers and manuals:

http://www.hidglobal.com/omnikey

OMNIKEY® 6321 Smart Card Reader Installation Guide

Introduction

This guide describes physical behaviour and conformities of the OMNIKEY® 6321, a
contactless smart card reader with optional SIM-sized contact interface.

To install the OMNIKEY® 6321 follow the steps described. For further information, contact
OMNIKEY support: [e-mail]

Content

• Smart Card Reader

• Installation Guide

Find drivers and additional manuals for this reader and various operating systems at

http://www.hidglobal.com/omnikey.

Overview

The OMNIKEY® 6321 is a PC-linked reader that reads 13.56 MHz (RFID) contactless
smart cards. Optionally, this reader is equipped with a contact interface, which
reads/writes to virtually any contact smart card.

The OMNIKEY 6321 is a USB plug-and-play device. To connect the reader with your
computer, plug the USB connector into your computers USB port.

When the reader is working, the LED illuminates blue. Consult the OMNIKEY User Guide
for driver setup, if the reader is not working.

For contactless operation, place the card on the reader. If a contact interface is available,
insert the contact smart card with the correct orientation.

When the reader is exchanging data with a card (reading or writing), the LED will blink.

Specifications

Dimensions
Weight
Operating Temperature
Operating Humidity
Composition
Contact Interface (Optional)
Meantime between Failure (MTBF)
Host Interface
Host Data Transmission Speed
Power Supply

Approx. 94 x 26 x 15mm / 3,7” x 1,02” x 0,59”
Approx. 17 gr / 0,59 oz
0°-55°C / 32°-131°F
10-90% rH
ABS
Durability 10,000 insertions
500,000 Hours
USB 2.0 CCID (also supports 1.1)
12 Mbps (USB 2.0 Full Speed)
Bus powered
