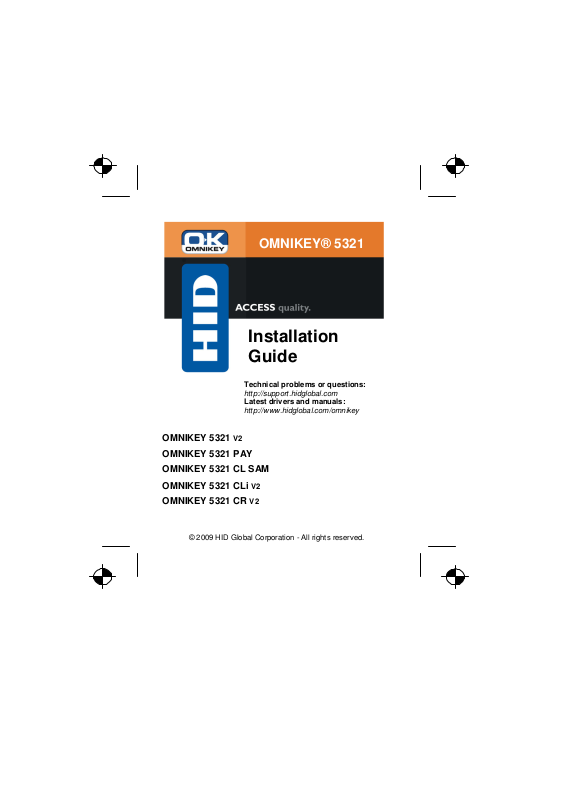

Installation
Technical problems or
questions:
OMNIKEY® 5321
Guide
OMNIKEY 5321 V2
OMNIKEY 5321 PAY
OMNIKEY 5321 CL SAM
OMNIKEY 5321 CLi V2
OMNIKEY 5321 CR V2
http://support.hidglobal.com
Latest drivers and manuals:
http://www.hidglobal.com/omnikey
© 2009 HID Global Corporation - All rights reserved.
OMNIKEY® 5321 Smart Card Reader Installation Guide
Introduction
This guide describes physical behaviour and conformities of the OMNIKEY® 5321 Family:
OMNIKEY 5321 V2: combined contactless and contact smart card reader
OMNIKEY 5321 PAY: Mastercard paypass® certified contactless smart card reader
OMNIKEY 5321 CL SAM: contactless smart card reader with built in SIM card holder
OMINKEY 5321 CLi V2: contactless smart card reader for HID iClass cards
OMNIKEY 5321 CR V2: IP67* conform contactless smart card reader
To install the OMNIKEY® 5321 follow the steps described. For further information, contact
HID support: http://support.hidglobal.com/
Content
• Smart Card Reader
• Installation Guide
Find drivers and additional manuals for this reader and various operating systems at
http://www.hidglobal.com/omnikey.
Overview
The OMNIKEY® 5321 is a PC-linked reader that reads 13.56 MHz (RFID) contactless
smart cards. Depending on model this reader is also equipped with a contact interface,
which reads/writes to virtually any contact smart card.
The OMNIKEY 5321 is a USB plug-and-play device. To connect the reader with your
computer, plug the USB connector into your computers USB port.
When the reader is working, the LED on the right illuminates green. Consult the OMNIKEY
User Guide for driver setup, if the reader is not working.
For contactless operation, hold the card next to the logo on the reader. For contact smart
cards, insert the card with contacts facing up into the reader.
When the reader is exchanging data with a card (reading or writing) the LED on the right
will blink red.
Specifications
Dimensions**
Weight (incl. standing base)
Operating Temperature
PC Connector Cable
Meantime between Failure (MTBF)
Host Interface
Host Data Transmission Speed
Power Supply
*
IP67 = Dust tight, and protected against temporary immersion in water per IEC 60529
**
can vary depending on model
2 © 2009 HID Global Corporation - All rights reserved.
Approx. 80 x 67 x 28 mm / 3.15" x 2,64" x 1,1"
**
Approx. 200gr / 7.1 ounces
0°-55°C / 32°-131°F
180 cm / 70.9"
500,000 Hours
USB 2.0 CCID (also supports USB 1.1)
12 Mbps (USB 2.0 Full Speed)
Bus powered
Installation Guide OMNIKEY® 5321 Smart Card Reader
Conformance Information
CE Marking
The shipped version of this device complies with the requirements of the
directives 2004/108/EC, 2006/95/EC and 1999/5/EC.
Declaration of Conformity (FCC ID SIYOK5321)
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Declaration of Conformity (5345A-OK5321)
This device complies with Industry Canada Radio Standards Specifications RSS-Gen
Issue 2, Section 7.2.2 and RSS-210 Issue 7, Section 2.2, 2.6 (Category I Equipment).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
© 2009 HID Global Corporation - All rights reserved. 3
