5700 STEP TOP WOOD STOVE SERIES
Advanced Combustion Control (ACC)
Owner’s Manual
Installation and Operation
Model:
57ST-ACC
Pedestal Model
DO NOT DISCARD THIS MANUAL
Important operating and m a int e n a n c e instructions included.
• Read, understand and follow these instructions for safe installation and operation.
WARNING
If the information in these instruc­tions is not followed exactly, a fi re may result causing property damage, personal injury, or death.
• Do not store or use gasoline or other fl am­mable vapors and liquids in the vicinity of this or any other appliance.
• Do not overfi re - If heater or chimney con­nector glows, you are overfi ring. Overfi ring will void your warranty.
• Comply with all minimum clearances to combustibles as specifi ed. Failure to comply may cause house fi re.
Leg Model
CAUTION
• Leave this manual with party responsible for use and operation.
WARNING
HOT SURFACES!
Glass and other surfaces are hot during operation AND cool down.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as fi replace.
• Ale r t ch ildre n an d ad ults to hazar d s of hi g h temperatures.
High temperatures may ignite clothing or other fl ammable materials.
• Keep clothing, furniture, draperies and other fl ammable materials away.
www.quadrafi re.com 7038-159D
WARNING
Fire Risk.
For use with solid wood fuel only. Other fuels may overfi re and generate
poisonous gases (i.e. carbon monoxide).
Installation and service of this appliance should be performed by qualifi ed personnel. Hearth & Home Technologies recommends NFI certifi ed professionals, or technicians supervised by an NFI certifi ed professional.
November 28, 2011
R
5700 Step Top Wood Stove Series ACC
and Welcome to the Quadra-Fire Family!
A B C D E F G H
SINGLE WALL PIPE
12.5 (318) 10.5 (267) 25.5 (648) 15 (381) 2 (51) 12 (305) 45 (1143) N/A
DOUBLE WALL PIPE
9.5 (241) 7.5 (191) 25.5 (648) 15 (381) 2 (51) 12 (305) 45 (1143) N/A
INSTALLATION: HORIZONTAL WITH MINIMUM 2 FT VERTICAL OFF STOVE TOP INSTALLATION:
HORIZONTALE AVEC 609mm VERTICAL MINIMUM DU HAUT DU POÊLE
SINGLE WALL PIPE
9.5 (241) 7.5 (191) 25.5 (648) 15 (381) * * 45 (1143) 18 (457)
*
DOUBLE WALL PIPE
9.5 (241) 7.5 (191) 25.5 (648) 15 (381) * * 45 (1143) 13 (330)
SINGLE WALL PIPE
9.5 (241) 7.5 (191) 25.5 (648) 15 (381) 2 (51) 12 (305) 45 (1143) 18 (457)*
DOUBLE WALL PIPE
9.5 (241) 7.5 (191) 25.5 (648) 15 (381) 2 (51) 12 (305) 45 (1143) 13 (330)
INSTALLATION: ALCOVE -
Six inch (6 inches) (152mm) diameter listed DOUBLE WALL air insulated connector pipe with UL103 HT** listed factory-built Class "A" chimney, or a masonry chimney. (Mobile Home must be equipped with a spark arrestor.) Maximum depth of Alcove shall be no more than 48 inches (1219mm) with a minimum height of 79.25 inches (2013mm) from floor to bottom of ceiling and the referenced clearances.
(**In Canada must comply with Standard CAN/ULC-S629-M87 for the 650oC Factory-built chimney.) (**Au Canada doit conformer a CAN/ULC-S629-M87 la norme pour 650oC cheminée bâtit en usine.)
DOUBLE WALL PIPE
10.5 (268) 8.5 (216) 25.5 (648) 15 (381) N/A N/A 45 (1143)
*
*
SEE PIPE MANUFACTURERS CLEARANCES - NOT TESTED
SPÉCIFICATIONS DE LA VENTILATION:
MUR SIMPLE: De six (6 inches) (152mm) de diamètre le connecteur de conduit de minimum d'acier noir ou bleu de minimum de 24MSG, avec une cheminée bâtit en usine UL103HT* de Classe "A", adéquate pour usage avec les combustions solides, ou une cheminée de briques, avec espaces libres référés. MUR DOUBLE: De six (6 inches) (152mm) de diamètre, le connecteur du conduit d'air isolé pour mur double avec une cheminée bâtit en usine UL103HT* de Classe "A:, ou une cheminée de briques, avec espaces libres alloués. MAISON MOBILE: Utiliser un conduit de mur double par Dura-Vent DVL, Selkirk Metalbestos DS ou Security DL. Doit être équipé d'un arrêt d'étincelle. Utiliser les espaces libres pour mur double comme mentionné ci-bas.
MIN CLEARANCES TO COMBUSTIBLE MATERIALS: Inches & (Millimeters) NOTE: All "A" , "C" and "F" Dimensions are to inside diameter of flue collar.
LISTED ROOM HEATER, SOLID FUEL TYPE. ALSO FOR USE IN MOBILE HOMES. (UM) 84-HUD . "For Use with Solid Wood Fuel Only"
1445 N. Highway, Colville, WA 99114
www.quadrafire.com
Install and use only in accorda nce with manufactu rer's installa tion and opera ting instructions. Contact local building or fire officials about restrictions and installation inspections in your area. Do not o bstruct the space beneath heater.
SUITABLE FOR MOBILE HOME INSTALLATION WARNING - For Mobile Homes: Do not install in
a sleeping room. An outside combustion air inlet must be provided and unrestricted while unit is in use. The structural integrity of the mobile home floor, ceiling and walls must be maintained. The stove needs to be properly grounded to the frame of the mobile home. Components required for mobile home installation: Ou tside Air Kit, Part Number OAK-ACC. Refer to manufacturer's instructions and local codes for precautio ns required for passin g chimney through a combustible wall or ceiling and maximum offsets. Inspect and clean chim ney frequently - Un der Certain Conditions of Use, Creosote Buildup May Occur Rapidly. Do not connect this un it to a chimney serving another appliance. Optional Components: Opt ional Blower, Part BK-ACC. Electrical Rating: 115 VAC, 1.2 Amps, 60 Hz. Route power cord away from unit. Do not route cord under or in front of appliance. DANGER: Risk of electrical shock. Disconnect power supply before servicing. Replace glass only with 5mm ceramic available from your dealer. Do not use grate or elevate fire. Build wood fire directly on hearth. Do not overfire - if heater or chimney connector glows, you are overfiring.
OPERATE ONLY WITH DOORS CLOSED
Open only to add fuel to the fire. Do NOT operate before fully assembling
components. WARNING: Only used approved wood fuel listed in owners manual. Burning any other fuel will void warranty.
CAUTION
:
U.S. ENVIRONMENTAL PROTECTION AGENCY -
Certified to comply with July 1990 particulate
emission standards.
2011 2012 2013 Jan. Feb. Mar. Apr. May June July Aug. Sept. Oct. Nov. Dec.
PREVENT HOUSE FIRES
FLOOR PROTECTION
:
Floor protector must be a 1 inch min. thickness, ("k" value = .49
, R value = 0.59) non-combustible material or equivalent,
extending beneath heater and to front/sides/rear as indicated on the diagram below. Exception: Non-combustible floor protections must extend beneath the flue pipe when installed with horizontal venting and extend 2 inches (51mm) beyond each side.
Report / Rapport #061-S-73-6.2
TESTED TO:/ TESTÉ À:
UL 1482-96, ULC S627-00
HOT WHILE IN OPERATION DO NOT TOUCH, KEEP CHILDREN AND CLOTHING AWAY. CONTACT MAY CAUSE SKIN BURNS. KEEP FURNISHINGS AND OTHER COMBUSTIBLE MATERIAL FAR AWAY FROM THE APPLIANCE. SEE NAMEPLATE AND INSTRUCTIONS
VENT SPECIFICATIONS:
SINGLE WALL: Six inch (6 inches) (152mm) diameter, minimum 24 MSG black
or blued steel connector pipe, with a listed factory-built UL103HT* Class "A" chimney, suitable for use with solid fuels, or a masonry chimney, and the referenced clearances. DOUBLE WALL: Six inch (6 inches) (152mm) diameter, listed double wall air insulated connector pipe with listed factory-built UL103HT* Class "A" chimney, or a masonry chimney and the referenced clearances MOBILE HOME: Use double wall pipe by Dura-Vent DVL, Selkirk Metalbestos DS or Security DL double wall connector pipe. Must be equipped with a spark arrestor. Apply double wall clearances below when installing unit.
R
7038-162D
CHAUD LORS DE L'OPÉRATION. NE PAS TOUCHER. GARDEZ LES ENFANTS ET LES VÊTEMENTS LOIN DE L'ESPACE DÉSIGNÉ DE L'INSTALLATION. LE CONTACT PEUT CAUSER DES BRÛLURES À LA PEAU. GARDEZ LES MEUBLES ET LES MATÉRIAUX COMBUSTIBLES LOIN DE L'ESPACE DÉSIGNÉ DE L'APPAREIL. VOIR L'ÉTIQUETTE ET LES INSTRUCTIONS.
ATTENTION:
APPAREIL DE CHAUFFAGE DE PIÈCE, DE TYPE DE COMBUSTIBLE SOLIDE, POUR USAGE DANS LES MAISONS MOBILES. (UM) 84 HUD. "Pour Usage Avec Bois Solide Seulement"
Installez et utilis ez en acc ord avec les i nstructions d'installat ion et d'opération du fabr icant. Contactez le bureau de la construction ou le bureau des incendies au sujet des restrictions et des inspections d'installation dans votre voisinage. Ne pas obstruez l'espace en dessous de l'appareil.
CONVIENT POUR UNE INSTALLATION MAISON MOBILE
AVIS - Pour Les Maisons Mobiles: Ne pas installer dans une ch ambre à co ucher. Un tuy au extérieur de combustion d'air do it être installé et ne doit pas être obstrué lor sque l'appareil es t en usage. La stru cture intégrale d u plancher, du plafond et des murs de la maison mobile doit être maintenue intacte. L'appareil de chauffage doi t être fixé à la charpente de l a maison mobile. Les co mposants requis pour l 'installation des maisons mobiles: Assemblage d'air extérieur, Numéro de Pièce OAK-ACC. Référez vous aux instructions du fabricant et des codes locaux pour les précautions requises pour passer une cheminée à travers un mur ou un plafond combustibles, et les compensations maximums. Inspectez et nettoyez la cheminée fréquemment. Sous certaines conditions, il s e p eut que la créosote s'accumule rapidement. Ne pas connecter cet appareil à une cheminée servant un autre appareil. Composants Op tionnels: Ventilat eur Optionnel, Pi èce BK-ACC. Puissance Électrique: 115 VAC, 1.2 Amps, 60 Hz. Éloignez le fil électrique de l'appareil. Ne pas faire passer le fil électrique au dessus ou en dessous de l'appareil. DANGER: Il y a ris que de déch arge électriq ue. Déconnectez le fil électrique de la prise de contact avant le service. Remplacez la vitre seulement avec une vitre céramique de 5 mm disponible chez votre fournisseur. N'élevez pas le feu. Bâtissez le feu de bois directement sur l'âtre. Ne pas surchauffer. Si l'appareil de chauffage ou le tuyau de cheminée rougissent, vous surchauffez. Opérez l'appareil seulement lor sque la porte de chargement est fermé e. Ouvrez la p orte seul ement lorsque vous devez ajouter des combustibles dans le feu.
PRÉVENTION DES FEUX DE MAISON
PROTECTION DU PLANCHER:
Le protecteur de plancher doit être d'un minimum de 1 inch (25mm) d'épaisseur, ('k" value = .49, R value = 0.59) de matériel incombustible ou équivalent, s'étendant du dessous de l'appareil de chauffage à l'avant, aux cotés et à l'arrière comme indiqué sur le diagramme suivant. Exception: Les protections incombustibles du plancher doivent s'étendre en dessous du conduit de cheminée lorsqu'installées avec une ventilation à l'horizontale et s'étendre de 2 inches (51mm) de chaque côté.
ESPACES LIBRES MIN DES MATÉRIAUX COMBUSTIBLES:
En Pouces & (millimètres)
NOTE: Toutes les dimensions "A", "C", et "F" sont à partir du diamètre intérieur de l'entrée du conduit.
BACKWALL/SIDE
WALL/
MUR
ARRIÈRE/MUR
DE CÔTÉ
90 OFF TOP UP & OUT CEILING CLEARANCE/ ESPACE LIBRE DU DESSUS DE L'APPAREIL AU PLAFOND AVEC 90 DE COURBURE
CORNER INSTALLATION/ INSTALLATION DU COIN
ALCOVE TOP
VIEW /
VUE DU HAUT DE
L'ALCÔVE
ALCOVE SIDE
VIEW / VUE DE CÔTÉ DE L'ALCÔVE
DO NOT REMOVE THIS LABEL / NE PAS ENLEVER L'ÉTIQUETTE
CONDUIT DU MUR SIMPLE
CONDUIT DU MUR DOUBLE
INSTALLATION: 90o ELBOW OFF TOP OF STOVE THROUGH BACKWALL INSTALLATION: 90
o
DU COURBURE AU DESSUS DE HAUT DU POÊLE A TRAVERS LE MUR ARRIERE
INSTALLATION: ALCÔVE -
De six (6 inches) (152mm) de diamètre, le connecteur du conduit d'air isolé pour mur double avec une cheminée bâtit en usine UL103HT** de Classe "A", ou une cheminée de briques. (Les maisons mobiles doivent être équipées d'un arrêt d'étincelle). La profondeur maximum de l'alcôve ne doit pas être de plus de 48 inches (1219mm) avec une hauteur minimum de 45 inches (1143mm) la distance entre du plancher et plafond inférieur, et des espaces libres alloués.
CONDUIT DU MUR DOUBLE
A
B
C
D
E
F
E
F
G
H
C
D
G
A
B
16" from glass
8"
USA
Fuel loading door
33-5/8”
minimum
45-7/8”
minimum
CANADA
203mm (8")
203mm
(8")
203mm
(8")
457mm (18")
1419mm (55-7/8") minimum
1092mm (43")min
Manufactured by: Fabriqué par:
INSTALLATION: FULL VERTICAL INSTALLATION:
ENTIÈREMENT VERTICALE
CONDUIT DU MUR DOUBLE
SERIAL NO. / NUMÉRO DE SÉRIE
007007
O- T L
Tested and
Listed by
Portland
Oregon USA
OMNI-Test Laboratories, Inc.
C
US
5700 Step Top ACC
STOVE TO CEILING CLEARANCE/ ESPACE LIBRE DU POÊLE AU
PLAFOND
CONDUIT DU MUR SIMPLE
CONDUIT DU MUR SIMPLE
CONDUIT DU MUR DOUBLE
Ne mettez PAS le poêle en marche tant que tous les composants n’ont pas été entièrement assemblés. ATTENTION: Seulement utilisé carburant approuvé indiquée dans le manuel des propriétaires. La combustion d'autres combustibles annulera la garantie.
Made in U.S.A. of US and
imported parts.
Fabriqué aux États-Unis-d’Amérique par
des pièces d’origine américaine et pièces
importées.
Hearth & Home Technologies welcomes you to our tradition of excellence! In choosing a Quadra-Fire appliance, you have our assurance of commitment to quality, durability, and performance.
This commitment begins with our research of the market, including ‘Voice of the Customer’ contacts, ensuring we make products that will satisfy your needs. Our Research and Development facility then employs the world’s most advanced technology to achieve the optimum operation
NOTE: Clearances may only be reduced by means approved by the regulatory authority having jurisdiction
Page 2
of our stoves, inserts and fi replaces. And yet we are old­fashioned when it comes to craftsmanship. Each unit is meticulously fabricated and gold and nickel surfaces are hand-fi nished for lasting beauty and enjoyment. Our pledge to quality is completed as each model undergoes a quality control inspection.
We wish you and your family many years of enjoyment in the warmth and comfort of your hearth appliance. Thank you for choosing Quadra-Fire.
7038-159D
November 28, 2011
R
5700 Step Top Wood Stove Series ACC
!
Safety Alert Key:
DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
WARNING! Indicates a hazardous situation which, if not avoided may result in death or serious injury.
CAUTION! Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.
NOTICE: Indicates practices which may cause damage to the appliance or to property.
TABLE OF CONTENTS
Congratulations ...............................................................2
Sample of Safety/Serial Number Label ...........................2
Warranty Policy ...............................................................4-5
Section 1: Listing and Code Approvals
A. Appliance Certifi cations.....................................6
B. Mobile Home Approved.....................................6
C. Glass Specifi cations ..........................................6
D. BTU & Effi ciency Specifi cations ........................6
User’s Guide
Section 2: Operating Instructions
A. General Operating Parts ...................................7
B. Fire Safety ......................................................... 8
C. Overfi ring ...........................................................8
D. Combustible/Non-combustible Material ............8
E. Seasoned Wood................................................8
F. Chimney Fire .....................................................8
G. Burning Process ................................................9
H. Automatic Combustion Control (ACC) ..............10
I. Air Controls .......................................................10
J. Burn Rates and Operating Effi ciency ................11
K. Correct Baffl e & Blanket Placement ..................12
L. Building a Fire ...................................................13
M. Wood Fuel .........................................................14
N. Blower Operating Instructions ........................... 15
O. Clear Space ......................................................15
P. Opacity (Smoke) ...............................................16
Q. Frequently Asked Questions .............................16
Section 3: Maintenance and Service
A. Ash Removal System Operating & Cleaning ....17
B. Disposal of Ashes .............................................17
C. Chimney & Chimney Connector
Inspection/Cleaning...........................................18
D. Appliance Inspection - Routine .........................18
E. Soot or Creosote Fire ........................................ 18
F. Glass Cleaning ..................................................19
G. Firebrick Inspection ...........................................19
H. Plated Surfaces Cleaning..................................19
I. Quick Reference Maintenance Guide ...............20
Section 4: Troubleshooting Guide .....................21
Section 5: Service Parts Replacement
A. Glass Replacement ........................................... 22
B. Snap Disc Replacement....................................22
C. Baffl e Removal ..................................................23
D. Door Handle Assembly .....................................24
E. Tube Channel Assembly Replacement ............. 25
Installer’s Guide
Section 6: Getting Started
A. Design, Installation & Location
Considerations ..................................................26
B. Draft ..................................................................26
C. Negative Pressure.............................................26
D. Locating Your Appliance and Chimney .............27
E. Chimney Termination Requirements.................26
F. 2-10-3 Rule .......................................................28
G. Tools and Supplies Needed ..............................29
H. Fire Safety .........................................................29
I. Inspect Appliance and Components
and Pre-Use Checklist ......................................29
Section 7: Dimensions and Clearances
A. Appliance Dimensions.......................................30
B. Clearances to Combustibles (UL and ULC) ........31
C. Hearth Protection Requirements .......................32
D. Alternate Floor Protection .................................33
Section 8: Venting and Chimney Systems
A. Venting Systems ...............................................34
B. Chimney Systems .............................................34
C. Chimney Height/Rise and Run ..........................34
D. Factory-Built Chimney .......................................35
E. Masonry Chimney .............................................36
F. Masonry Chimney Liner ....................................37
G. Air Clearances...................................................38
H. Thimble .............................................................38-39
Section 9: Appliance Set-up
A. Outside Air Installation ......................................40
B. Pedestall Assembly and Ash Removal
System Installation ............................................41-42
C. Leg Kit and Ash Removal System Installation ..43

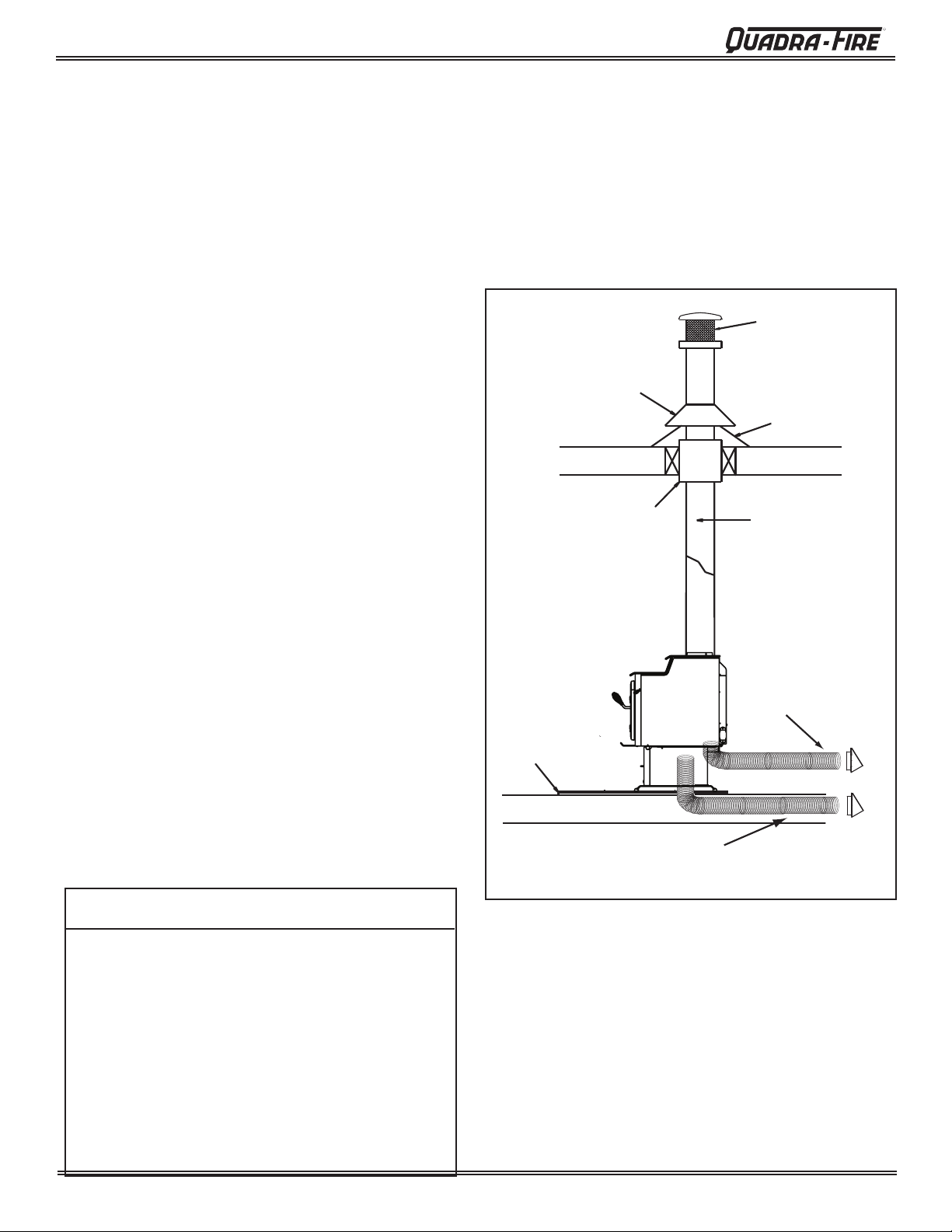

D. Mobile Home Installation ...................................44
E. Blower Installation (Optional) ............................45
F. Adjusting the Blower Speed Control .................45
Section 10: Reference Materials
A. Exploded Drawings ...........................................46
B. Service Parts & Accessories .............................47-49
C. Service & Maintenance Log ..............................50-51
D. Contact Information ...........................................52
November 28, 2011
7038-159D
Page 3
R
5700 Step Top Wood Stove Series ACC
Warranty Policy
Page 4
7038-159D
November 28, 2011
R
5700 Step Top Wood Stove Series ACC
November 28, 2011
7038-159D
Page 5
R
5700 Step Top Wood Stove Series ACC
1
Listing and Code Approvals
A. Appliance Certifi cation
Model:
Laboratory: OMNI Test Laboratories, Inc.
Report Number:
Type:
Standard: UL1482-96 and ULC S627-00
NOTICE: This installation must conform with local codes. In the absence of local codes you must comply with the UL1482, (UM) 84-HUD and NPFA211 in the U.S.A. and the ULC S627-00 and CAN/CSA-B365 Installation Codes in Canada.
The Quadra-Fire 5700 Wood Stove (ACC) meets the U.S. Environmental Protection Agency’s 1990 particulate emis­sion standards.
5700 Step Top (ACC) Uni-Body
061-S-73-6.2
Listed Room Heater, Solid Fuel Type
and (UM) 84-HUD, Mobile Home Approved.
B. Mobile Home Approved
This appliance is approved for mobile home installations when not installed in a sleeping room and when an out­side combustion air inlet is provided.
The structural integrity of the mobile home fl oor, ceiling, and walls must be maintained.
The appliance must be properly grounded to the frame of the mobile home with #8 copper ground wire, and use only listed double-wall connector pipe.
Outside Air Kit, part OAK-ACC must be installed in a mo­bile home installation.
D. BTU & Effi ciency Specifi cations
EPA Certifi ed:
Effi ciency:
BTU Output:
Heating Capacity:
Vent Size:
Firebox Size:
Max Wood Length:
Fuel:
Shipping Weight:
WARNING! Risk of Fire! Hearth & Home Technologies dis­claims any responsibility for, and the warranty and agency listing will be voided by the above actions.
DO NOT:
• Install or operate damaged appliance
• Modify appliance
• Install other than as instructed by Hearth & Home Technologies
• Operate the appliance without fully assembling all components
• Overfi re
• Install any component not approved by Hearth & Home Technologies
• Install parts or components not Listed or approved
Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.
For assistance or additional information, consult a qualifi ed installer, service agency or your dealer.
2.3 grams per hour
78.7%
11,100 to 40,400 / hr.
2,250 - 3,175 sq ft depending on climate zone
6 inches
3.0 cubic feet
24 inches
Cord Wood
484 lbs
C. Glass Specifi cations
This stove is equipped with 5mm ceramic glass. Replace glass only with 5mm ceramic glass. Please contact your dealer for replacement glass.
Page 6
7038-159D
NOTE: Hearth & Home Technologies, manufacturer of this appliance, reserves the right to alter its products, their specifi cations and/or price without notice.
Quadra-Fire is a registered trademark of Hearth & Home Technologies.
November 28, 2011
R
Operating Instructions
Hearth Pad
Leg Ash Drawer
Ash Removal System Cover
Firebrick
Pedestal Ash Drawer
Ash Removal Door Handle
Burn Rate Air Control
Start-Up Air Control
Manual Timer Over-Ride
Door Frame & Glass
Door & Spring Handle
2
NOTICE: If you expect that children may come into contact with this appliance, we recom­mend a barrier such as a decorative screen. See your dealer for suggestions.
5700 Step Top Wood Stove Series ACC
User Guide
WARNING
HOT SURFACES!
Glass and other surfaces are hot during operation AND cool down.
Hot glass will cause burns.
DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as appliance.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other fl ammable materials.
• Keep clothing, furniture, draperies and other fl ammable materials away.
A. Your Wood Appliance - General Operating Parts
WARNING! DO NOT operate appliance before reading and understanding operating instructions.
Failure to operate appliance according to operating instructions could cause fi re or injury.
Figure 6.1 General Operating Parts
November 28, 2011
7038-159D
Page 7
R
5700 Step Top Wood Stove Series ACC
B. Fire Safety
To provide reasonable fi re safety, the following should be given serious consideration:
1. Install at least one smoke detector on each fl oor of your home to ensure your safety. They should be located away from the heating appliance and close to the sleeping areas. Follow the smoke detector manufacturer’s placement and installation instructions, and be sure to maintain regularly.
2. A conveniently located Class A fi re extinguisher.
3. A practiced evacuation plan, consisting of at least two escape routes.
4. In the event of a chimney fi re:
a. Prepare occupants for immediate evacuation b. Notify fi re department
C. Overfi ring
WARNING! Risk of Fire!
Do not over-fi re. Over-fi ring may ignite creosote or will damage the
stove and chimney. To prevent over-fi ring your stove, DO NOT:
• Use fl ammable liquids
• Overload with wood
• Burn trash or large amounts of scrap lumber
• Permit too much air to the fi re
1. Symptoms of Over-Firing
Symptoms of over-fi ring may include one or more of the following:
• Chimney connector or appliance glowing
• Roaring, rumbling noises
• Loud cracking or banging sounds
• Metal warping
• Chimney fi re
2. What To Do if Your Stove is Over-Firing
• Immediately close the door and air controls to reduce
air supply to the fi re.
• If you suspect a chimney fi re, call the fi re department
and evacuate your house.
• Contact your local chimney professional and have
your stove and stove pipe inspected for any damage.
• Do not use your stove until the chimney professional
informs you it is safe to do so.
Hearth & Home Technologies WILL NOT warranty stoves that exhibit evidence of over-fi ring. Evidence of over-fi ring includes, but is not limited to:
• Warped air tube
• Deteriorated refractory brick retainers
• Deteriorated baffl e and other interior components
D. Combustible/Non-combustible Materials
Combustible Material
Material made of or surfaced with wood, compressed
paper, plant fi bers, plastics, or any material capable of igniting and burning, whether fl ame-proofed or not, plastered or unplastered.
Non-combustible Material
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, slate, glass or plasters, or any combination thereof.
Non-combustible Sealant Material
Sealants which will not ignite and burn: Rutland, Inc.
Fireplace Mortar #63, Rutland 76R, Nuflex 304, GE RTV106 or GE RTB116 (or equivalent).
E. Seasoned Wood
Burn only dry seasoned wood.
• Store wood under cover, out of the rain and snow.
• Dry and well-seasoned wood will not only minimize the chance of creosote formation, but will give you the most effi cient fi re.
• Even dry wood contains at least 15% moisture by weight, and should be burned hot enough to keep the chimney hot for as long as it takes to dry the wood out - about one hour.
• It is a waste of energy to burn unseasoned wood of any kind.
Dead wood lying on the forest fl oor should be considered wet, and requires full seasoning time.
• Standing dead wood can be considered to be about 2/3 seasoned.
• To tell if wood is dry enough to burn, check the ends of the logs.
• If there are cracks radiating in all directions from the center, it is dry.
• If your wood sizzles in the fi re, even though the surface is dry, it may not be fully cured.
F. Chimney Fire
WARNING! Risk of Fire! A chimney fi re can permanently damage your chimney system and nearby structures.
In the event of a chimney fi re, Hearth & Home Technolo­gies Inc. recommends
• Replacement of the chimney, and
• Inspection of the adjacent structure to the provisions of NFPA Level III inspection criteria
Page 8
7038-159D
November 28, 2011
R
5700 Step Top Wood Stove Series ACC
G. Burning Process
In recent years there has been an increasing concern about air quality. Much of the blame for poor air quality has been placed on the burning of wood for home heating.
In order to improve the situation, we at Quadra-Fire have developed cleaner-burning wood appliances that surpass the requirements for emissions established by our governing agencies.
These wood appliances must be properly operated in order to ensure that they perform the way they are designed to perform.
NOTICE: Improper operation can turn any wood appli- ance into a smoldering environmental hazard.
1. Kindling or First Stage
It helps to know a little about the actual process of burning in order to understand what goes on inside the appliance. The fi rst stage of burning is called the kindling stage.
In this stage:
Wood is heated to a temperature high enough to evapo-
rate the moisture present in all wood.
• Wood will reach the boiling point of water (212°F) and will
not get any hotter until the water is evaporated.
This process takes heat from the coals and tends to cool the appliance.
Fire requires three things to burn:
• Fuel
• Air
• Heat
If heat is robbed from the appliance during the drying stage, the new load of wood has reduced the chances for a good clean burn.
It is always best to burn dry, seasoned fi rewood. When the wood isn’t dry, you must open the air controls and burn at a high burn setting for a longer time to start it burning.
The heat generated from the fi re should be warming your home and establishing the fl ue draft, not evaporating the moisture out of wet, unseasoned wood, resulting in wasted heat.
2. Second Stage
In the secondary stage wood gives off fl ammable gases which burn above the fuel with bright fl ames.
During this stage of burning:
The fl ames must be maintained and not allowed to go out to ensure the cleanest possible fi re.
If the fl ames tend to go out, it is set too low for your burn-
ing conditions.
The air control located at the upper right hand corner is used to adjust for burn rates. This is called the Burn Rate Air Control.
Figure 10.1 on page 10.
3. Final Stage
The fi nal stage of burning is the charcoal stage. This occurs when the fl ammable gases have been mostly burned and only charcoal remains. This is a naturally clean portion of the burn. The coals burn with hot blue fl ames.
It is very important to reload your appliance while enough
lively hot coals remain in order to provide the amount of heat needed to dry and rekindle the next load of wood.
It is best to open the Burn Rate Air and Start-Up Air Con-
trols before reloading. This livens up the coalbed and reduces excessive emissions (opacity/smoke). Figure
10.1 on page 10.
• Open door slowly so that ash or smoke does not exit ap­pliance through opening.
Break up any large chunks and distribute the coals so
that the new wood is laid on hot coals.
Air quality is important to all of us, and if we choose to use wood to heat our homes we should do so responsibly.
We need to learn to burn in the cleanest way possible al­lowing us to continue using our wood appliances for many years to come.
November 28, 2011
7038-159D
Page 9
R
5700 Step Top Wood Stove Series ACC
HIGH
MED
LOW
Burn Rate Air Control
Start-Up Air Control
Manual
Timer (ACC)
Shut Down
Pull Forward to Shut Down
H. Automatic Combustion Control (ACC)
Typically, when you build a fi re, you open the air controls fully and monitor the fi re to prevent it from going into an overfi re situation and/or burning your wood up too quickly before you shut down the air controls to the desired burn rate.
When using the Automatic Combustion Control (ACC) system, you do not have to continually monitor the fi re. Once you set the ACC system it will control the fi re for you. Follow the instructions below to learn how to operate your stove with ease.
I. Air Controls
1. Start-Up Air Control
The Start-Up Air Control has two primary functions.
The fi rst function is to activate the Automatic Combustion Control system (ACC).
• Slide the Start-Up Air Control all the way back until it stops at the “HI” indicator on the label and then pull forward to the front of the appliance until it stops. Figure 10.1.
• The front air channel opens and allows air to enter the front of the appliance for approximately 25 minutes.
• The front air channel gradually shuts down until it is com­pletely closed at the end of the 25 minutes.
• The fi re is now controlled by the air supplied by the Burn Rate Air Control. Figure 10.1.
• This function should be performed each time you reload the appliance.
The second function of the Start-Up Air Control is operation of the rear air system.
• Slide the Start-Up Air Control between the fi rst and third marker as indicated on the label to allow rear air to enter the fi rebox. Figure 10.1.
The rear air is used primarily during a High Burn Rate.
• In some instances rear air is desired during normal opera­tion to help with combustion of fuel towards the back of the fi rebox particularly when burning hardwoods.
• The rear air is controlled independently from the ACC system.
2. Manual Timer Over-Ride
If you need to shut the ACC system off before it shuts itself off after 25 minutes (i.e. overfi re situation), reach down to the bottom right rear corner and pull the lever toward you.
Figure 10.2.
3. Burn Rate Air Control
The air supply enters at the upper front of the fi rebox,
near the top of the glass door.
This preheated air supplies the necessary fresh oxygen
to mix with the unburned gases, helping to create sec­ond, third and fourth combustions
Page 10
7038-159D
Figure 10.1 - Start-Up and Burn Rate Air Controls
Figure 10.2 - Manual Over-Ride
3. Burn Rate Air Control (Cont’d)
• This air is regulated by the Burn Rate Air Control.
There are four settings High, Medium-High, Medium­Low and Low.
When the control is raised all the way up it is on the
High setting and when pushed all the down it is on the Low setting. Figure 11.1 on page 11.
November 28, 2011
R
5700 Step Top Wood Stove Series ACC
START-UP
REAR AIR
HI
Closed
Wide Open
“HI” setting
over-rides
Timer
High (Open)
Low (Closed)
Start-Up Air Control
Burn Rate Air Control
Front Air Channel
Operated by Timer
Rear Ai r Channel
Operates independently
from Timer
Timer
Timer Manual
Shut-off
HIGH
LOW
Shown with Side Shield Removed
J. Burn Rates and Operating Effi ciency
For maximum operating effi ciency
1. This appliance has a timer system (ACC) that operates the appliance at its maximum effi ciency removing any guess work for the homeowner. Follow the instructions below for each burn rate for the Start-Up Air Control and Burn Rate Air Control. Figure 11.1.
2. Burn dry, well-seasoned wood.
Burn Rates
1. Starting a Fire
Open both controls fully by raising the Burn Rate Air Con-
trol all the way up until it stops and slide the Start-up Air Control back until it stops.
• The blower tends to cool the appliance. Leave the blower
off until the burn is well established, i.e., 30 minutes.
After loading the appliance with wood and starting the
fi re, set both controls to the desired setting by following the burn rate instructions below.
2. High Burn Rate - Maximum Heat* - 30,000+ BTU/hr
Raise the Burn Rate Air Control all the way up until it stops (top marker) to a fully open position.
Slide the Start-Up Air Control all the way back until it stops (HI marker) and leave it there.
This setting over-rides the timer system (ACC) so you must monitor the fi re closely while in this setting to avoid overfi ring your stove.
5. Low Burn Rate* - Below 10,000 BTU/hr
• Leave the Burn Rate Air Control at the bottom marker. Leave the blower off until the burn is well established, i.e., 30 minutes.
Slide the Start-Up Air Control all the way back until it
stops (HI marker) and then pull forward until it stops.
*NOTE:
These are approximate settings, and will vary with type of wood or chimney draft. Due to altitude and other environmental circumstances, this operational information is a guideline only.
3.
Medium-High Burn Rate* - 15,000 to 30,000 BTU/hr
Raise the Burn Rate Air Control all the way up until it
stops (top marker) to a fully open position.
Blower may
remain on.
Slide the Start-Up Air Control all the way back until it
stops (HI marker) and then pull forward until it stops.
• This activates the timer system (ACC).
4.
Medium-Low Burn Rate* - 10,000 to 15,000 BTU/hr
• Raise the Burn Rate Air Control up to the bottom of the middle marker and stop.
Leave the blower off until the
burn is well established, i.e., 30 minutes.
• Slide the Start-Up Air Control all the way back until it stops (HI marker) and then pull forward until it stops.
• This activates the timer system (ACC).
WARNING! Risk of Fire!
When set on High Burn Rate and over-riding the Automatic Combustion Control system an overfi re situation can occur and may result in a chimney fi re.
Overfi ring will void the stove warranty
November 28, 2011
.
7038-159D
After activating the timer (ACC), if the control is placed within the rear air section on the label it will allow rear air to enter the fi rebox. This will not interfere with the timer gradually closing the front air channel in 25 minutes. If control is set on “HI” it over-rides the timer (ACC).
Figure 11.1
Page 11
R
5700 Step Top Wood Stove Series ACC
Ceramic Blanket
Back of Firebox
Baffle Board
Ceramic Blanket
Back of Firebox
Baffle Board
K. Correct Baffl e & Blanket Placement
WARNING! Risk of Fire!
Firebox damage due to improper baffl e placement is not covered by warranty. Operate the wood burning appliance
with the baffl e in the correct position only.
Not doing so could result in:
• Reduced effi ciency
• Overheating the chimney
• Overheating the rear of the fi rebox
• Poor performance Ensure correct baffl e placement and replace baffl e compo­nents if damaged or missing.
CORRECT POSITION
INCORRECT POSITIONS
Ceramic Blanket and Baffl e Board are NOT in
contact with the back of the fi rebox.
Ceramic Blanket and Baffl e Board MUST be in
contact with the back of the fi rebox and even with
each other in the front.
Ceramic Blanket is NOT in contact with the
back of the fi rebox and NOT even with the Baf-
fl e Board in the front.
Ceramic Blanket is bunched up at the back of the fi rebox and NOT even with the Baffl e Board in the front.
Figure 12.1 Figure 12.2
Page 12
7038-159D
November 28, 2011
R
5700 Step Top Wood Stove Series ACC
Baffle Board & Blanket even with front tube & resting on all tubes
Burn Rate Air Control
Start-Up
Air
Control
2 pc Baffle Board
Ceramic Blanket on Top
Tube Channels
L. Building A Fire
WARNING! Risk of Fire! Keep combustible materials, gasoline and other fl ammable vapors and liquids clear of the fi replace.
Do NOT:
• Store fl ammable materials close to the fi replace, or
• USE GASOLINE, LANTERN FUEL, KEROSENE, CHARCOAL LIGHTER FLUID OR SIMILAR LIQUIDS TO START OR “FRESHEN UP” A FIRE IN THIS FIREPLACE.
Keep all fl ammable liquids well away from the fi replace while it is in use. Combustible materials may ignite.
Before lighting your fi rst fi re in the appliance:
1. Confi rm the baffl e and ceramic blanket are correctly posi-
tioned. See page 12 for detailed diagrams. They should be even with the front tube and resting on all tubes. Figure
13.1.
2. Remove all labels from glass.
There are many ways to build a fi re. The basic principle is to light easily-ignitable tinder or paper, which ignites the fast burning kindling, which in turn ignites the slow-burning fi re­wood. Here is one method that works well:
1.
Open the Burn Rate Air and Start-Up Air Controls fully.
2. Place several wads of crushed paper on the fi rebox fl oor.
Heating the fl ue with slightly crumpled newspaper before adding kindling keeps smoke to a minimum.
3. Lay small dry sticks of kindling on top of the paper.
4. Make sure that no matches or other combustibles are in
the immediate area of the appliance. Be sure the room is ventilated and the fl ue unobstructed.
5. Light the paper in the appliance. NEVER light or rekindle
fi re with kerosene, gasoline, or charcoal lighter fl uid; the results can be fatal.
6. Once the kindling is burning quickly, add several full-
length logs 3 to 4 inches (76 to 102mm) in diameter. Be careful not to smother the fi re. Stack the pieces of wood 1/2 inch to 1 inch apart; near enough to keep each other hot, but far enough away from each other to allow air fl ow between them.
7. Set the Burn Rate Air Control and activate the timer sys-
tem (ACC).
8. If you have installed the optional blower, please note that
the blower tends to cool the appliance. Leave the blower off until the burn is well established, i.e., 30 minutes.
WARNING! Risk of Fire!
Make sure fuel door is sealed tight against the gasket. Do NOT operate stove with the door open. It may cause:
• Overfi re condition
• Flame and/or smoke spillage
9. When ready to reload, It is best to fully open both the Burn Rate Air and Start-up Air Controls before reloading.
This livens up the coalbed and reduces excessive emis­sions (opacity/smoke).
Open door slowly so that ash or smoke does not exit ap­pliance through opening.
• Large logs burn slowly, holding a fi re longer.
Small logs burn fast and hot, giving quick heat.
10.
As long as there are hot coals, repeating steps 6 through 8 will maintain a continuous fi re throughout the season.
NOTICE:
Build fi re on brick fi rebox fl oor.
• Do NOT use grates, andirons or other methods to sup­port fuel as it will adversely affect emissions.
CAUTION! Odors and vapors released during initial operation may be irritating to sensitive individuals.
Open windows for air circulation.
Figure 13.1
November 28, 2011
7038-159D
Page 13
R
5700 Step Top Wood Stove Series ACC
M. Wood Fuel
WARNING! Risk of Fire!
• DO NOT BURN GARBAGE OR FLAMMABLE FLUIDS SUCH AS GASOLINE, NAPHTHA OR ENGINE OIL.
• Do NOT burn treated wood or wood with salt (driftwood).
• May generate carbon monooxide if burn material other than wood.
May result in illness or possible death.
Hardwood vs Softwood
Your appliance performance depends on the quality of the fi rewood you use.
• Seasoned wood contains about 8,000 BTUs per pound .
• Hard woods are more dense than soft woods.
• Hard woods contain 60% more BTUs than soft woods.
• Hard woods require more time to season, burn slower and
are harder to ignite.
• Soft woods require less time to dry, burn faster and are
easier to ignite.
• Start the fi re with softwood to bring the appliance up to
operating temperature and to establish draft.
• Add hardwood for slow, even heat and longer burn time.
Moisture
WARNING! Risk of Fire!
• Do NOT burn wet or green wood.
• Wet, unseasoned wood can cause accumulation of creosote.
• Store wood in dry location.
• Stack wood so both ends are exposed to air.
The majority of the problems appliance owners experience are caused by trying to burn wet, unseasoned wood.
Wet, unseasoned wood requires energy to evaporate the water instead of heating your home, and
• Causes evaporating moisture which cools your chimney, accelerating formation of creosote.
Seasoned Wood
• Cut logs to size
• Split to 6 inches (152 mm) or less in diameter.
• Air dry to a moisture content of around 20%
- *Soft wood - about nine months to dry
- *Hard wood - about eighteen months to dry
*NOTE: Seasoning time may vary depending on drying
conditions.
Soft woods Hard woods
• Douglas Fir • Oak
• Pine • Maple
• Spruce • Apple
• Cedar • Birch
• Poplar
• Aspen
• Alder
Processed Solid Fuel Fire Logs
NOT permitted for use in this appliance
Storing Wood
Steps to ensure properly seasoned wood:
• Stack wood to allow air to circulate freely around and through woodpile.
• Elevate wood pile off ground to allow air circulation underneath.
• Smaller pieces of wood dry faster. Any piece over 6 inches (152 mm) in diameter should be split.
• Wood (whole or split) should be stacked so both ends of each piece are exposed to air. More drying occurs through the cut ends than the sides.
• Store wood under cover to prevent water absorption from rain or snow. Avoid covering the sides and ends completely.
WARNING! Risk of Fire! DO NOT store wood:
• In front of the appliance.
• In space required for loading or ash removal.
Page 14
7038-159D
November 28, 2011
R
Up (Open)
Down (Closed)
Start-Up Air Control
Burn Rate Air Control
Push to Open
Pull back to activate ACC
Maintain 4 ft clearance to com­bustible in front of appliance
N. Blower Operating Instructions
NOTE: If your Quadra-Fire wood appliance is equipped with
an optional blower, you should follow these guidelines:
Figure 15.1
1. Initial (cold) startup: Open both controls fully by rais-
ing the Burn Rate Air Control all the way up until it stops and slide the Start-up Air Control back until it stops.
blower tends to cool the appliance. Leave the blower off until the burn is well established, i.e., 30 minutes.
2. High Burn Setting: Both controls are open. Burn Rate Air Control is pulled up and the Start-up Air Control is fully pushed in. Blower may remain on.
3. Medium or Medium High Burn Setting*: Burn Rate Air Control is closed then opened to 1 inch to fully open. Blower may remain on.
4. Medium Low Burn Setting*: Burn Rate Air Control is closed then opened to 1/4 inch to 1/2 inch. blower off until the burn is well established, i.e., 30 min­utes.
5. Low Burn Setting*: Burn Rate Air Control is closed. Leave the blower off until the burn is well established, i.e., 30 minutes.
*NOTE: For burn settings 3 to 5 the Start-up Air Control needs to be pushed in (Open) then pulled back to acti­vate the Automatic Combustion Control (ACC).
NOTE: For maximum effi ciency and lowest emissions, when operating the blower in either the automatic or manual setting for the low and medium low burn settings leave the blower off until the burn is well established, i.e., 30 minutes
6. The blower is equipped with a rheostat (speed control). The highest blower speed is obtained by turning the rheostat on, then adjusting back towards “OFF” as far as possible without turning the blower off. For a low blower speed, turn the control knob clockwise as far as pos­sible
November 28, 2011
The
Leave the
7038-159D
5700 Step Top Wood Stove Series ACC
Figure 15.2 - Snap Disc Location
7. Snap Disc Location
If you fi nd the blower coming on and off at undesirable temperatures, relocate the snap disc to another location in the designated zone on the back of the appliance. Figure 15.2. There is a manual over-ride switch to deactivate the snap disc, if necessary. See page 45 for location of over-ride switch.
O. Clear Space
• Do NOT place combustible objects within 4 ft (1.2 m) of the front of appliance. See Figure 15.3.
WARNING! Do NOT place combustible objects in front of the appliance. High temperatures may ignite clothing, furniture or draperies.
• Mantel - avoid placing candles and other heat-sensitive objects on mantel or hearth. Heat may damage these objects.
Figure 15.3
Page 15
R
5700 Step Top Wood Stove Series ACC
P. Opacity (Smoke)
Opacity is the measure of how cleanly your appliance is burning.
Opacity is measured in percent:
100% opacity is when an object is totally obscured by
the smoke column from a chimney, and
• 0% opacity means that no smoke column can be seen.
As you become familiar with your appliance, you should periodically check the opacity. This will allow you to know how to burn as nearly smoke-free as possible (goal of 0% opacity).
CAUTION! Odors and vapors released during initial operation may be irritating to sensitive individuals.
Open windows for air circulation.
Q. Frequently Asked Questions
ISSUES SOLUTIONS
Odor from appliance When fi rst operated, this appliance may release an odor for the fi rst several hours. This is
caused by the curing of the paint and the burning off of any oils remaining from manufacturing.
Metallic noise Noise is caused by metal expanding and contracting as it heats up and cools down, similar to
the sound produced by a furnace or heating duct. This noise does not affect the operation or longevity of the appliance.
Whirring sound If the optional blower has been installed, the blower produces a whirring sound which
increases in volume as the speed is increased.
Page 16
7038-159D
November 28, 2011
R
5700 Step Top Wood Stove Series ACC
ARS Door Latch
Handle
ARS Door
ARS Access
Cover
Tool to Remove
Cover
Rapidly move handle up and down to remove any ash from the door
Ensure all ash is removed from top of ARS door. Use a small brush if necessary
3
Maintenance and Service
A. Ash Removal System Operating and Cleaning
• Frequency: As Necessary
• By: Homeowner
CAUTION! Risk of Injury! Gloves are recommended as there may be sharp edges.
1. The stove and ashes must be completely cooled down
before using the Ash Removal System (ARS).
Reach down and locate the ash removal door handle under the left side of the stove in the center. Squeeze the handle and push all the way back. A magnet will hold the handle in place which in turn holds the ash door open.
Use the tool included in your component pack to remove the ARS access cover plate.
2. Clean ash down through the exposed opening and into the drawer below.
Make sure all ash is removed from the top of ARS door.
You can rapidly move the ARS latch handle up and down to help remove any ash from the door. Use a small brush to clean off the top of the door if any ash remains. Figure 17.1.
Figure 17.1
B. Disposal of Ashes
Be sure to replace the ARS access cover before oper­ating the stove. Remember to leave 1/4 to 1/2 inch (6-13mm) of ash on the fi rebox fl oor to act as a natural insulation. This will lengthen the life of the fi rebrick.
3. Close the door handle, you will hear a “click” when it closes. The ash drawer will not pull out if the door handle is left in the open position. Wear gloves to remove the drawer. Dispose of the ashes properly as described in your owner’s manual.
WARNING! Risk of Fire!
Make sure Ash Removal System door is sealed tight against the gasket. Air leakage may cause:
• Overfi re condition
• Flame and/or smoke spillage
• Wood to burn too fast
Do NOT use Ash Removal System while stove is burning
• Frequency: When ash is within 1-3/4 inch (44mm) of firebox lip. Leave 1/4 to 1/2 inch (6-13mm) of ash in the bottom of the firebox.
• By: Homeowner
WARNING! Risk of Fire! Ashes could contain hot embers.
Ashes should be placed in a steel container with a tight-fi tting lid. The container of ashes should be moved outdoors immediately and placed on a non-combustible fl oor or on the ground, well away from all combustible materials, pending fi nal disposal.
If the ashes are disposed of by burial in soil or otherwise locally dispersed, they should be retained in the closed container until all cinders have thoroughly cooled. Other waste shall not be placed in this container.
November 28, 2011
7038-159D
Page 17
R
5700 Step Top Wood Stove Series ACC
C. Chimney and Chimney Connector Inspection/Cleaning
• Frequency: Every 2 months during heating season or
as recommended by a certifi ed chimney sweep; more frequently if chimney exceeds or is under 14-16 ft (4.3-
4.8m). (measured from base of appliance)
• By: Certifi ed Chimney Sweep
WARNING! Risk of Fire! Ignited creosote is extremely HOT. Prevent creosote buildup.
• Remove all ash from the fi rebox and extinguish all hot embers before disposal.
• Allow the appliance to cool completely.
• Disconnect fl ue pipe or remove baffl e and ceramic blanket from appliance before cleaning chimney. Otherwise residue can pile up on top of the baffl e and ceramic blanket. (See Baffl e Removal on page 23).
• Close the door tightly.
• The creosote or soot should be removed with a brush specifi cally designed for the type of chimney in use.
• Clean out fallen ashes from the fi rebox.
• It is also recommended that before each heating season the entire system be professionally inspected, cleaned and repaired if necessary.
WARNING! Risk of Fire!
Do not use chimney cleaners or fl ame colorants in your appliance. It will corrode your pipe.
Creosote - Formation and Need for Removal
When wood is burned slowly, it produces tar and other
organic vapors, which combine with expelled moisture to form creosote.
The creosote vapors condense in the relatively cool
chimney fl ue of a slow-burning fi re.
As a result, creosote residue accumulates on the fl ue
lining. When ignited this creosote makes an extremely hot fi re.
The chimney and chimney connector shall be inspected
every two months during the heating season to determine when a creosote buildup has occurred. If a signifi cant layer
of creosote has accumulated (3mm or more) it should be removed to reduce the risk of a chimney fi re.
D. Appliance Inspection - Routine
• Frequency: Every 2 months at the same time the chim-
ney and chimney connector are inspected.
• By: Homeowner
Check for:
• Cracks in glass
• Door handle - smooth cam operation
• Baffl e and ceramic blanket correct placement
Baffl e for warpage
• Firebrick for cracks, broken or crumbly
• Door gasket. (Dollar bill test). Place a dollar bill between the stove and the door and then shut the door. If you can pull the dollar bill out, replace the door gasket.
• Glass frame for loose screws
E. Soot or Creosote Fire
Establish a routine for the fuel, wood burner and fi ring tech­nique. Check daily for creosote build-up until experience shows how often you need to clean to be safe. Be aware that the hotter the fi re the less creosote is deposited, and weekly cleaning may be necessary in the mild weather even though monthly cleaning may be enough in the coldest months. Contact your local municipal or provincial fi re authority for information on how to handle a chimney fi re.
In the event of a soot or creosote fi re, close the fi rebox door, exit the building immediately and contact the proper fi re authorities.
DO NOT under any circumstances re-enter the building.
Page 18
7038-159D
November 28, 2011
R
5700 Step Top Wood Stove Series ACC
1
1
1
1
1
1
1
1
1
1
1
1
2
3
4
4
5
8
6
6
6
6
7
7
No Brick, ARS Cover Location
8
8
8
F. Glass Cleaning
• Frequency: As desired
• By: Homeowner
• Clean glass with a non-abrasive glass cleaner. Abrasive cleaners may scratch and cause glass to crack.
• If the deposits on the glass are not very heavy, normal glass cleaners work well. Heavier deposits may be removed by using a damp cloth dipped in wood ashes or by using a commercially available oven cleaner.
• After using an oven cleaner, it is advisable to remove any residue with a glass cleaner or soap and water. Oven cleaner left on during the next fi ring can permanently stain the glass and damage the fi nish on plated metal surfaces.
• A portion of the combustion air entering the fi rebox is de-
fl ected down over the inside of the door glass.
• This air fl ow “washes” the glass, helping to keep smoke
from adhering to its surface.
• When operated at a low burn rate, less air will be fl owing
over the glass and the smoky, relatively cool condition of a low fi re will cause the glass to become coated.
Operating the appliance with the Burn Rate Air Control
and Start-Up Air Control all the way open for 15-20 min­utes should remove the built up coating.
5. Install side bricks. Slide top of brick under clips on side of fi rebox and push the bottom of the brick until it is fl ush with the side of the unit.
Use Part 832-0550 when ordering individual brick. Provide brick dimension or copy this page, mark the desired brick and take it to your authorized dealer.
H. Cleaning Plated Surfaces
• Frequency: As desired
• By: Homeowner
• Clean all the fi ngerprints and oils from plated surfaces BEFORE fi ring the appliance for the fi rst time.
• If not cleaned properly before lighting your fi rst fi re, the oils can cause permanent markings on the plating.
• After the plating is cured, the oils will not affect the fi nish and little maintenance is required.
Wipe clean as needed.
CAUTION! Do not use polishes with abrasives. It will scratch plated surfaces.
CAUTION! Handle glass assembly with care. Glass is breakable.
• Avoid striking, scratching or slamming glass
• Avoid abrasive cleaners
• Do not clean glass while it is hot
G. Firebrick Inspection
• Frequency: After each ash removal
• By: Homeowner
Replace the fi rebrick if they become, cracked, broken, crumbly and/or if there is a 1/4 inch (6.35mm) gap between the bricks.
The fi rebox is lined with high quality fi rebrick, which has exceptional insulating properties. There is no need to use a grate; simply build a fi re on the fi rebox fl oor. Do not operate appliance without fi rebrick.
1. After the coals have completely cooled, remove all old brick and ash from unit and vacuum fi rebox.
2. Remove new brick set from box and lay out to diagram shown.
3. Lay bottom bricks in unit.
4. Install rear bricks on the top of the bottom bricks. Slide
November 28, 2011
top of bricks under clip on back of fi rebox wall and push bottom of brick back.
Figure 19.1
7038-159D
No. Brick Size Qty
1 9 x 4-1/2 x 1-1/4 12
2 9 x 1-3/4 x 1-1/4 1
3 6-3/4 x 1-3/4 x 1-1/4 1
4 9 x 2-3/4 x 1-1/4 2
5 7 x 1-1-3/4 x 1-1/4 1
6 6-3/4 x 4-1/2 x 1-1/4 4
7 5 x 4-1/2 x 1-1/4 2
8 7 x 4-1/2 x 1-1/4 4
Page 19
R
5700 Step Top Wood Stove Series ACC
2
2
I. Quick Reference Maintenance Guide
BAFFLE & BLANKET PLACEMENT
Baffl e and blanket placement is critical to heat out­put, effi ciency and overall life of the unit. Make sure the baffl e is pushed all of the way to the back of the fi rebox and the blanket is laying fl at.
CHIMNEY & CAP INSPECTION
The chimney and chimney cap must be inspected for soot and creosote during the burn season. This will prevent pipe blockage, poor draft, and chimney fi res.
INSPECT FIREBRICKS & ASH COVER
(AFTER EACH CLEANING)
Step Top Models Only
Firebrick is designed to protect your fi rebox. Replace fi rebricks that are crumbling, cracked or broken. If you have an optional ash door, check to make sure the door is closing properly.
DOOR & LATCH CHECK
Keeping the door and glass gasket in good shape will maintain good burn times on a low burn setting.
Check the glass frame for loose screws to prevent air leakage.
Always burn dry wood to help prevent cap blockage and creosote build-up.
Start the fi rst inspection of your unit af­ter the fi rst 2 months of use, or if perfor­mance changes, and adjust your sched­ule accordingly.
Page 20
Check the door latch for proper adjustment. This is very important especially after the door rope has formed to the stove face.
7038-159D
Maintenance is required for safe oper­ation and must be performed to main­tain your warranty.
November 28, 2011
R
5700 Step Top Wood Stove Series ACC
4
With proper installation, operation, and maintenance your woodstove will provide years of trouble-free service. If you do experience a problem, this troubleshooting guide will assist you or a qualifi ed service person in the diagnosis of a problem and the corrective action to be taken.
Troubleshooting Guide
Start Fire Problems Possible Cause Solution
Can not get fi re started Excessive smoke or spillage Burns too slowly Not enough heat output
Not enough kindling/paper or no kindling/paper
Not enough air for fi re to ignite
Use dry kindling, more paper. Arrange kindling & wood for air movement.
Check for restricted termination cap
Check for blockage of outside air kit (if installed).
Check for fl ue blockage.
Pre-warm fl ue before starting fi re (refer to Building a Fire Section).
Check for adequate vent height (refer to Chimney Height Section).
Open window below the appliance towards the wind.
Fire burns too fast
Wood condition is too wet, too large
Bed of coals not established before adding wood
Flue blockage such as birds’ nests or leaves in termination cap
Down draft or negative pressure Competition with exhaust devices
Extremely dry or soft wood
Overdrafting
Use dry, seasoned wood (refer to Seasoned Wood Section).
Start with paper & kindling to establish bed of coals (refer to Building a Fire Section).
Have chimney inspected for creosote and cleaned by a certifi ed chimney sweep.
Do not use exhaust fans during start-up (refer to Negative Pressure Section).
Open window below the appliance towards the wind.
Mix in hardwood.
Mix in less seasoned wood after fi re is established (refer to Wood Fuel Section).
Check for correct vent height; too much vertical height creates overdrafting.
Check location of vent termination (refer to Chimney Termination Requirement Section).
November 28, 2011
7038-159D
Page 21
R
5700 Step Top Wood Stove Series ACC
Magnet
Spade
Connectors
Snap Disc
Snap Disc Location
Service Parts Replacement
5
A. Glass Replacement
1. Ensure that the fi re is out and the appliance is cool to the touch.
2. Protect a table or counter top with padding or towels. Protect your hands and wear gloves to prevent injury.
3. Remove the door with the broken glass by lifting the door up and off of the hinges.
4.
Lay door face down on a table or counter making sure the handle hangs over the edge so the door lays fl at, on a soft surface.
5. Remove the screws from each glass retainer and remove the glass. (If screws are diffi cult to remove, soak with penetrating oil fi rst).
6. Center the glass with edges evenly overlapping the open­ing in the door, (i.e. same space top and bottom, left and right sides).
7. Replace the glass retainers. Be careful not to cross thread the screws.
8. Tighten each retainer just a few turns until each is se­cured. Check again for centering of glass in door frame. Continue to tighten each retainer alternately, a few turns at a time, until the glass is secure. DO NOT OVERTIGHTEN
- can cause glass to break.
9. Replace the door on the appliance.
B. Snap Disc Replacement
1. Disconnect power supply. Locate the snap disc bracket assembly at the bottom left rear corner of the appliance.
Figure 22.1.
2. A magnet holds the bracket to the appliance. Pull the bracket down away from the appliance to expose the snap disc.
3. Pull the snap disc and spade connectors up and out of bracket as shown in Figure 22.2.
4. Using a Phillips head screw driver, remove the 2 screws from the snap disc and then remove the snap disc from the spade connectors. Replace with new snap disc and re-connect to spade connectors.
5. Push the snap disc and spade connectors back inside bracket and re-attach the bracket to the appliance.
WARNING! Risk of Fire or Injury!
Use only glass that is specifi ed in the manual, DO NOT replace with any other material. Glass breakage will occur.
CAUTION!
Handle glass with care.
• Inspect the gasket to ensure it is undamaged.
• Do NOT strike, slam or scratch glass.
• Do NOT operate appliance with glass & door assembly removed.
• Do NOT operate with glass cracked, broken or scratched.
Quadra-Fire appliances are equipped with ceramic super heat-resistant glass, which can only be broken by impact or misuse.
Figure 22.1
Figure 22.2
Page 22
7038-159D
November 28, 2011
R
Baffle Board & Blanket even with front tube & resting on all tubes
Burn Rate Air Control
Start-Up
Air
Control
2 pc Baffle Board
Ceramic Blanket on Top
Tube Channels
C. Baffl e Removal
1. Remove all ash from the fi rebox, and extinguish all hot embers before disposal into a metal container.
2. The baffl e board has 2 pieces. With the ceramic blanket still in place, slide one baffl e piece over the top of other one and pull out top piece through the door opening and then remove bottom baffl e piece. Figure 23.1.
3. Remove the ceramic blanket.
4. Re-install the ceramic blanket and smooth out the blan­ket.
4. Slide
the baffl e pieces one piece at a time underneath the blanket. Be sure the baffl e boards are even with the front manifold tube and is resting on all tubes. Figures 23.1 and
23.2.
5700 Step Top Wood Stove Series ACC
Figure 23.1 - Baffl e
Figure 23.2
November 28, 2011
7038-159D
Page 23
R
5700 Step Top Wood Stove Series ACC
Locknut
Door Cross Section (example)
Latch Cam
Spacing Washers
Square Key
Door Handle
Spring
Handle
D. Door Handle Assembly
1. Install washer on door handle shaft.
2. Slide door handle through door.
3. Install second washer(s) as shown in Figure 24.1.
4. Install key in groove.
5. Align groove in latch cam with key; slide latch cam over shaft
6. Install locknut but do not overtighten, the handle needs to move smoothly.
7. Install spring handle turning in a counter-clockwise motion to desired location on door handle rod. Figure
24.1.
CAUTION! Do not overtighten lock nut. The door handle needs to move smoothly.
Figure 24.1
Page 24
7038-159D
November 28, 2011
R
E. Tube Channel Assembly Replacement
4
1
1
1
1
6
Baffle Boards
Ceramic Blanket
Baffle Protection Channel
Brick Retainers
Right Side Rear Brick
Side Brick
Tube Channel Assembly
Tube Channel Nuts
Bolt
1
2
4
3
Rotate and remove from firebox
5700 Step Top Wood Stove Series ACC
Removing Tube Channel Assembly
1. Remove the right side bricks (5 pieces) and right hand rear brick.
2. Remove the 2 brick retainers by sliding back and then up.
3. Remove the baffl e protection channel by rolling forward and out of the fi rebox.
4. Locate the 2 channel nuts and 1 bolt inside of chamber and remove using a 7/16 socket wrench.
NOTE: Soak the bolts with penetrating oil for at least 15 min-
utes before trying to remove them.
5. Slide the tube channel assembly all the way to left until it is off the threads. Drop the right side down, then slide the assembly back to right.
6. The ceramic blanket and both baffl e boards can be removed at the same time you remove the tube channel assembly.
7. When the tube channel assembly is free of the left side support, rotate clockwise and pull assembly, blanket and baffl es out through the front opening.
8. Re-install in reverse order.
Figure 25.1
November 28, 2011
7038-159D
Page 25
R
5700 Step Top Wood Stove Series ACC
Installer’s Guide
6
A
NOTICE: Check building codes prior to installation.
• Installation MUST comply with local, regional, state and
• Consult insurance carrier, local building inspector, fi re
Before installing, determine the following:
• Type of chimney connector to be used
• Consult page 30 for clearances to combustibles
• Power outlet located close by for optional blower
Getting Started
. Design and Installation Considerations
national codes and regulations.
offi cials or authorities having jurisdiction over restrictions, installation inspection and permits.
- Single wall, vertical or horizontal
- Double wall, vertical or horizontal
B. Draft
Draft is the pressure difference needed to vent appliances successfully. When a appliance is drafting successfully, all combustion byproducts are exiting the home through the chimney.
Considerations for successful draft include:
• Preventing negative pressure
• Location of appliance and chimney
T
o be sure that your appliance burns properly:
• During a low burn, the chimney draft (static pressure) should be approximately -.04 inch water column (W.C.)
• During a high burn the chimney draft should be approximately
-.10 inch (W.C.)
• Measure the W.C at 6 inches (152mm) above the top of the appliance after one hour of operation at each burn setting.
NOTICE: Hearth & Home Techno logies assumes no responsibility for the improper performance of the appliance system caused by:
• Inadequate draft due to environmental conditions
• Downdrafts
• Tight sealing construction of the structure
• Mechanical exhausting devices
C. Negative Pressure
WARNING! Risk of Asphyxiation!
cause spillage of combustion fumes and soot. Fire must draft properly for safe operation.
Negative pressure can
Negative pressure results from the imbalance of air avail­able for the fi replace to operate properly. It can be stron­gest in lower levels of the house.
Causes include:
• Exhaust fans (kitchen, bath, etc.)
• Range hoods
• Combustion air requirements for furnaces, water heaters and other combustion appliances
• Clothes dryers
• Location of return-air vents to furnace or air conditioning
• Imbalances of the HVAC air handling system
• Upper level air leaks such as:
- Recessed lighting
- Attic hatch
- Duct leaks
To minimize the effects of negative air pressure:
• Install the outside air kit with the intake facing prevailing winds during the heating season
• Ensure adequate outdoor air for all combustion appliances and exhaust equipment
• Ensure furnace and air conditioning return vents are not located in the immediate vicinity of the fi replace
• Avoid installing the fi replace near doors, walkways or small isolated spaces
• Recessed lighting should be a “sealed can” design
• Attic hatches weather stripped or sealed
• Attic mounted duct work and air handler joints and seams taped or sealed
• Basement installations should be avoided
WARNING!
DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.
DO NOT INSTALL IN A SLEEPING ROOM
DO NOT CONNECT TO ANY AIR DISTRIBUTION DUCT OR SYSTEM.
DO NOT USE CHEMICALS OR FLUIDS TO START THE FIRE.
HOT WHILE IN OPERATION. KEEP CHILDREN, CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE SKIN BURNS.
CAUTION!
THE STRUCTURAL INTEGRITY OF THE MOBILE HOME FLOOR, WALL, AND CEILING/ROOF MUST BE MAINTAINED.
Page 26
7038-159D
November 28, 2011
R
5700 Step Top Wood Stove Series ACC
Marginal Location:
• Below peak
Location NOT recommended:
• Not the highest point of the roof
• Wind loading possible
Multi-level Roofs
Windward
Leeward
Recommended: Outside Air Intake on windward side
NOT recommended: Outside Air Intake on leeward side
Recommended Location:
• Above peak
Recommended:
• Insulated exterior chase in cooler climates
Recommended Location:
• Above peak
• Inside heated space
Location NOT recommended:
• Too close to tree
• Below adjacent structure
• Lower roof line
• Avoid outside wall
Marginal Location:
• Wind loading possible
D. Locating Your Stove & Chimney
Location of the appliance and chimney will affect perfor­mance. As shown in Figure 27.1 the chimney should:
• Install through the warm space enclosed by the build­ing envelope. This helps to produce more draft, espe­cially during lighting and die down of the fi re.
• Penetrate the highest part of the roof. This minimizes the affects of wind turbulence and down drafts.
• Consider the appliance location in order to avoid fl oor and ceiling attic joists and rafters.
Locate termination cap away from trees, adjacent
structures, uneven roof lines and other obstruc­tions.
Your local dealer is the expert in your geographic area and can usually make suggestions or discover solutions that will easily correct any fl ue problems you may encountered.
NOTICE
BEFORE INSTALLATION OF THIS APPLIANCE, CON-
TACT YOUR LOCAL MUNICIPAL BUILDING DEPART­MENT, FIRE DEPARTMENT, FIRE PREVENTION BUREAU, OR OTHER AUTHORITY HAVING JURIS­DICTION TO DETERMINE THE NEED TO OBTAIN A PERMIT.
Figure 27.1
E. Chimney Termination Requirements
Follow manufacturer’s instructions for clearance, secur­ing fl ashing and terminating the chimney.
Must have an approved and Listed cap
Must not be located where it will become plugged
by snow or other material
• Must terminate at least 3 feet (91cm) above the
• Must be located away from trees or other struc-
November 28, 2011
roof and at least 2 feet (61cm) above any portion of the roof within 10 feet (305cm).
tures
NOTICE: Locating the appliance in a basement or in a location of considerable air movement can cause intermittent smoke spillage from appliance. Do not locate appliance near
• Frequently open doors
• Central heat outlets or returns
NOTICE:
• Chimney performance may vary.
• Trees, buildings, roof lines and wind conditions affect performance.
• Chimney height may need adjustment if smoking or overdraft occurs.
7038-159D
Page 27
R
5700 Step Top Wood Stove Series ACC
3 ft. (91cm)
Minimum
Less than 10 ft. (305cm)
2 ft. (61cm)
3 ft. (91cm)
Minimum
10 ft. (305cm) To Nearest Roofline
2 ft. (61cm)
Pitched Roof
10 ft. (305cm) or more
3 ft. (91cm) Minimum
Less than 10 ft. (305cm)
2 ft. (61cm)Minimum
3 ft. (91cm) Minimum
Wall or Parapet
Flat Roof
F. 2-10-3 Rule
These are safety requirements and are not meant to assure proper fl ue draft.
Figure 28.1
Figure 28.2
Page 28
7038-159D
November 28, 2011
R
5700 Step Top Wood Stove Series ACC
G. Tools And Supplies Needed
Before beginning the installation be sure the following tools and building supplies are available:
Reciprocating saw Framing material
Pliers High temp caulking material
Hammer Gloves
Phillips screwdrive Framing square
Flat blade screwdriver Electric drill and bits
Plumb line Safety glasses
Level Tape measure
1/2-3/4 in. length, #6 or #8 self-drilling screws Misc screws and nails
H. Fire Safety
To provide reasonable fi re safety, the following should be given serious consideration:
1. Install at least one smoke detector on each fl oor of your home to ensure your safety. They should be located away from the heating appliance and close to the sleeping areas. Follow the smoke detector manufacturer’s placement and installation instructions, and be sure to maintain regularly.
2. A conveniently located Class A fire extinguisher to contend with small fires resulting from burning embers.
Pre-Burn Check List
1. Place the appliance in a location near the fi nal installation area and follow the procedures below:
2. Open the appliance and remove all the parts and articles packed inside the Component Pack. Inspect all the parts and glass for shipping damage. Contact your dealer if any irregularities are noticed.
3. All safety warnings have been read and followed.
4. This Owner’s Manual has been read.
5. Floor protection requirements have been met.
6. Venting is properly installed per venting manufactur­ing instructions.
7. The proper clearances from the appliance and chim­ney to combustible materials have been met.
8. The masonry chimney is inspected by a professional and is clean, or the factory built metal chimney is installed according to the manufacturer’s instruc­tions and clearances.
9. The chimney meets the required minimum height.
10.
11. Plated surfaces have been wiped clean, if appli-
12. A power outlet is available nearby if installing
All labels have been removed from the glass door
.
cable.
optional blower assembly.
I. Inspect Appliance and Components
• Remove appliance and components from packaging and inspect for damage.
• Doors are shipped in separate packages.
• Report to your dealer any parts damaged in shipment.
• Rea d all th e instr ucti ons be fore starting the installation. Follow these instructions carefully during the installation to ensure maximum safety and benefi t.
WARNING! Risk of Fire!
Inspect appliance and components for damage. Damaged parts may impair safe operation.
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report damaged parts to dealer.
November 28, 2011
7038-159D
Page 29
R
5700 Step Top Wood Stove Series ACC
33-7/8 in.
(861mm)
14-15/16 in.
(380mm)
9-3/16 in. (233mm)
26-1/16 in. (662mm)
21-1/16 in. (535mm)
17-1/8 in. (435mm)
29-7/8 in. (760mm)
27-9/16 in. (700mm)
6-11/16 in.
(170mm)
4 in.
(102mm)
3-1/2 in.
(89mm)
9-11/16 in.
(246mm)
Back of Stove to Glass
27.0 in. (686mm)
19-1/4 in.
(489mm)
37-11/16 in.
(686mm)
10-1/4 in.
(260mm)
13-1/2 in. (343mm)
27-1/8 in. (689mm)
20-9/16 in. (522mm)
32-3/8 in. (822mm)
30-1/4 in. (768mm)
18 in. (458mm)
13-1/2 in.
(343mm)
7
Dimensions and Clearances
A. Appliance Dimensions
NOTE: Flue Collar size is 6 inch (152mm) diameter (ID)
5700 Pedestal Model 5700 Leg Model
Figure 30.1 - Front View
Figure 30.3 - Front View
Figure 30.2 - Side View
Page 30
Figure 30.4 - Side View
7038-159D
November 28, 2011
R
B. Clearances to Combustibles (UL and ULC)
G
A
B
ALCOVE SIDE VIEW
A
B
C
D
BACKWALL / SIDEWALL
C
D
ALCOVE TOP VIEW
E
F
E
F
CORNER INSTALLATION
G
H
90° OFF TOP UP & OUT CEILING CLEARANCE
STOVE TO CEILING CLEARANCE
A B C D E F G H
INSTALLATION: Full Vertical
SINGLE WALL PIPE 12.5 (318) 10.5 (267) 25.5 (648) 15 (381) 2 (51) 12 (305) 45 (1143) N/A
DOUBLE WALL PIPE 9.5 (241) 7.5 (191) 25.5 (648) 15 (381) 2 (51) 12 (305) 45 (1143) N/A
INSTALLATION: Horizontal with 2 foot minimum vertical Off Stove Top
SINGLE WALL PIPE 9.5 (241) 7.5 (191) 25.5 (648) 15 (381) * * 45 (1143) 18*(457)
DOUBLE WALL PIPE 9.5 (241) 7.5 (191) 25.5 (648) 15 (381) * * 45 (1143) 13 (330)
INSTALLATION: 90o ELBOW OFF TOP OF STOVE THROUGH BACKWALL
SINGLE WALL PIPE 9.5 (241) 7.5 (191) 25.5 (648) 15 (381) 2 (51) 12 (305) 45 (1143) 18*
DOUBLE WALL PIPE 9.5 (241) 7.5 (191) 25.5 (648) 15 (381) 2 (51) 12 (305) 45 (1143) 13 (330)
INSTALLATION: ALCOVE
Six inch (6") (152mm) diameter listed Double Wall air insulated connector
pipe with UL103 HT** Listed factory-built Class "A" chimney, or a masonry chimney. (Mobile Home must be equipped with a spark arrestor). Maximum depth of Alcove shall be no more than 48 inches (1219mm) with a minimum height of 79.25 (2013mm) from floor to bottom of ceiling and the referenced clearances.
**In Canada must comply with Standard CAN/ULC-S629-M87 for the 650
o
C Factory-built chimney.
DOUBLE WALL PIPE 10.5 (268) 8.5 (216) 25.5 (648) 15 (381) N/A N/A 45 (1143)
*
* SEE PIPE MANUFACTURERS CLEARANCES - NOT TESTED
NOTE: Clearances may only be reduced by means approved by the regulatory authority having jurisdiction
5700 Step Top Wood Stove Series ACC
November 28, 2011
WARNING! Risk of Fire!
• Comply with all minimum clearanes to combustibles as specifi ed.
• Failure to comply may cause house fi re.
7038-159D
Page 31
R
5700 Step Top Wood Stove Series ACC
Must extend 2 in. (51mm) beyond
each side of pipe (shaded area)
16 in. from glass
8 in.
Fuel loading door
33-5/8 in. minimum
45-7/8 in. minimum
8 in.
203mm (8 in.)
203mm
(8 in.)
203mm
(8 in.)
457mm (18 in.)
1429mm (56-1/4 in.) minimum
1092mm (43 in.)
minimum
135
o
29-3/8 inch (746mm)
3 inch (76mm)
45 inch
(1143mm)
31-1/2 inch
(800mm)
52-1/4 inch
(1327mm)
Required Coverage
Optional
Coverage
Optional
Coverage
Optional
Coverage
C. Hearth Protection Requirements
FLOOR PROTECTION:
Must be non-combustible material.
Extend beneath heater and to the front, sides and rear as
indicated.
• Th e floor must be non-combus tible or otherwise adequately protected from radiant heat given off by the unit and from sparks and falling embers.
• A layer of thin brick or ceramic tile over a combustible fl oor is NOT suffi cient.
In US installations, i of a minimum of 1 inch (k value = 0.49, R value = 0.59) of non-combustilbe material a minimum of 16 in front of glass and 8 inches (203mm) to both sides of the fuel loading door. Open the door and measure 8 inches (203mm) from the side edge of the opening in the face of the appliance. *See exception.
t is necessary to install a fl oor protector
inches (406mm)
In Canada, similar fl oor protection must be provided 18 inches (457mm) in front and 8 inches (203mm) from the sides and rear of the appliance. *See exception.
*EXCEPTION: Non-combustible fl oor protections must extend beneath the fl ue pipe when installed with horizontal venting and extend 2 inches (51mm) beyond each side.
Figure 32.4.
WARNING! Risk of Fire!
• Hearth pads must be installed exactly as specifi ed.
• High temperatures or hot embers may ignite concealed combustibles.
Figure 32.1
Figure 32.2
NOTICE:
• Illustrations and photos refl ect typical installations and are FOR DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation may vary due to individual design preference
• Hearth & Home Technologies reserves the right to alter its products.
Page 32
USA
CANADA
Figure 32.3
7038-159D
USA
USA required
Canada recommended
Figure 32.4
November 28, 2011
R
D.
Calculating Alternate Floor Protection Material
Thermal Conductivity: k value
The k value indicates the amount of heat (in BTU’s) that will fl ow in 1 hour throught 1 square foot of a uniform material 1 inch thick for each degree (F) of temperature difference from one side of the material to the other. The LOWER the k factor means less heat is being conducted through the non-combustible material to the combustible material beneath it. The k value of a material must be equal or smaller then the required k value to be accept­able. (BTU) (inch) (foot2 (hour) (oF)
Thermal Resistance: R value
The R value is a measure of a material’s resisteance to heat transfer. R value is convenient when more than one material is used since you can add the R values together, whereas you can not do this for k value. The HIGHER the R factor means less heat is being conducted through the non-combustible material to the combustible material beneath it. The R value of a material must be equal or larger then the required R value to be accept­able.
5700 Step Top Wood Stove Series ACC
Converting k to R:
Divide 1 by k and multiply the results times th thickness in inches of the material. R = 1/k x inches of thickness
Converting R to k:
Divide the inches of thickness by R. k = inches of thickness/R
Calculatons:
Example: Floor protection requires k value of .84, 3/4 inch thick.
Alternative material has a k value of .6 and is 3/4 inch thick.
Divide .6 by .75 = k value of .80. This k value is smaller than .84 and therefore is acceptable.
November 28, 2011
7038-159D
Page 33
R
5700 Step Top Wood Stove Series ACC
Flue Gas Direction
Crimped
End
Toward
Stove
Secure pipe sections with a
minimum of 3 screws
8
Venting and Chimney Systems
A. Venting Systems
The venting system consists of:
• A chimney connector (also known as fl ue or stove pipe)
• A chimney
• Thimble
These get extremely hot during use. Temperatures inside the chimney may exceed 2000°F (1100°C) in the event of a creosote fi re.
To protect against the possibility of a house fi re:
• Chimney connector and chimney must be properly
installed and maintained.
An approved thimble must be used when a connection is
made through a combustible wall to a chimney.
• A chimney support package must be used when a connection is made through the ceiling to a factory built chimney.
• An approved thimble and chimney support package are absolutely necessary to provide safe clearances to
combustible wall and ceiling material.
WARNING! Risk of Fire!
Follow venting manufacturer’s clearances and instructions when installing venting system.
B. Chimney Systems
The chimney connector joins the stove to the chimney.
• It must be a 6 inch (152mm) minimum diameter 24 gauge mild steel black or 26 gauge blued steel.
• Or an approved air-insulated double wall venting pipe.
Single wall connector or stove pipe
• Must be at least 24 gauge mild steel or 26 gauge blue steel.
• Sections must be attached to the appliance and to each other with the crimped (male) end pointing toward the stove.
• All joints, including the connection at the fl ue collar, should be secured with 3 sheet metal screws.
• Follow the minimum clearances to combustibles
Factory-built chimney connector (vented)
• A Listed connector (vented) must be used when installing this unit in a mobile home.
• The Listed connectors must conform to each other to ensure a proper fi t and seal.
A thimble is a manufactured or site-constructed device installed in combustible walls through which the chimney connector passes to the chimney.
• It is intended to keep the walls from igniting.
• Site con struc ted thimb les must mee t NF PA 211 Standards.
• Factory-built must be suitable for use with selected chimney and meet UL103 Type HT Standards.
• Follow instructions provided by the manufacturer for manufactured thimbles for masonry chimney and factory­built chimneys.
WARNING! Risk of Fire!
Follow chimney connector manufacturer’s instructions for proper installation.
ONLY use connector:
• Within the room, between appliance and ceiling or wall.
Connector shall NOT pass through:
• Attic or roof space
• Closet or similar concealed space
• Floor or ceiling
Maintain minimum clearances to combustibles
NOTICE: Where passage through the wall, or partition of combustible construction is desired in Canada, the installation shall conform to CAN/CSA-B365.
Figure 34.1 Chimney Connector
C. Chimney Height / Rise and Run
• This product was designed for and tested on a 6 inch (152mm) chimney, 14 to 16 feet (427-487cm) high, (in­cludes appliance height) measured from the base of the appliance.
• The further your stack height or diameter varies from this confi guration, the possibility of performance problems exists.
• Chimney height may need to be increased by 2 each 1000 feet (304.8m) above sea level.
• It is not recommended to use offsets or elbows at altitudes above 4000 feet (1219.2m) above sea level or when there are other factors that affect fl ue draft.
- 3% per
Page 34
7038-159D
November 28, 2011
R
5700 Step Top Wood Stove Series ACC
Floor Protector
Chimney Connector
Insulated " T "
Flashing
Listed Termination Cap
Tri m Collar on Inside Wall
Listed Chimney
Storm Collar
Wall Support
Roof Brace (if required)
Floor Protector
Chimney Connector
Ceiling Support
Listed Chimney
Listed Termination Cap
Storm Collar
Flashing
D. Factory-Built Chimney
The chimney can be new or existing, and must meet the following minimum requirements.
• Must be a 6 inch (152mm ) diamete r (I D) high temperature chimney listed to UL 103 HT (2100oF) or ULC S629M.
• Must use components required by the manufacturer for installation.
• Must maintain clearances required by the manufacturer for installation.
• Refer to manufacturers instructions for installation.
NOTICE: In Canada when using a factory-built chim-
ney it must be safety listed, Type UL103 HT (2100oF) [1149oC] CLASS “A” or conforming to CAN/ULC-S629, STANDARD FOR 650oC FACTORY-BUILT CHIM­NEYS.
WARNING! Risk of Fire!
Inspection of Chimney:
• Chimney must be in good condition and meets the minimum standard of NFPA 211.
• Factory-built chimney must be 6 inches (152mm) UL103 HT.
WARNING! Risk of Asphyxiation!
DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.
DO NOT CONNECT TO ANY AIR DISTRIBUTION DUCT OR SYSTEM.
This may allow fl ue gases to enter the house.
Figure 35.1 - Factory-Built Exterior Chimney
Figure 35.2 - Factory-Built Interior Chimney
November 28, 2011
7038-159D
Page 35
R
5700 Step Top Wood Stove Series ACC
Floor Protector
Thimble, 12 in. (305mm) Of Brick
Ceiling Joist
Combustible Wall
Airtight Cleanout Door
Fireclay Flue Liner With Air Space
Sheathing
Eave
1 in. (25mm) Clearance With Firestop
Rafter
Flashing
Concrete Cap
Outside Air Te rmination Cap
Outside Air Rear Vent
Spark Arrestor Cap
E. Masonry Chimney:
Figure 36.1 Masonry Chimney
WARNING! Risk of Fire!
Inspection of Chimney:
• Chimney must be in good condition and meets the minimum standard of NFPA 211.
WARNING! Risk of Asphyxiation!
DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.
DO NOT INSTALL IN A SLEEPING ROOM
DO NOT CONNECT TO ANY AIR DISTRIBUTION DUCT OR SYSTEM.
This may allow fl ue gases to enter the house.
Page 36
7038-159D
November 28, 2011
R
F. Masonry Chimney Liner
Thimble Assembly: 12 in. (305mm) of brick separation between clay liner and combustibles.
Fireclay liner 5/8 in. (16mm) Minimum or Equivalent.
Sill support
Header
Wood Stud 2 in. (51mm) Clearance from chimney wall
Fireclay liner 5/8 in. (16mm) Minimum or Equivalent.
For optimal performance, masonry chimneys used to vent this appliance should be:
1. Lined with a 6 inch (152mm) stainless steel liner.
• Installations into a clay fl ue without a stainless steel liner may reduce draw which affects performance, cause the glass to darken and produce excessive creosote.
2. It is recommended that a chimney with a larger diameter
than 6 inches (152mm) be relined.
• The oversized fl ue can cause poor performance and contribute to the accumulation of creosote.
3. Have the chimney cleaned before the stove is installed and operated.
The following bullets list the more critical requirements for a properly constructed chimney:
The masonry wall of the chimney, if brick or modular
block, must be a minimum of 4 inches (102mm) nominal thickness.
A chimney of rubble stone must be at least 12 inches
(305mm) thick.
The chimney must have a fi re clay fl ue liner (or equivalent)
with a minimum thickness of 5/8 inch (16mm) and must be installed with refractory mortar.
An equivalent liner must be a listed chimney liner system
or other approved material.
5700 Step Top Wood Stove Series ACC
of creosote, the size of the fl ue should be checked to determine that it is not too large for the insert.
The chimney should also be checked to ensure it meets the minimum standard of the National Fire Protection Association (NFPA) Standard 211.
Since an oversized fl ue contributes to the accumulation
• A chimney support package must be used when a connection is made through the ceiling to a factory built chimney.
• An approved thimble and chimney support package are absolutely necessary to provide safe clearances to
combustible wall and ceiling material.
NOTICE: In Canada, the installation shall conform to
CAN/CSA-B365.
NOTICE: Check with your local building authorities and/or consult the National Fire Protection Association (NFPA 211).
Figure 37.1
November 28, 2011
7038-159D
Page 37
R
5700 Step Top Wood Stove Series ACC
Trim Collar
Chimney Section
with 2 inch
(51mm)
Clearance to
Combustibles
Chimney
Connector
Fire Clay Flue
Liner
with Airspace
Masonry
Chimney
Wall Band to
Secure Chimney
Section
Wood Studs Used
for Framing - Spaced
2 inch (51mm) clearance from
Masonry Chimney
Wall Spacer
1.5”
1.0”
2.0”
2.0”
1.5”
14.0” ID
17.0” OD
ceiling
Minimum18.0”
NFPA 211
13.5” below ceiling to top of opening
1.0”
8.0”
1.5 2x2 framing stud
2.0 min air clearance
1.0 min air clearance
4.5
or top of opening is a min.of
4.5” below min.clearance specified by connector mfg.
Center of Hole
Thimble
C
L
C
L
Wall
Include depth of hearth pad
G. Air Clearances
• Masonry chimney clearance must meet NFPA 211 mini­mum requirement of 2 inches (51mm) to sheet metal supports and combustibles.
• Minimum of 1 inch (25mm) clearance around the chim­ney connector.
• Top of wall opening is a minimum of 13-1/2 inches (343mm) from ceiling or 4-1/2 inches (114mm) below minimum clearance specifi ed by chimney connector manufacturer. NFPA 211 minimum vertical clearance of 18 inches (457mm) from chimney connector and ceiling or minimum recommended by chimney connector manu­facturer. Figure 38.1.
H. Thimble
Site constructed for masonry chimney installation:
Components
• A minimum length of 12 inches [305mm] (longer for thicker walls) of solid insulated factory-built chimney length constructed to UL 103 Type HT 6 inch (152mm) inside diameter. Chimney needs to extend a minimum of 2 inches (51mm) from the interior wall and a minimum of 1 inch (25mm) from the exterior wall.
• Wall spacer, trim collar and wall band to fi t solid pack chimney selected.
• Minimum 8 inch (203mm) diameter clay liner section (if not already present in chimney) and refractory mortar.
Instructions:
1. Open inside wall at proper height for the chimney con-
nector to enter the masonry chimney. Figure 38.1.
2. Entry hole to masonry chimney must be lined with an 8
inch (203mm) minimum diameter clay liner, or equiva­lent, secured with refractory mortar.
3. Construct a 17 inch x 17 inch (432mm x 432mm) outside
dimension frame from 2 x 2 framing lumber to fi t into wall opening. Inside opening of frame should be no less than 14 inch x 14 inch (356mm x 356mm). Figure 38.1.
4. Attach the wall spacer to the chimney side of the frame.
5. Nail the frame into the wall opening. The spacer should
be on the chimney side.
6. Insert the section of the solid insulated chimney into the
outer wall of the masonry chimney.
7. Tightly secure the length of the solid insulated chimney
with the wall band to the masonry chimney.
8. Insert a section of chimney connector into the chimney.
Make sure it does not protrude past the edge of the clay chimney liner inside the chimney.
9. Seal the end of the chimney connector to the clay liner
with refractory mortar.
Install trim collar around the sold pack chimney section
10.
Page 38
Figure 38.1 - Thimble Construction
Solid Pack Chimney with Metal Supports
as a Thimble
Figure 38.2
.
7038-159D
November 28, 2011
R
Chimney Flue
Liner
Fireclay Liner or
Equivalent
Masonry Chimney
Constructed to NFPA 211
Wall Spacer
Wall Band
Trim Collar
Chimney
Connector
1 inch (25mm) Air
Space to Chimney
Section
Min. Clearance
2 inch (51mm)
Min. Chimney Clearance to
Wall Spacer and
Combustibles - 2 inch (51mm)
Chimney Section
Solid Pack Chimney with Metal Supports
as a Thimble (Cont’d)
5700 Step Top Wood Stove Series ACC
Figure 39.1
WARNING! Risk of Fire!
Do NOT pack insulation or other combustibles between spacers.
• ALWAYS maintain specifi ed clearanes around venting and spacers and install spacers as specifi ed.
Failure to keep insulation or other material away from vent pipe may cause a fi re.
November 28, 2011
7038-159D
Page 39
R
5700 Step Top Wood Stove Series ACC
Flex Line
Wire Tie
Wire Tie
Flex Adapter
Te r mination Cap
For Floor Installa­tions Remove Circular “Knock-Out” in Base of Pedestal.
Cover Plate
Rope to Seal Pedestal
9
Appliance Set-up
A. Outside Air Kit Installation
A source of air (oxygen) is necessary in order for combustion to take place. Whatever combustion air is consumed by the fi re must be replaced.
Air is replaced via air leakage around windows and under doors. In homes that have tightly sealed doors and windows, an outside air source is highly recommended. An optional Outside Air Kit is avail
Included in kit: Termination cap, (2) wire ties, fl ex adapter, and fasteners
Items Needed for Installation (not supplied)
• 4 inch fl ex aluminum pipe, or if using alternate material, then it shall be made from durable, non-combustible, heat resistant material up to 350oF (177oC). Cut the pipe to the required length for your installation.
• Phillips head screwdriver
• Silicone sealant
• Drills and saws necessary for cutting holes through the wall or fl ooring in your home
able.
WARNING! Risk of Fire and Asphyxiation!
Do not draw outside combustion air from:
• Wall, fl oor, ceiling cavity or enclosed space such as an attic or garage. Also do not draw outside air from close proximity to exhaust vents or chimneys. Fumes or odor may result if you do.
Outside air inlet must be located to prevent blockage from leaves, snow, ice or other debrs. Blockage may cause combustion air starvation. Smoke spillage may set off alarms or irritate sensitive individuals.
The length of the outside air supply duct shall NOT exeed the length of the vertical height of the exhaust fl ue.
• The fi re will not burn properly and their will be smoke spillage when the door is opened due to air starvation.
1. Remove all materials from packing box.
2. Using a #2 Phillips screwdriver attach the fl ex adapter to the appliance using 4 screws. Figure 40.1
3. For fl oor installation remove circular “knock-out” in the base of the pedestal.
4. Floor & Rear Installation: Cut a 4 inch (102mm) hole in
outside wall or fl oor to accommodate outside air piping. Use 4 inch (102mm) aluminum metal fl ex or rigid piping to directly connect outside air to appliance intake. Use the supplied termination cap with a rodent screen. Seal between the wall (or fl oor) and the pipe with silicone to prevent moisture penetration.
5. Floor Installation Alternative: In some instances you may not be able to install the fl ex pipe as show in Figure
40.1.
If that is the case, use the cover plate and sealing rope supplied with the pedestal kit as shown in Figure 40.2. The goal is to seal the pedestal so no room air can leak into the pedestal and for cold air infi ltration.
Figure 40.1 - Floor & Rear Installation
Page 40
7038-159D
Figure 40.2 - Alternate Floor Installation
November 28, 2011
R
B. Pedestal Assembly and Ash Removal
Door handle must be in open position to tighten set screw
Set Screw
(align with flat
side of rod)
Ash Door Rod shown in installed position
Gasket
Slide rod at an angle into slot
Ash Door Assembly
Magnet
Lay stove flat on protective padding or pallet
Door Handle
ARS Cover
Remove 3 bricks for
installation and then re-install
System (ARS) Installation
NOTE: The Ash Removal System, must be installed fi rst before installing the pedestal.
Included in Kit: Door assembly, door handle & magnet,
ash drawer, fastener package. A cover plate that is required for a fl oor outside air installation on a pedestal model is also included, if not needed, discard.
Tools Required: Phillips head screwdriver, 7/16 socket wrench, 3/32 and 5/36 Allen wrench.
5700 Step Top Wood Stove Series ACC
Begin installing the ARS System.
1. Remove 3 bricks as shown in Figure 41.1 and remove the ARS access cover with tool supplied in the compo­nent pack.
2.
Lay body of stove on its back on a protective pad or pallet.
3. Remove the 2 nuts and 2 bolts holding the ash grate channel in place and set the channel aside. Discard the 2 nuts. I
nstall the gasket over the 8 protruding screws. Figure
41.2.
4. Install ash door assembly by sliding the rod at an angle into the slot on the left side. Slide the door handle over the rod and then fi nish pushing the rod through the slot.
Slide the ash door over the 8 screws protruding from the bottom of the stove. Secure with nuts and washers pro­vided. Figure 41.2.
5. Re-install handle using a 3/32 Allen wrench to tighten the set screw in the door handle. The set screw needs to be snug. Figure 41.3.
6. Install magnet using a Phillips head screwdriver. This magnet will hold the door handle in an open position which in turn holds the ash door open so ashes can be brushed into the ash drawer. Figure 41.2.
Figure 41.1
Figure 41.2
WARNING!
Do NOT operate before fully assembling components. Burning your stove without a pedestal or leg kit attached:
• Will void your warranty.
• May result in property damage or personal injury.
November 28, 2011
7038-159D
Figure 41.3
Page 41
R
5700 Step Top Wood Stove Series ACC
Cover Plate
Ash Removel
Drawer
Adapters
Oak
Pedestal
Trim
ARS
Channel
ARS
Cover
Remove 3 Bricks
from Firebox
Pedestal and Ash Removal System (Cont’d)
Installing Pedestal Assembly
1.
Slide pedestal over adapter on bottom of stove and secure with screws supplied with the kit. Figure 42.1.
2. Line up holes in sides of pedestal with holes in adapter.
3. Securely tighten pedestal into place.
4. Slip wooden decorative strips onto pedestal edges before lifting up stove.
5. Carefully stand stove up and place in desired location.
Finishing the ARS Installation
1. Re-install the ash grate channel bolts previously removed. Set the ARS access cover and the 3 front cut bricks in place.
2. Install the ash drawer.
3.
Check to make sure baffl e boards and ceramic blanket are in their proper locations. See page 12.
and secure with 2
Figure 42.2.
NOTE: If installing an outside air kit with a pedestal assembly
as a fl oor installation you must attach the enclosed cover plate to the back of the stove. Other wise you may discard this piece. Figure 42.3.
Figure 42.2
Figure 42.3
Figure 42.1
Page 42
7038-159D
November 28, 2011
R
C. Leg Kit and Ash Removal System (ARS)
These 4 screws are installed on the stove.
Loosely attach these 2 screws
Lay stove flat on its back on protective padding or pallet
Leg Brackets packaged inside firebox
Leveling Legs at Opposite Corners
Attach ash pan assembly to stove.
Installation
NOTE: The Ash Removal System, must be installed fi rst before installing the legs.
Included in Kit: Door assembly, door handle & magnet,
ash drawer, fastener package.
Tools Required: Phillips head screwdriver, 7/16 socket wrench, 3/32 and 5/36 Allen wrench.
Begin installing the ARS System.
1. Follow steps 1 through 6 on page 41.
Installing Leg Kit
1.
Remove leg mounting brackets packaged inside fi re­box.
2. There are Remove the screws and use to secure the mounting brackets to the stove at the very top and bottom of the brackets. Figure 43.1.
3. There are 6 screws included with the leg kit. Attach 4 of the screws to the bracket at the bottom, leaving the 2 screws loose as identifi ed in Figure 43.1.
3. Slide the ash pan assembly bottom slots over the screw heads. This allows the weight of the ash pan to rest on the screws while you are attaching the top 2 screws. Once the ash pan is attached, tighten all screws. Figure
43.2.
3. Loosely assemble bolts into the corner of the mounting brackets for leg attachment. Figure 43.2.
4. Slide legs onto mounting brackets. Making sure the legs are up against the bracket and secure with bolts supplied. There are leveling bolts in 2 legs. These leveling legs should be in opposite corners. Figure
43.2.
4 screws that are installed on the stove.
5700 Step Top Wood Stove Series ACC
Figure 43.1
5. Carefully lift stove up and place in desired location. Do NOT tilt up on the cast iron legs, it could damage the legs.
6. Use leveling bolts on legs to stabilize and level stove.
Finishing the ARS Installation
1.
Follow steps 1 through 3 on page 42. See also Figure
42.2.
CAUTION!
• Do NOT tilt the unit on the cast iron legs. Tilting could lead to property damage.
• Lift the unit upright and place it into position on the fl oor protector.
November 28, 2011
Figure 43.2
7038-159D
Page 43
R
5700 Step Top Wood Stove Series ACC
Spark Arestor Cap
Roof Flashing
Storm Collar
Joist Shield/Firestop
Double wall connector pipe
Floor Protector
Outside Air Floor Vent
Outside Air Rear Vent
D. Mobile Home Installation
You must use a Quadra-Fire Outside Air Kit Part OAK-ACC for installation in a mobile home.
1. An outside air inlet must be provided for combustion See page 40 for installation information.
2. Appliance must be secured to the mobile home structure by bolting the pedestal through hearth pad and into fl oor at two the two attachment points.
3. Appliance must be grounded with #8 solid copper grounding wire or equivalent and terminated at each end with N.E.C. approved grounding device.
4. Appliance must be installed with an approved UL103 HT ventilated chimney connector, UL103 HT chimney, and terminal cap with spark arrestor. Never use a single wall connector (stove pipe) in a mobile home installation. Use only double-wall connector pipe, Dura-Vent DVL, Selkirk metalbestos DS or Security DL double-wall connector or any Listed double-wall connector pipe.
5.
In Canada, this appliance must be connected to a 6 inch (152mm) factory-built chimney conforming to CAN/ULC­S
629M, STANDARD FOR FACTORY BUILT CHIMNEYS.
6. Follow the chimney and chimney connector manufacturer’s instructions when installing the fl ue system for use in a mobile home.
7. Maintain clearance to combustibles.
8. Floor protection requirements must be followed precisely.
9. Use silicone to create an effective vapor barrier at the location where the chimney or other component penetrates to the exterior of the structure.
10. Burn wood only. Other types of fuels may generate poisonous gases (e.g., carbon monoxide).
11. If unit burns poorly while an exhaust blower is on in home, (i.e., range hood), increase combustion air.
12. Installation shall be in accordance with the Manufacturers Home & Safety Standard (HUD) CFR 3280, Part 24.
NOTE:
Offsets from the vertical, not exceeding 45°, are allowed per Section 905(a) of the Uniform Mechanical Code (UMC).
Offsets greater than 45° are considered horizontal and are also allowed, providing the horizontal run does not exceed 75% of the vertical height of the vent.
Construction, clearance and termination must be in com­pliance with the UMC Table 9C. This installation must also comply with NFPA 211.
NOTE: Top sections of chimney must be removable to allow maximum clearance of 13.5 feet (411cm) from ground level for transportation purposes.
THE STRUCTURAL INTEGRITY OF THE MOBILE HOME FLOOR, WALL AND CEILING/ROOF MUST BE MAIN­TAINED
Do NOT cut through:
• Floor joist, wall, studs or ceiling trusses.
• Any supporting material that would affect the structural
This unit is to be connected to a factory-built chimney
For removal of the chimney for mobile home transporta-
CAUTION
integrity.
conforming to CAN/ULC-S629, Standard for 650°C Factory-Built Chimneys.
tion, contact the proper transportation offi cials.
Figure 44.1
CAUTION!
THE STRUCTURAL INTEGRITY OF THE MOBILE HOME
FLOOR, WALL AND CEILING/ROOF MUST BE MAIN­TAINED
Do NOT cut through:
• Floor joist, wall, studs or ceiling trusses or any support­ing material that would affect the structural integrity.
WARNING! Risk of Asphyxiation!
NEVER INSTALL IN A SLEEPING ROOM. It will consume the oxygen in the room.
Page 44
7038-159D
November 28, 2011
R
5700 Step Top Wood Stove Series ACC
Snap Disc Bracket with Magnet
Secure wires with wire tie
MANUAL: Over-rides the Snap Disc
AUTO: Fan will turn ON/OFF Automatically by the Snap Disc
Controls the Fan Speed
MANUAL
FAN
AUTO
LOW
HIGH
OFF
E. Blower Installation (Optional)
1. Align holes in mounting fl ange of blower with bolt holes in appliance. Blower should be positioned at bottom of rear outer skin as shown in Figure 45.1.
2. Insert and tighten bolts supplied with the kit, securing blower onto outer wall of appliance.
Place the bracket containing the snap disc and magnet
3
under the bottom left rear corner as shown in Figure 45.1.
See pages 15 and 21 for detailed operating instructions
for the blower and snap disc.
CAUTION! Risk of Shock!
• Do NOT remove grounding prong from plug.
Plug directly into properly grounded 3 prong receptacle.
• Route cord away from appliance.
Do NOT route cord under or in front of appliance.
F. Adjusting the Blower Speed Control
The blower speed control for this unit is adjusted at the factory, and normally does not require further adjustment.
NOTE: When the speed control is turned clockwise, it will click on to high speed. Continue to turn the speed control clockwise to decrease the speed. At full clock­wise, the blower should blow gently, but should not stop.
Figure 45.1
November 28, 2011
7038-159D
Page 45
R
5700 Step Top Wood Stove Series ACC
Part number list on following page.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
17
18
19
20
21
22
23
24
25
26
27
28
16
10
Reference Materials
A. Exploded View
Beginning Mfg Date: 4-10-09 Ending Mfg Date:
Page 46
7038-159D
November 28, 2011
R
5700 Step Top Wood Stove Series ACC
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
Stocked at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Air Channel, Convection SRV7038-127
2 Air Supply Back SRV7038-119
3 Panel Assembly Side, Left SRV7038-006
4 Blanket, Ceramic Fiber SRV7038-117 Y
5 Baffl e Protection Channel (illustration on page 5) SRV7038-179
6 Baffl e Board Qty: 2 SRV7038-118
Y
7 Rear Channel Assembly SRV7038-001
8 Access Cover - ARS SRV7038-196
9 Channel - Ash Removal System (ARS) 7033-172
10 Tube Channel Rack SRV7038-174
11 Tube Channel Assembly SRV7038-008
Y
12 Secondary Tube Gasket 7038-187
13 Door Assembly
Black 831-1921
Gold Trim 831-1931
Nickel Trim DR-57NL
14 Hinge Pins, 1/2”
Qty: 2 Gold 832-0250
Qty: 2 Nickel 430-5320
15 Spring Handle, 1/2”
Qty: 1 Gold 832-0620
Y
Qty: 1 Nickel 250-8330
Y
16 Glass Assembly 7000-014
Y
Cam Latch 430-1141
Component Pack (Includes Nickel Spring Handles (1) 1/2” & (2) 1/4”, (2) Nickel Hinge Pins, Quadra-Fire Logo)
Black & Gold Doors
436-5350
Nickel Doors 436-5360
Door Handle Only 430-1131
Nut, Locking (For Door Handle) Pkg of 24 226-0100/24
Y
Gasket, Glass Tape, 3/4 “ - Field Cut to Size 5 Ft 832-0460
Y
Glass Frame Set GLA-FRM-5700
Handle Assembly 472-5130
Key, Cam Latch 430-1151
Logo, Quadra-Fire
Gold 200-3180
Nickel 200-3240
Rope, Door, 3/4” x 84” - Field Cut to Size
7 Ft
832-1680
Y
Screw, Flat Head Philips 8-32 x 1/2 Pkg of 10 832-0860
Y
Washer, Sae, 3/8 Qty: 3 ea. 832-0990
Y
17 Brick Retainer, Side Qty: 4 SRV7038-145
Additional service part numbers appear on following page.
November 28, 2011
7038-159D
Page 47
R
5700 Step Top Wood Stove Series ACC
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
18 Brick Assembly - Complete Set Pkg of 27 SRV7038-007
18.1 Brick, 9 x 4.5 x 1.25” Qty. 12 Req.
18.2 Brick, 9 x 1.75 x 1.25” Qty. 1 Req.
18.3 Brick, 6.75 x 1.75 x 1.25” Qty. 1 Req.
18.4 Brick, 9 x 2.75 x 1.25” Qty. 2 Req.
18.5 Brick, 7 x 1.75 x 1.25” Qty. 1 Req.
18.6 Brick, 6.75 x 4.5 x 1.25” Qty. 4 Req.
18.7 Brick, 5 x 4.5 x 1.25” Qty. 2 Req.
18.8 Brick, 7 x 4.5 x 1.25” Qty. 4 Req.
Brick, Uncut
Qty: 1 832-0550
Qty: 6 832-3040
19 Brick Retainer, Rear SRV7038-148
20 Panel Assembly Side, Right SRV7038-005
23 Manifold Tube Cover SRV7038-177
22 Secondary Air Diverter SRV7038-186
21 Manifold Cover Plate SRV7038-185
24 Oak Cover Plate Kit SRV7038-024
25 Door Assembly - ARS SRV7033-015 Y
26 Gasket - ARS SRV7033-296 Y
27 Latch, Handle Assembly - ARS SRV7033-047 Y
Additional service part numbers appear on following page.
18.1
18.1
18.1
18.1
18.1 18.1
18.1
18.1
18.1
18.1
18.1
18.1
18.2
18.3
18.4
18.5
18.8
18.8
18.8 18.8
18.6
18.6
18.6 18.6
18.7 18.7
No Brick, ARS
Cover Location
18.4
#18 Brick Set
7038-159D
November 28, 2011
Page 48
R
5700 Step Top Wood Stove Series ACC
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
28 Burn Rate Control Assembly SRV7038-025
28.1 Spring Handle, 1/4”
Qty: 2 Gold 832-0630 Y
Qty: 1 Nickel 250-8340 Y
28.2 Knob 7000-343
28.3 Air Control Rod Guide 7033-210
28.4 Latch, Magnet 229-0631
28.5 Control Arm Assembly Rear SRV7038-004
28.6 Timer Door Control Arm Assembly SRV7038-019
Door Gasket 7033-282 Y
28.7 Timer (Only) Replacement Assembly SRV480-1940 Y
28.8 Timer Arm Assembly 7033-034 Y
29.1 Pedestal Kit PED-5700
29.2 Ash Pan, Pedestal Model w/Door SRV7038-010
29.3 Trim, Oak Strips Qty: 2 SRV472-0520
Component Pack, Pedestal, Step-Top (Includes Gasket For Ash Removal, Magnet & Fasteners)
7033-045
Leg Kit & Ash Removal System (ARS)
Black LEG-3143-BK
Gold LEG-3143-GD
Nickel LEG-3143-NL
30.1
Leg Adapter Set (Bracket), Left & Right Qty: 2 SRV7038-028
30.2 Ash Pan Door Handle 7033-274
Ash Pan Leg Assembly 7033-008
30.3 Ash Pan Leg - ARS 7033-050
Component Pack, Leg Step Top (Includes Gasket For Ash Removal, Magnet & Fasteners)
7033-048
30.4 Legs, Queen Anne
Qty: 4 831-1240
Qty: 4 831-1250
Qty: 4 LEGS-QANL
Additional service part numbers appear on following page.
Ending Manufacturing Date: Active
#29 Pedestal Assembly
#30 Legs Assembly
28.1
28.2
28.3
28.4
28.5
28.6
28.7
28.8
28.9
29.1
29.2
29.3
30.1
30.4
30.6
30.5
#28 Burn Rate Control
Assembly
November 28, 2011
7038-159D
Page 49
R
5700 Step Top Wood Stove Series ACC
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
Component Pack (Includes Touch-Up Paint, Owners Manual, Warranty Card & Access Cover Handle)
SRV7038-017
Handle, Access Cover SRV7038-197
Paint Touch-Up 812-0910
Upgrade, Door, Nickel UK-DRNL
Gasket, Manifold Pkg of 4 7038-168/4
Baffl e Protection Channel SRV7038-179
ACCESSORIES
Blower Assembly BK-ACC
Blower Control Box W/Switch SRV7000-194
Y
Component Pack 7033-051
Magnet Round SRV7000-140
Y
Snap Disc Bracket Assembly 7033-036
Snap Disc, # 1, Convection Blower SRV230-0470
Y
Speed Control Only (Rheostat) 842-0370
Y
Wire Harness (Blower) 7033-262
Blower, Convection Blower Only 812-4900 Y
Outside Air Kit, Floor & Rear OAK-ACC
Outside Air Collar Assembly 7033-039
Outside Air Shield 33271
Y
FASTENERS
Avk Rivnut Repair Kit - 1/4-20 & 3/8-16 Rivnut Tools RIVNUT-REPAIR
Y
Nut, Ser Flange Small 1/4-20 Pkg of 24 226-0130/24
Y
Screw, Pan Head Philips 8-32 X 3/8 Pkg of 40 225-0500/40
Y
Screw, Sheet Metal #8 X 1/2 S-Grip Pkg of 40 12460/40
Y
Washer, 1/4 Sae Pkg of 24 28758/24
Y
Fiber baffle
Ceramic blanket
Side view
Front looking into unit
Baffle protection channel sits in between front tube and fiber baffle
This tab sits behind the front tube
Page 50
7038-159D
November 28, 2011
R
5700 Step Top Wood Stove Series ACC
C. Service And Maintenance Log
Date of Service Performed By Description of Service
November 28, 2011
7038-159D
Page 51
R
CONTACT INFORMATION:
DO NO
T
DIS
CARD
Hearth & Home Technologies
1445 North Highway
Colville, WA 99114
Division of HNI INDUSTRIES
Please contact your Quadra-Fire dealer with any questions or concerns.
For the number of your nearest Quadra-Fire dealer,
log onto www.quadrafi re.com
CAUTION
DO NOT DISCARD THIS MANUAL
Important operating and m a int e n a n c e instructions included.
• Read, understand and follow these instructions for safe installation and operation.
• Leave this manual with party responsible for use and operation.
We recommend that you record the following pertinent
information for your 5700 Step Top Wood Stove Series (ACC)
Date purchased/installed:
Serial Number: Location on appliance:
Dealership purchased from: Dealer phone:
Notes:
This product may be covered by one or more of the following patents: (United States) 4593510, 4686807, 4766876, 4793322, 4811534, 5000162, 5016609, 5076254, 5113843, 5191877, 5218953, 5263471, 5328356, 5341794, 5347983, 5429495, 5452708, 5542407, 5601073, 5613487, 5647340, 5688568, 5762062, 5775408, 5890485, 5931661, 5941237, 5947112, 5996575, 6006743, 6019099, 6048195, 6053165, 6145502, 6170481, 6237588, 6296474, 6374822, 6413079, 6439226, 6484712, 6543698, 6550687, 6601579, 6672860, 6688302B2, 6715724B2, 6729551, 6736133, 6748940, 6748942, 6769426, 6774802, 6796302, 6840261, 6848441, 6863064, 6866205, 6869278, 6875012, 6880275, 6908039, 6919884, D320652, D445174, D462436; (Canada) 1297749, 2195264, 2225408, 2313972; (Australia) 780250, 780403, 1418504 or other U.S. and foreign patents pending.
Page 52
7038-159D
November 28, 2011
Loading...
