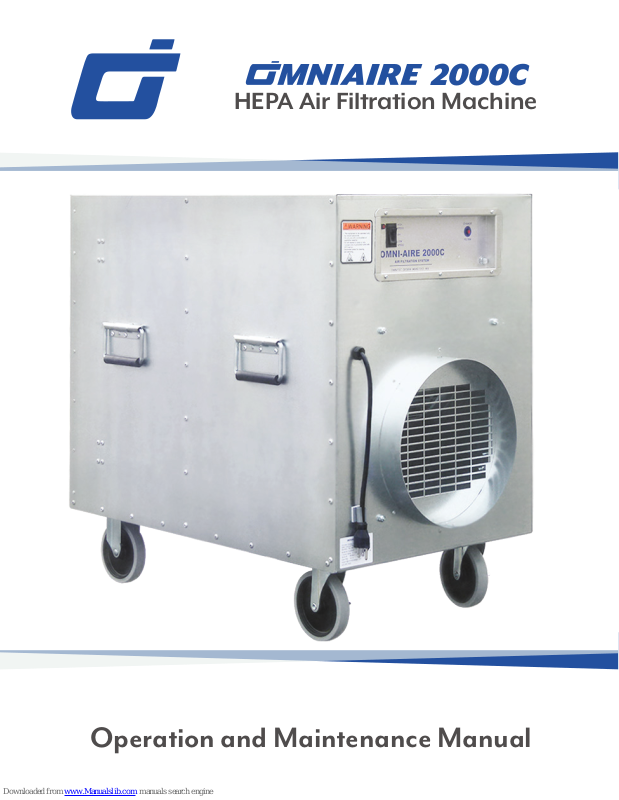

Omniaire 2000C, 2000V Maintenance Manual

HEPA Air Filtration Machine

2000C

Operation and Maintenance Manual

WARNING

Do not use with combustible or explosive material. Do not expose to water or rain. Connect
only to grounded outlet with GFCI device. Disconnect power for cleaning and servicing.
This equipment to be operated only by trained personnel.

CONFORMS TO UL STD 507
CERTIFIED TO CAN/CSA STD
C22.2 NO. 113-M1984

Safety Warning Instructions:

READ AND SAVE THESE INSTRUCTIONS
This equipment to be operated only by trained personnel.
Do not use with combustible or explosive material.
Do not expose to water or rain.
Connect only to grounded outlet with GFCI device.
Disconnect power for cleaning and servicing.
Do not operate if cord or plug is damaged. Contact a authorized service facility for examination and/or repair.
Do not run cord under carpeting.
Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic areas and where it is
not a tripping hazard.

Avertissement de sécurité Instructions:

LIRE ET CONSERVER CES INSTRUCTIONS
Cet équipement doit être utilisé que par un personnel formé.
Ne pas utiliser avec des matières combustibles ou explosives.
Ne pas exposer à l’eau ou à la pluie.
Connectez uniquement à une prise mise à la terre avec un dispositif GFCI.
Coupez l’alimentation électrique pour le nettoyage et l’entretien.
Ne pas utiliser si le cordon ou la fiche est endommagé. Contactez un centre de service autorisé pour examen et / ou
réparation.
Ne pas passer le cordon sous un tapis. Ne pas couvrir le cordon avec des carpettes, les coureurs, ou revêtements simi­laires. Éloigner le cordon des endroits passants et où il n’est pas un risque de déclenchement.

The OmniAire 2000C is a construction grade HEPA air scrubber, delivering the performance of a full sized negative air

contaminated

containment area

positive pressure

clean contained area

clean

ltered

air

sealed contaminated

containment area

sealed

clean room

clean

ltered

air

contaminated

air

contaminated

air

unit but is compact and easy to move and set up. The 2000C is used to create positive or negative pressure
at asbestos, lead and mold abatement projects, for collection of construction dust from cutting or grinding of
concrete, wood or plaster. The HEPA filter can also be replaced with an economical multi-pocket bag filter. Additional
accessories include intake manifold, flex ducting and quick clamps.

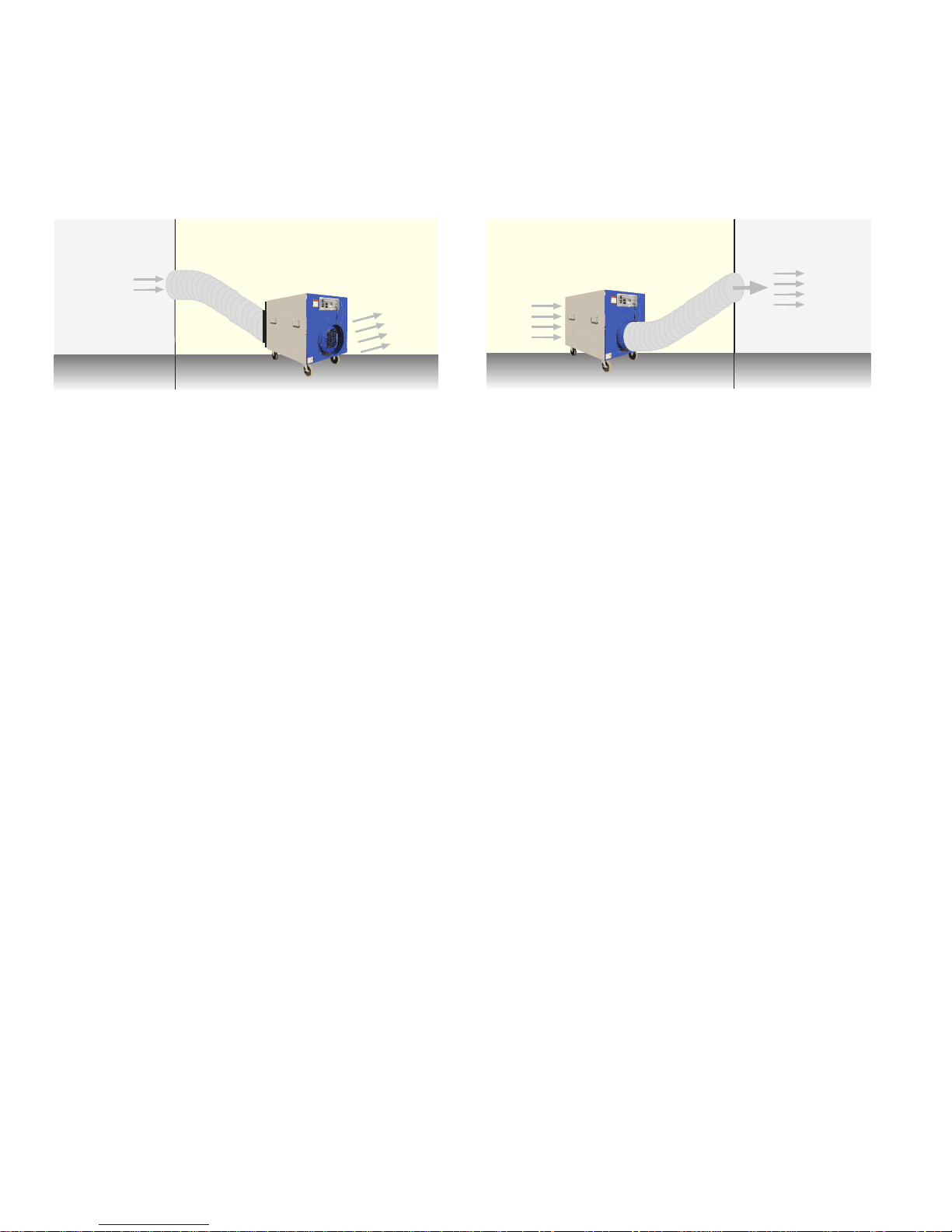

Application Examples

negative pressure

sealed contaminated

sealed

clean room

clean

ltered

air

contaminated

air

contaminated

containment area

positive pressure

clean contained area

clean

ltered

air

To create NEGATIVE PRESSURE inside the containment,
more air has to be exhausted out than leaks into the
containment. Place the machine inside the containment
and hook a flexible duct to the outlet ring of the
machine exhausting to outside the containment.
(See Above) All of the air being exhausted has been
treated by the HEPA filter so no contaminants are being
exhausted from the containment.

OmniAire 2000C Specifications

Airflow: 900/1600 CFM
Power Requirements: 115VAC/60 Hz/10.6 Amp
Motor: 1.5 hp with thermal overload
Filtration: HEPA filter 99.97% @ 0.3μ; MERV 9 primary/secondary filter Optional: MERV 15 bag filter; OdorGuard 600
activated carbon web filter; VaporTrap V-bank filter (27 lbs of active carbon); HEPA filter 99.99% @ 0.3μ, Bag filter
housing (with one bag filter included)
Recessed Controls: speed switch - HIGH/OFF/LOW; amber change filter indicator light; red power indicator light
Housing: galvanized metal; silicone sealed before riveting; 12” outlet; (4) rubber grip handles; (2) 5” hospital grade
locking casters; (2) 5” rigid casters
Size/Weight with Filters: 20”W x 32”H x 34”L; 135 lbs.

To create POSITIVE PRESSURE inside the containment,
more air has to be pumped in than leaks out of the
containment. Place the machine outside the containment
and hook a flexible duct to the outlet ring of the machine
ducting the exhaust into the containment. (See Above)

Receiving Instructions

Visually inspect the unit for damage. Remove the primary/secondary filter and ensure that the HEPA filter has not been
dislodged during shipping. The HEPA filter should be sitting on the filter guides and the filter tabs that hold the HEPA
filter in place should be tight.

If the filter is not seated correctly then remove the filter tabs, reposition the filter, and reinstall the filter tabs before
operation to ensure that there is no bypass around the filter. If the filter tabs are loose verify that the filter is in the
correct position and retighten the filter tab nuts.

Operation

For Asbestos and mold abatement, the machine must be operated with a HEPA filter in place. Also, it is recommended
to use the primary/secondary filer and replace it frequently to extend the life of the HEPA.

Start the machine

Place the switch in the HIGH or LOW position to turn the machine on. When filters are clean, the REPLACE FILTER
indicator light will be off. As the filters fill with dust the efficiency of the filters is maintained, but the air flow will
decrease and the differential pressure across the filter increases. Change the primary/secondary filter frequently to
protect the HEPA and to get more air flow. When the differential pressure reaches about 3.0” WC, the REPALCE FILTER
indicating light will turn on and the HEPA filter will have to be replaced to increase the air flow. Additional accessories
such as an optional intake manifold can be used on the suction side of the unit providing 12” connection for the flex
duct. The discharge side of the unit has a 12” diameter ring for a flex duct.

Maintenance

The blower and motor do not require any maintenance when the machine is operated with the HEPA filter in place.

Prefilter Replacement

The primary/secondary filter should be changed when the orange side shows it is loaded with dust. Changing the
filter can be done while the machine is running. Ensure that the orange side of the prefilter is facing the HEPA filter.

HEPA Filter Replacement

During your projects, your HEPA filter purifies the air and gradually becomes loaded
with sub-micron particulates. Even when the HEPA filter is fully loaded, the filter is still
removing particulates from the air at the rated efficiency yet at a reduced airflow. This
will affect the ability of the machine to provide positive or negative pressure within the
containment.

To replace the HEPA filter unplug the machine and remove the screen/manifold to
remove the prefilter. You will see 4 filter tabs holding the HEPA filter in place (see photo).

filter tab

Remove all 4 filter tab retaining nuts and remove the filter tabs and set aside. Slide the HEPA filter out along the
filter guides and remove it from the machine. ALWAYS TREAT THE USED HEPA FILTER AS HAZMAT AND PROCESS IT
ACCORDING TO YOUR ESTABLISHED HAZMAT PROCEDURES.

To replace the HEPA filter ensure that the gasket on the HEPA filter faces inwards toward the flange, slide the filter
in place along the filter guides and re-install the filter tabs and filter tab securing nuts. The nuts should initially be
tightened to where the stud is flush with the end of the nut. This will compress the gasket on the filter approximately 1/2
of the thickness. This allows for the filter to be reseated and tightened at a later time if necessary.

These tabs are secured with 1/4-20 Nylock nuts, which require a 7/16” wrench or socket.

Bag Filter Replacement

For the projects that do not require a HEPA filter, the economical bag filter can be used to control the dust at
construction sites. The bag filter housing can be installed in place of the HEPA filter. The Bag filter with a MERV 15 rating
and multi pocket configuration has a large dust holding capacity and require replacement when the airflow of the
machine drops below your required minimum flow. Typically bag filters do not require the use of prefilters.
The bag filter housing can be installed in the place of the HEPA filter using the filter tabs and Nylock nuts. The bag filter
is secured inside the housing with 4 P-clips. To remove the filter, turn the P-clips 90 degrees and pull it out. Then install
the new bag filter and secure it using the P-clips.

Vapor Trap Carbon Filter

Activated carbon filters are designed to remove odors and gaseous pollutants from air. These filters are an effective
and quick solution to your VOCs and odor problems. The selection of the carbon filter depends on the type and

amount of the gaseous pollutants. You will need to determine the requirements of your application. The Vapor Trap is
a disposable V-Bank, 24”x18”x12” filter and contains 27lb of activated granular carbon. It can be installed in place of a
HEPA filter. We recommend using our primary/secondary filter in front of the Vapor Trap to extend its odor absorption
capacity.

Troubleshooting

Your Omnitec Design machine is designed and engineered to provide years of trouble free service. Occasionally
problems occur. Here are some helpful tips and solutions.

The machine does not start

1. Check that the unit is plugged in and there is 115VAC available. Select either LOW or HIGH speed to turn the machine
on. If the red indicator light comes on, power is coming to the unit from the outlet.

2. Call Omnitec technical support to troubleshoot further.

The machine just hums when turned on

1. Unplug the unit.

2. Remove the HEPA filter and push the blower wheel by hand. If it does not move freely or if you hear a grinding/
scrapping noise as you spin it, then the blower wheel is touching the side of the blower housing. This may be due to
an impact of some kind and the motor mounts have been bent. Remove the motor/blower assembly and replaced
the bent motor mounts.

3. If the blower spins freely, check the capacitor. With the HEPA filter still removed from the machine, insure that the
wiring connected to the capacitor is plugged in and not broken. Re-plug the unit into the power outlet keeping the
switch in the OFF position. Then push the blower wheel and as it is spinning turn the speed selector switch to LOW. If
the machine keeps running, the capacitor needs to be replaced.

The machine will run for a few minutes then turn off

1. The machine must have a HEPA filter installed to operate properly. If you are trying to run it without a filter in place,
the motor will overheat within a few minutes and the thermal overload will engage and shut it down. Let he motor
cool off for 30 minutes, install the filter and try running the machine again.

2. If the filter is in pace and the machine still shuts off after a few minutes then the motor is faulty. Replace the motor.

The machine vibrates excessively when running

1. This is an indication that the motor bearings are worn out. If the machine continues running, at this point the
vibration will cause the center hub of the blower wheel to separate from the wheel requiring replacement of both the
motor and blower. Replace the motor.

2. If the machine does require electrical servicing of the motor or switches the following page contains a wiring
diagram to aid in repair or troubleshooting.

Ordering Info Part #

OmniAire 2000C OA2000C

Primary/Secondary Two-Stage Filters (box of 20) OFP2518

HEPA Filter 99.99%, 0.3μ (metal frame) OAH2418G

HEPA FILTER 99.97%, 0.3μ (pb frame) OAH2418

Bag Filter Housing (includes 1 Bag Filter) HBF2000

Bag Filter MERV 15 OBF9

Vapor Trap V-bank Filter OCVT18

OdorGuard 600 Carbon Filter OG2418D

ntake Manifold Kit (Manifold, Clamp & 3’ Duct) OAIM2000-12KIT

ABS Plastic Intake Manifold, 12” Dia. OAIM2000-12

Quick Clamp, 12”-16” Dia. QCW14

Flexible Duct, 12” Dia. x 25’ L OAD12

Flexible Duct, Wire & Fiber Reinforced OAD12R

115
VAC

60Hz

BLACK

WHITE

GREEN

ON

OFF

ON

LED

R

Diagram Legend

Wiring Connector

Terminated (Capped) Wire

R

Red LED Light

A

Amber LED Light

G

Green LED Light

RED

BLACK

WHITE

GREEN

PRESSURE

SWITCH

4640 Campus Place, Suite 100

T. 425.290.3922 | F. 425.290.3964

LED

A

1.25 HP
MOTOR

MODEL

30 μF

CAPACITOR

OA2000C

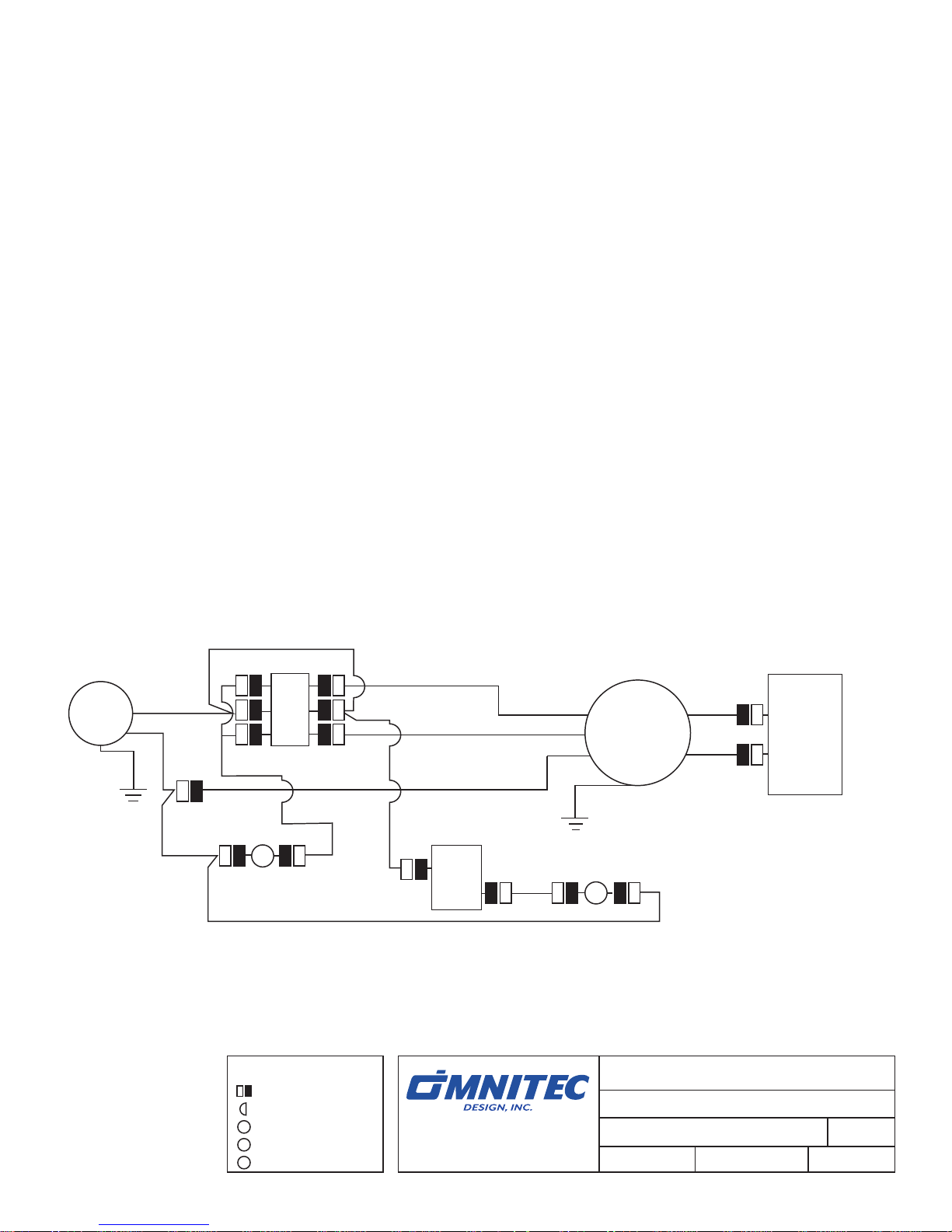

Wiring Diagram

DRAWN BY:

A. Briceno A

SCALE DATE SHEET

Not to Scale

February 20, 2017

REV

1 of 1

Omnitec Design Inc. LIMITED WARRANTY

Omnitec Design Inc warrants, for a period of twelve (12)
months from the date of purchase, that all Products,
component parts and accessories, excluding filters,
will be free from defects in material and workmanship
under normal use and service.

THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY
UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR
REPLACEMENT OF DEFECTIVE PARTS F.O.B., Omnitec
Design Inc 4640 Campus Place Ste. 100, Mukilteo, WA
98275 Phone: [phone]

In order to keep this warranty in effect for the
aforementioned twelve-month period, the purchaser
must (i) promptly, i.e., immediately upon discovery,
inform Omnitec Design Inc’s customer service of any
defects, and (ii) properly use and maintain the Product
prior to the discovery of any defect.

This warranty does not cover normal wear and tear or
defects caused by (i) improper or negligent handling or
unauthorized modifications; (ii) defective or improper
premises, chemical, or electrical influences; or (iii)
weather or other forces of nature.

In order to provide the best customer service possible,
Omnitec Design Inc requests that purchaser completes
the enclosed LIMITED WARRANTY REGISTRATION FORM
and returns it to Omnitec Design Inc within 30 days of
purchase date.

LIMITATIONS OF WARRANTY
THIS WARRANTY IS EXPRESSLY IN LIEU OF ANY AND ALL
OTHER WARRANTIES AND OBLIGATIONS OF Omnitec
Design Inc OR ITS SUPPLIERS, EXPRESS OR IMPLIED,
AND Omnitec Design Inc EXPRESSLY DISCLAIMS ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR
ANY PARTICULAR PURPOSE.

LIMITATION OF REMEDY

Under no circumstances shall Omnitec Design Inc
or any supplier of Omnitec Design Inc be liable for
any loss or damage, including, but not limited to, loss

or damage arising out of the failure of the Products to
operate for any period of time, inconvenience, the use
of rental or replacement equipment, loss of profits or
other economic loss, or general, direct, special, indirect,
incidental or consequential damages or property
damages.

PRODUCT SUITABILITY
Many states and localities have their own varied
codes and regulations governing sales, construction,
installation, and/or use of Products for certain purposes.
While Omnitec Design Inc attempts to assure that its
Products comply with such codes, it cannot guarantee
compliance, and cannot be responsible for how the
Products are installed or used. Omnitec Design Inc
recommends that, before purchasing and using a
Product, purchasers review the Product application, and
federal, state and local regulations, to be sure that the
Products, installation, and use will comply with them.

LIMITED WARRANTY REGISTRATION

The undersigned has read and understood the above Warranty and Limitation of Warranty and Limitation of Remedy.

PRODUCT # SERIAL #

PURCHASED FROM DATE

CUSTOMER INFORMATION

COMPANY PHONE

STREET

CITY STATE ZIP CODE

BY DATE

PLEASE SEND TO:

Omnitec Design Inc 4640 Campus Place Ste. 100 Mukilteo, WA 98275
