Page 1

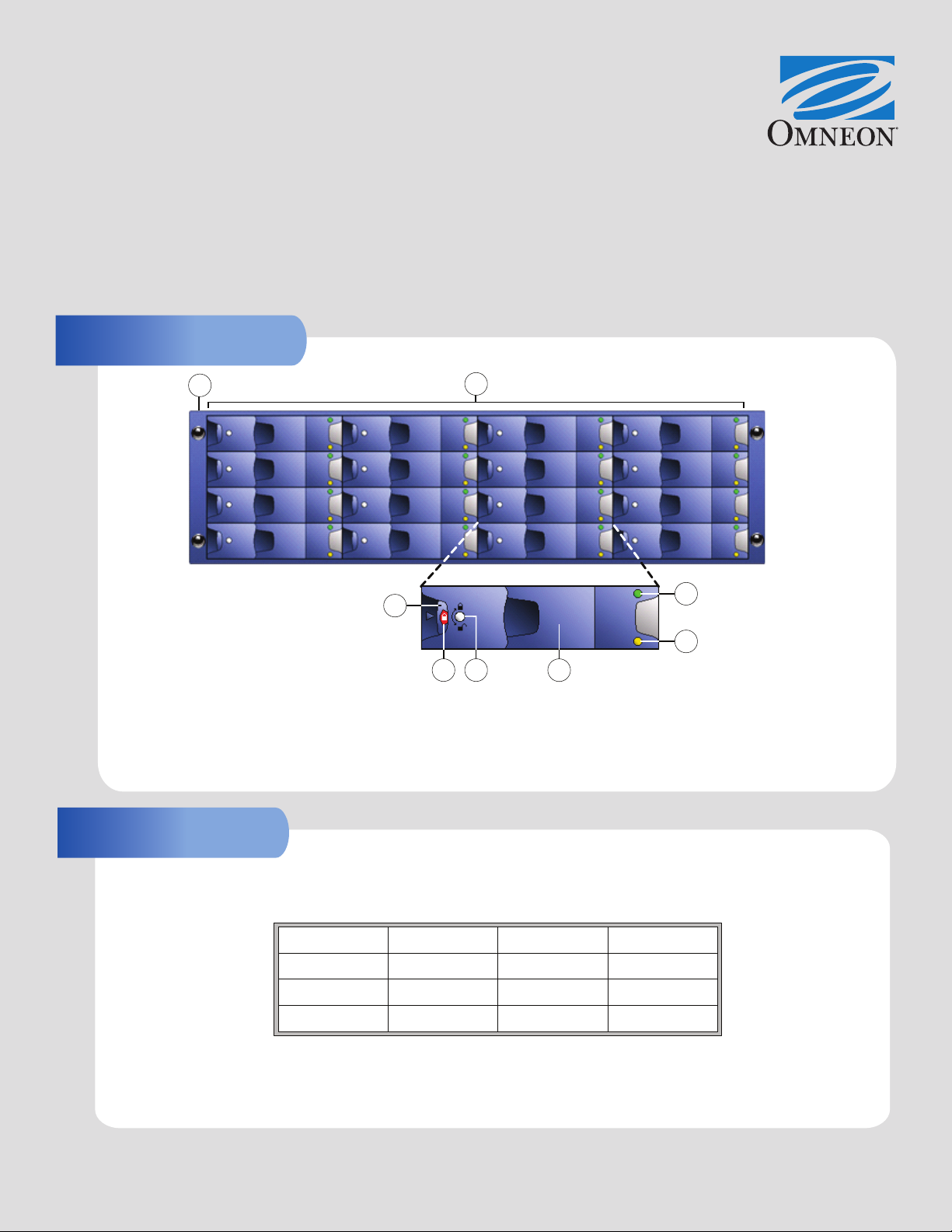

Front Panel Components
Note: Disk drives must always be installed in locations 1/1 (Drive 1) or 4/4 (Drive 16).

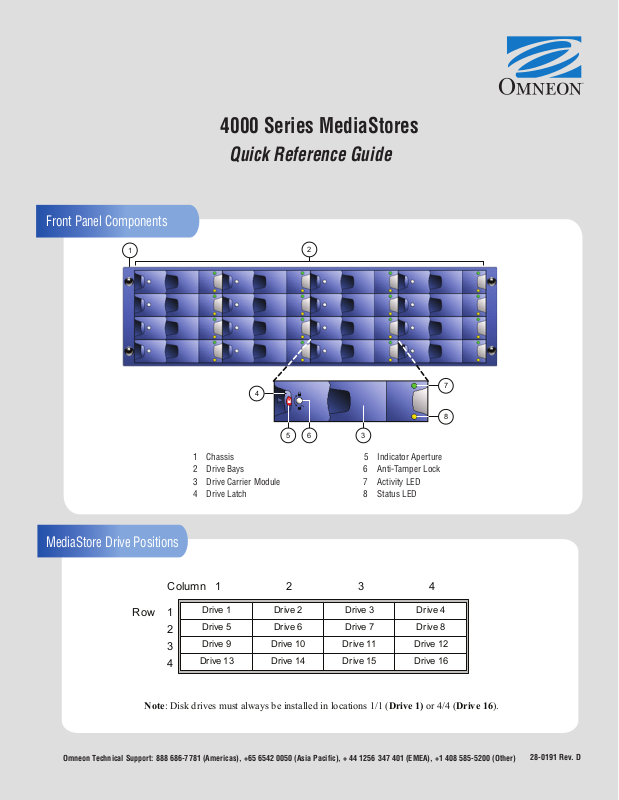

4000 Series MediaStores
Quick Reference Guide
1
4
1 Chassis 5 Indicator Aperture
2 Drive Bays
3 Drive Carrier Module
4 Drive Latch
2
7
8
5 6 3
6 Anti-Tamper Lock
7 Activity LED
8 Status LED
MediaStore Drive Positions
Column 1 2 3 4
Row 1
2
3
4
Drive 1 Drive 2 Drive 3 Drive 4
Drive 5 Drive 6 Drive 7 Drive 8
Drive 9 Drive 10 Drive 11 Drive 12
Drive 13 Drive 14 Drive 15 Drive 16
Omneon Technical Support: 888 686-7781 (Americas), +65 6542 0050 (Asia Pacific), + 44 1256 347 401 (EMEA), +1 408 585-5200 (Other)
28-0191 Rev. D
Page 2

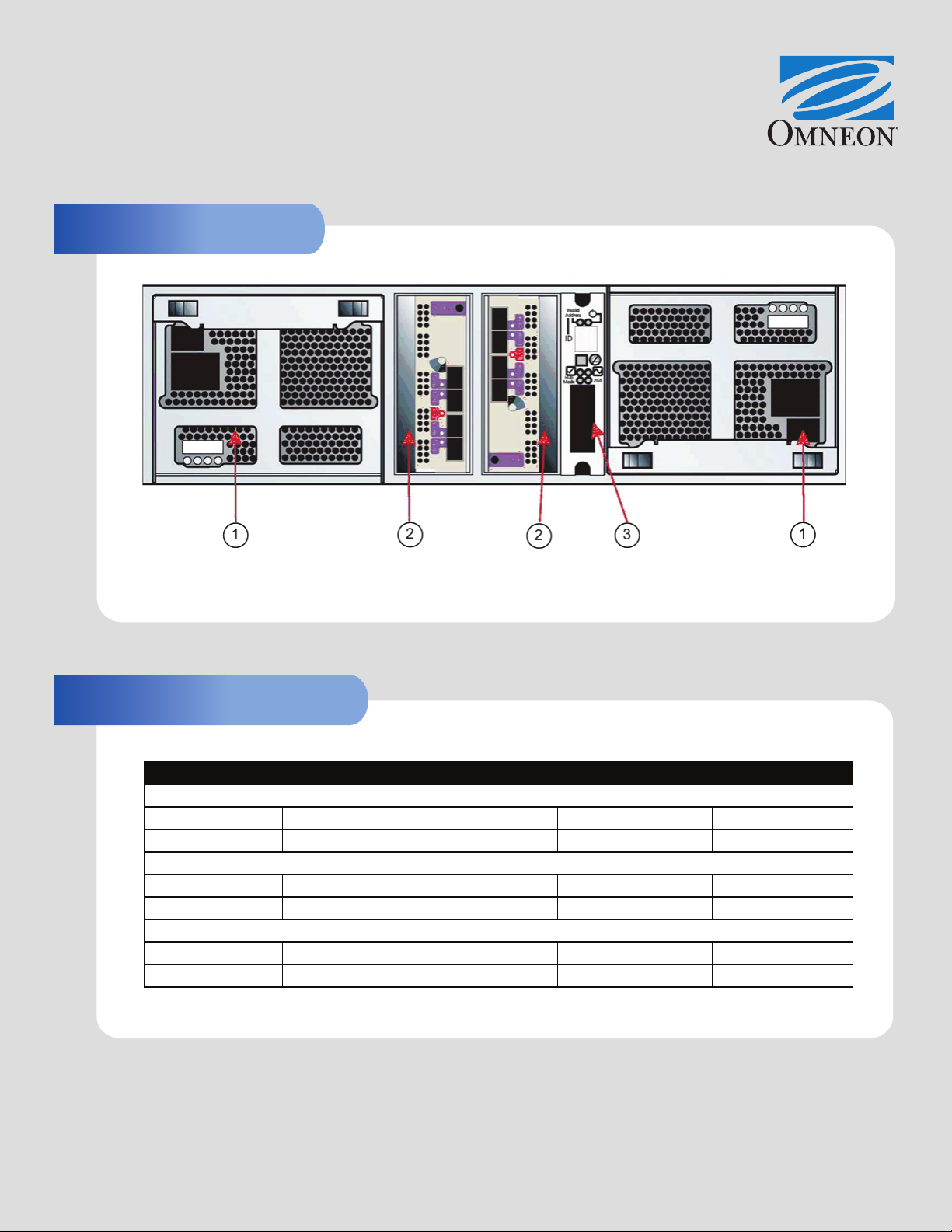

MediaStore Rear Panel
Model #
# Drives
RAID Set
Hot Spare
Total Storage
Series b: 146 GB Drives
MSS-4171b
8
6+1+1
1
876 GB
MSS-4272b
16
2 x (6+1+1)
2 (1 per RAID set)
1,752 GB
Series c: 300 GB Drives
MSS-4171c
8
6+1+1
1
1,800 GB
MSS-4272c
16
2 x (6+1+1)
2 (1 per RAID set)
3,600 GB
Series d: 450 GB Drives
MSS-4171d
8
6+1+1
1
3,600 GB
MSS-4272d
16
2 x (6+1+1)
2 (1 per RAID set)
7,200 GB
1 Power Supply 2 LRC I/O Modules 3 Operators Panel
4000 Series MediaStore Models
Omneon Technical Support: 888 686-7781 (Americas), +65 6542 0050 (Asia Pacific), + 44 1256 347 401 (EMEA), +1 408 585-5200 (Other)
28-0191 Rev. D
