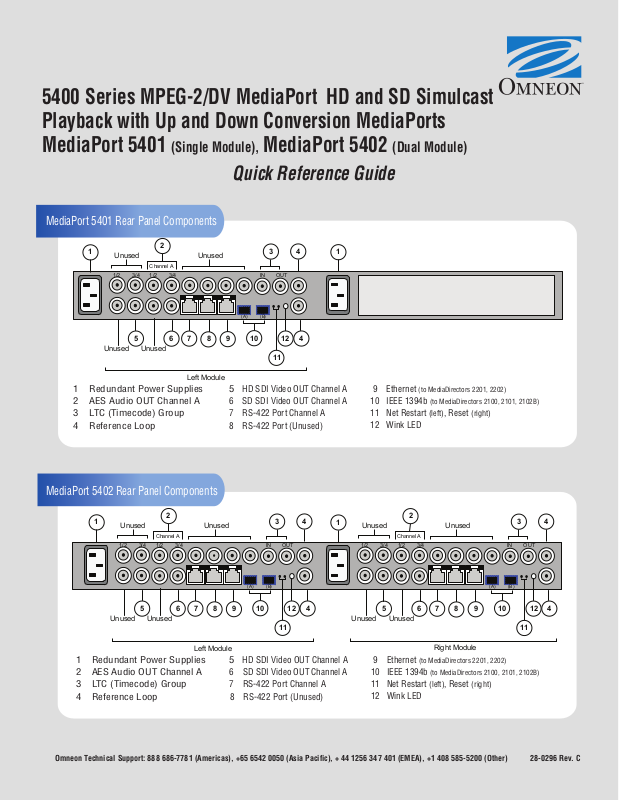

5400 Series MPEG-2/DV MediaPort HD and SD Simulcast
Playback with Up and Down Conversion MediaPorts
MediaPort 5401
(Single Module), MediaPort 5402 (Dual Module)
Quick Reference Guide

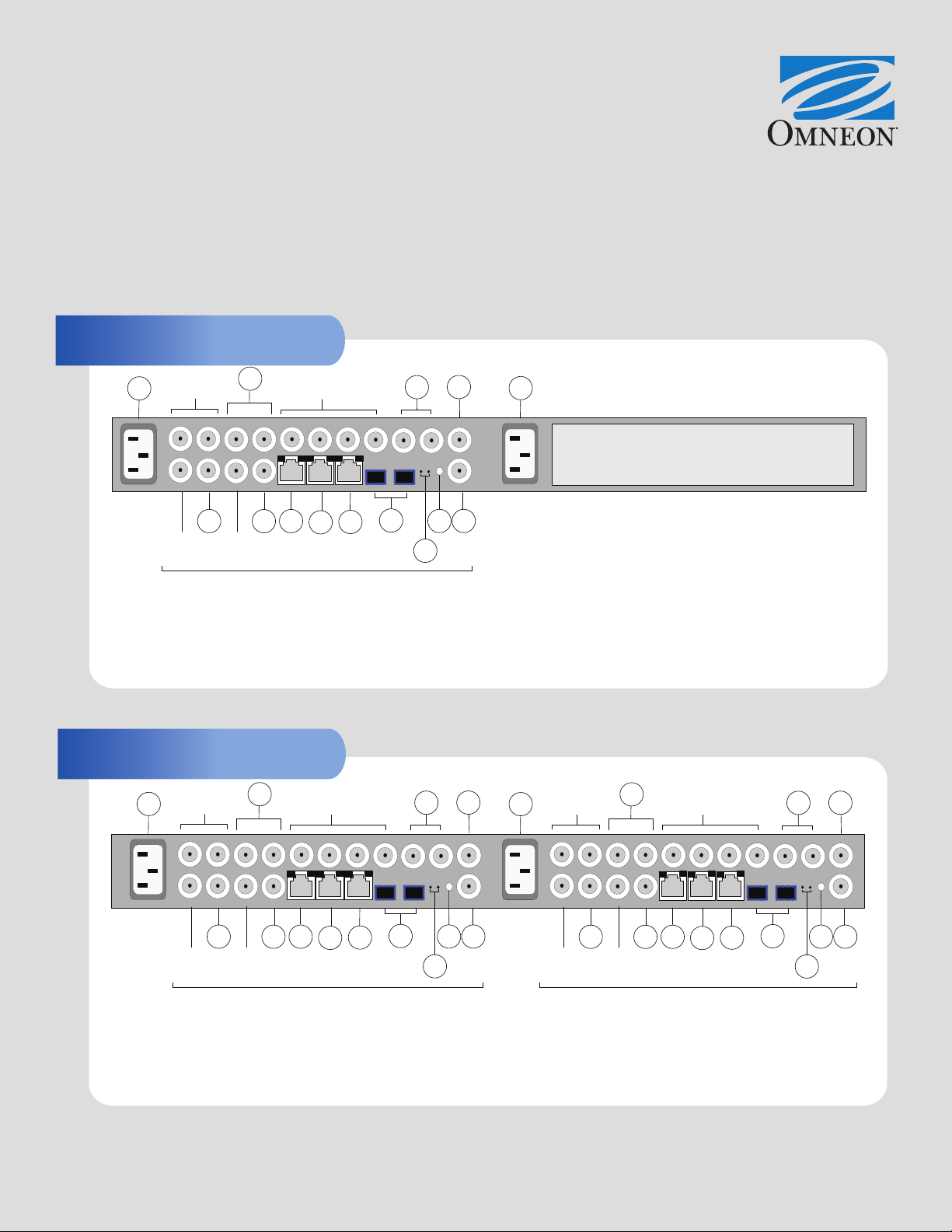

MediaPort 5401 Rear Panel Components
5
Unused
2
Unused
Channel A
1/2 3/4
6
Left Module
1 1
Unused
1/2 3/4
Unused
1 Redundant Power Supplies
2 AES Audio OUT Channel A
3 LTC (Timecode) Group
4 Reference Loop
3 4
IN OUT
(A) (B)
107 12 4
98
11
5
HD SDI Video OUT Channel A
6 SD SDI Video OUT Channel A
7 RS-422 Port Channel A
8 RS-422 Port (Unused)
9 Ethernet
(to MediaDirectors 2201, 2202)
10 IEEE 1394b (to MediaDirectors 2100, 2101, 2102B)
11 Net Restart (left), Reset (right)
12 Wink LED
MediaPort 5402 Rear Panel Components
5
Unused
2
Channel A
1/2 3/4
6
Unused
Left Module
98
5
HD SDI Video OUT Channel A
6 SD SDI Video OUT Channel A
7 RS-422 Port Channel A
8 RS-422 Port (Unused)
1
Unused
1/2 3/4
Unused
1 Redundant Power Supplies
2 AES Audio OUT Channel A
3 LTC (Timecode) Group
4 Reference Loop
Omneon Technical Support: 888 686-7781 (Americas), +65 6542 0050 (Asia Pacific), + 44 1256 347 401 (EMEA), +1 408 585-5200 (Other)
3 4
IN OUT
(A) (B)
107 12 4
11
1
Unused
1/2 3 /4
Unused
9 Ethernet (to MediaDirectors 2201, 2202)
10 IEEE 1394b (to MediaDirectors 2100, 2101, 2102B)
11 Net Restart (left), Reset (right)
12 Wink LED
5
Unused
2
Channel A
1/2 3 /4
6
Right Module
Unused
98
3 4
IN OUT
(A) (B)
107 12 4
11
28-0296 Rev. C
Page 2

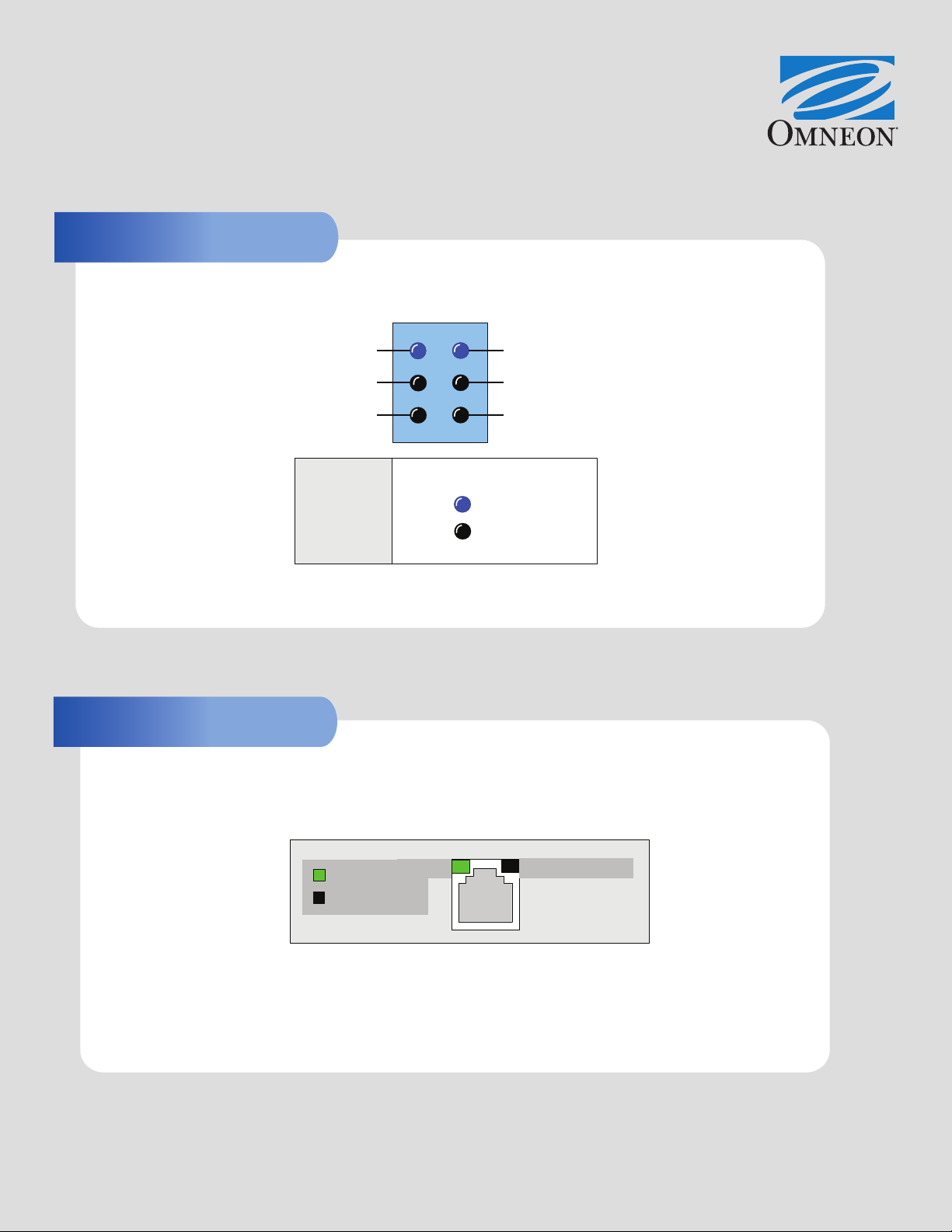

Front Panel Status LEDs
*Left Module
(
MediaPort 5402 only)
Channel A
Unused
Unused
For Each
Rear Panel RS-422 Activity LEDs
*Right Module
(MediaPort
Channel A
Unused
Unused
MediaPort Status
Channel
* As view ed f rom the f ront of the unit
Bl ue
Play in progres s
StoppedBl ack
5401 & 5402
)
= Active
LED is Unused
= Inactive
Omneon Technical Support: 888 686-7781 (Americas), +65 6542 0050 (Asia Pacific), + 44 1256 347 401 (EMEA), +1 408 585-5200 (Other)
28-0296 Rev. C
