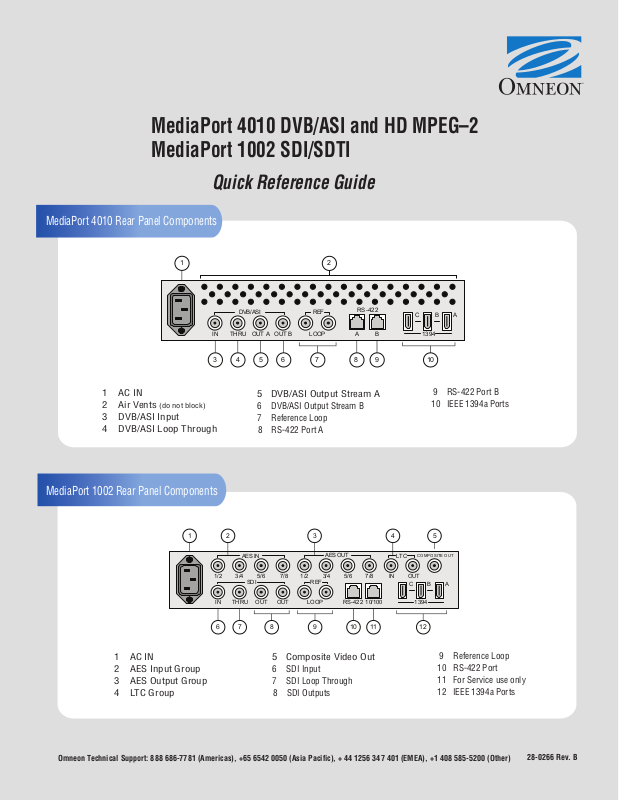

MediaPort 4010 DVB/ASI and HD MPEG–2
MediaPort 1002 SDI/SDTI
Quick Reference Guide
MediaPort 4010 Rear Panel Components
1
3 4 7 8 9 10
1 AC IN
2 Air Vents
(do not block)
3 DVB/ASI Input
4 DVB/ASI Loop Through
MediaPort 1002 Rear Panel Components
1 2 3 4 5
DVB/ASI REF
LOOPIN THRU OUT A OUT B
5 6
5 DVB/ASI Output Stream A
6 DVB/ASI Output Stream B
7 Reference Loop
8 RS-422 Port A
AES IN
2
AES OUT
RS-422
A
C B A
B
1394
9 RS-422 Port B
10 IEEE 1394a Ports
COMP OSITE OUT
LTC
1/2 3/4 5/6 7/8
IN THRU OUT OUT
6 7 8 9 10 11 12
SDI
1 AC IN
2 AES Input Group
3 AES Output Group
Omneon Technical Support: 888 686-7781 (Americas), +65 6542 0050 (Asia Pacific), + 44 1256 347 401 (EMEA), +1 408 585-5200 (Other)
4 LTC Group
8 SDI Outputs
1/2 3/4 5/6 7/8
REF
LOOP
RS-422 10/100 1394
5 Composite Video Out
6 SDI Input
7 SDI Loop Through
IN OUT
C B A
9 Reference Loop
10 RS-422 Port
11 For Service use only
12 IEEE 1394a Ports
28-0266 Rev. B
Page 2
MediaPort 1002 Front Panel Status LEDs
IdleBlack
Green Record
Dark Blue Play
Green
Light Blue
Black N either trans mit ting (TX)
Green not TX, Controller TX
Dark Blue TX, Controller not TX
Light Blue
SDI input invalid,
corrupted, or not present
SDI input
MediaPort
MediaPort
Both transmitting
valid
RS-422 Control
Mode
SDI Input
MediaPort 4010 Front Panel Status LEDs
Reference
SDI Output
Unused
Black
Green
Light Blue
No reference signal connected
Not locked to reference. If t he
LED remains Green for more
than 10 seconds, the connected
signal is not composite video.
Locked to external
reference
Green SDI Output Unlocked
Light Blue SDI Output Locked
Black
Green
IdleBlack
Green Record
Dark Blue Play
Green
Light Blue
SDI input invalid,
corrupted, or not present
SDI input
valid
indicated
RS-422 Port:
RS-422 Control A
For the
Mode
SDI Input
Black Neither t ransm itt ing (TX)
Green
Dark Blue
Light Blue
MediaPort
MediaPort
Both transmitting
not TX, Controller TX
TX, Controller not TX
Reference
SDI Output
RS-422 Control B
Light Blue Locked to external reference
Omneon Technical Support: 888 686-7781 (Americas), +65 6542 0050 (Asia Pacific), + 44 1256 347 401 (EMEA), +1 408 585-5200 (Other)
No reference signal connected
Not locked to reference. If t he
LED remains Green for more
than 10 seconds, the connected
signal is not composite video.
Green SDI Output Unlocked
Light Blue SDI Output Locked
28-0266 Rev. B
